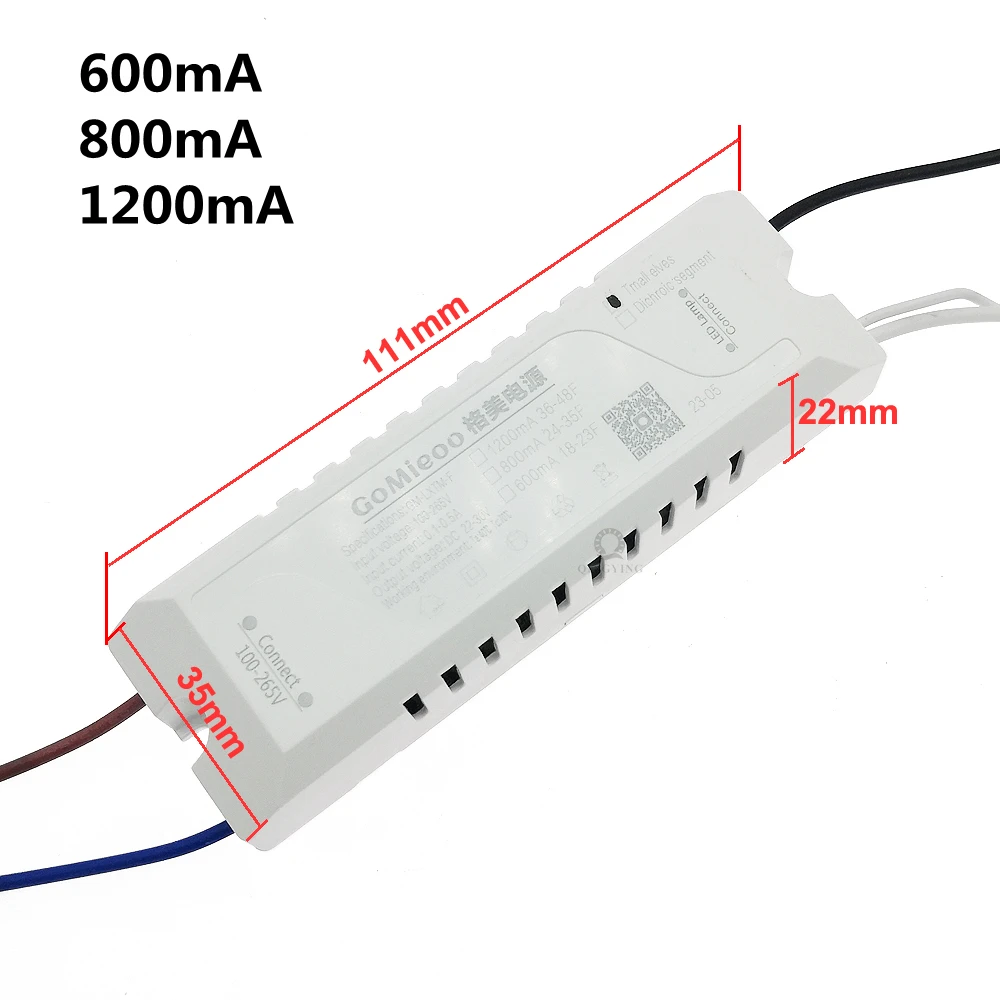

2.4G Intelligent Power Supply DC24V 600mA 800mA 1200mA 1500mA 2400mA 2700mA 3000mA 2Pin 2 Color Parallel LED Driver GM-LXTM-F

Note:

600mA 800mA 1200mA 1500mA is AC100-265V input voltage.

1800mA 2400mA 2700mA 3000mA is AC180-265V input voltage.

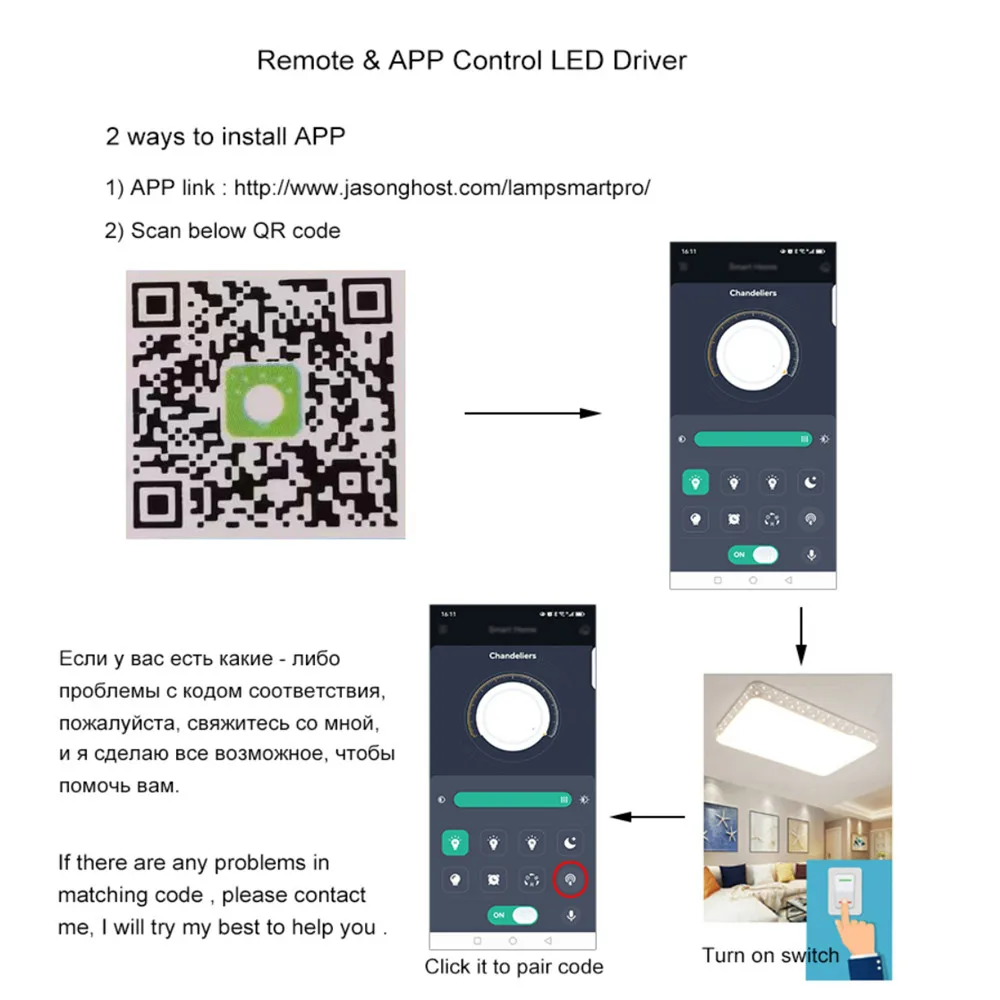

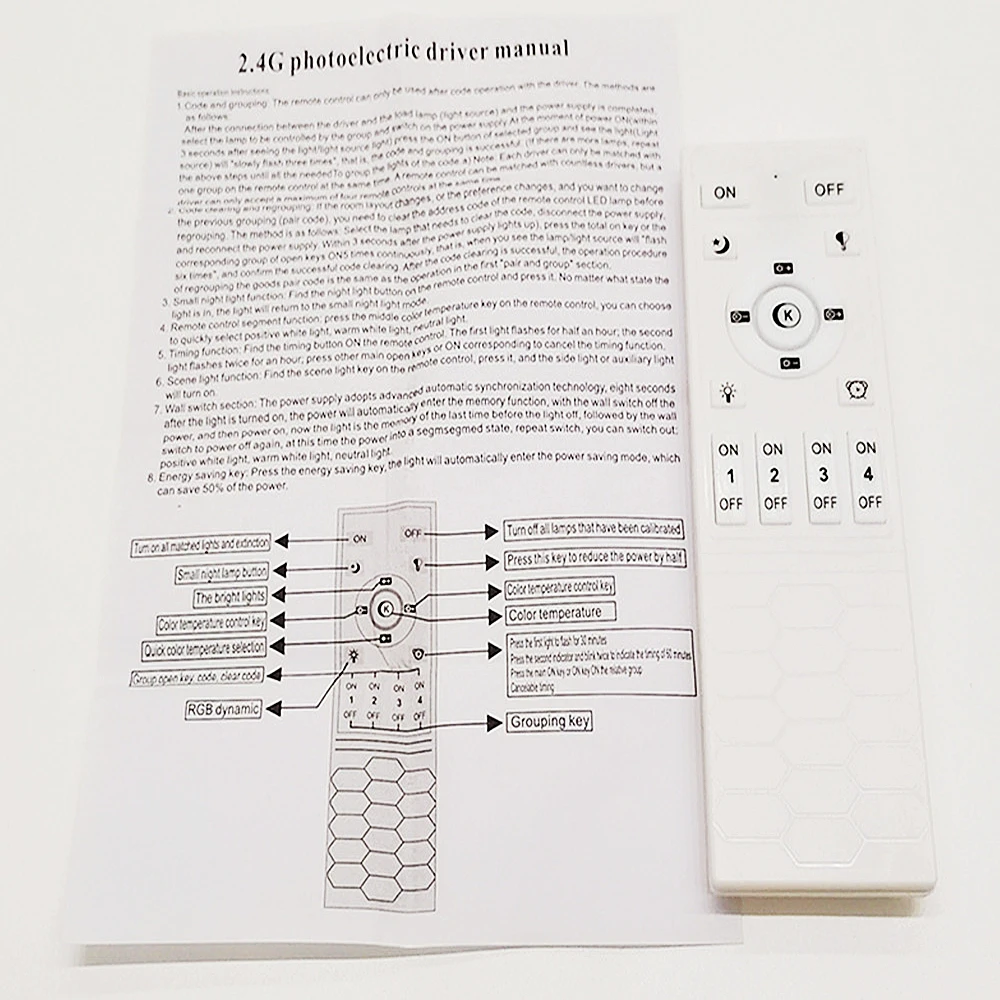

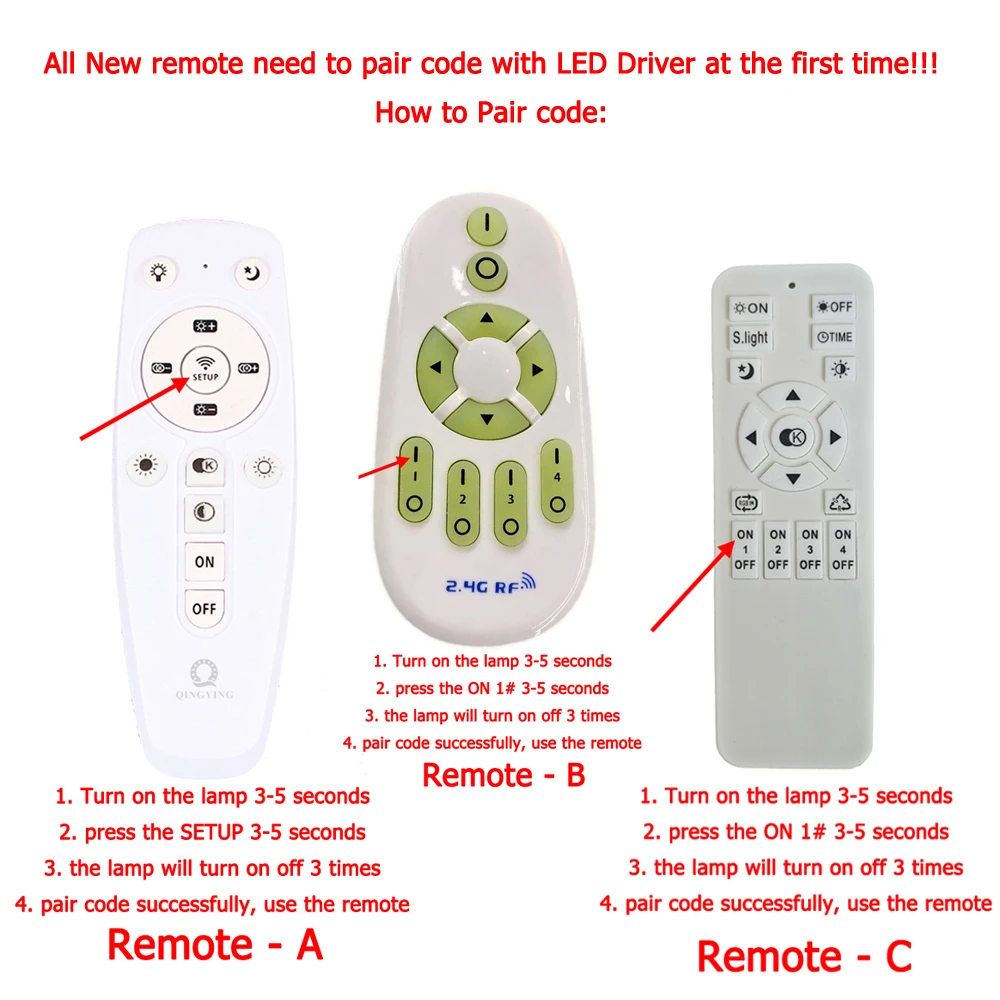

all new remote need to pair the code with the led driver at the first time to use.

1. connect the led driver to your lamp, and then turn on the lamp 5 seconds.

2. press the remote ON 1# 3-5 seconds or 3-5 times to pair code.

3. the lamp will flick on/off three times, it means that the Remote had pair to the Driver.

4. use the remote to control the lamp.

Pay attention please :

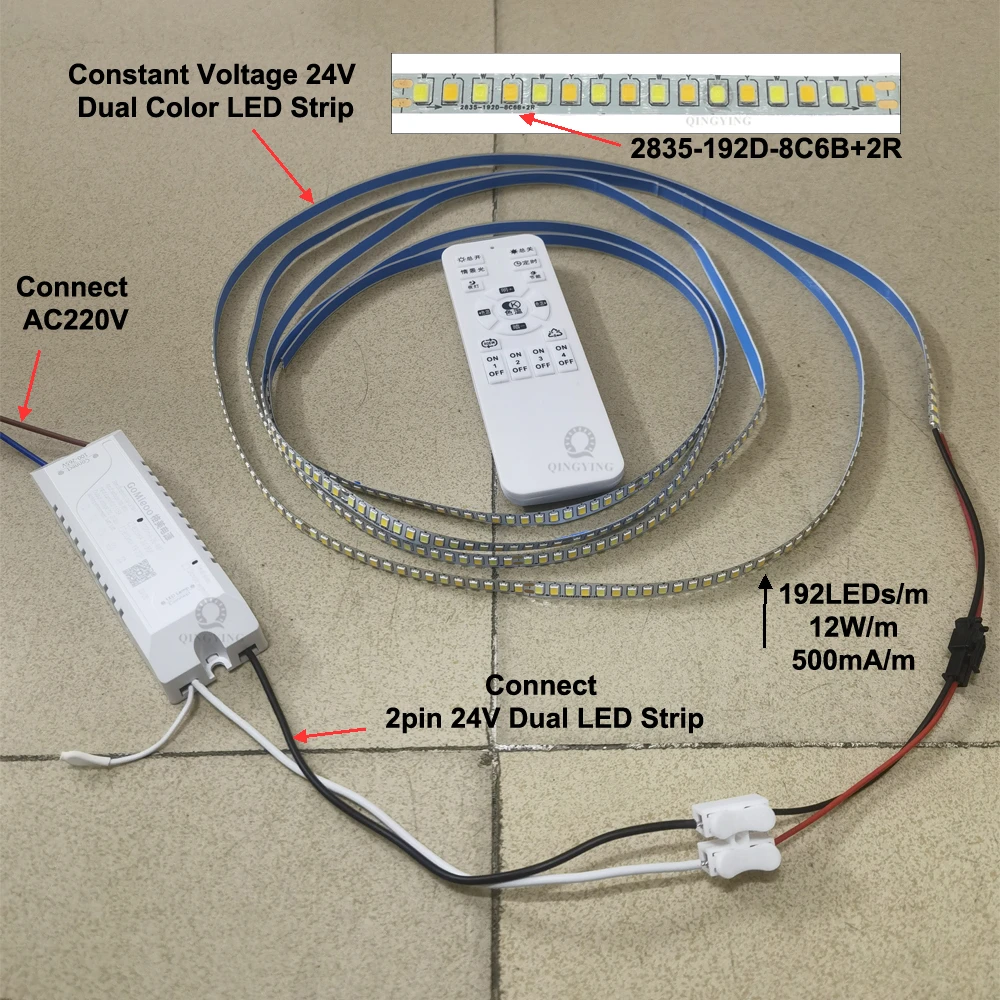

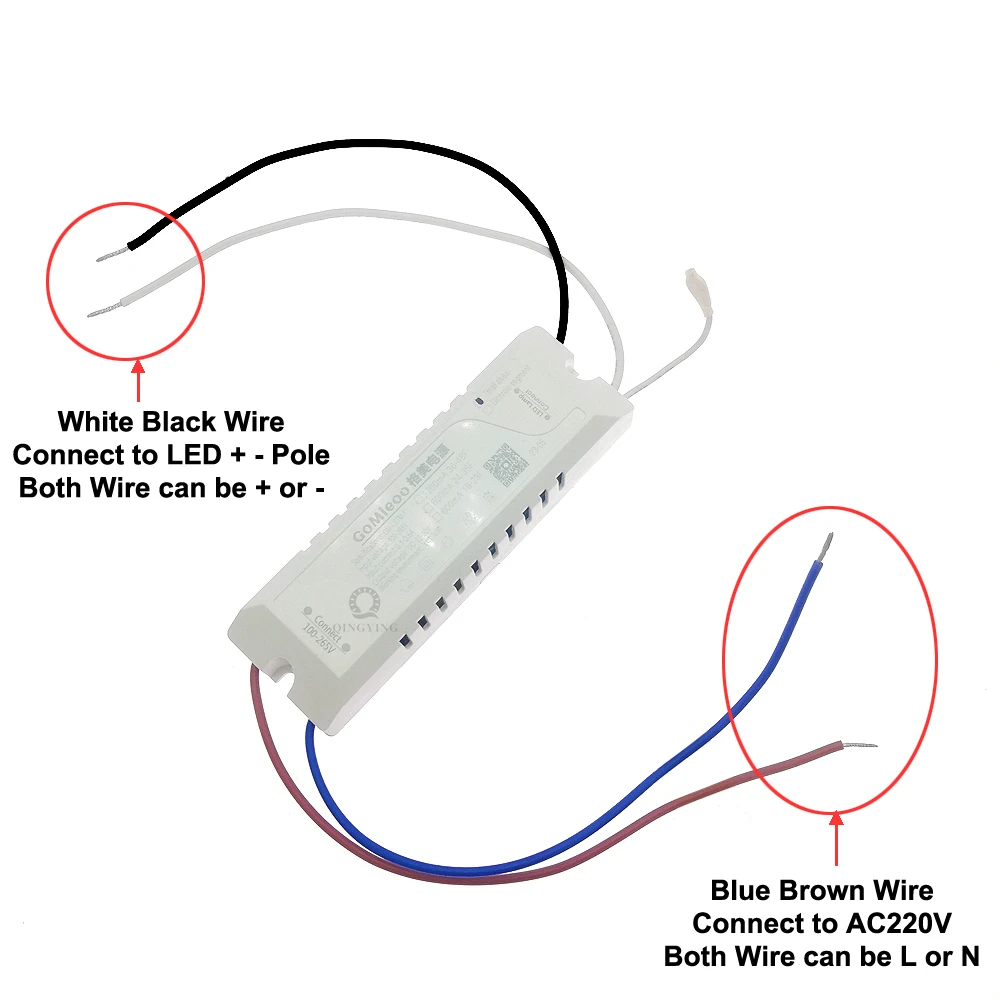

This LED driver is newest product, it has two input and two output cables , output voltage 22-30V, it has dimmable and color changeable function , it works with special LED strip , use for the 24V Constant Voltage 2Pin Bicolor Parallel LED Strip,(192LED/m, 12W/m, 500mA/m), if you need, you can contact us to buy it. it can't work with normal 24V LED Strip. Thank you .

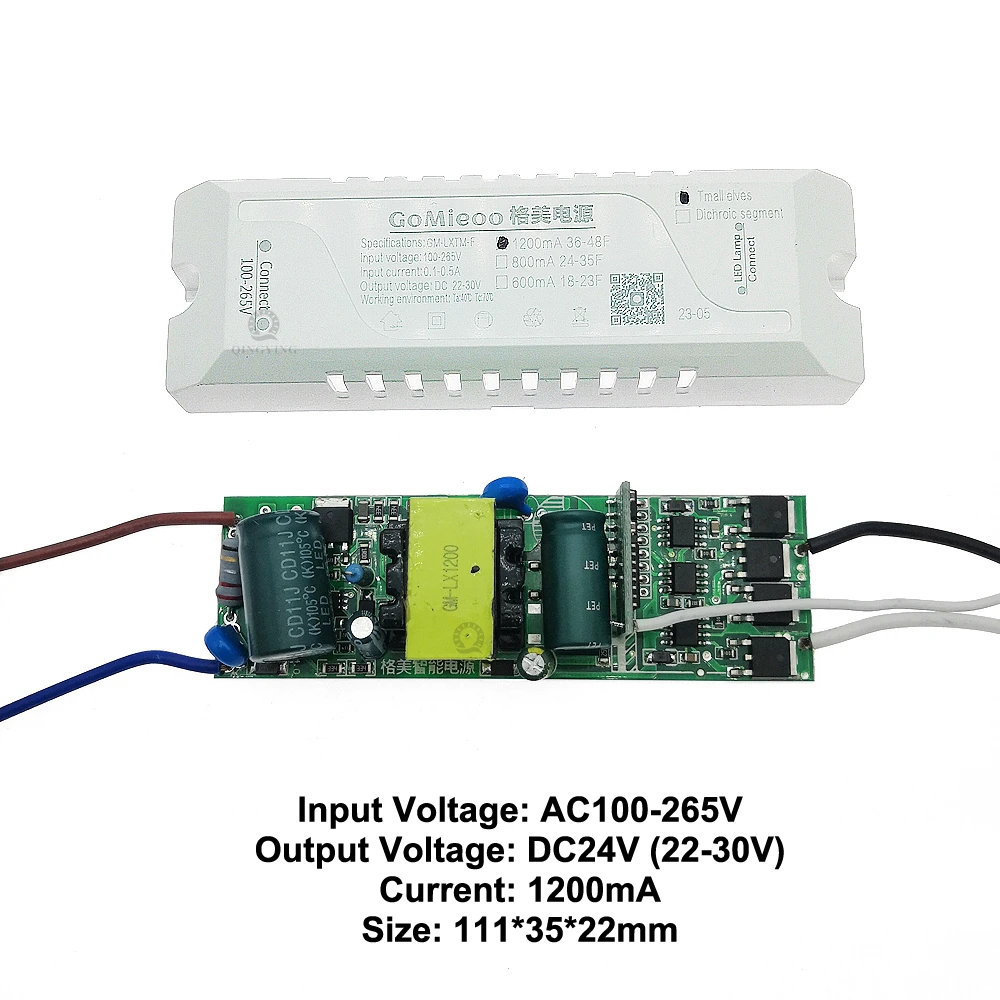

Name : Constant voltage and current LED driver

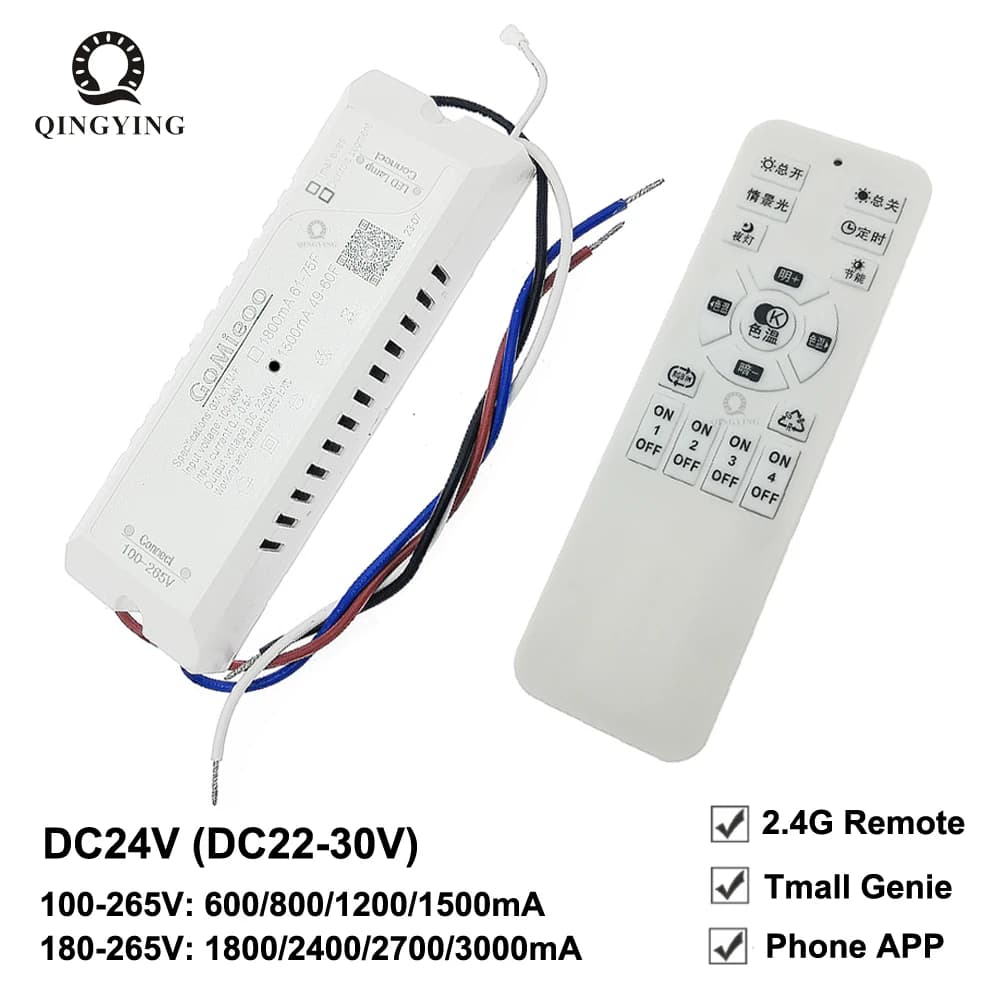

Function : APP and 2.4G Remote, Tmall Genie control Dimming&Changing colors

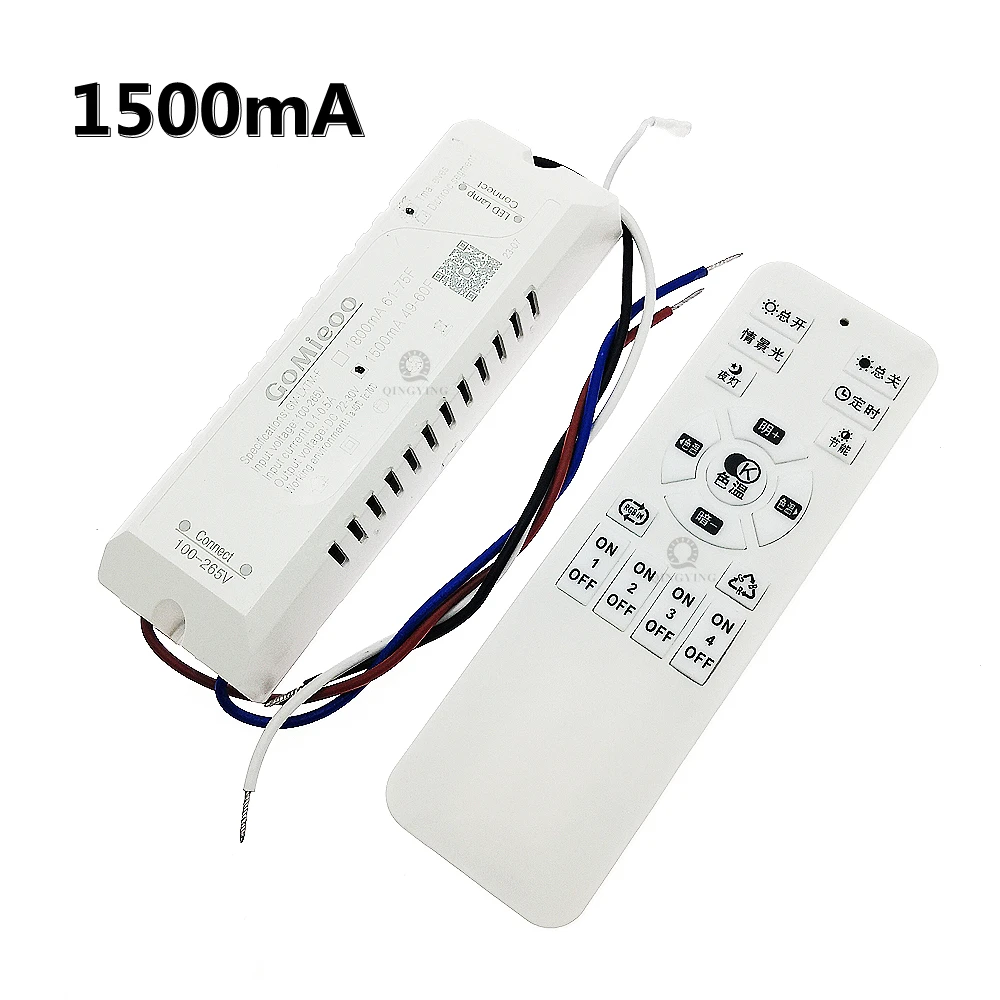

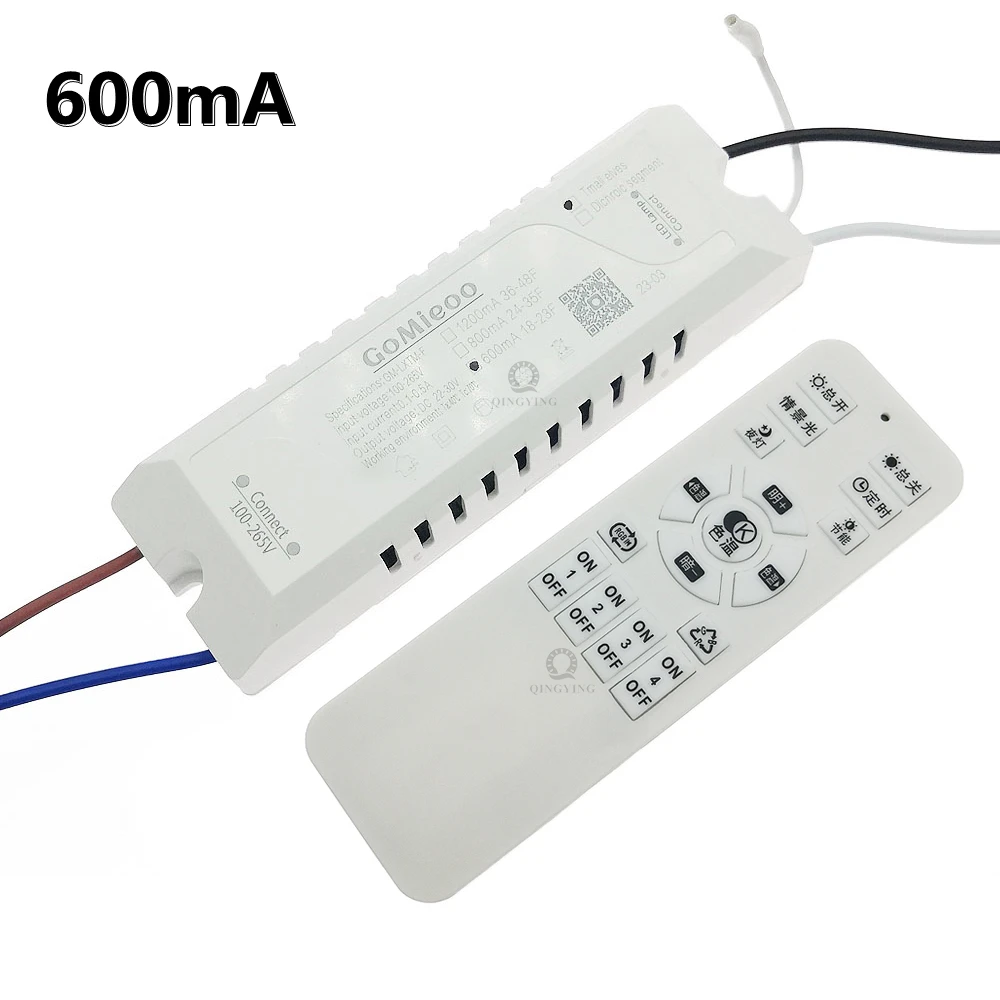

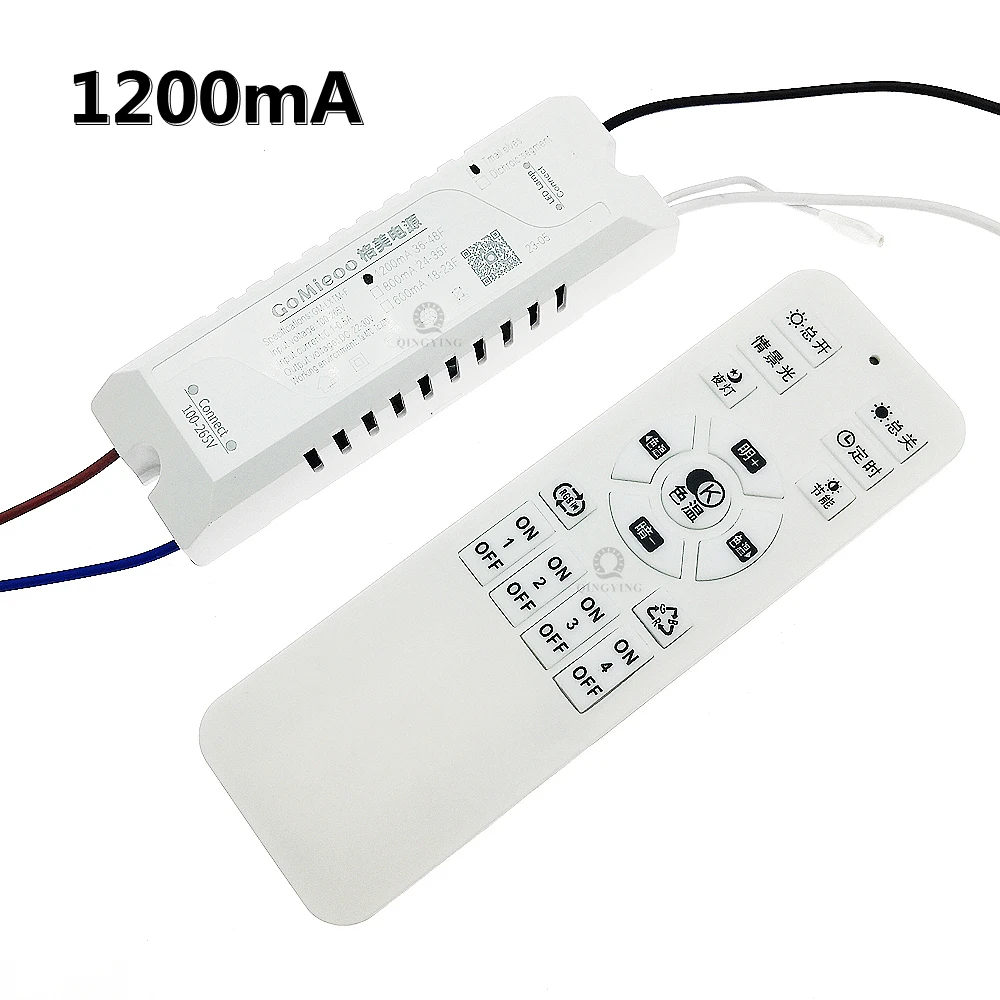

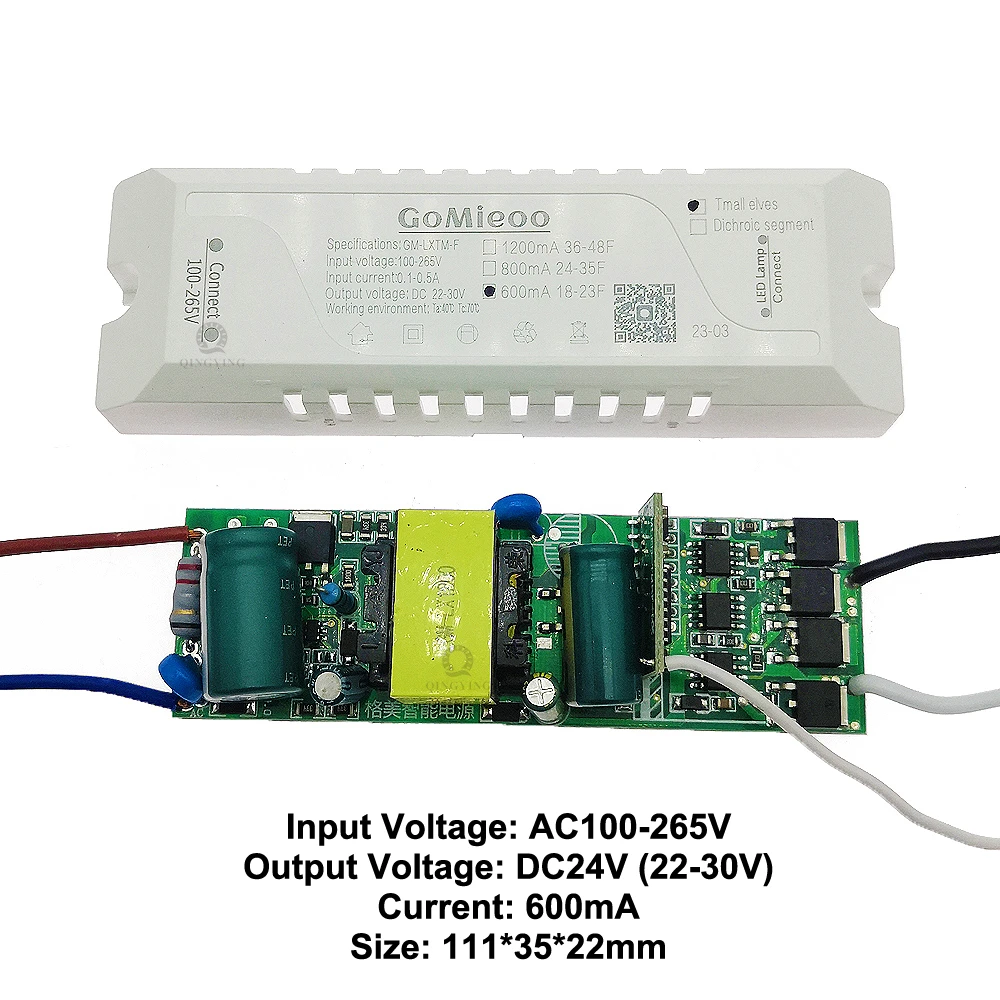

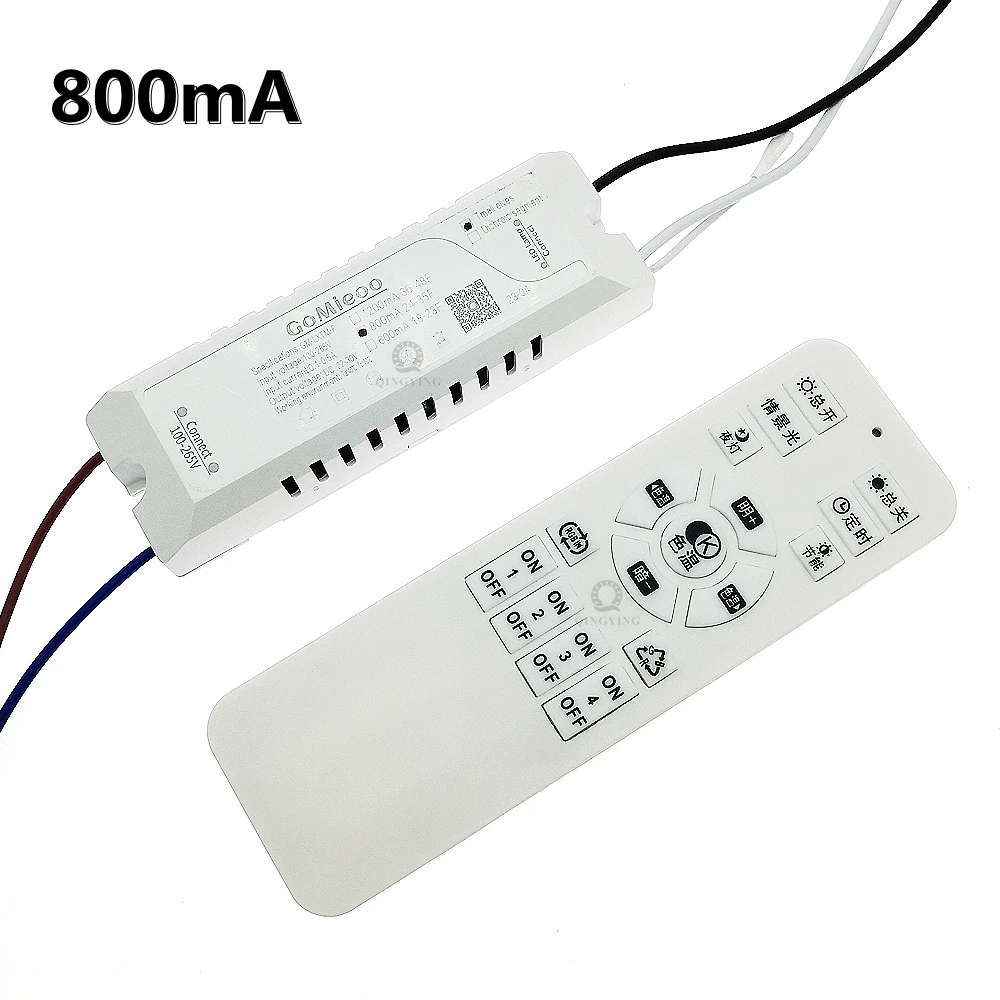

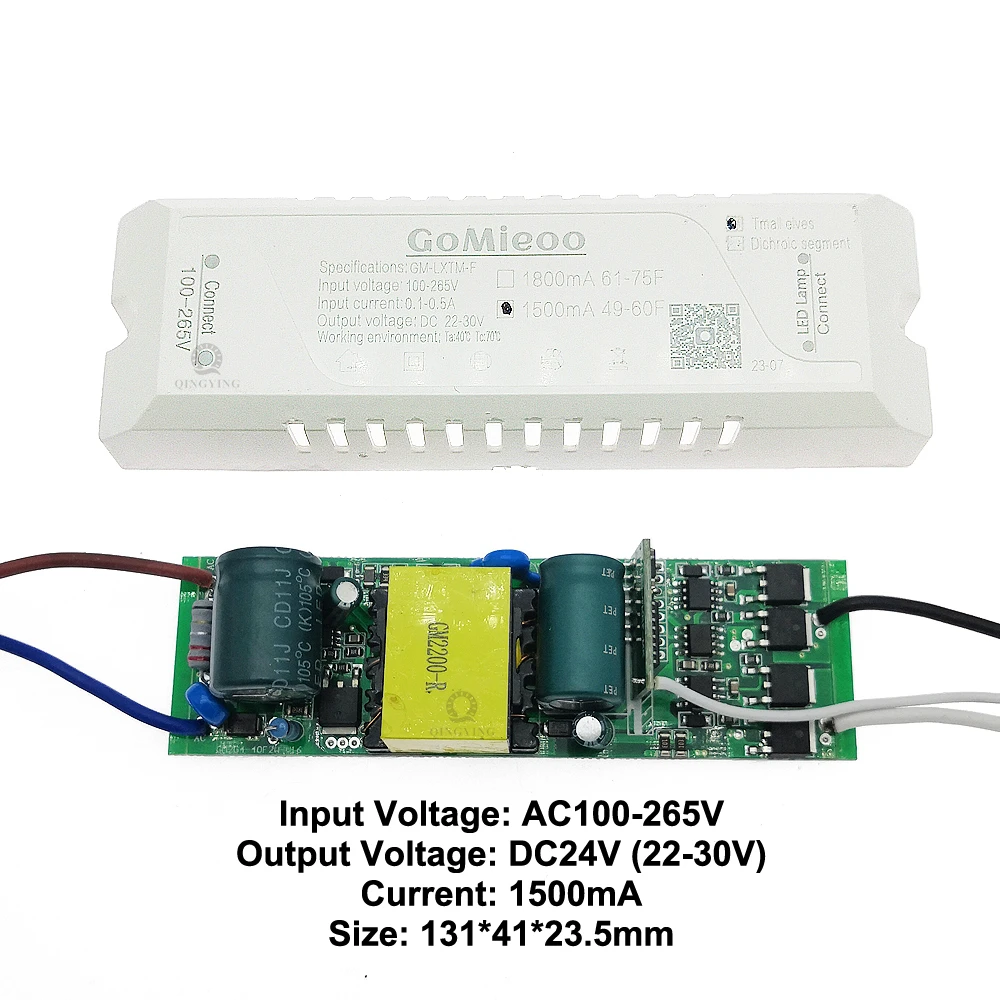

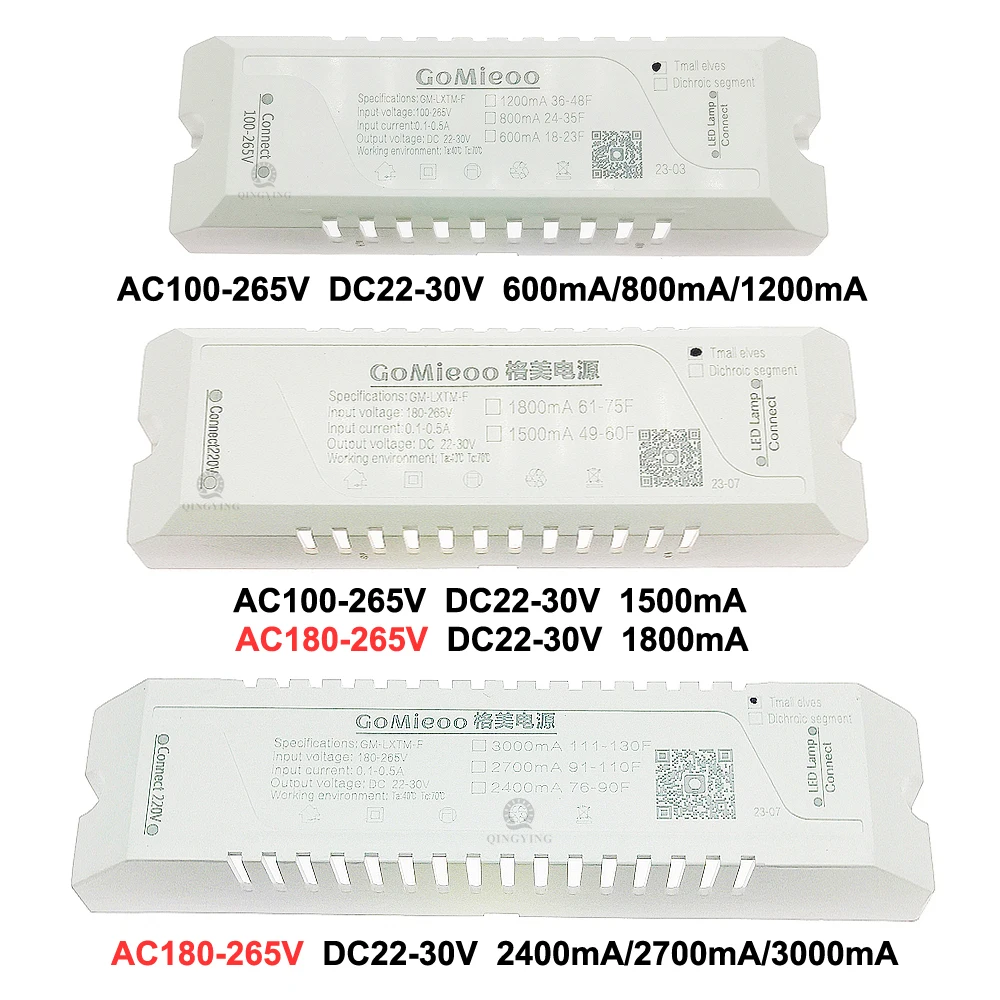

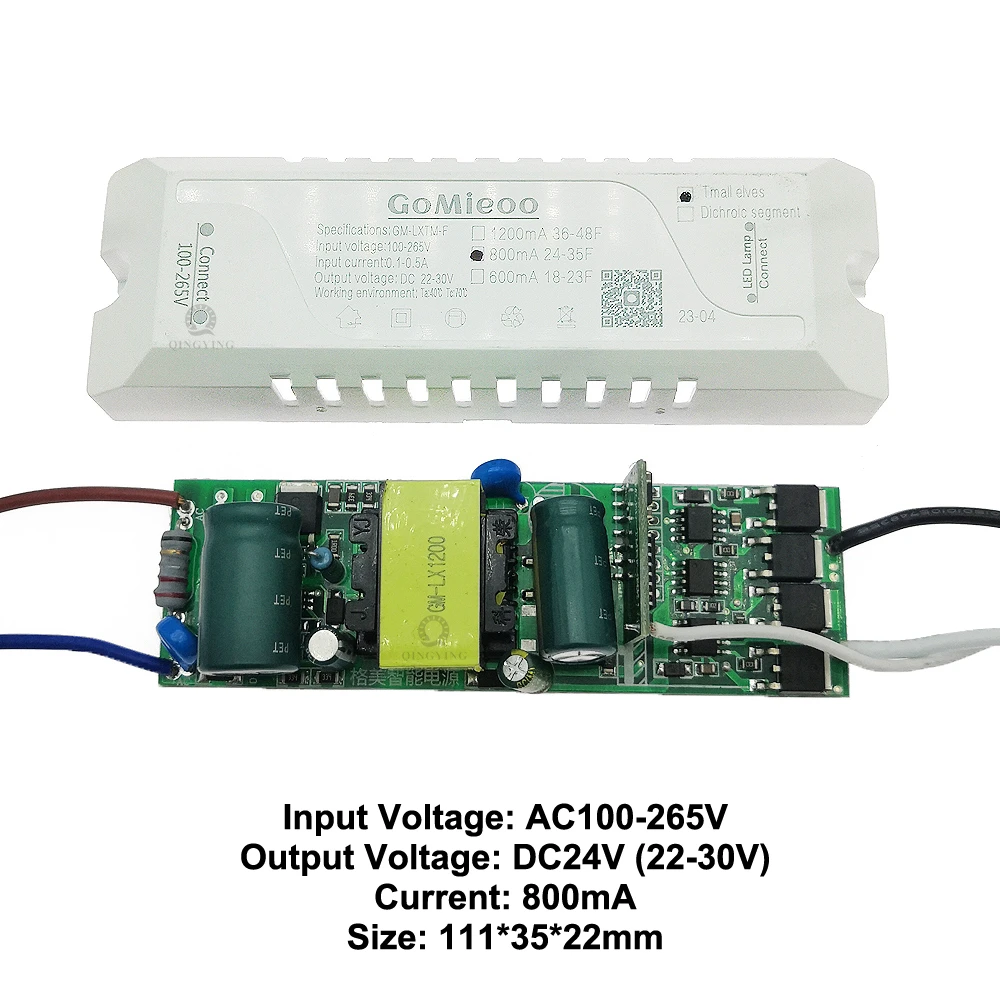

Input voltage : AC 100-265V : 600mA 800mA 1200mA 1500mA

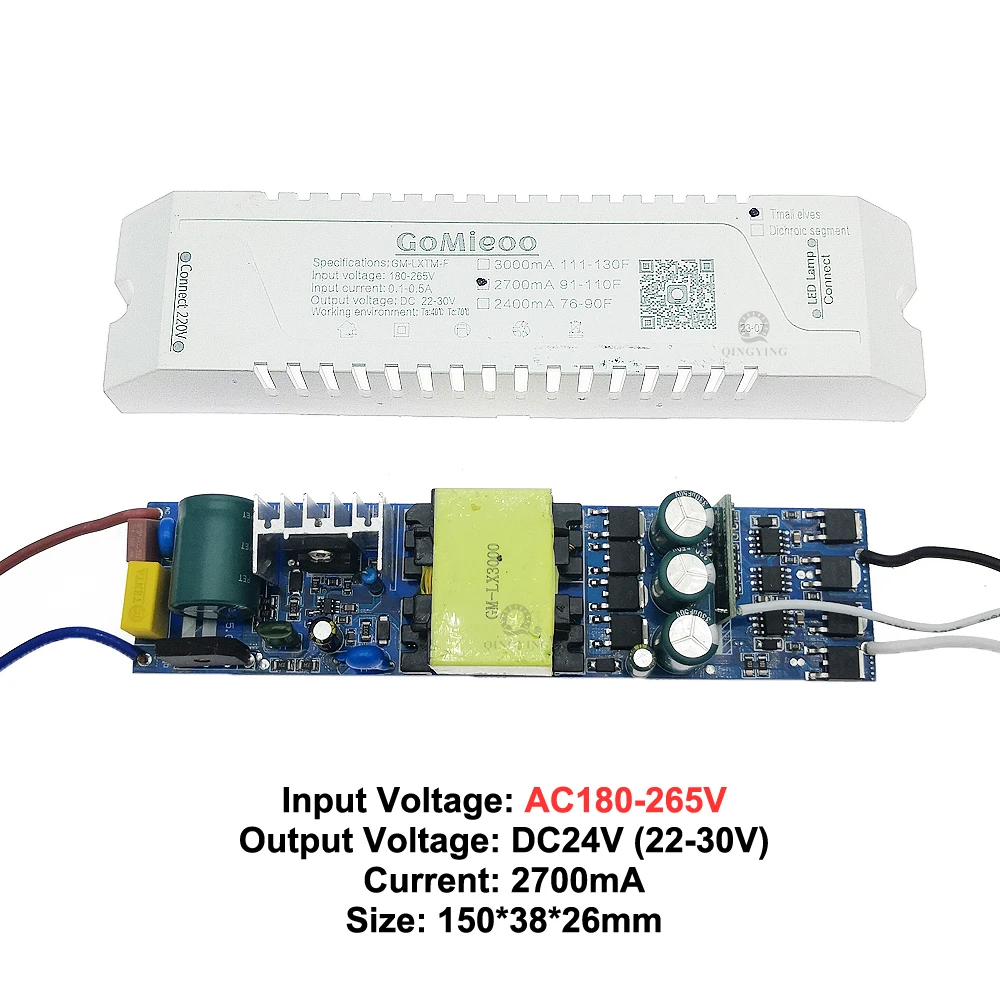

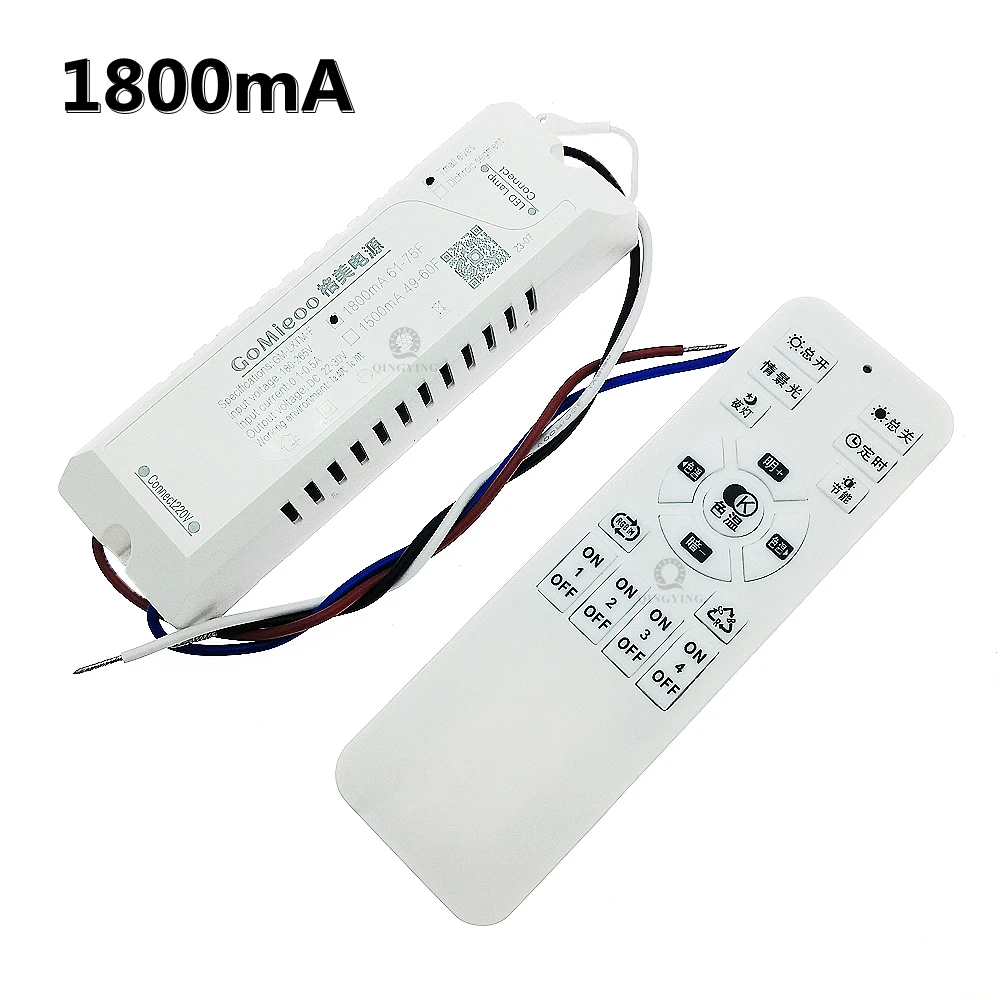

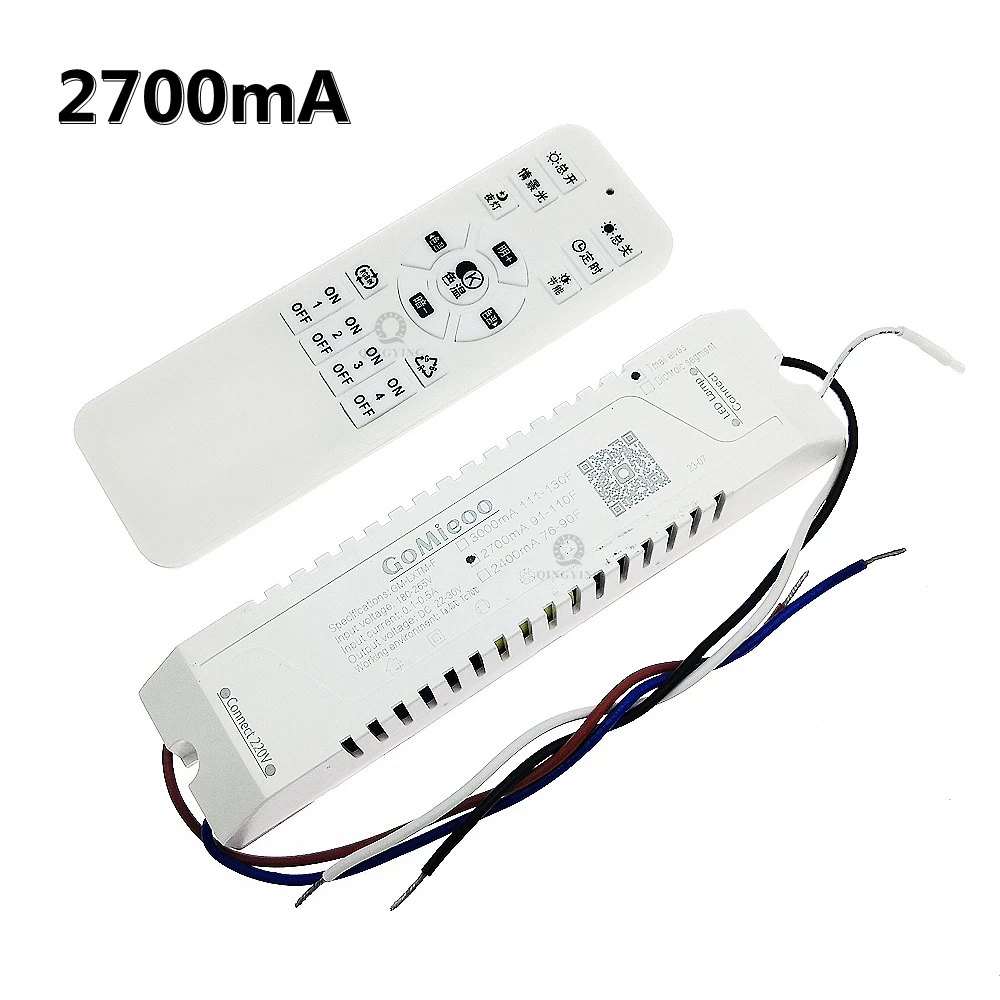

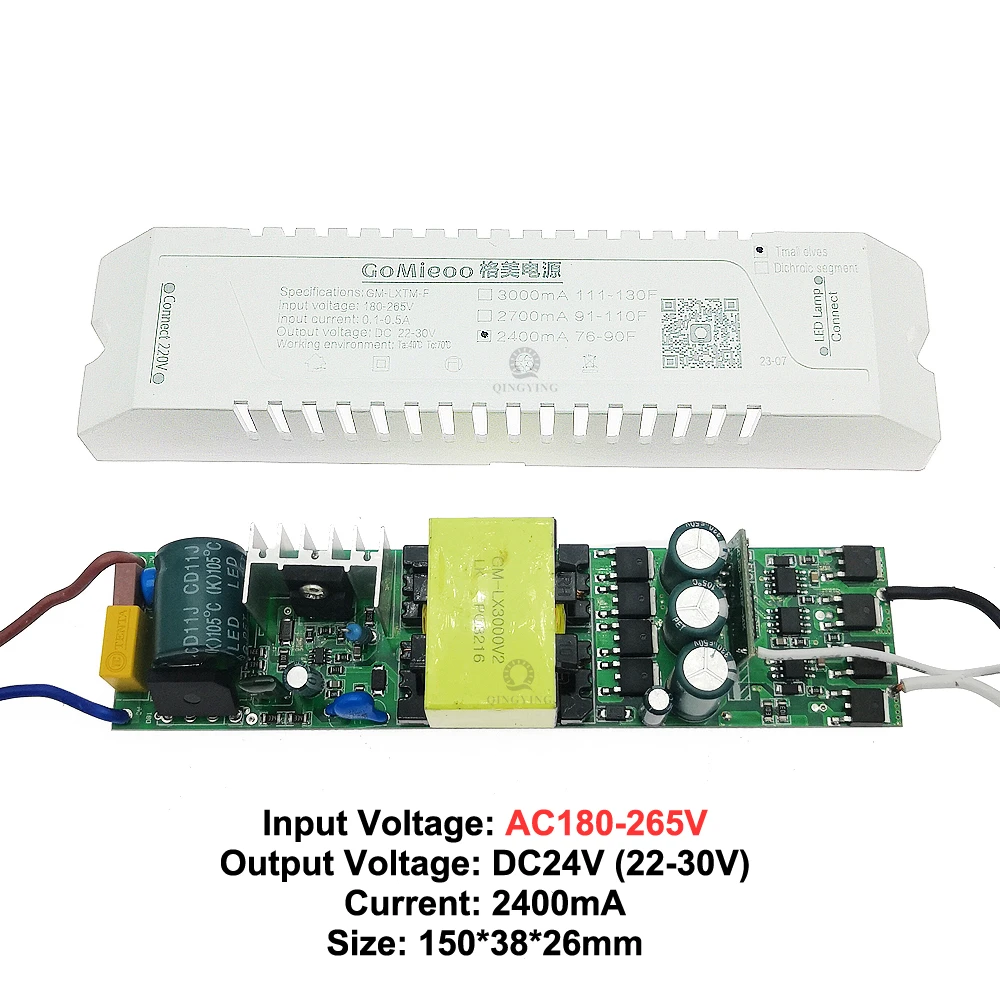

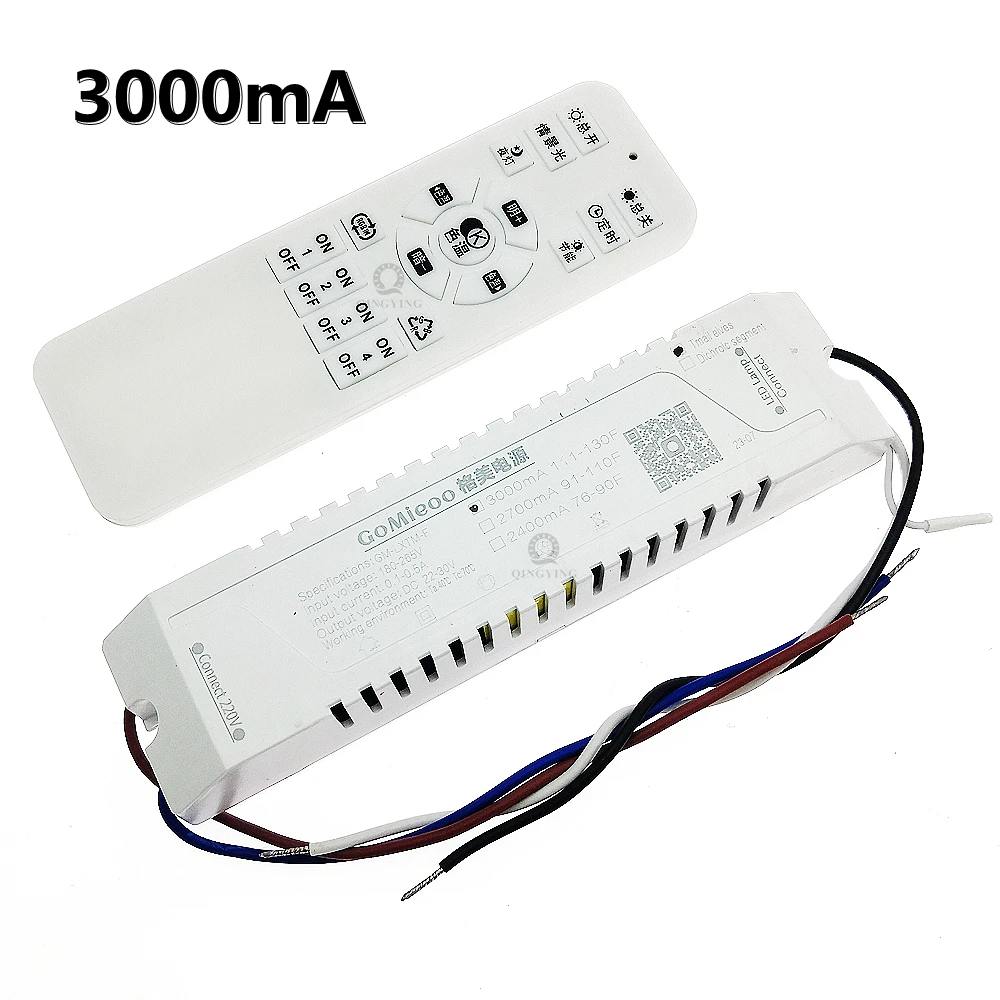

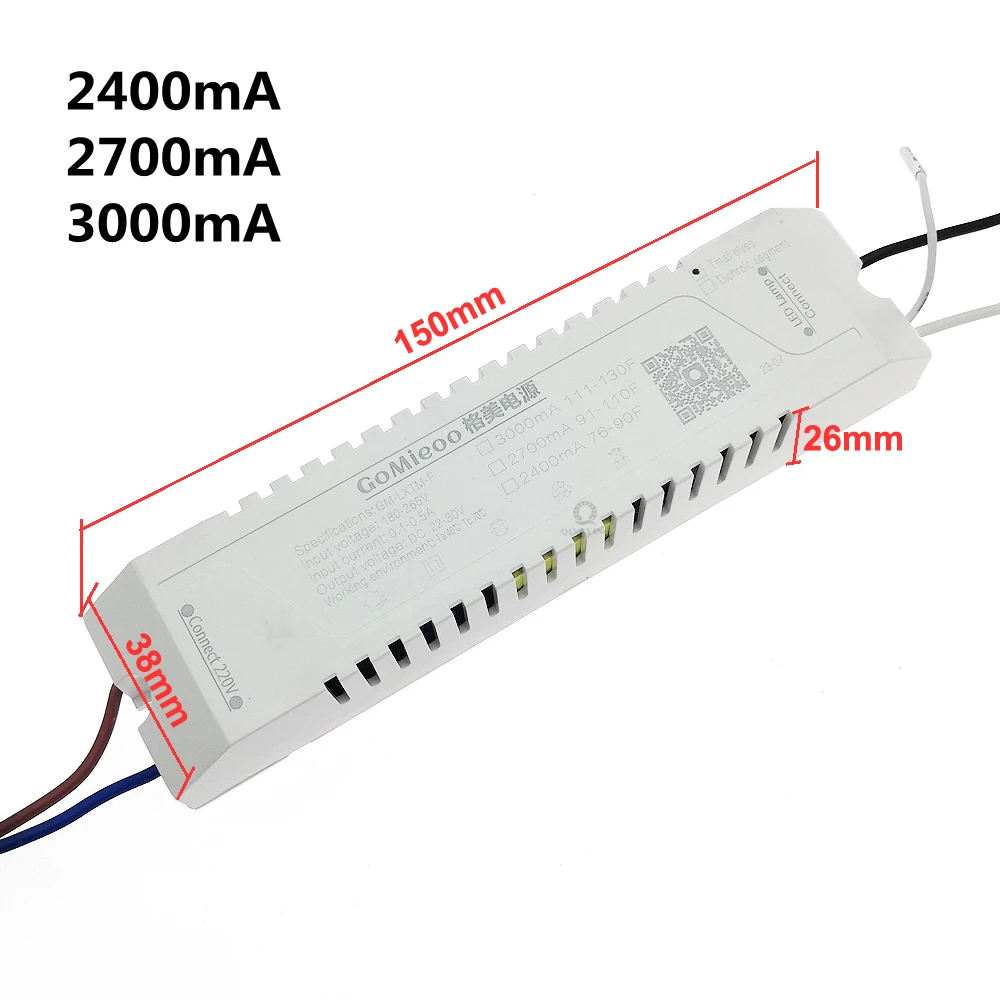

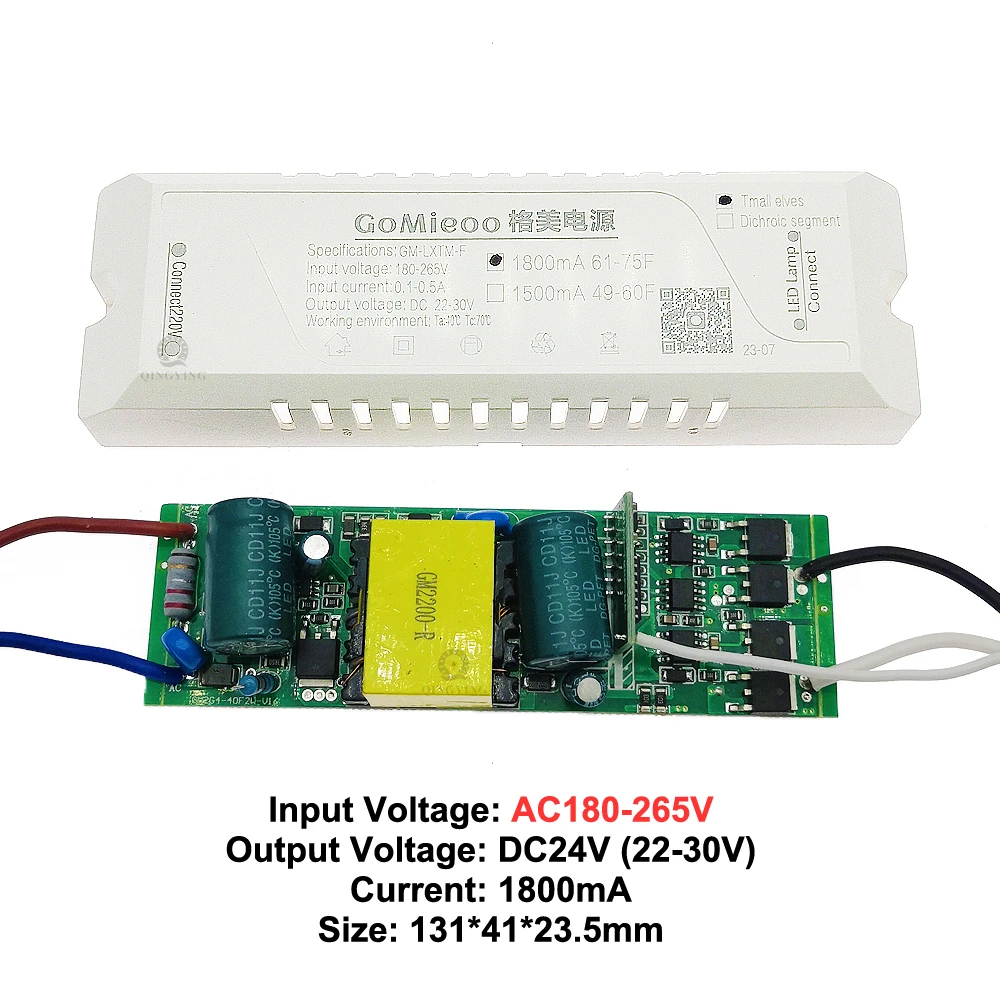

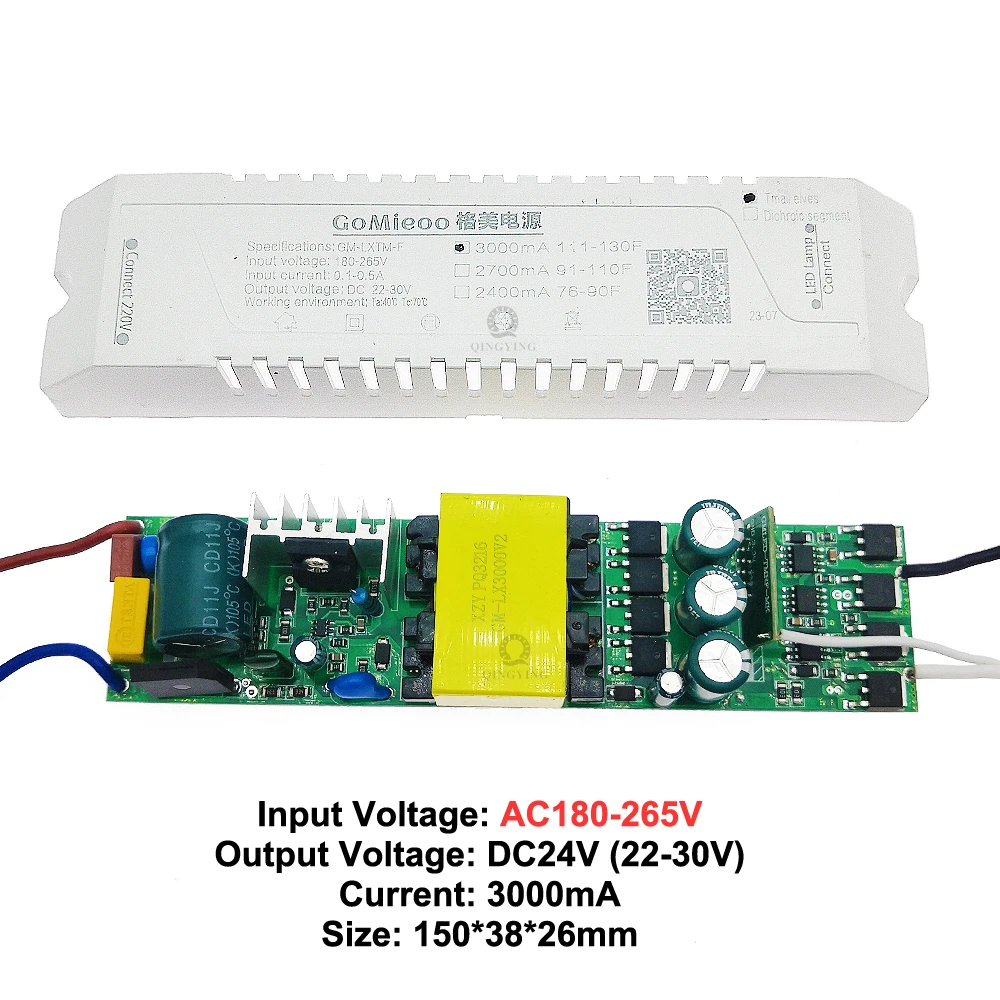

Input voltage : AC 180-265V : 1800mA 2400mA 2700mA 3000mA

Output voltage : DC 22-30V

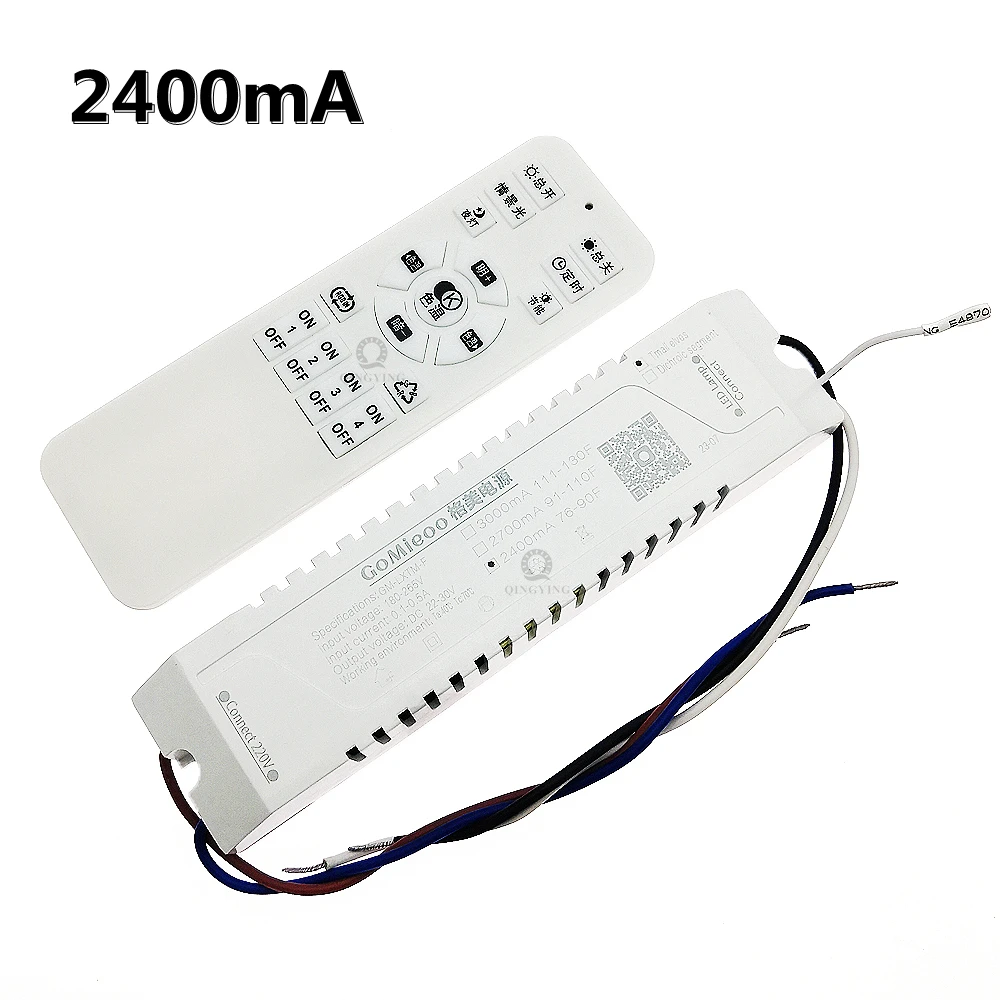

Package: 1pcs LED Driver With Remote.

Package Not include LED Strip or Connector.

Remote not include battery.

APP link :  http://www.jasonghost.com/lampsmartpro/
