24V Horse Race Running Water Strip Light COB Flexible Ribbon 5M 10M 15M 20M Tape Lamp Work with Smart Switch Control Controller

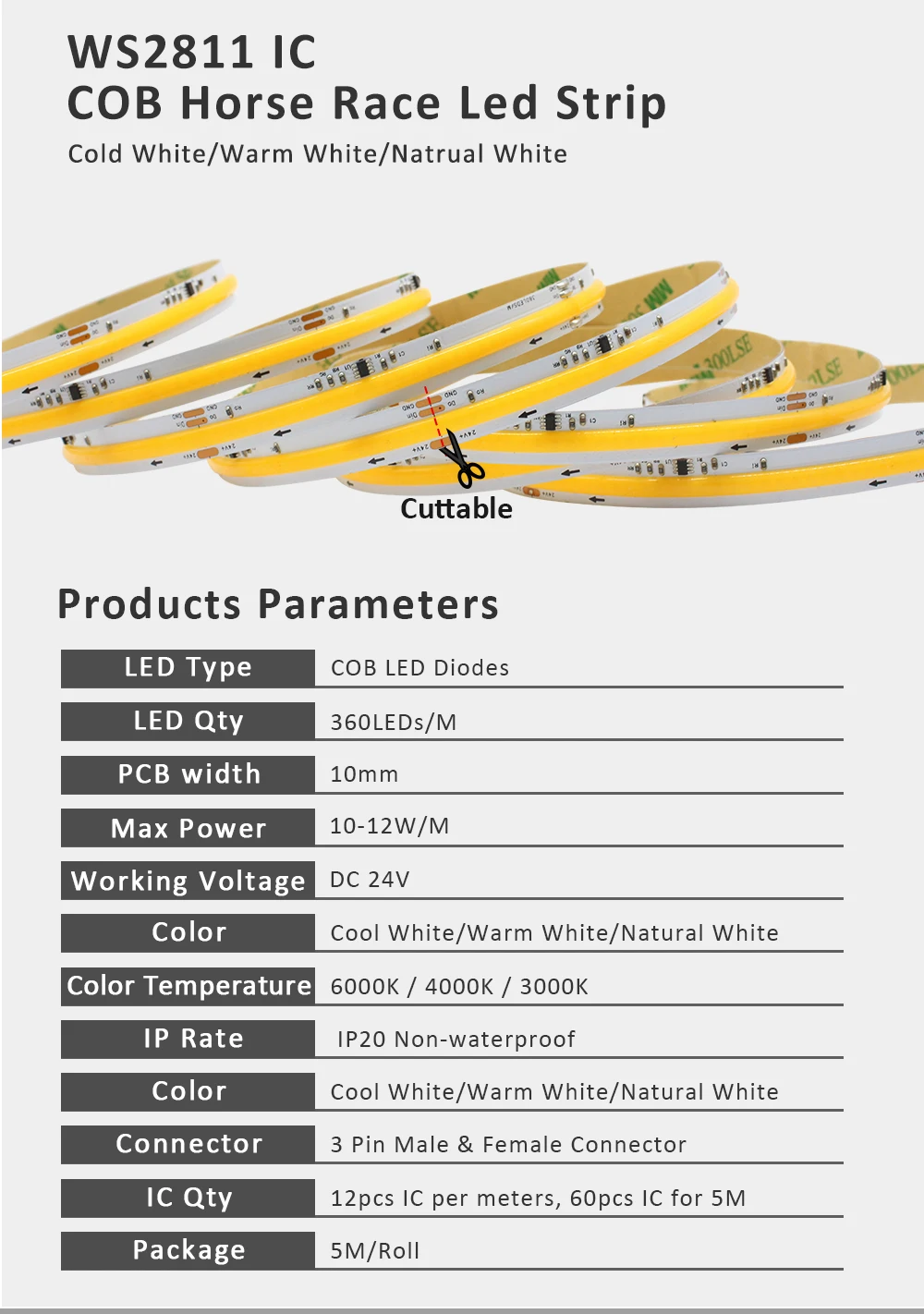

*** Product Name: WS2811 IC COB Horse Race Led Strip

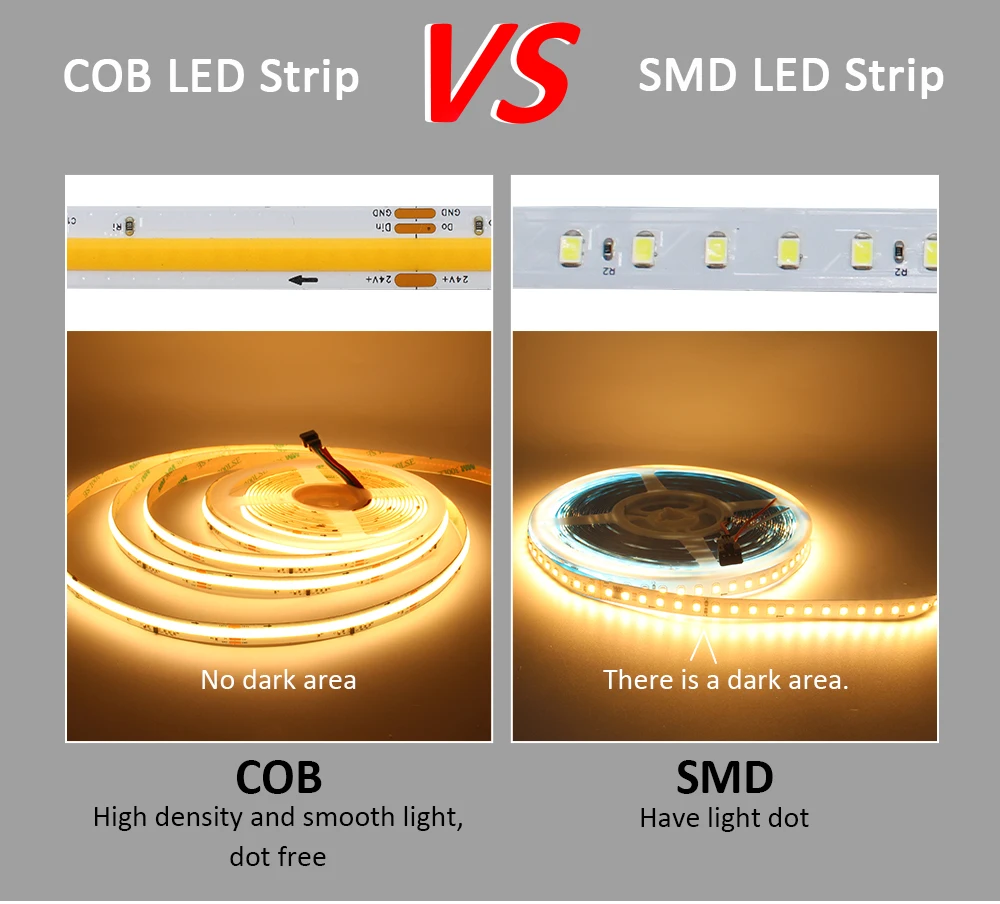

LED Type: COB LED Diodes
LED Qty: 360LEDs/M
PCB width:10mm
Max Power: 10-12W/M
Working Voltage: DC 24V
Color: Cool White / Warm White / Natural White
Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K
IP Rate: IP20 Non-waterproof
Connector: 3 Pin Male & Female Connector
Package: 5M/Roll or 10M/Roll

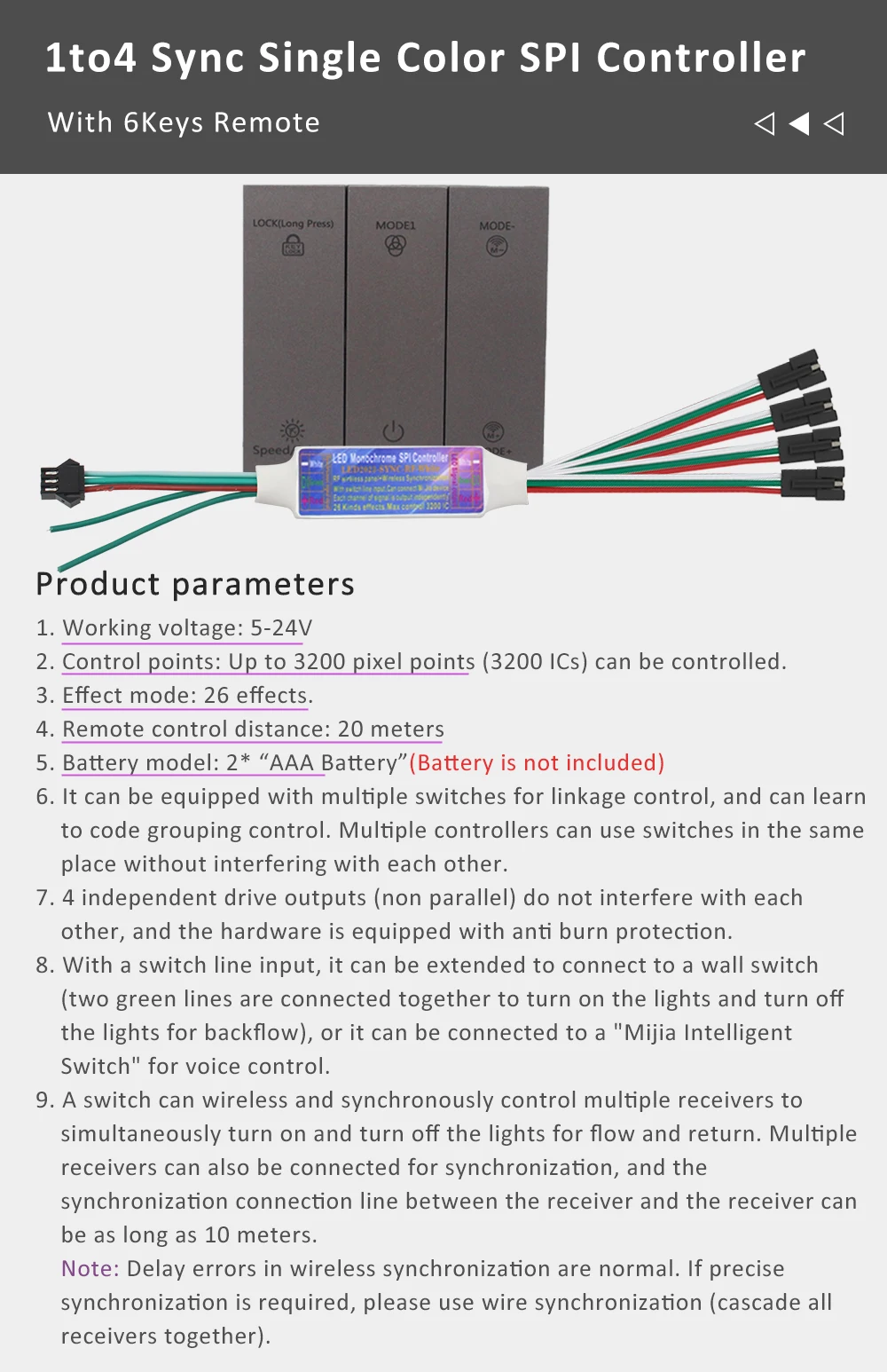

4 Ways SPI Water Flow Controller:
Working Voltage: DC 24V
Max Control Pixels: Up to 3200 pixels

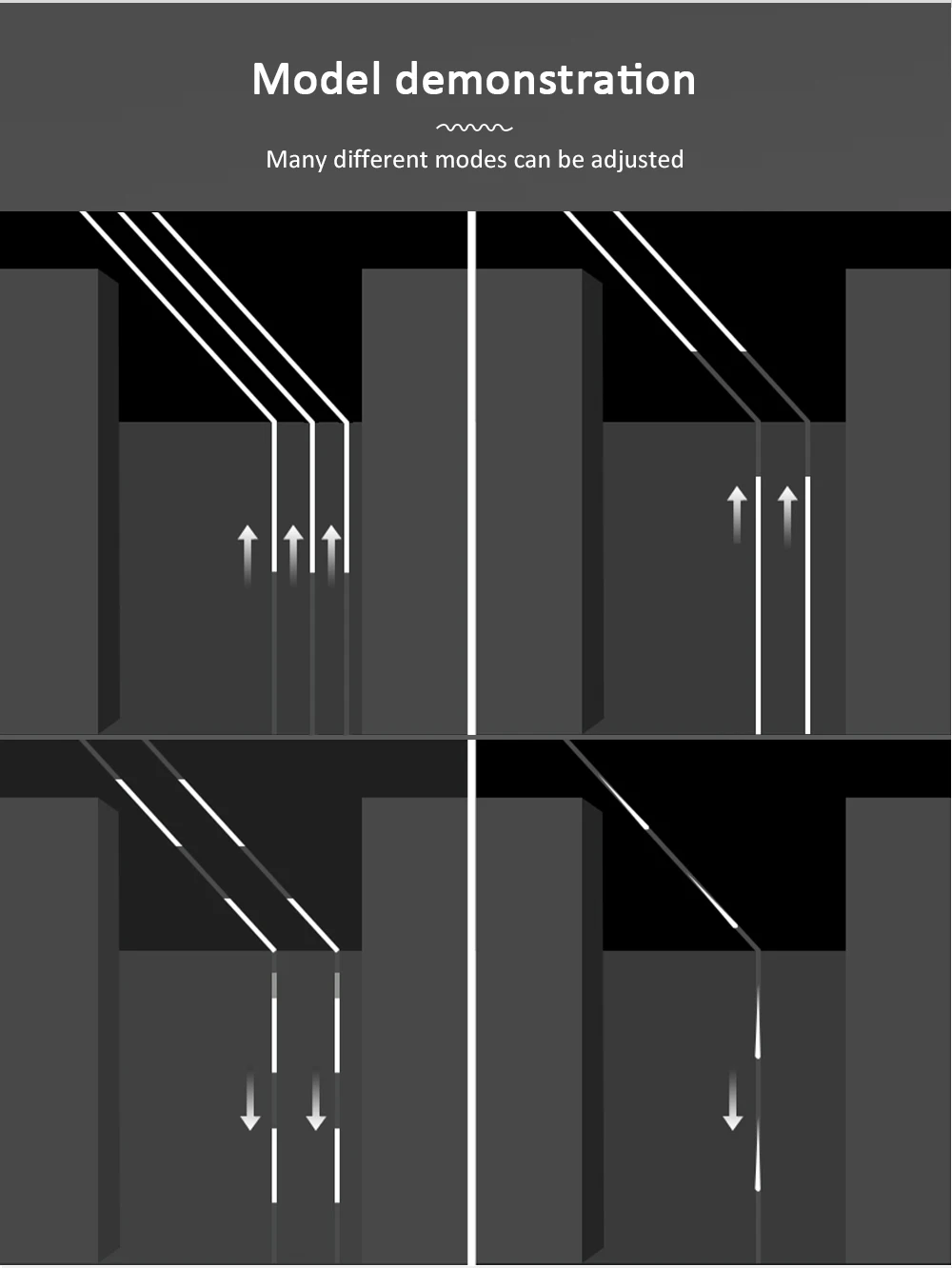

Mode Effects: 26 Modes
Remote Distance: 20Meters
Output: 4 Ways ( For 4 lines Led strips working at the same time)

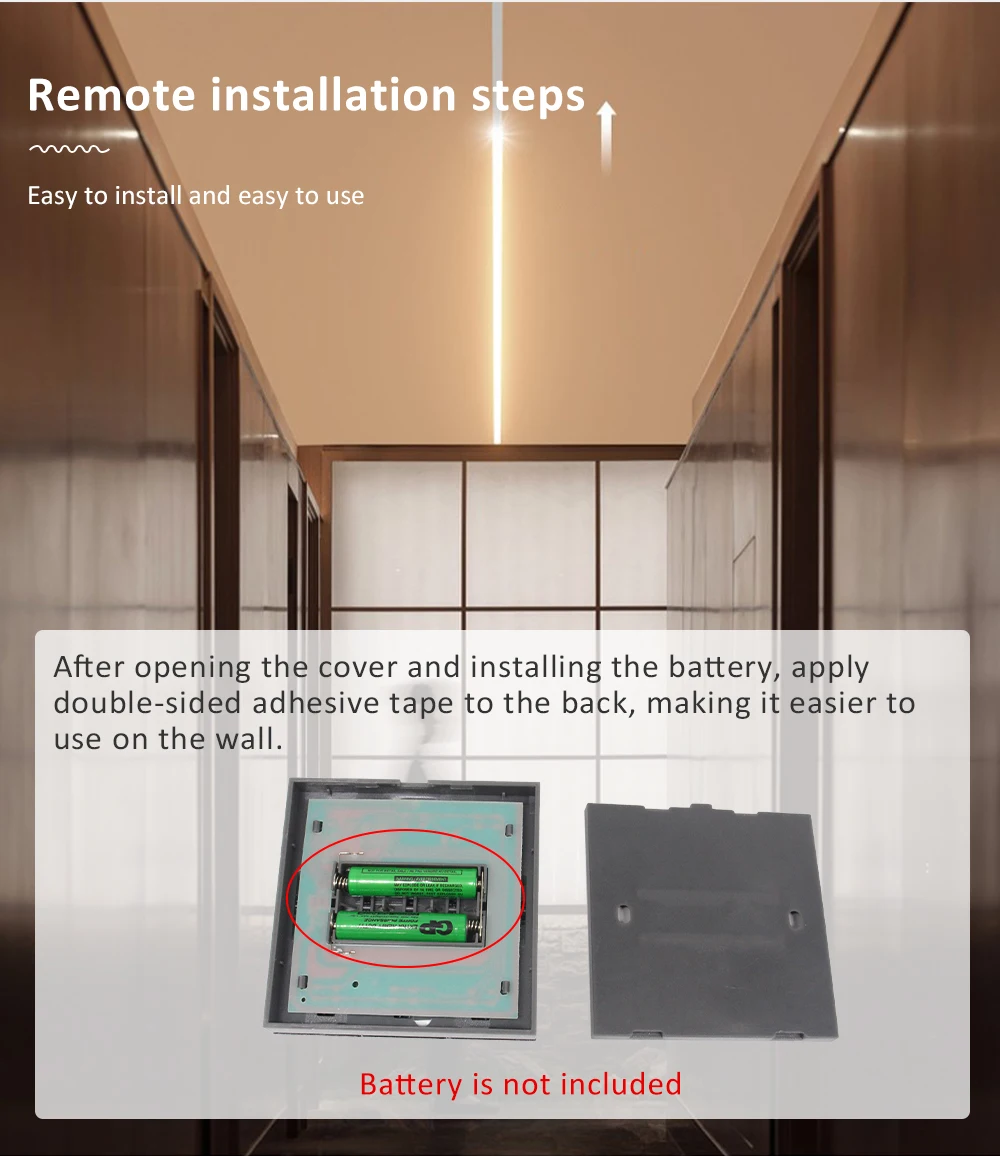

Battery Type: 2pcs *AAA Battery ( Battery not included)

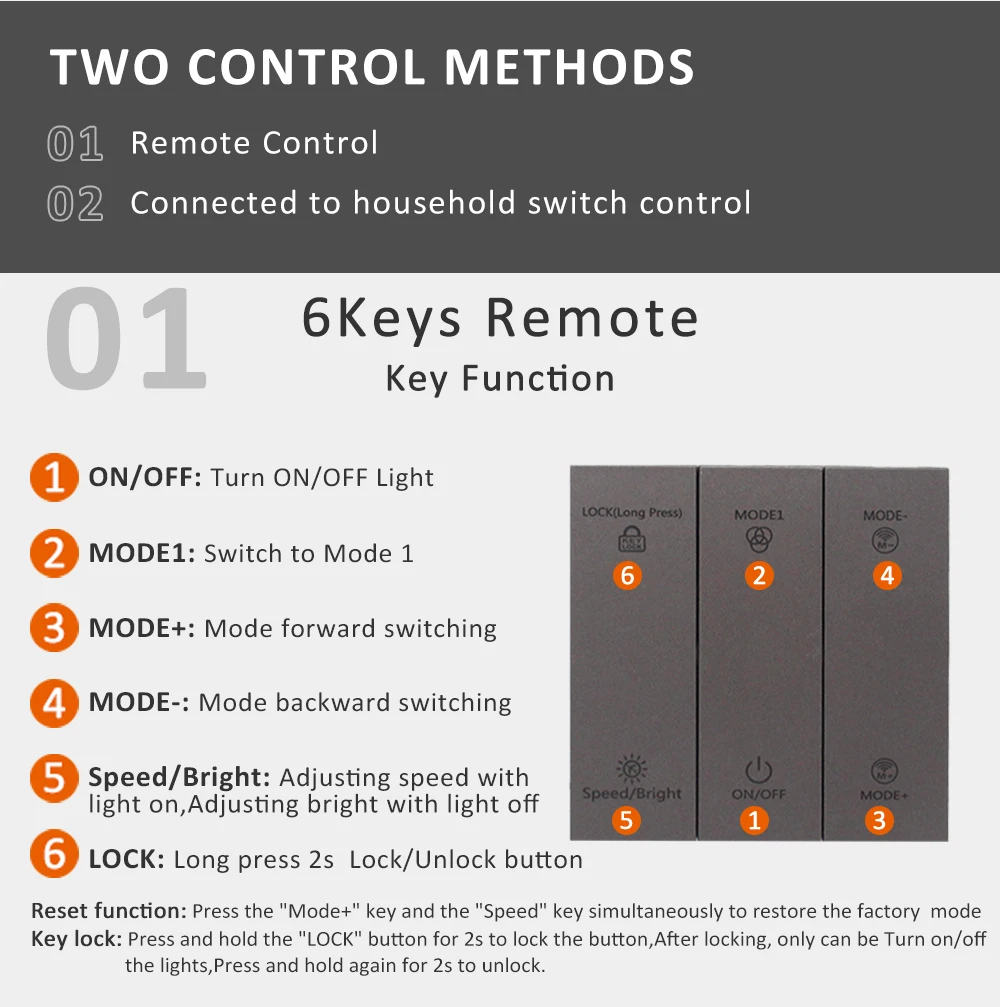

Panel Keys: 6pcs ( LOCK, MODE1,MODE+,MODE-,ON/OFF, Speed/Bright

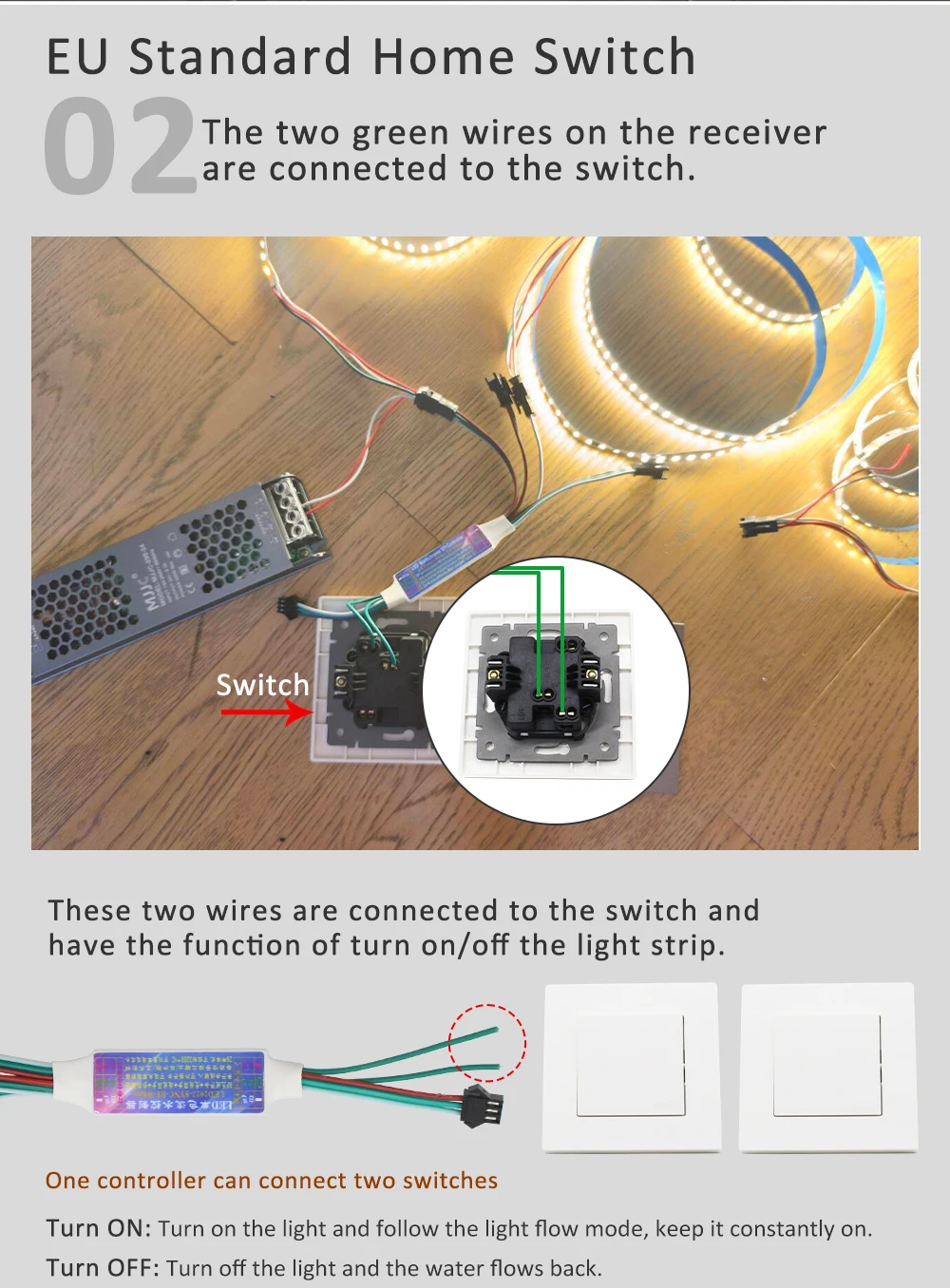

Features of controller: Working with Home Switch,which connect to the Green Wire of controller, Turn ON for water flow forward, Turn OFF for backward.

*** Features:

1. one receiver can be controlled by max 6pcs 6keys panel remotes.
2. Two receivers can be connected together,realize sync working. The wire between two receiver can be up to max 10metes for extension.
3. The controller can be work with normal switch, Turn ON/OFF by the switch without remote.It also can connect to Mihome Smart Switch to realize voice control.

*** Sync Projects:

Wire Connection Sync Working:99.99% sync (Recommend),If you want 40M sync control, just buy 2pcs x 20M full set, two controller can be connect together to make it sync working by one 6Keys remote/Normal Switch.
Wireless connection sync working: Maybe has delay

*** How to pair Remote to the Receiver,make them working independently ?

Step 1: Turn on the power supply.
Step 2: Long press "Mode"keys 3seconds within 2seconds after powering ON.
Step 3: Sucessfully if the led strip quick flash 3 times.
1pc receiver can be controlled by max 6pcs panel remote.

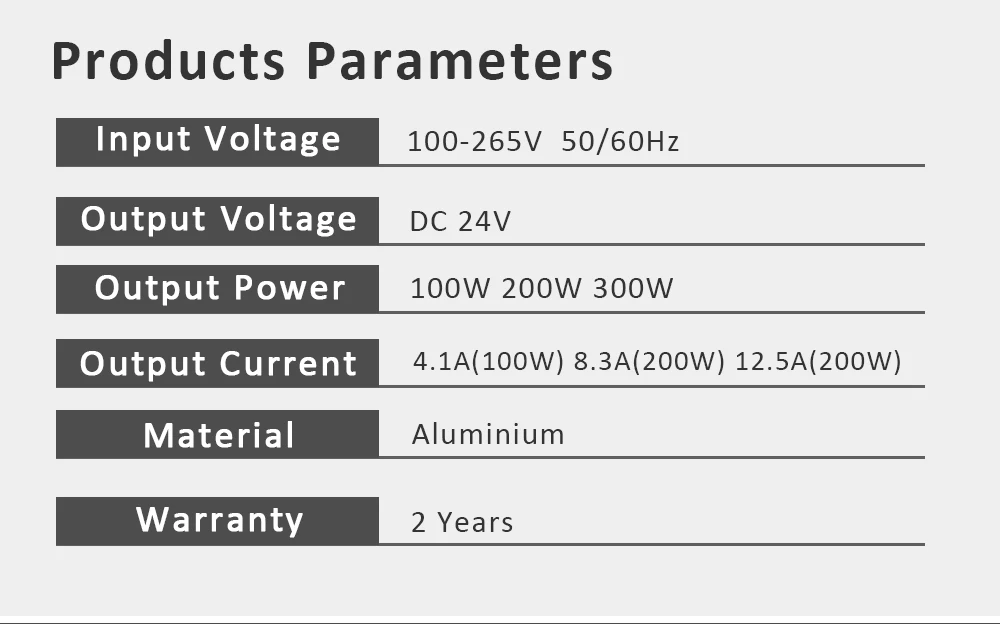

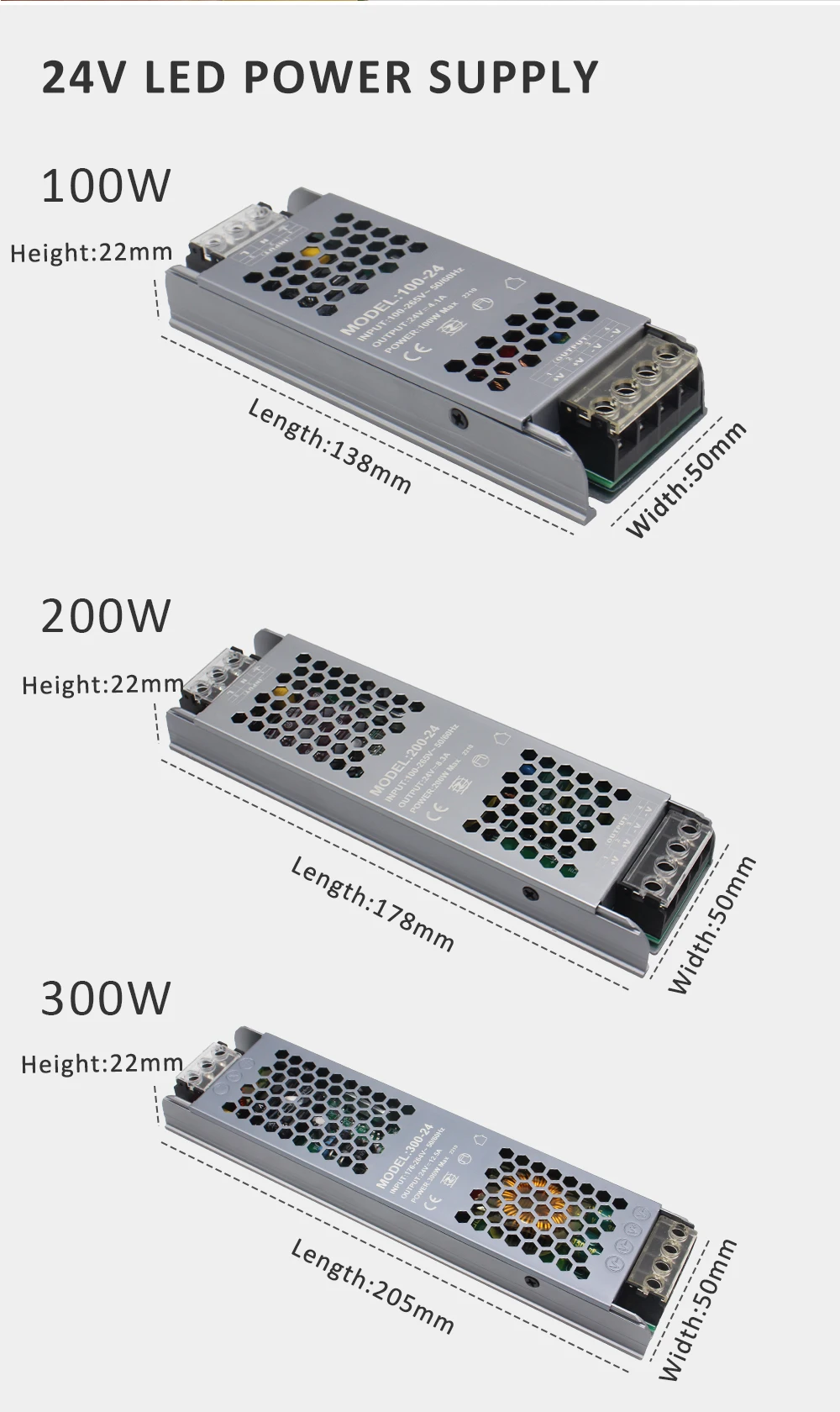

DC 24V Power Supply:

Input Voltage: 110V / 220V AC
Output Votage: 24V DC
Output Power: 100W/200W/300W
Product Size:
Features: No Noise, Real power output, long life-span.
* Advise: 24V 100W power supply used for 5M, 1pc 24V 200W power supply to drive max 20m 24v 360leds/m COB running water light strips.

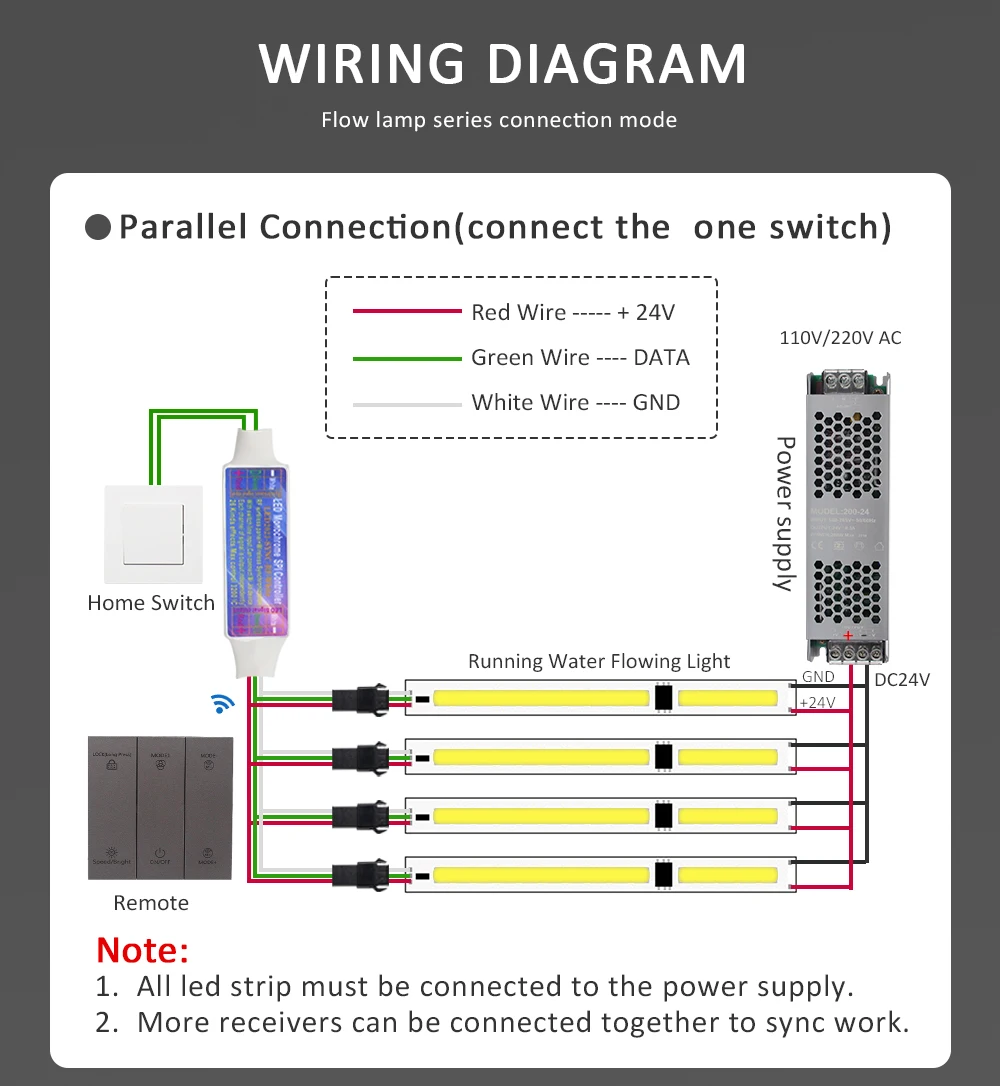

If you want to control longer horse race led strip for a project,just buy addtional 24V power supply from our store,there is a wiring diagram in the bottom of this page.

Connection Note:

When the led strip is over 10m,please kindly connect power wire to the two ends of led strip, to keep the same brightness.


Q & A：
Q：Why the led strip is flash ?
A: The led strip have voltge-drop, just connect led strip to the power supply from two end,make it enough voltage. The detailed wiring was in this page.

Q: Why only haf led strip is working, some of them not light ON ?
A: Kindly increase the pixel points as following steps:

*** How to setting pixels?
Step 1: Turn OFF the lights
Step 2: Long press "Mode" keys 5 seconds,press "Speed" keys to increase the pixels quantity, Press "Mode" keys to decrease the pixels quantity.
Step 3: Press " ON/OFF" to save, Exit.
Default factory setting is 80pixels,max up to 3200pixels. If you found some led strip is not light, please kindly do pixel setting as above steps.
There is wiring diagram in the following of this page.

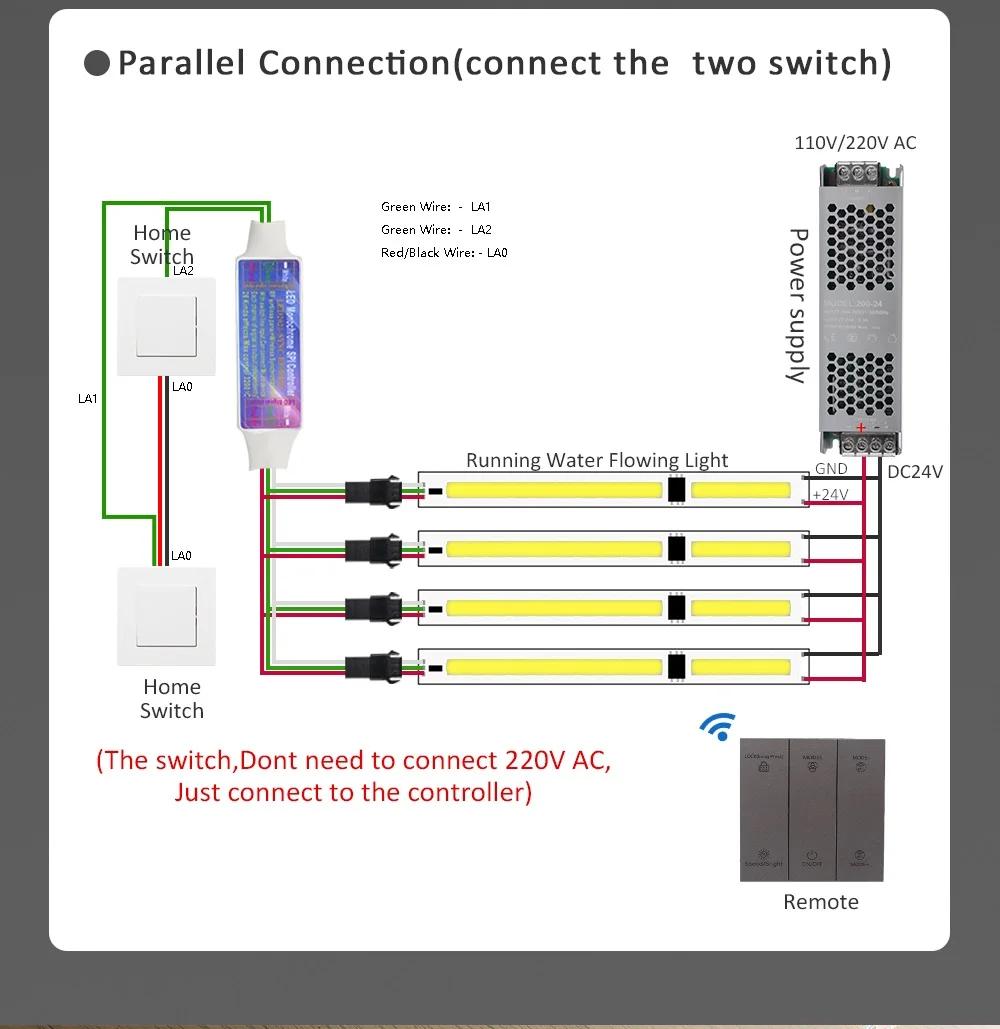

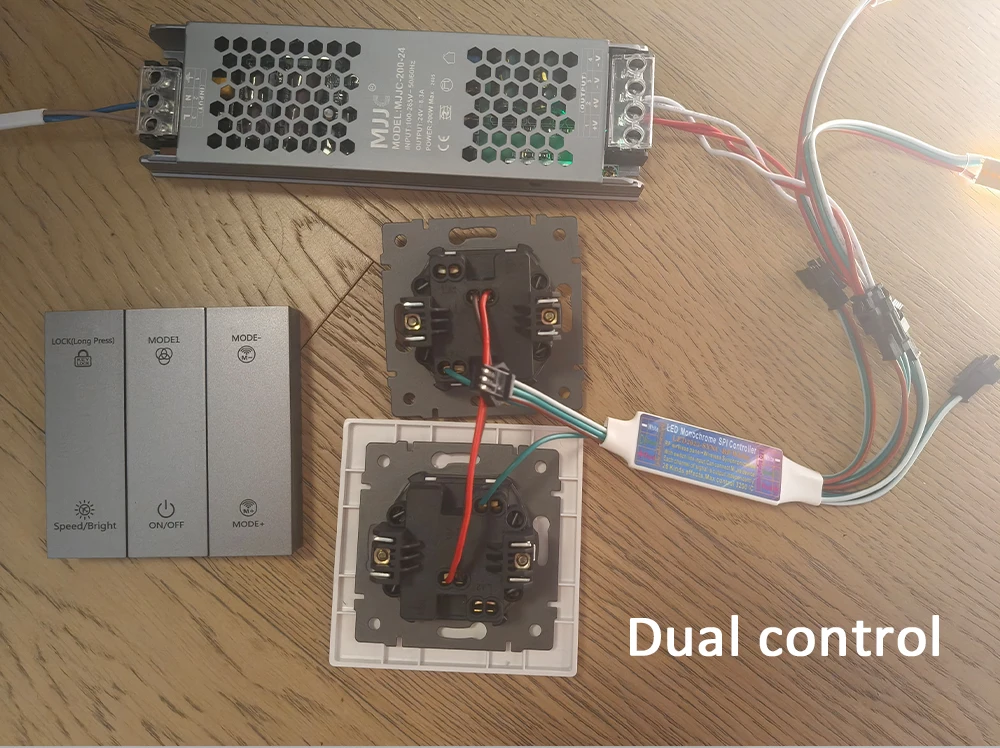

Q: Can I connect to Home Switch,only Switch ON/OFF ?
A: Yes,please kindly check wiring diagram on the bottom of the product detailed page,you can realize one swtich or Dual-switch to control.
