5pcs 300mA 600mA 900mA For Led Bulb1W 3W 4W 7W 8W 12W 24W 36W LED Driver Transformer Power Supply Adapter

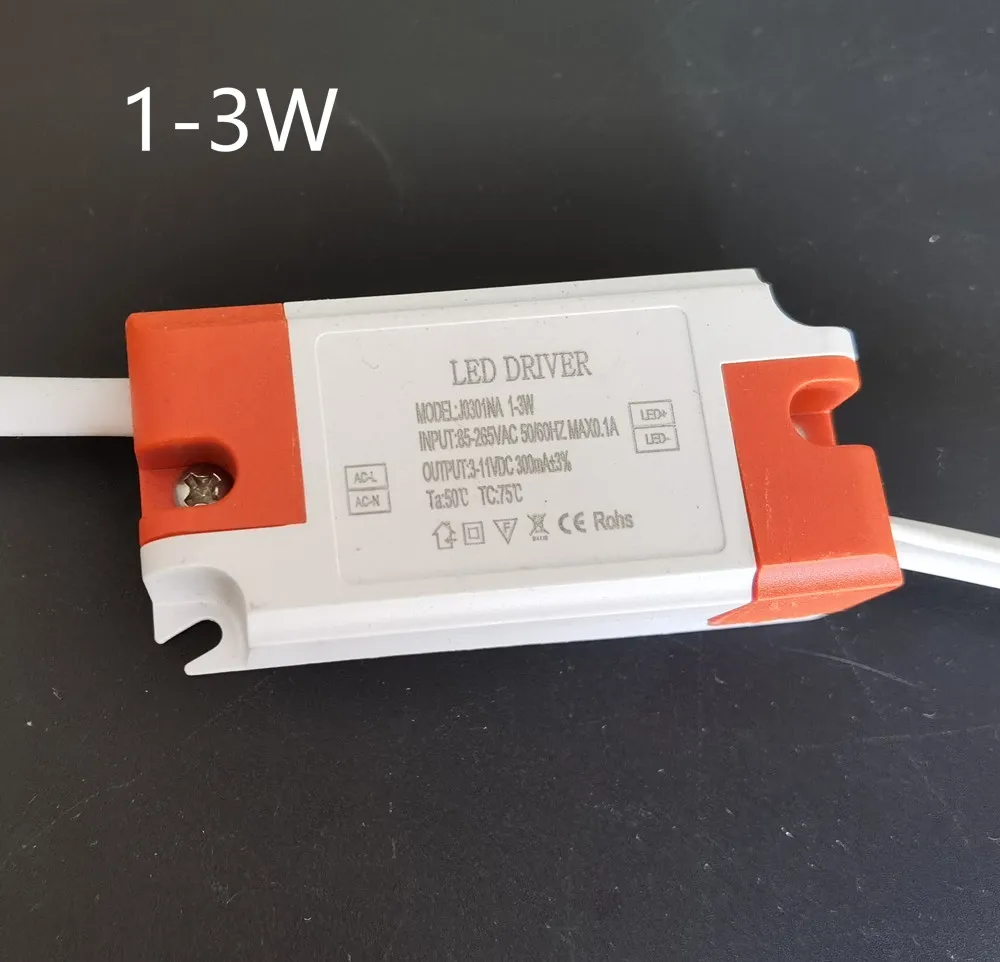

1-3W LED Driver

1-3W LED Driver (Use 3 years)

Input Voltage: 85-265V

Size :63mm*29mm*21mm

AC230V load test Output Voltage: 3-11V

Output Current: 280-300mA

AC230V no-load test: Output Voltage: 3-27V

(Danger! No-load testing is forbidden, and the test data is inaccurate.)

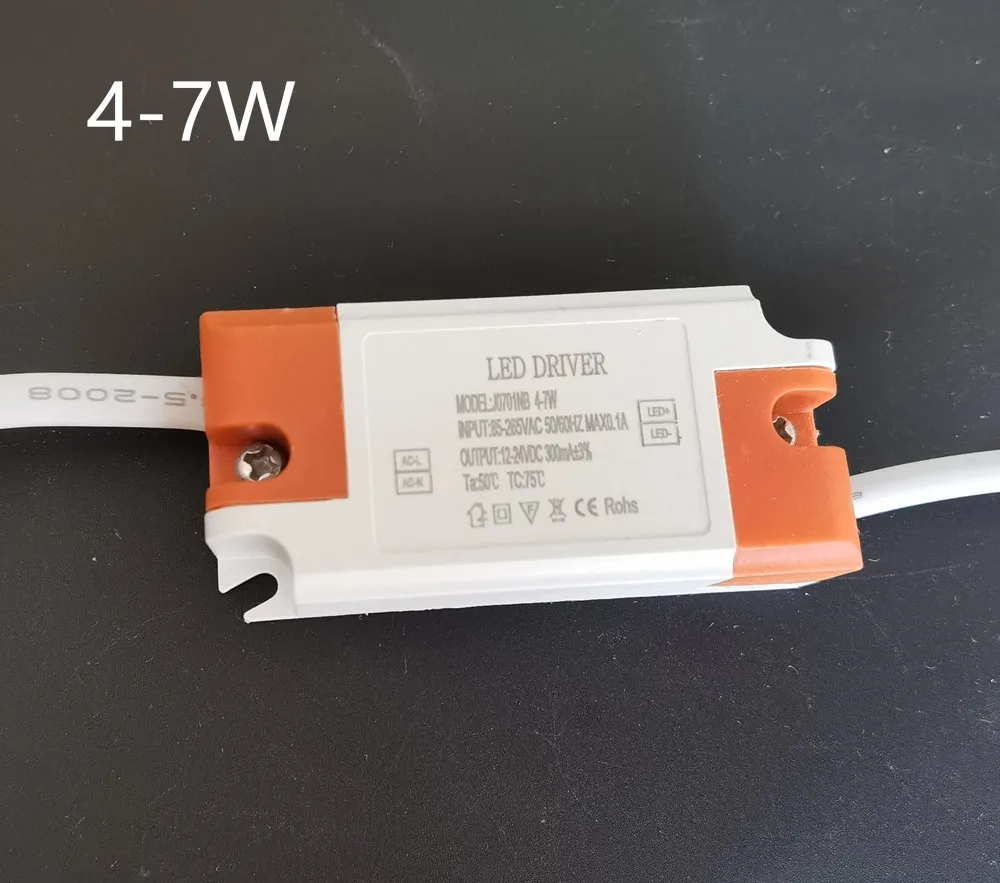

4-7W LED Driver

4-7W LED Driver (Use 3 years)

Input Voltage: 85-265V

Size :63mm*29mm*21mm

AC230V load test Output Voltage: 12-24V

Output Current: 280-300mA

AC230V no-load test: Output Voltage: 12-29V

(Danger! No-load testing is forbidden, and the test data is inaccurate.)

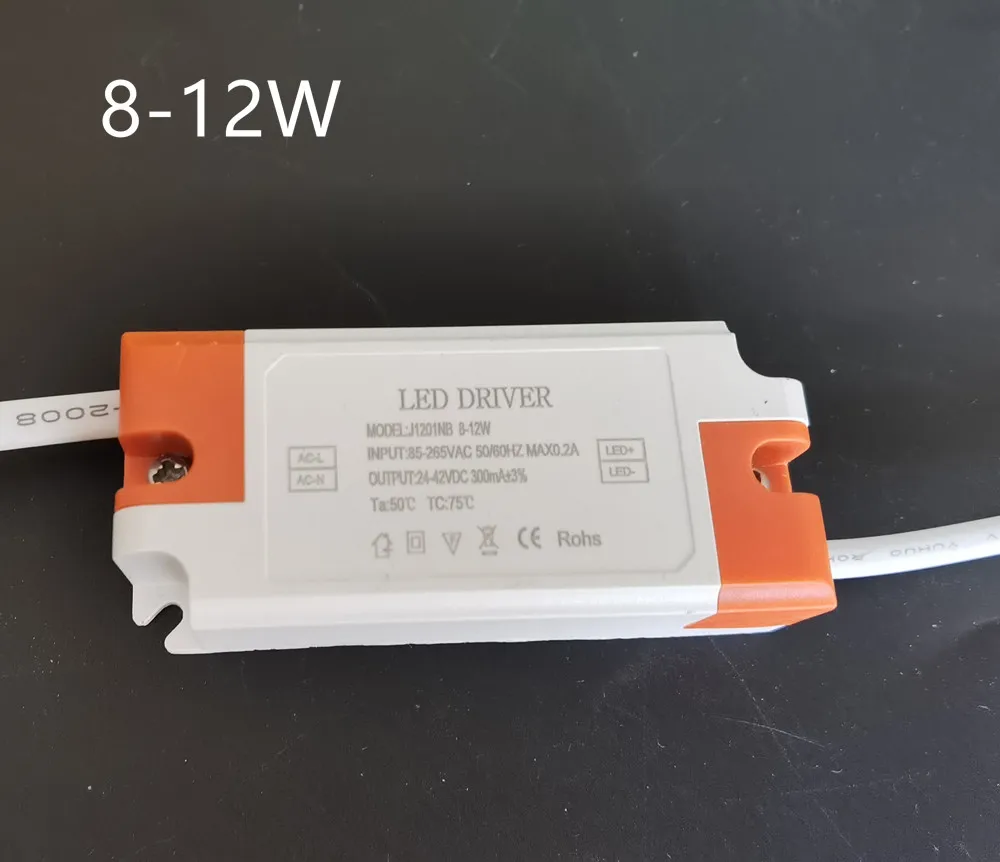

8-12W LED Driver

8-12W LED Driver (Use 3 years)

Input Voltage: 85-265V

Size :71mm*33mm*22mm

AC230V load test Output Voltage: 24-42V

Output Current: 280-300mA

AC230V no-load test: Output Voltage: 24-59V

(Danger! No-load testing is forbidden, and the test data is inaccurate.)

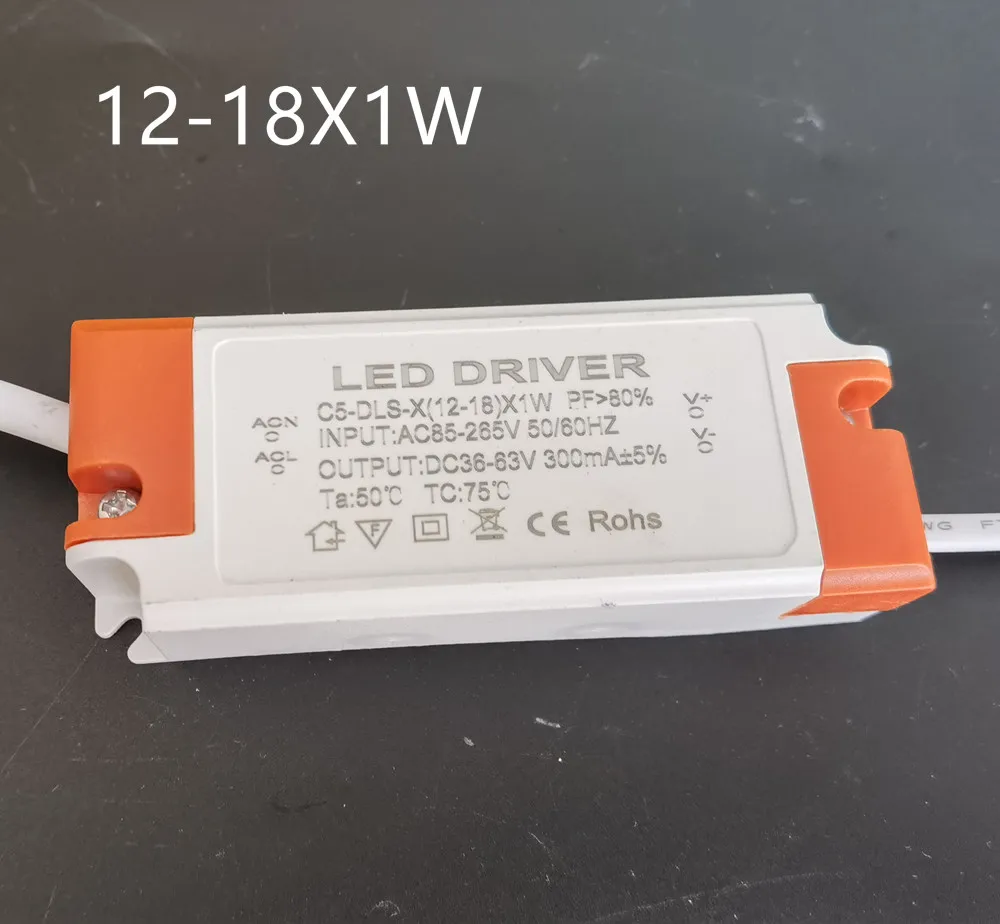

12-18X1W LED Driver

12-18W LED Driver (Use 3 years)

Input Voltage: 85-265V

Size :92mm*36mm*23mm

AC230V load test Output Voltage: 36-63V

Output Current: 280-300mA

AC230V no-load test: Output Voltage: 36-88V

(Danger! No-load testing is forbidden, and the test data is inaccurate.)

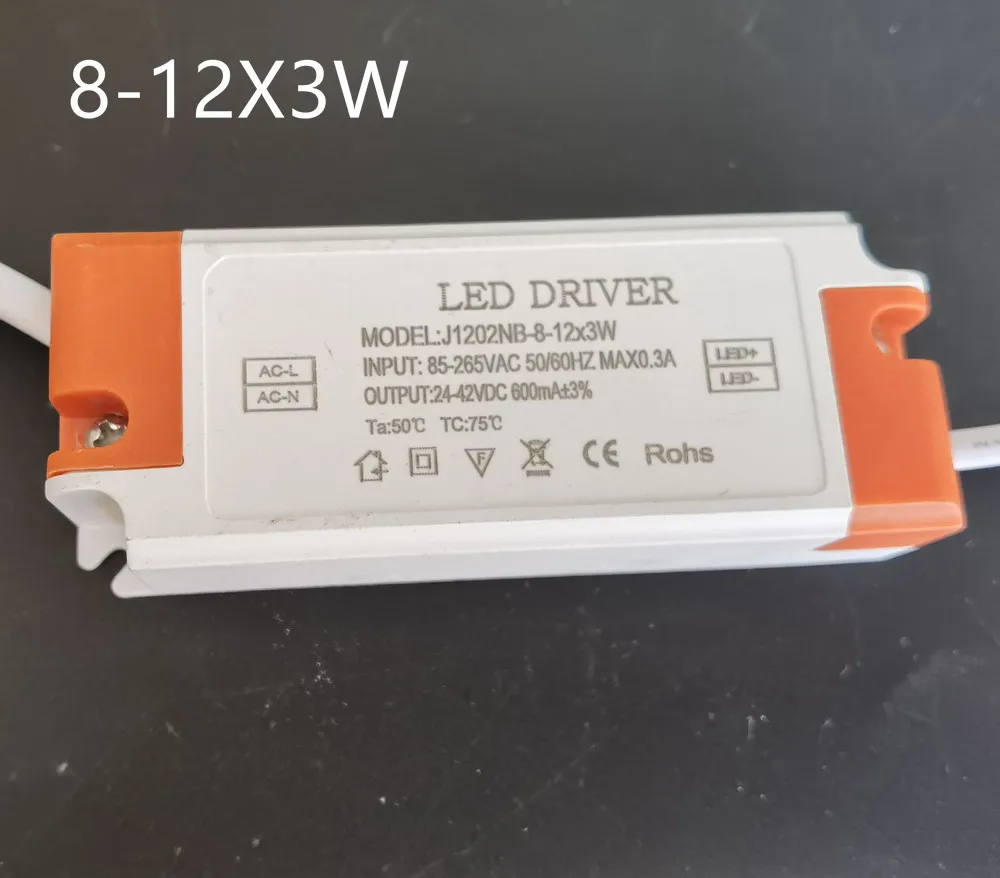

8-12X3W LED Driver

8-12X3W LED Driver (Use 3 years)

Input Voltage: 85-265V

Size :92mm*36mm*23mm

AC230V load test Output Voltage: 24-42V

Output Current: 580-600MAmA

AC230V no-load test: Output Voltage: 24-59V

(Danger! No-load testing is forbidden, and the test data is inaccurate.)

Parameter

Warning: Can not be used in constant voltage DC12V light string

Tip 1: How to choose the right driver for the LED?

I met a lot of buyers and didn't know how to choose the right LED driver.

First, you need to determine the lamp's input voltage and input current by 100%, then select the matching voltage and current of the LED driver.

Example: We detected a bulb voltage of 40V and a current of 290mA.

So we should choose the 8-12W 280-300mA option.

Tip 2: Dear buyer, if you need a full power LED driver, please choose 280-300 current product, this is a full power LED driver.

Tip 3: The no-load test is forbidden. The voltage is too large and the data is inaccurate, so be sure to enter the bulb load test.

All Isolated Driver

Feature

The LED Driver will automatically lit by balancing the voltage according to the lamp performance.

Advantage :

1-Transformer

Power is sufficient and temperature is low.

2-Chip

High quality intelligent constant current

Overvoltage protection, overload protection,

overheat protection, short circuit protection

No flicker

3-Electrolytic Capacitor

High frequency low resistance capacitor

In theory, if the LED driver is used for 8 hours a day, it can be used for 3 years. If the LED driver uses a temperature below 70 ° C, it can even be as long as 5 years.

4-Processing Technology

All use mechanized patches, efficient and stable. Eliminate manual soldering and lead to poor contact of electronic components.

5-Application Place

LED track light / LED bulb

LED Spotlight / LED Bulb / LED Corn Light

LED Strip Light / LED Tube Light / LED Table Lamp

LED panel light / LED chandelier / living room lamp
