SP630E LED Controller RGBCCT RGBW RGB CCT Single Color 12V 24V 5V Bluetooth Remote SMD5050 2835 COB PWM Pixel Strips Controler

Features:

SP630E is SPI+5CH PWM all in one led controller, it can compatible with multiple types of LEDs. Such as 1/2/3/4/5CH W/CCT/RGB/RGBW/RGBCCT PWM/Addressble LEDs and Addressble+PWM combined LEDs.

1. High performance, low power consumption Bluetooth microprocessor.

2. Compatible with 12 kinds of type of LEDs.

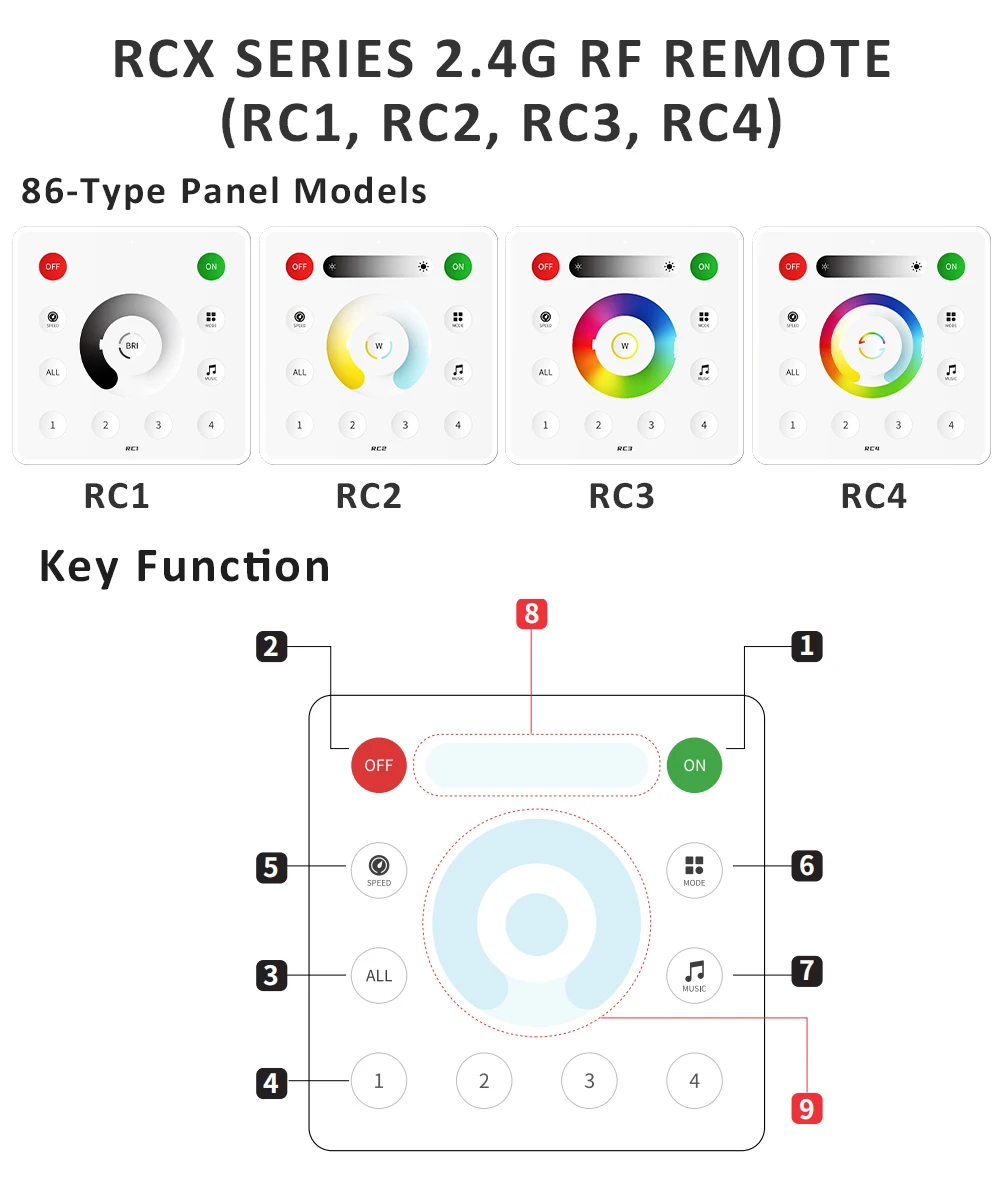

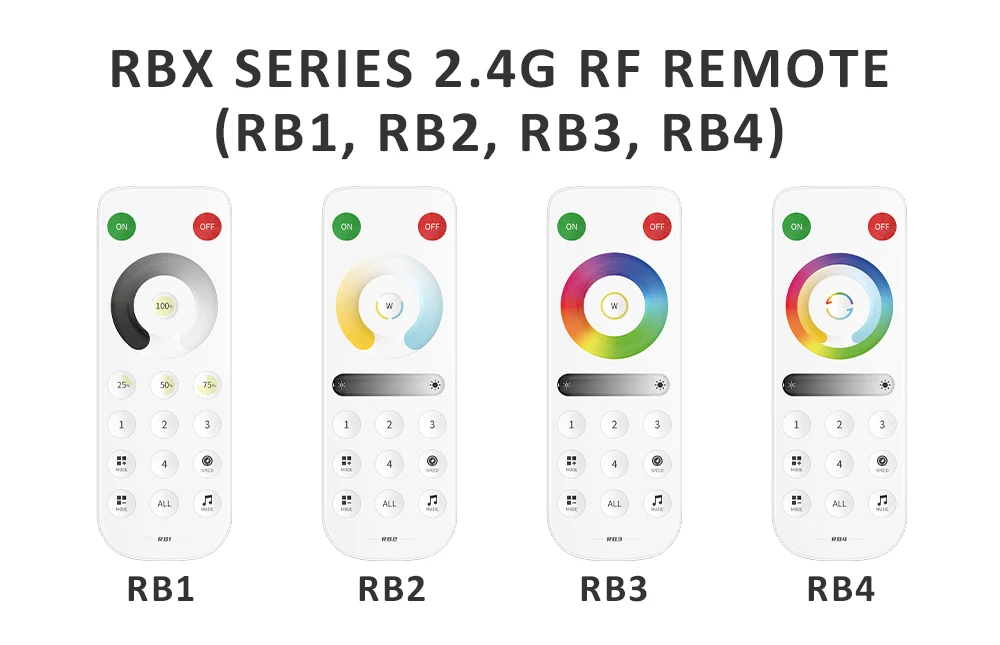

3. Support App control, 2.4G touch remote control and 2.4G touch 86-type control panel.

4. The remote control and 86-type control panel can be set up for zone-control

(can be divided into 4 zones), or unified control (ALL).

5. Support to set kinds of on/off animations and the default power-on state.

6. Support for modifying device name, color order correction and setting timers.

7. Support 3 kinds of music capture modes: cell phone microphone, player streaming, on-board microphone.

8. 5 major control pages in the App: dynamic, static, music, custom and setting. select different types of LED correspond to different App page content.

NOTE:

SPI Single Color/CCT/RGB MAX 600Pixels

SPI 4CH RGBW MAX 450Pixels

SPI 5CH RGBCCT MAX 300Pixels

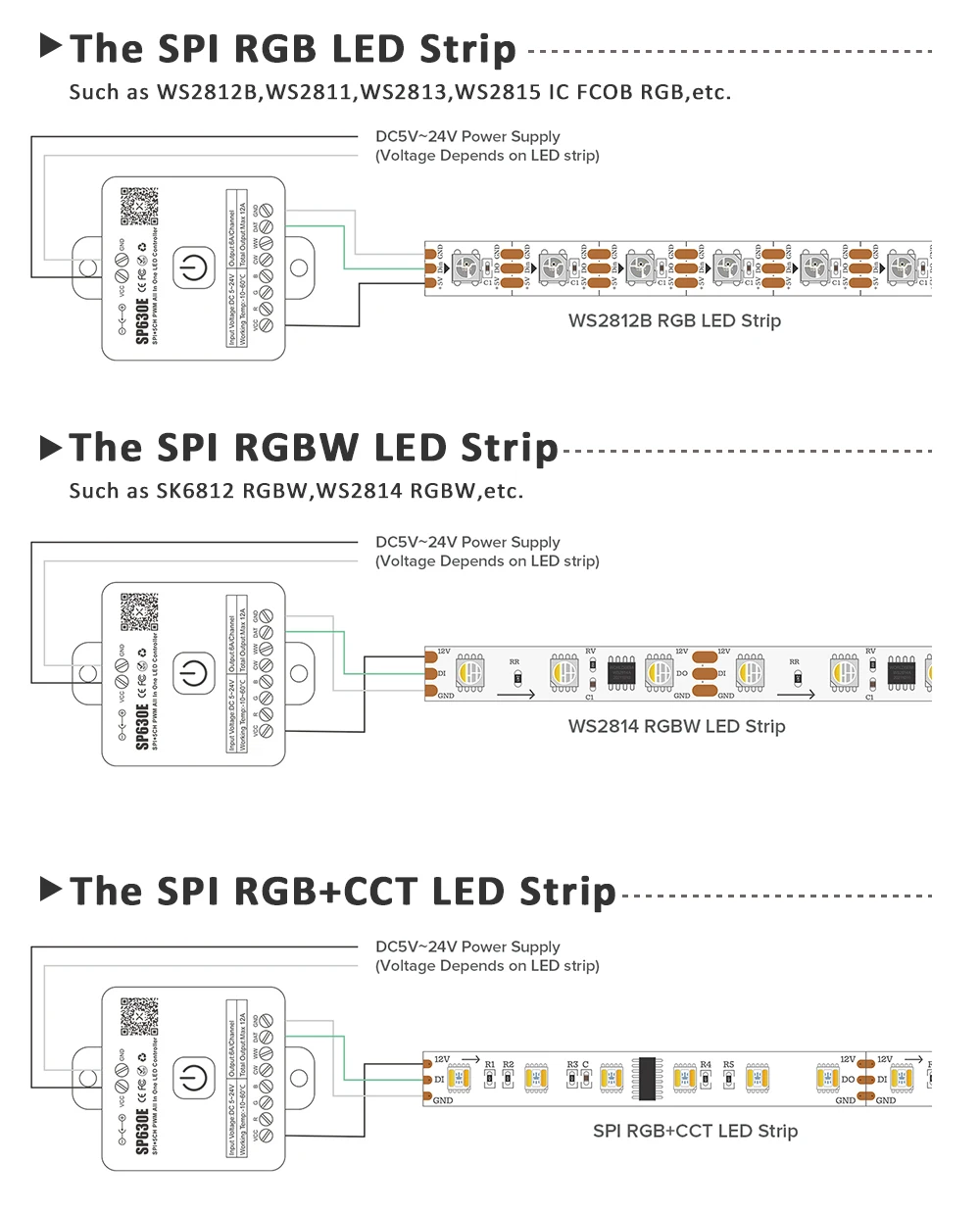

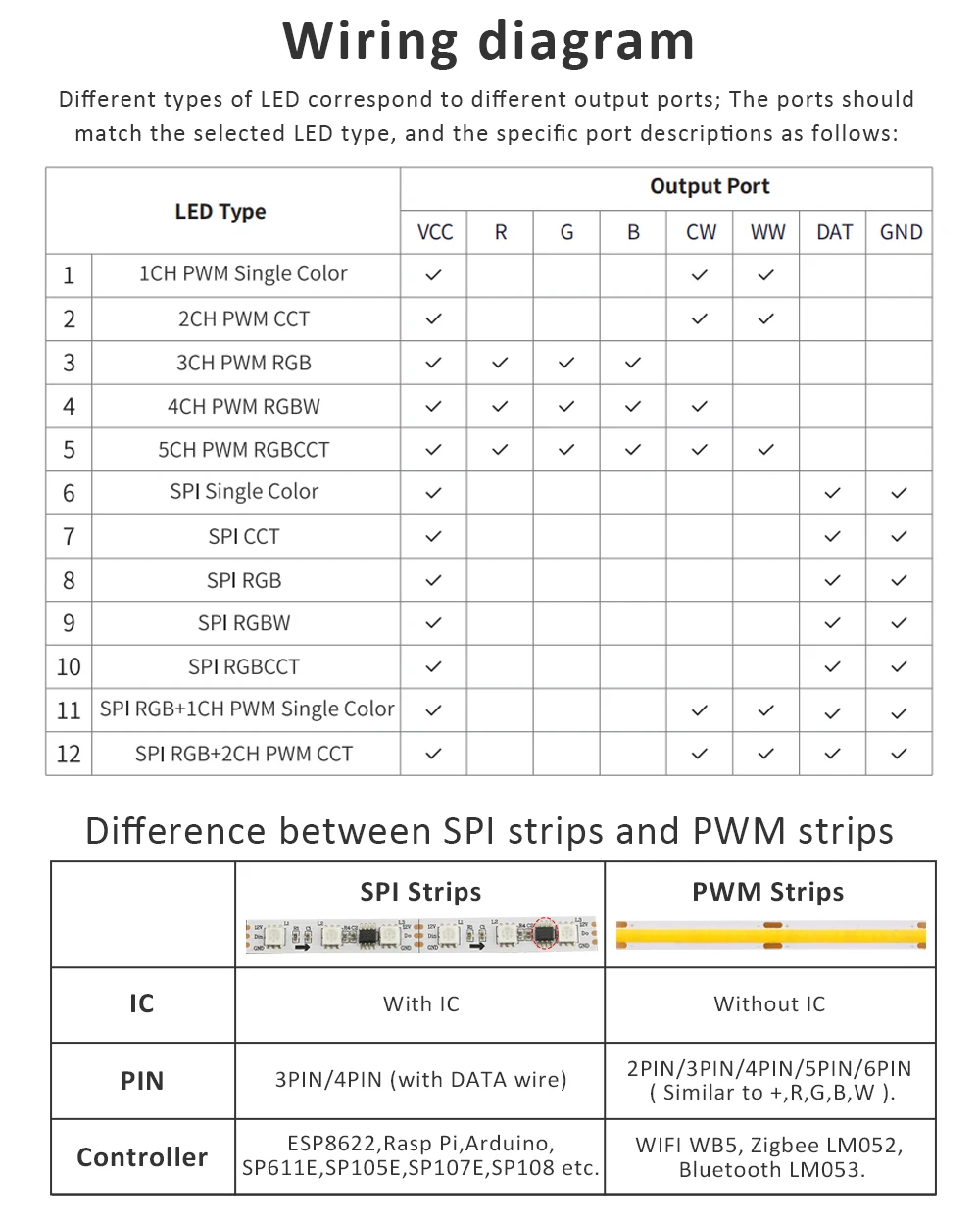

Difference between SPI (with IC) strips and PWM (without IC) strips.

Features of SPI and PWM:

IC : SPI--- With IC; PWM---Without IC.

PIN : SPI---3PIN/4PIN (with DATA wire) ; PWM---2PIN/3PIN/4PIN/5PIN/6PIN ( Similar to +,R,G,B,W ).

Controller : SPI---ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc. ; PWM---WIFI WB5, Zigbee LM052, Bluetooth LM053.
