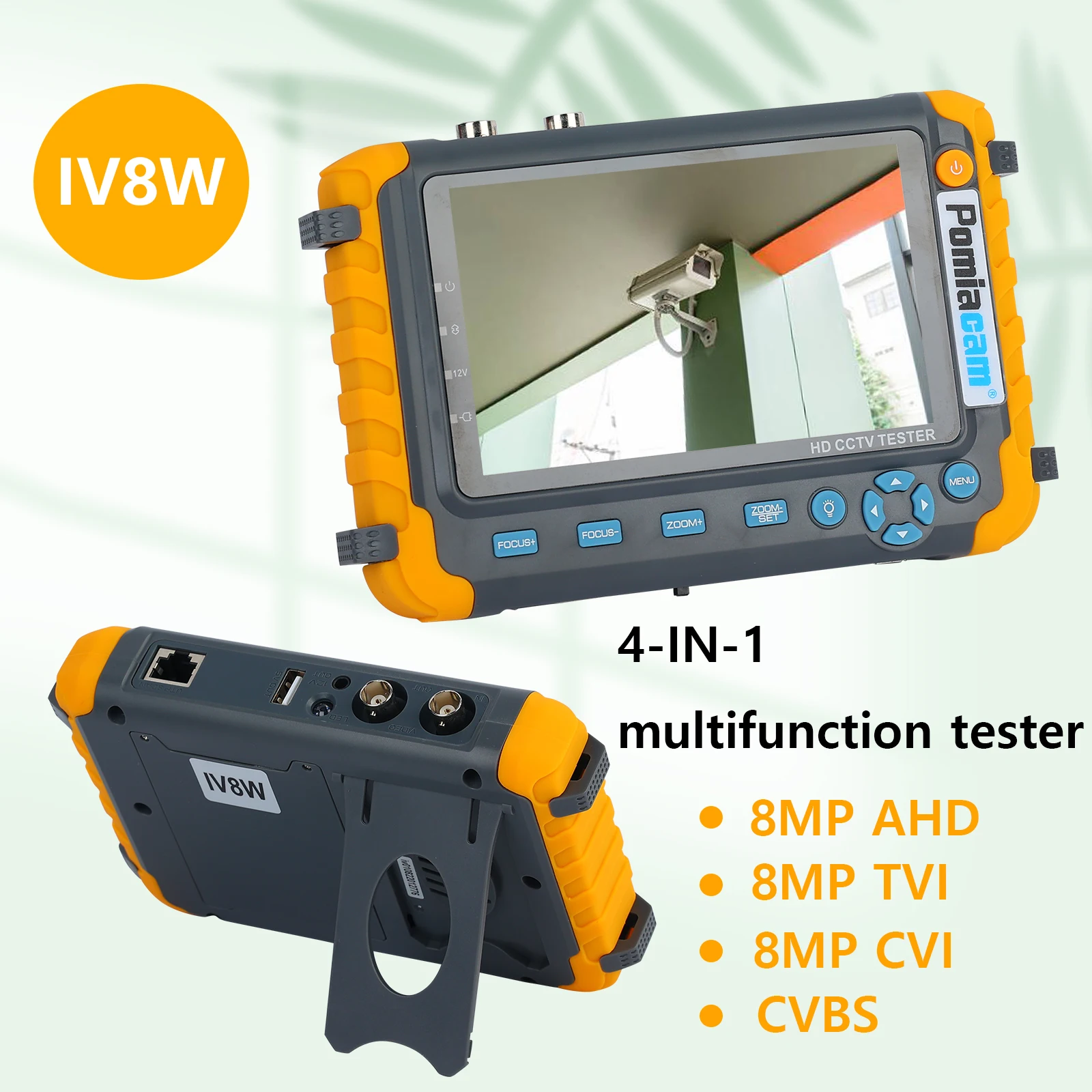

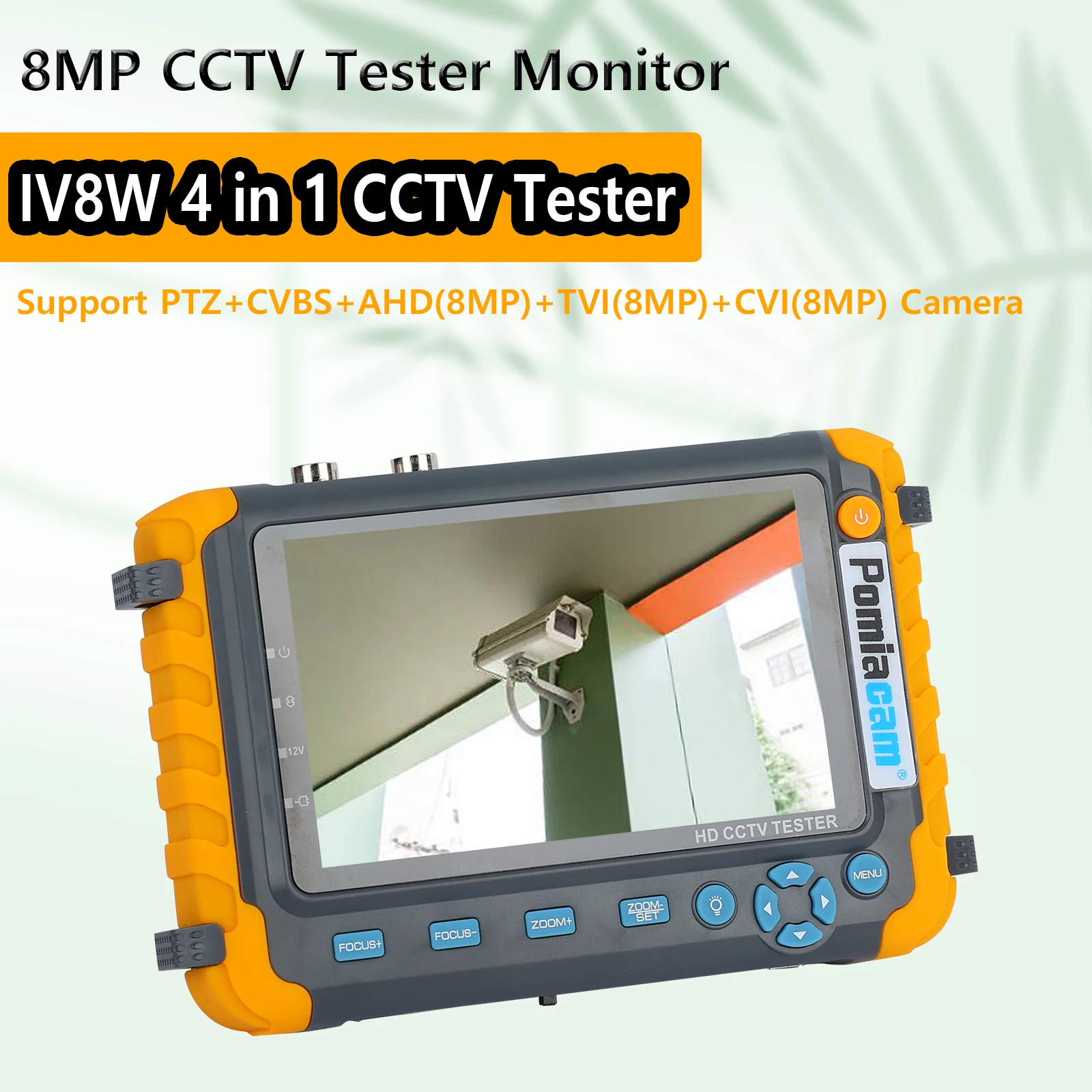

5.0 inch Monitor CVBS 8MP AHD/CVI/TVI 4-In-1 Camera Tester IV8W Tester Portable Tester Support PTZ Audio VGA HDMI Input

IV8W Application Please note: not support IP camera

The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

HDMI &VGA Input

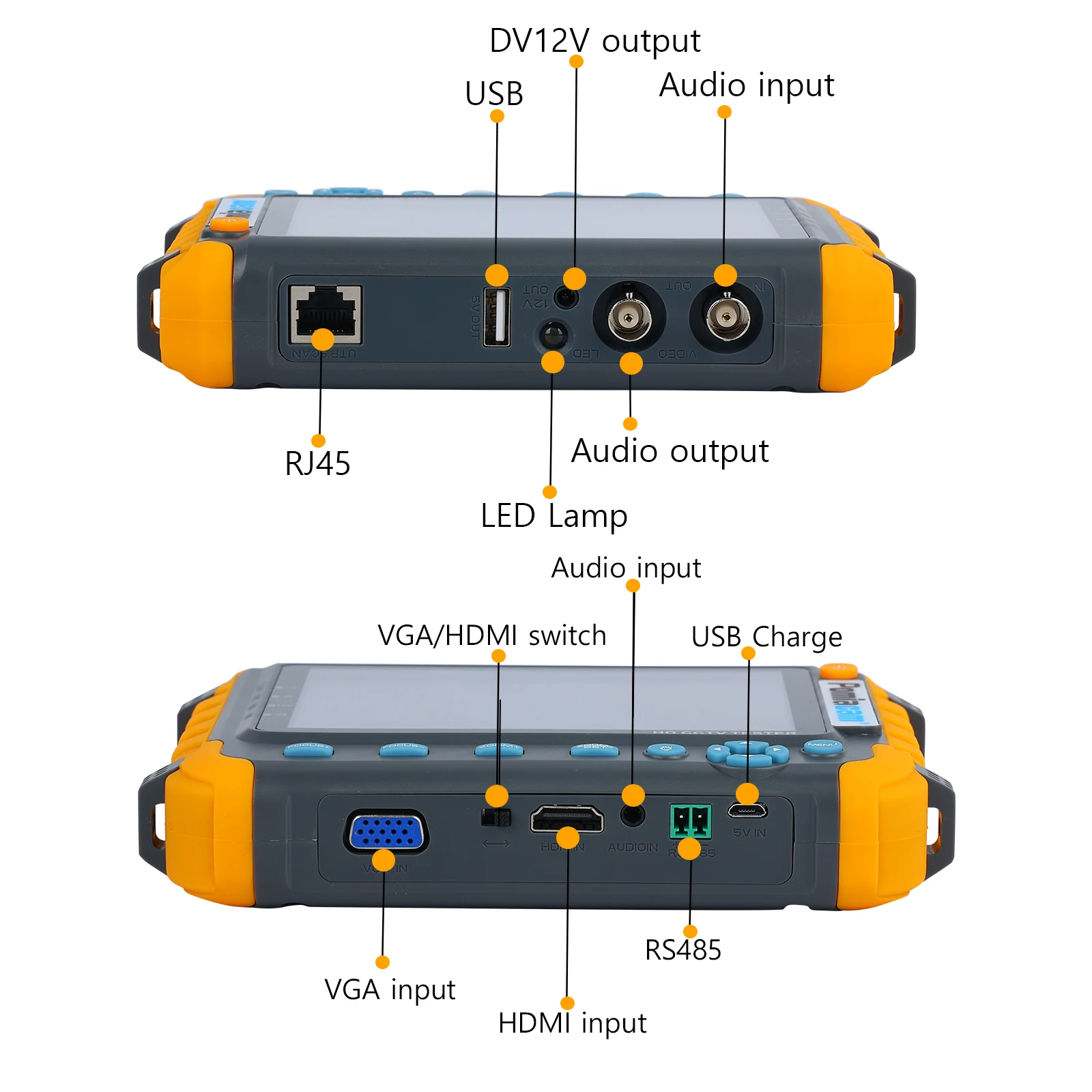

VGA/HDMI Input,it support VGA/HDMI 1:1 compliant digital input,once connect VGA/HDMI video,please switch selector to select VGA/HDMI Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.

PTZ controller

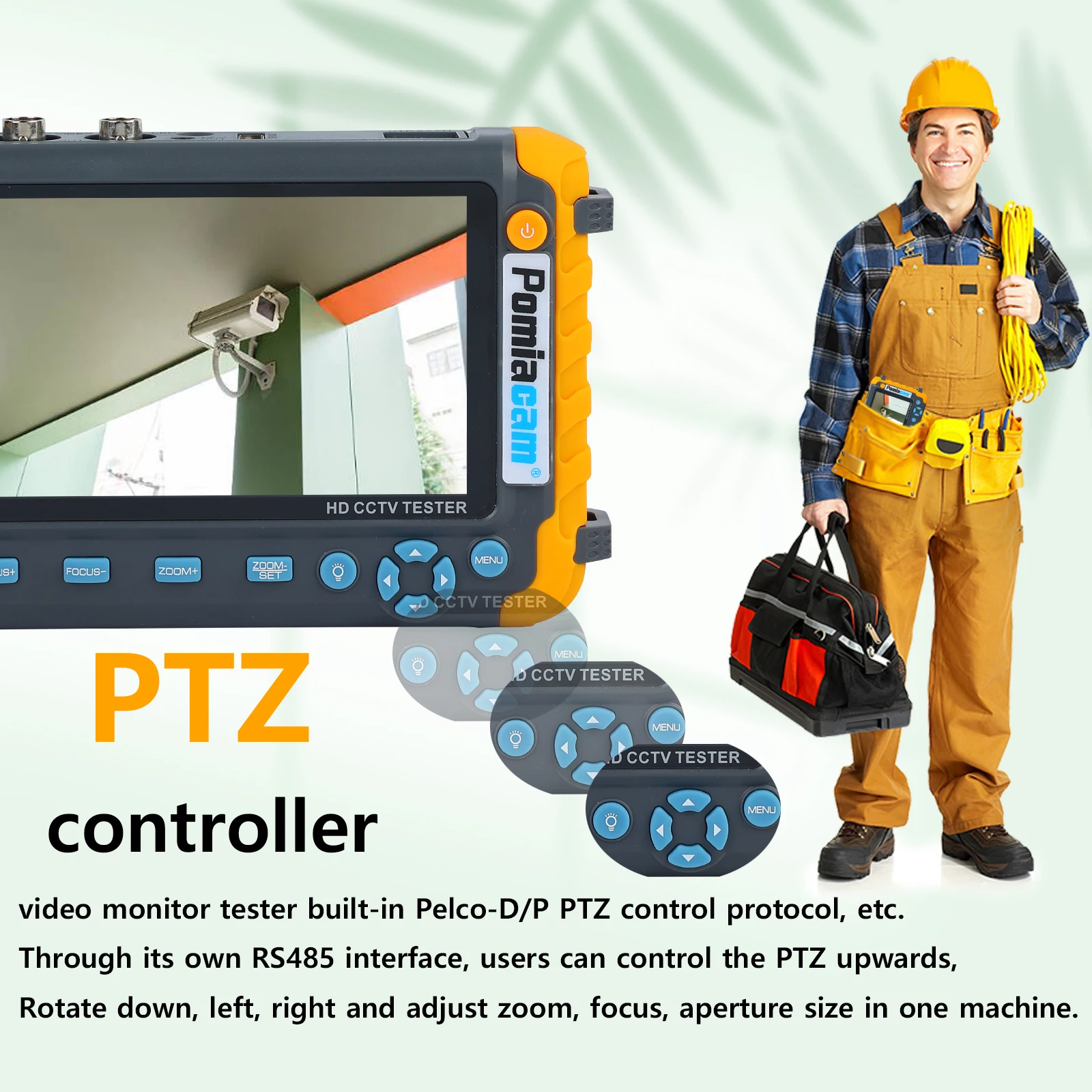

Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.

DC12V 1A output power for camera

The tester support DC12V (1A) power output for camera. It is helpful for demo and testing when the power supply is not available.

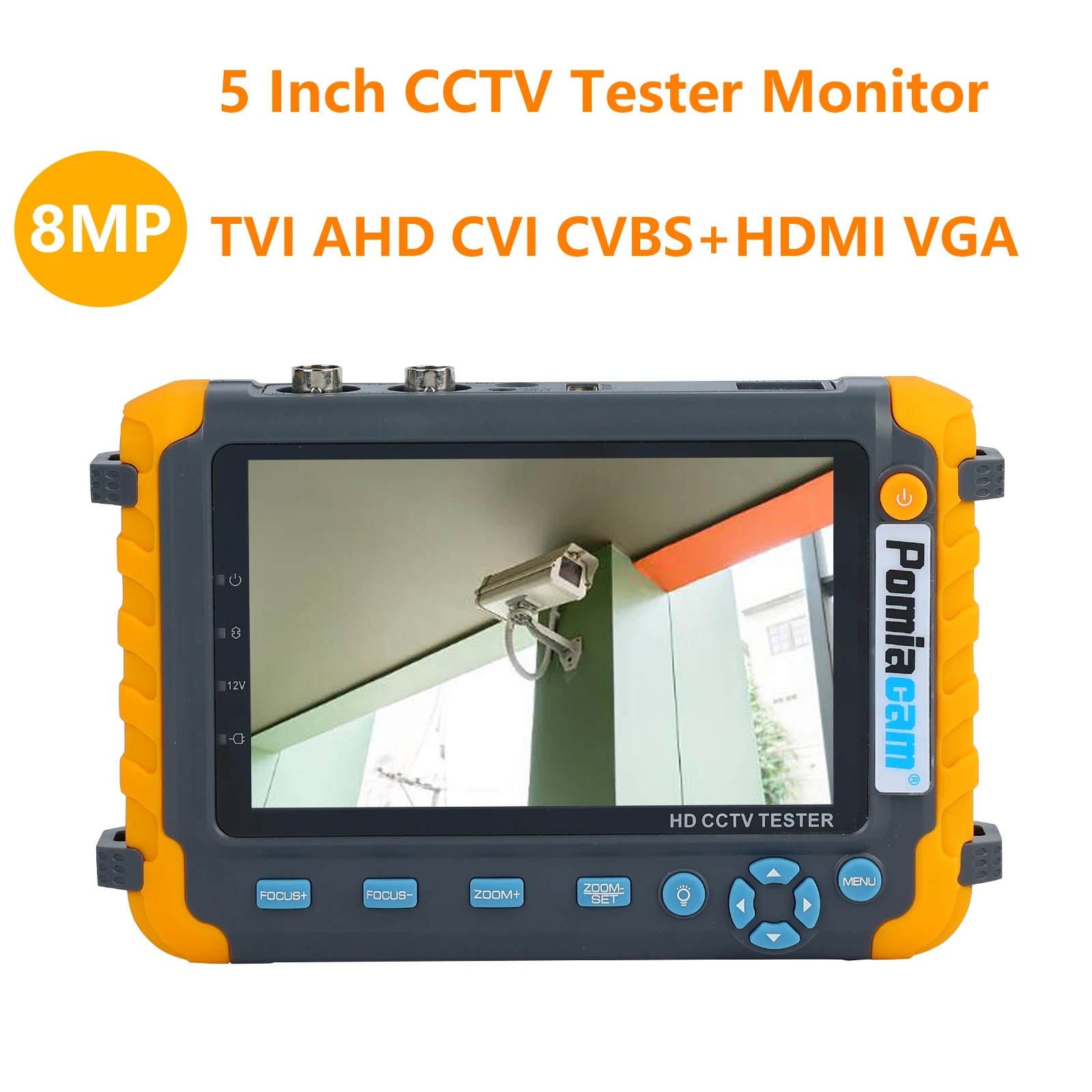

LCD Screen

Vedio monitor tester support High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.

PTZ controller

Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

Enhanced network cable testing

By UTP CABLE TEST port on the meter, you can test the connection of network cable.

TVI input

1 channel TVI input(BNC interface), support 720P25/30/50/60,1080P3MP/4MPand 5MP 25/30,8MP

AHD camera test

support 1 channel AHD input (BNC interface), 720P25/30/50/60,1080P3MP/4MP and 5MP 25/30,8MP When AHD signal input, the tester will display the AHD camera image.

CVI camera test

1 channel CVI input(BNC interface), support 720P25/30/50/60,1080P25/30,3MP and 4MP12.5/20,5MP, 8MP CVI camera input

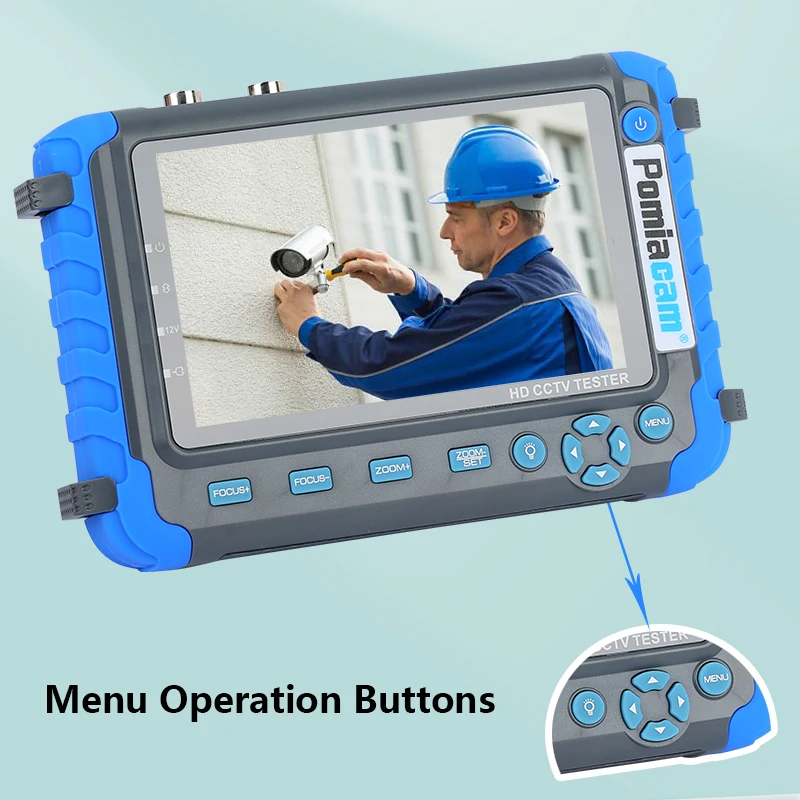

Please note: IV8C plus does not support VGA/HDMI input not support IP camera

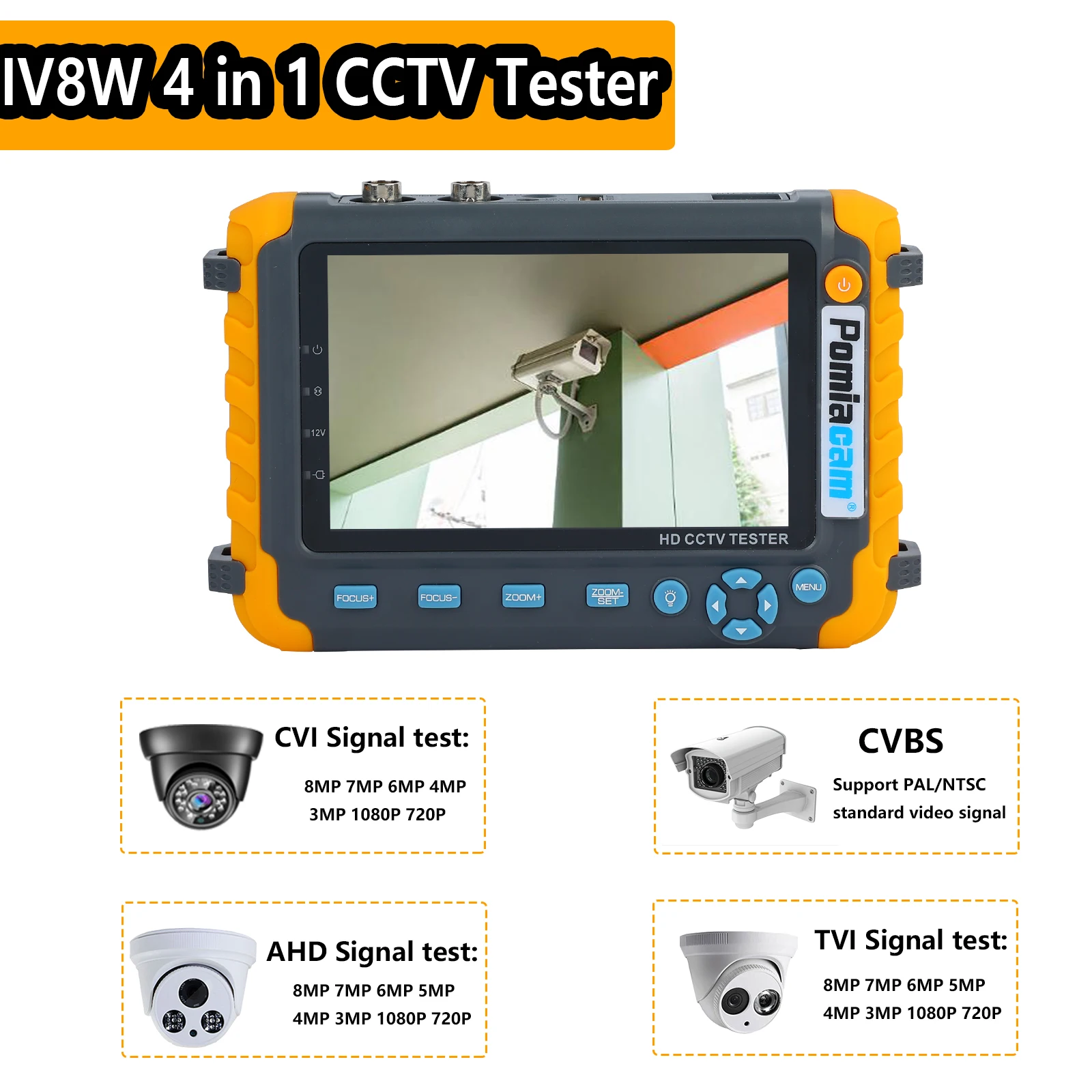

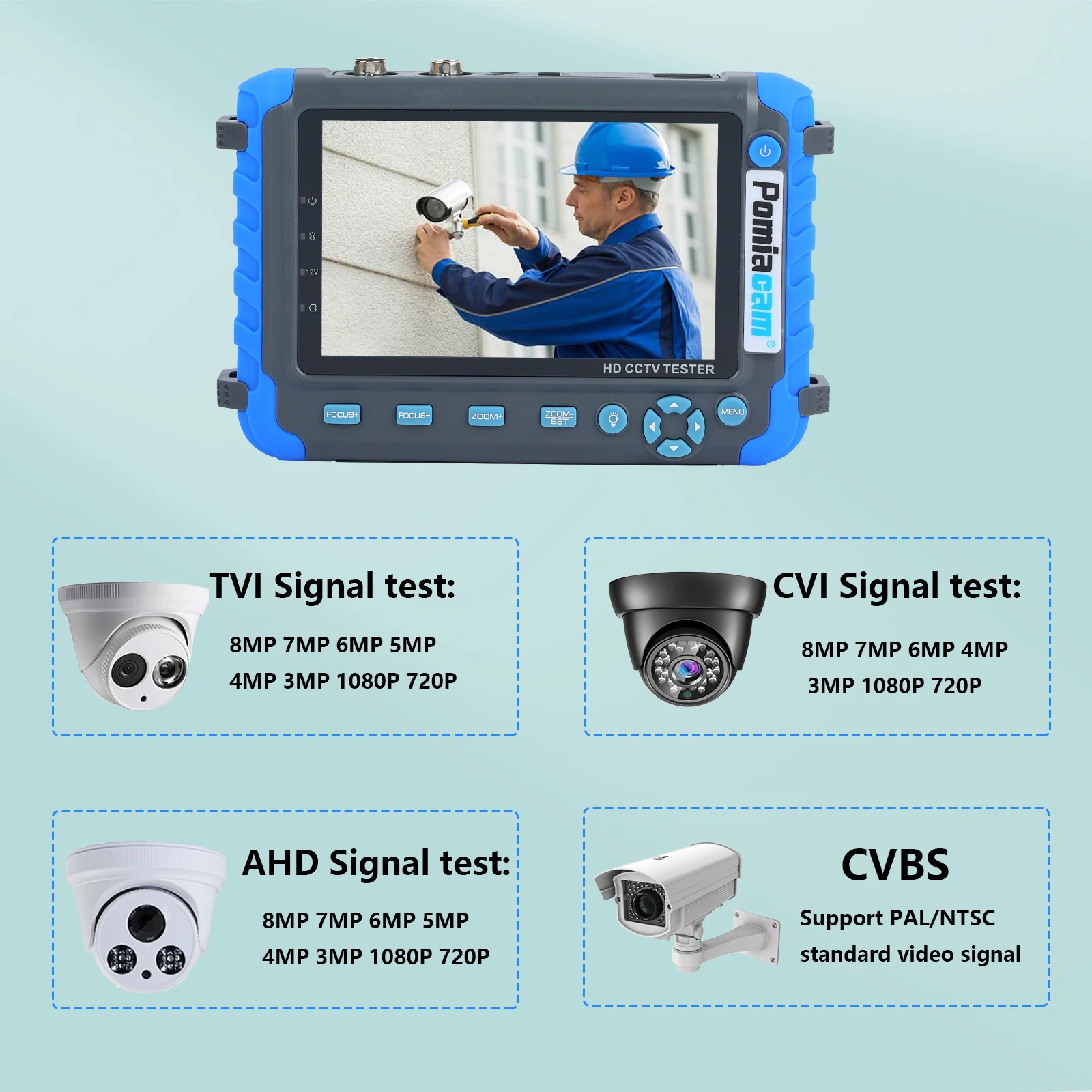

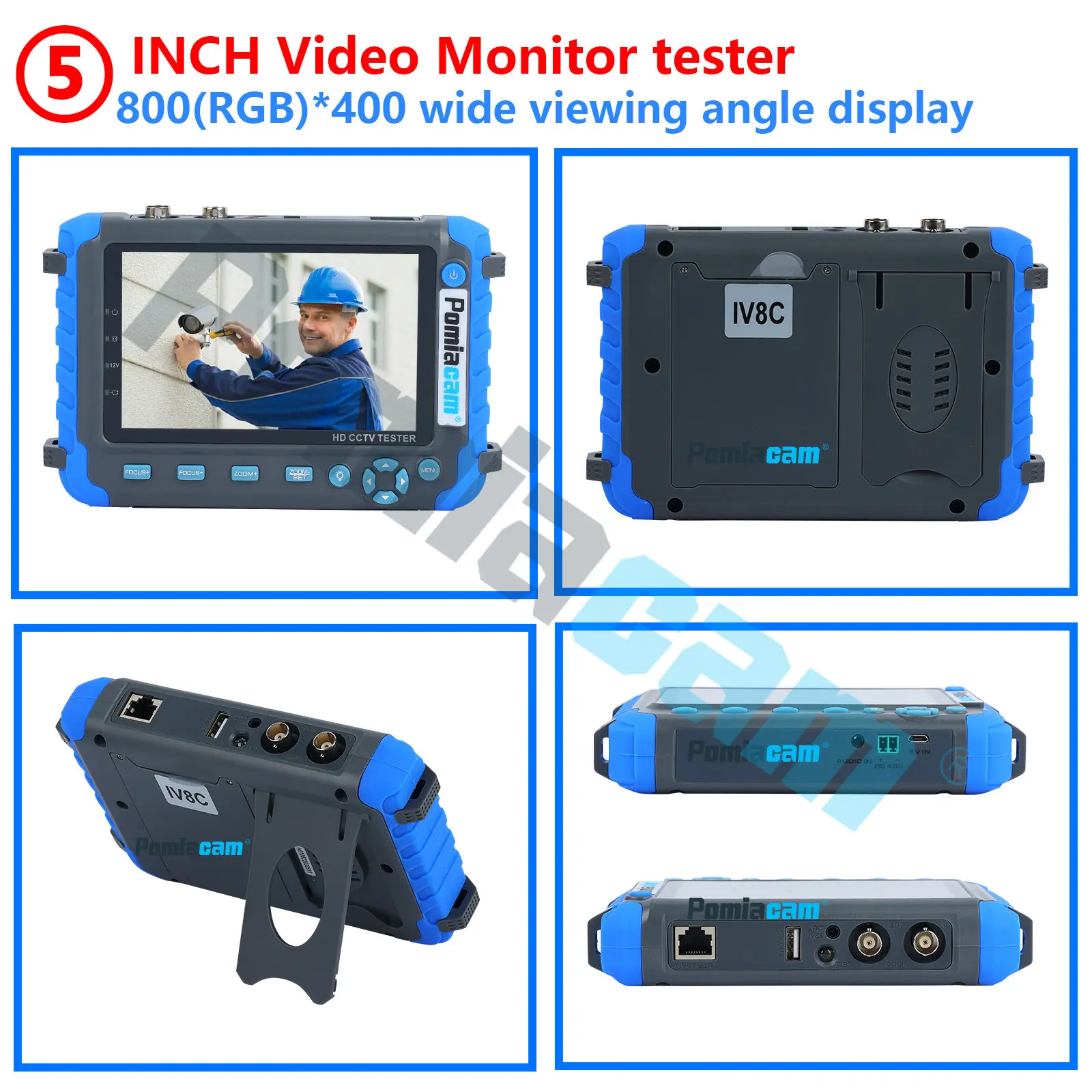

IV8C plus support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:

(1) AHD Signal test: 8MP 7MP 6MP 5MP 4MP 3MP 1080P 720P;

(2) TVI Signal test: 8MP 7MP 6MP 5MP 4MP 3MP 1080P 720P;

(3) CVI Signal test: 8MP 7MP 6MP 4MP 3MP 1080P 720P;

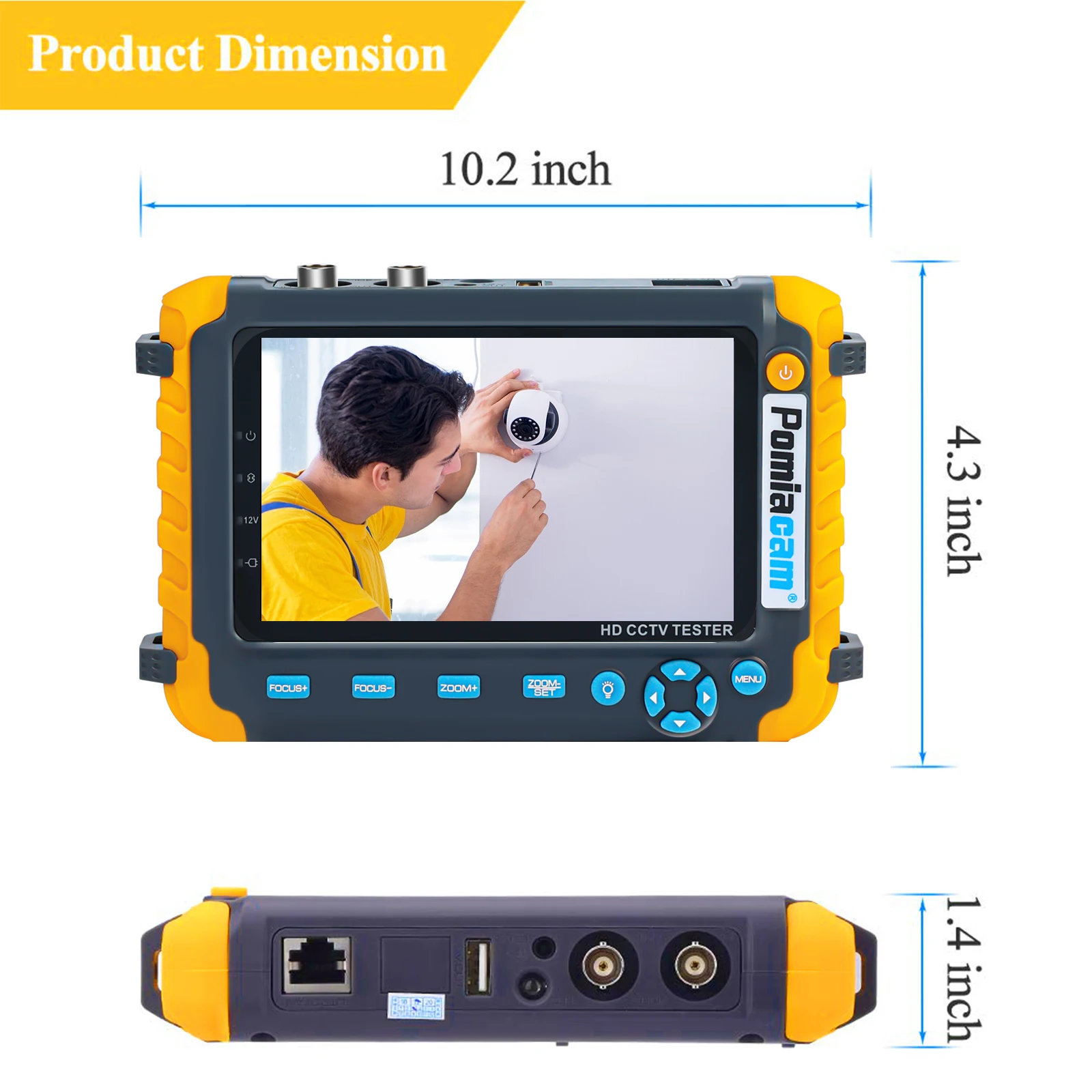

Product overview:

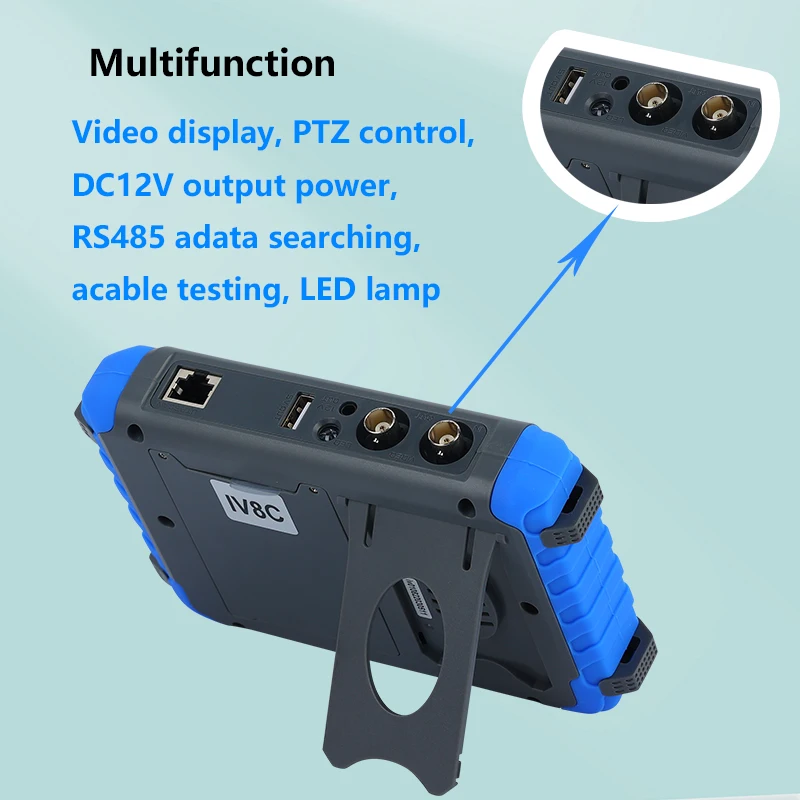

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc.

Main Features:

* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,

* Support PAL/NTSC standard video signal. CVBS testing.

* PTZ controller

Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

* Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

* DC12V 1A output power

Power the camera with DC12V (1A) power from the tester.

* Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

* Improvement cable test

UTP cable, telephone cable etc order and connectivity test, can save testing report

* TVI camera test

HD TVI video surveillance testing, support max 8MP. When TVI signal input, the tester will display HD TVI camera image.

* CVI camera test

HD CVI video surveillance testing, support max 8MP. When CVI signal input, the tester will display HD CVI camera image.

* AHD camera test

HD video surveillance testing, support max 8MP. When AHD signal input, the tester will display the AHD camera image.

* LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.

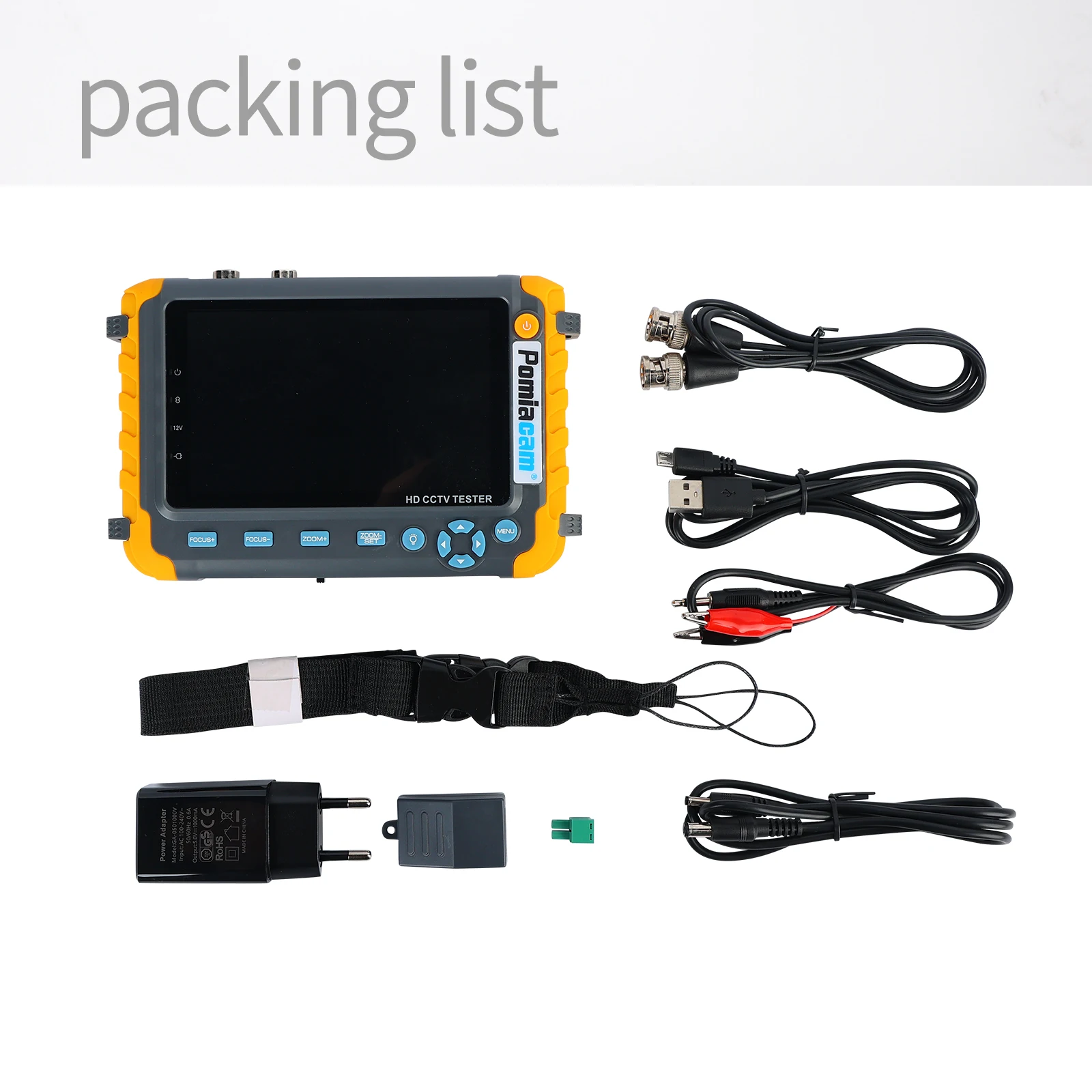

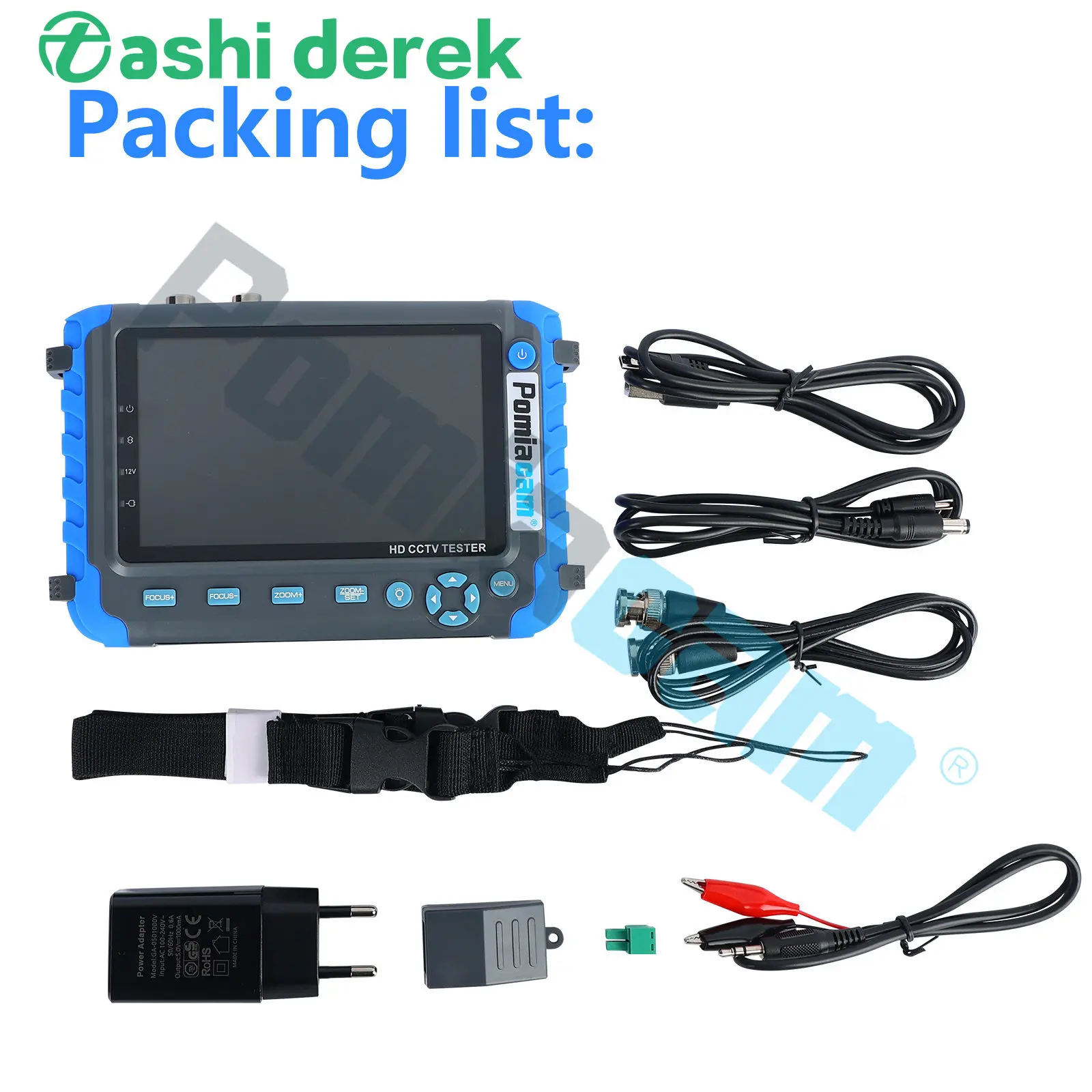

Packing list:

HD coaxial tester

Adapter DC5V 1A(with USB cable)

International Standard 18650 2600ma battery

BNC cable

RS485 connector

Power output conversion cable

Audio cable

Lanyard

Tool bag

Instruction Manual
