HTZSAFE Solar Beam Sensor Driveway Alarm System-800 Meters Wireless Range-100 Meters Sensor Range-DIY Home Security Alerts

NOTE PLEASE:

1. Customs Tax & Duty: Buyers are responsible for Customs Duty/Taxes, If you have any questions, please contact us after payment.
2. Ship from RU/PL/US warehouse will be FREE of Customs Tax and Fast delivery.

3. RU(EU-plug) warehouse & US(US-plug) only ship to local address.
4. Poland(EU-plug) warehouse can ship to the Local and below countries: PT, FR, DE, IT, AT, CZ, DK, LU, NL, BE, UK, HU, ES, SK, SI, IE, FI, LV, LT, SE, BG, EE, GR, RO.
5. HTZSAFE guaranteed 2-years warranty.

SOLAR WIRELESS BEAM SENSOR SYSTEM

SOLAR WIRELESS ALARMS

Solar powered, no wiring no need replace battery. The outdoor weather resistant solar beam sensor is powered by built-in rechargeable battery, and the battery will be charged by the built-in solar panel on rainy or cloudy days. These is also a charge jack at the back of the sensor which can be also charged by DC5V-DC12V power adapter or powered by extra solar panels if the sensors will be installed indoor or some darkness areas. .

800 METERS WIRELESS RANGE

Both the solar beam sensor and the wireless receiver pick up alarm signals up to 800meters away(actual range will vary depending on the local terrain), it is a great solution even you have a large perimeter or property to monitor. The system adopts advanced wireless transmission technology(FSK+FHSS) to avoid the wireless signal interference from other devices.

100 METERS SENSOR RANGE

The solar beam sensors works in pair ( one is transmitter, the other one is receiver ), the infrared detection range of the solar beam sensors up to 100 meters, it means the infrared sensing terminals can be mounted up to 100 meters apart.

LOWER FALSE ALARM RATE

The use of active and multiple infrared beams reduce false alarms from small animals and small objects such as birds and falling leaves; Super infrared penetrating power reduce false alarms form the bad weather such as heavy rain/ fog/ snow; The use of infrared analysis technology reduce false alarms from the other nature light sources interference such as strong sunlight.

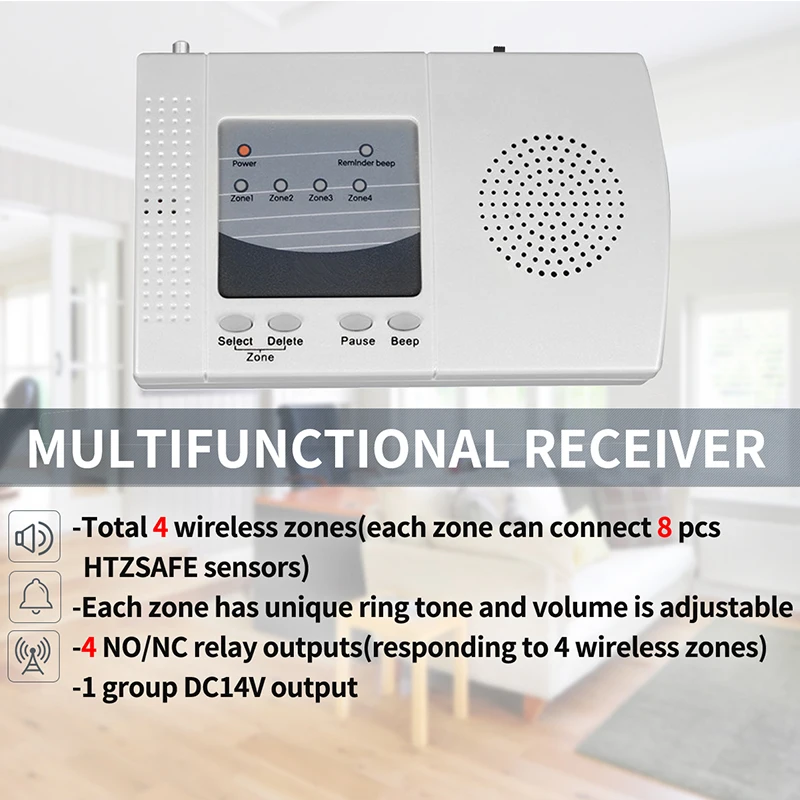

MULTIFUNCTIONAL RECEIVER

The alarm receiver has 4 wireless zones (each zone can connect 8pcs sensors), expandable up to 32 sensors to 1 receiver; and 1 sensor can be added to unlimited receivers for complete coverage for your property. All the 4 wireless zones has its unique ring tone and the volume is adjustable, match different ring tone with different sensors around your property to differentiate where motion is detected. The receiver has 4 NO/NC relay outputs responding to the 4 wireless zones ( used to compatible with other device ), the receiver also has 1 group DC14V output which can be used to connect wired siren/strobe light.

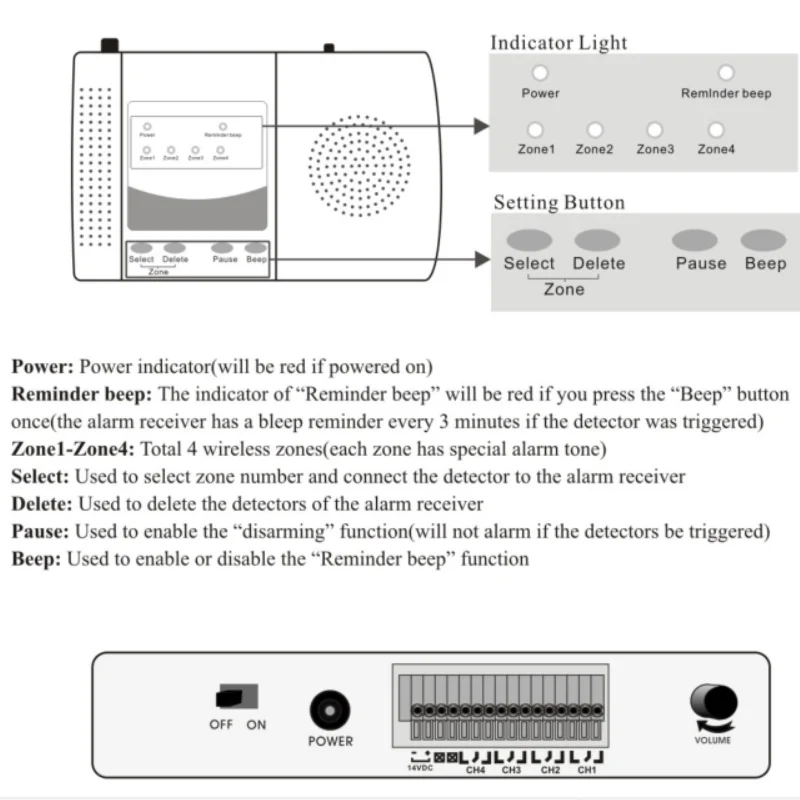

MULTIFUNCTIONAL WIRELESS RECEIVER

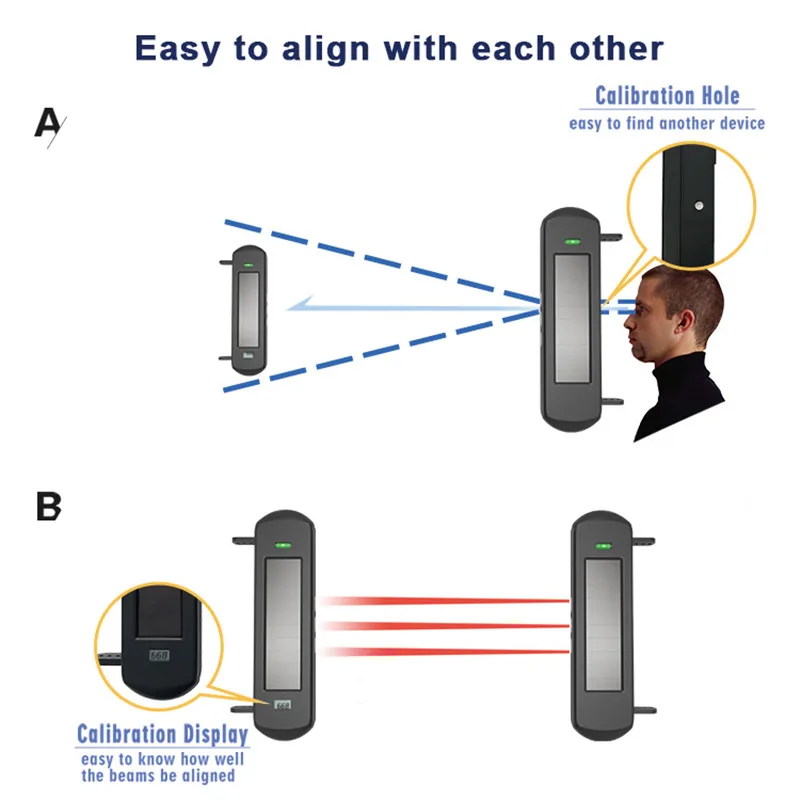

CALIBRATE THE SOLAR BEAM SENSORS

WIDER APPLICATION RANGE

PRODUCT DESCRIPTIONS

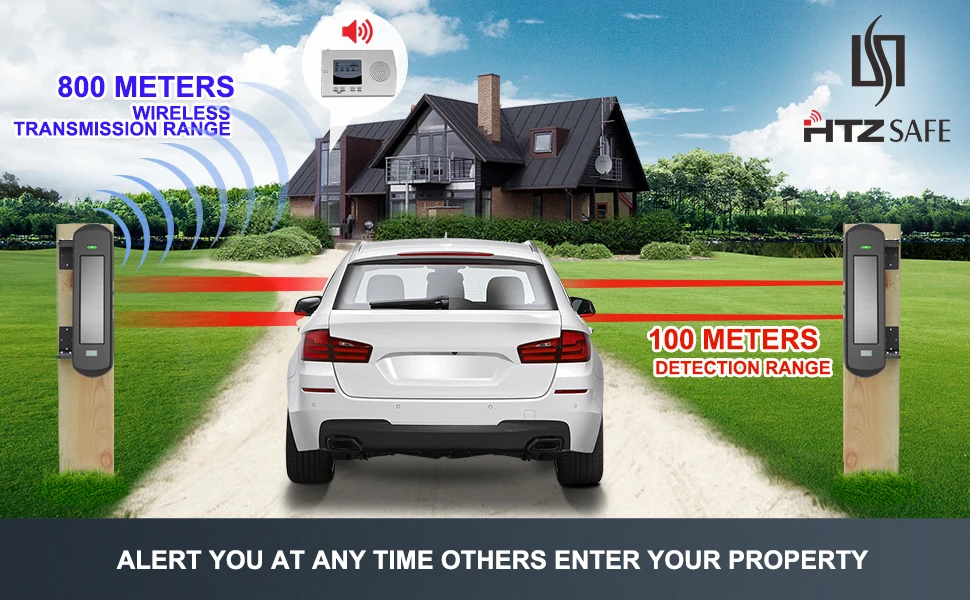

HTZSAFE Solar Wireless Security Alarm System: The solar beam sensors work in pair (one is transmitter, the other one is receiver ), the infrared sensing terminals of the solar beam sensors can be mounted up to 100 meters apart, and will send a wireless signal back to wireless alarm receiver up to 800 meters away anytime the intruder passes between the beam sensors;

--The solar beam sensor is powered by rechargeable battery and solar charged. No need replace battery of the sensor.

--The solar motion sensor is weather resistant, will work properly at all the seasons. Working temperature range from -30 to 50 degree Celsius.

--Up to 800 meters long wireless transmission range(ideal conditions), it is a great solution even to monitor the long driveway/large property/and etc.

--Up to 100 meters wide sensor detection range, ideal for driveways, walking paths, yards, garages, gate, pool and anywhere of your property you want to be alerted.

--Advanced wireless transmission technology(FSK+FSHH) to avoid the wireless signal interference from other wireless devices.

--Multifunctional wireless receiver has 4 wireless zones responding 4 NO/NC relay outputs; It also has 1 group DC14V output used to connect wired siren/strobe light.

--Fully expandable system, up to 32 HTZSAFE sensors can be added to the 1 receiver; and 1 sensor can be added to unlimited receivers. (Restart the receivers or sensors will not miss the records)

--HTZSAFE focus on developing the Solar & Wireless Alarms more than 20 years, HTZSAFE has several kinds of transmitters and receivers which have different features for different applications and environments, and all the HTZSAFE products are compatible.

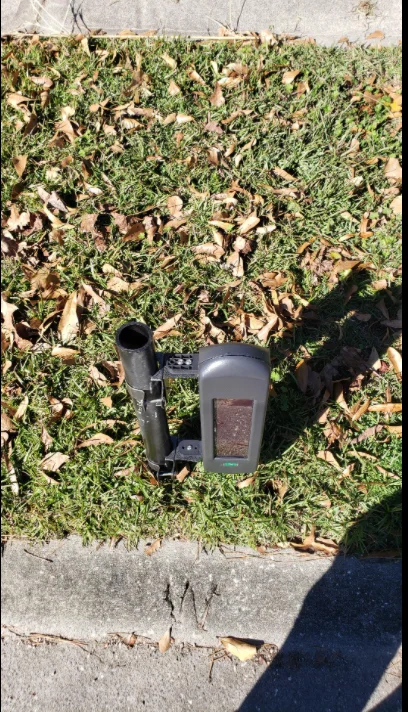

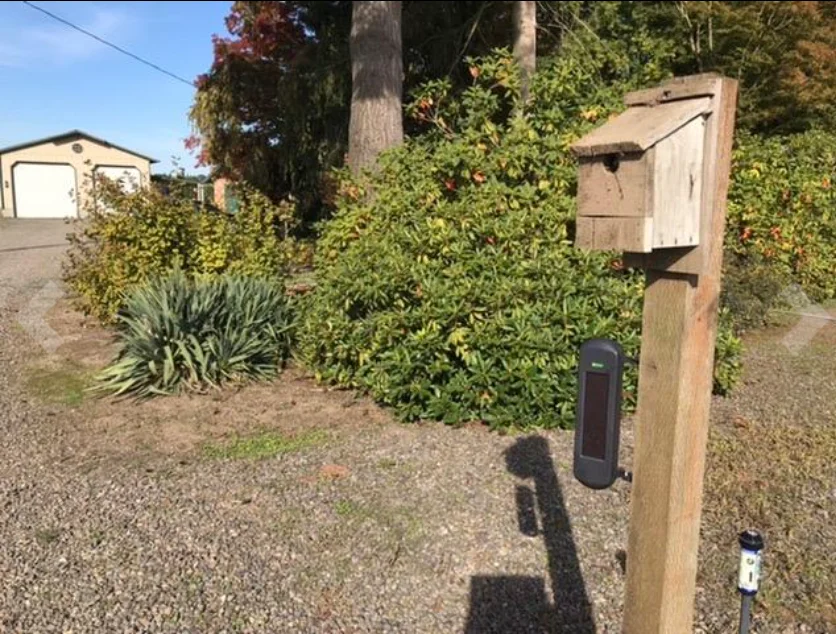

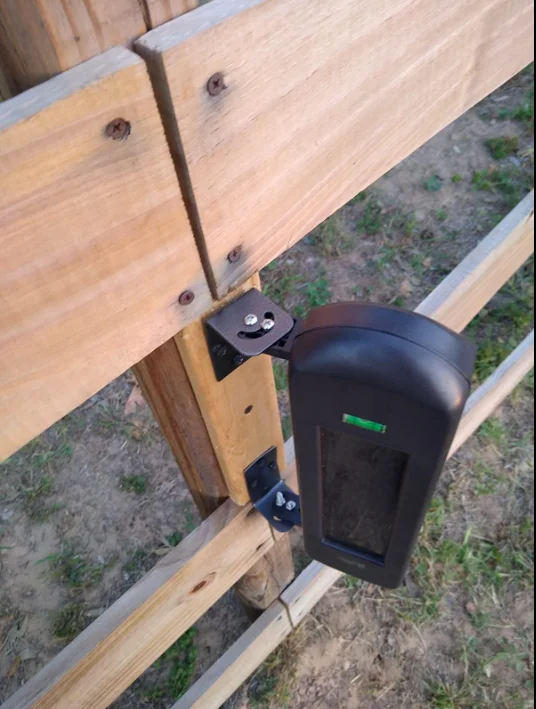

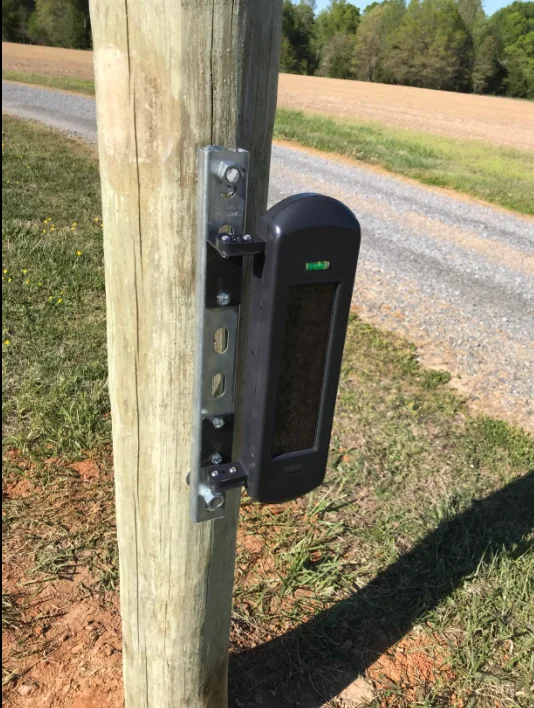

INSTALLATION PICTURES

FULLY EXPANDABLE & COMPATIBLE SYSTEM
(All the HTZSAFE products can work together)
