NEEY 5A 3S 4S 5S 6S 7S 8S 9S 10S 11S 12S 13S 14S 15S 16S 17S Active Equalizer Balancer Lifepo4/lipo/lto Battery Energy Capacitor

NOTE:

3-4S Li-ion Lifepo4

6-8S NCM LFP LTO

12-16S NCM LFP LTO

You can choose to ship from EU and US

As the battery battery cycle times increase, the battery capacity decay speed is inconsistent, causing the battery voltage to be seriously out of balance.

The battery barrel effect will cause the battery to charge. The BMS system detects that the battery has entered the overcharge protection in advance. In fact, only one of the batteries is full, or let The BMS system detects that the battery enters the over-discharge protection state, which is actually caused by over-discharge of one of the lower-voltage batteries. After the device acts, each battery voltage reduces the capacity attenuation caused by the battery barrel effect and prolongs the problem. The battery pack has a service life.

The capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started.No voltage difference is required.

1.Technical parameters:

Working voltage: 1.8V-4.5V

Suitable for ternary lithium, lithium iron phosphate, lithium titanate.

2.Working principle:

The capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started.

The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB

Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!

The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.

With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.

For all means suitable for ternary lithium, lithium iron phosphate, lithium titanate.

3.Balanced Cascading

Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on

4.connection

3S

3-4S

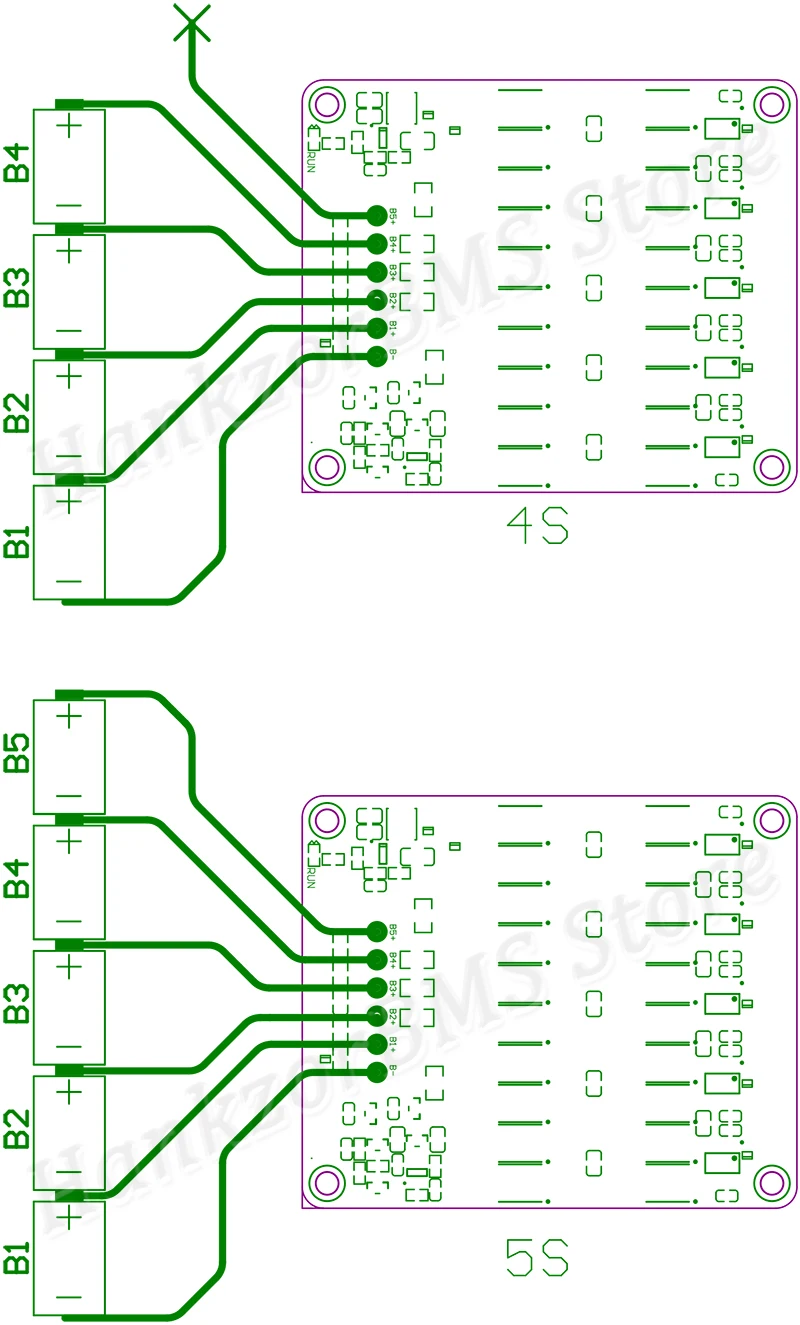

4-5S

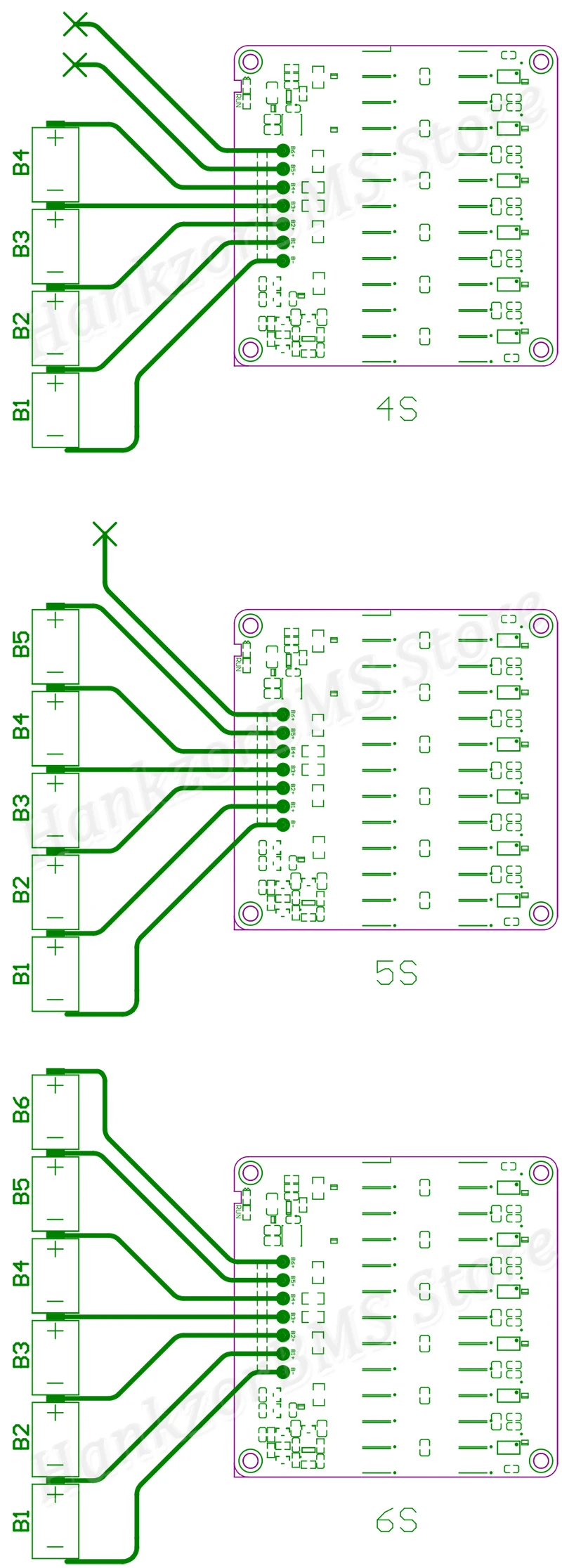

4-6S

5-7S

6-8S

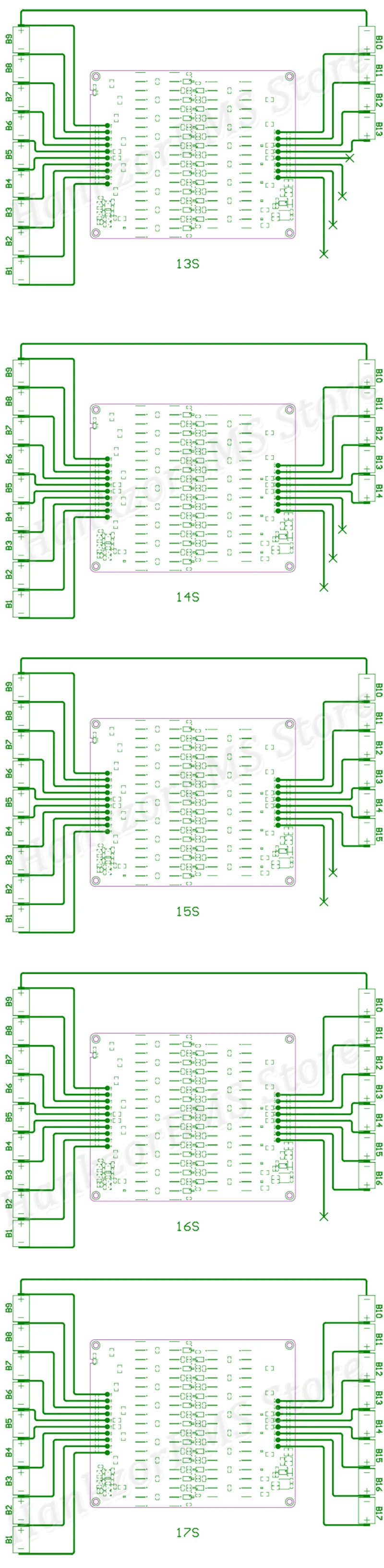

9-14S

12-16S

13-17S

5. Equalization Curve

Measured fault battery pack combination 4 string 25Ah equalization curve
