Thinkscan Plus S7/S6/S5/S4 Diagnostic Tools Diagnose 7 System 5 Reset Free Lifetime Autotools Car Obd2 Scanner Code Reader Tools

Warm Tips

1) Before place order please check compatibility first. Send your car brand model and release year to seller.for example(Audi,A3, 2020)

2) Not 28 resets work for all cars, before place order please send your car brand, model and release year check compatibility for you.

The different of S7/S6/S5/S4 OBD2 Diagnostic Tools!

Good News!

Brazil warehouse officially opened! Free from high customs duties, fast arrival in 7-10 days!

THINKCAR Plus S7 OEM 7 System Diagnosis + 5 Reset Special Services +100,000 Car Coverage+ Full OBDII Functions + AutoVIN + Lifetime Free Update Online

OE-Level 7 System Diagnoses: Engine/Transmission/ABS/SRS/BMS/BCM/AC/IC Diagnoses Scanner OBD2.

5 Maintenance Services: ThinkScan Plus S7 scan tool for all vehicles has YOU NEED Reset.
Fixed more bugs and Upgraded car makes up to 2023 models-- 100000+ Vehicle Coverage; 126+ Car Makes Support including cars, SUVs, minivans, 12v light-duty trucks. Expanded vehicle coverage can grow your customer base.

Full OBDII Special Functions: Read Codes, Clear Codes, Live Data, Freeze Frame, I/M Readiness Status, O2 Sensor Diagnosis, On-board Monitor Diagnosis, EVAP System Diagnosis, Component Diagnosis, Accessing Vehicle Information.

Auto VIN Scan: Automatically identifies your car quickly.

One-click Lifetime Free Update via WiFi: Load the latest version, bug fixes, new vehicle models coverage, newly added parameters, and functionality on your scanner.

Live data recorded and Playedback -- Playback supports two graphs (independent) or 4 PID's graphed (combined).

Super Faster: Android 7.0 Systems, Added the storage of THINKSCAN SR6 from 8G to 16G memory for more vehicle models program, and the running memory up to 1.3Ghz, runs Faster, Smoother and More Stable.

LOCALIZED 10 Languages Support: English, French, Spanish, German, Russian, Italian, Japanese,Polish and Portuguese,Turkish.

Lifetime Free All Cars 7 Systems Diagnostic

ECM (Engine System) Diagnose:

Many car owners are always confused with the flashing check engine light, which will appear because of various problems, for example, the engine injector should be cleared or engine combustion is not good. If the problem is not solved in time, it will affect the quality of vehicle exhaust and pollute the environment. This check engine light code reader with a reset diagnostic tool will do you a favor to locate the cause and turn off the check engine light with the problem resolved.

ABS (Anti-lock Braking System) Diagnose:

Anti-lock Brake System (ABS) is one of the most important systems from chassis control modules, the indicator warning light of which will remind you that there is something wrong with the ABS system. This obd2 scanner with abs diagnoses can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing. After performing a comprehensive diagnosis of your vehicle. The abs warning light will stay on after you fix the issue. Then get the ThankScan Plus S7 abs brake bleeding scan tool to help you turn it off.

SRS (Airbag) Diagnose:

Airbag/SRS system is located at the body control module, which plays an important role in driving safety. There are many possibilities if the airbag warning light stays on, including the trouble of airbag, air spring, collision sensor, airbag plug loosening, line open circuit and etc. Therefore, ThinkScan SRS scanner allows you to have a deep analysis and detection for your vehicle via reading fault codes. But sometimes the permanent fault codes in this system will still appear and the warning light flashes after the airbag replacement. Then you will need this auto scanner with airbag code reader again to turn the light off.

BCM(Body Control Module) System Diagnose :

Body control module will directly let you know about a system that has malfunctioned, as it can diagnose and report the problem. A body control module (BCM) plays a central role in a car by maintaining control over its various functions. Problems in it can cause and/or mask the problems in the other modules of a car. Troubles in this system can set off a chain of events that can incur large-scale damage to the car. Thus, it is of prime importance to look after and keep the BCM in a well maintained condition. This body control module / BCM scanner diagnostic tool will do you a favour to locate the cause and check mainly control the electrical appliances used in the car body, such as lamps, wipers, door locks, power windows, sunroofs, etc.

TCM (Transmission System) Diagnose:

The automatic transmission system is one of the powertrain control modules,but some issues like unworking electronic accessories and broken transmission computer will keep your transmission light flashing. It's hard to locate the accurate error within limited time. Fortunately, this car error code reader transmission scanner will assist you to have a fast scanning of your vehicle and read the fault code easily, shutting down the waring light within minutes when you finish the repair.

AC (Air Conditioning System) Diagnose:

Car air conditioning system diagnosis: Diagnose the cooling, heating, ventilation and air purification devices of the air in the cabin. Ensure that the vehicle has a comfortable environment, reduce the fatigue strength of the driver, and improve driving safety.

IC (Instrument System) Diagnose:

The car dashboard is a device that reflects the working conditions of the various systems of the vehicle: fuel indicator, cleaning fluid indicator, electronic throttle indicator, front and rear fog light indicator and warning light. ThinkScan Plus S7 can diagnose the fault location of the instrument and provide fault codes

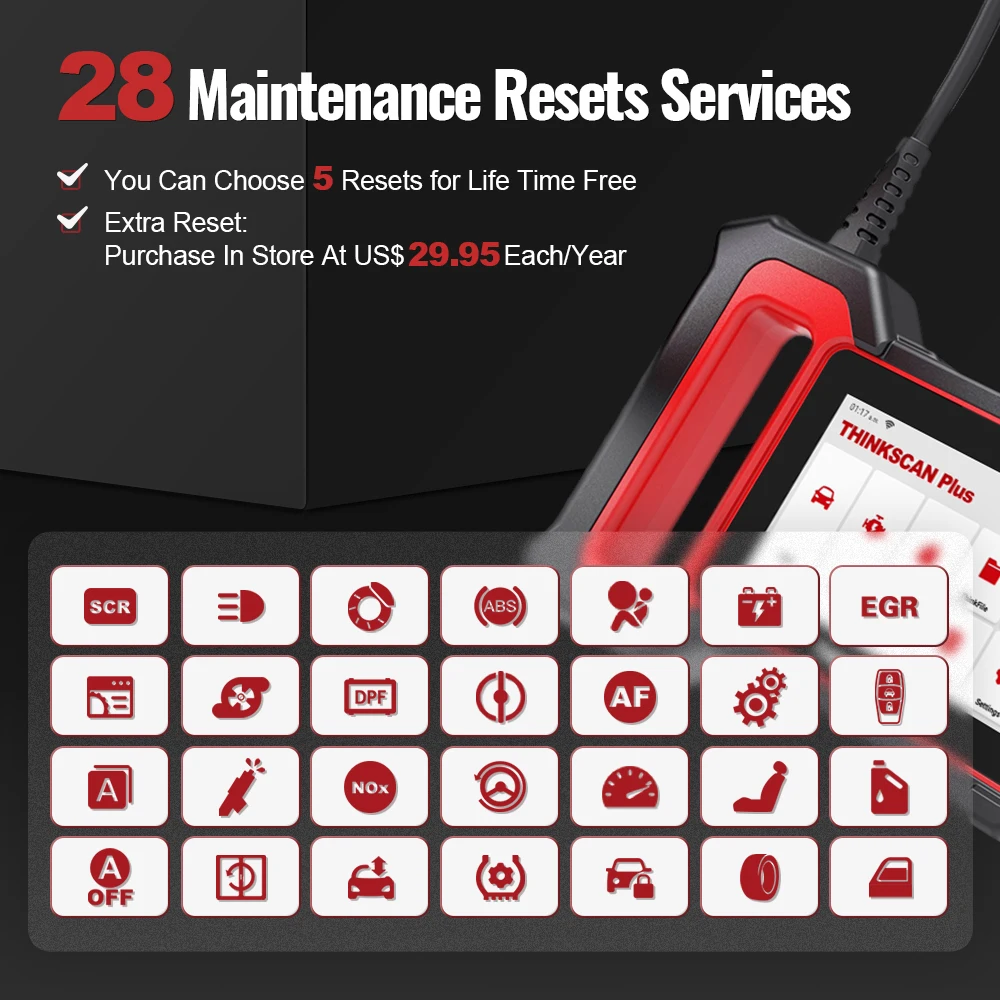

Support 28 Reset Services(Lifetime Free All Cars Optional 5 Resets,other reset need to pay $19.95/year/reset)

THINKSCAN Plus S7 currently supports 28 maintenance software, The maintenance software is completely free to use and free to upgrade.
You Can Choose 5 Reset Service as Lifetime Free from 28 Maintenance Service

1.Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming

The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change

This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.ODO Reset

a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it
is necessary to do ODO reset after maintenance.

25.Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

Free Full OBDII Functions:

*-Read extensive current, pending and permanent codes in OBD system quickly
*-Clear detected fault codes and turn off the Check Engine Light efficiently
*-View graphical live data of vehicle's computer module(s) for easy analyses
*-View the vehicle's operating parameters at the moment a DTC is detected
*-Read I/M readiness status to have a vehicle inspected for state emissions compliance
*-Perform O2 sensor test to check fuel efficiency and vehicle emissions
*-Read the results of on-board diagnostic monitoring tests for specific components/systems
*-Retrieve the vehicle information of VIN, CINs, and CVNs completely
*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

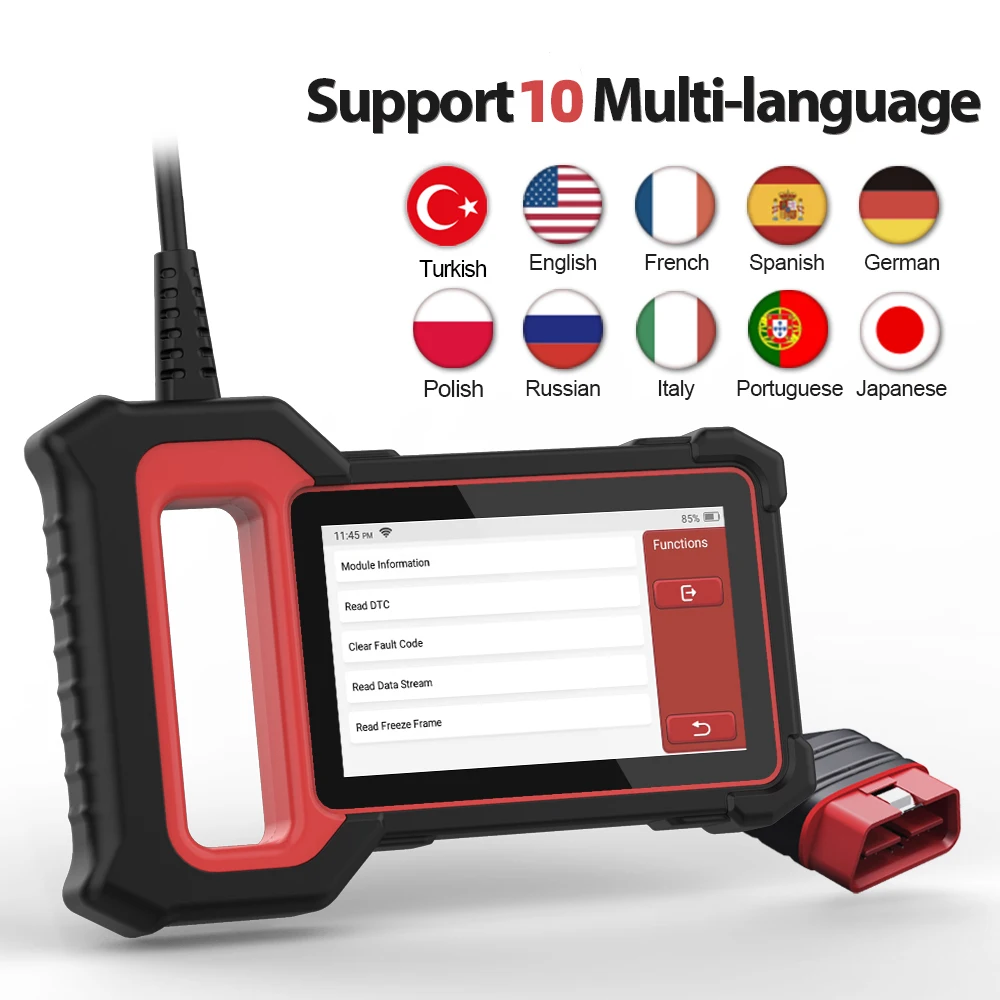

Support 10 Languages

English, French, German, Spanish, Italian, Portuguese, Japanese, Russian，Polish,Turkish

Support 126+ Car Brands and 1000+ Vehicles

For Amercian

for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM

For European

for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ

For Asian

for Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan

Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

Product Parameters:

Display Screen ：5-Inch/TFT(IPS)
Connection :Wi-Fi/Bluetooth
RAM:1G
ROM:8G
Working Temperature : 32℉~122℉
Storage Temperature: -4℉~144℉

Packing List:

1*thinkscan plus S7 Host
1*Manual
1*Charging cable

Application scenario:

1.For maintenance technicians, the thinkscan plus s7, which is convenient to carry, is the best choice for road rescue or door-to-door service.
2.For small repair shops, there is no need to purchase expensive diagnostic equipment, Thinkscan Plus can also meet the fault diagnosis of different brands of vehicles.
3.In-depth DIY car owners, car owners with certain maintenance skills and strong hands-on ability, can always keep this comprehensive and powerful, yet economical diagnostic equipment.

Warranty service：

There is 12 months free warranty from the date of purchase. For any question or problem with this tool, please contact us for help directly and we will feed back to you within 24 hours.
