MUCAR 892BT PRO OBD2 Scanner Topology Mapping Diagnostic Tools Support J2534 CANFD DOIP Protocol 35 Resets Lifetime Free Update

Why Choose MUCAR 892BT PRO Diagnostic Tools?

【2026 MUCAR Flagship 892BT PRO with J2534 Pass-Thru Support】The newest MUCAR 892BT PRO obd2 scanner is fully compliant with the J2534 standard, newly-developed wireless VCI connector, enabling it to operate as a pass-thru device when used alongside OEM diagnostic software. You are able to perform dealer-level diagnostics and reprogramming applications across multiple vehicle brands using a single device, make your work faster, easier, and more profitable!

【OE Topology Mapping for Faster Full System Diagnostics】The 892BT PRO scan tool now features newly integrated intuitive topology mapping technology. It provides a complete visual overview of all vehicle systems, displaying every accessible control module in distinct colors along with system counts, scanned systems, and diagnostic outcomes. Zoom, pan, and highlight specific modules, you will easily get fault causes, and repair assistance. Delivering ultimate convenience and exceptional repair efficiency.

【Smart MUAI Intelligent Diagnostic Tool】This 892BT PRO works as AI expert to analyse vehicle problems and quickly locate issues, providing accurate, customized solutions and repair guidance to simplify repairs. This intelligent system automotically retrieves and analyse fault codes, reports, and related repair details. And built-in MUAI chat bot tell any questions you wanna know for a quick, real-time trouble shooting, greatly push repair workflow.

【3000+ Active Tests/Full Bidirectional】Experience OE-level diagnostics and active testing with full bi-directional control. MUCAR 892BT PRO offers 3000+ active tests, it enables direct interaction with your vehicle's systems & actuators to pinpoint component issues with precision, like headlight, windows, sunroof, wipers, AC clutch, oil fuel, wheel speed sensor, brake, and mirror, etc. Note: Menu varies by vehicle make, please check compatibility before purchase.

【35+ Hot Reset Services】This 892BT PRO car scanner provides 40+ services for 140 makes, allowing quick access to vehicle systems to perform various special functions, including Oil reset, brake reset, battery regist, SAS calibration, ABS bleed, Injector coding, Gearbox match, Crankshaft relearn, Throttle relearn, etc. Plus, it offers more vehicle-specific reset services, go to main menu, Diagnosis->Car Model->System->Special Function.

【NO Annual Fees, CAN FD&DOIP, Modular Extension】MUCAR 892BT PRO scanner for cars comes with lifetime free upgrade without any subscription&renewal fees, including Vehicle Database Expansions, Software Optimization, Feature Enhancements. It support CAN-FD and DoIP, ensuring compatibility with a wide range of modern vehicles. Supported add-on modules: USB endoscope, TPMS relearn tool, battery tester...troubleshooting becomes more straightforward. 892BT PRO is the m.ost competitive tool for workshop and mechanics grow repair business.

Warm Tips

1) Before place order please check compatibility first. Send your car brand model and release year to seller.for example(Audi,A3, 2020)

2) Not all 35 resets work for all cars, send your car brand, model and release year check compatibility for you.

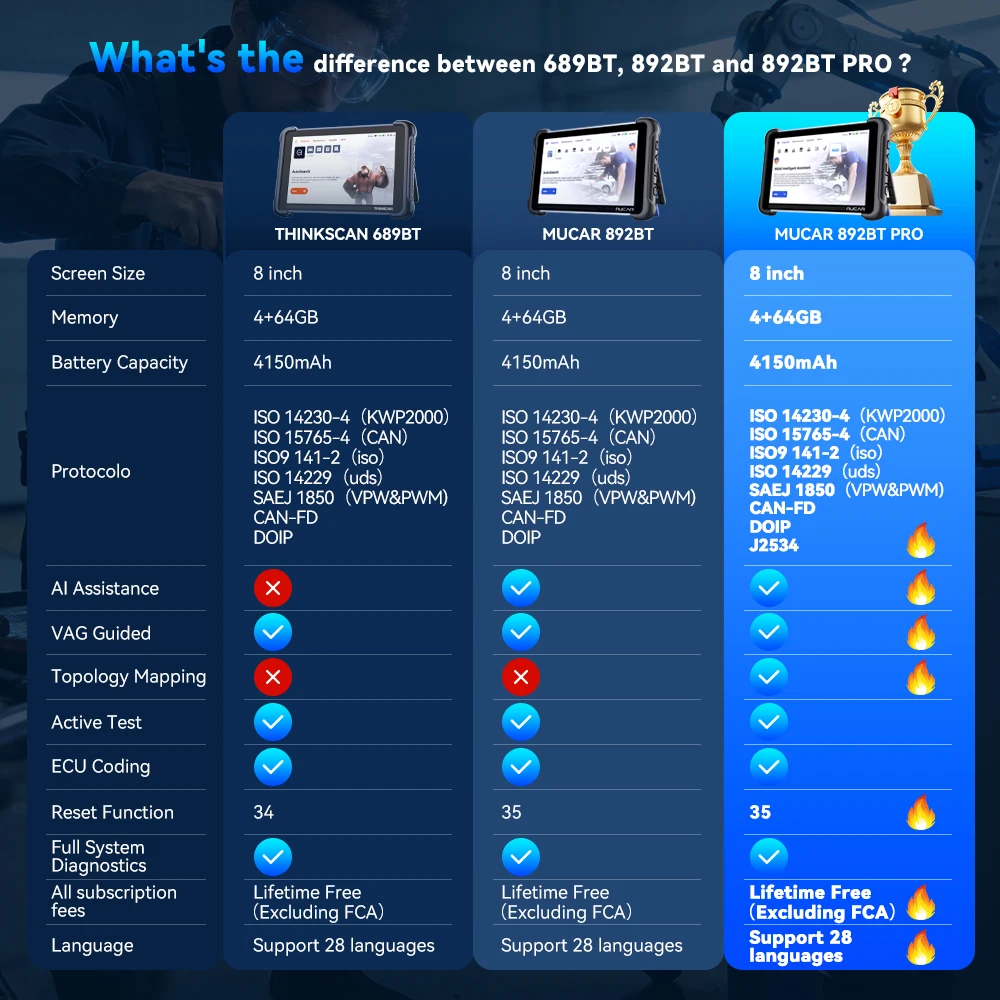

What is different between 689BT.892BT and 892BT PRO ?

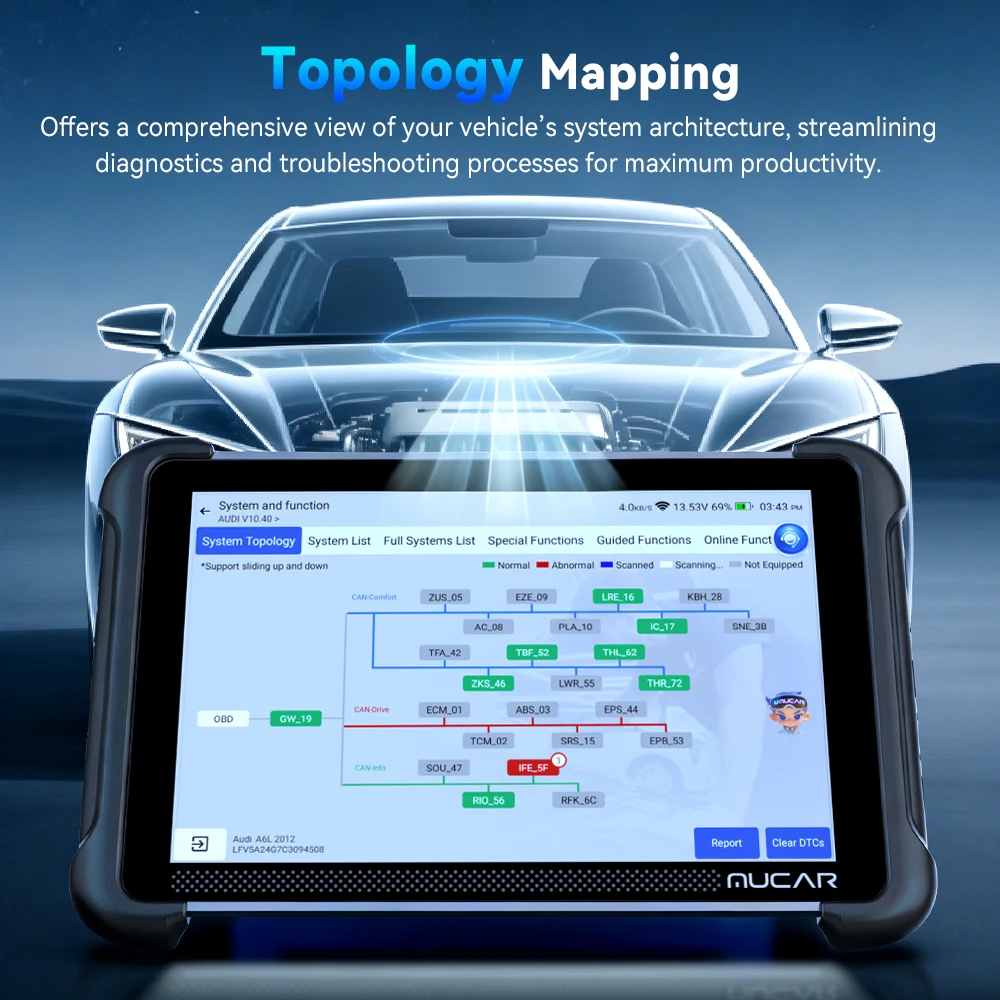

Topology Mapping

MUCAR 892BT PRO scan tool now features newly integrated intuitive topology mapping technology. It provides a complete visual overview of all vehicle systems, displaying every accessible control module in distinct colors along with system counts, scanned systems, and diagnostic outcomes. Zoom, pan, and highlight specific modules, you will easily get fault causes, and repair assistance. Delivering ultimate convenience and exceptional repair efficiency.

Support J2534 Protocol

The core objective of the J2534 protocol is to enable a universal hardware device to communicate and program the electronic control units (ECUs) of all car brands, and the GVCI box included with this device meets this communication standard.

How to use J2534 Protocol ?

1) Ensure your GVCI box has the latest firmware version. If not, you need to upgrade.

2) First, install the J2534 Plus driver on your PC. Running it will retrieve the version and other information.

3) Install the corresponding original software for your car brand onto your PC. The software varies depending on the car model.

4) Open the original software and locate our corresponding 【ThinkCar J2534 VCI】.

5) Follow the menu instructions in the original software to identify your car model and access the diagnostic function menu. The flashing process requires downloading the program from the original manufacturer's server.

Noted

1. When connecting the GVCI box to the PC, some systems require checking the "Hardware Management" settings to see if the USB driver is recognized. Otherwise, the original software may not recognize our ThinkCar-J2534.

2. Please adjust the PC's time zone and time to the region you used when you applied for the service. Otherwise, some login errors may occur.

FCA & CANFD & DOIP

2018+ FCA SGW Cars

Compatible with 2018-2024 Fiat/Chrysler/Alfa Romeo/Dodge/Jeep,etc

Support CANFD & DOIP

✔2020 Chevrolet Tracker
✔2020-2021 Chevrolet Onix 1.0L(L4F/L4G/LJ/LIF)/Onix 1.2L(LIF)
✔2021 GMC YUKONNUKON XL2021 Chevrolet Tracker/Suburban/Tahoe 2021 Cadillac Escalade/Escalade ESV New cars from Land Rover/Jaguar Vehicles (about after 2020)
✔Compatible with E and F Chassis BMW

MUAI AI Assistant

MUCAR 892BT PRO works as AI expert to analyse vehicle problems and quickly locate issues, providing accurate, customized solutions and repair guidance to simplify repairs. This intelligent system automatically retrieves and analyse fault codes, reports, and related repair details. And built-in MUAI chat bot tell any questions you wanna know for a quick, real-time trouble shooting, greatly push repair workflow.

OE-Level Full System Diagnostic Scanner

MUCAR 892BT PRO has the ability to access all available system and subsystems codes, and perform a comprehensive scanning on ECUs: Engines/Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip coding/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics, etc.

It supports the detailed Function :


--read fault codes: read and decode the DTCs to identify where the fault location is;
--clear fault codes: erase the DTCs to turn off the MIL after repairs;
--retrieve ecu information: allows you to retrieve vehicle information;
--Graph live data stream: view the dynamic data stream to determine vehicle condition

With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:

For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.
For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.
For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.
For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.
For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

Support ECU Coding

MUCAR 892BT PRO car diagnostic scanner tool support ECU Coding to quickly match, learn, code any replaced ECU. Modify ECU and reveal hidden features for 99% cars in the market. Adaptive data for certain components after repairs or replacements.

✔ ECU Coding: Helps re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.

After we replace ECU modules, defective units, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU. Follow the strict procedures of the manufacturer to match, learn, code, and program it until it functions normally. Warm Tips: Before coding, please read and record the original module’s information.

✔ ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

✔ ECU coding helps to flash some hidden features for vehicles and disable the car’s annoying functions. such as changing the interior light, activating cornering headlights with fog lights, and deactivating buzzing sounds when locking the door, etc.

Support Active Test/Bi-directional control

MUCAR 892BT PRO car diagnostic tool is a bi-directional scan tool, that allows you to request information or command a module to perform specific tests and functions while observing the resulting data at the same time. Bi-directional Control (also referred to as Active Tests) function is a commonly-used function for mechanics/workshops, can save you a load of time and help you get through more jobs every day.

Support 35 Maintenance Services > FAST & EFFICIENT > Improve Repair Efficiency

1. Oil Reset: reset the oil life system and turn off the oil light after oil or oil filter replacements.

2. EPB Reset :the brake pad after replacing the brake pad, the servo motor, etc., deactivate/activate the brake control system, assist with brake fluid control, open and close brake pads, etc.

3. TPMS Reset : the tire pressure and turn off the tire pressure fault indicator.

4. BMS Reset : the monitoring unit of the car battery after replacing the battery or battery monitoring sensors.

5. DPF Regeneration: clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.

6. IMMO Keys: disable the lost vehicle keys and program the replacement key fob. ONLY For some Asian and American cars with low-grade IMMO.

7. Injector Coding: write the actual code of the fuel injection nozzle or rewrite the code in the ECU to the code corresponding to the fuel nozzle of each cylinder after replacing the ECU and the fuel injector, to accurately control or correct the fuel injection amount of each cylinder.

8. SAS Calibration: calibrate the steering angle after replacing steering-related parts.

9. Suspension Level Calibration: adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.

10. Throttle Adaption: Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state.

11. Sunroof Initialization: initialize the sunroof data to set the sunroof to lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.

12. Seats Calibration: specially designed for the seats with memory functions. Match the seat after repairing or replacing the seat.

13. ABS Bleeding: Help exhaust the air.

14. Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality.

15. Gear Learning: Monitors certain camshaft position sensors signals.

16. Tire Reset: Set the size parameters of the modified or replaced tire.

17. A/F Reset: Set or learn Air/Fuel ratio parameters.

18. Adblue Reset(Diesel Engine Exhaust Gas Filter): Reset urea after the diesel exhaust treatment fluid is replaced or filled up.

19. Coolant Bleeding: Activate the electronic water pump.

20. Nox Sensor Reset: Reset catalytic converter learned value stored in ECU.

21. ODO Reset: Copy, write or rewrite the kilometer value.

22. SRS(Airbag Reset): Resets the airbag data to clear the airbag collision fault indicator.

23. Transport Mode: Deactivate the transport mode.

24. Windows Calibration: Perform door window matching to recover ECU initial memory.

25. Language Change: Change vehicle system language.

26. EGR Adaption: Learn the Exhaust Gas Recirculation valve after being cleaned.

27. Stop/Start Reset: Set up the automatic start-stop function in ECU.

28. AFS Headlamp Reset: Initialize the adaptive headlamp system.

29. ECU Reset : After performing the ECU coding, some ECUs may not display the new code and will need to run this function to display the correct code

30. Clutch Matching:This function is used to learn the engagement point of the clutch at which the engine torgue is transmitted to the gearbox. To be carried outl after replacing the control unit, replacing/removing the gearbox or replacing the clutch

31. Rain & Light Sensor: The rain sensor is used to adiust the wining frequency and the light sensor adiusts the light intensity of the automatic headlights denendino on the ambient light and darkness. After replacing the windscreen or the sensor, the rain/driving light sensor must be initialised. with this service function, initialisation performs an adjustment of the rain/driving light sensor.

32. FRM Matching:This function resets the FRM control unit (installed in BMW and MINI vehicles). The reset clears fixed faults in the footwell module related to a short circuit of the lights

33. Turbocharging Matching :For learning after replacement of turbocharger system components or resetting the turbocharger learning value.

34. Gateway Module DataCalibration:After replacing the gateway control unit, there may be a VIN inconsistency, so the VIN needs to be changed.

35 ODO Check

Noted : NOT ALL Reset Services work for All Car Models. Please contact seller with the vehicle Make/Model/Year/Vin before purchase to make sure the desired functions are compatible with your cars, which won't waste your time!!!

20K+ Car Coveage + LIFETIME FREE Update Online

For Amercian

for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM

For European

for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ

For Asian

for Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan

​✔ CONTINUOUSLY GROWING Vehicle Coverage WITH UPDATES

Japanese cars compatible with JOBD protocol are not supported!!!

Support 28 Languages

English, German, Spanish, French, Italian, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Greek, Slovak, Romanian, Arabic, Croatian, Slovene, Finnish, Japanese, Korean, Czech, Persian, Swedish, Serbian, Danish, Vietnamese , Bulgarian

VGA Guided Function

Provides OE-level operating instruction for diagnostic reference and simplifies the complicated diagnostics. Targeted on different car models and configurations, there is related operation guidance that provides corresponding tips, auto log-in, matching, setting and coding.

Module EXtension

Support for connecting external modules to achieve functionality

User-Friendly Features Experience the ease ,feel the power

1) One-click Lifetime Free Update

2) Diagnostic Report ( Print&Share )

3) Data Record & Play back

4) Auto VIN& Auto Scan

5) One-on-one online support

6) Battery Voltage Graph Display

Packing List

1PC MUCAR 892BT PRO OBD2 Scanner
1PC J234 VCI
1PC Storgae Box
1PC 3-IN-1 Charger
1PC User Manual
