Thinkscan Plus S7 OBD2 Scanner Car Diagnostic Scanner for Engine ABS Transmission AC BCM IC Airbag Code Reader Auto Scan Tools

What IS The differentce of Thinkscan Plus S4/S5/S6/S7 ?

Thinckscan Plus S4

5 Systems Diagnostics Lifetime Free (ECM+ABS+SRS+TCM+BCM)

3 Optional Resets Services Lifetime Free (Total 28 Types Resets)

Thinckscan Plus S5

4 Systems Diagnostics Lifetime Free(ECM +TCM+ ABS+ SRS)

No Resets Services Lifetime Free((Total 28 Types Resets)

Thinckscan Plus S6

4 Systems Diagnostics Lifetime Free(ECM +TCM+ ABS+ SRS)

5 Resets Services Lifetime Free(Oil+SAS+EPB+TPMS+ETS)ts Services Lifetime Free (Total 28 Types Resets)

Thinckscan Plus S7

7 Systems Diagnostics Lifetime Free(ECM+ABS+SRS+TCM+BCM+AC+IC)

5 Optional Resets Services Lifetime Free(Total 28 Types Resets)

Why Choose Thinkscan Plus S7 Car Diagnostic OBD2 Scanner ?

【7 Systems Scan Tool】- Thinkscan Plus S7 obd2 scanner for the most important car systems, including the Engine, ABS, SRS, Transmission, Body Control system,Air Conditioning system, andDashboard systems. When you need to replace spark plugs; find wheel bearing speed sensor problems; check such as lights, wipers, door locks, sunroof, etc., you just need one-click to scan and find the answer quickly. And generate diagnostic report for printing or sharing with friends.

28 Maintenance Options, Choose 5】- Choose from 28 special services, the list contains 1.Throttle 2.Injector 3. SAS 4. ABS 5. Oil 6. Gearbox 7. IMMO 8. Airbag 9. TPMS 10. Gear Learning 11. EPB12. AFS 13. A/F 14. Dash Board 15. Coolant Bleed 16.Suspension 17. Tyre Setting 18. Seat Calibration 19.Windows Calibration 20.Sunroof 21. Language Set 22. Transport Mode 23. Stop/Start 24. BMS and so on [You can only choose 5 for free]

【Full OBD2 Functions】- Thinkscan Plus S7 car scanner can support all 10 OBD2 test modes. Read Codes, Erase Codes, MIL Fault Indicator Light, Live Data, EVAP System Test, On-Board Monitor Test, View Freeze Frame, O2 Sensor Test, Vehicle Info, I/M Readiness, DTC Code Look-up, perform oxygen sensor tests and carbon canister tests to ensure your vehicle is ready for all emission services.

【94+ Vehicle Brand Coverage】- Thinkscan Plus S7 scanner for car compatible with AUDI/BENZ/BMW/CHRYSLER/VW/GM/FORD/TOYOTA/HYUNDAI and newer US-based vehicles that are OBDII compliant (OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN). including 12-volt sedans, SUVs, light duty trucks, mini vans, hybrids and etc. Note:Service functions vary by vehicle, please to check compatibility before order‼

Warm Tips

1) Before place order please check compatibility first. Send your car brand model and release year to seller.for example(Audi,A3, 2020)

2) In addition to the free reset function, other reset functions need to pay $29.95/year/reset .

3) Please use the Type-C interface charger to charge for 5 hours before use.

4) Not all 28 resets work for all cars, send your car brand, model and release year check compatibility for you.

Full 10 OBD2 Function---Make a Better Detection For Car Engine System

This section is specifically designed for the engine called the "car heart". It is necessary to keep an eye on the engine status to ensure the efficient operation of the engine to ensure your travel safety. In addition, it can also be used before you send the car to environmental detection.

✔ Read and Clear the fault codes, turn-off Malfunction Indicator Light (MIL)

✔ Displays Fr-eeze Frame data

✔ Displays O2 Sensor test results

✔ Display I/M readiness status. (Non-continuously Monitored Systems Test )

✔ Show Live Data in graphs such as engine RPM, temperatures, ignition advance, speed, etc.

✔ Request On-Board Monitoring test results for specific monitored systems

✔ Built-in DTC lookup library with cause analysis

✔ Special control mode requests control of EVAP test.

✔ Request Vehicle Information

✔ Read Permanent DTC

Lifetime Free All Cars 7 Systems Diagnostic

This car obd2 scanner is capable of reading and clearing trouble codes of ECM/ABS/SRS/TCM/BCM/AC/IC Engine.

1) Engine system Diagnostic:

You can diagnose the engine system via ecu obd2 port, support all 10 OBDII test modes, such as live data, O2 sensor test, component test and more;read and clear the engine error codes, find out the exactly problem, repair it, and turn off the MIL engine light.

2) ABS system Diagnostic:

Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.

3) Auto Transmission System:

AT is a set of transmission used to coordinate the engine speed and the actual speed of the wheel, which is used to give full play to the best performance of the engine. THINKSCAN609 obd2 scanner can read/clear codes and view live data retrieve the error information from AT

4) SRS system Diagnostic:

Safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.

5) Chassis System(BCM) Diagnostic:

Carry out fault diagnosis on body/frame/transmission system/steering system/brake system/driving system

6) AC System Diagnosis

The air-conditioning system can make certain places obtain air with a certain temperature, humidity and air quality to meet the requirements of the production process and improve labor hygiene and indoor climate conditions.

7) IC System Diagnosis

The instrument system detects the cause of the fault and turns off the fault light

Support 28 Reset Services(Lifetime Free All Cars Optional 5 Resets,other reset need to pay $29.95/year/reset)

THINKSCAN Plus S7 currently supports 28 maintenance software, The maintenance software is completely free to use and free to upgrade.

You Can Choose 5 Reset Service as Lifetime Free from 28 Maintenance Service

1.Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming

The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change

This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.ODO Reset

a) ODO reset is to Correction the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the Adjusted to normal mileage.

b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it

is necessary to do ODO reset after maintenance.

25.Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

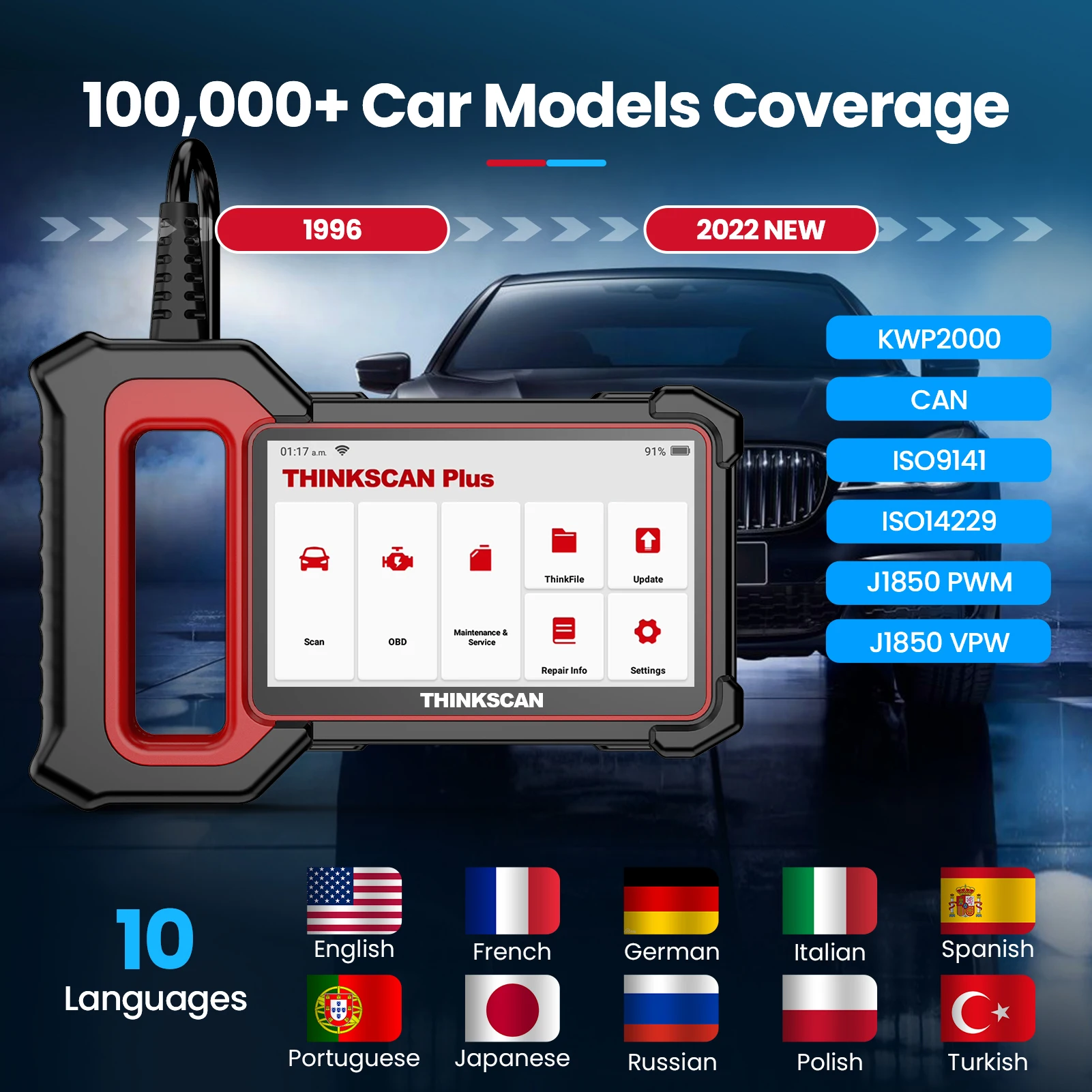

Diagnostic Cover All Vehicles That Support The OBDII Protocol After 1996

For Amercian

for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM

For European

for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ

For Asian

Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan

Support 10 languages

English, French, German, Spanish, Italian, Portuguese, Japanese, Russian，Polish,Turkish

Built-in DTC lookup library----No More On-line Search

A decent car diagnostic tool will accurately pull the error codes,and then also tells you what the problem is,so you don’t need to go looking the code up in a list or database.This is exactly the way this scan tool ThinkScan Plus S7 diagnostic code reader for all vehicles acts.You can also manually input the specific code for a detailed definition.

Scan QR Code to Share&Print+AUTO-VIN

ThinkScan Plus S7 can scan the QR code and share it where you want to share and print it after obtaining the diagnostic report.You can also take out the SD card and export diagnostic report;Convenient and fast,keeping up with the trend of the times.And you can also Auto-VIN your vehicles at anytime,Automotive VIN identification help you to read and store your car’s VIN number by one click conveniently and effectively,no need you to input the VIN one by one to save your time.manual diagnosis is also available.

ScreenShot + Screen Recorder + WIFI Update:

When you enable the screenshot and screen recording functions in the settings,you can start to take screenshots and screen recordings,they will finally be saved in "Photo album" and "Screen recorder" Under the " Settings".Besides,you can update software free lifetime.

Dashboard Display+Auto-Test Battery Voltage

After the car is ignited,once connected to the car DLC,the main interface of ThinkScan Plus S7 will have a small dashboard indicator to indicate that the connection is successful;and once connected,the OBDII Scanner will automatically diagnose the battery voltage

Live Data On Graph

4-in-1 live data from car code reader can be show in graph to make the data in your car system based on visualization,which helping you to analyze the abnormal parameter and help your problem more easy.

Product Parameters

1) Display Screen ：5-Inch/TFT(IPS)
2) Connection :Wi-Fi/Bluetooth
3) RAM:1G
4) ROM:16G
5) Working Temperature : 32℉~122℉
6) Storage Temperature: -4℉~144℉

Packing List

1* Thinkcar Thinkscan Plus OBD2 Scanner

1* Charging Cable

1* User Manual
