THINKCAR BD6 OBD2 Scanner Bluetooth Diagnostic Full System Diagnosis 5 Reset Function Scan Tool Lifetime Free for All Cars

THINKCAR BD6 OBD2 Scanner Bluetooth, Wireless All System Diagnostic Tool for iOS & Android, 5 Hot Reset Free for Life Check Engine Car Code Reader

🔥Lifetime Free All System Diagnosis for 106 Car Brands

👍Lifetime Free 5 Resets (Oil, Bleed, Brake, ETS, IMMO) for all cars (Need check compatibility)

🏆No annual renewal cost, compeletely FREE!!!

Support 12 Languages:

English,French,German,Spanish,Italian,Portuguese,Japanese, Russian,Polish,Traditional Chinese, Turkish,Greek

Support VIP Wholesale Price10-100pcs click picture below to buy!!!

Bluetooth Connection

Compatible with ios 9.0 or Android 5.0 and above

ThinkDiag+ V3.1.2 for Android download link:
​http://file.thinkcar.com/tcapk/9053/app-diag-release112202407170001.apk
​​
Please note, if you install ThinkDiag+ app using this link, you won't be able to upgrade it via Google Play Store. If you need to upgrade it later, please uninstall the app first.

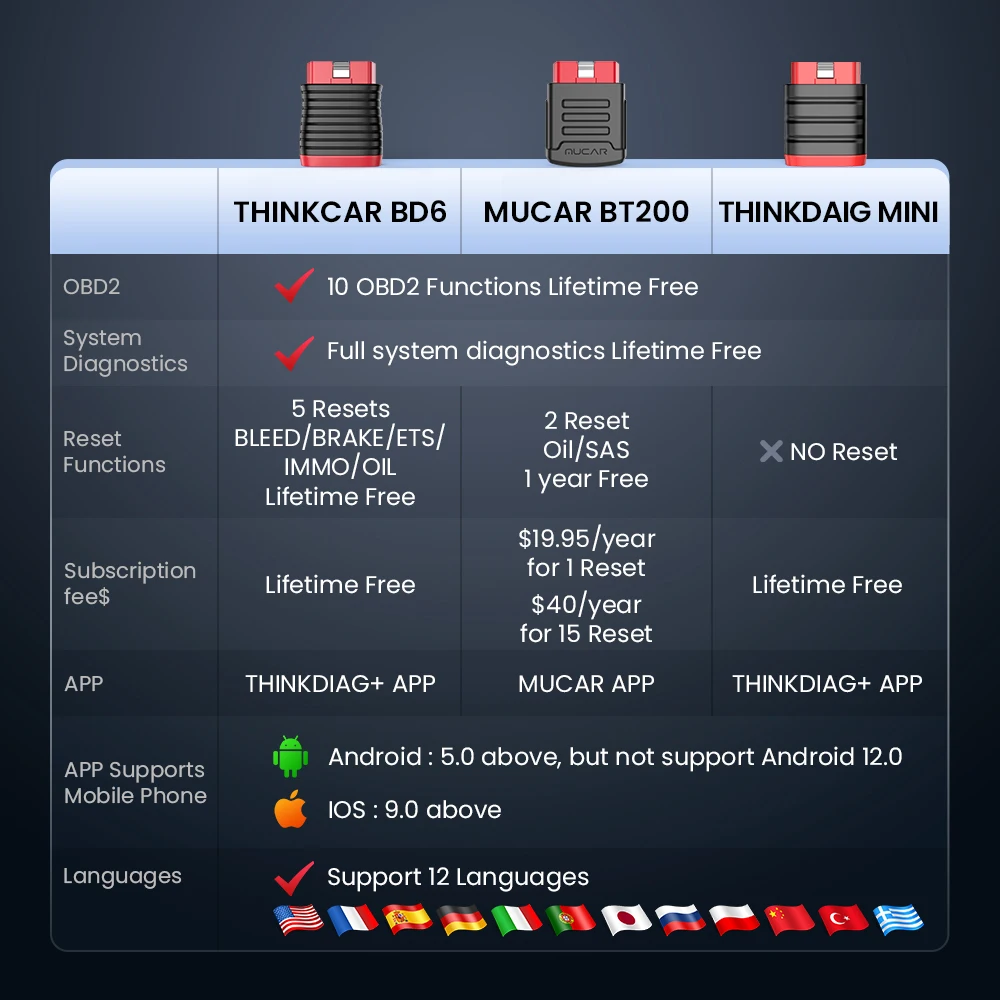

What are the Differences of THINKCAR BD6, MUCAR BT200 and THINKDIAG mini?

How to Use the THINKCAR BD6?

Step1: Download the "ThinkDiag+" in the APP store or in GooglePlay store.

Step2: Open the THINKDIAD APP+, click on"Sign Up",verification code will be sent to the email you input, if you did not got, please check the spam.

Step3: Click on "Activate" to open the activation page, you need to input the serial number and an 8-diagit activation code is on the first page of the Quick Start Guide.

Step4: Plug THINKCAR BD6 into the vehicle's OBDII port, there will be a red light which indicates the device is powered on.

Step5: Open the THINKDIAG APP, it will automatically search for activated devices, select your device and connect to it via Bluetooth in the APP. The indicator will turn to flashing blue.

Step6: In the "Diagnostics" interface of the App, you will need to download the corresponding diagnostics software when first apply"All System Diagnostic" "Maintenance function" and"OBD Functions".

👍 Lifetime Free 5 Reset Service, No Annual Fee!!!

📢Kindly send us VIN to check compatibility before purchase! not all reset compatible with all cars.

1. ABS Bleeding :

When the ABS system contains air, the brake system needs to be exhausted through the ABS exhaust function to restore the ABS system braking sensitivity. The ABS bleed function is required when replacing the ABS computer, ABS pump, brake master pump, brake sub-pump, brake lines, and brake fluid.

2.EPB Brake Reset Service:

It is important in the maintenance of electronic braking system's safety and efficiency.

When the brake pads and brake pad wear sensing line are replaced, the brake pad indicator lights up, after the brake pad sensor line short circuit is repaired, or after the servo motor is replaced, the reset needs to be done.

3. ETS Throttle Adaptation:

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow.
sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

4. IMMO Key Programming:

the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

5. Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

🔥All cars Lifetime Free Full System Diagnosis

THINKCAR BD6 obd2 scanner supports reading all vehicle systems (including ENG, ABS, SRS, ABS, AFS, EBD, TCS, chassis, body and electrical and electronic equipment system, etc.) error code, cleaning code, read data flow, freeze frame. It can also perform all the commands that a mechanic needs to know if the product problem is caused by the car's electrical wiring or car components.

Some commonly used systems as follows:

Check Engine System: THINKCAR BD6 Bluetooth diagnostic tool will read the fault codes, find the cause of the check engine light and point out the problems. This car scanner can show you the live data stream in a graph.
Diagnose

ABS System: THINKCAR BD6 scanner checks all ABS to retrieve DTCs, views the live data, and offers you specific info of pending codes

Read SRS System: This code scanner reads the SRS information, detects existing problems to prompt a certain replacement or repair in time to ensure driving safety.

Transmission System: This car Bluetooth diagnostic tool reads diagnostic codes from the transmission system and detects whether the car’s speed and load match its transmission’s power output.

🏷️ All Cars Full OBD2 Functions free

1.Read Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Clear Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitor

3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data

4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.

8.On-Board Monitor Test: Retrieves and displays test results for emission-related Powertrain components and systems.

9.Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

🚗Support 98% Vehicle Compatibility, 12 languages

THINKCAR BD6 is compatible with most American, European, and Asian models manufactured as from 1996. It supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN (Controller Area Network). If you don't know your car OBD2 protocols that you could check your car OBD2 connector whether 16 Pin. If yes. This goods support to your car.

-America:Ford(Australia), LINCOLN, BUICK, Chrysler, GM, FORD, CHRYSTER, CADILLAC, CHEVROLET, DODGE, FIAT(BRAZIL), GM(BRAZIL), Jeep, SGM

- Europe: AstonMartin, Benz, Sprinter, BMW, Ferrari, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Volkswagen CV, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Bugatti, Citroen, Dacia, Jaguar, Lambor Ghini, ALFA ROMEO, BENTLEY, BUGATTI, DR, DACIA, EUROFORD, GAZ, IVECO, IZH, JAGUAR, MERCEDES, MAYBACH, OPEL, OPEL(SOUTH AFRICA), PAZ, RENAULT, ROVER, ROLLS-ROYCE, SPRITER, UAZ, VAZ, VAUXHALL, ZAZ

- Asia: Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion, IKCO, LUXGEN, MAHINDRA(INDIA), MARUTI(INDIA), MAHINDRA(INDIA), MARUTI, MVM, NISSANGTR, PERODUA(MALAYSIA), PROTON(MALAYSIA), PERODUA, PROTON(MALAYSIA), RENAULT SAMSUNG, SAIPA, TATA(INDIA), TATA, TLISUZU, UNITED PAKISTAN

Chinese car list:
Need standard obd2 , and release year from 2014 -now
Great Wall, Huachen, DF Honda ,Lifan

Other Functions

Auto VIN
One-click Diagnose
4 In 1 Live Data Stream
Print Diagnostic Report
Online Feedback

Packing lists

1 * THINKCAR BD6 Scanner
1 * Multilingual User Manual
