THINKCAR THINKSCAN PLUS S4 S7 OBD2 Scanner ECM ABS SRS TCM BCM System DIY Optional Reset Wifi Free Update Car Diagnostics Tools

EU customers please note (except FR) :

Placing an order with the shipping method "From China to XX via AliExpress Selection Standard" will be exempted from VAT. And we will still ship the goods to you by "From France to XX via CAINIAO WAREHOUSE STANDARD SHIPPING".

N​ote:The built-in battery of this product is only used to prevent possible data loss when the scanner is turned on and off. It cannot power the scanner. Please connect the vehicle or power supply to start the scanner. When using it for the first time, please charge the scanner for about 2 hours.

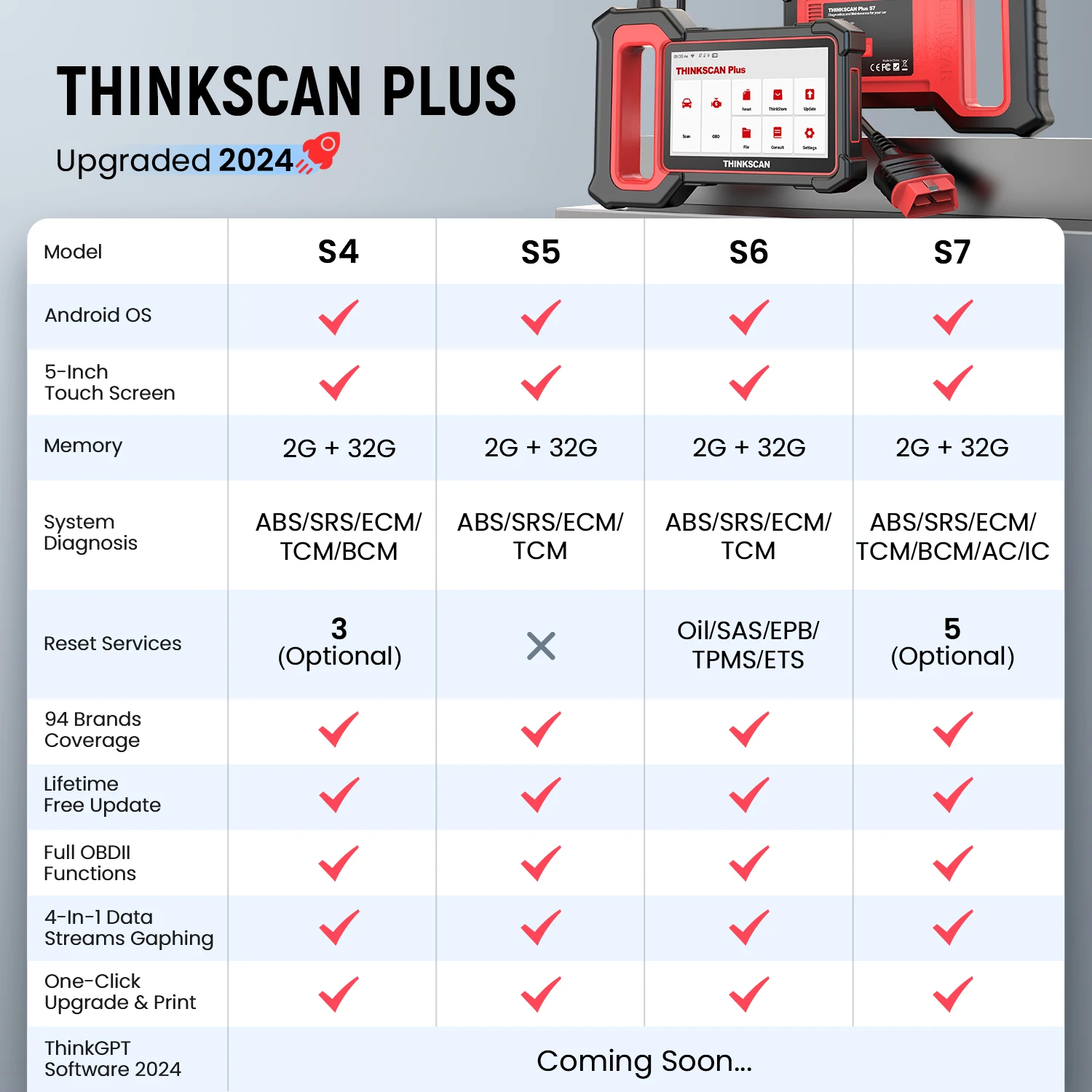

What Difference Between Thinkscan Plus S4/S7?

Thinkscan Plus S4
5 Systems Diagnostics Lifetime Free (ECM, ABS, SRS, TCM, BCM)
3 Optional Resets Services Lifetime Free(Total 28 Types Resets)
the remaining reset features will not be available and cannot be purchased.

Thinkscan Plus S7
7 Systems Diagnostics Lifetime Free(ECM,ABS, SRS, TCM,BCM,AC,IC)
5 Optional Resets Services Lifetime Free(Total 28 Types Resets)
the remaining reset features will not be available and cannot be purchased.

OE-LEVEL System Diagnostic

Thinkscan Plus S4
5 Systems Diagnostics Lifetime Free(ECM,ABS,SRS, TCM,BCM)
Thinkscan Plus S7
7 Systems Diagnostics Lifetime Free(ECM,ABS,SRS, TCM, BCM, AC,IC)

1.ECM (Engine System) Diagnose:
Many car owners are always confused with the flashing check engine light, which will appear because of various problems, for example, the engine injector should be cleared or engine combustion is not good. If the problem is not solved in time, it will affect the quality of vehicle exhaust and pollute the environment. This check engine light code reader with a reset diagnostic tool will do you a favor to locate the cause and turn off the check engine light with the problem resolved.

2.ABS (Anti-lock Braking System) Diagnose:
Anti-lock Brake System (ABS) is one of the most important systems from chassis control modules, the indicator warning light of which will remind you that there is something wrong with the ABS system. This obd2 scanner with abs diagnoses can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing. After performing a comprehensive diagnosis of your vehicle. The abs warning light will stay on after you fix the issue. Then get the ThankScan Plus S7 abs brake bleeding scan tool to help you turn it off.

3.SRS (Airbag) Diagnose:
Airbag/SRS system is located at the body control module, which plays an important role in driving safety. There are many possibilities if the airbag warning light stays on, including the trouble of airbag, air spring, collision sensor, airbag plug loosening, line open circuit and etc. Therefore, ThinkScan SRS scanner allows you to have a deep analysis and detection for your vehicle via reading fault codes. But sometimes the permanent fault codes in this system will still appear and the warning light flashes after the airbag replacement. Then you will need this auto scanner with airbag code reader again to turn the light off.

4.BCM(Body Control Module) System Diagnose :
Body control module will directly let you know about a system that has malfunctioned, as it can diagnose and report the problem. A body control module (BCM) plays a central role in a car by maintaining control over its various functions. Problems in it can cause and/or mask the problems in the other modules of a car. Troubles in this system can set off a chain of events that can incur large-scale damage to the car. Thus, it is of prime importance to look after and keep the BCM in a well maintained condition. This body control module / BCM scanner diagnostic tool will do you a favour to locate the cause and check mainly control the electrical appliances used in the car body, such as lamps, wipers, door locks, power windows, sunroofs, etc.

5.TCM (Transmission System) Diagnose:
The automatic transmission system is one of the powertrain control modules,but some issues like unworking electronic accessories and broken transmission computer will keep your transmission light flashing. It's hard to locate the accurate error within limited time. Fortunately, this car error code reader transmission scanner will assist you to have a fast scanning of your vehicle and read the fault code easily, shutting down the waring light within minutes when you finish the repair.

6.AC (Air Conditioning System) Diagnose:
Car air conditioning system diagnosis: Diagnose the cooling, heating, ventilation and air purification devices of the air in the cabin. Ensure that the vehicle has a comfortable environment, reduce the fatigue strength of the driver, and improve driving safety.

7.IC (Instrument System) Diagnose:
The car dashboard is a device that reflects the working conditions of the various systems of the vehicle: fuel indicator, cleaning fluid indicator, electronic throttle indicator, front and rear fog light indicator and warning light. ThinkScan Plus S7 can diagnose the fault location of the instrument and provide fault codes

You Can Choose From 28 Resets For a Different Number of Reset Features For Lifetime Free Updates

S4 Optional 3 Resets Services Lifetime Free
S7 Optional 5 Resets Services Lifetime Free
the remaining reset features will not be available and cannot be purchased.

1.Oil Reset
If the oil maintenance light is on, the car needs to be maintained. After the maintenance, the driving time and other data should be reset to zero, so that the maintenance light will be turned off, and the car system will enable a new maintenance cycle.
​
2.Brake Reset
1. When the brake is used to a certain thickness, the brake sensor line will be worn, and the brake pad sensor line will send a signal to the car computer to prompt the replacement of the brake pad. After replacing the brake pads, the brake needs to be reset, otherwise the car will still alarm.
​2. Need to do the reset situation: a. replace the brake pad and brake pad wear induction line; b. brake pad indicator light on; c. brake pad sensor line short-circuit repair; d. After replacing the servomotor

3.BMS battery reset
For a vehicle with the battery management function, if the battery status is detected as faulty (aging or damaged), the fault code will saved in the ECU. After replacing the battery and running "BMS Reset", it can delete the fault code and re-match, based on the relevant information of the existing battery as the standard, let the monitoring unit monitor. Avoid false positives from instrument error messages

4.DPF(Diesel Particulate Filter) Regeneration
Diesel Particulate Filter in the working process, particles will accumulate in the filter, when it reaches a certain value, it will lead to engine power and economic performance decline, must be removed in time to ensure that DPF continues to work normally.
​
5.SAS Steering Angel Reset
After the vehicle is disassembled or replaced with parts related to the steering function, the steering Angle learning function needs to be performed.

6.TPMS Tire Pressure Reset
only applicable to vehicles without a tire pressure sensors.
if the tire pressure is too low or air leaking, replacing or installing tire pressure monitoring equipment, replacing tires, tire pressure sensor damage, and cars with tire pressure monitoring function in the case of tire transposition etc,.Tire pressure reset is required after vehicle maintenance and turn off the tire pressure fault indicator light.

7.IMMO Key matching
When replacing the ignition switch key, ignition switch, combined instrument panel, engine control unit (ECU), body control module (BCM) and remote control battery, IMMO key matching is required.
​
8.ABS Bleeding
In the case of replacement of ABS system, ABS pump, brake pump, brake line and brake fluid, it is necessary to bleeding the ABS system through the ABS bleeding function.
​
9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
​
10.Suspension Reset
When the body height sensor or control module in the air suspension system is replaced, or the car level is wrong, the vehicle needs to perform this function to adjust the body height sensor for level calibration
​
11.Gearbox (Transmission )Reset
When the transmission parts wear and aging become serious, the adaptive learning of the control unit does not work, and the parts need to be repaired and replaced, then the automatic transmission control unit needs to be forced to learn.
​
12.AFS Headlamp Reset
This function can initialize the adaptive headlight system. The adaptive headlight system can decide whether to automatically turn on the headlights according to the ambient light intensity, and monitor the vehicle's driving speed, body attitude, etc., and timely adjust the lighting Angle of the headlights. When replacing a new headlight, headlight automatic motor, or there is a fault code that is not set by the headlight, it is necessary to perform headlight matching features.
​
13.Injector Coding
After replacing the ECU or injector, each cylinder injector needs to be coded to confirm or recode. So that the cylinder can better identify each cylinder injector, accurate control of fuel injection.
​
14.ETS Learning(throttle matching)
Need to perform throttle matching: Replace the electronic control unit, power off the electronic control unit, replace the electronic throttle assembly, replace or disassemble the intake port, clean the throttle.

15.Gear Learning
Gear learning is required when replacing the engine ECU, crankshaft position sensor, crankshaft flywheel, and fault code that the gear has not learned,it is necessary to gear learning.
​
16.EGR Self-Learning
If the EGR fails, the engine/EPC fault indicator light of the vehicle instrument will light up, and the EGR self-learning function can turn off the fault indicator light after cleaning or replacing the EGR valve.
​
17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
​
18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car adblue) is replaced or filled up, Turn off the adblue fault indicator light by adblue reset.
​
19.Airbag Reset
this function is only available for some models, please consult the seller
This function resets the airbag data to clear the airbag collision fault indicator.
​
20.Coolant Bleeding
Use this function to activate the electronic water pump before bleeding the coolant system. Electronic water pumping systems are commonly found in BMW models.
​
21.Tyre modification
Tire size parameter setting after tire modification or replacement.
​
22.Language Change
This function is used to change the system language of the vehicle central control panel.
​
23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.
​
24.odometer read
This function is only used to read the actual mileage and does not support mileage modification or zeroing
​
25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).
​
26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
​
27.Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.
​
28.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

*Not all vehicles support all reset functions. Please send vehicle model and year to customer service for inquiry.

Diagnostic Cover All Vehicles That Support The OBDII Protocol After 1996.

For Amercian
for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM
​
For European
for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ
​
For Asian
Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan

Japanese cars compatible with JOBD protocol are not supported

Supported 10 language

Russian,English,French,German,Italian,Spanish,Portuguese,Japanese,Polish,Turkish

Free Full OBD2 Functions:

*-Read extensive current, pending and permanent codes in OBD system quickly
​*-Clear detected fault codes and turn off the Check Engine Light efficiently
​*-View graphical live data of vehicle's computer module(s) for easy analyses
​*-View the vehicle's operating parameters at the moment a DTC is detected
​*-Read I/M readiness status to have a vehicle inspected for state emissions compliance
​*-Perform O2 sensor test to check fuel efficiency and vehicle emissions
​*-Read the results of on-board diagnostic monitoring tests for specific components/systems
​*-Retrieve the vehicle information of VIN, CINs, and CVNs completely
​*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

Built-in DTC lookup library----No More On-line Search

A decent car diagnostic tool will accurately pull the error codes,and then also tells you what the problem is,so you don’t need to go looking the code up in a list or database.This is exactly the way this scan tool ThinkScan Plus S7 diagnostic code reader for all vehicles acts.You can also manually input the specific code for a detailed definition.

Characteristic Function:

1.Scan QR Code to Share&Print+AUTO-VIN:
Unlike most OBDII products on the market,ThinkScan Plus S7 can scan the QR code and share it where you want to share and print it after obtaining the diagnostic report.You can also take out the SD card and export diagnostic report;Convenient and fast,keeping up with the trend of the times.And you can also Auto-VIN your vehicles at anytime,Automotive VIN identification help you to read and store your car’s VIN number by one click conveniently and effectively,no need you to input the VIN one by one to save your time.manual diagnosis is also available.

2.ScreenShot+Screen Recorder+WIFI Update:
We also have two excellent advantages,that is,when you enable the screenshot and screen recording functions in the settings,you can start to take screenshots and screen recordings,they will finally be saved in "Photo album" and "Screen recorder" Under the " Settings".Besides,you can update software free lifetime.

3.Dashboard Display+Auto-Test Battery Voltage:
After the car is ignited,once connected to the car DLC,the main interface of ThinkScan Plus S7 will have a small dashboard indicator to indicate that the connection is successful;and once connected,the OBDII Scanner will automatically diagnose the battery voltage

4.Live Data On Graph:
2-in-1 live data from car code reader can be show in graph to make the data in your car system based on visualization,which helping you to analyze the abnormal parameter and help your problem more easy.

Product Parameters:

Display Screen:5-Inch/TFT LCD(IPS)
Connection:Wi-Fi/Bluetooth
Working Temperature:32℉~122℉
Storage Temperature:-4℉~144℉

Packing List:
