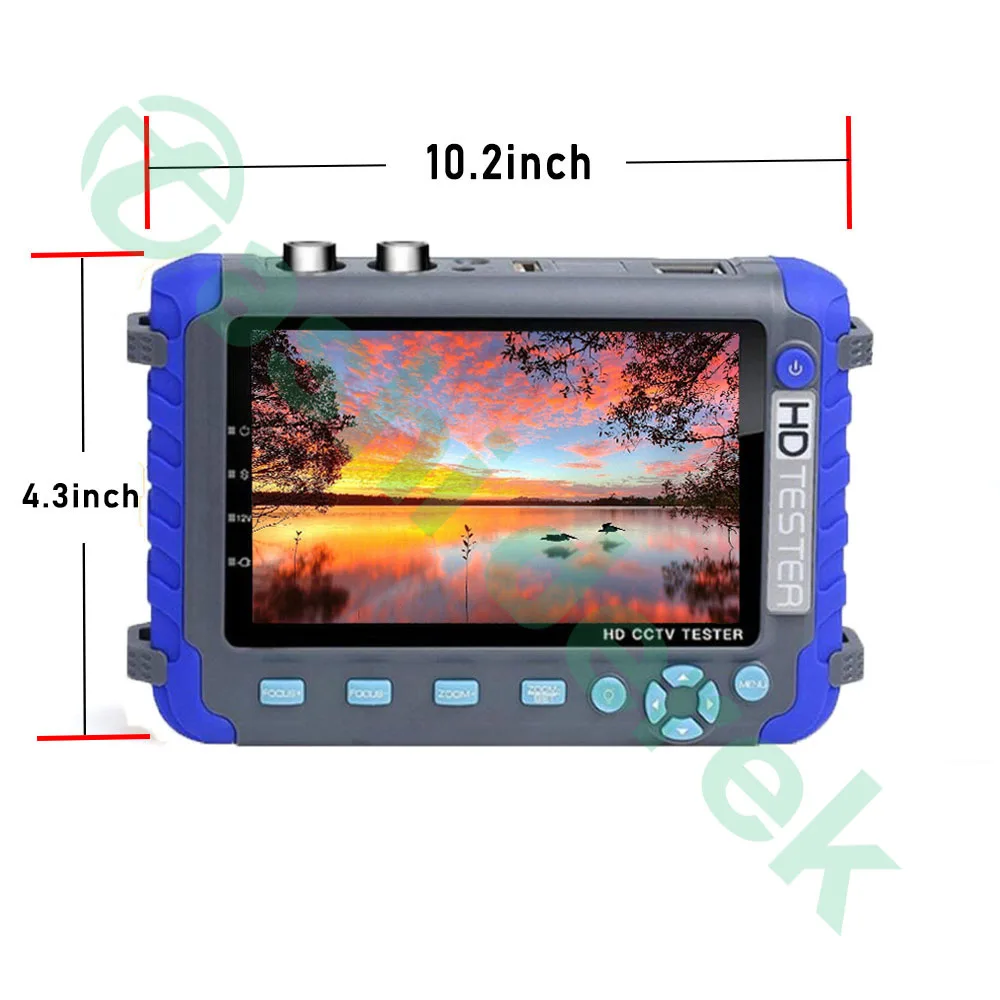

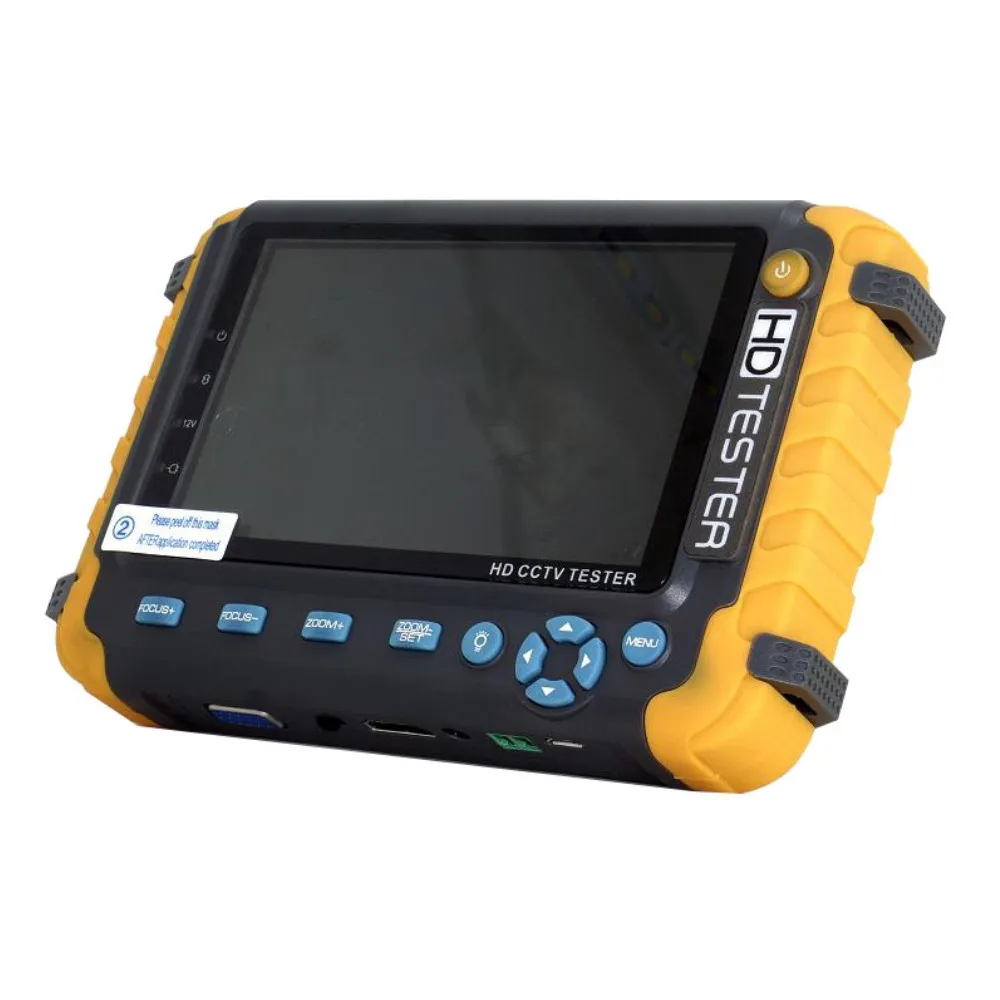

Upgraded IV8W IV8C 5 Inch CCTV Tester Monitor 8MP TVI AHD CVI CVBS Security Camera Tester Support PTZ Audio VGA HDMI Input

Upgraded IV8C IV8W 8MP Security Camera tester 5 inch CCTV Tester Monitor support TVI AHD CVI CVBS PTZ Camera test/Audio test/VGA HDMI input

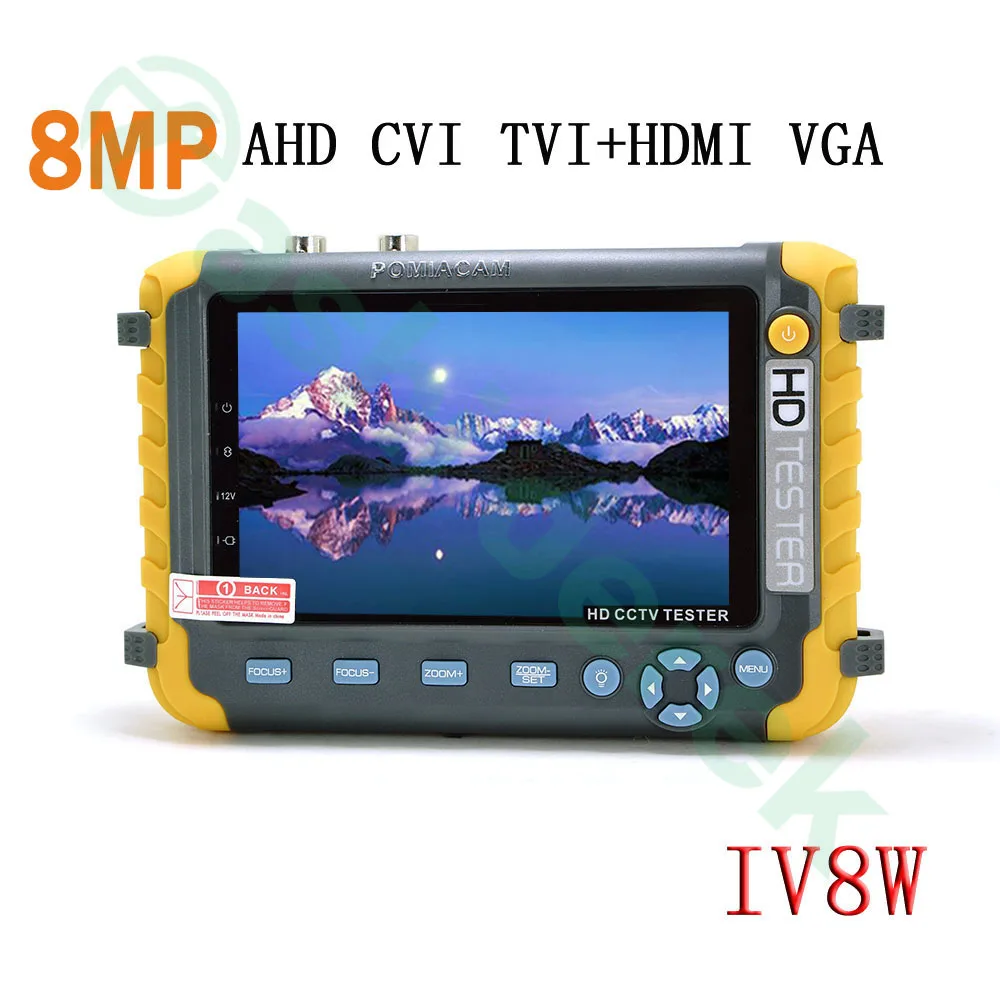

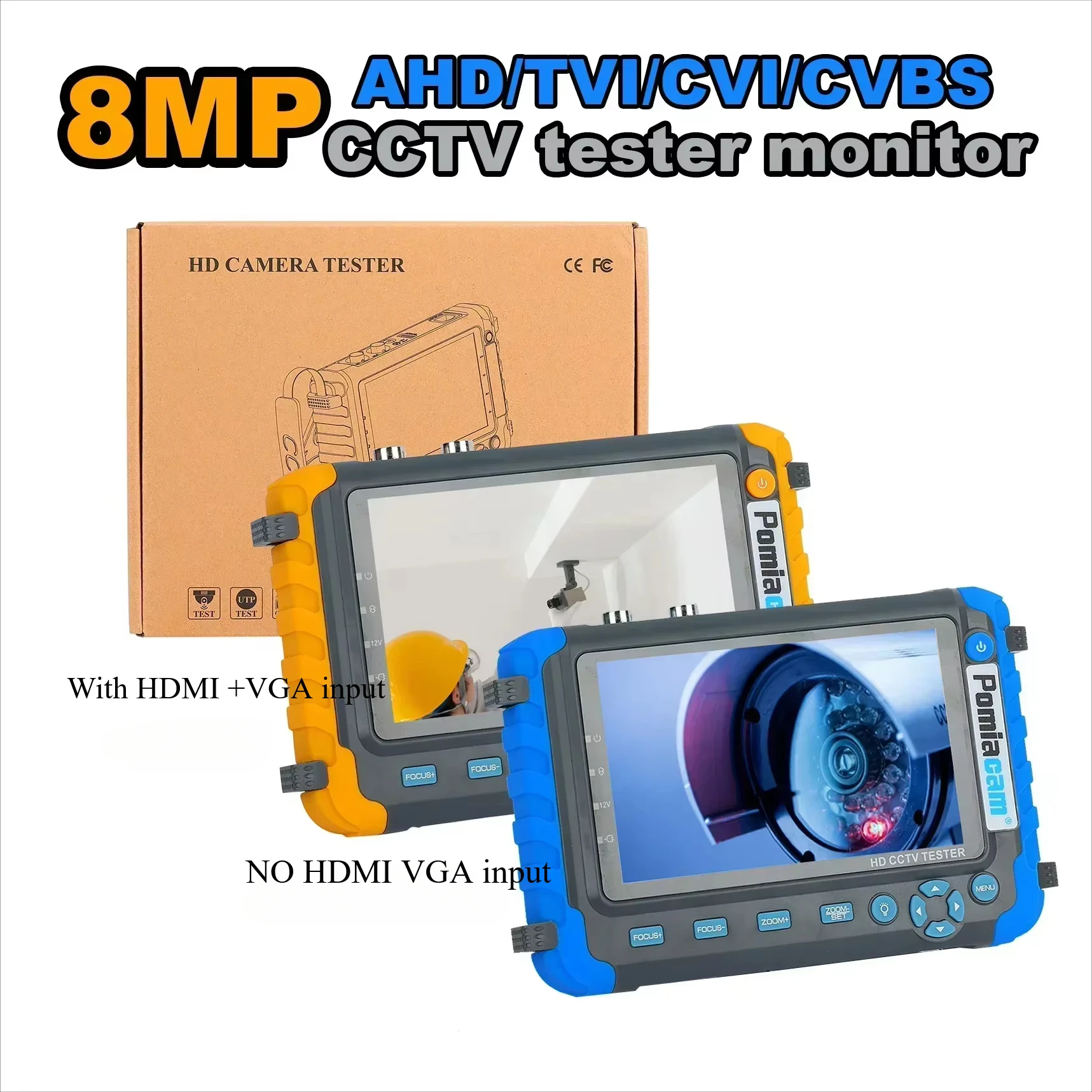

❤IV8W------5inch tester+8MP AHD+8MP CVI+8MP TVI(with HDMI and VGA) Please note: not support IP camera

❤ IV8C------5inch tester+8MP AHD+8MP CVI+8MP TVI(without HDMI and VGA)

This CCTV tester not supported Digital Multimeter
Product overview

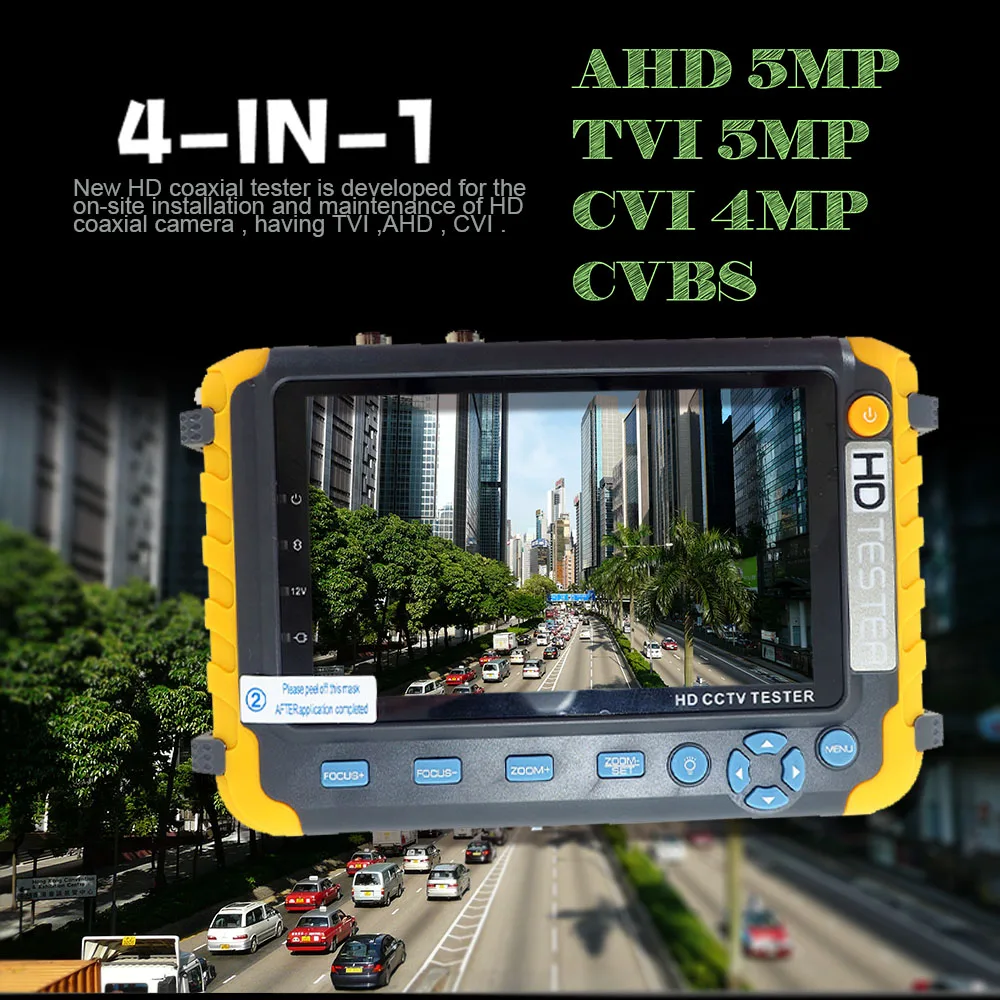

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
Product Funtions

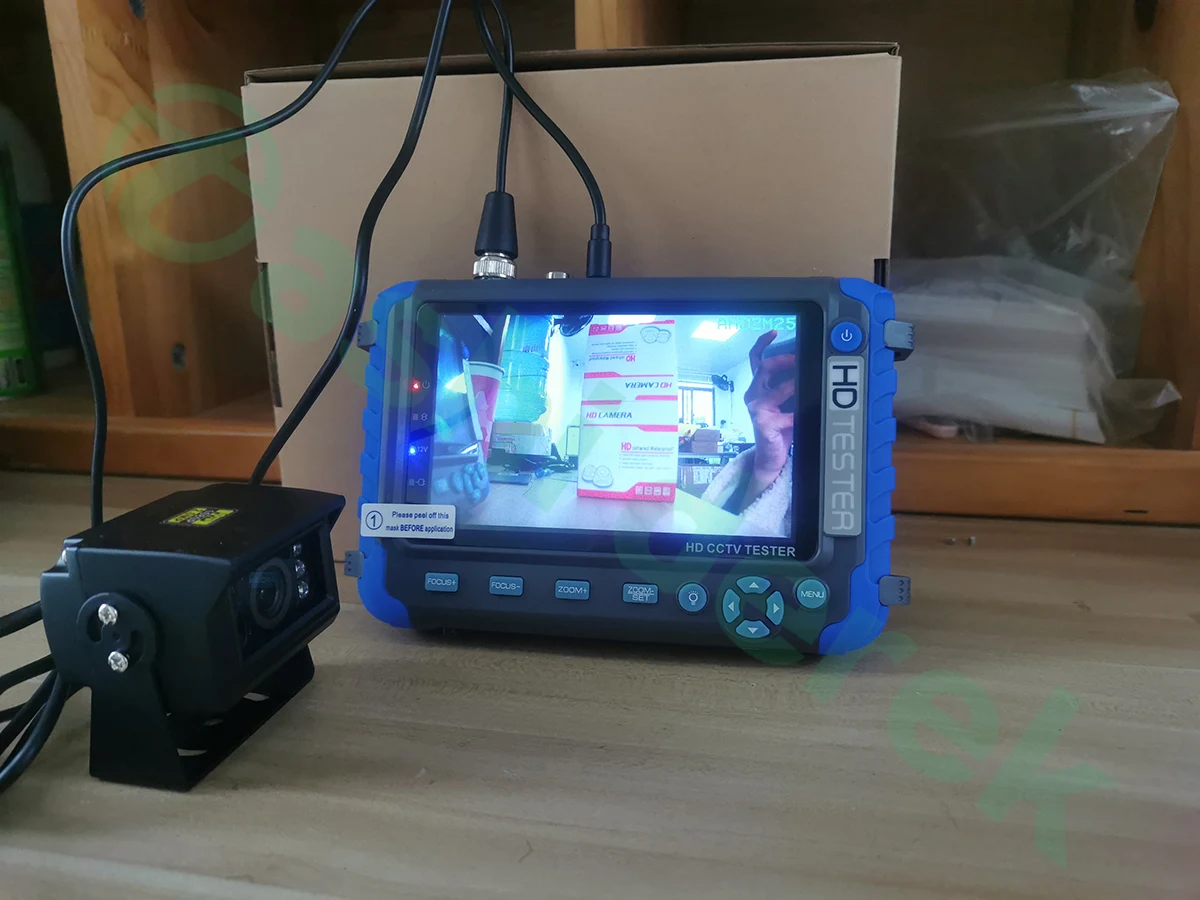

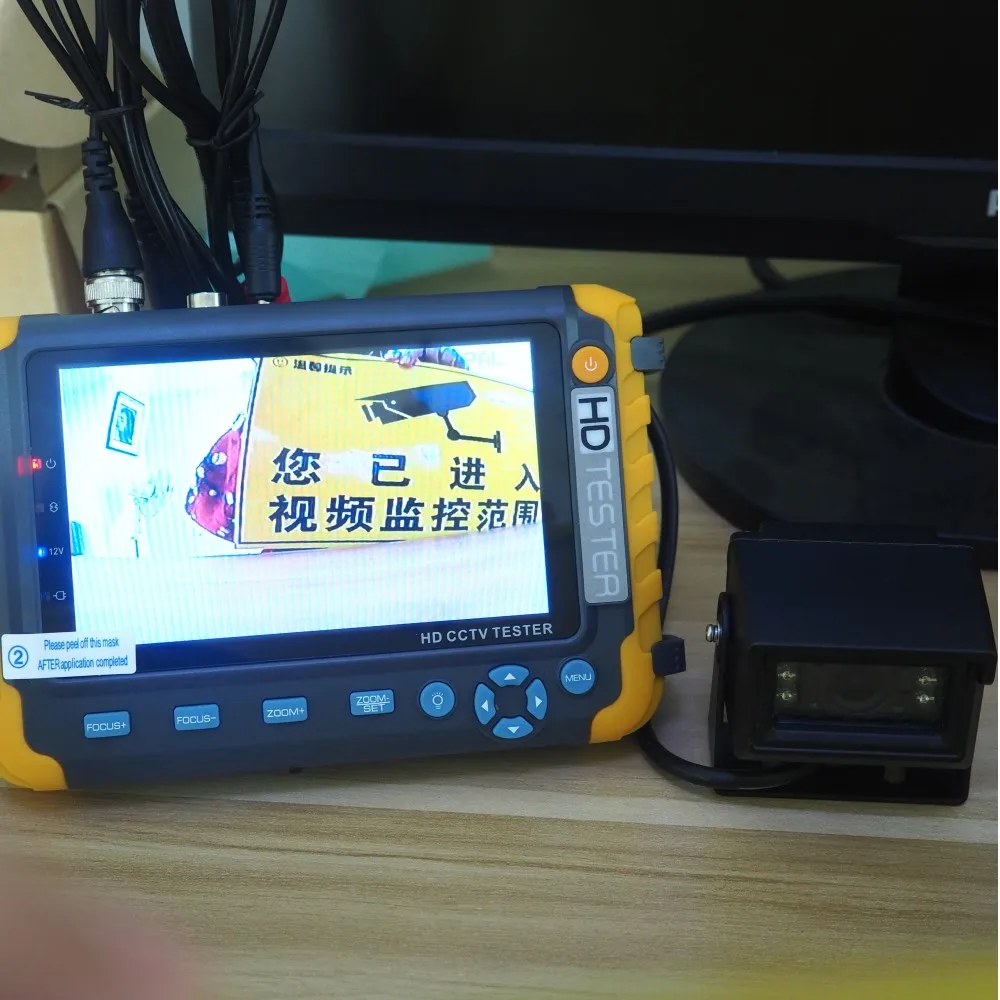

Video signal testing

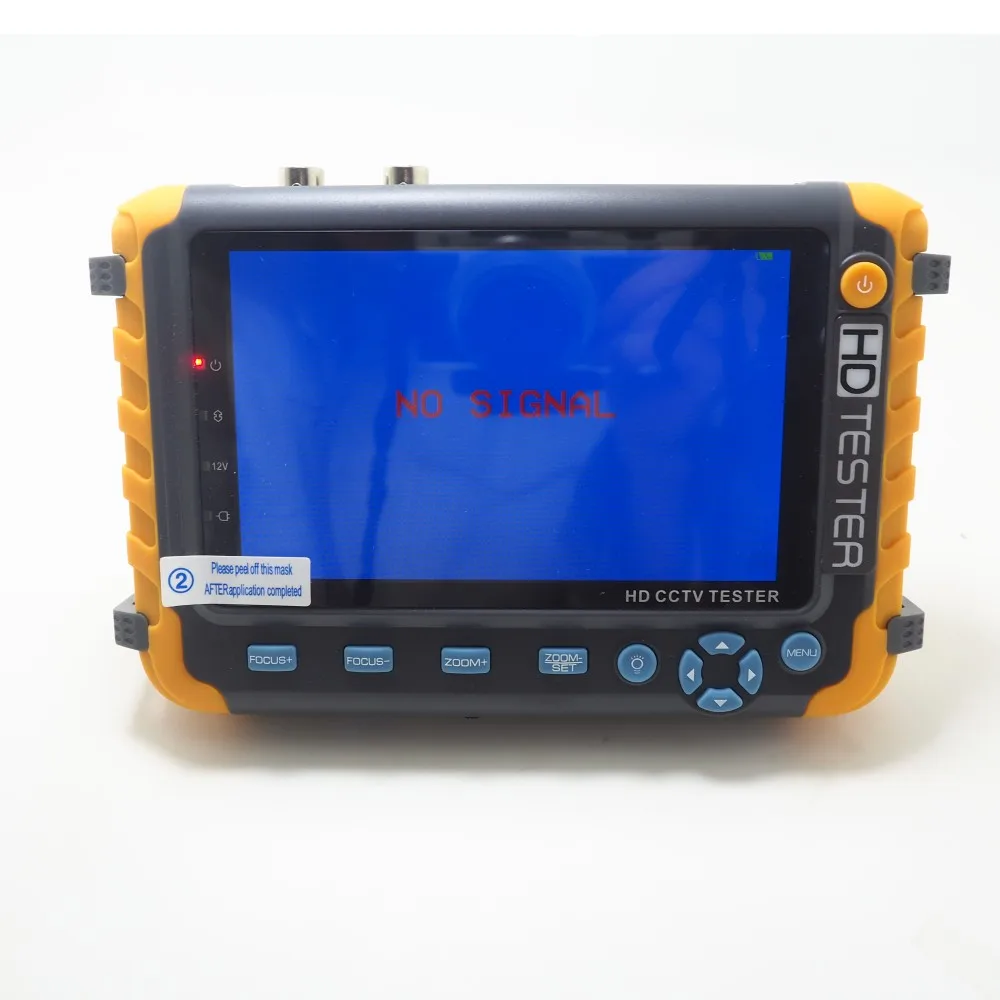

Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.

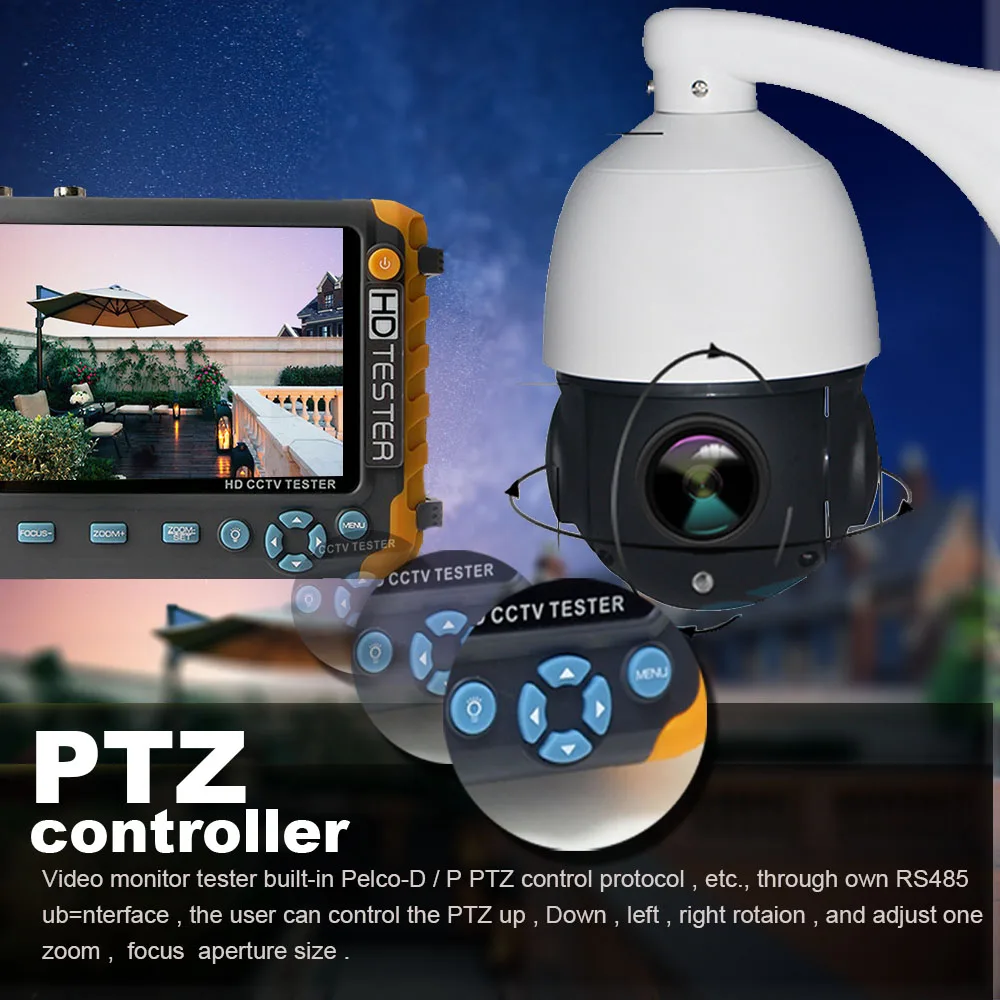

PTZ controller
Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

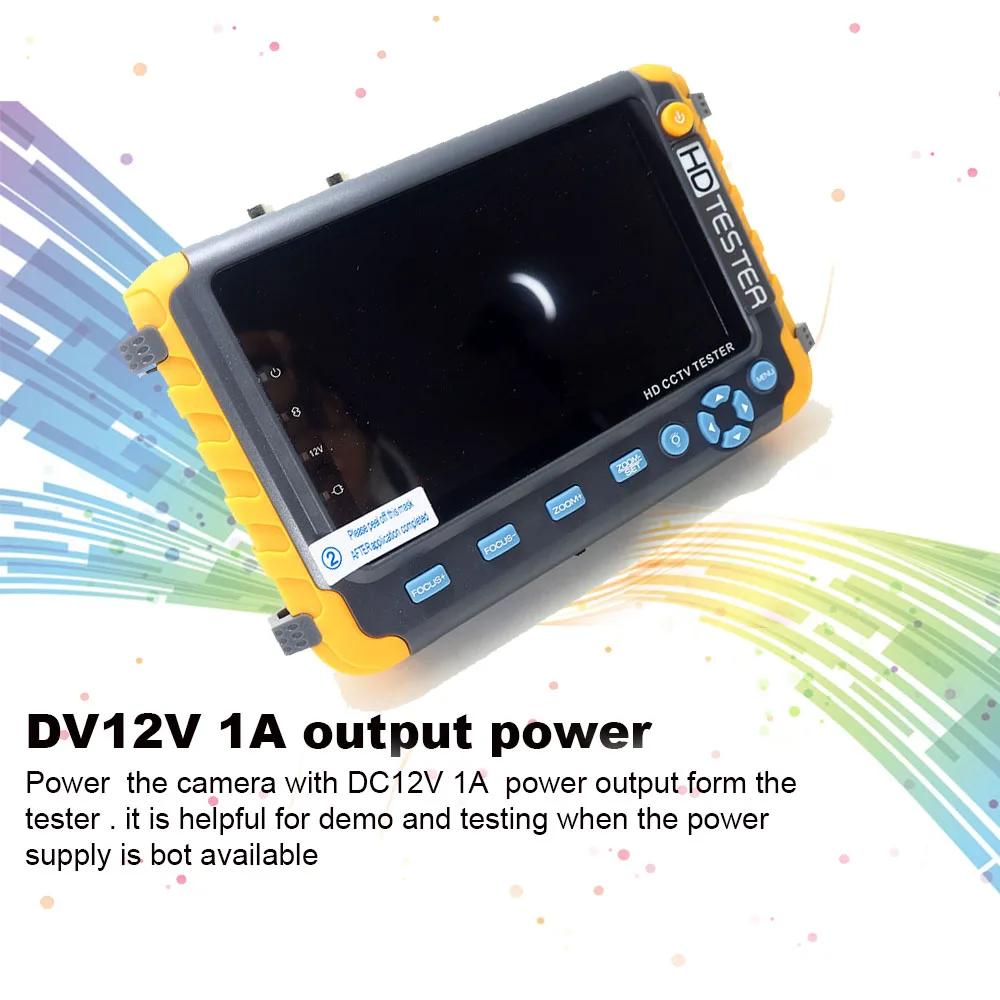

DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.

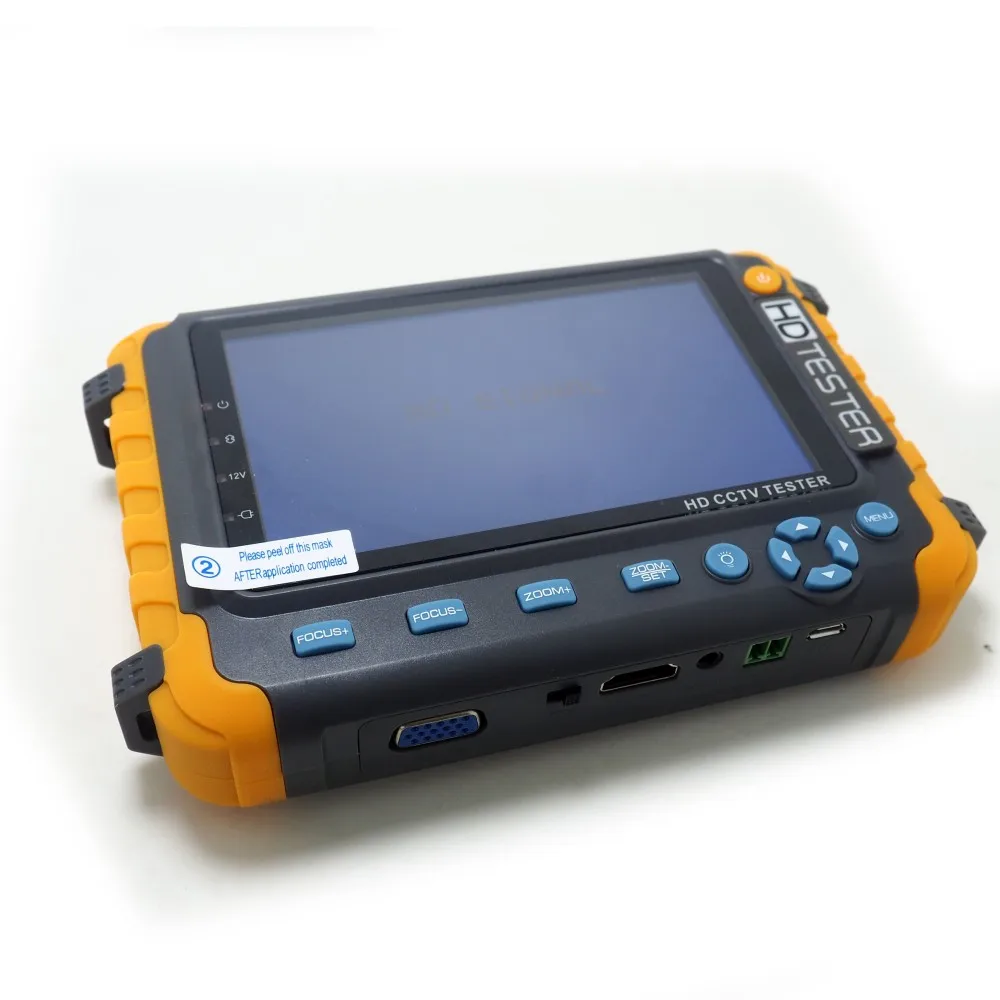

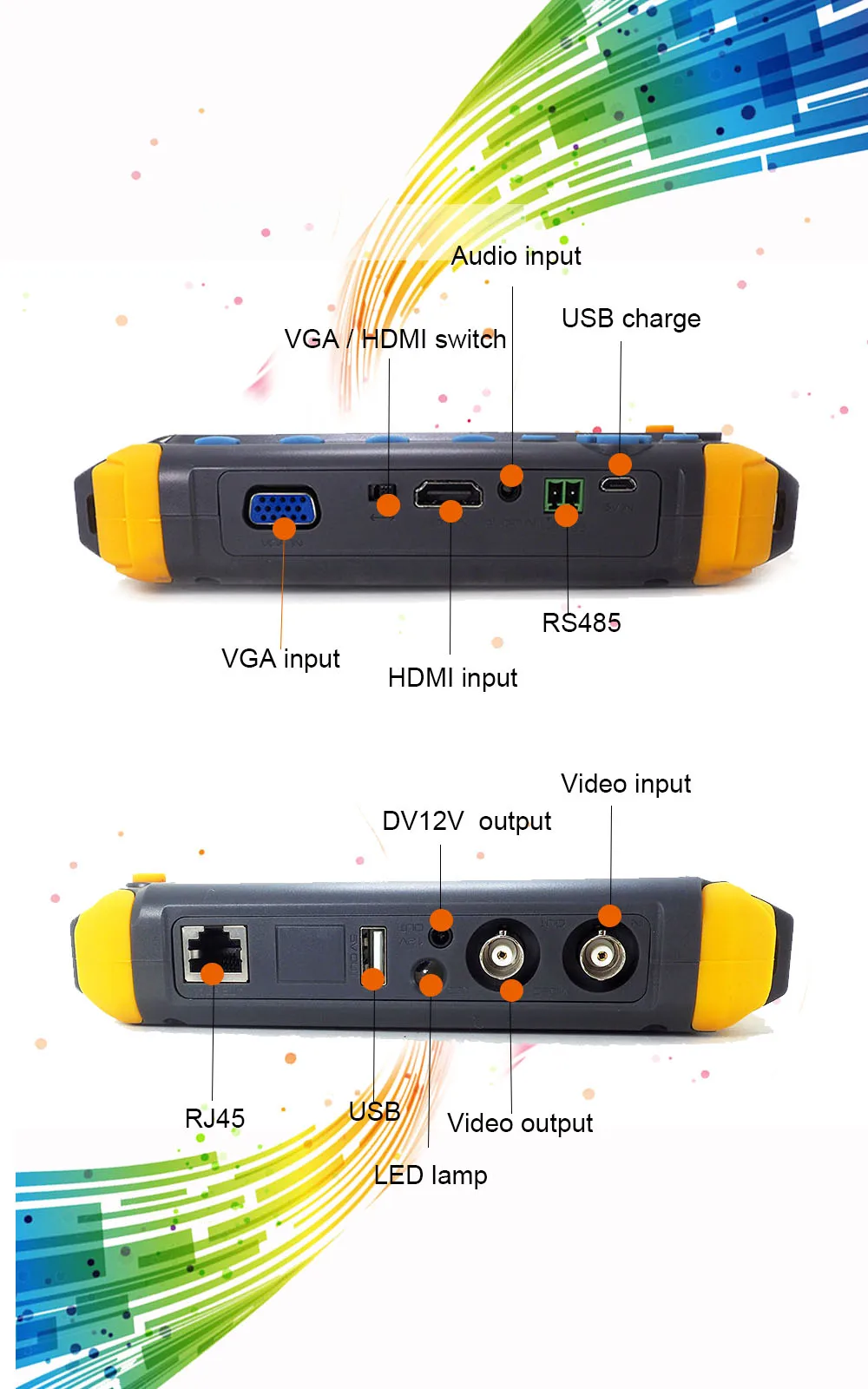

VGA/HDMI input
Support VGA/HDMI 1.0 video input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is 1920 x 1440(IV8W ) / 1920X1080 (IV8S)
TVI camera test

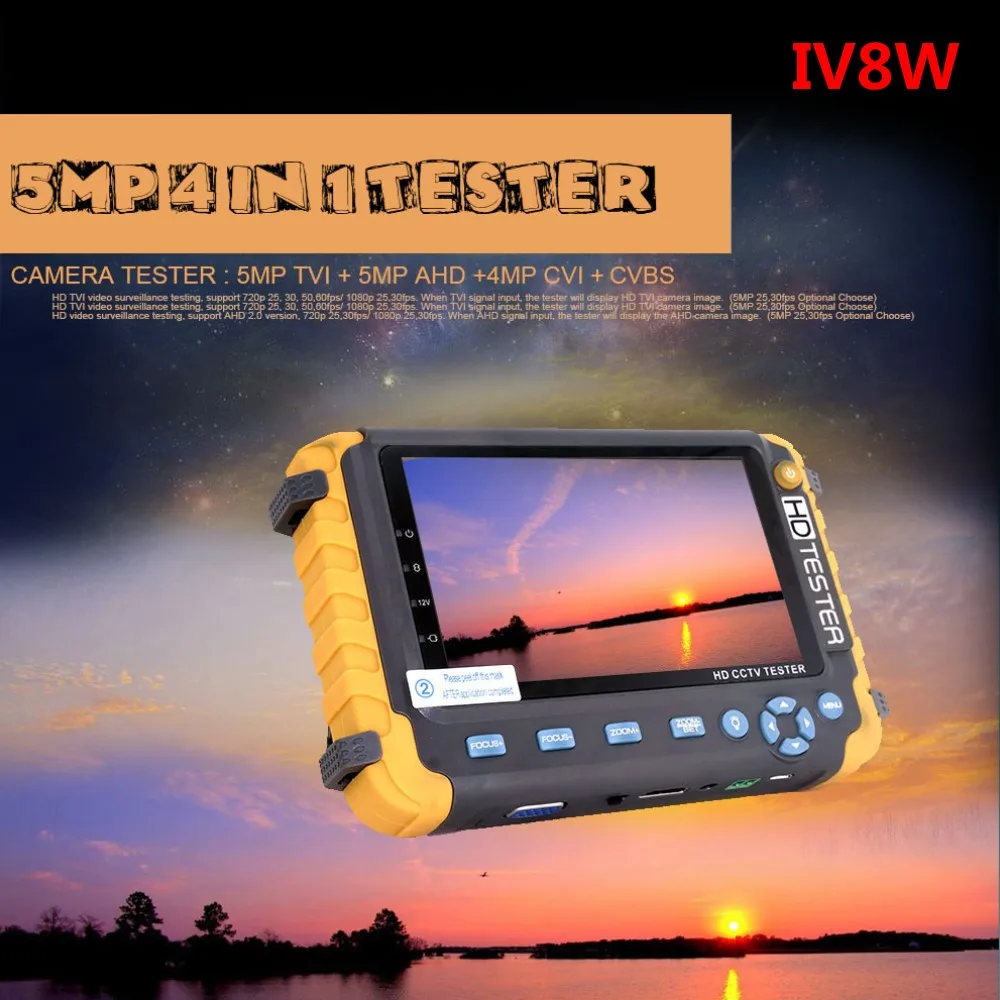

HD TVI video surveillance testing, support 1MP 2MP 3MP 4MP 5MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
AHD camera test
HD video surveillance testing, support AHD 2.0 version, 1MP 2MP 3MP 4MP 5MP (IV8W ) / 720p 25,30fps/ 1080p 25,30fps (IV8S) . When AHD signal input, the tester will display the AHD camera image.
CVI camera test
HD CVI video surveillance testing, support HD CVI video surveillance testing, support 1MP 2MP 3MP 4MP (IV8W ) /720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S ) . When CVI signal input, the tester will display HD CVI camera image.
LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The battery graphic display
The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.

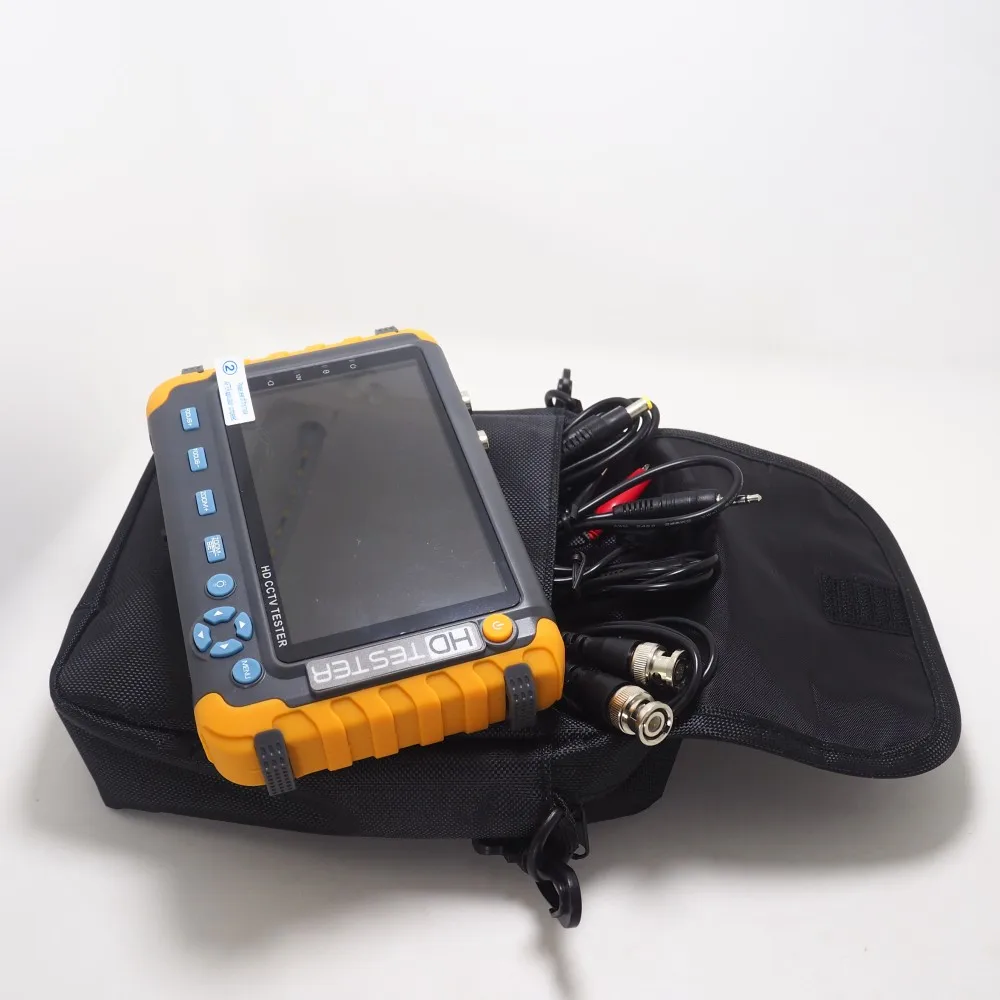

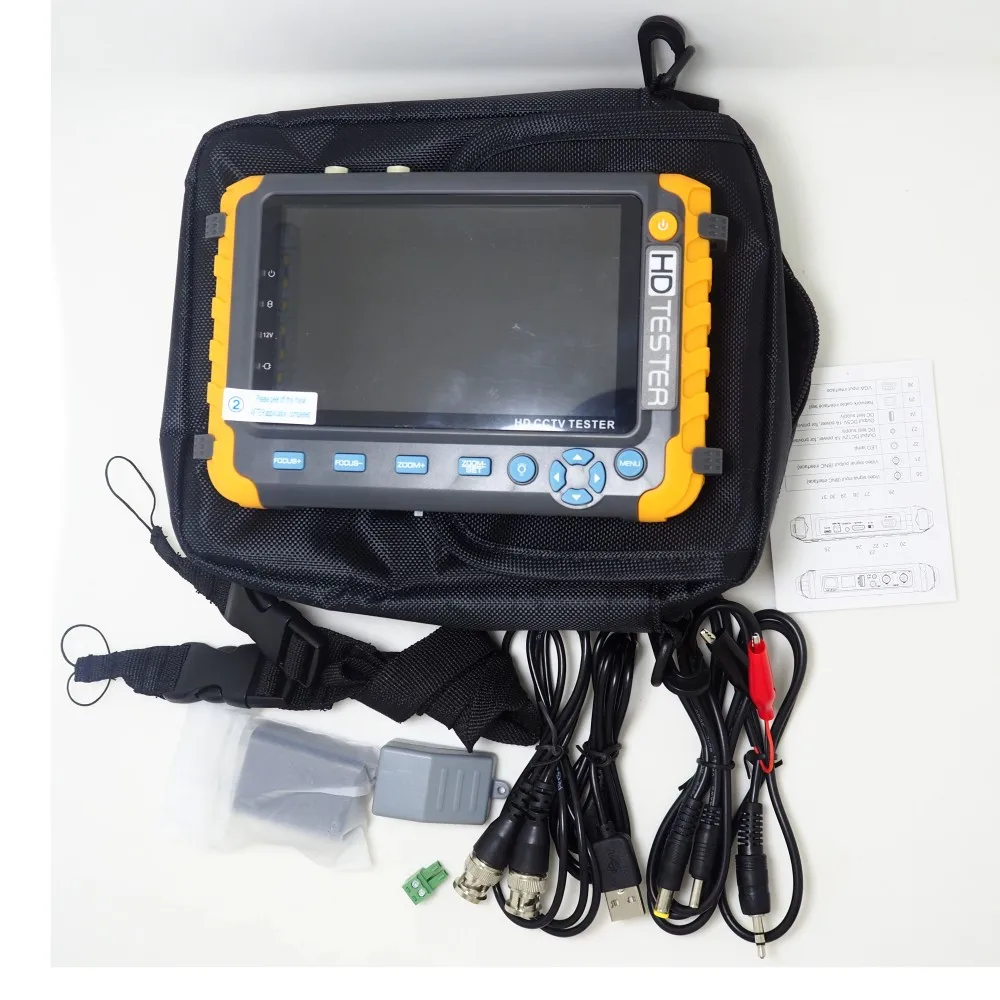

Package
HD coaxial tester
Adapter DC5V 1A(with USB cable)
International Standard 18650 2600ma battery
BNC cable
RS485 connector
Power output conversion cable
Audio cable
Lanyard

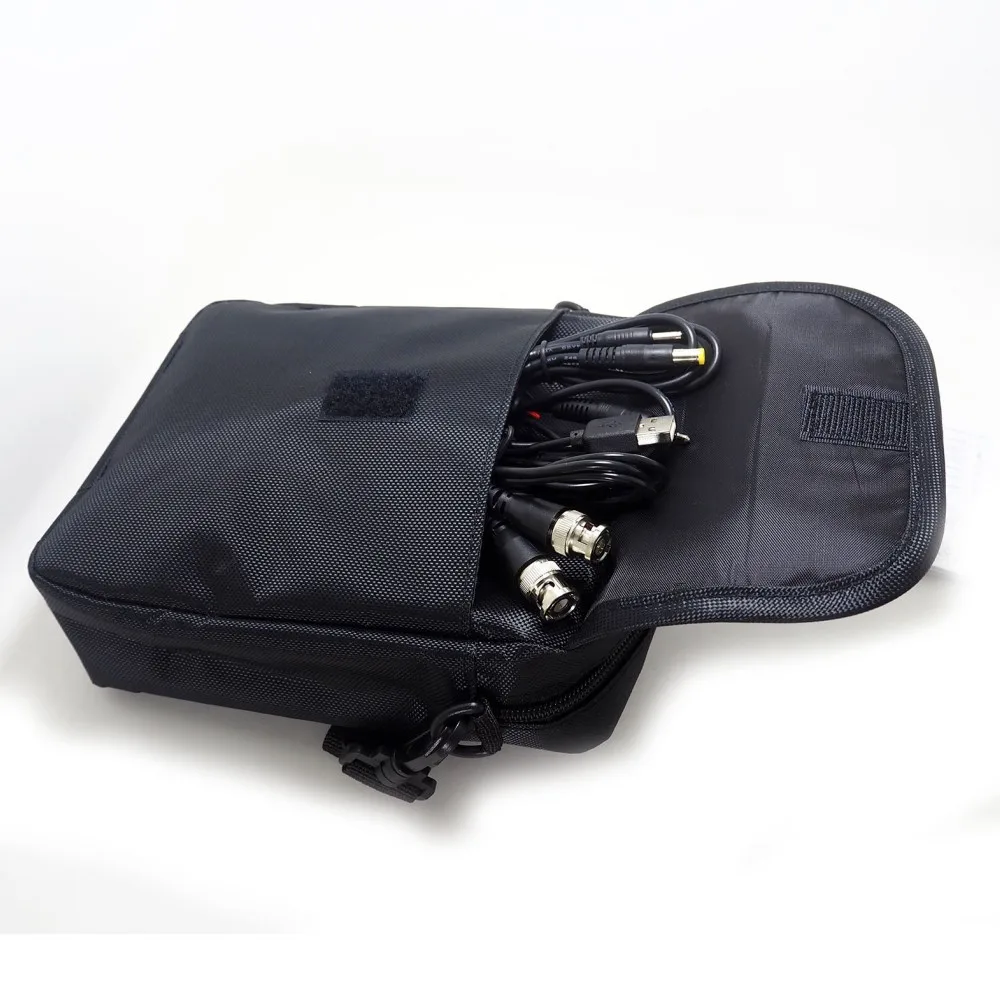

Tool bag
Instruction Manual

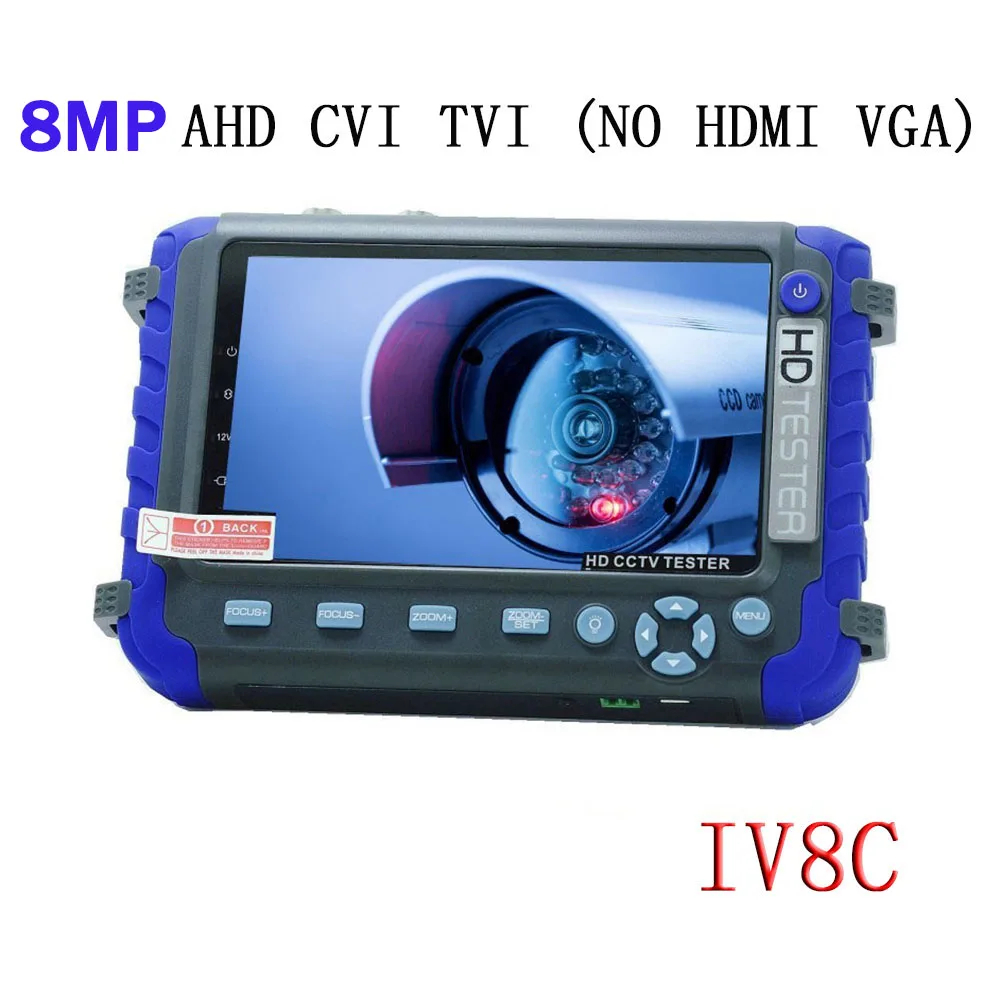

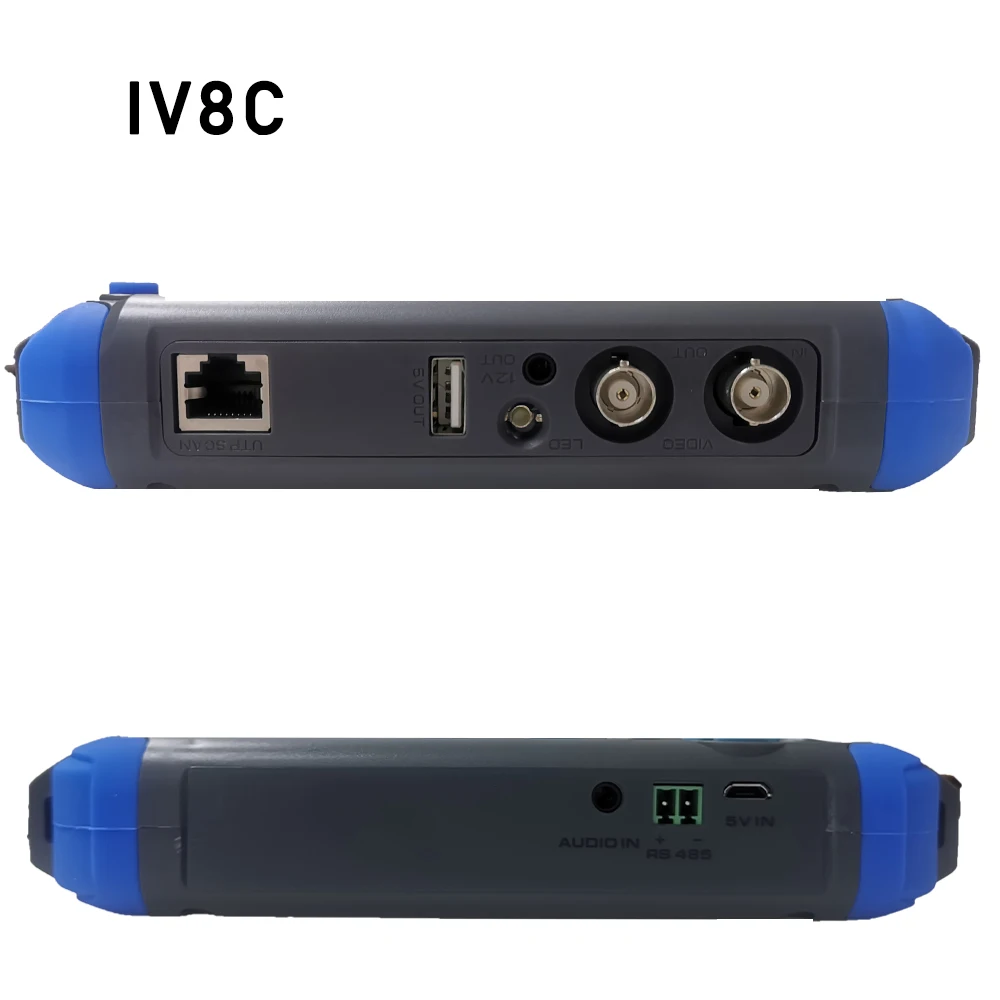

IV8C CCTV TESTER
Utp Cable Test 5'' Tft Lcd Screen Cctv Tester Built-in 18650 Battery IV8C 720P 1080P Hd Surveillance Camera Tester Cctv Test ( not support VGA/HDMI input )
IV8C support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:
(1) AHD Signal test: 8MP 1080P 720P;
(2) TVI Signal test: 8MP 1080P 720P;
(3) CVI Signal test: 8MP 1080P 720P;
Product overview:
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc.
Main Features:
* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,
* Support PAL/NTSC standard video signal. CVBS testing.
* PTZ controller
Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
* Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
* DC12V 1A output power
Power the camera with DC12V (1A) power from the tester.
* Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
* Improvement cable test
UTP cable, telephone cable etc order and connectivity test, can save testing report
* TVI camera test
HD TVI video surveillance testing, support 8MP. When TVI signal input, the tester will display HD TVI camera image.
* CVI camera test
HD CVI video surveillance testing, support 8MP. When CVI signal input, the tester will display HD CVI camera image.
* AHD camera test
HD video surveillance testing, support 8MP. When AHD signal input, the tester will display the AHD camera image.
* LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
Specifications:
Model
IV8C
LCD screen
5.0 inch TFT-LCD, 800(RGB)x 480 resolution
Video test
NTSC/PAL (Auto adapt)
LCD adjustment
Brightness, Contrast, Saturation adjustable

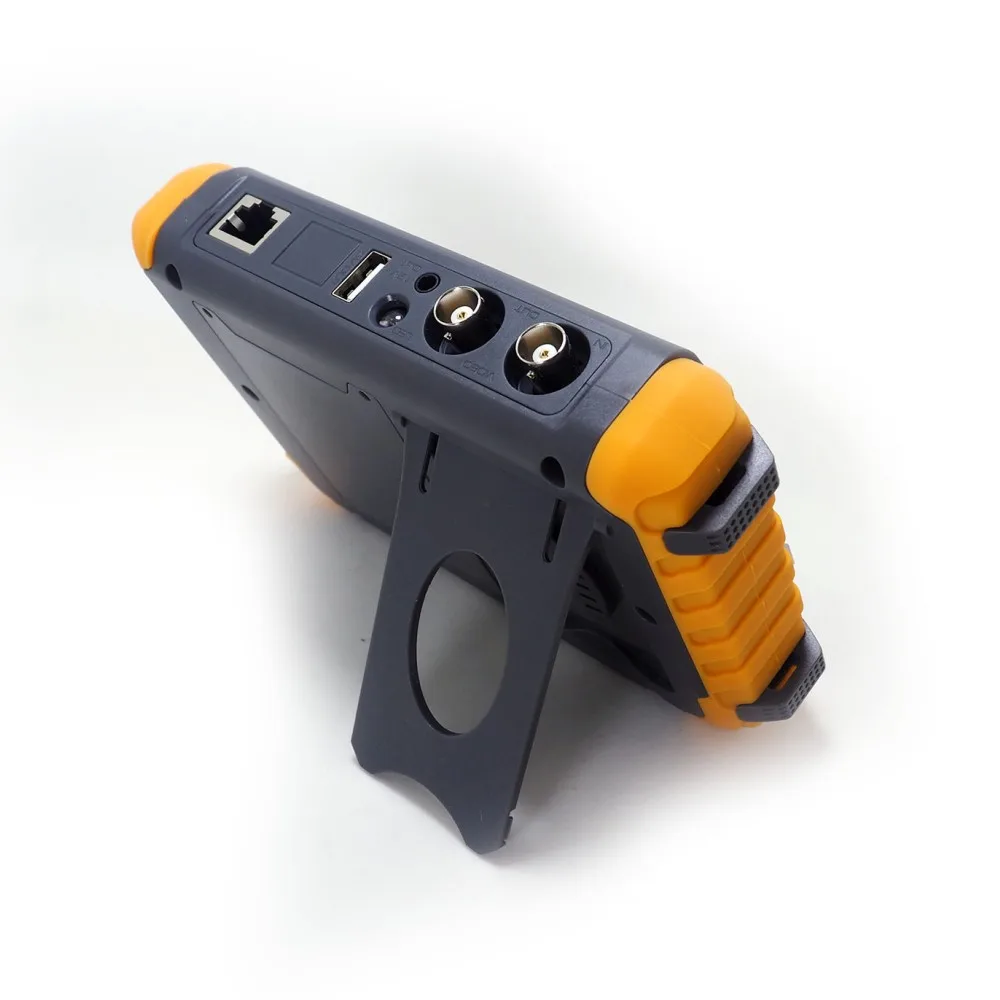

Video IN/OUT
1 channel BNC Input & 1 channel BNC Output
VGA/HDMI input
NOT Support
PTZ Controller
Support RS485
PTZ Protocol
Compatible with protocols PELCO-D/P,
Baud Rate
Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps
Color bar generator
Support both PAL / NTSC format's standard color bar output
(Red, Green, Blue, White, Black, Grey) and testing image output
UTP Cable Test
Display UTP cable connection status , cable type and
the sequence of wires as well as read the number of the test box.
DC12V power output
Output DC12V1A power for camera
Audio input test
1 channel audio signal input
Coaxial HD test
TVI test
1 channel TVI input(BNC interface),
support 8MP
CVI Test
1 channel TVI input(BNC interface),
support 8MP
AHD Test
1 channel AHD input (BNC interface),
support AHD 2.0 version, 8MP
POWER
Power Adapter
DC 5V(1.5A)
Battery
Built-in 18650 2600mA battery X 2,
After charging 3-4 hour, working time lasts 11 hours
General
Language
English and Chinese optional
Working Humidity
30%-90%
Dimension
194mm x 112mm x 48mm / 540g

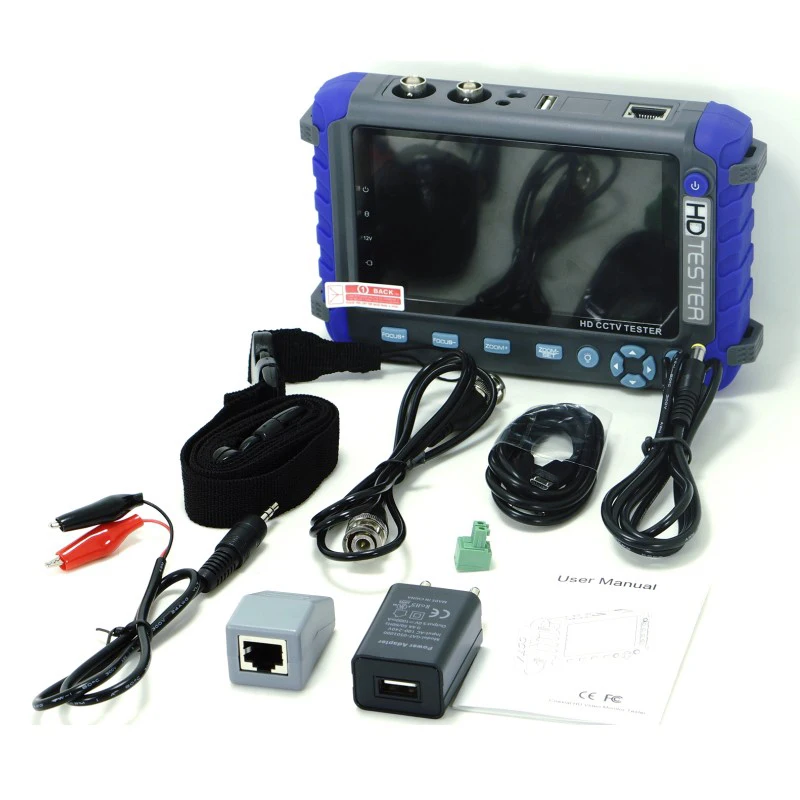

Packing list:
HD coaxial tester
Adapter DC5V 1A(with USB cable)
International Standard 18650 2600ma battery
BNC cable
RS485 connector
Power output conversion cable
Audio cable
Lanyard
Tool bag
Instruction Manual
