THINKCAR ThinkDiag Mini Automotive OBD2 Scanner Car Diagnostic Tools OBD Code Reader All System Diagnosis Lifetime Free Updater

The old packaging is the white version, while the new packaging is the black version.

Support Full System Diagnostic Lifetime Free+All Car Lifetime Free+Full OBD2 Function Lifetime Free

Why You need THINKDIAG MINI?

1.Read fault Codes For All System ,such as ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, Fuel System, Light System, Wiper System, etc

2.Lifetime free OBD2 Scanner + Auto VIN Scan Tool

3.Live Data Stream Graphing + Data Record+Print Vehicle Health Report Print +Remote Diagnostic Car Scanner

4.Wide Vehicle Coverage，Whatever you own an Android or iOS device, you can download APP for direct diagnosis

5.EOBD2, DEMO software free and 115 free Manufacturer Software

After activating the device, you will get 115 free Car Brand software.

6.Multi-language : English, French, German, Spanish, Italian, Portuguese, Japanese, Russian,Poland,Turkish,Greek,Chinese"

(note:no resets function)

Support All System Diagnostic(Lifetime Free to use):

"With superior all systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ECU information to facilitate the vehicle diagnosis.The complete systems vary from different cars and they usually include engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.

* Examinate your car like a professional mechanical technician

*Read DTCs from the vehicle’s all electronic control systems to locate problem areas, and offer solutions;

*Erase the codes easily after DTCs retrieving and certain repairs have been carried out and turn off fault Indicator lamp;

*Live data shows each sendor parameter item displayed in analog, text, waveform graph modes etc.;

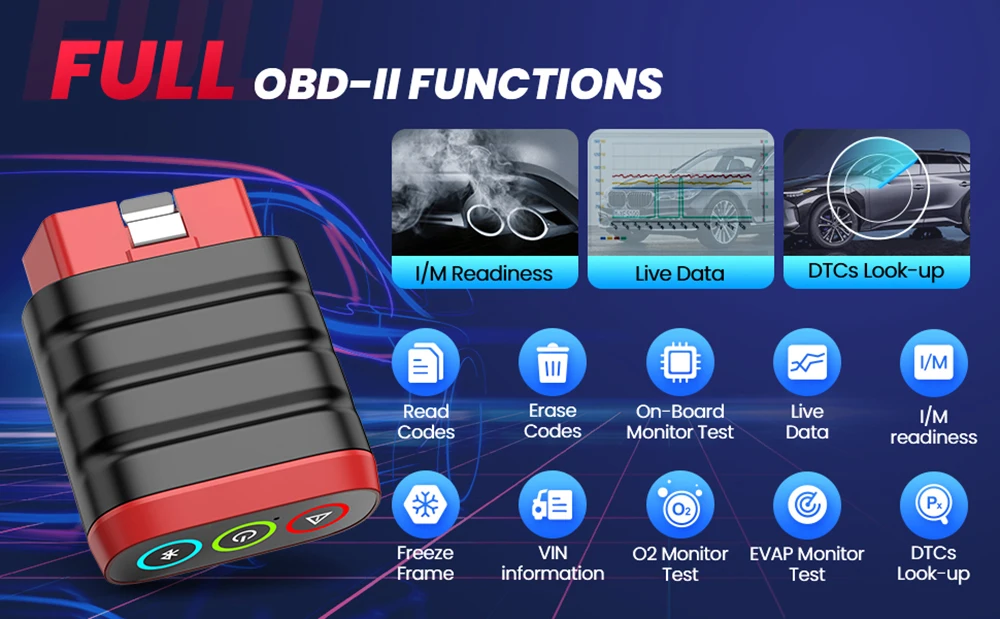

Free Full OBDII Functions:

Mode 1:Read live data stream
Mode 2:Read freeze frame data
Mode 3:Read DTCs(diagnostic trouble codes)
Mode 4:Clear dtcs
Mode 5:Oxygen sensor monitoring
Mode 6:System monitoring
Mode 7:Read pending DTCs
Mode 8:Control operation of on-board system
Mode 9:Read vehicle information
Mode 10:Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

Full System Diagnostic Lifetime Free For All Supported Cars

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis.The application performsfunctional tests,retrieves vehicle diagnostic informationsuch as trouble and event codes and live data for various vehicle control systems,such as ABS,SRS,Engine,Transmission,Brake System,Emission System,Fuel system,Light system,Wiper Systemetc.

ECM=Engine System

IC=Instrument System

ABS System=Antilock Brake System

SRS System=Air Bag Restraint System

TCM=Transmission System

BCM=Chassis System

EPS=Electric Power Steering System

EPB System=Electric Park Brake System

TPMS System=Tire Pressure Monitoring System

AC System=Air Conditioning System

Security System

IMMO System

ETC.

THINKDIDAG Mini OBD2 Diagnostic Tool is suitable for Mobile phones, tablet computer that meet the above version information. When the adapter is connected to the car, you only need to detect and diagnose your vehicle through the mobile phone's Bluetooth 4.2 and APP. It is suitable for most DIY car owners and maintenance and repair car stores on the market.

Support Mobile Phone&Tablet Computer

Android:5.0 or above But not support Android 12 system
IOS:9.0

THINKDIDAG Mini OBD2 Diagnostic Tool is suitable for Mobile phones, tablet computer that meet the above version information. When the adapter is connected to the car, you only need to detect and diagnose your vehicle through the mobile phone's Bluetooth 4.2 and APP. It is suitable for most DIY car owners and maintenance and repair car stores on the market.

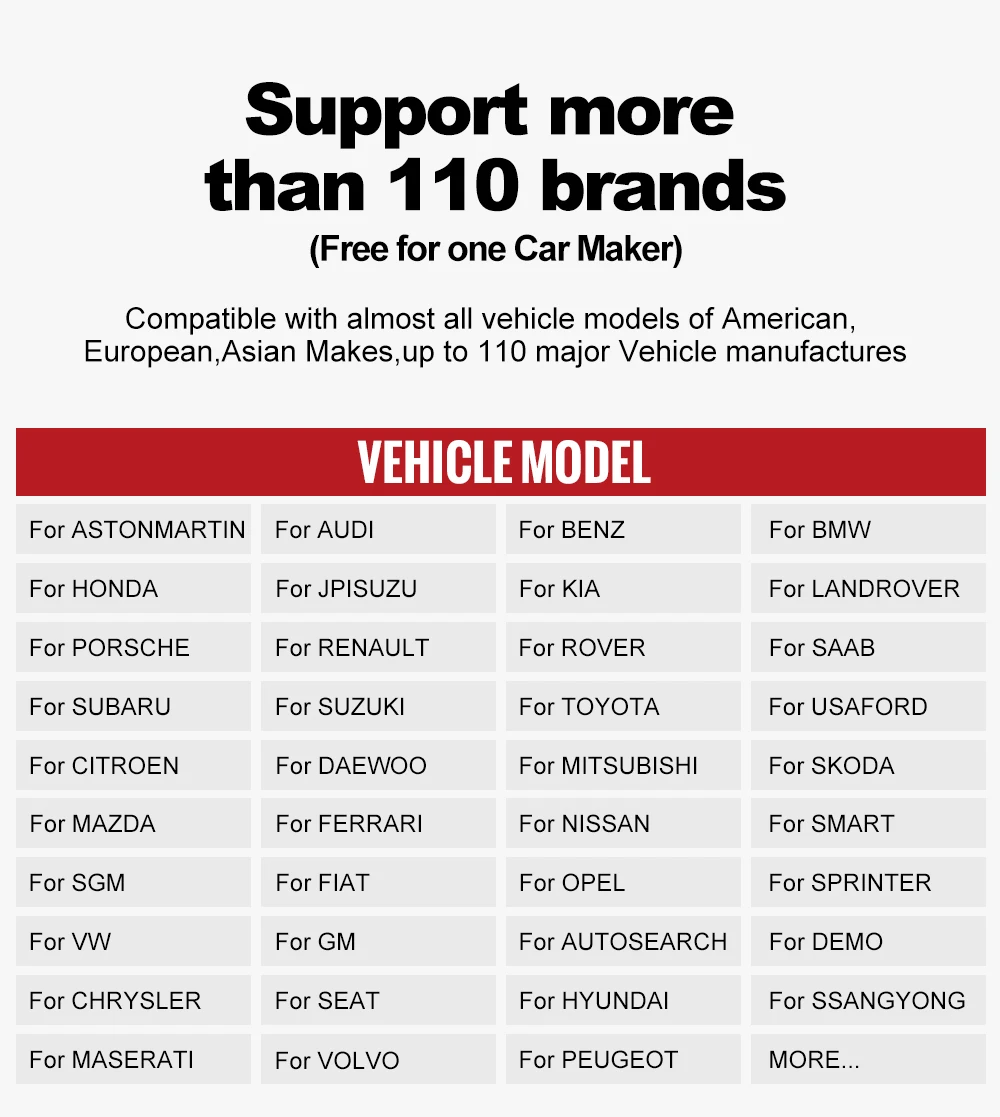

Cover Up to 115 Major Vehicle Manufacturers, more models are updating:

"For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:
-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
-Original protocols of makers
For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:
-Asia:
for Daewoo, for Honda, for JP Isuzu, for Kia, for Mazda, for Mitsubishi, for Nissan, for SGM, for Subaru, for Suzuki, for Toyota,for Hyundai, for Ssangyong
-Europe:
for Aston Martin, for Audi, for Benz, for BMW, for Citroen, for Ferrari, for Fiat, for Land Rover, for Maserati, for Opel, for Porsche, for Renault, for Rover, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Volvo, for VW, for Peugeot
-America:
for Chrysler, for USA-Ford, for GM
And keep updating."

Support Multi-language:

English, French, German, Spanish, Italian, Portuguese, Japanese, Russian,Poland,Turkish,Chinese,Greek Language(New add). in fact,it is support 12 language

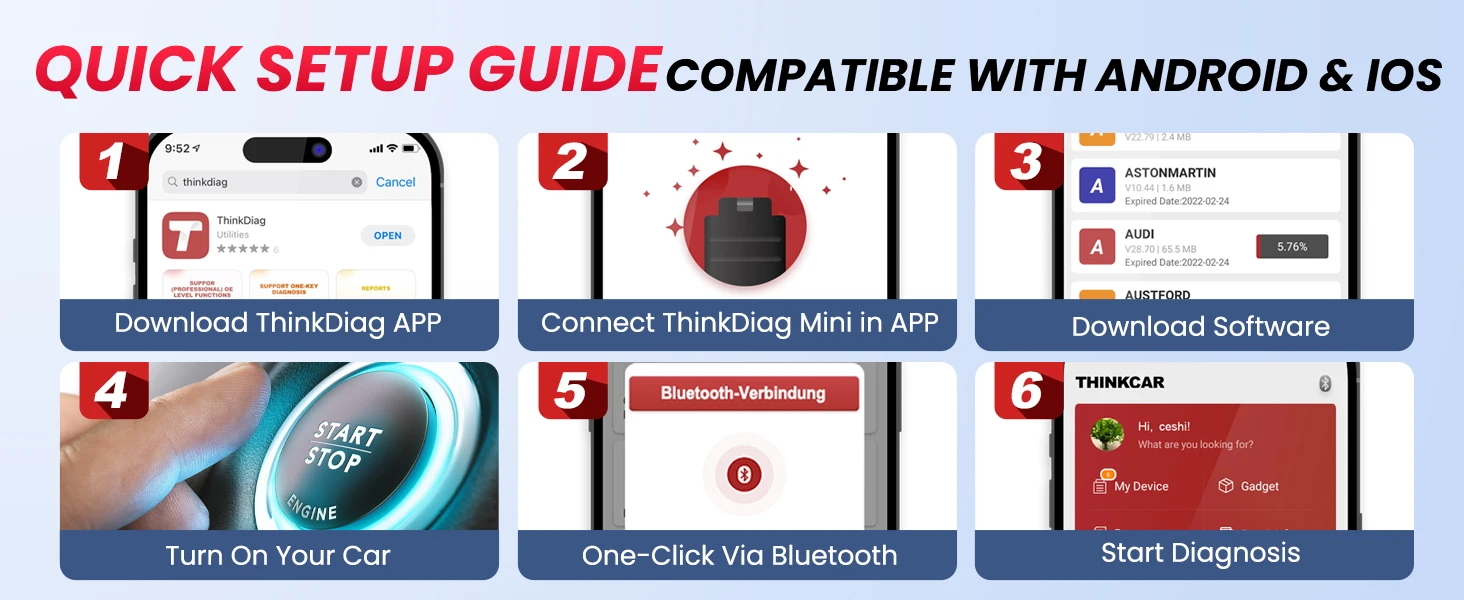

How to use Thinkdiag mini?

Step1: Download the "ThinkDiag" in the APP store or in GooglePlay store.
Step2: Open the THINKDIAD APP, click on"Sign Up",verification code will be sent to the email you input, if you did not got, please check the spam.
Step3: Click on "Activate" to open the activation page, you need to input the serial number and an 8-diagit activation code is on the first page of the Quick Start Guide.

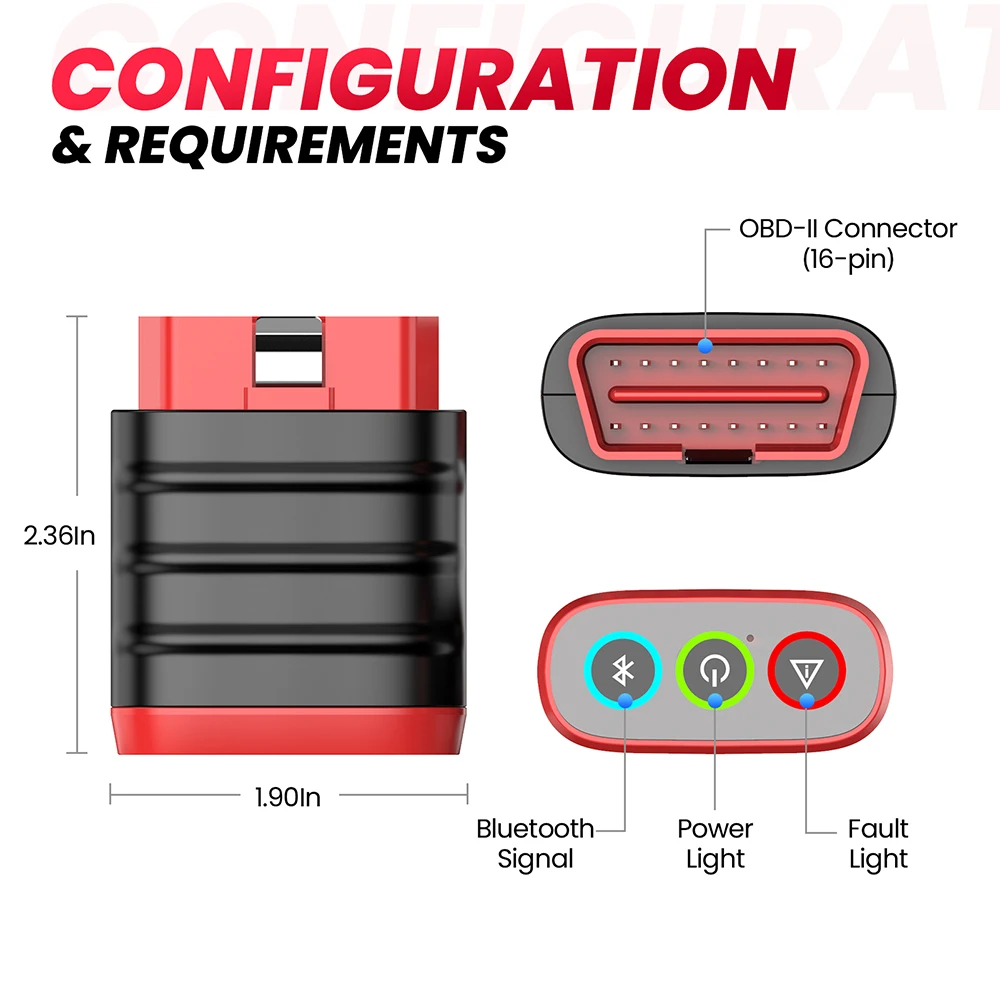

Step4: Plug THINKDIAG mini into the vehicle's OBDII port, there will be a red light which indicates the device is powered on.
Step5: Open the THINKDIAG APP, it will automatically search for activated devices, select your device and connect to it via Bluetooth in the APP. The indicator will turn to flashing blue.
Step6: In the "Diagnostics" interface of the App, you will need to download the corresponding diagnostics software when first apply"All System Diagnostic"and"OBD Functions".

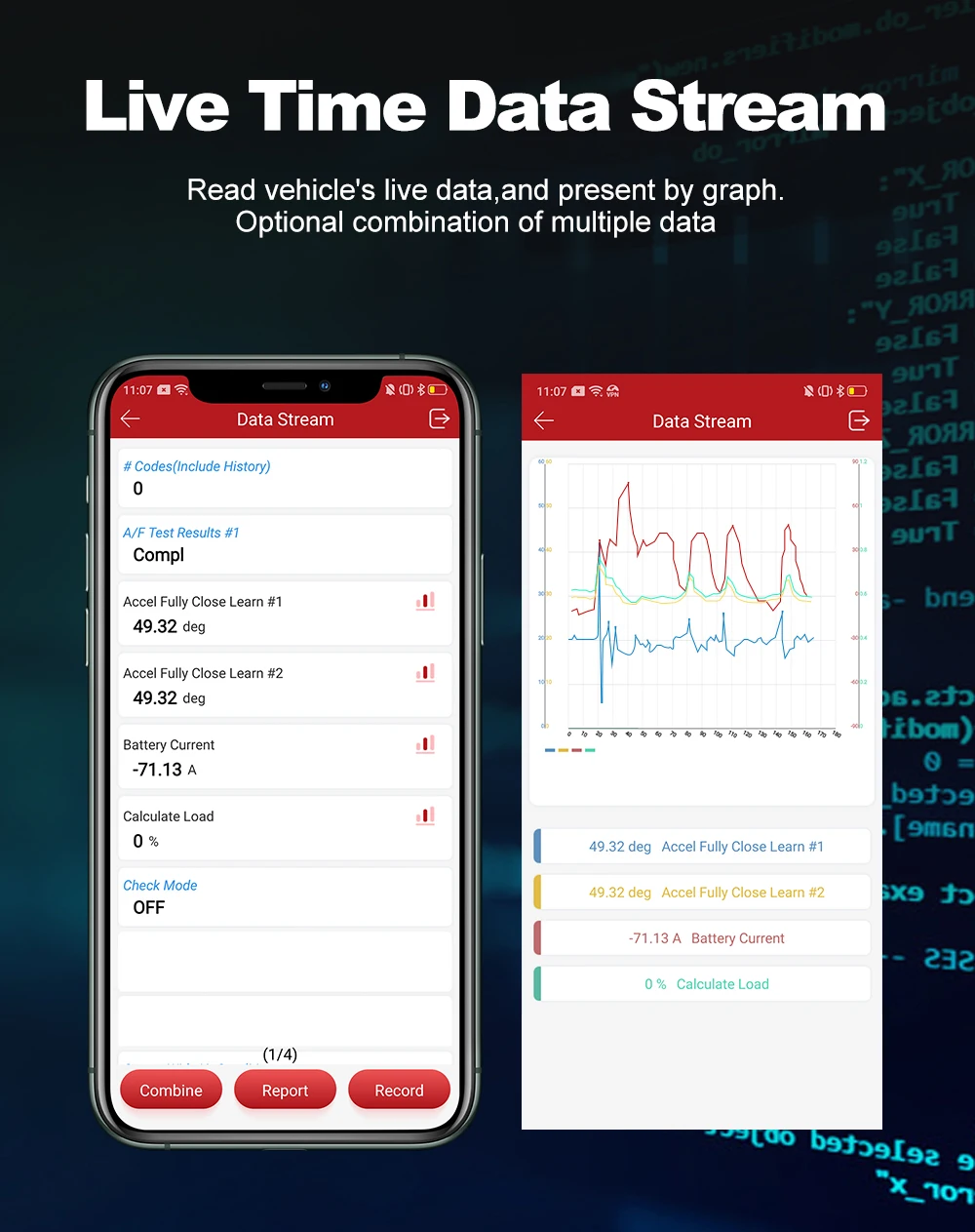

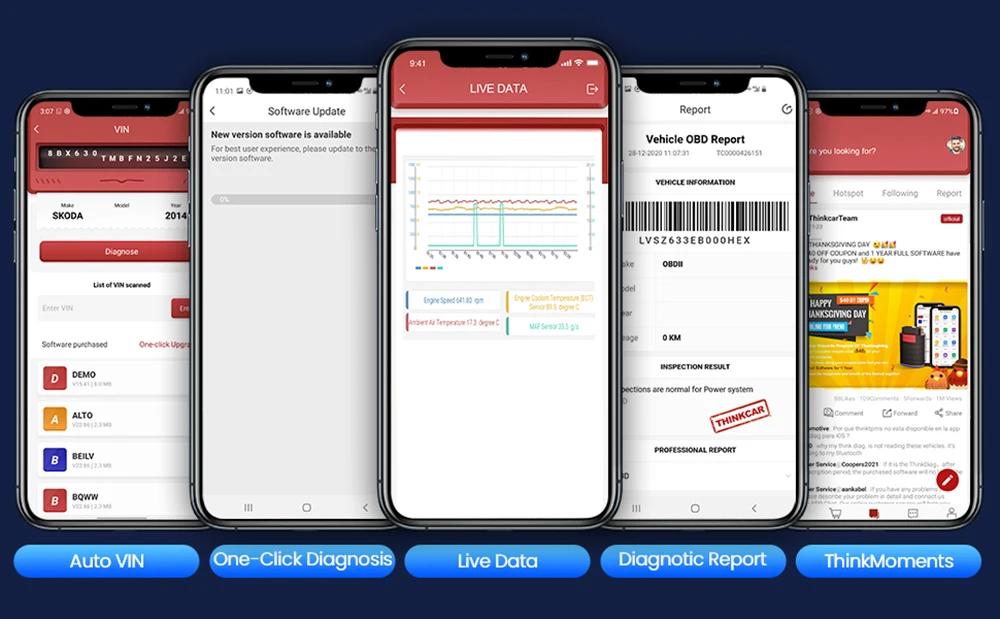

Read Live Data Stream and Support Vehicles Diagnostic Report

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

1.Generate diagnostic report in THINKCAR APP
2.Download the diagnosis report and transfer it to the computer to print the diagnosis report
3.Share your diagnosis report with your partner or car owner
