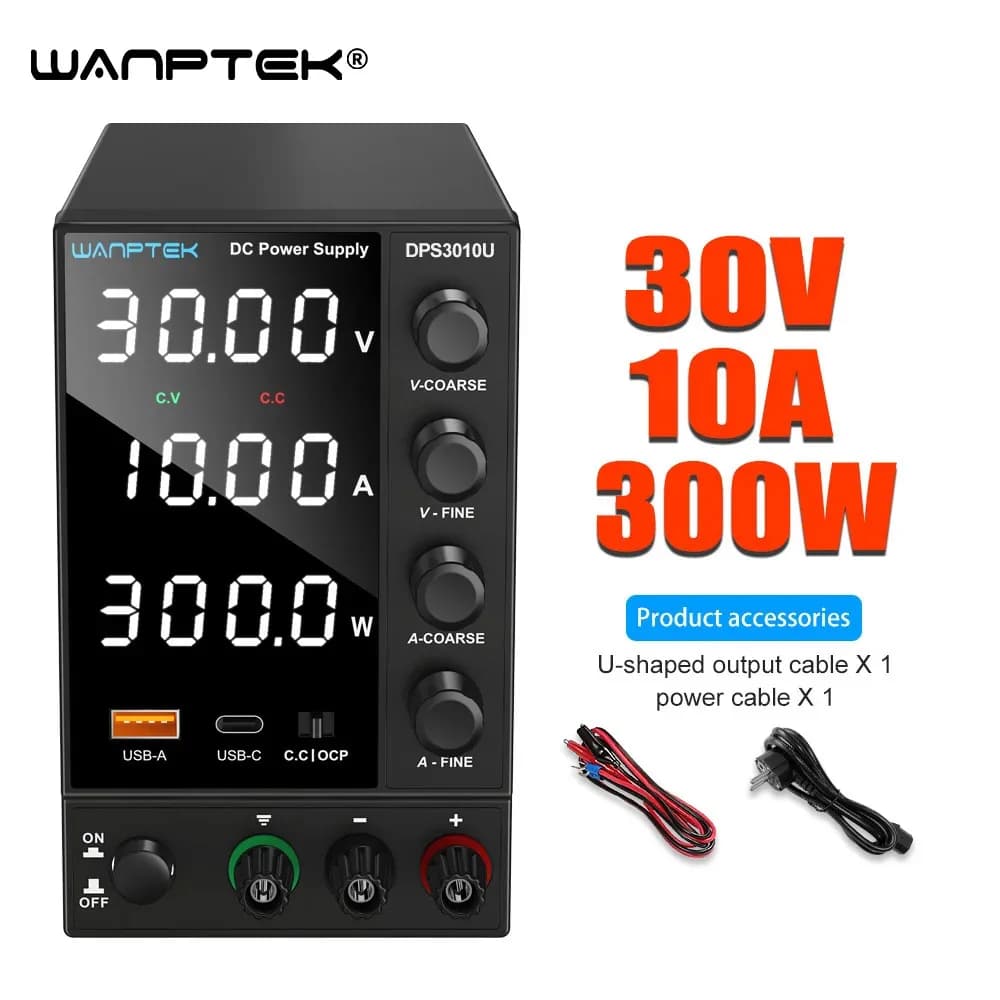

Wanptek 30V 5A 10A DC Power Supply Adjustable Digit Display Laboratory Power Supplies Voltage Regulator 60V 5A 120V 3A Repair

🔥BR/MX/PL/ES/US/RU Warehouses have local inventory, faster delivery time, and no taxes！

🔥Note：

Our brand power supply has some stock in the BR/MX/PL/ES/US/RU warehouse. If you cannot see the option to ship from the overseas warehouse, you can follow the steps in the picture to select the option to ship from the overseas warehouse.
（We will automatically equip the corresponding power cord according to your country, Please don't worry）

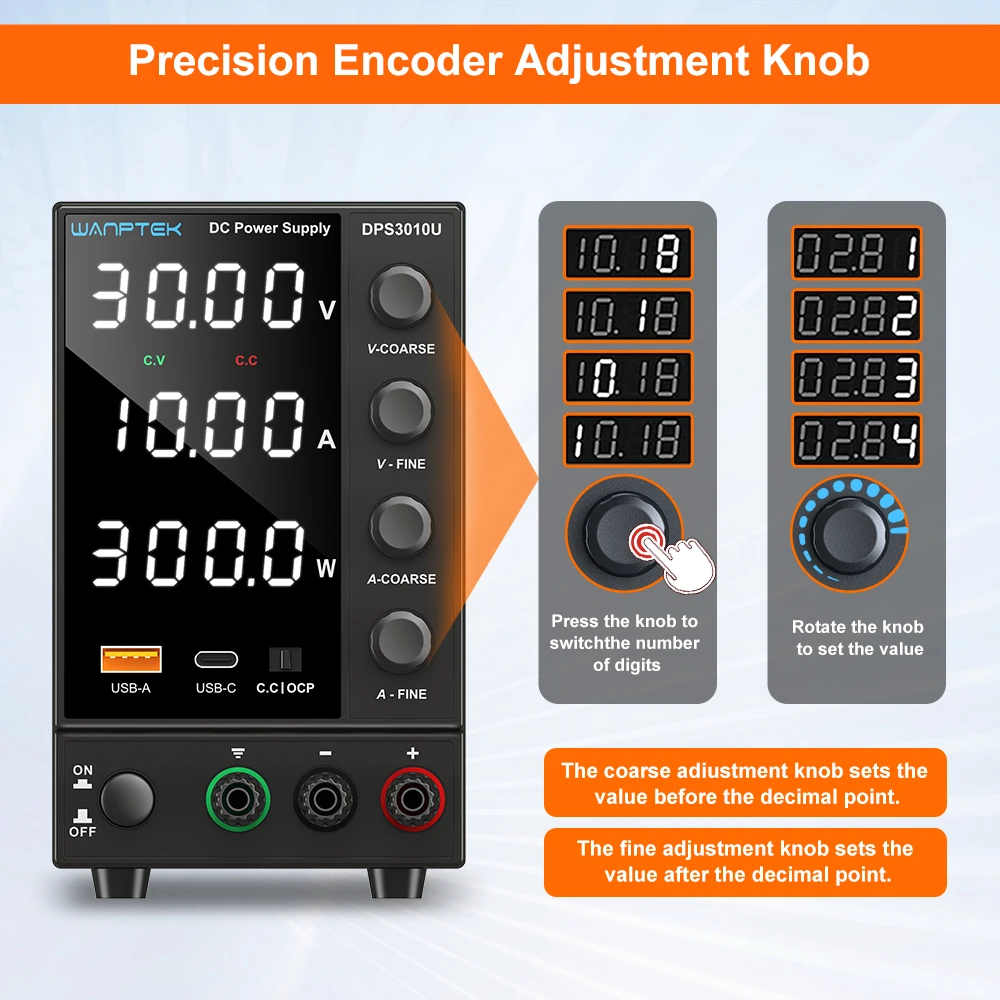

Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by Encoder adjustment（DPS.WPS.TPS.APS.EPS Series）variable resistors respectively（NPS Series）, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

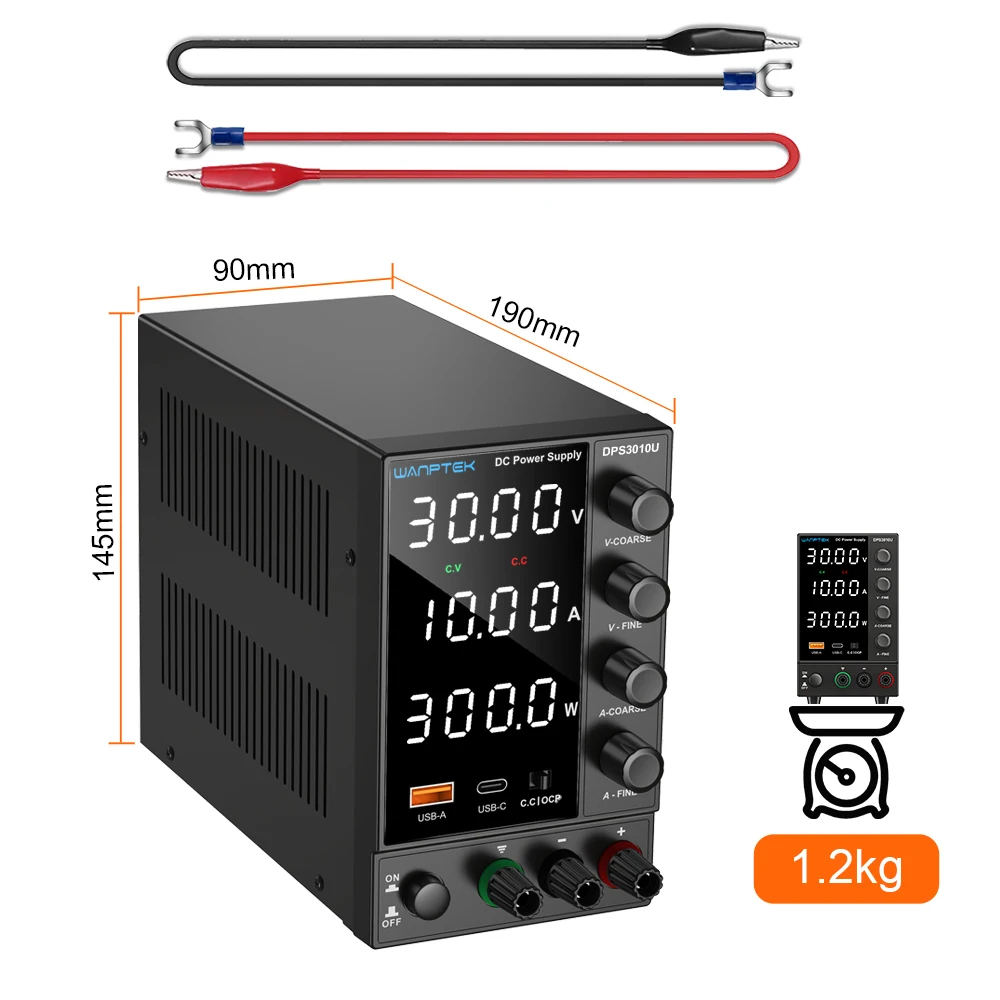

1.Small size, light weight and high power density. weight of only 2.6 pounds. You can easily take the DC power supply to work.

2.Constant pressure and constant current switch automatically.

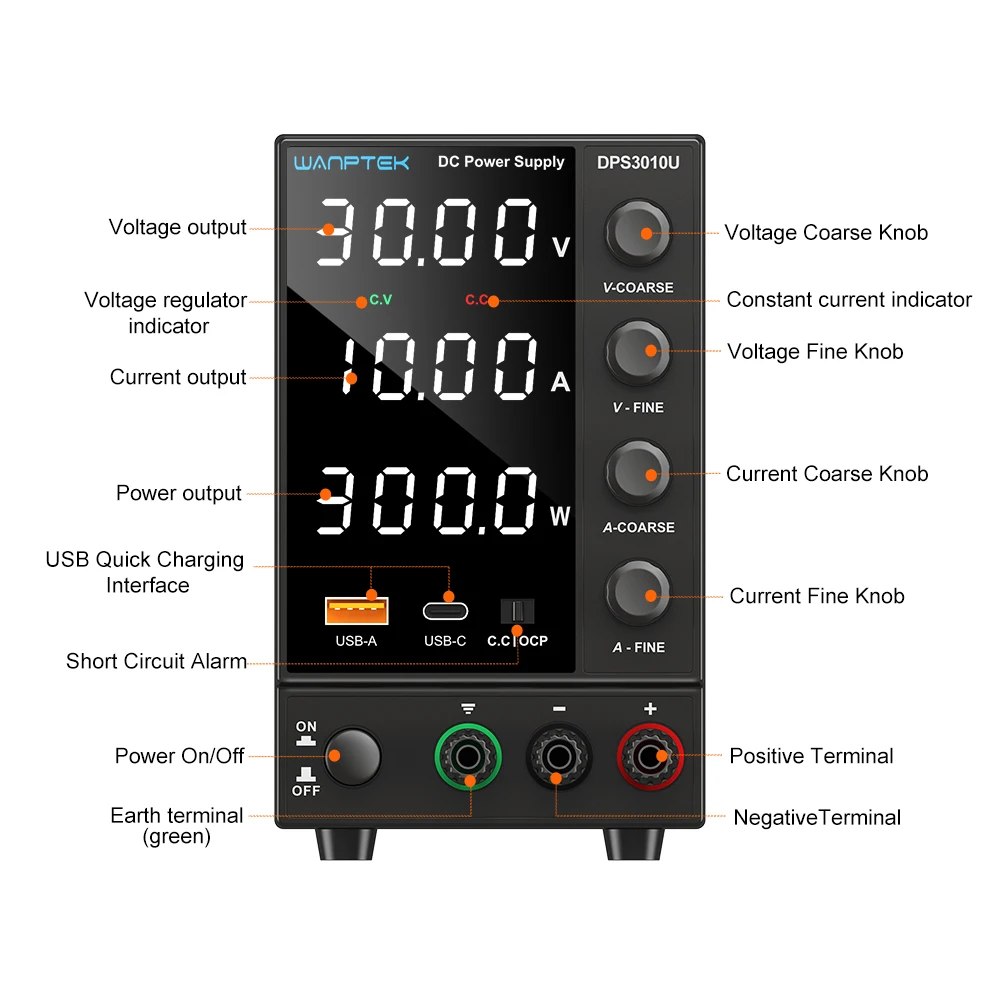

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.

4.Adjustable Output Voltage & Current: output voltage and output current can be continuously

5.adjusted between 0 and nominal value with fine regulating and coarse regulating

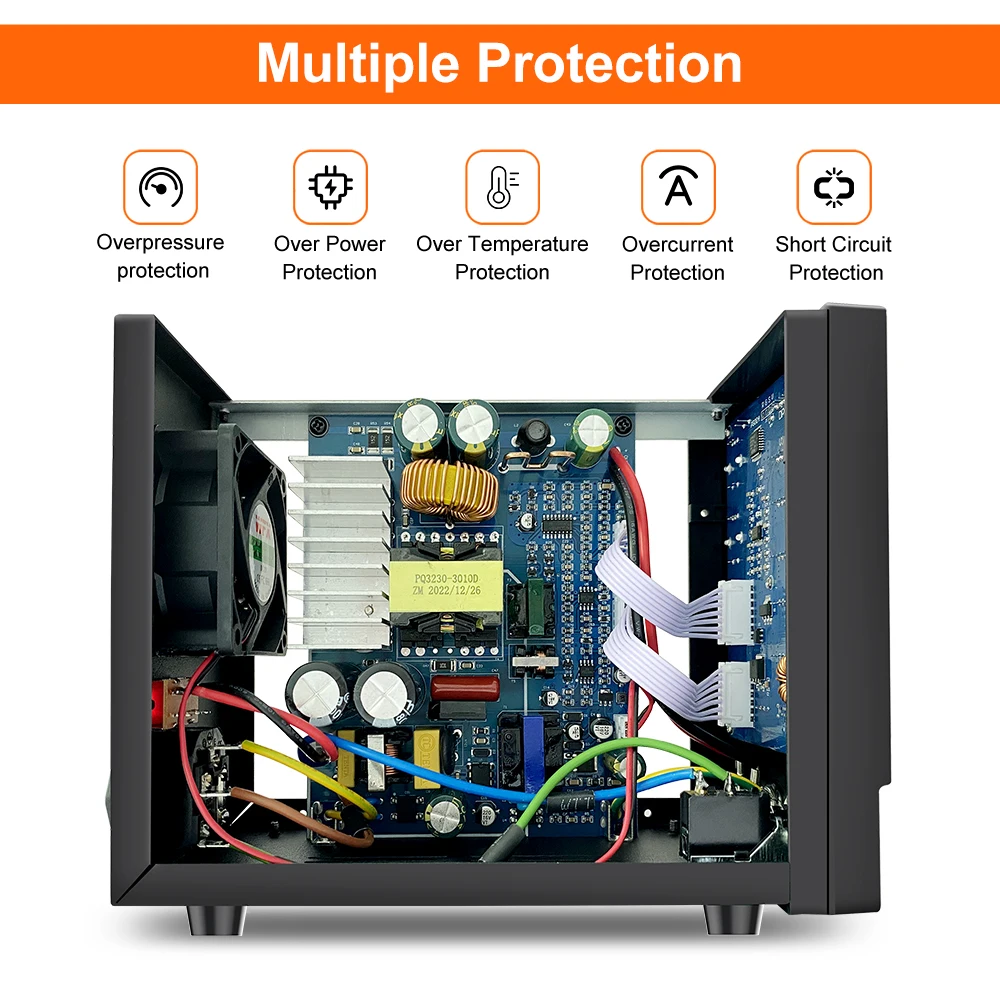

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

7.Temperature controlled fan cooling, low noise, long life.

8.Dual voltage input and convenient choice.

9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .

10.Output current ranges from 0 to rating current with continuous adjustment

input voltage：AC 230V/115V±10%；50Hz/60Hz

Working temperature：0℃～40℃;relative humidity:<80%RH

Storage temperature：-10℃～70℃;relative humidity:<70%RH


Constant voltage CV

Voltage stability：0.1%±3mV

Load stability： 0.2%±3mV

Ripple voltage：≤0.5% Vp-p

0 to rated voltage continuously adjustable


constant current CC

Current stability：0.1%±3mA

Load stability： 0.2%±3mA

Ripple current：≤0.5% Vp-p

Recovery time：≤500μS

Temperature coefficient：≤100ppm/℃

0 to rated current continuously adjustable

display

LED digit display

Display accuracy：0.5%±digits

Display resolution： voltage 0.1V/0.01V， current 0.01A/0.001A

1. Production line test.(24hours Working)

2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.

3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.

4. Charge the battery.(Include car battery,Mobile phone batteries, rechargeable batteries, etc)

5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use

6. All other occasions requiring DC power supply.

【CE & FCC Certification, Multiple Protection, Various Application】Lab power supplies have passed CE & FCC Certification. DC power supply has multiple protections: overvoltage protection, overcurrent protection, overheating protection, over power protection, short circuit protection, leakage protection. DC power supply is suitable for LiFePO4 battery charging, arduino project, laboratories, schools, electronic maintenance , electrolysis, electroplating, lamp test, aging test, DIY, etc.

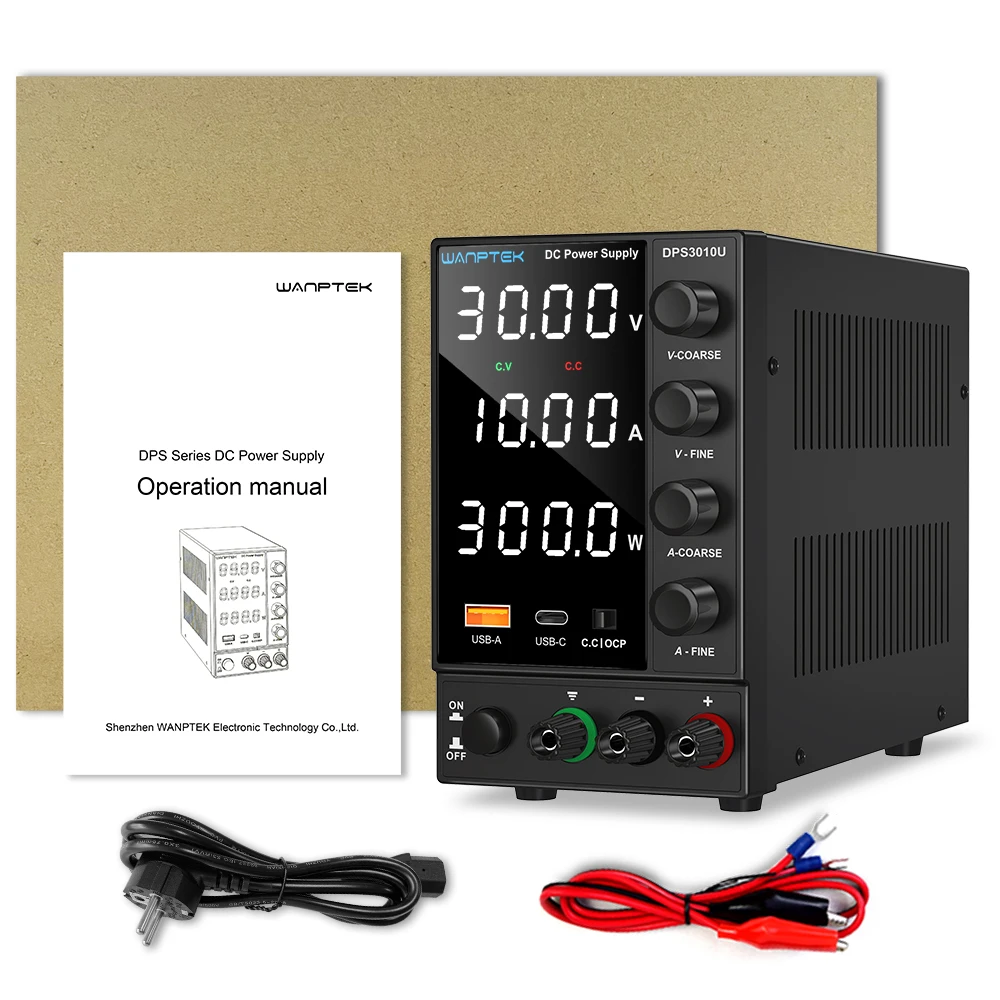

1x DC power supply

1x power cord (EU,US,UK,AU,Four types of plug selection)

1x Test line（gift）

1x Instructions

We will inspect all DC power supply and accessories before shipment to ensure that the quality of the products received by each customer is good. We provide a 12-month warranty policy. If you have any questions about our DC power supply, please feel free to contact us, we will response back within 24 hours.

Note 1: The fan inside the power supply is intelligently temperature controlled. The fan will only rotate when the temperature inside the power supply is above 50 degrees Celsius. When the temperature inside the power supply is below 50 degrees Celsius, the fan will not rotate. This is to effectively save energy and reduce noise
