THINKCAR Thinkscan Plus S5 /S4/S6 /S7OBD2 Diagnostic Tool Car System Diagnosis Auto Code Reader Scanner Free Update

What Are the Differences Of THINKSCAN PLUS S5/S4/S6/S7？

thinkscan plus s7 support 7 systems (ABS/SRS/ECM/TCM/BCM/AC/IC)+ choose 5 optional resets from 28 reset lifetime free use and update for all cars

thinkscan plus s6 support 4 system diagnosis(ABS, ENGINE, SRS, TRANSMISSION)+5 fixed reset functions(SAS/oil/EPB/TPMS/Throttle Adaptation Resets)lifetime free use and update for all cars

thinkscan plus s4 support 5 systems (ABS/SRS/ECM/TCM/BCM)+choose 3 optional resets from 28 reset as lifetime free use and update for all cars

thinkscan plus s5 support 4 system diagnose: 4 System Diagnostic(ABS/SRS/Engine/TCM) lifetime free, no free reset lifetime free use and update for all cars

Plug and play, easy to use

Support 10 Languages: English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Turkish

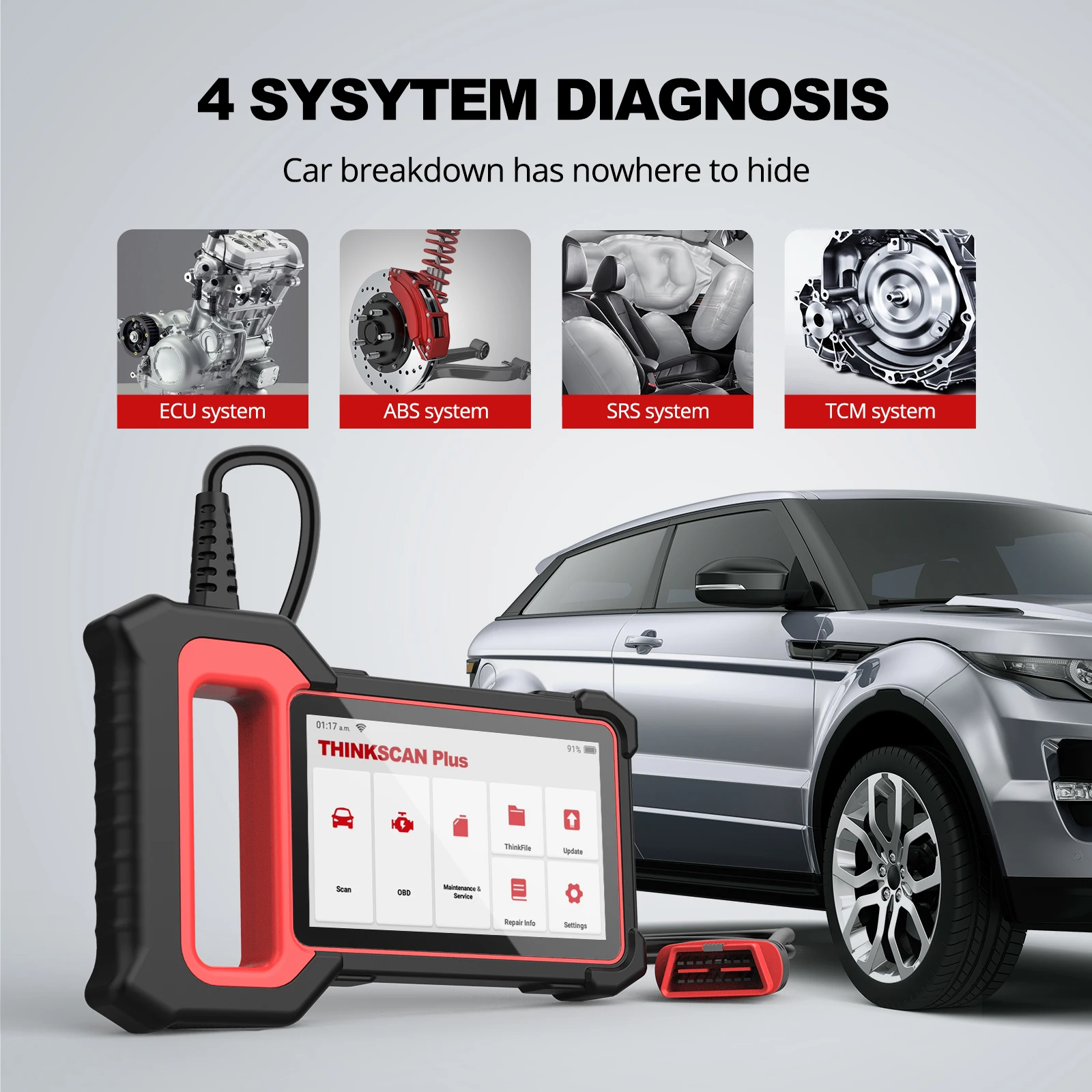

Lifetime Free All Cars 4 Systems (ABS/SRS/Engine/TCM) Diagnose

1.ABS Systems Diagnose: By accessing to ABS system to view its Live Data Stream, and retrieving the fault codes, this scanner can troubleshoot the ABS issue with a visual inspection of all brake components that caused the warning light, and turn the light off.
2.SRS Systems Diagnose:By detecting every electronic parameters in SRS system to check their health status, this diagnostic tool can address the SRS potential issues timely to ensure your driving safety, and turn off the warning light of Airbag.
3.ECM Systems Diagnose:You can diagnose the engine system via ecu obd2 port, support all 10 OBDII test modes, such as live data, O2 sensor test, component test and more;read and clear the engine error codes, find out the exactly problem, repair it, and turn off the MIL engine light.
4.TCM Systems Diagnose: is a set of transmission used to coordinate the engine speed and the actual speed of the wheel, which is used to give full play to the best performance of the engine. THINKSCAN Plus S5 obd2 scanner can read/clear codes and view live data retrieve the error information from AT.

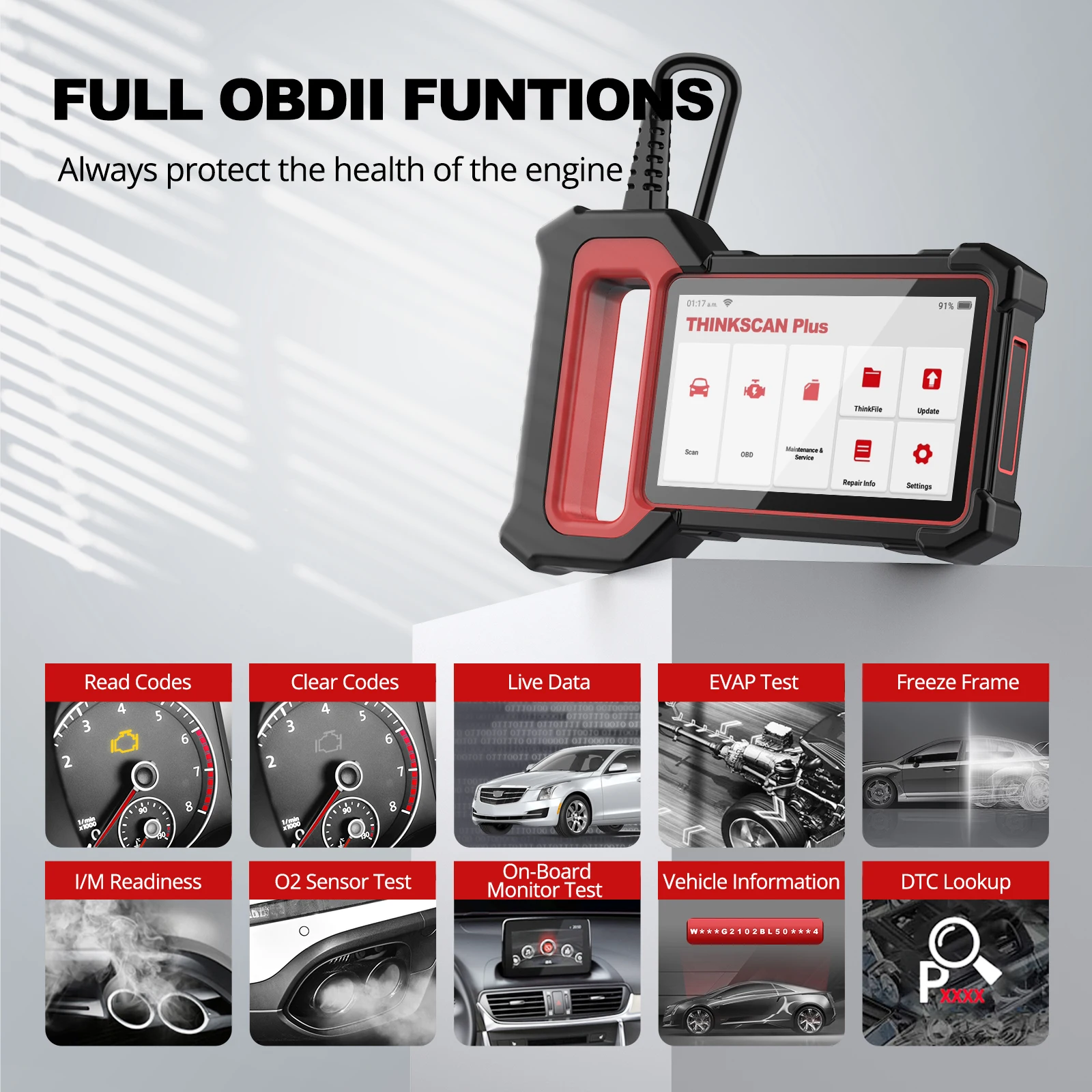

Lifetime Free Full OBDII Functions:

*-Read extensive current, pending and permanent codes in OBD system quickly
*-Clear detected fault codes and turn off the Check Engine Light efficiently
*-View graphical live data of vehicle's computer module(s) for easy analyses
*-View the vehicle's operating parameters at the moment a DTC is detected
*-Read I/M readiness status to have a vehicle inspected for state emissions compliance
*-Perform O2 sensor test to check fuel efficiency and vehicle emissions
*-Read the results of on-board diagnostic monitoring tests for specific components/systems
*-Retrieve the vehicle information of VIN, CINs, and CVNs completely
*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

Support 28 Reset Maintenance Function ，Each reset $29.95/year

1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.
3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7.IMMO Key Programming
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.
9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.
11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.
13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.
14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.
15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.
16.EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.
19.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.
20.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.
21.AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift
22.Language Change
This function is used to change the system language of the vehicle central control panel.
23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.
24.ODO Reset
a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it
is necessary to do ODO reset after maintenance.
25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).
26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
27.Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.
28.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

Other Features

Reading Codes:
Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset：
Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream：
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

Plug and Play, Easy to Use

Support Cover Up to Over 126 Major Vehicle Manufacturers From America, Europe and Asia:

THINKCAR Pro can be detect almost all vehicles in America, Europe, and Asia Pacific regions with OBD port. Please click here to check the Vehicle Coverage.

Examples are as follows:

【European and American area】
Ford Europe, Mercedes-Benz commercial vehicles, MINI, West, Audi, GMSA, Fiat, Opel, GAZ, Peugeot, Volkswagen, Porsche, Citroen, Skoda, Rover, Land Rover, Volvo, VAZ, Renault, Elves, Mercedes-Benz, Jaguar, Dacia, Lancia, BMW, Romeo, Saab, Ford, Chrysler, GM.

【Asia-pacific region】
Thailand Isuzu, Acura, Daewoo, Jianghuai cars (GM), Ssangyong, Infiniti, Proton, Honda, Mazda, Perodua, Jiangling Automobile, Mahindra (MAHINDRA), Isuzu, Suzuki, Byd auto, Chery cars, Toyota, Nissan, Kia, The Car, The Great Wall in cars, Daihatsu, Changan automobile, Geely automobile, Xiamen Jinlong, Zhongxing automobile, Hafei automobile, New Kay, Gonow automobile, Changhe automobile, Hyundai, Liuzhou Wuling, Subaru, Xiali, Australia ford, Mitsubishi, TATA, Zhongtai automobile, Horton, MARUTI, Lexus.

Support 10 Languages

English,French,German,Spanish,Italian,Portuguese,Japanese, Russian,Polish, Turkish

Packing lists

1*thinkscan plus S5 Host
1*User Manual
1*Charging cable
