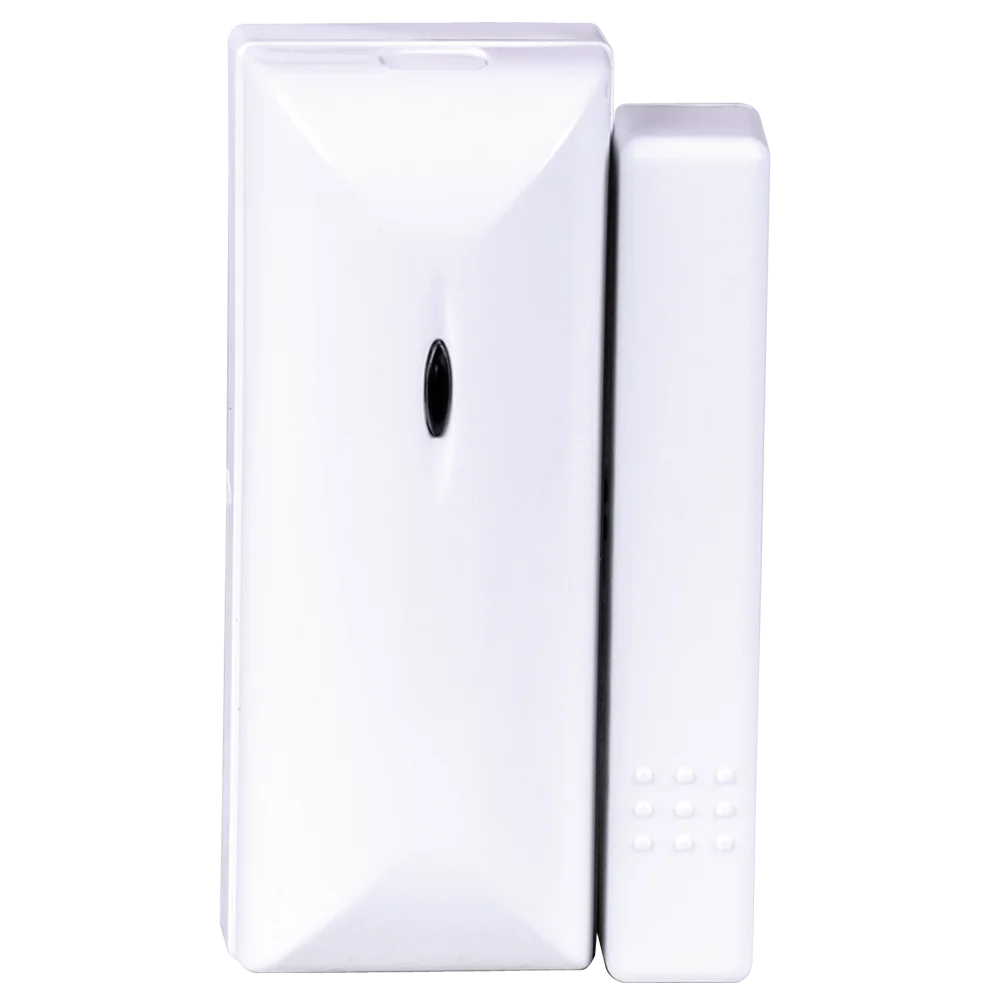

Meian 433Mhz Or 868Mhz Frequency MD-210R Door Window Detector Door Magnetic Sensor Alarm Works With Focus Alarm System

Meian 433Mhz Or 868Mhz Frequency MD-210R Door Window Detector Door Magnetic Sensor Alarm Works With Focus Alarm System

Package included:

Wireless door/window magnetic sensor X 1PCS , 5PCS, 10PCS ,20PCS for option  (price inlcuded 1piece CRA123 battery)

433Mhz or 868Mhz please choose as your alarm host Frequency.

1* A bag of screws

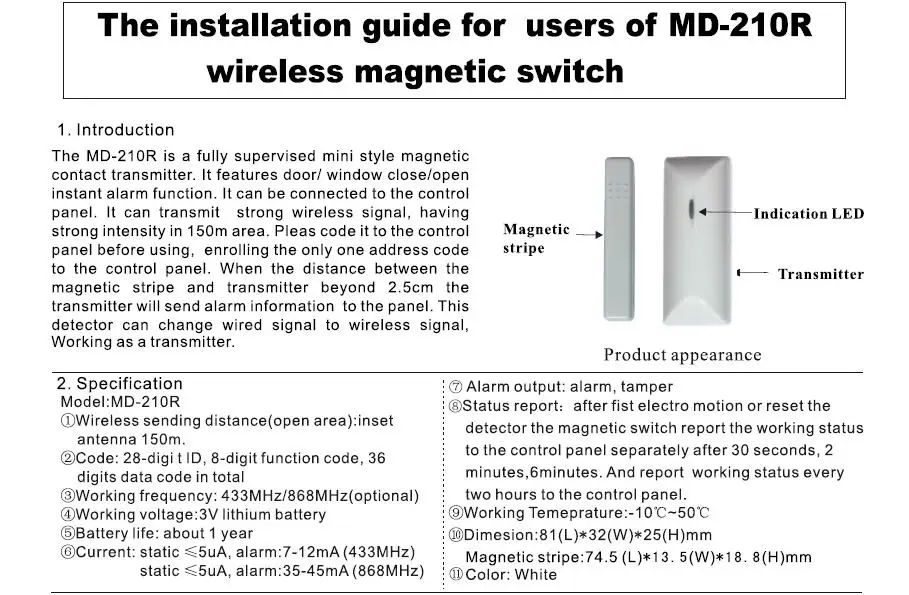

The MD-210R is a fully supervised mini style magnetic contact transmitter. It features door/ window close/openinstant alarm function. It can be connected to the control panel. It can transmit strong wireless signal, having strong intensity in 150m area. Pleas code it to the control panel before using, enrolling the only one address code to the control panel. When the distance between the magnetic stripe and transmitter beyond 2.5cm the transmitter will send alarm information to the panel. This detector can change wired signal to wireless signal, Working as a transmitter.

Specification:

①Wireless sending distance(open area):inset antenna 150m.

②Code: 28-digi t ID, 8-digit function code, 36 digits data code in total

③Working frequency: 433MHz or 868MHz for option

④Working voltage:3V lithium battery( price not included battery)

⑤Battery life: about 1 year

⑥Current: static ≤5uA, alarm:7-12mA (433MHz),static ≤5uA, alarm:35-45mA (868MHz)

⑦ Alarm output: alarm, tamper

⑧Status report：after fist electro motion or reset the detector the magnetic switch report the working status to the control panel separately after 30 seconds, 2 minutes,6minutes. And report  working status every two hours to the control panel.

⑨Working Temeprature:-10℃~50℃

⑩Dimesion:81(L)*32(W)*25(H)mm, Magnetic stripe:74.5 (L)*13.5(W)*18.8(H)mm

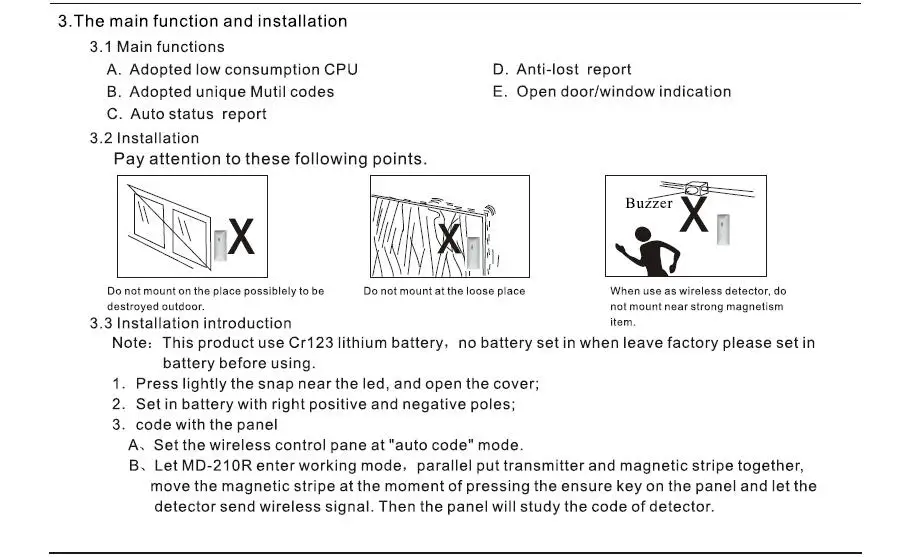

A.  Adopted low consumption CPU

B.  Adopted unique Mutil codes

C.  Auto status  report

D.  Anti-lost  report

E.  Open door/window indication

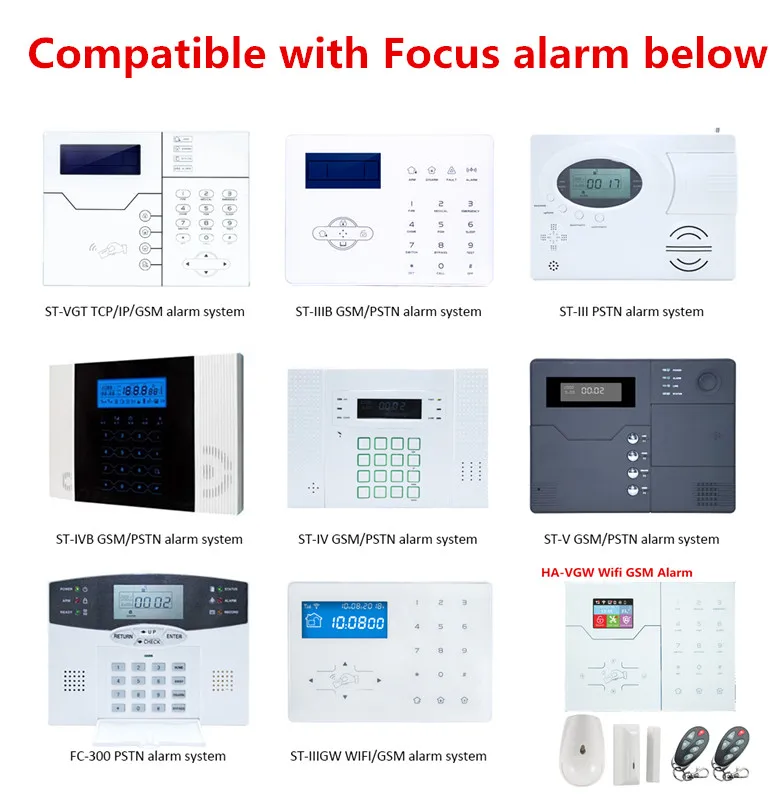

Compatible with our ST-VGT, ST-IIIB , ST-IIIGW ,HA-VGW , HA-VGT and others focus alarm System
