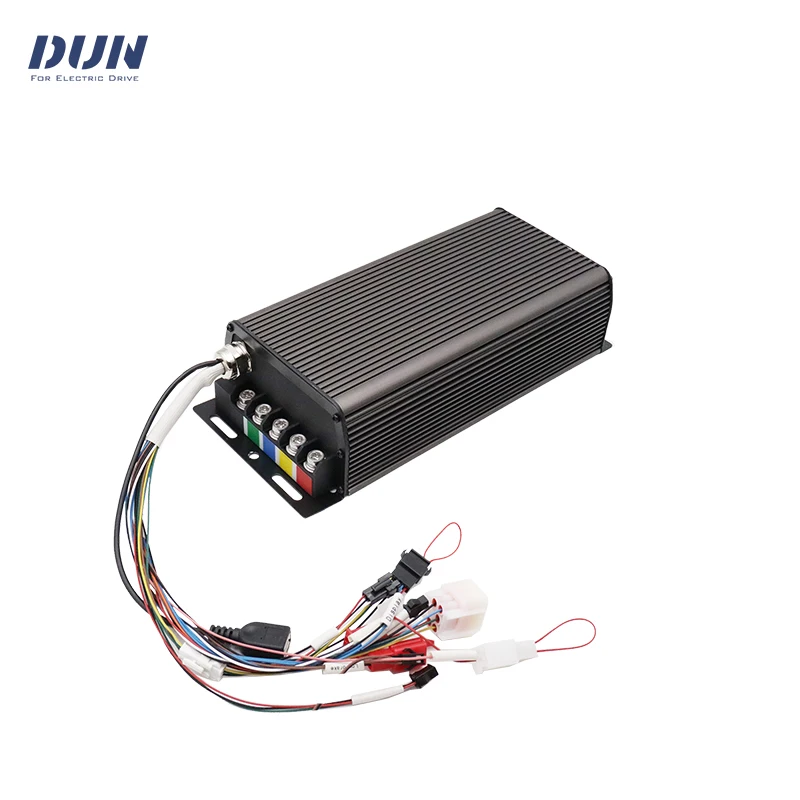

Sabvoton SVMC72200-APT Protocol 72V 200A 5KW Spoke In-wheel Motor Controller

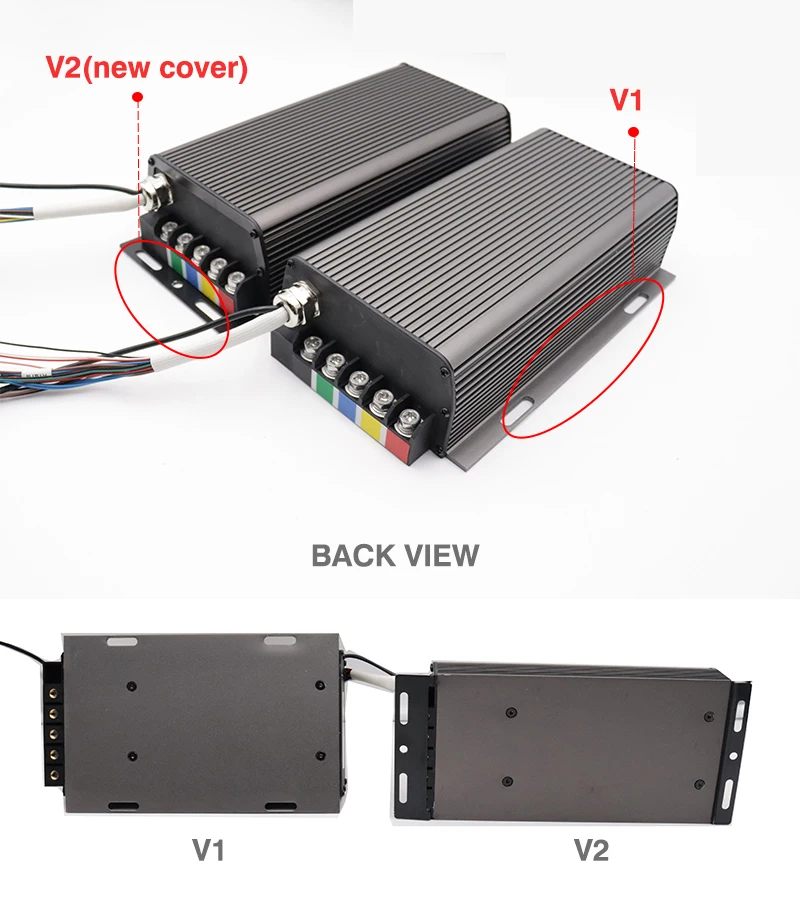

Sabvoton SVMC72200APT V2 72V 200A 5KW Spoke Motor Controller

The function for SVMC APT protocol controller:

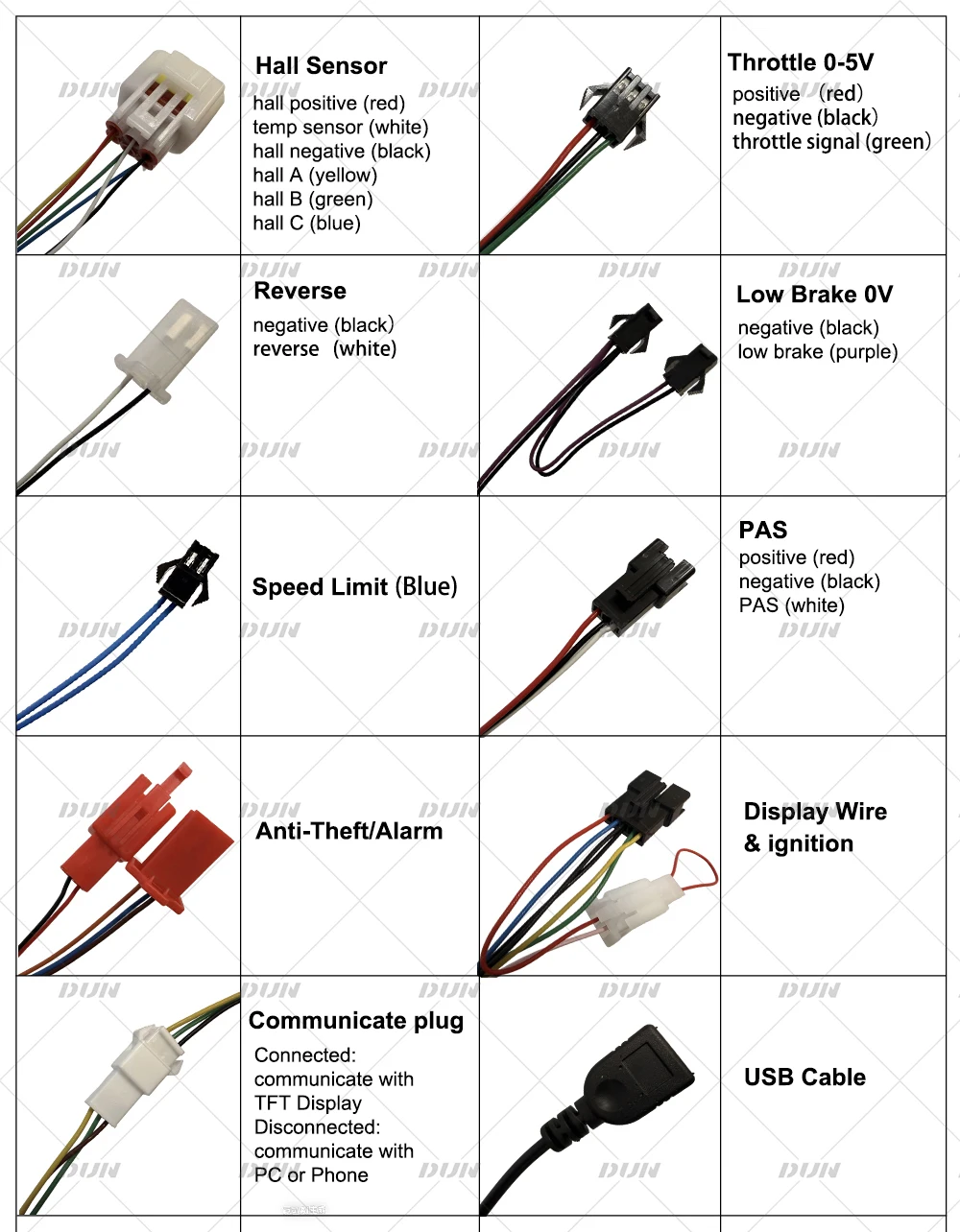

Hall Plug, PAS, Throttle Plug (0-5V), Ignition, Speed Limit, Anti-Theft, Low Brake 0V, Reverse, UKC1 Display Wire, USB Cable, Flux Weakening Current, Motor Temp Sensor.

Notice: This link only contains 1 pcs APT version controller, it is without TFT display.

1. Key Features

1) FOC sine wave controller applied to BLDC or PMSM motor.
2) The controller match motor to get best hall angle no more than 3 minutes for the first time.
3) The precise current ring can provide accurate torque input to meet the requirement of large torque output during bicycle starting and climbing.
4) Built-in protection: over current protection, over heat protection, over voltage protection and so on, guarantee the controller,motor and driver safety.

2.One Kit Contains：

1 pcs SVMC72200-APT V2 Controller
1 pcs USB Cable for programming

3. General SPEC

NOTICE: Sabvoton controller is suitable for Spoke/In-wheel/Hub motors with 120° Phase angle.
But it may NOT work properly with a Mid-Drive motor.

1 Model: SVMC72200-APT
2 Available Rated Battery Voltage: 36V/48V/60V/72V
3 Peak Battery Voltage: 95V
4 Available Motor Power: 4KW - 6KW
5 Peak Phase Current: 450A
6 Peak DC Current: 200A
7 Working Communication: Hall Sensor
8 Size: 310mm *120mm *65mm
9 Weight: 2.3 kgs
10 Throttle Working Voltage: 0V - 5V
11 Mosfets Detail: 30 FET
12 Case Material/Color: Aluminum /Gray
13 Controller Design: Sine Wave Brushless DC
14 Support Programmable by PC & Phone

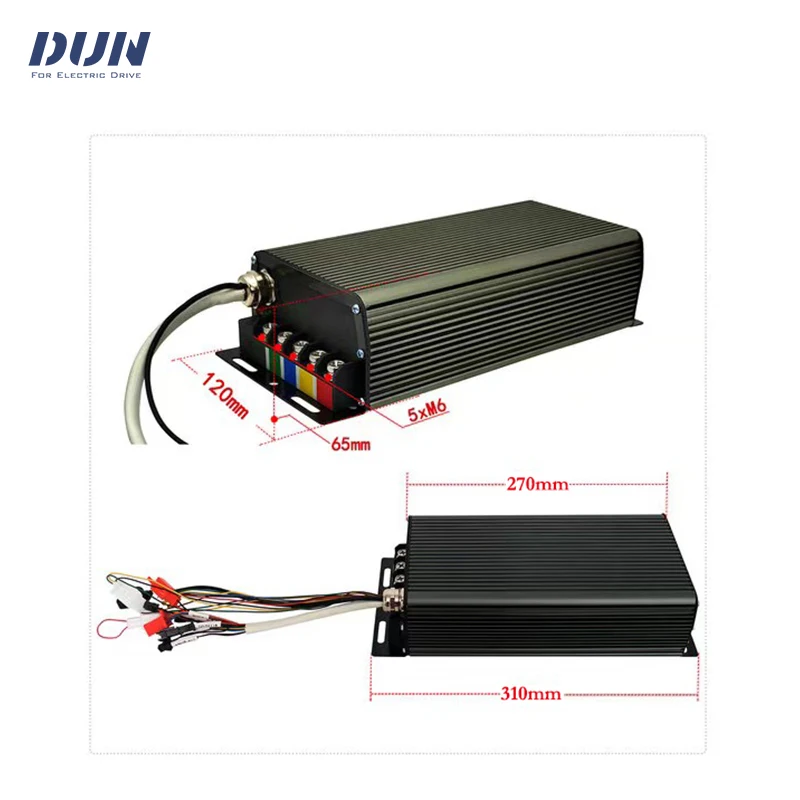

4. Drawing and Plug

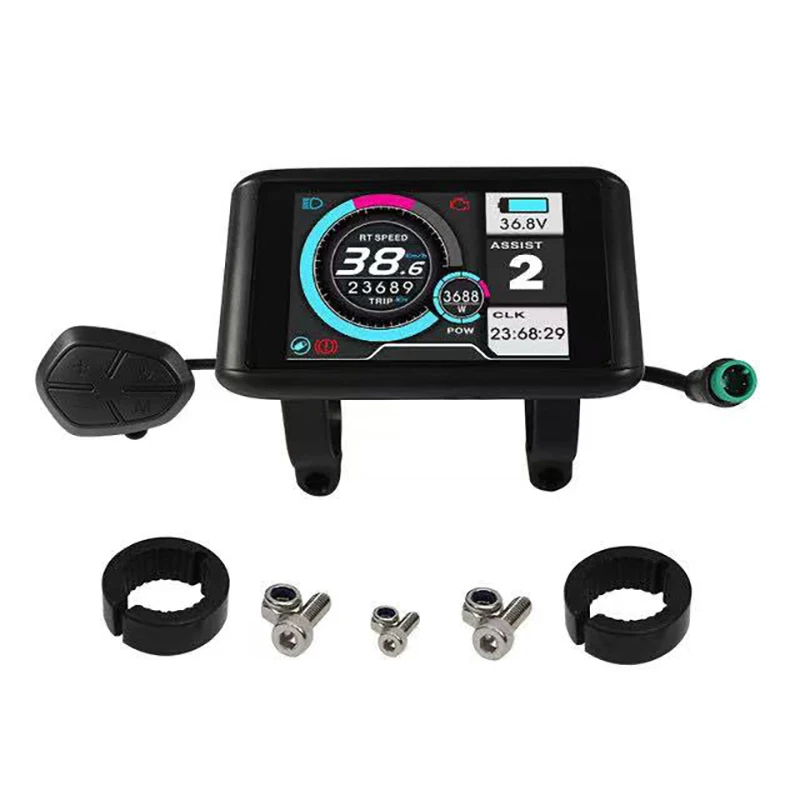

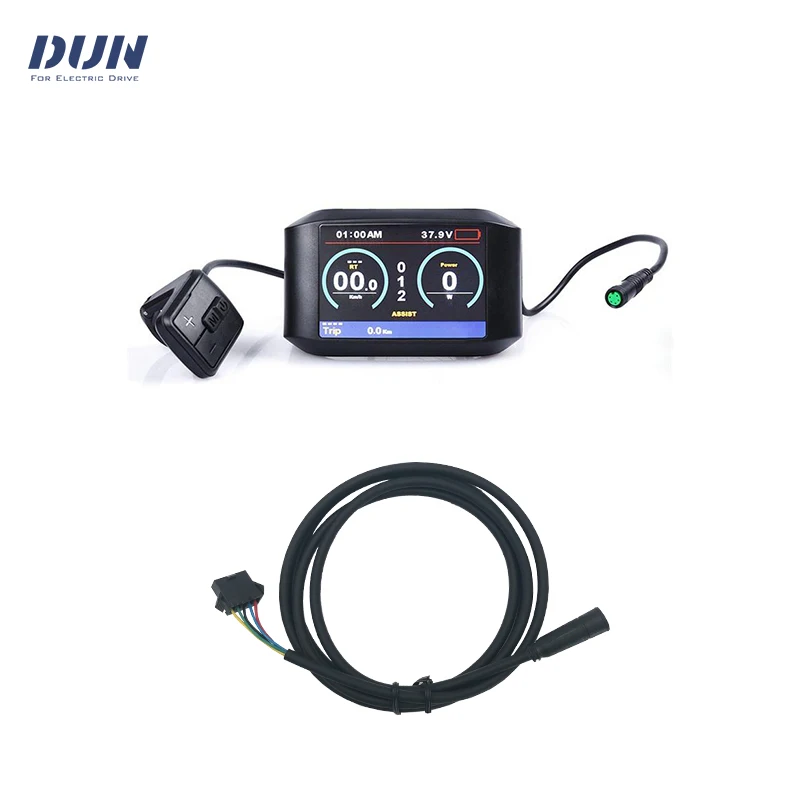

5. Mathced TFT Display

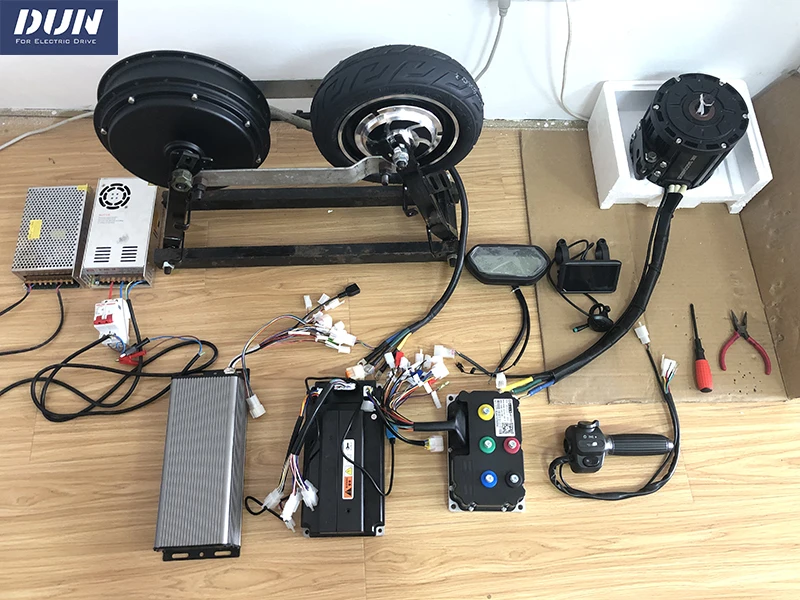

6. About Test

We will test each controller, motor before shipment to ensure that the product is working properly.

7. FAQ

Q: How about the Duty & Tax ?
A: All products are sent in DDU mode, the total price does not include tax and duty.The relevant tax and duty need to be paid by the buyer.
We are not responsible for product customs clearance, please ensure that you have the ability to clear the goods before purchasing.

Q: About the functions and interfaces of the controller
A: The most controllers we sell are universal versions, not customized for a specific brand. Therefore, after installation, some auxiliary functions of the original vehicle may not work normally (such as speedometer display)
Most functional interfaces need to be modified, not plug and play.
Before refitting, please carefully check the function line on the original vehicle and the communication signal of the speedometer.

Q: How long is the delivery time ?
A: For some stock controller and motor, we could ship it out within 24 hours. If no stock, the delivery time normally in 6 -10 working days (some customized products will take more days).

Q: About delivery timeliness
A: The time limit of commitment of AliExpress shipping channel is 60 days (Goods can usually be received within 3 weeks, but it may take longer for some special countries).
If you want to make fast delivery, please select FedEx, DHL or UPS.

Q: How about the warranty ?
A: We offer 1 year warranty for motors and controllers, but the buyer has to pay the return shipping cost for repairing or replacing a new one.
If you have any problems, please feel free to contact us, and we will try our best to help you.
If you don't have any knowledge on electric kits assembly, please make prudent choice to buy it or not ! There is no warranty for man-made damage.

Q: About the shipping way
A: Sometimes the online shipping cost and shipping way is not best, we will choose the most convenient shipping way to you and will inform you before shipping. Thank you for your understanding.
