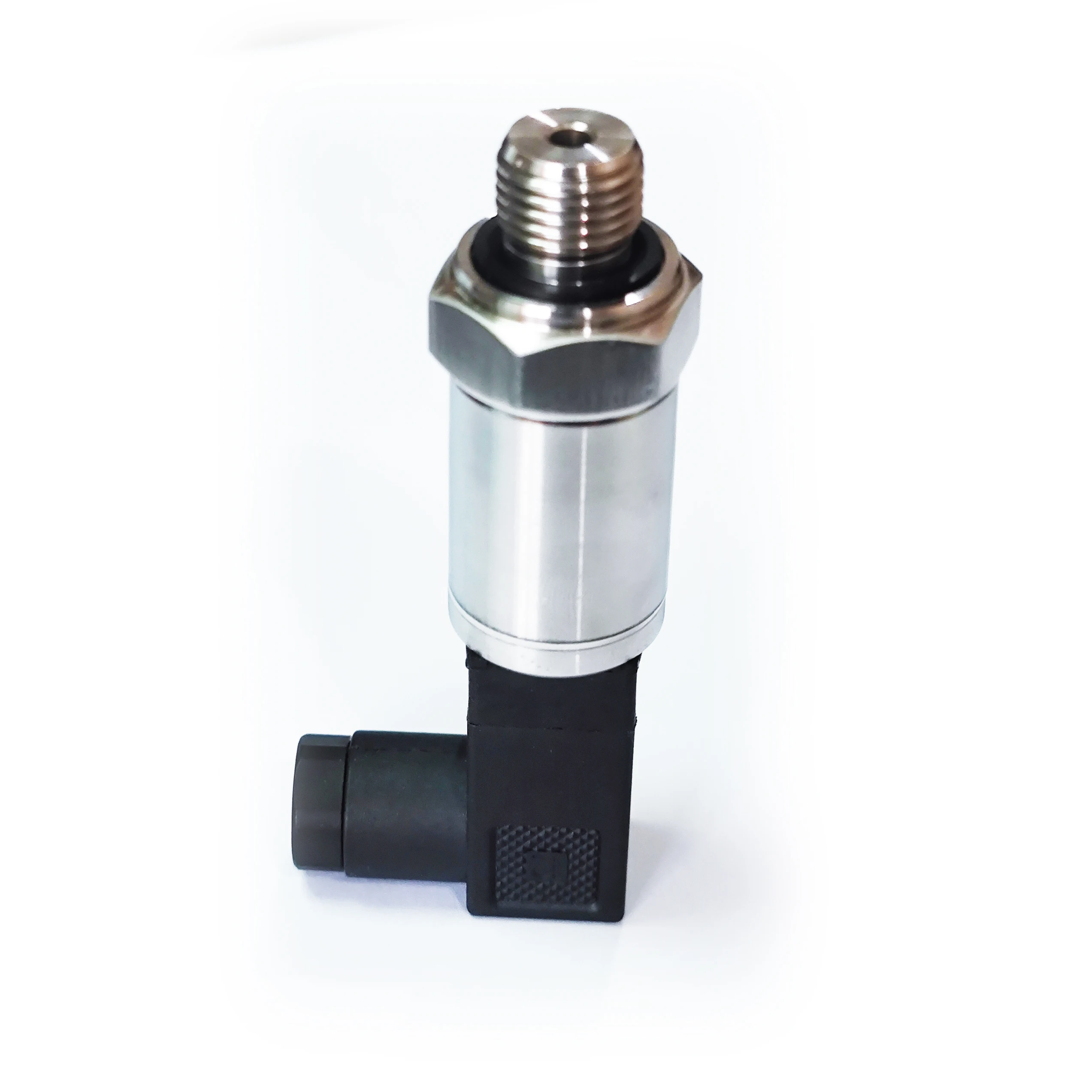

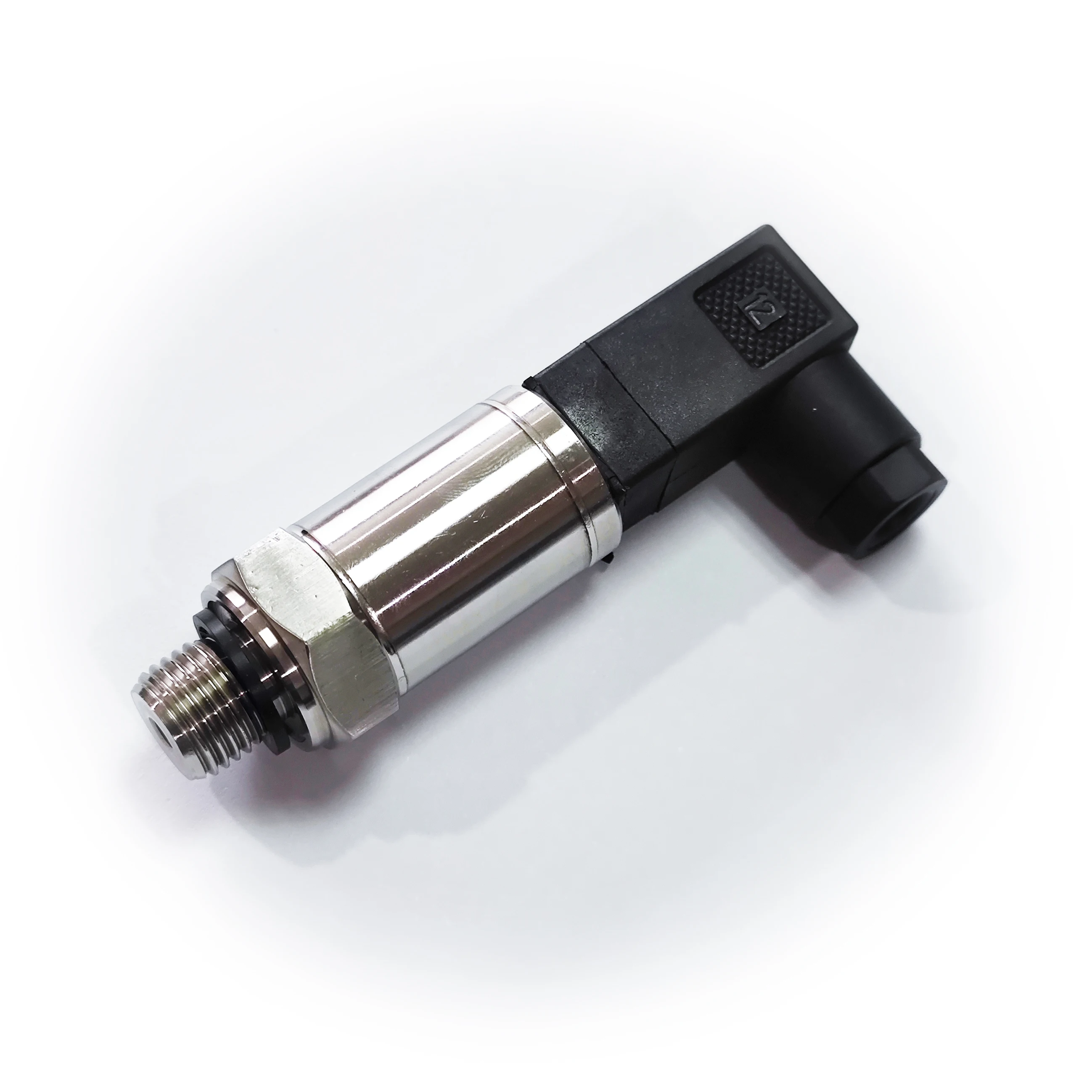

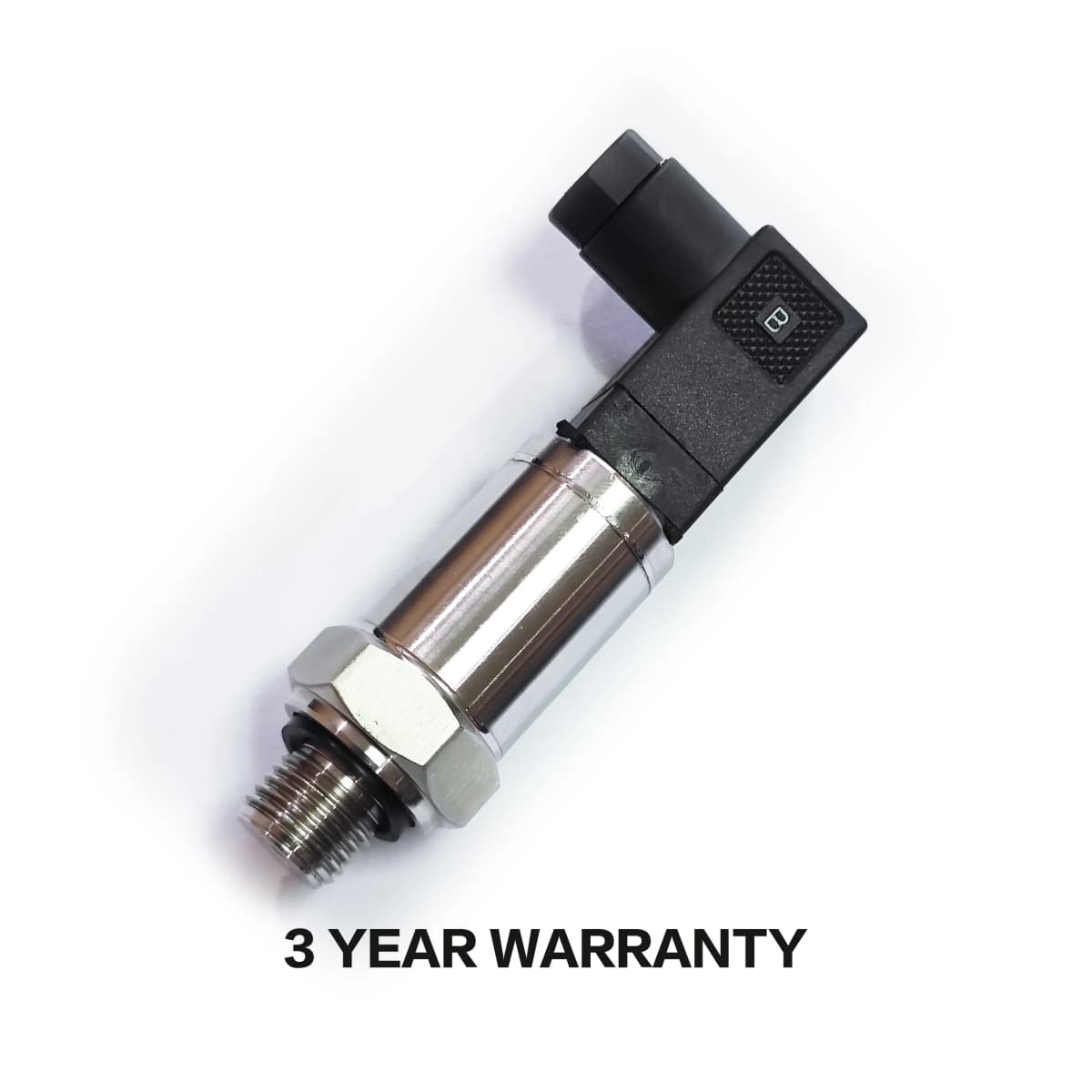

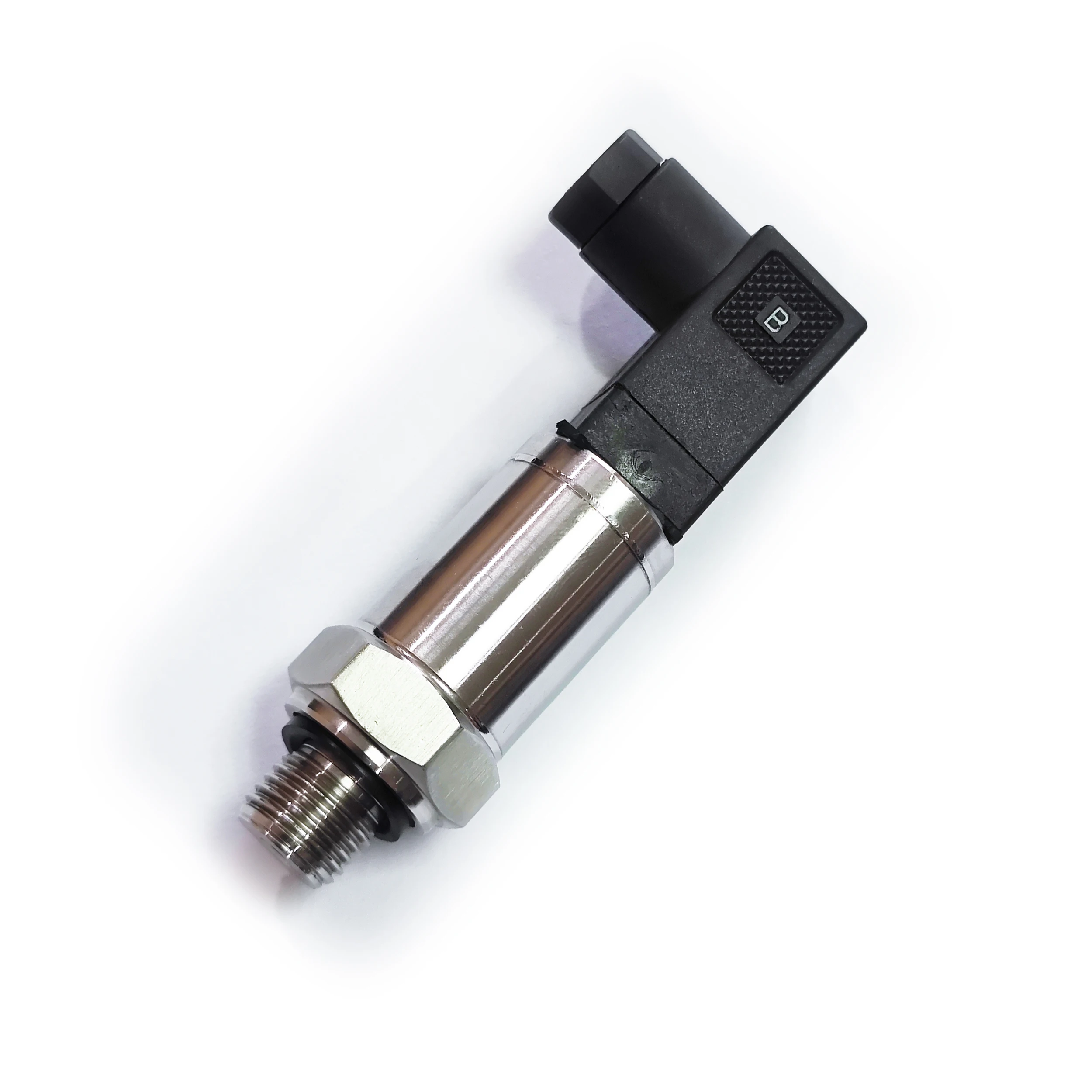

Water Oil Fuel Gas Air Pressure Transmitter G1/4 12-36V 4-20mA 0-600bar Optional Stainless Steel Pressure Transducer Sensor

Descriptions

YD6080 series of pressure transmitters adopts the international advanced piezoresistive sensing technology to produce, can be selected depending on the application different sensing core, all stainless steel package, suitable for most media, with good long-term stability, multiple signal outputs to choose from, it can be used in various environments and climates, so it is widely used in various fields.

Features

◆ CE conformity

◆ Low cost and high quality

◆ All stainless steel integrated structure

◆ Small size, convenient to install and operate

◆ 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I2C, various voltage

output

◆ Complete surge voltage protection function

◆ For applications such as air, water, oil

◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water

supply

◆ Engineering machinery, industrial process

control and monitoring

◆ Energy and water treatment systems

◆ Steel, light industry, environmental protection

◆ Medical, agricultural machinery, testing

equipment

◆ Flow measurement equipment

◆ Hydraulic and pneumatic control systems

◆ Air-conditioning unit and refrigeration

equipment

◆ Water pump, air compressor pressure

monitoring

Parameters

Measuring range: 0～600Bar

Accuracy: ±1.0%FS

Output signal: 4-20mA (2 wire)

Supply voltage: 12～36(24)VDC

Operating temperature: -40～105℃

Compensation temperature: -20～80℃

Operating current: ≤3mA

Temperature drift (zero&sensitivity): ≤±0.03%FS/℃

Long-term stability: ≤±0.2%FS/year

Response time: ≤3ms

Overload pressure: 150%FS

Burst pressure: 300%FS

Cycle life: 500,000 times

Pressure medium: Non-corrosive liquid or gas

Pressure connection: G1/4, Other pressure connection is on request

Electrical connection: Hirschman DIN43650C

Housing material: 304 Stainless Steel

Protection class: IP65

Explosion-proof class: ExiaⅡCT6

Weight: ≈0.120kg

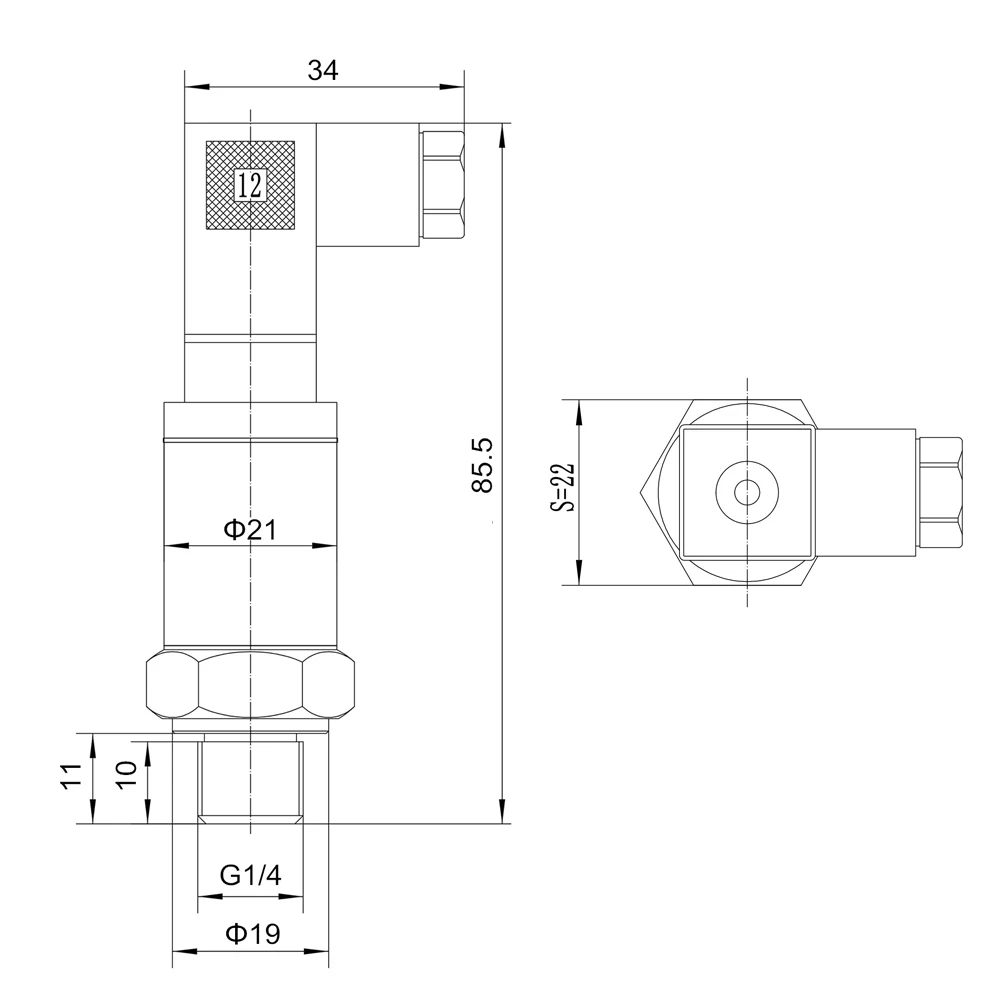

Dimension (unit:mm)

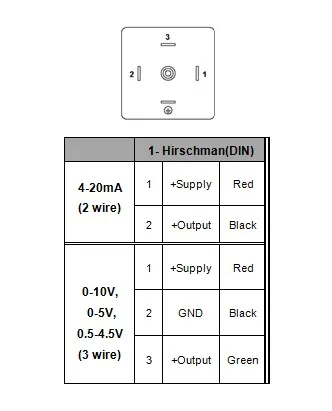

Electrical connection

Pin1: Supply + (Red)

Pin2: Output + (Black)

With shielded cable

Ordering information

Default cable length: 1.0m / 11.8inch cable.

If you have other special requirements, please contact us and note in the order.
