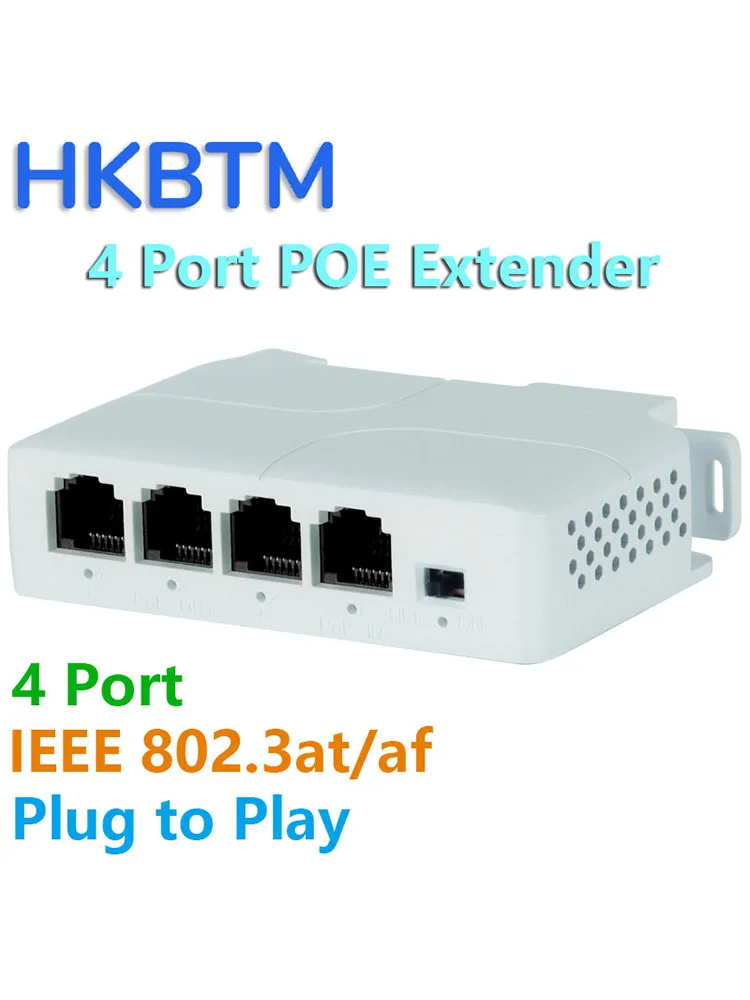

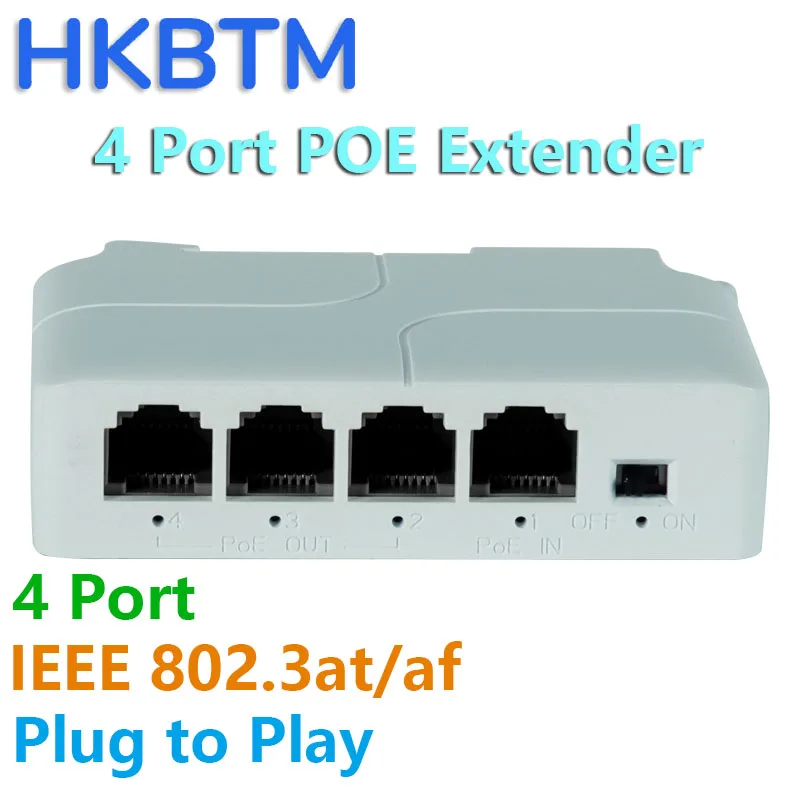

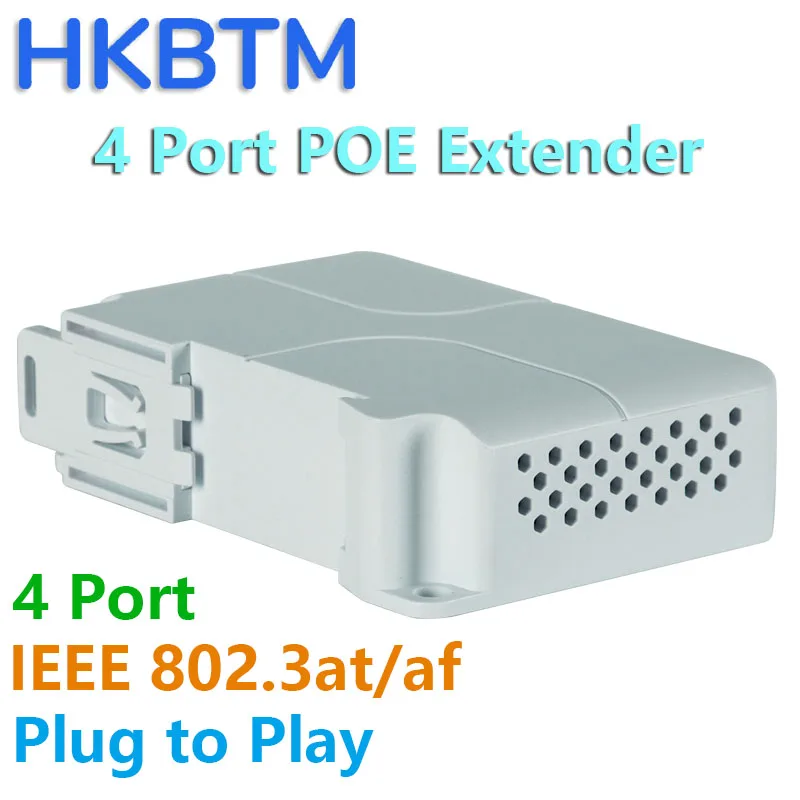

HKBTM 4 Port PoE Extender Waterproof Poe Repeater for IP Port Transmission Extender for POE Switch NVR IP Camera

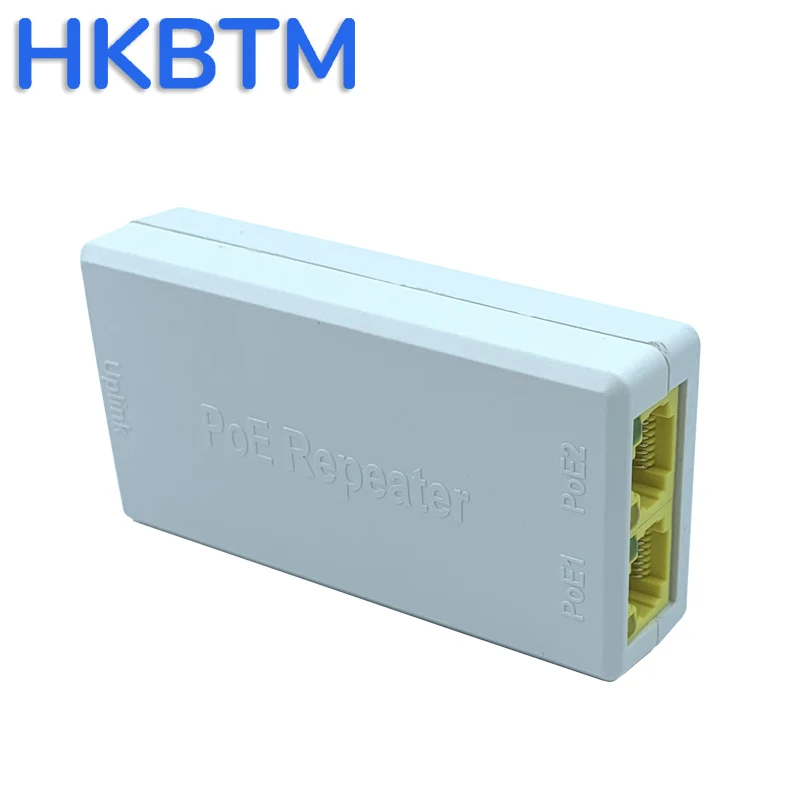

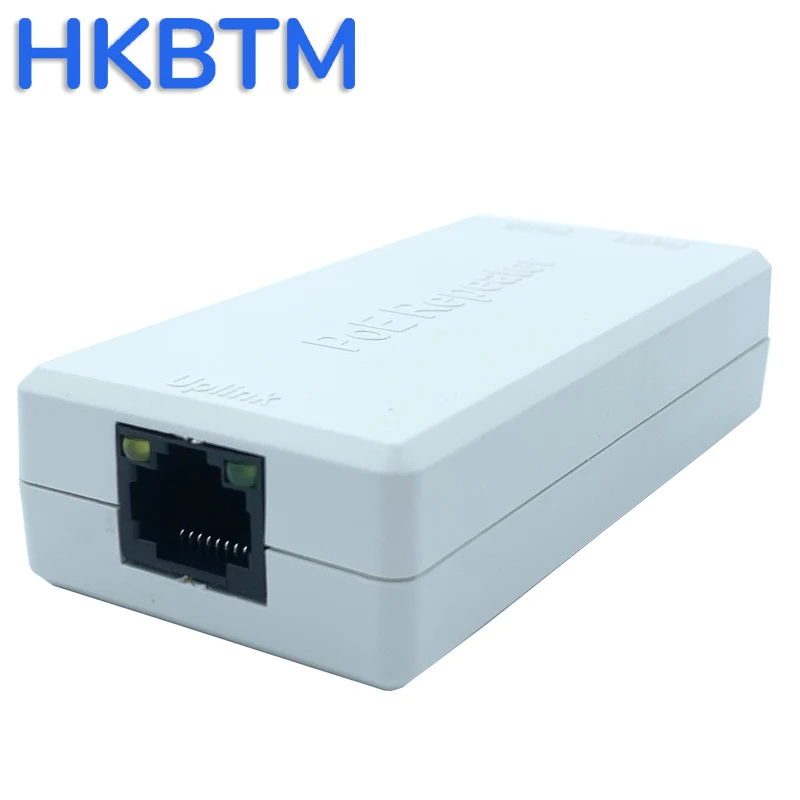

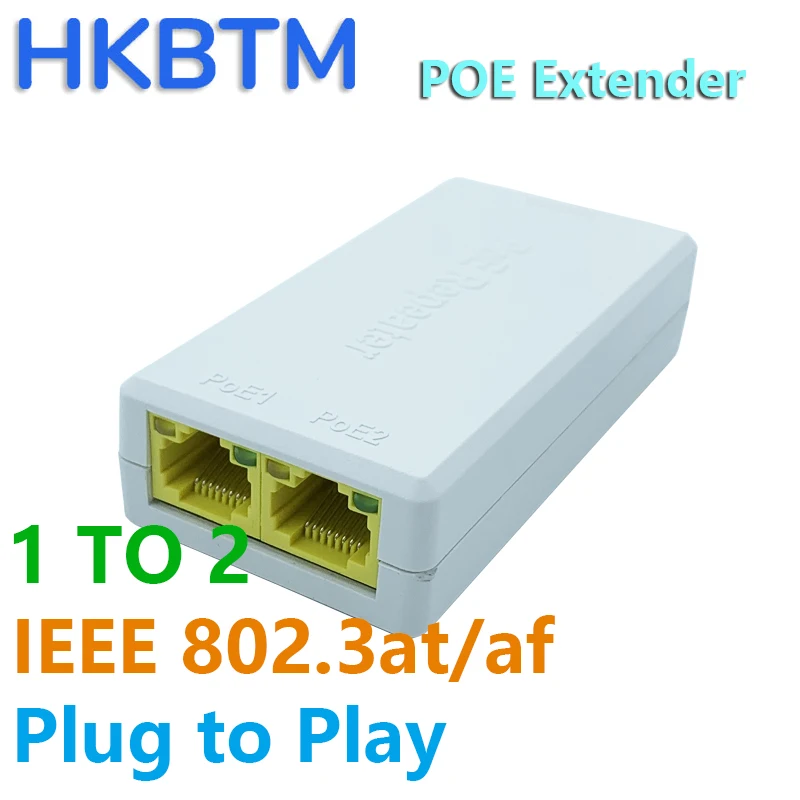

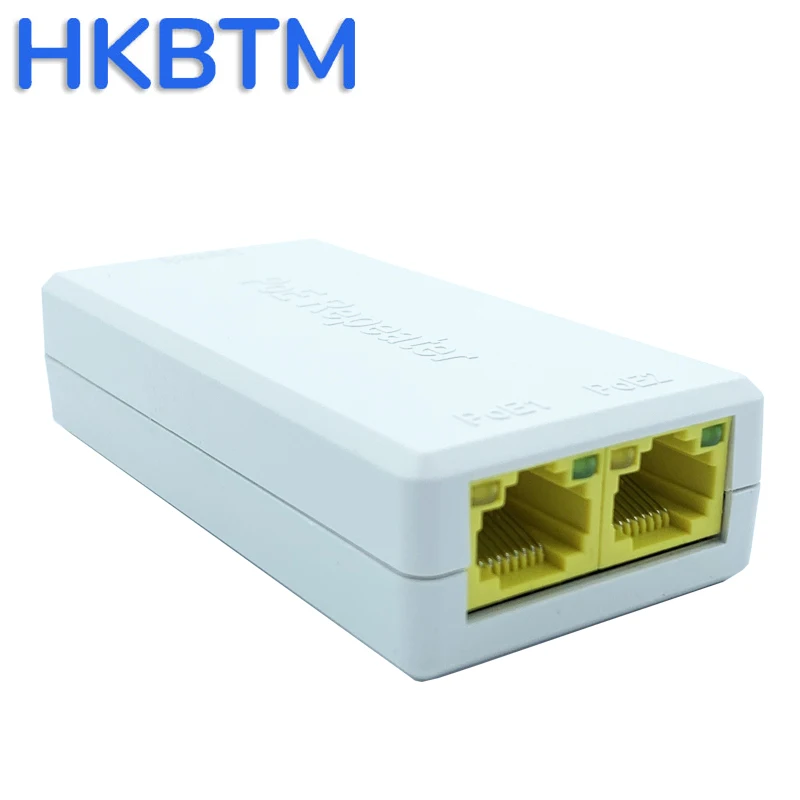

HKBTM 1 to 3 Port PoE Extender Passive Cascadable IEEE802.3af for IP Port Transmission Extender for POE Switch NVR IP Camera

Fast Ethernet PoE Repeater, this product provides 1 port Fast IEEE802.3af/at(PoE) receiving port input,

3/2 ports Fast IEEE802.3af/at(PoE) power port output.

Product Description

1.Comply with IEEE 802.af Power over Ethernet (10/100M Supported)

Extender the range of PoE an additional 100 meters

2.Automatically detects and protects PoE equipment from being damaged by incorrect installation

3.Plug-and Play no configuration required

4.3-Port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable.

5.3/2-Port PoE Extender has 3/2 10/100M Lan ports, among them, one for power input, the other three for power output. Comply with 10/100/1000 BASE-TX,IEEE 802.3 af-PoE.

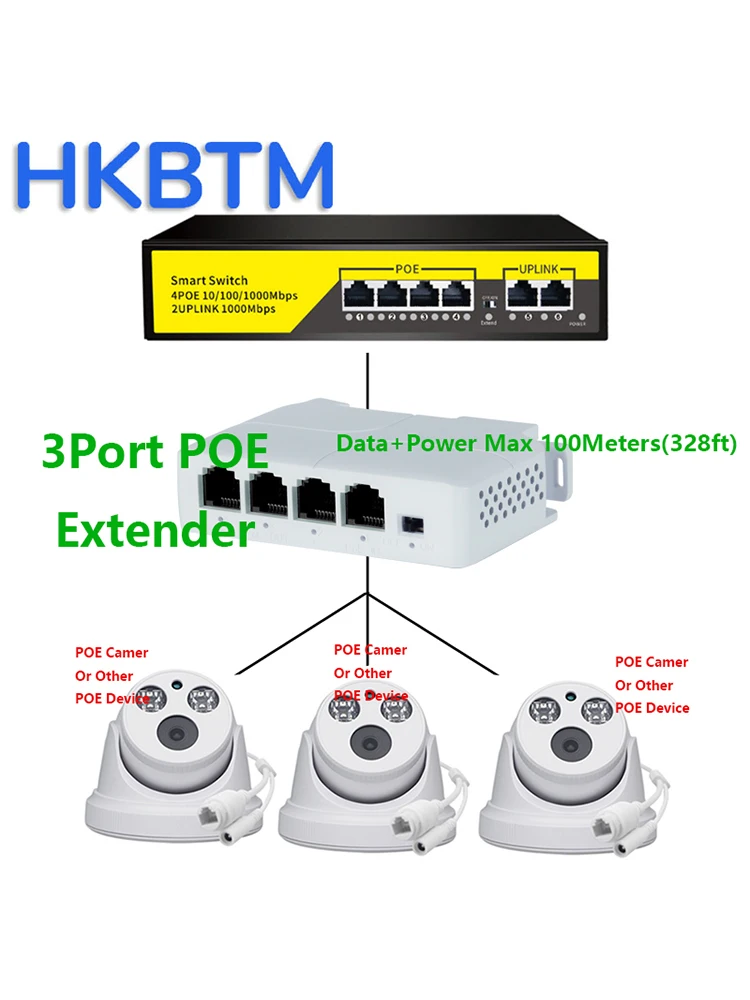

6.Used with AP, IP camera, IP telephone and the other network equipment in the situation of the lack of power line or far away from the power outlets

7.Installed at hotels, schools, buildings, villages, etc.

Specification

Network standard: IEEE802.3, IEEE802.3u, IEEE802.3x

PoE connection standard: IEEE 802.3af/at

PoE port input power: input maximum 30W

PoE port output power: output maximum 24W/average 8W per port

PoE power receiving input transmission core: 1/2+, 3/6-, 4/5+, 7/8-

PoE power output transmission core: 1/2+, 3/6-

POE power supply transmission distance: ≤100 meters

Power supply transmission medium: 10/100/1000BASE-TX: Category 5 and above non-screen shielded twisted pair

MAC Address Table: 2K

Packet Buffer Memory: 48 Byte

Switching Capacity: 1.0Gbps

Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;

Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;

Working temperature: -10°c to 55°c

Working Humidity: 10%~90%, No Condensation;

Dimension: 82x52x23mm

Weight: 55g
