MOES Tuya ZigBee Smoke and Carbon Monoxide Detector 2-in-1 Smart CO Gas Alarm 85dB Siren Home Security App Remote Monitor Sensor

MOES Tuya Zigbee Smart Smoke Carbon Monoxide 85dB Sound Siren Alarm Sensor CO Detector Gas Leak Home Safety APP Remote Monitor

BY-MOES

Technical Specifications

SKU: ZSS-S02-CS

Model: JKD-513COM-Z

Software version number: V1.2.5

Communication protocol: Zigbee

Product standards:

EN 14604:2005/AC: 2008

EN 50291-1:2018+AC: 2021-01

Type of apparatus: type B - to provide a visual and audible alarm only

Power Supply: 2pcs 1.5V AA battery

Sensor of Smoke: Photoelectric reflection

Smoke Alarm Sensitivity: 0.25dB/m

Smoke alarm silence: about 10 minutes

Sensor of CO: Electrochemical

CO alarm sensitivity Setting:

Conforms to EN50291-1:2018+AC:2021-01

50PPM alarm within 60 to 90 minutes

100PPM alarm within 10 to 40 minutes

300PPM alarm within 3 minutes

Standby Current: <50μA (average)

Alarm Current: <90mA (average)

Operation Ambient Condition: -10℃~+50℃, <95%RH non-condensing

Storage/Transport Condition: -10℃~+50℃, <95%RH non-condensing

Alarm sound :≥85dB at 3m

Installation Location: ceiling or wall

Detection range: Max.. 40m2 within a room.

Size: about Ф105*39mm

Frequency Band: 2.405~2.480GHz

Maximum Radio Transmit Power: <+10dBm

Packing List

Smart Smoke & CO Alarm *1

Manual *1

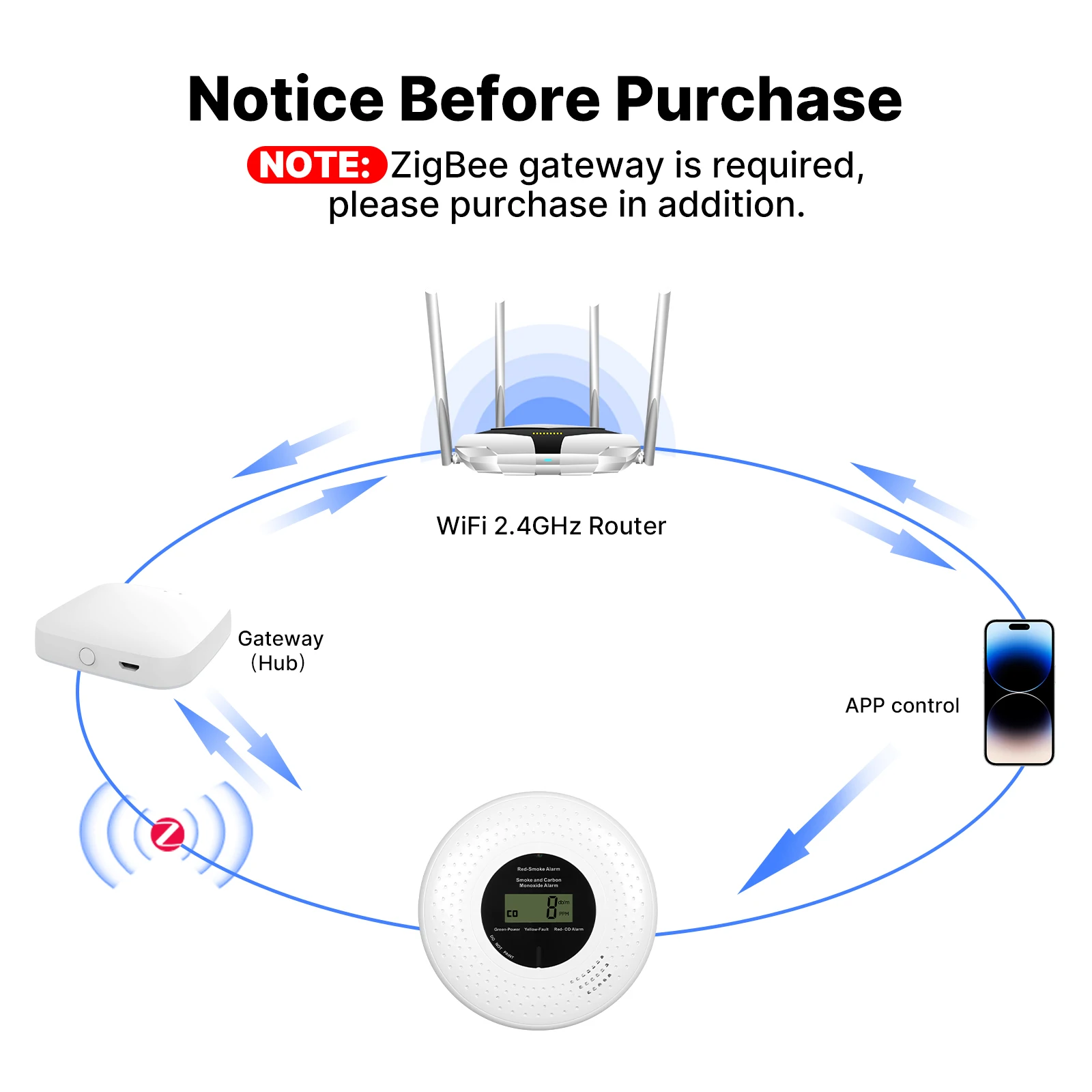

Notice before purchase

NOTE: ZigBee gateway is required, please purchase in addition.

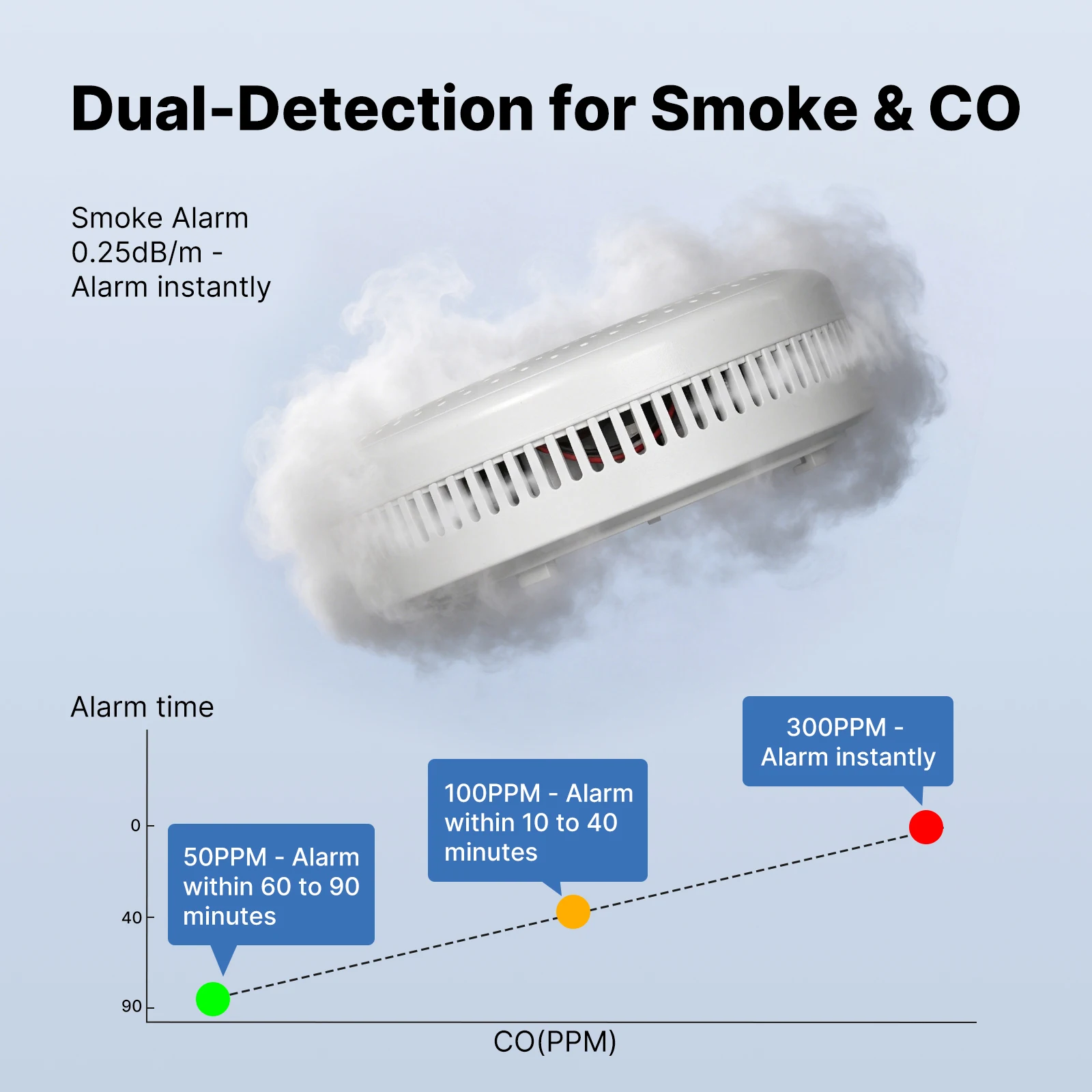

Dual-Detection for Smoke & CO

CO Alarm:

50PPM - Alarm within 60 to 90 minutes

100PPM - Alarm within 10 to 40 minutes

300PPM - Alarm instantly

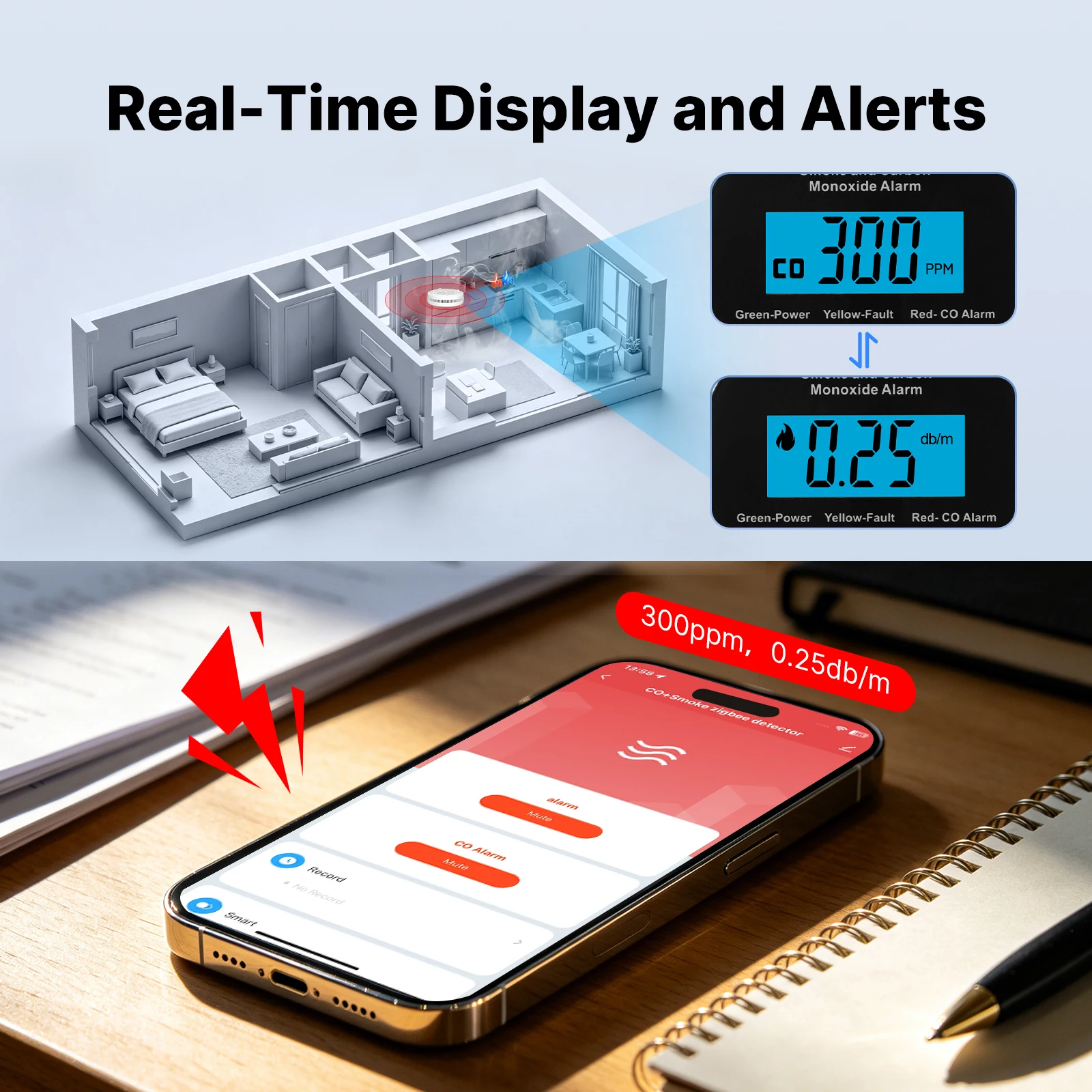

Real-Time Display and Alerts

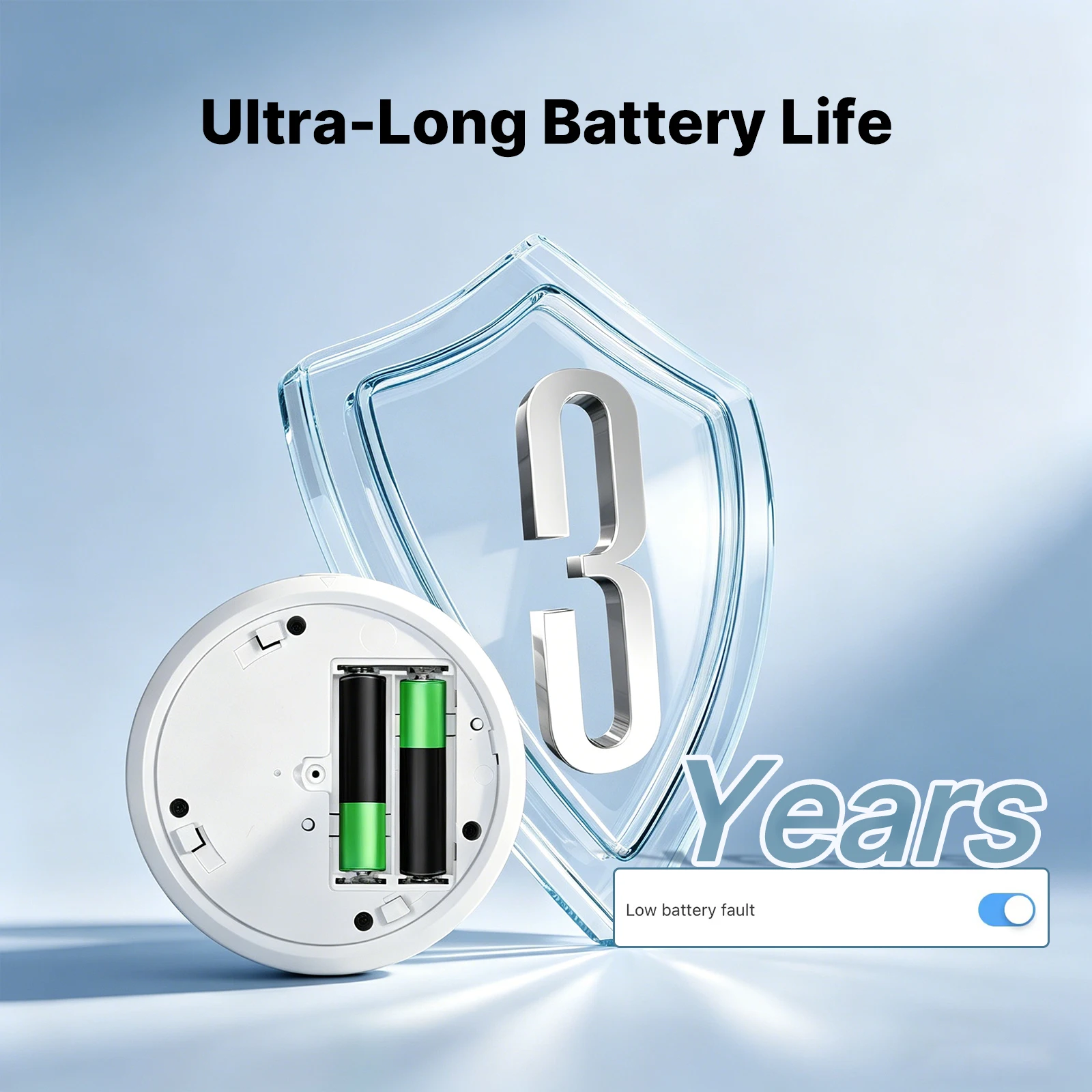

Ultra-Long Battery Life

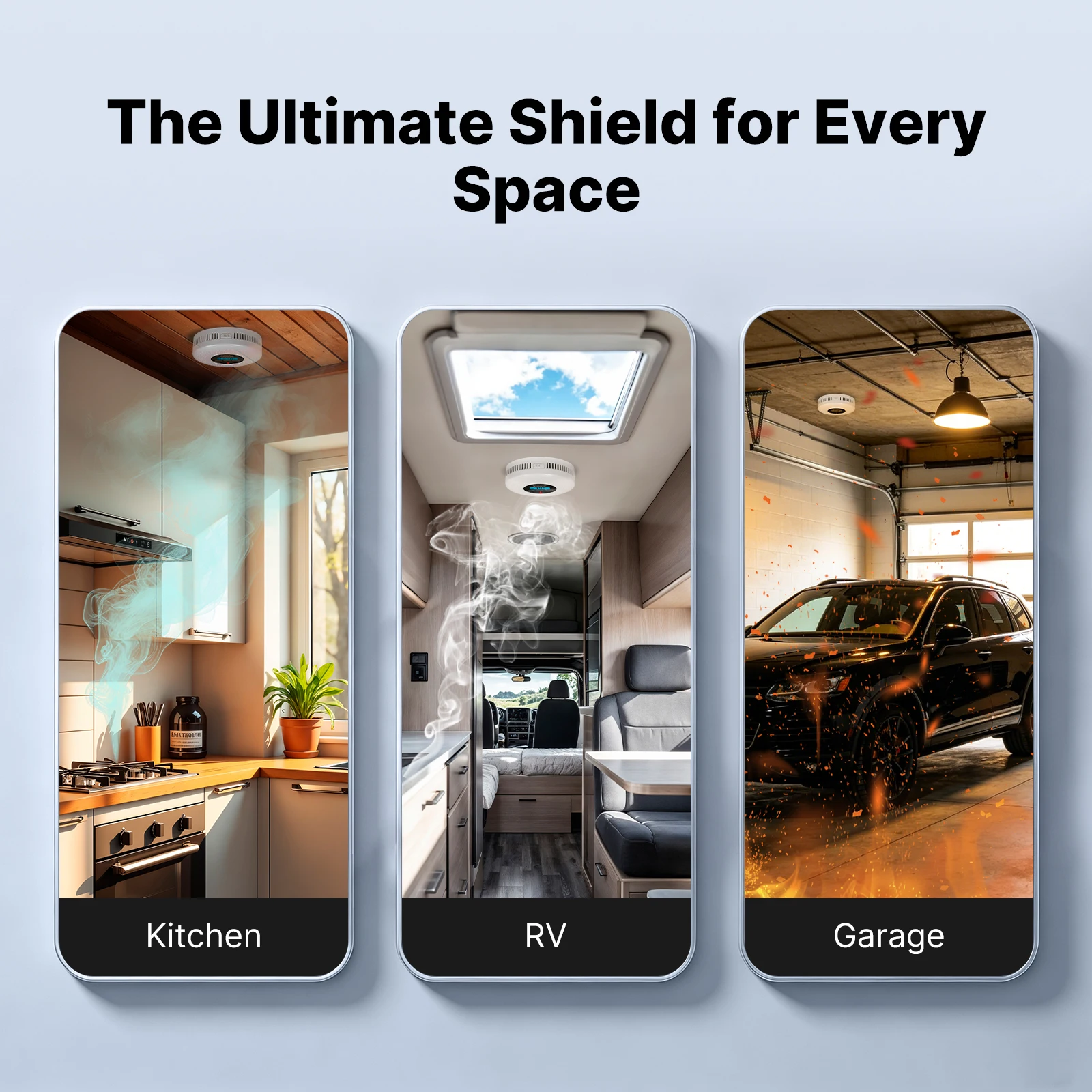

The Ultimate Shield for Every Space

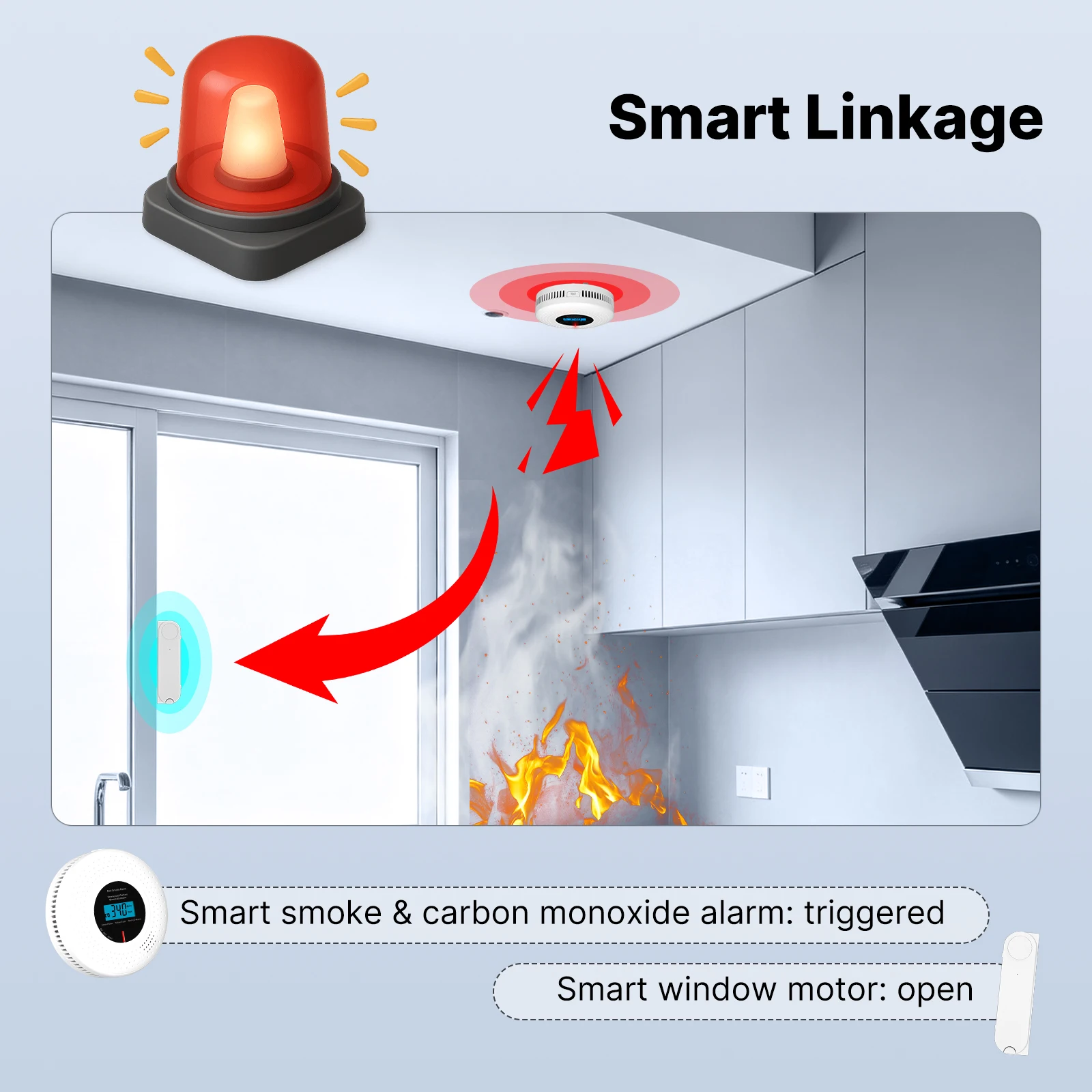

Smart Linkage

Set smart linkage between carbon monoxide alarm and window pusher. When the CO concentration reaches dangerous level, the window is set to open automatically.

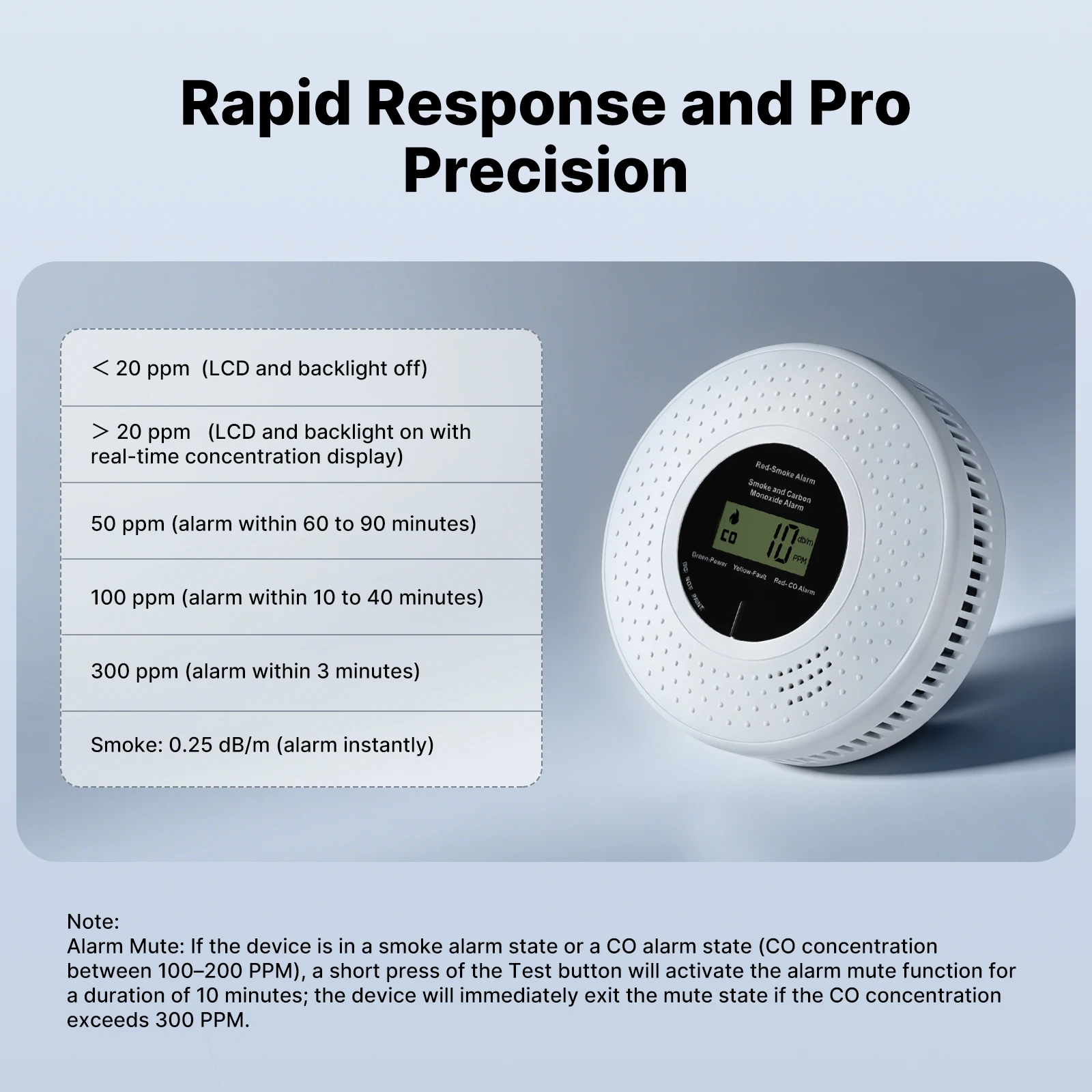

Rapid Response and Pro Precision

＜ 20 ppm  (LCD and backlight off)

＞ 20 ppm   (LCD and backlight on with real-time concentration display)

50 ppm alarm within 60 to 90 minutes

100 ppm alarm within 10 to 40 minutes

300 ppm alarm within 3 minutes

Smoke: 0.25 dB/m alarm instantly

Note:Alarm Mute: If the device is in a smoke alarm state or a CO alarm state (CO concentration between 100–200 PPM), a short press of the Test button will activate the alarm mute function for a duration of 10 minutes; the device will immediately exit the mute state if the CO concentration exceeds 300 PPM.

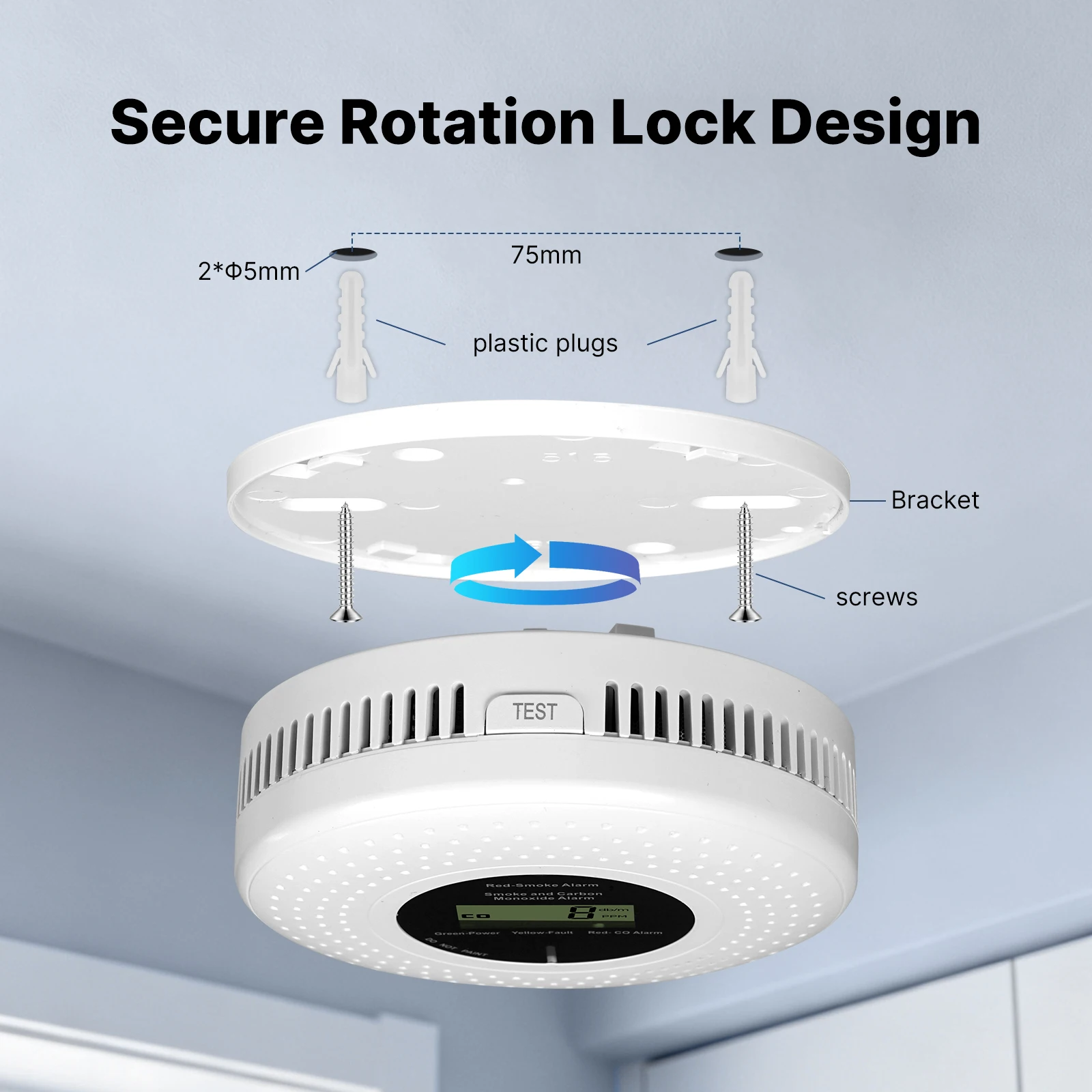

Secure Rotation Lock Design

Designed for effortless maintenance, the quick-release structure allows you to remove the device in seconds. Replacing batteries or cleaning the sensor is now simpler than ever.

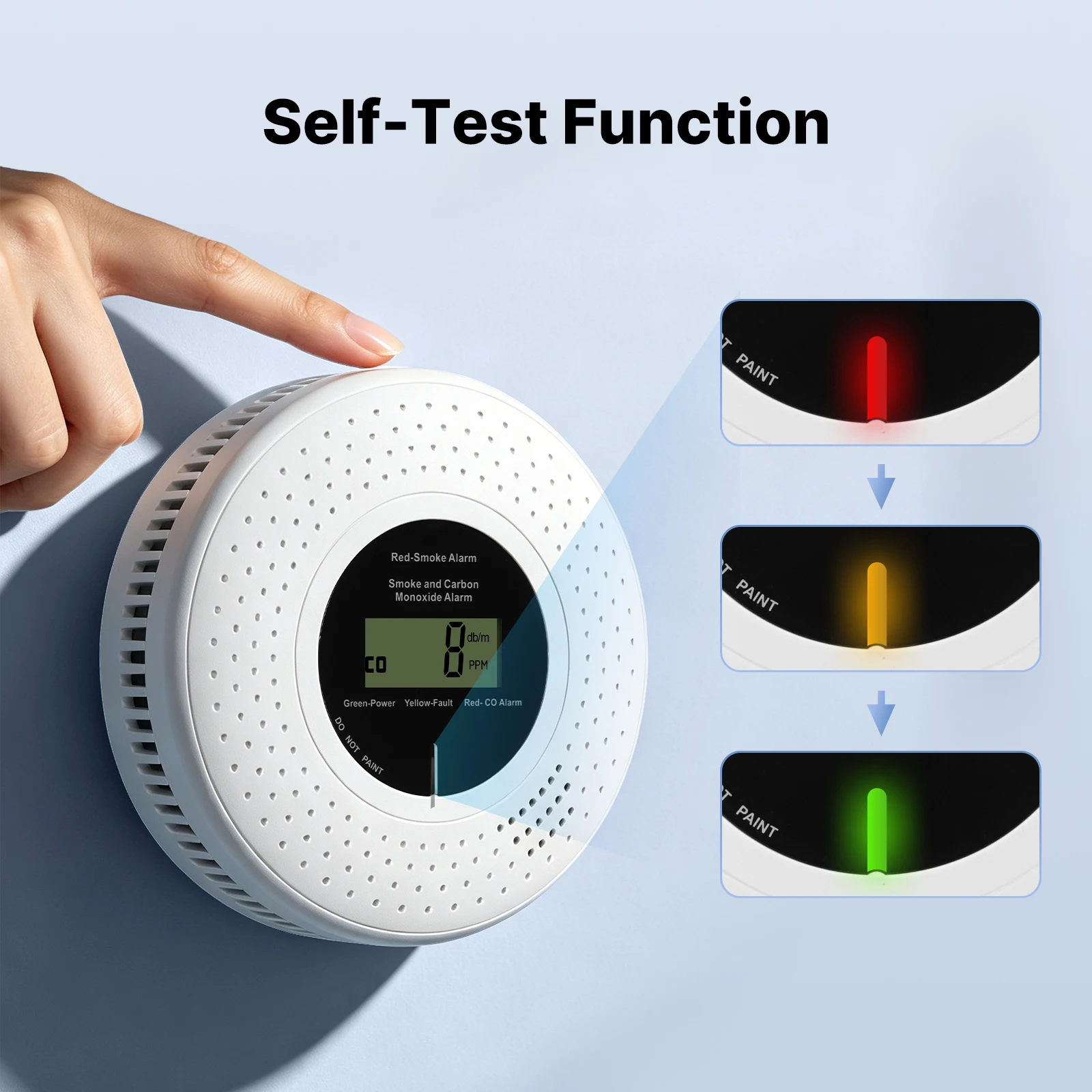

Self-Test Function

You can have a easy check with self-test function if there is any fault caused by accident. Just push the test button to check if it is normal.

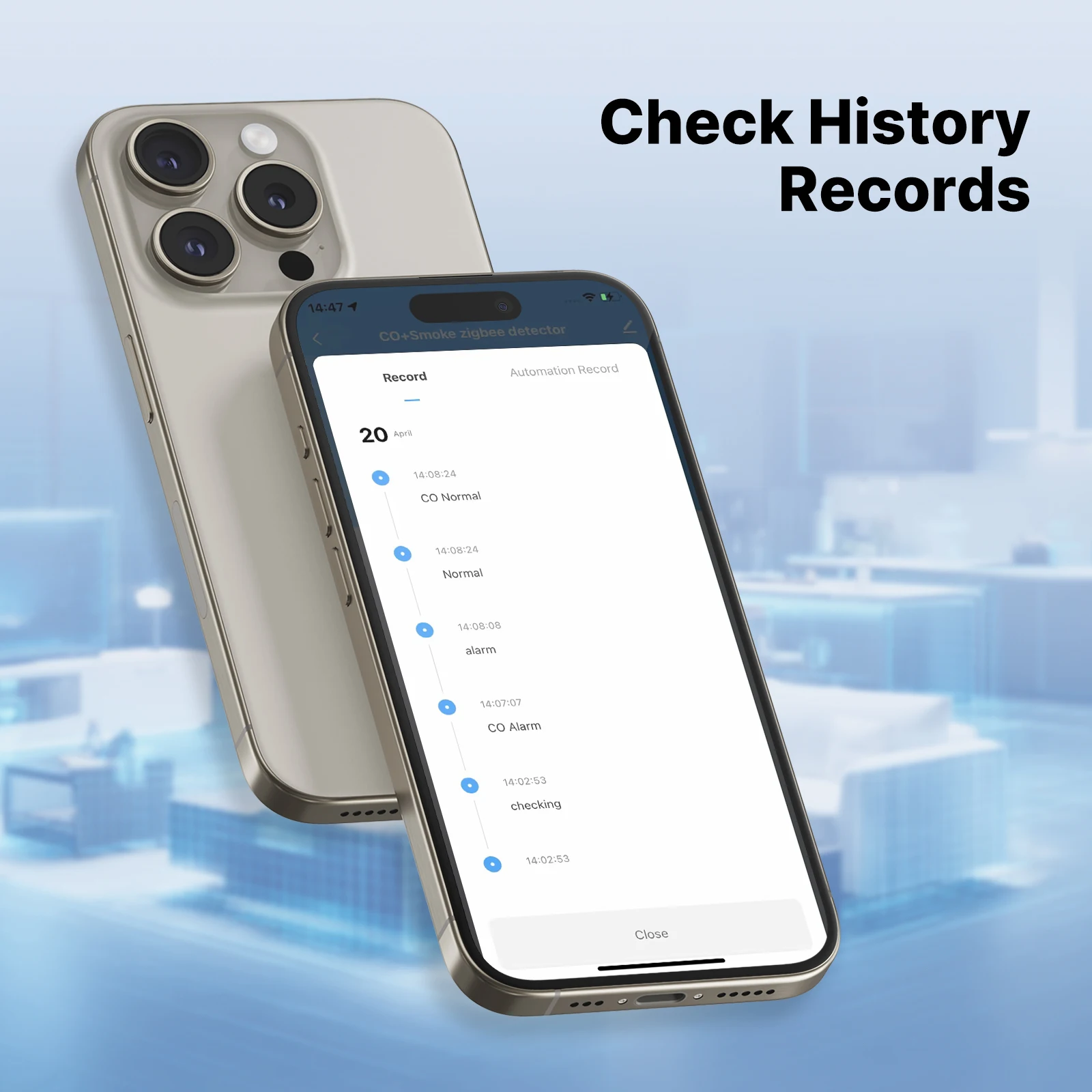

Check History Records

Anywhere you are, check the history records to ensure you never miss a potential danger in your house.

2 Hazards, 1 Smart Detector Solves

Detect What You Can't See

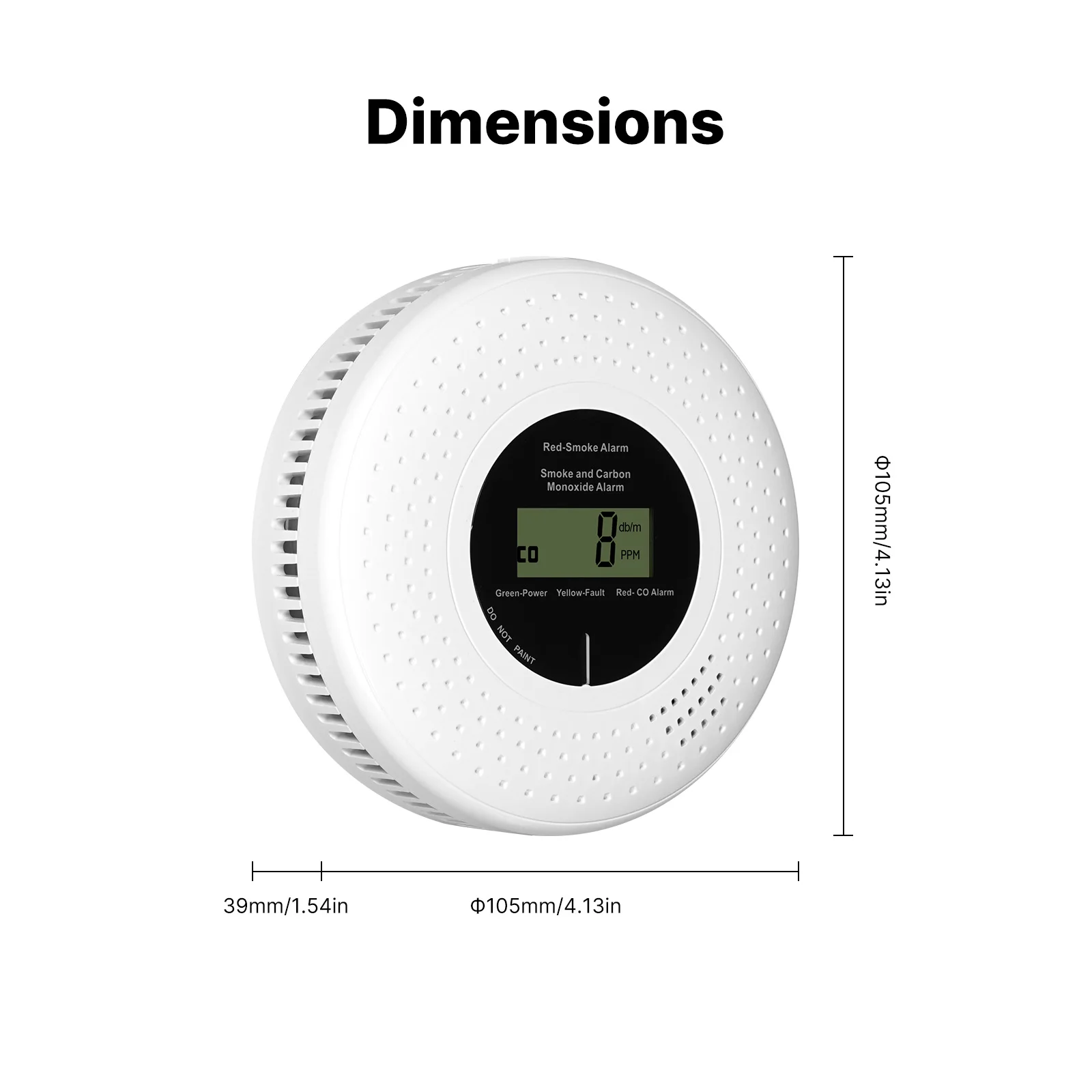

Dimensions
