LingBo LBMC72122 HK5L V5 48V-72V 45A 800W-1500W BLDC Motor Controller for E-Scooter

LingBo LBMC72122 48V 60V 72V 45A 1000W PMSM FOC BLDC Motor Controller for E-Scooter Motorcycle

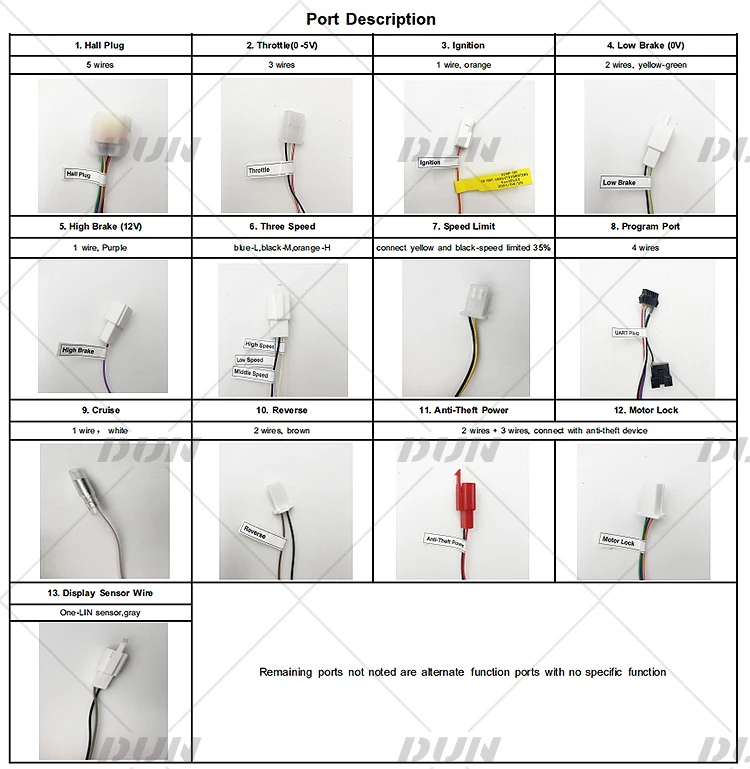

The default function for Lingbo LBMC controller:
Hall Plug, Low Brake 0V, High Brake 12V, Throttle (0-5V) , Ignition, Regenerative , Cruise, Three Speed, Anti-theft, Speed Limit, Reverse, LIN Display Sensor, Programming port.

One Kit Contains

1 pcs LBMC72122 controller
1 pcs USB cable for programming

Key Features

Lingbo controller is suitable for hub/in-wheel motors. If your motor is a mid-drive motor, it is recommended to purchase a VOTOL controller or FarDriver controller.
It's PMSM (Permanent Magnet Synchronous Motor) controller, this product adopts Field Oriented Control (FOC), the power drive stage adopts SVPWM modulation, and provides three-phase vector control sine wave current to the motor Output; the internal use of a new ARM core, 32-bit microprocessor as the main control chip, the system shows excellent computing power and task processing capabilities, can simultaneously deal with high real-time requirements such as torque loop, excitation loop, speed loop, etc; this kind of control method can realize the maximum torque control, constant power control, speed closed-loop control, and braking energy feedback control of the motor.

Controller SPEC

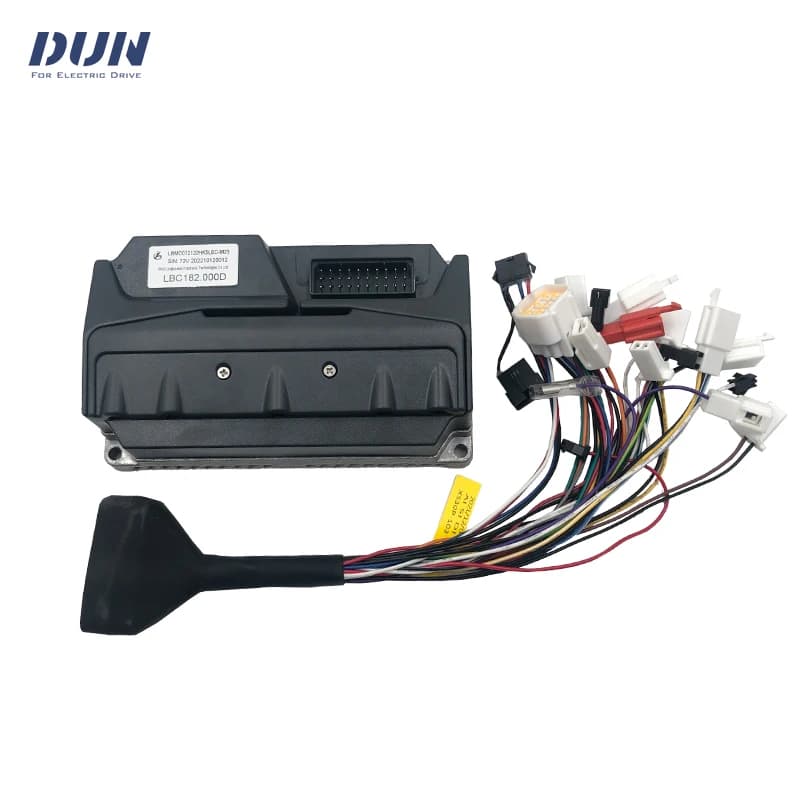

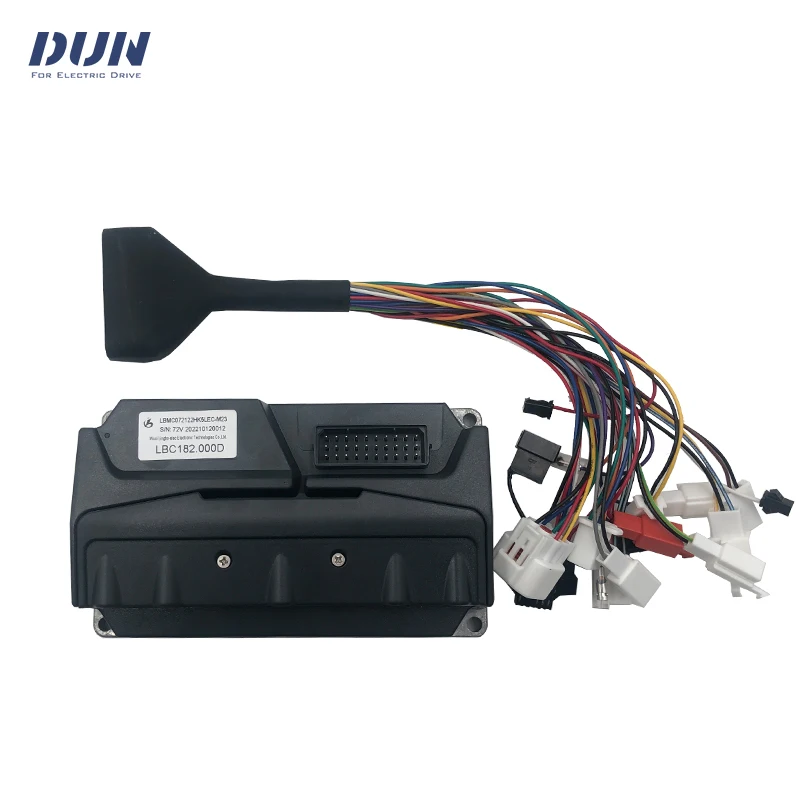

Controller Model: LBMC72122

Controller Design: FOC PMSM/BLDC Sine Wave Controller.

Motor Control Method: FOC(Field Oriented Control）

Rated Voltage: 48V-72V

Matched Motor Power: 800w-1200w

DC Current: 45A

Phase Current: 150A

Working Communication: Hall Sensor

Mosfets: 12 FET

Controller working temp: -20℃ to 90℃

Controllerstorage temperature: -10℃ to 40℃

Work Method:Torque loop + speed loop control

Size: 173mm*102.5mm*55.7mm

Net Weight: 0.78kg

Support: Programmable by PC

Application: Electric Scooter, Motorcycle, Tricycle, Car, Four Wheelers, Golfcar, Sight Seeing Car etc.

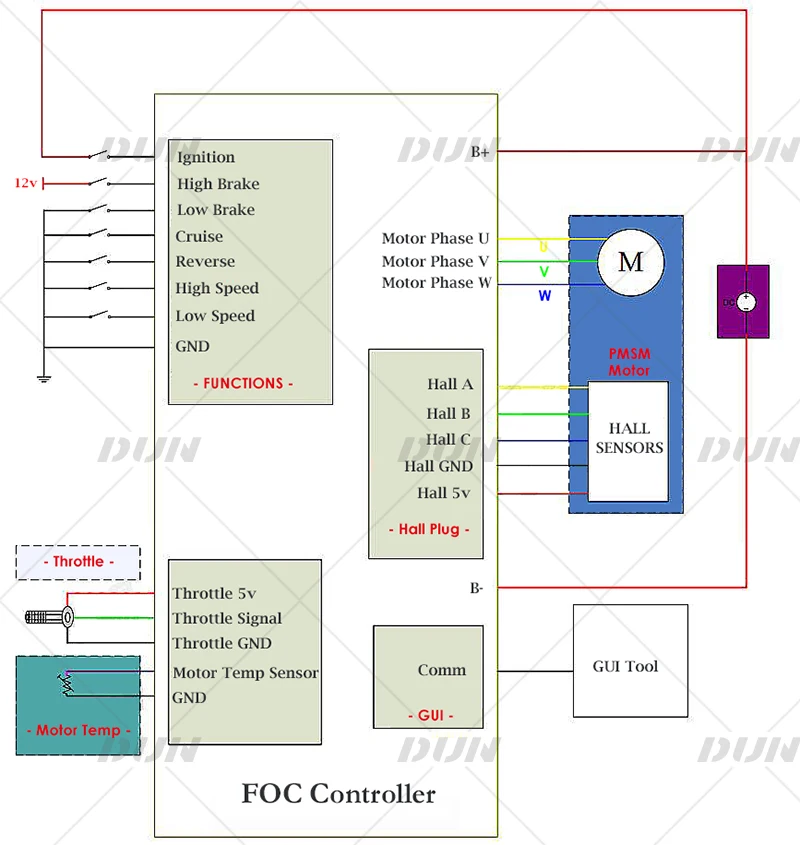

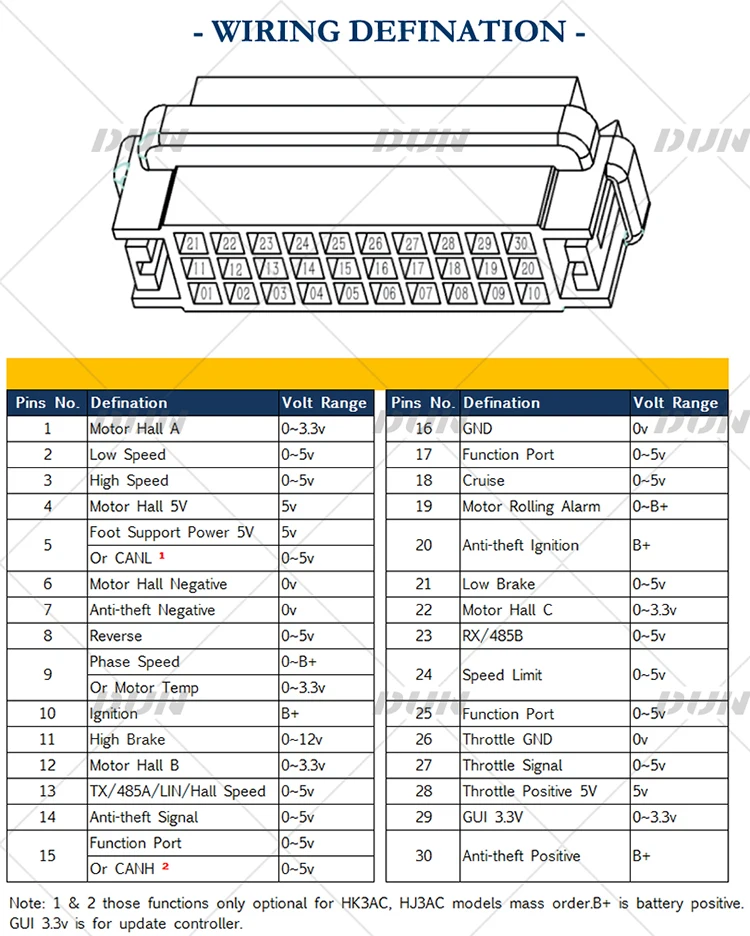

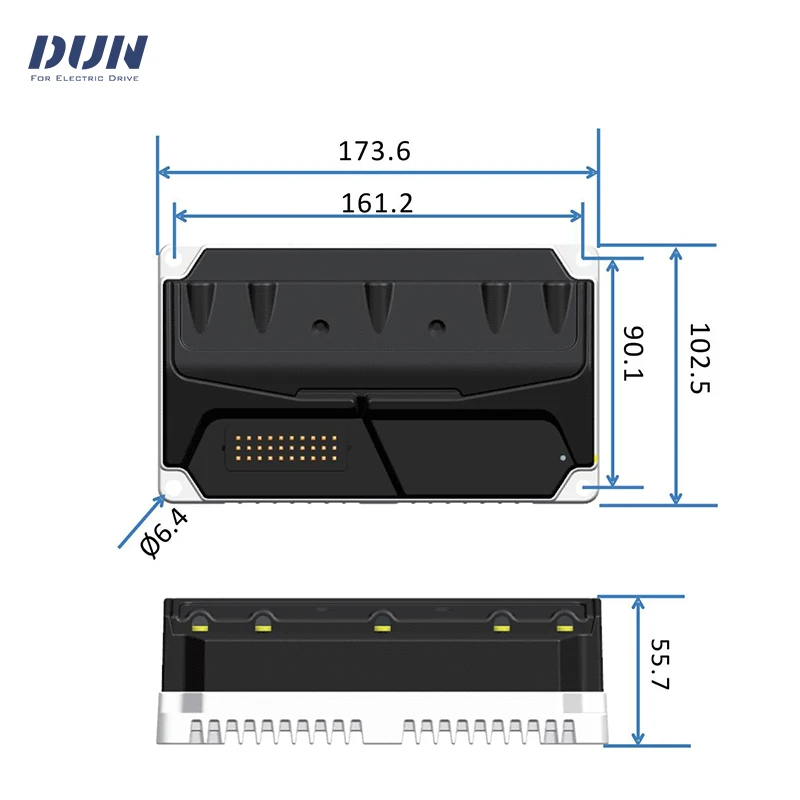

Controller Drawing & PIN

Application

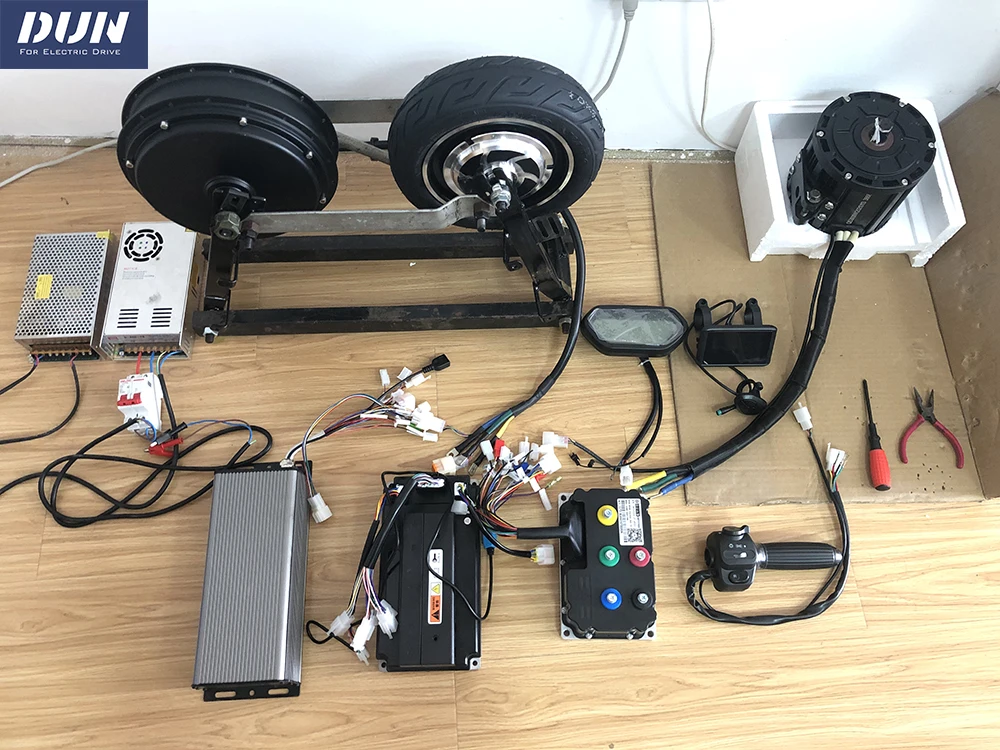

Controller Test

We will test each controller, motor before shipment to ensure that the product is working properly.
