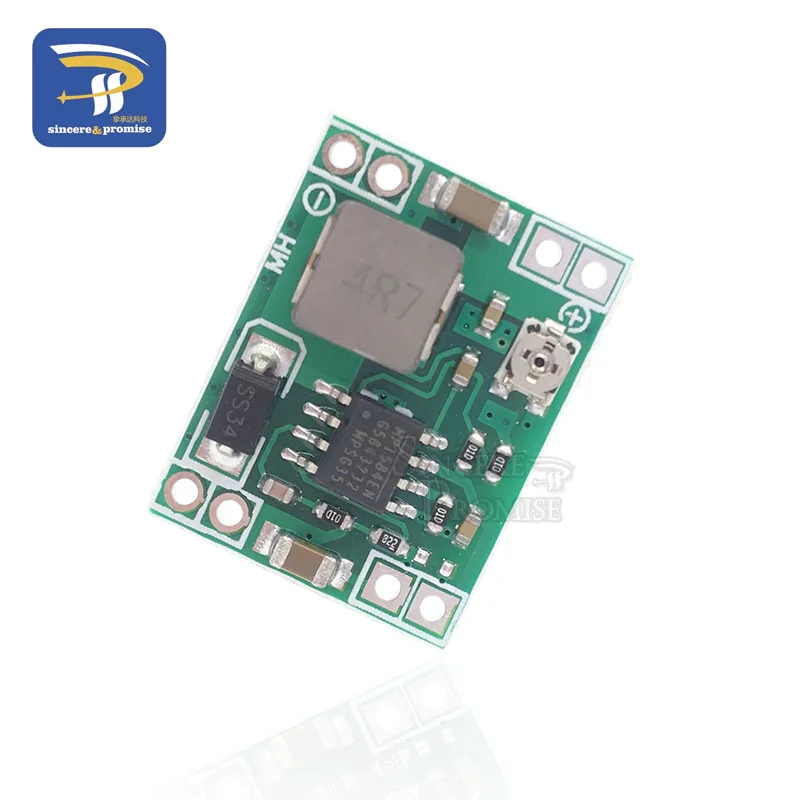

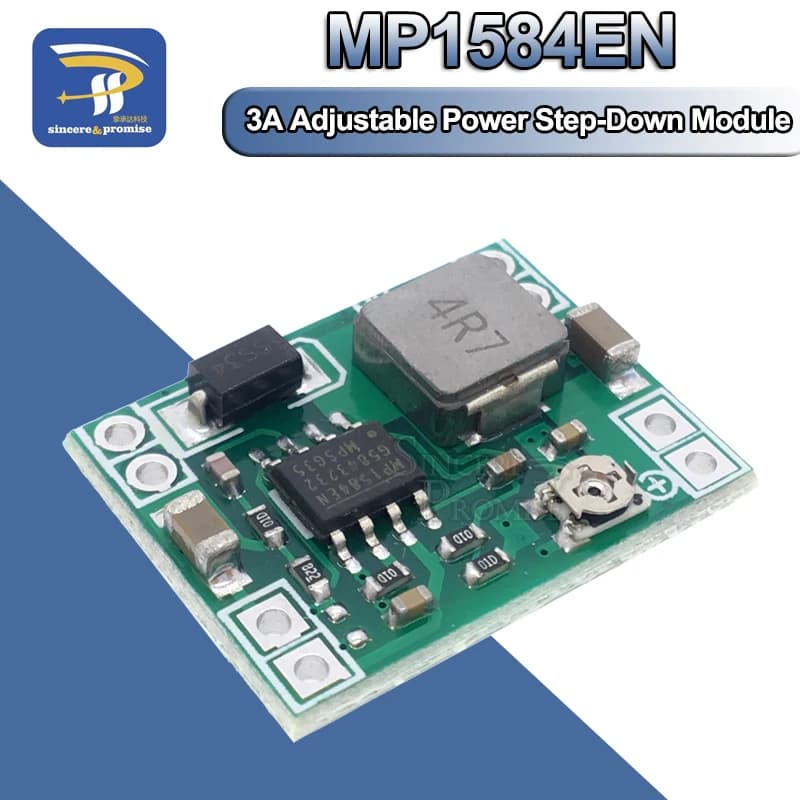

MP1584 Ultra-Small Size DC-DC Step Down Power Supply Module MP1584EN 3A Adjustable Buck Converter for Arduino Replace LM2596

The volume of the whole network minimum, maximum 3A output.

Application areas:

DIY mobile power, communications equipment, power supply, all kinds of size and weight for demanding occasions (such as model airplane, etc.).

Brand: D-SUN (East is Red)

Physical test:

1) Use a boost module to output 28V as the power supply system.

2) Display the current voltage input and output values with two miniature 0.36-inch voltmeter digital tubes.

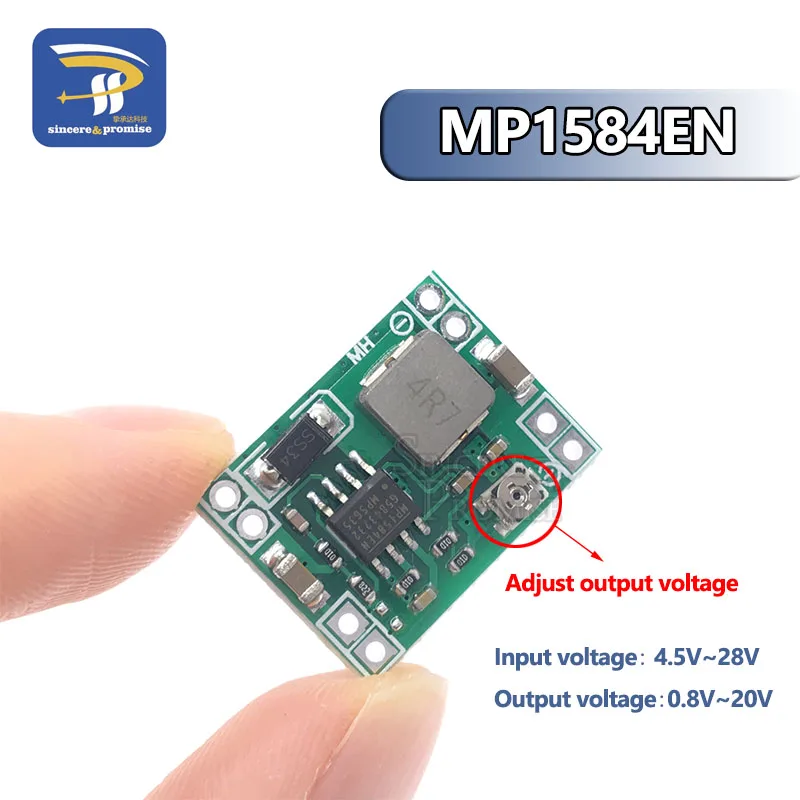

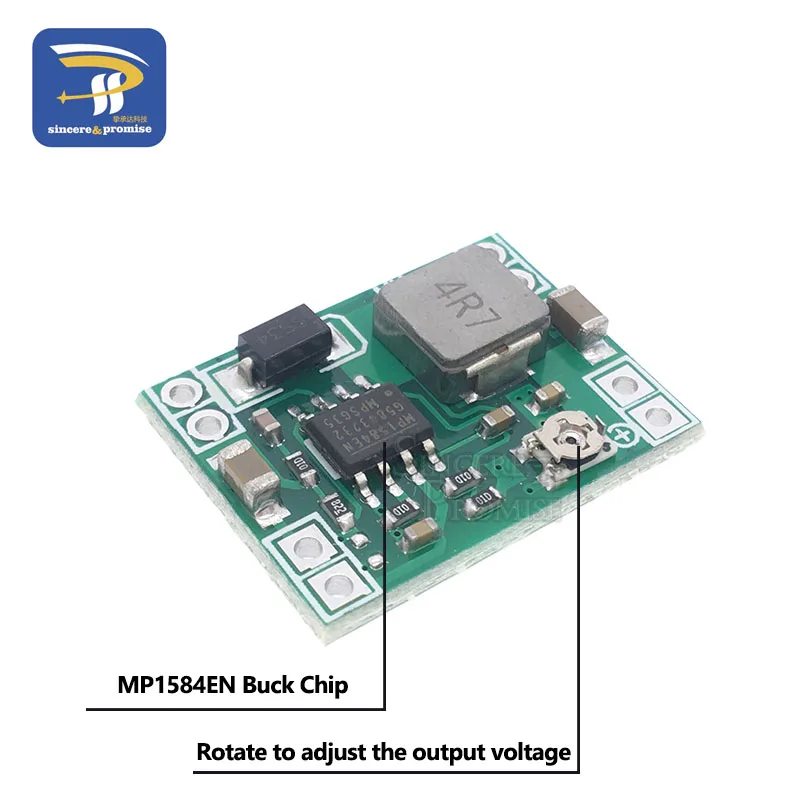

3) MP1584EN step-down module input 28V, by adjusting the potentiometer minimum output 0.8V; here adjust the potentiometer output 5V.

4) MP1584EN buck module input 28V, by adjusting the potentiometer maximum output 20V.
