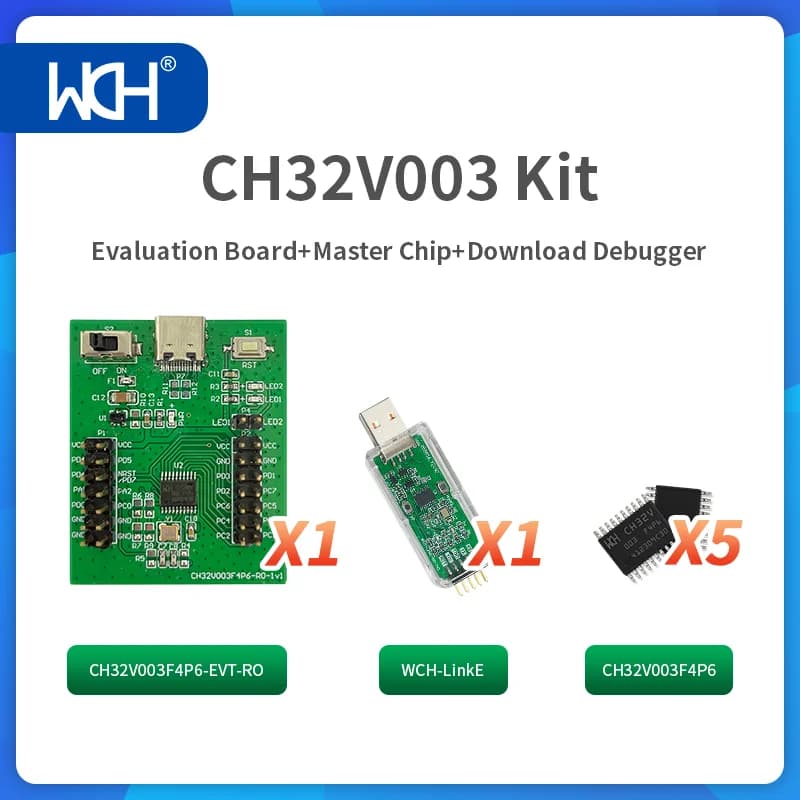

1Pcs/Kit CH32V003F4P6 QingKe RISC-V2A 1-wire SDI System Main Frequency 48MHz

1. Overview

CH32V003 series is based on the QingKe RISC-V2A core design of industrial-grade general-purpose microcontroller, support 48MHz system main frequency, with wide voltage, 1-wire SDI, low-power consumption, ultra-small package, etc. CH32V003 series built-in a group of DMA controller, a group of 10-bit ADC, a group of OPA, multiple timers and standard communication interfaces USART, IC, SPI, etc.

The CH32V203 is an industrial-grade enhanced low-power general-purpose MCU based on 32-bit RISC-V core. The CH32V203 features high performance, and supports up to 144MHz system clock frequency. The operating power consumption can be as low as 45uA/MHz. CH32V203 integrates 2-channel USB interface which supports USB Host and USB Device functions. The CH32V203 provides 1-channel CAN interface (2.0B active), 2-channel OPA, 4 UARTs, 2 IICs, 12-bit ADC, 10-channel TouchKey and other peripheral resources. Several packages such as TSSOP20, QFN28 QFN48, LQFP32 and LQFP48 are available for users.

2. Product features

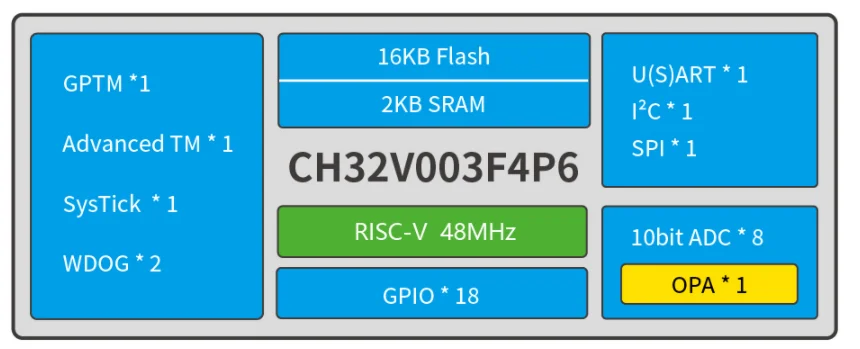

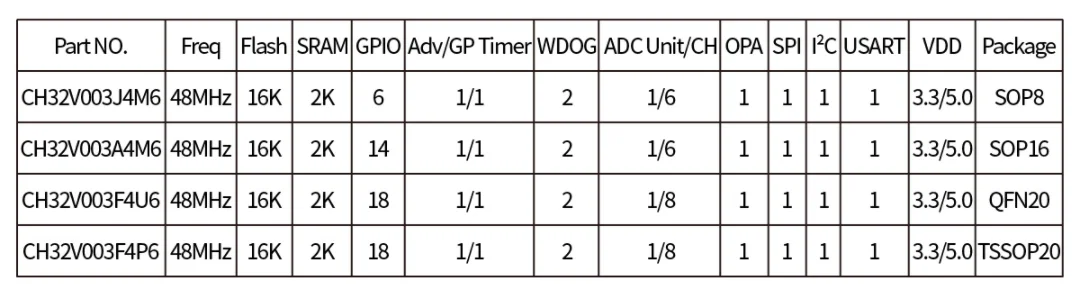

【CH32V003F4P6-EVT-R0】

QingKe 32-bit RISC-V2A processor with 2-level interrupt nesting support

Up to 48MHz system main frequency

2KB SRAM, 16KB Flash

Power supply voltage: 3.3/5V

Multiple low-power modes: Sleep, Standby

Power up/down reset, programmable voltage detector

1 group of 1-channel general-purpose DMA controller

1 group of OPA

1 group 10-bit ADC

1 16-bit advanced-control timer and 1 16-bit general-purpose timer

2 watchdog timers and 1 32-bit SysTick timer

1 USART interface, 1 group of IC interface, 1 group of SPI interface

18 I/O ports, mapping an external interrupt

64-bit chip unique ID

1-wire serial debug interface(SDI)

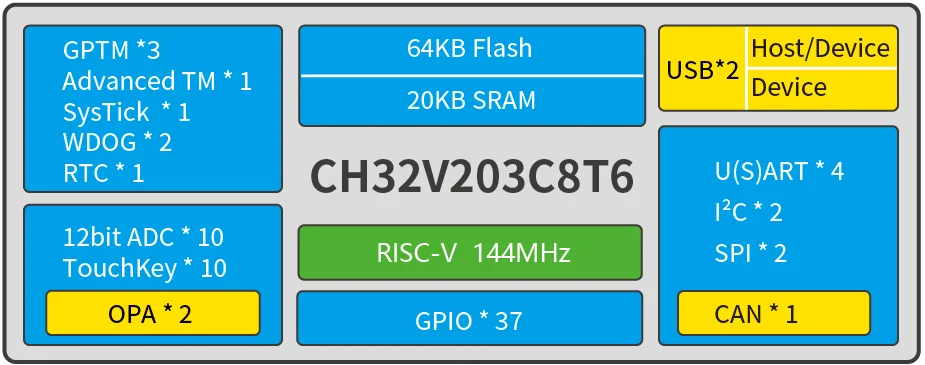

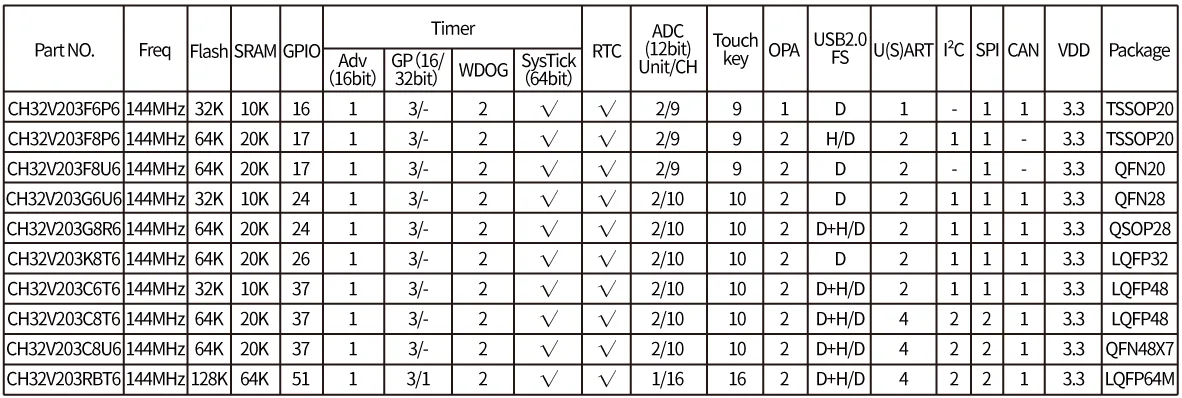

【CH32V203C8T6-EVT-R0】

Qingke V4B, up to 144MHz system clock frequency.

Single-cycle multiplication and hardware division.

20KB SRAM, 64KB Flash.

Supply voltage: 2.5V/3.3V. GPIO unit is supplied independently.

Low-power modes: sleep/stop/standby.

Down to 44.65uA/MHz in Run mode.

Down to 17.90uA/MHz in Sleep mode.

Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD).

1 x 18-channel general DMA controllers.

2 amplifiers.

10-channel 12-bit ADC, 10-channel TouchKey.

4 timers.

One USB2.0 full-speed host/device interface.

One USB2.0 full-speed device interface.

4 UARTs.

One CAN interface (2.0B active).

2 IIC interfaces, 2 SPI interfaces.

37 I/O ports, can be mapped to 16 external interrupts.

CRC calculation unit, 96-bit unique ID.

Serial 2-wire debug interface.

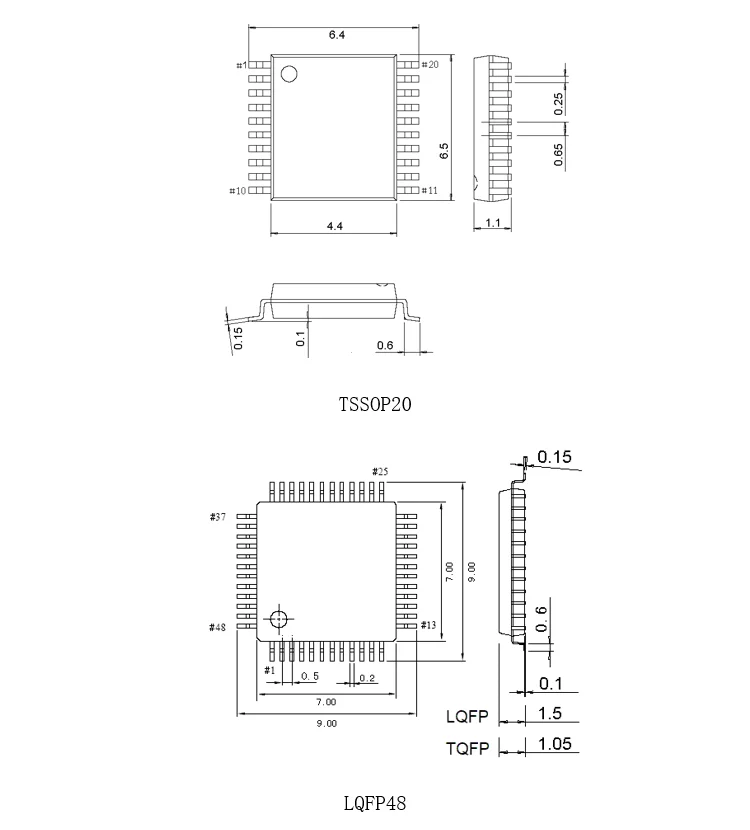

Packages: TSSOP20, QFN28, QFN48, LQFP32, LQFP48.

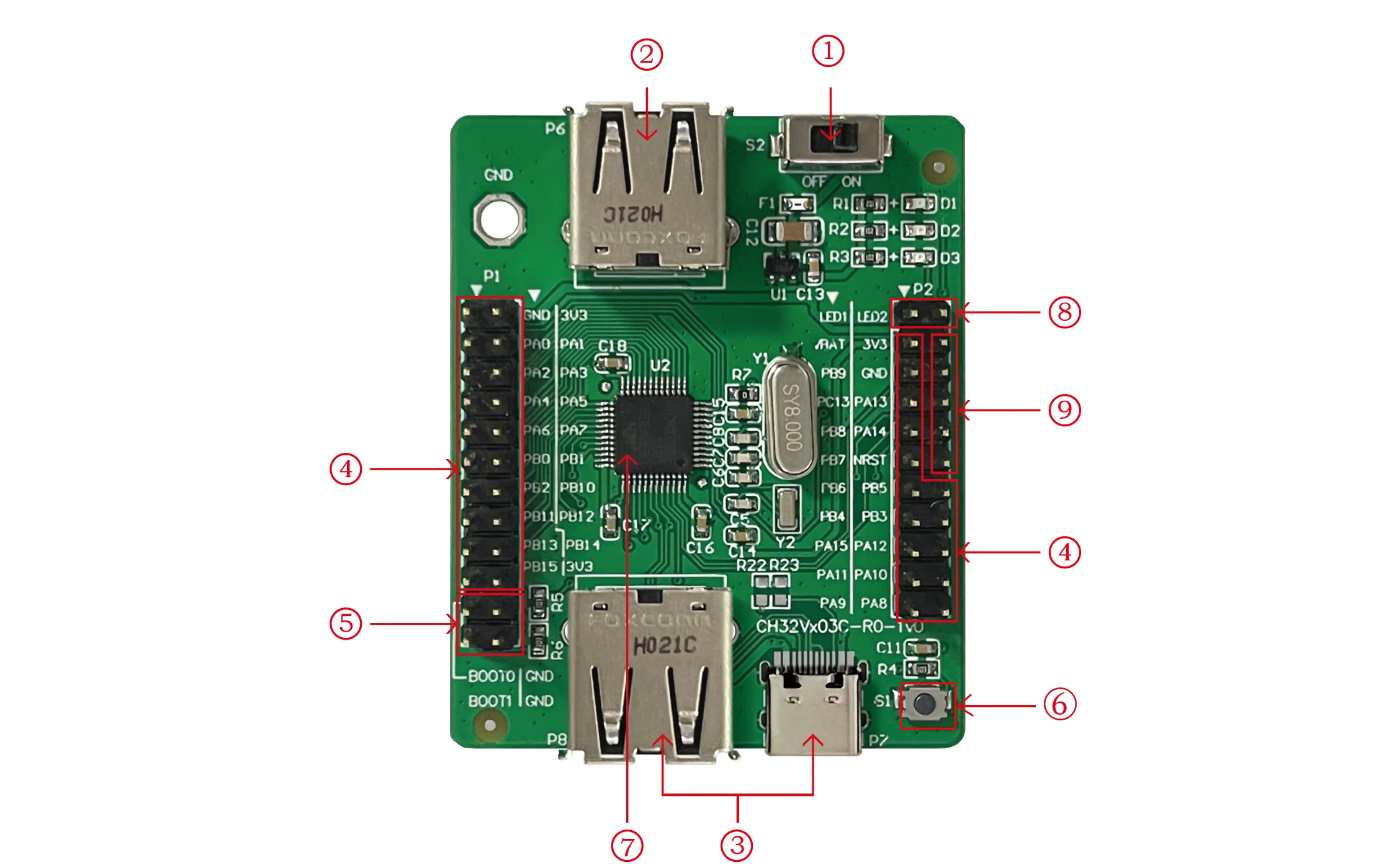

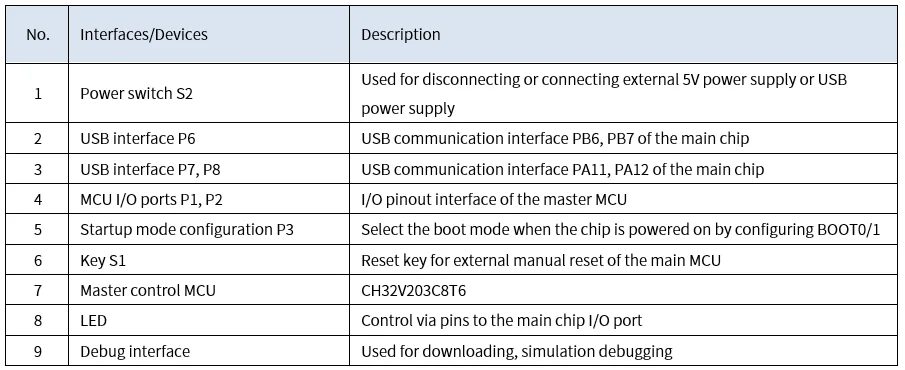

3. Cardboard hardware

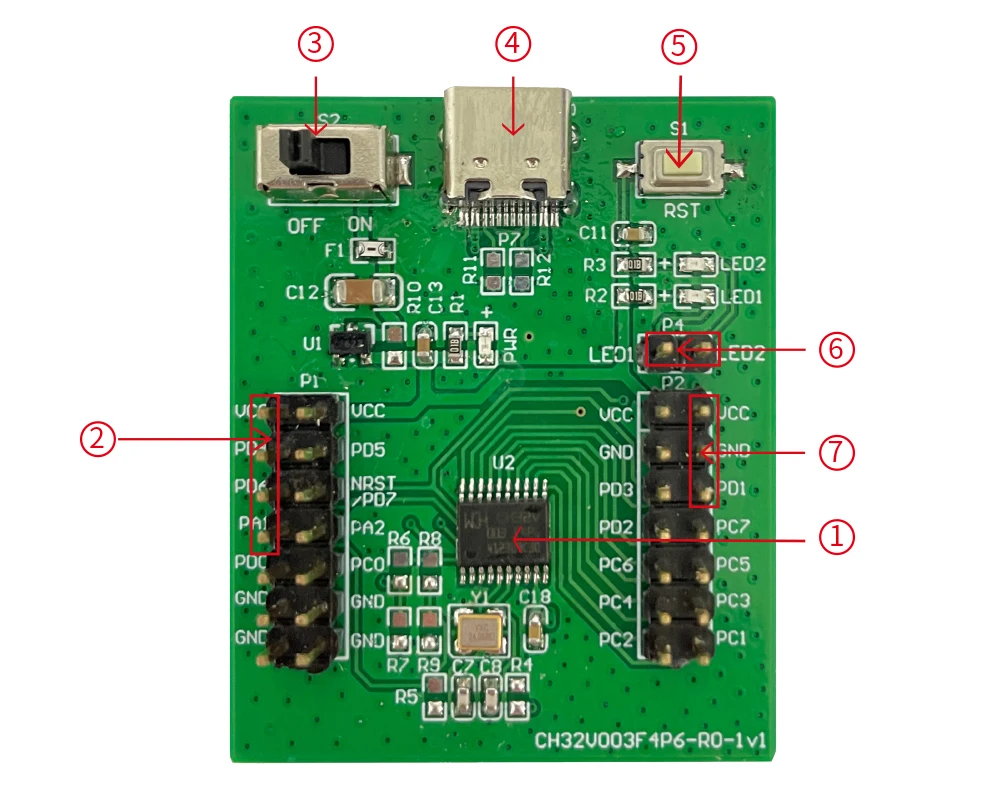

【CH32V003F4P6-EVT-R0】

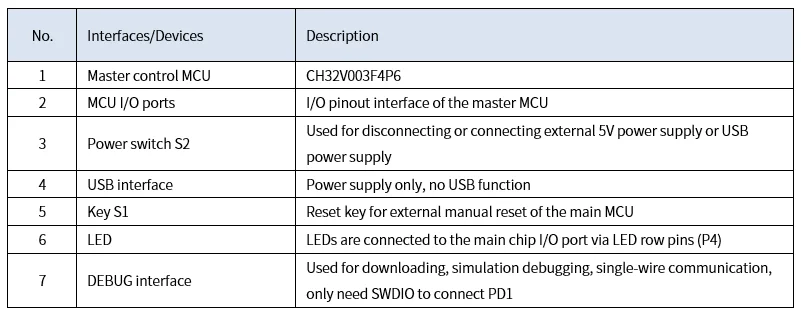

Description:

【CH32V203C8T6-EVT-R0】

Description:

4. Introduction to use

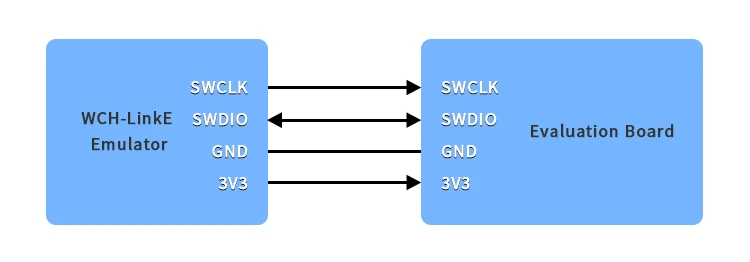

The evaluation board can be debugged and downloaded online via WCH-LinkE. The SDI connection is shown below.

When using SDI mode for program downloading and debugging, 4 lines are generally used, power line VCC, ground line GND, data line SWDIO, clock line SWCLK. the evaluation board of CH32V003F4P6 should use WCH-LinkE for downloading and debugging, single-wire communication, only SWDIO is needed to connect PD1, SWCLK is not used.

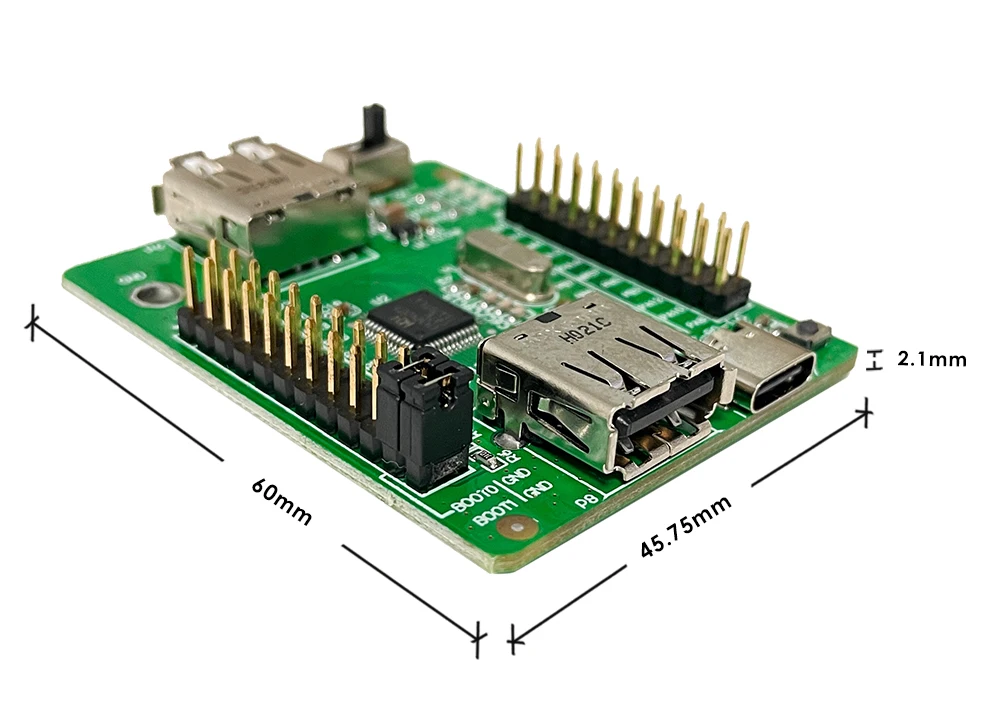

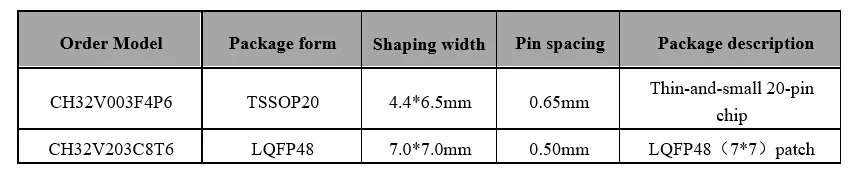

5. Cardboard size

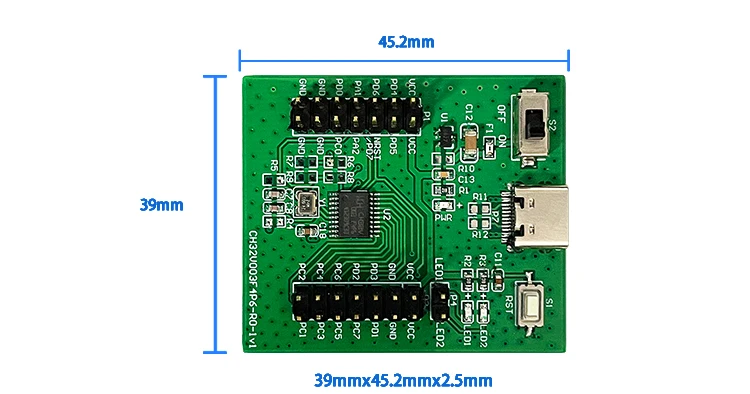

【CH32V003F4P6-EVT-R0】
