CrowPanel- 7.0 Inch Smart Graphic 800x480 RGB SPI TFT LCD Module Touch Screen Display ESP32 for Arduino MicroPython

7inch ESP32 HMI Display: Your new option, rather than CYD(cheap yellow display)

CrowPanel ESP32 Display 7.0-inch module is a powerful HMI touch screen with an 800*480 resolution LCD. It uses the ESP32-S3-WROOM-1-N4R8 module as the main control processor, with a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth-compatible wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenes.

The module includes a 7.0-inch LCD display and a driver board. The display screen uses a capacitive touch technology, and the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library, supporting openHASP.  Additionally, it provides 16 learning tutorials(https://www.youtube.com/watch?v=EYwEfrTWXyY&list=PLwh4PlcPx2GcKJ17Z_xcAxQoh-Tmms_X1)and a wealth of open-source learning materials. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.

The CrowPanel ESP32 Display 7.0-inch module is suitable for a wide range of scenes such as automotive HMI, medical equipment, smart home, industrial control, power, civil electronics, home automation, new energy, and IoT application devices.

Its various interfaces and expansion functions enable it to meet the needs of different fields, providing users with a more comprehensive solution.

Note: The version with the case needs to be assembled by the user.

Support multiple development environments.

It supports a variety of development environments such as Arduino IDE, Espressif IDF, PlatformIO, and Micro Python, to meet the needs of different developers and make every project possible.

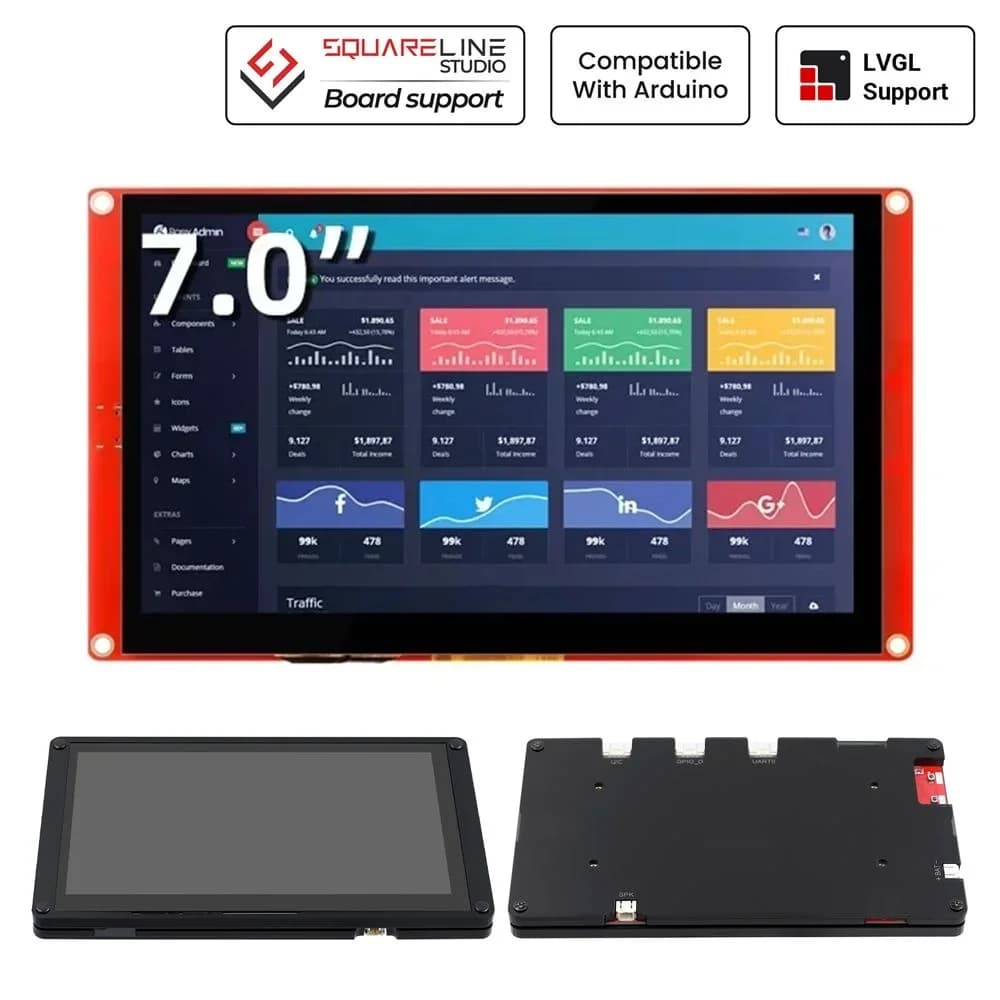

Support open-source Graphics Library-LVGL

It supports the LVGL graphics library. You can design a variety of UIs.

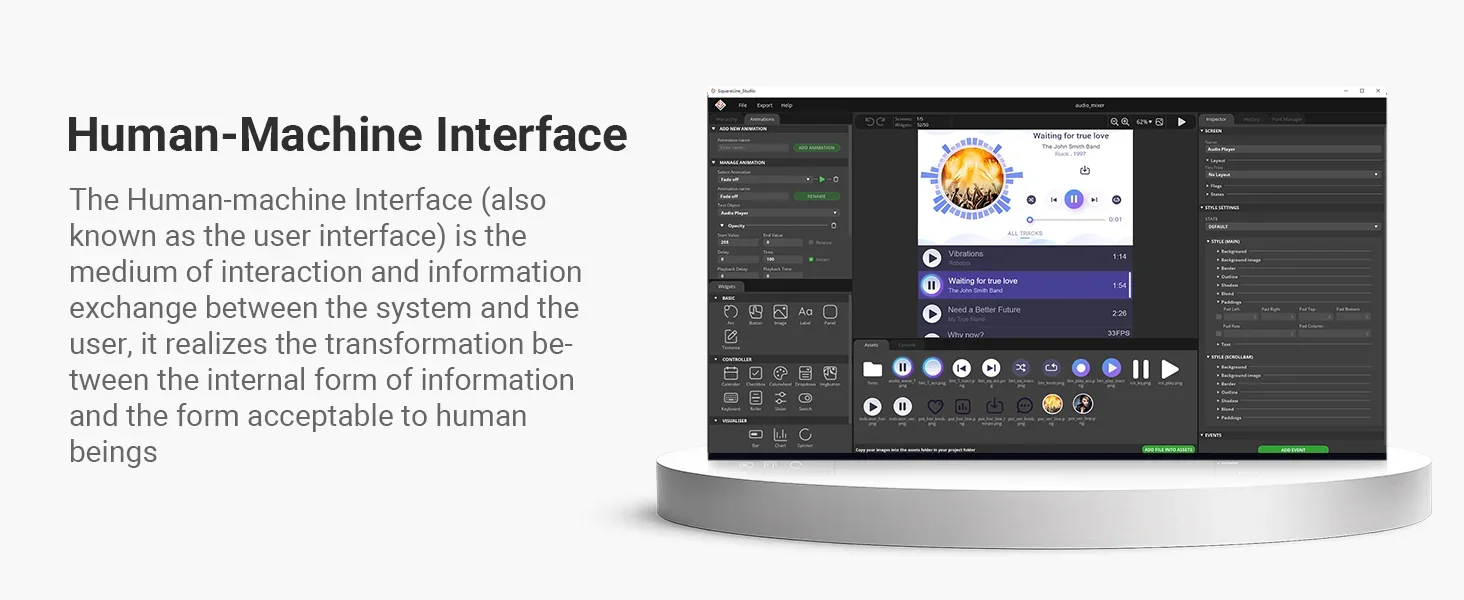

Human-Machine Interface

With Human-Machine interface, you can use SquareLine Studios to design and implement your own LVGL UI and export ready-to-use projects with one click.

Squareline Vision has entered BETA, sign up (https://vision.squareline.io/) now to get 40% off all licenses. https://vision.squareline.io/

Application Scenario

It is suitable for various scenes such as automotive HMI, medical equipment, smart home, home automation, industrial control, civil electronics,  and IoT application devices.

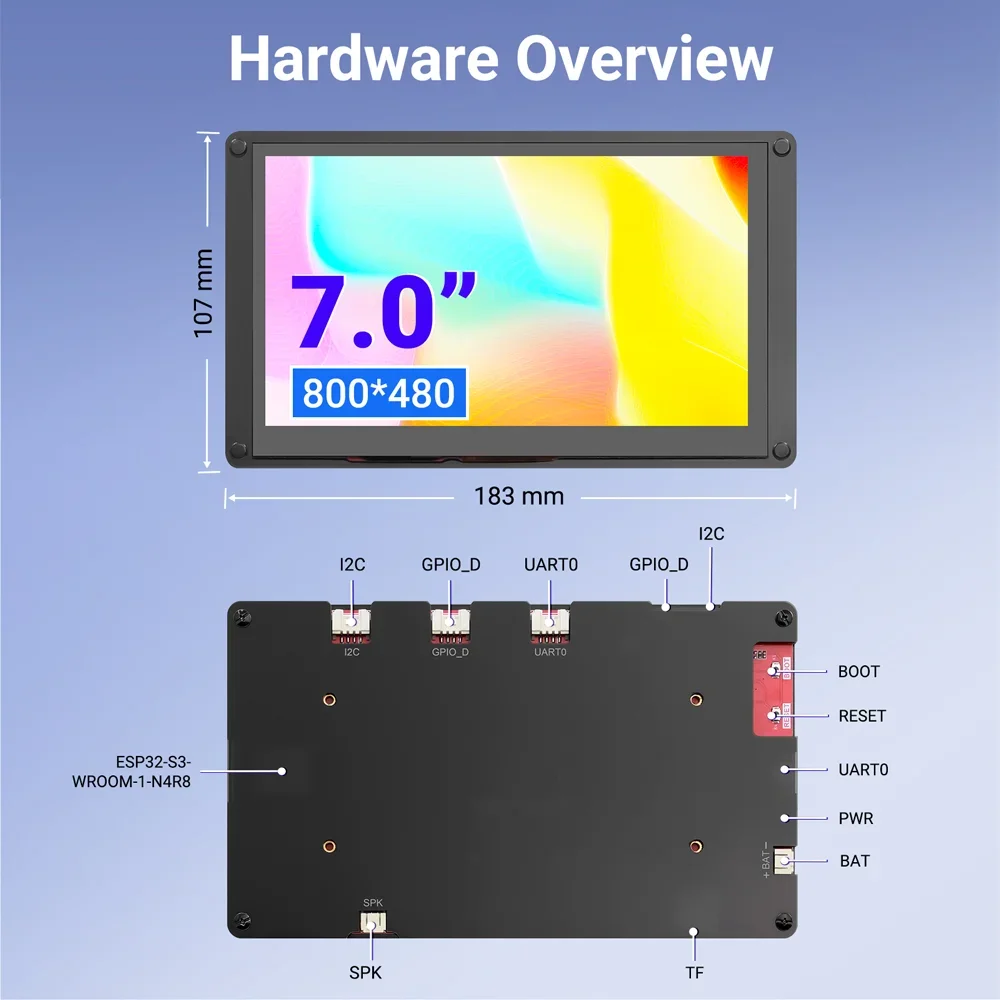

Hardware Overview

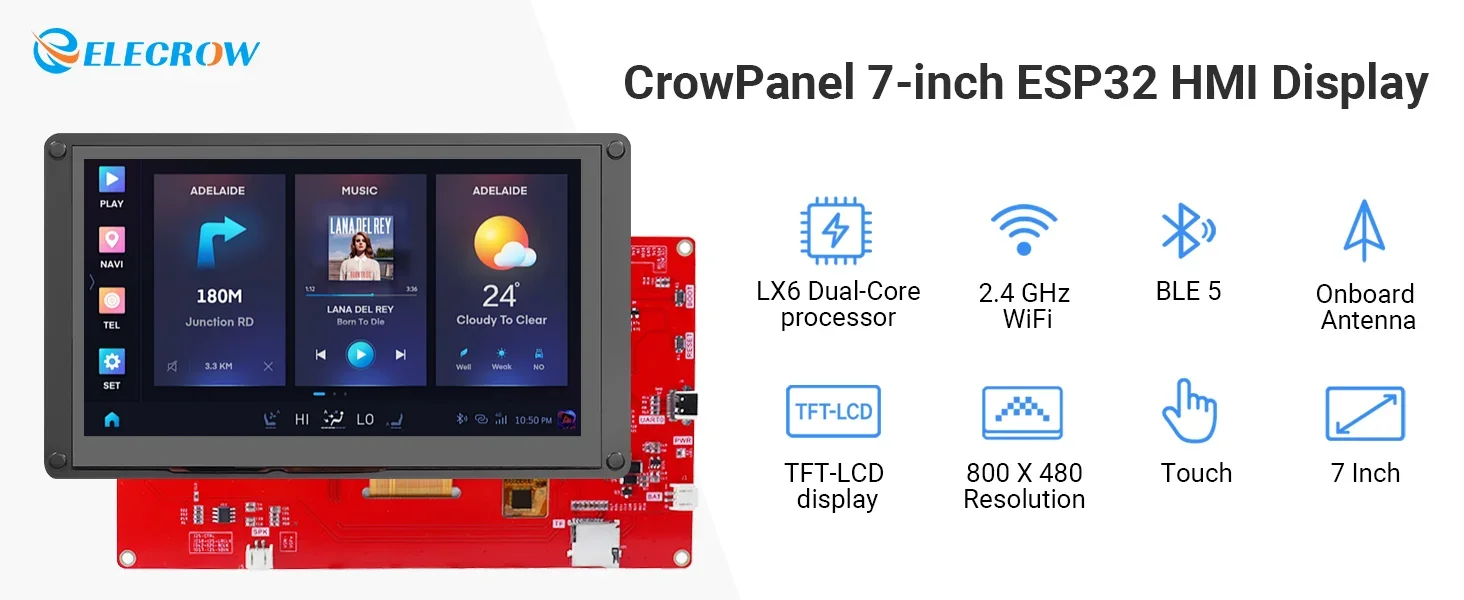

Feature

Integrated ESP32-S3 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;

Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro Python and compatible with LVGL graphics library;

Built-in LVGL demo interface and Arduino example, plug and play;

LCD 800*480 7.0 inchesCapacitive TFT-LCD with driver IC EK9716BD3 + EK73002ACGB;

Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.

Specification

Model: 7.0 inch -CrowPanel ESP32 display

Main Processor: ESP32-S3-WROOM-1-N4R8

Resolution: 800*480

Flash: 4MB

PSRAM:8MB

Touch Type: Capacitive Touch Screen

Display Type: TN Panel

Screen: TFT-LCD Screen

Display driver: EK9716BD3 & EK73002ACGB

External power supply: DC5V-2A

Battery voltage: 3.7-4.2V

Interface: 2*UART0,2*GPIO,2*I2C,1*Battery

Button: BOOT Button and Reset Button

Active Area: 153.84*85.63mm(W*H)

Working Temperature: -20℃～70℃

Storage Temperature: -30℃～80℃

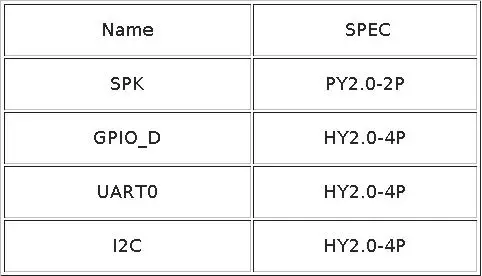

Pin Specification

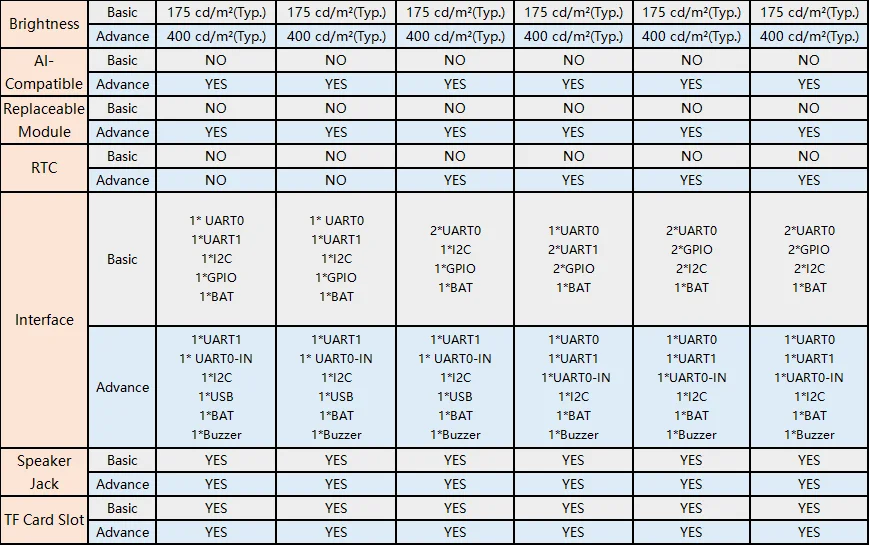

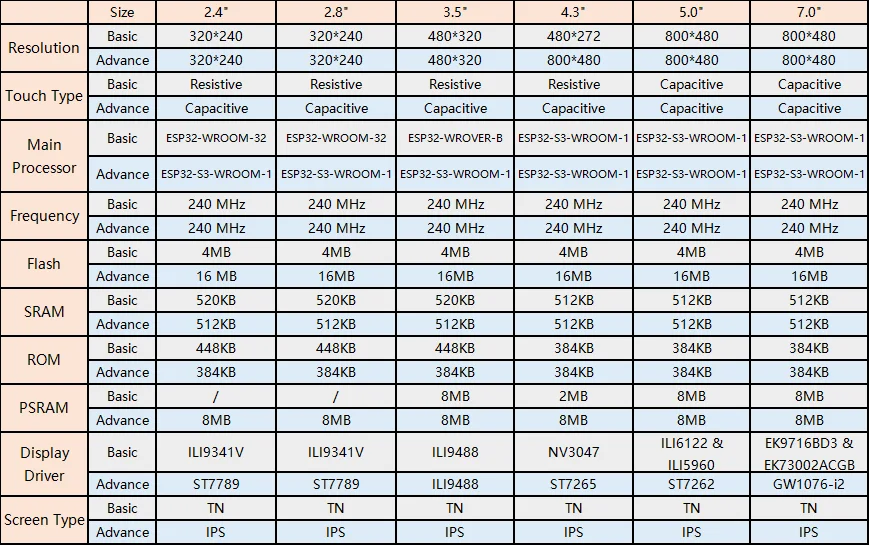

What's the difference between the CrowPanel Basic Series and Advanced?

Why Choose us?

As an industry-leading equipment manufacturer, we rely on our independently developed core technology and the production strength of our factories to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.

Package List

1x CrowPanel ESP32 Display 7.0 Inch Display

1x USB-A to Type-C Cable

1x Crowtail/Grove to 4pin DuPont cable

Wiki & Documents

Wiki of CrowPanel 7inch HMI Display (https://www.elecrow.com/wiki/esp32-display-702727-intelligent-touch-screen-wi-fi26ble-800480-hmi-display.html)

User Manual of CrowPanel 7inch HMI Display (https://www.elecrow.com/download/product/ESP32_Display/ESP32_Display_HMI_User_Manual.pdf)

Schematic Diagram of CrowPanel 7inch HMI Display (https://www.elecrow.com/download/product/ESP32_Display/7.0inch/ESP32_Dispaly_7.0_module-SCH+PCB_schematic.zip)

3D File of CrowPanel 7inch HMI Display (https://www.elecrow.com/download/product/ESP32_Display/7.0inch/3D_File_CrowPanel_7.0-ESP32_HMI-3.0.zip)

Tutorials of CrowPanel 7inch HMI Display (https://www.youtube.com/watch?v=EYwEfrTWXyY&list=PLwh4PlcPx2GcKJ17Z_xcAxQoh-Tmms_X1)

Specification of LCD (https://www.elecrow.com/download/product/ESP32_Display/7.0inch/LI0704122Z(800480-RGB)_specification.pdf)

ESP32-S3-WROOM-1 Datasheet (https://www.elecrow.com/download/product/ESP32_Display/7.0inch/esp32-s3-wroom-1_datasheet.pdf)

Outline Dimensions of CrowPanel 7inch HMI Display (https://www.elecrow.com/download/product/ESP32_Display/7.0inch/7.0inch_HMI_Outline_Dimensions.pdf)

LVGL Reference(https://www.elecrow.com/download/product/ESP32_Display/LVGL_Library.pdf)

openHASP Github (https://github.com/HASwitchPlate/openHASP)

CE Certificate (https://www.elecrow.com/download/product/ESP32_Display/CE_Certificate.pdf)

Post your tech questions in the forum (https://forum.elecrow.com/categories/display)
