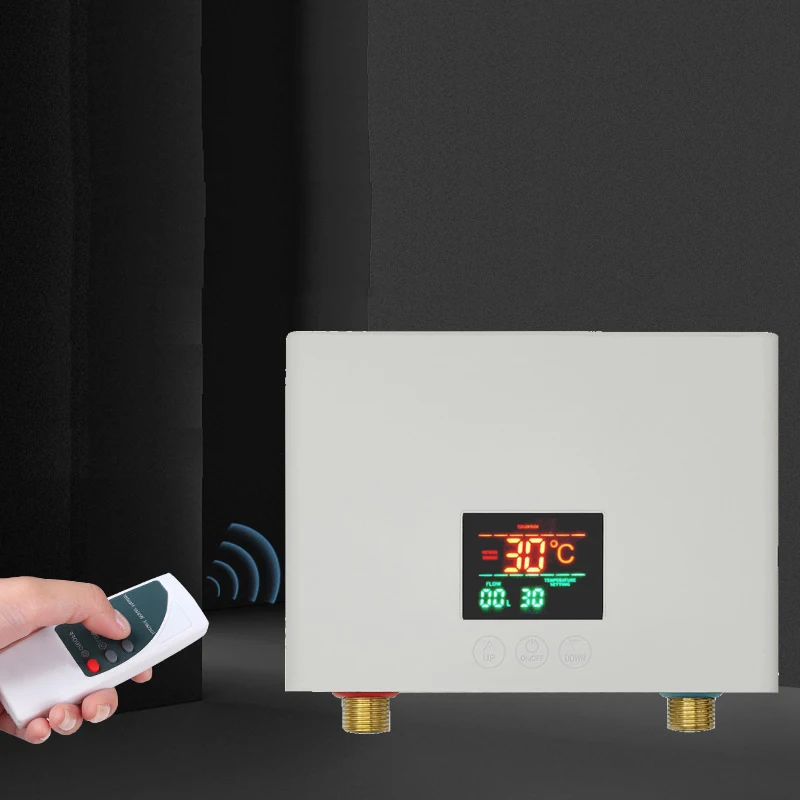

110V/220V Instant Water Heater 3000W/5500W Wall-Mounted Electric Heaters for Bathroom Hot Water Shower and Home Kitchen Heating

Please ensure that the water flow rate is kept within a reasonable range:

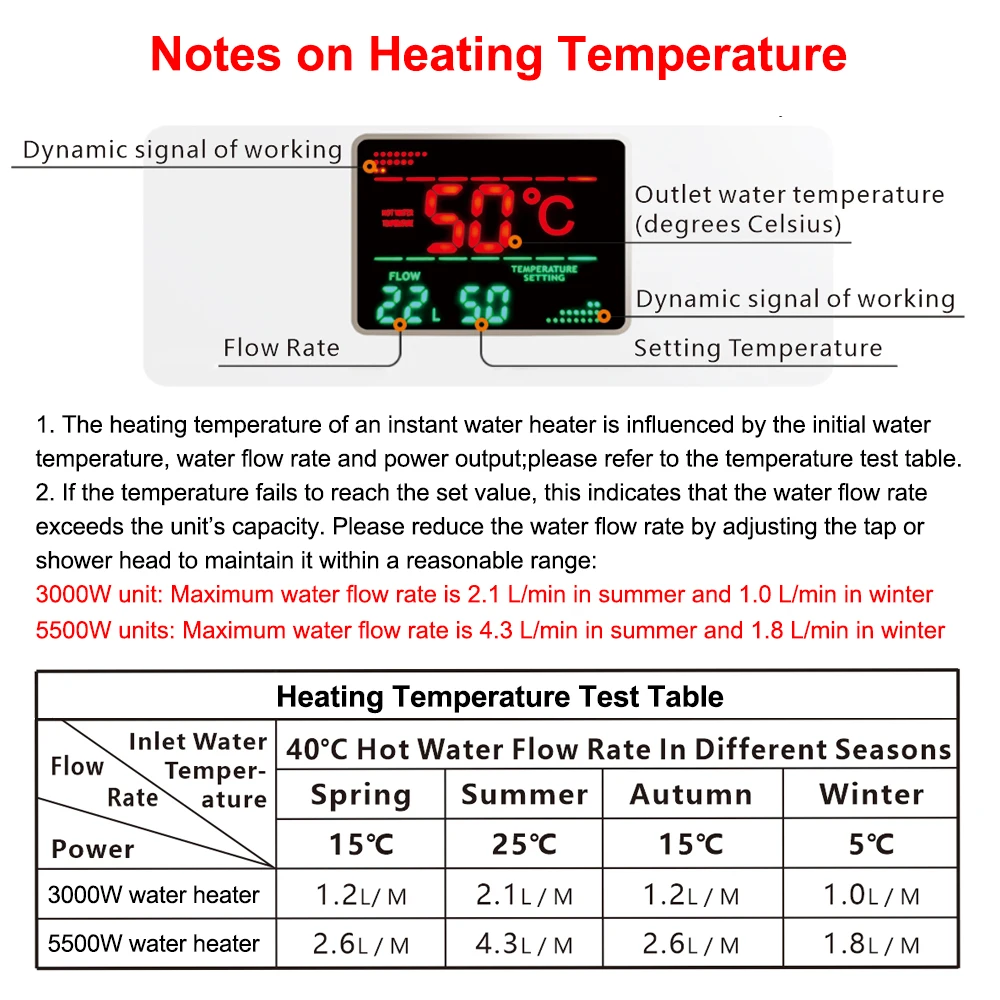

1. Instant water heaters do not have a built-in tank; their heating temperature is influenced by the inlet water temperature, water flow rate and power output. As the inlet water temperature and power output are fixed, please refer to the temperature test table and ensure the water flow rate is kept within a reasonable range; otherwise, the desired temperature cannot be achieved.

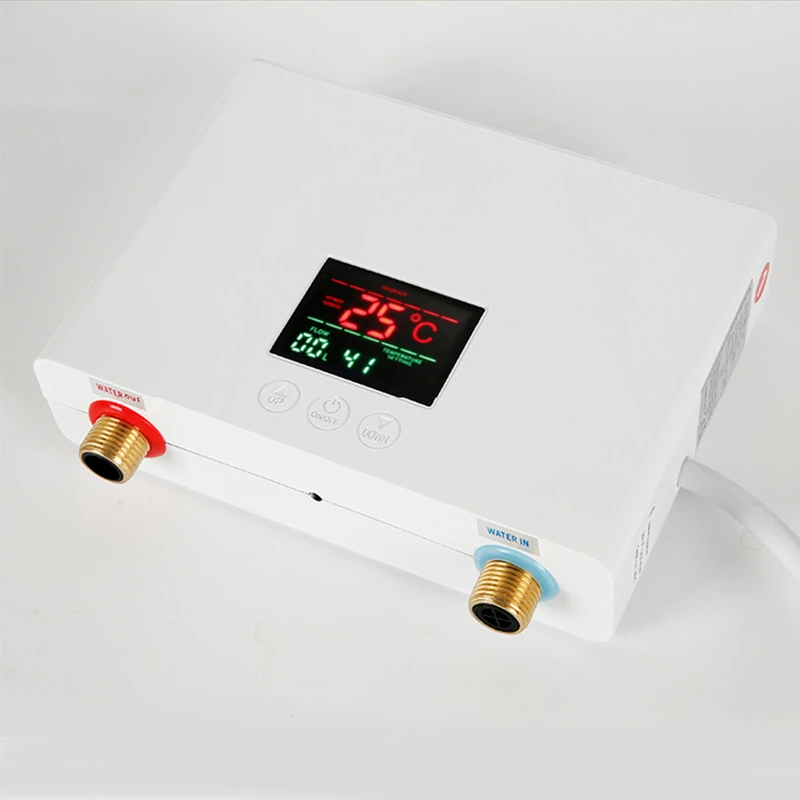

2. The current water flow rate is displayed in the bottom left corner of the screen. If the temperature fails to reach the set value, this indicates that the water flow rate exceeds the unit’s capacity. Please reduce the water flow rate by adjusting the tap or shower head to keep it within a reasonable range:

3000W model: Maximum water flow rate in summer is 2.1 L/min; maximum water flow rate in winter is 1.0 L/min

5500W model: Maximum water flow rate in summer is 4.3 L/min; maximum water flow rate in winter is 1.8 L/min

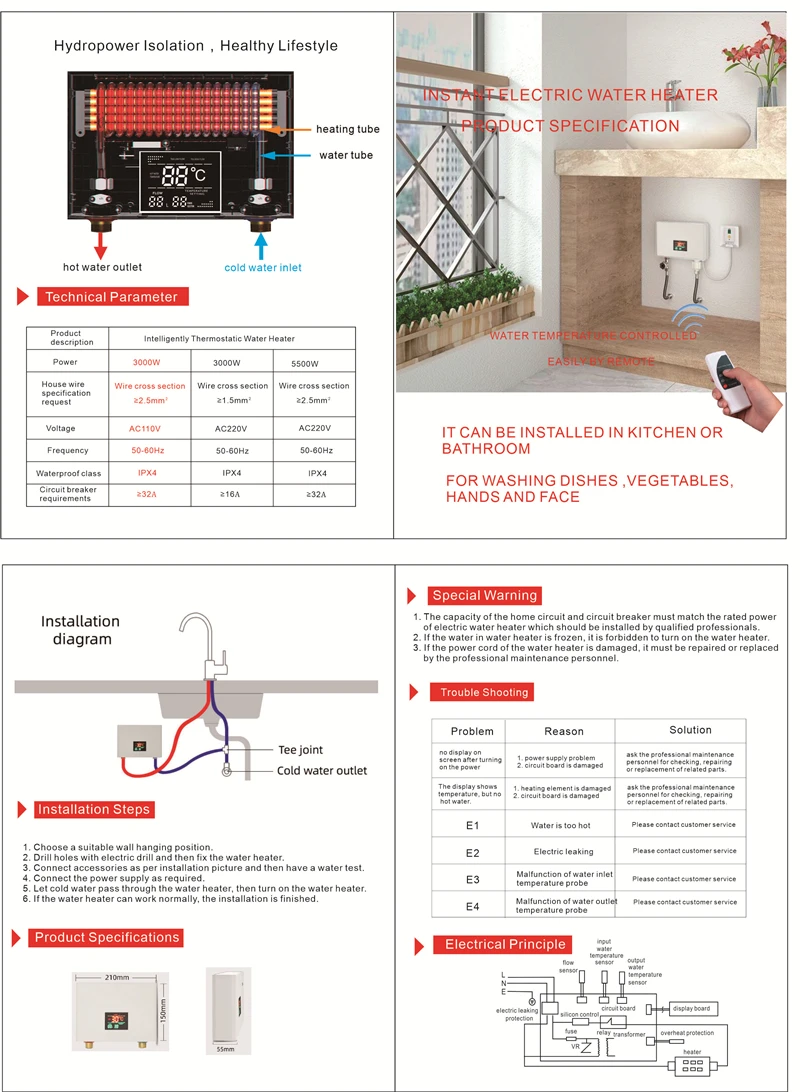

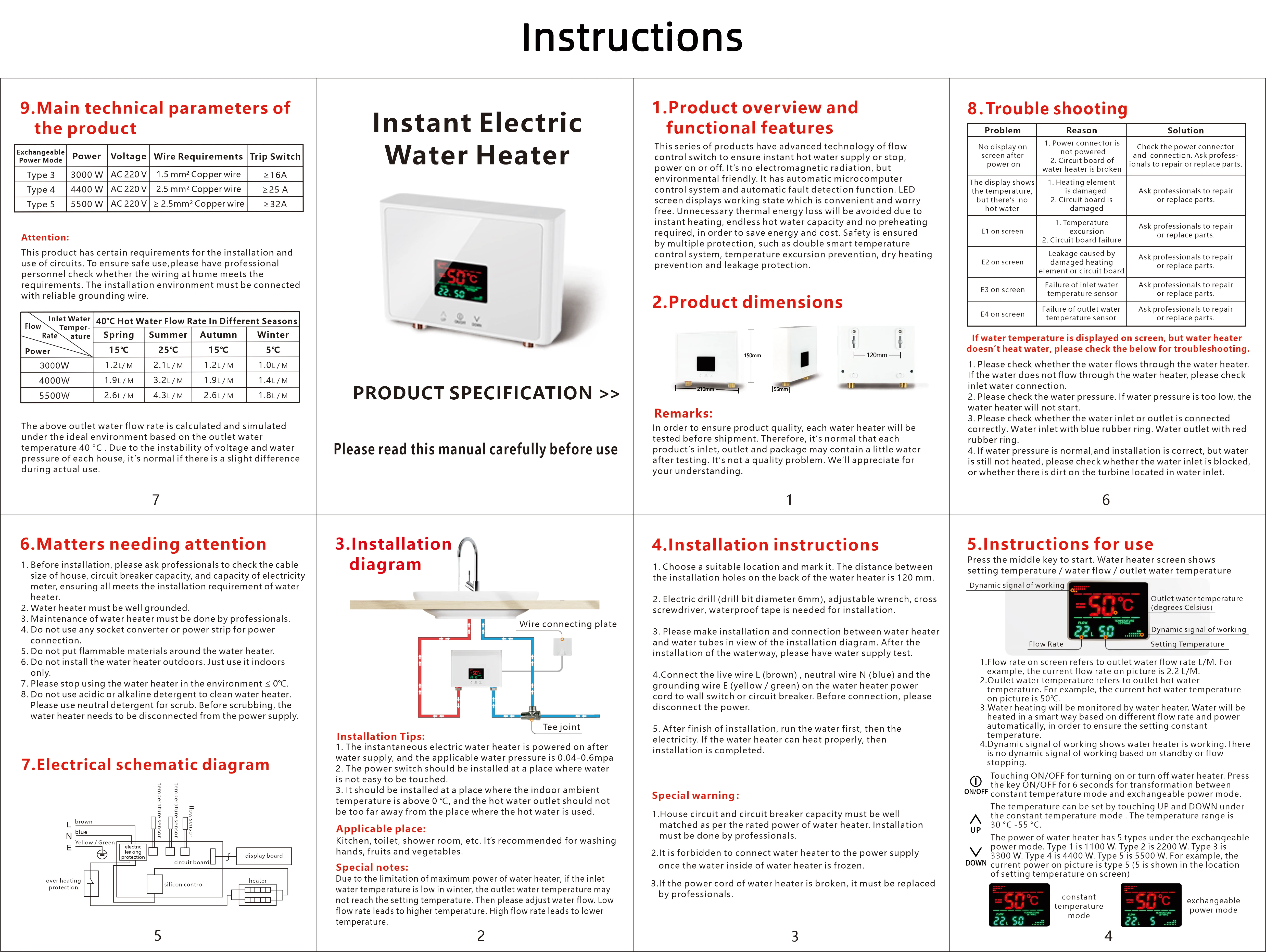

Regarding Water Pipe Installation:

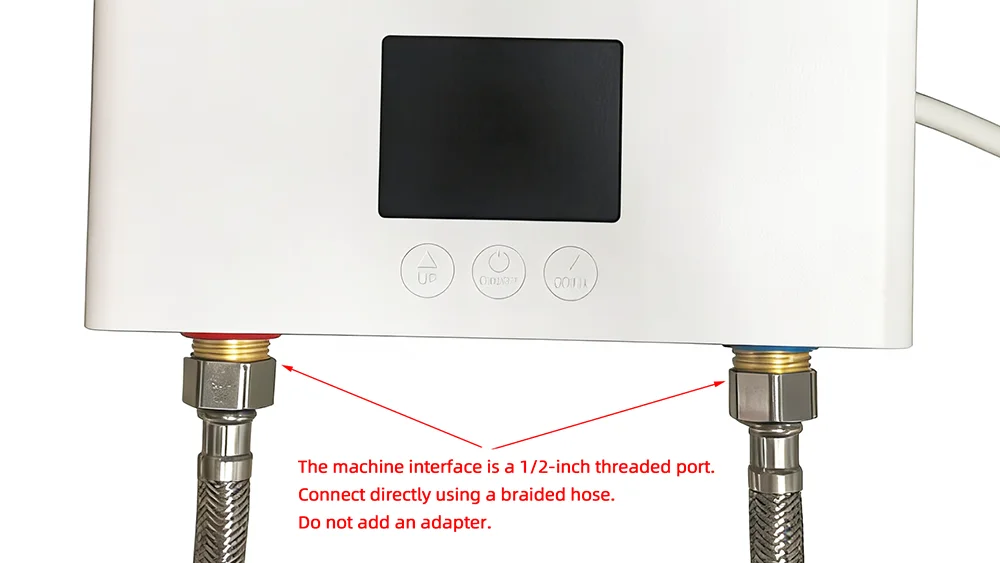

The heater's connection features a standard 1/2-inch threaded port. Water pipes should be screwed directly into this port. The use of adapters is strictly prohibited, as this may cause leaks.

Regarding installation environment specifications:

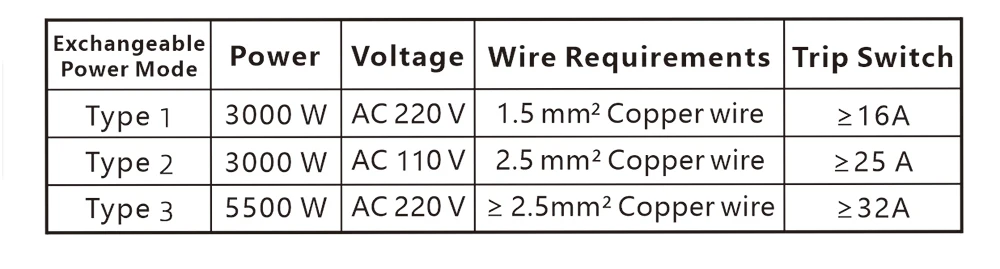

Different power ratings require distinct wiring specifications. The 110V 3000W unit necessitates 2.5mm² wiring, the 220V 3000W unit requires 1.5mm² wiring, and the 220V 5500W unit demands 2.5mm² wiring.

Regarding the display not lighting up after powering on:

This may be due to the machine’s overheating protection switch being triggered. After installation, please carry out a water circuit test first; only switch on the power once the test has been successful, otherwise the overheating protection may be activated.

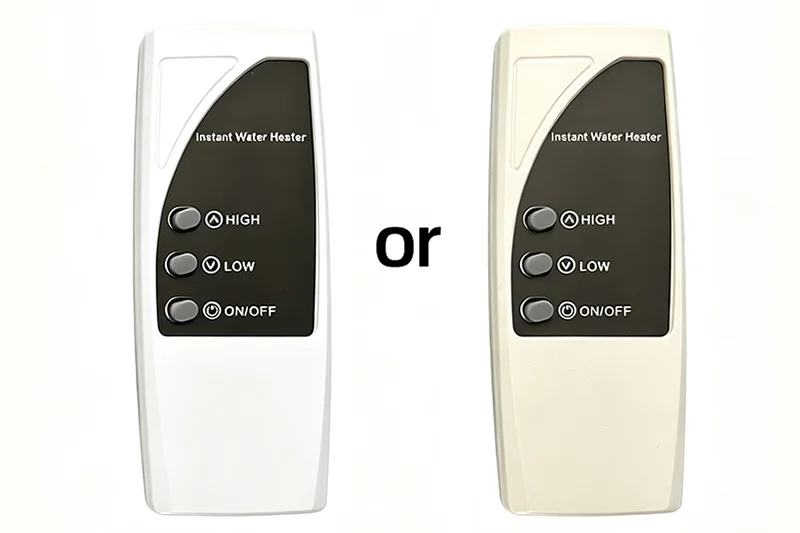

To make the product more environmentally friendly, we have changed the colour of the remote control casing to pale yellow. This does not affect its functionality; it is simply a different colour. White and pale yellow versions are dispatched at random.

Features:

1. It is a high-efficiency water heater with compact structure and can produce hot water quickly.

2. Fully automatic: open the water valve and start heating automatically; Close the water valve, stop heating and keep on standby

3. Two heating modes: custom temperature mode (30°C-55°C); Gear mode (1-3 gear or 1-5 gear)

4. Two operation methods: touch operation and remote control remote operation

5. Two power versions: 3000W (suitable for summer), 5500W (suitable for winter)

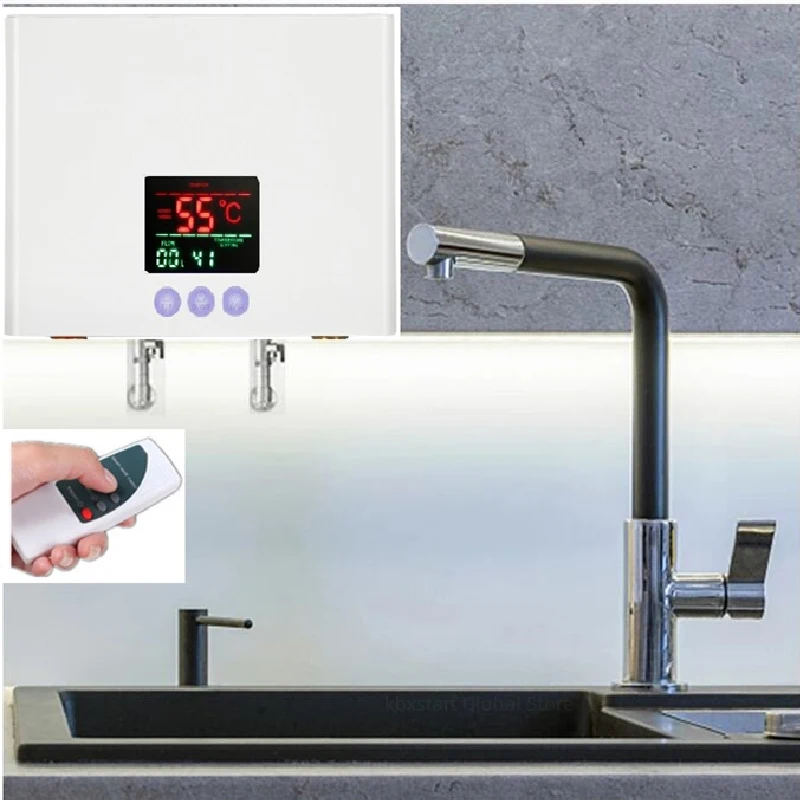

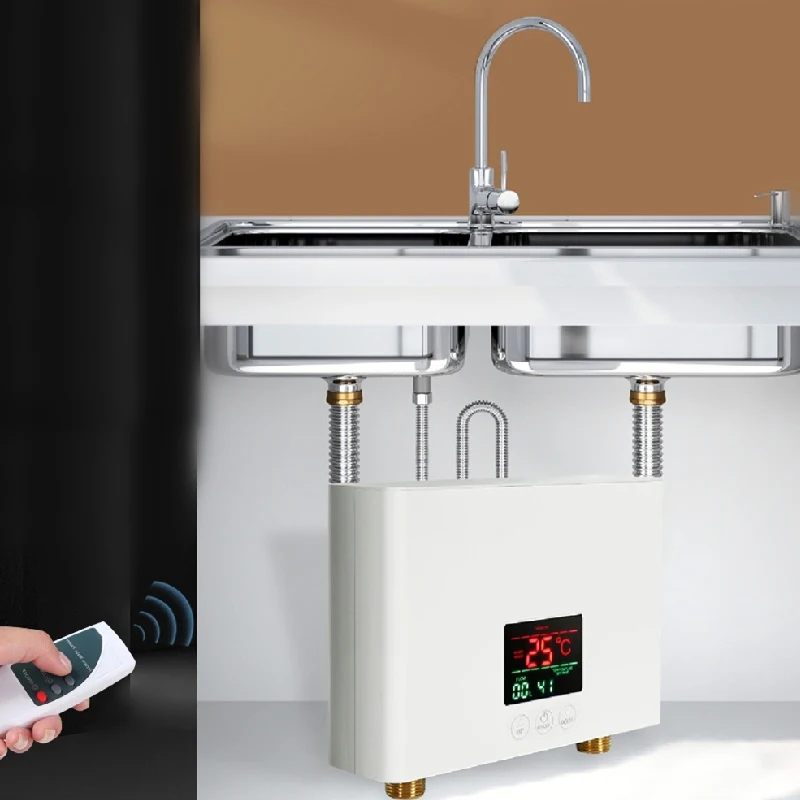

6. Suitable for use in the bathroom or kitchen, easy to install, easy to use and practical.

7. This is a safe heater, energy saving, water saving, no pollution, no exhaust gas

Specifications:

Model: LF-001

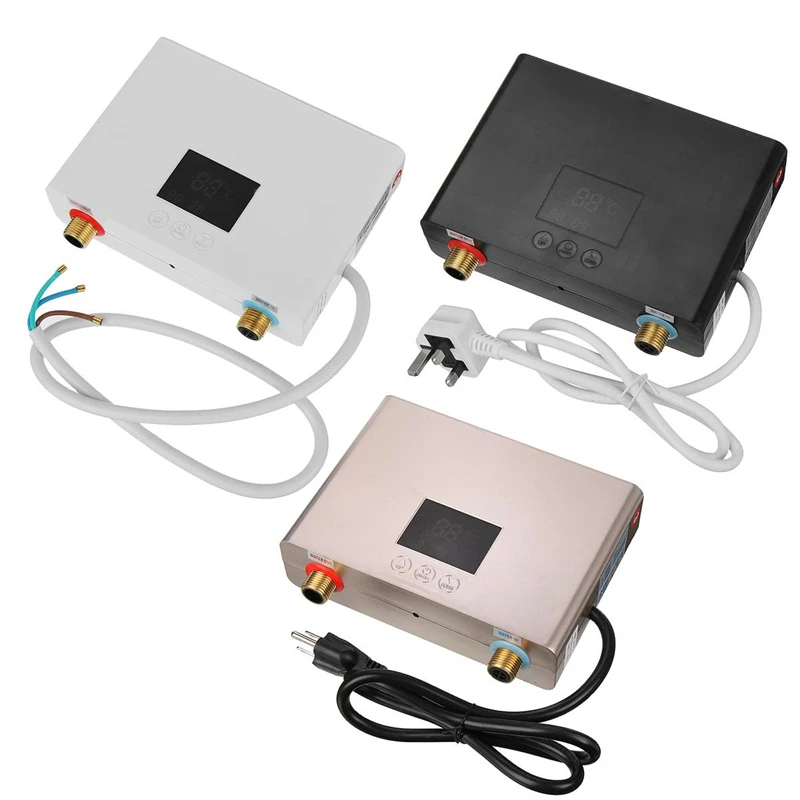

Color: White,Golden,Black

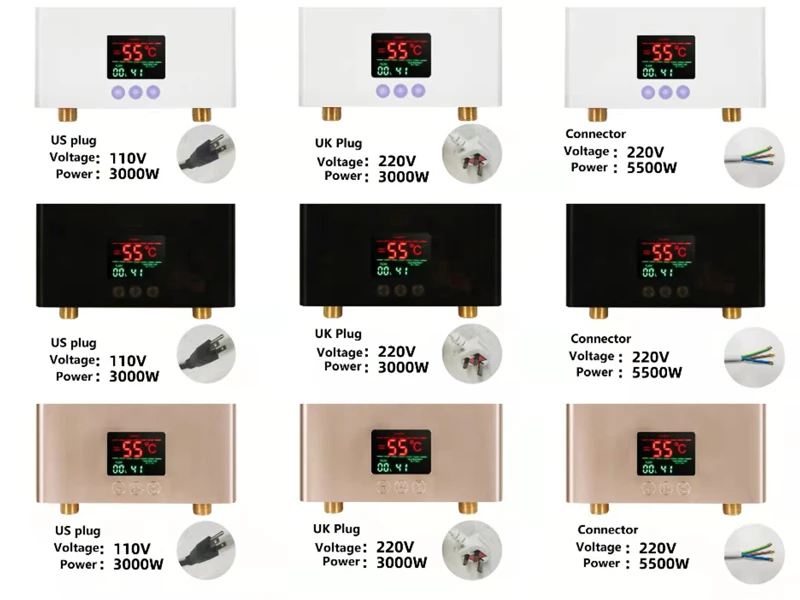

Voltage and power: 110V 3000W / 220V 3000W / 220V 5500W

Frequency: 50-60HZ

Temperature：30-55 ℃

Adjustable temperature:3 gear or 5 gear

Applicable water pressure: 0.04-1.2Mpa

Heating method: cast aluminum heater

Control method: touch + remote control

Waterproof: IPX4
