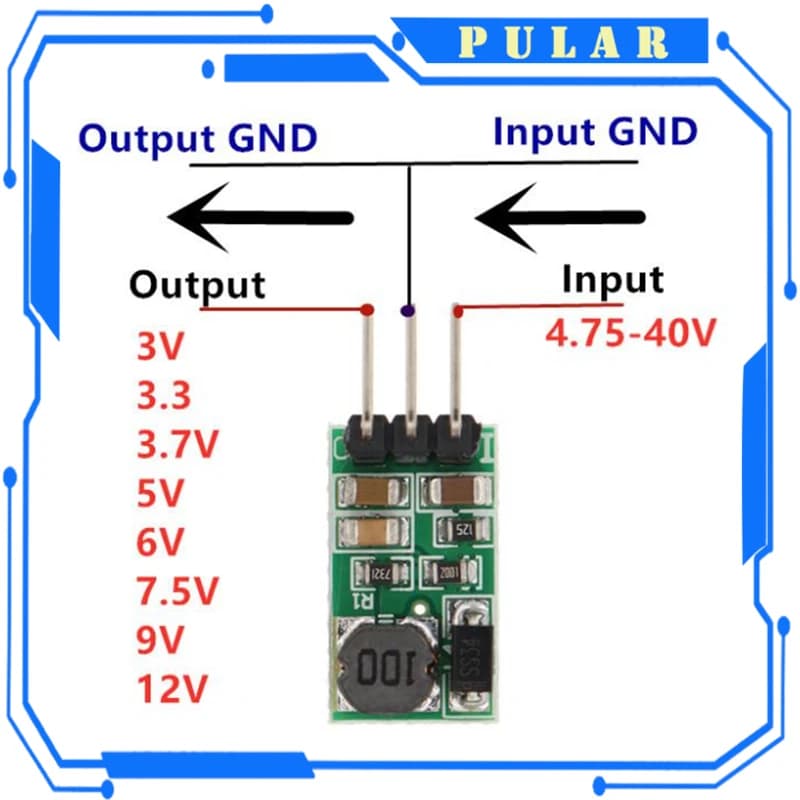

DD4012SA 1A DC 5-40V to 3V 3.3V 3.7V 5V 6V 7.5V 9V 12V Regulator DC-DC Step-Down Buck Converter Module Board

Need more and better product choices, please click on this link...... Description: Input voltage 5~40V,output 3.3V 5V Maximum output current 1A DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 76-90% . Quiescent current: about 1.5MA Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection. 2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly Excluding Pin Size 18.3mm x 10.2mm x 6.7mm ( small) Weight : about 1.3g (Very light) Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself Applications: 3.3V 5V MCU ARM CPU FPGA/CPLD 12V 5V TO 3.3V lithium battery-powered systems 3.3V Motor WIFI esp8266 Module CCTV camera Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee Smart home / home automation Distributed Power Systems Battery Charger Pre-Regulator for Linear Regulators �6�7 replace AMS1117-3.3 LM1117-3.3 1117 LDO
