OFW Mini OTDR Optic Otdr Optical Reflector Active Fiber Live Tester 1550nm 20dB Optical Reflectometer Touch Screen OPM VFL iOLA

OFW Mini OTDR Optic Otdr Optical Reflector Active Fiber Live Tester 1550nm 20dB Optical Reflectometer Touch Screen OPM VFL iOLA

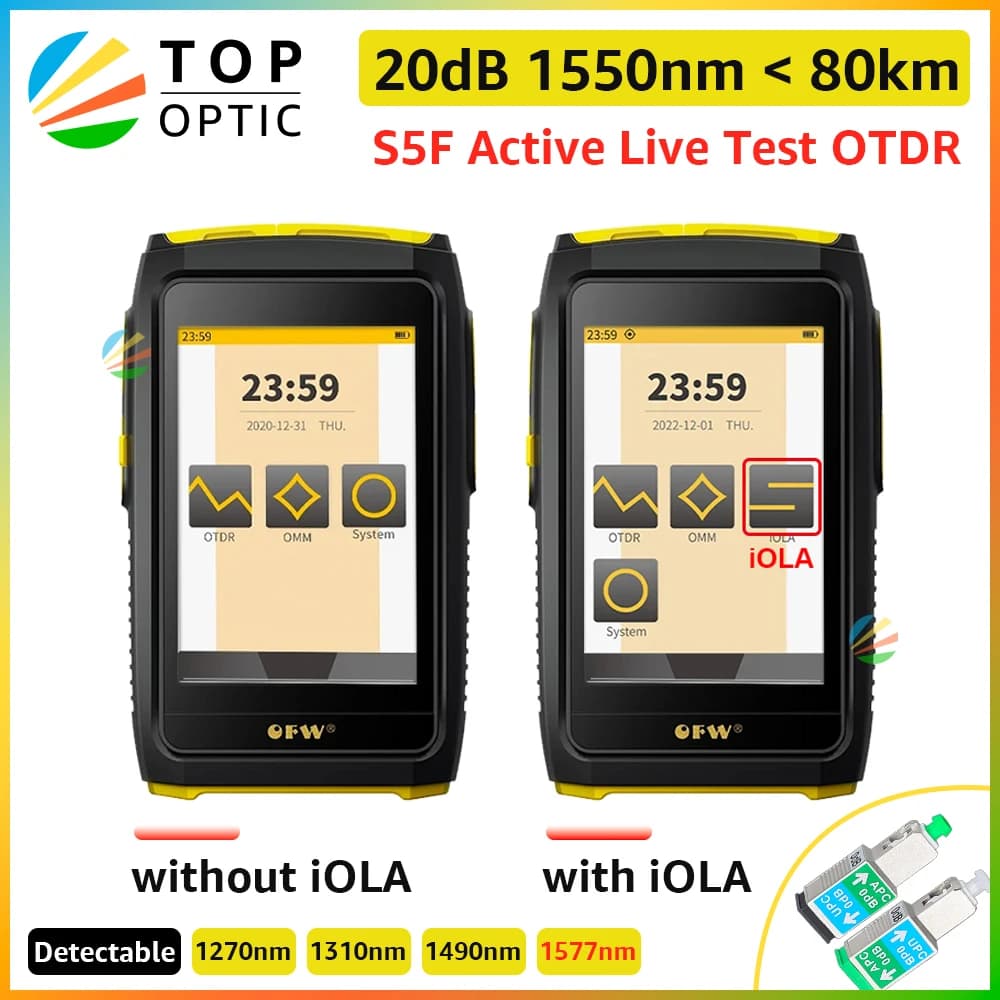

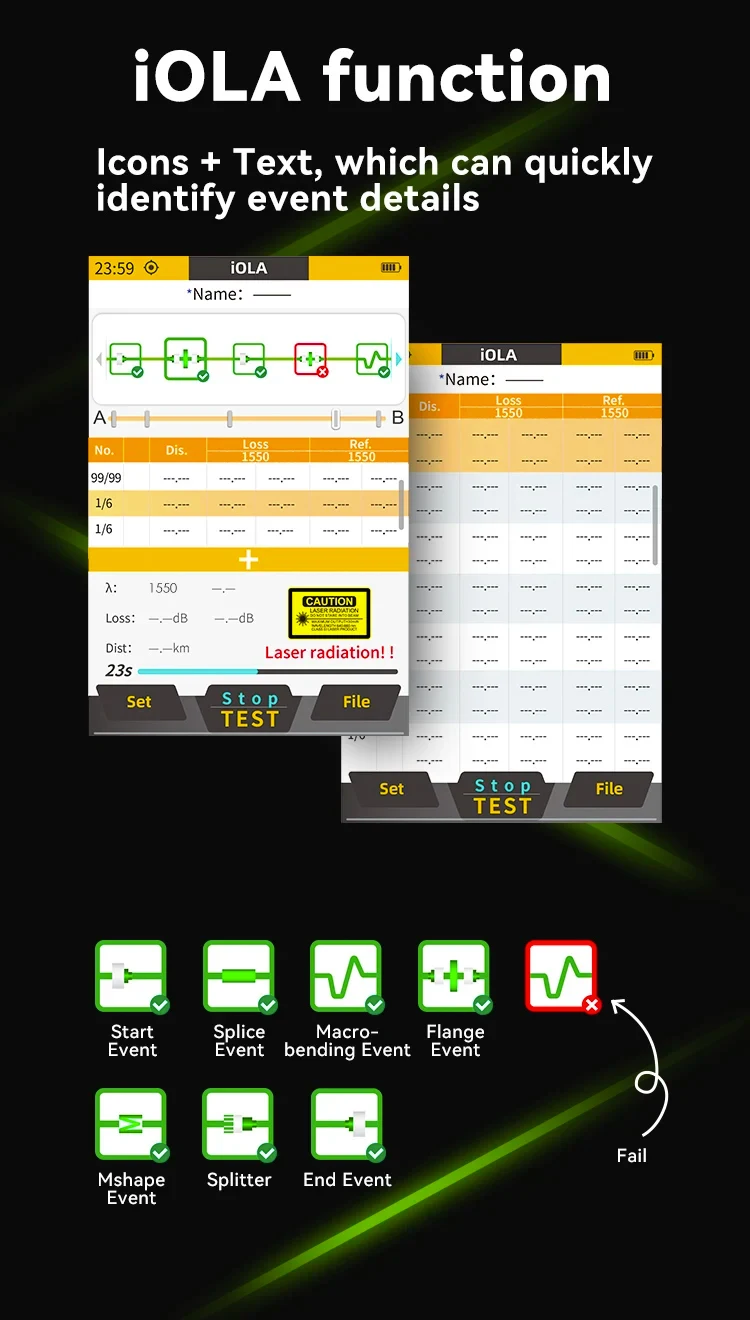

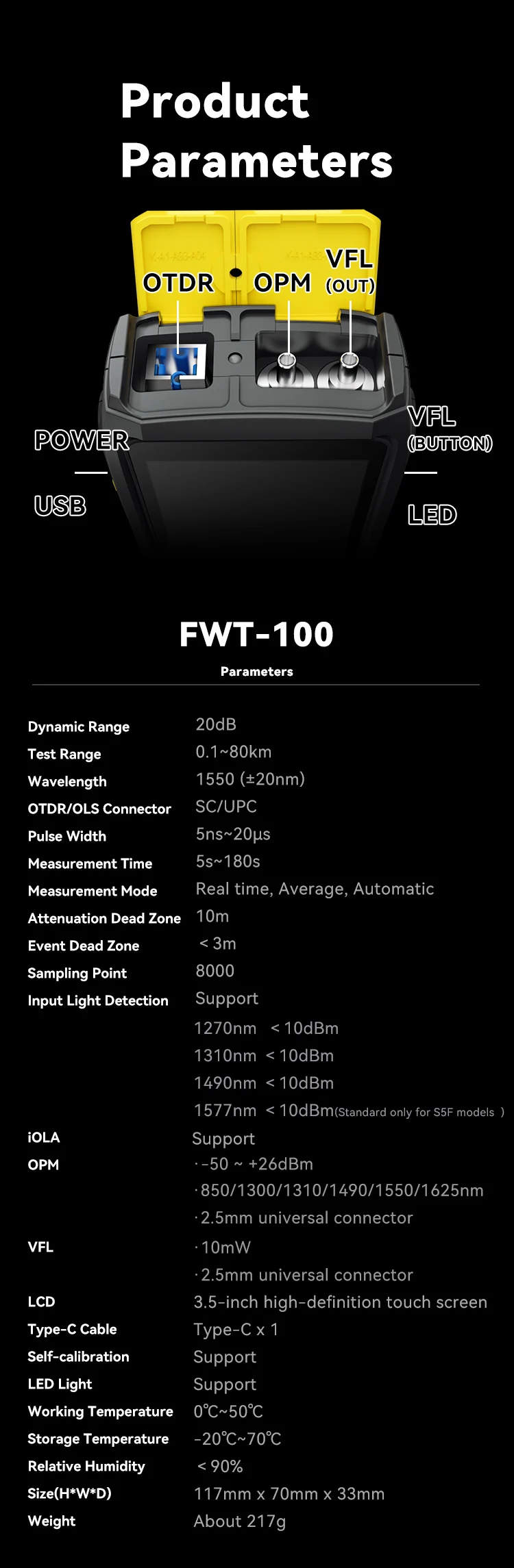

Model: FWT-100 without iOLA/with iOLA

Dynamic Range: 20dB

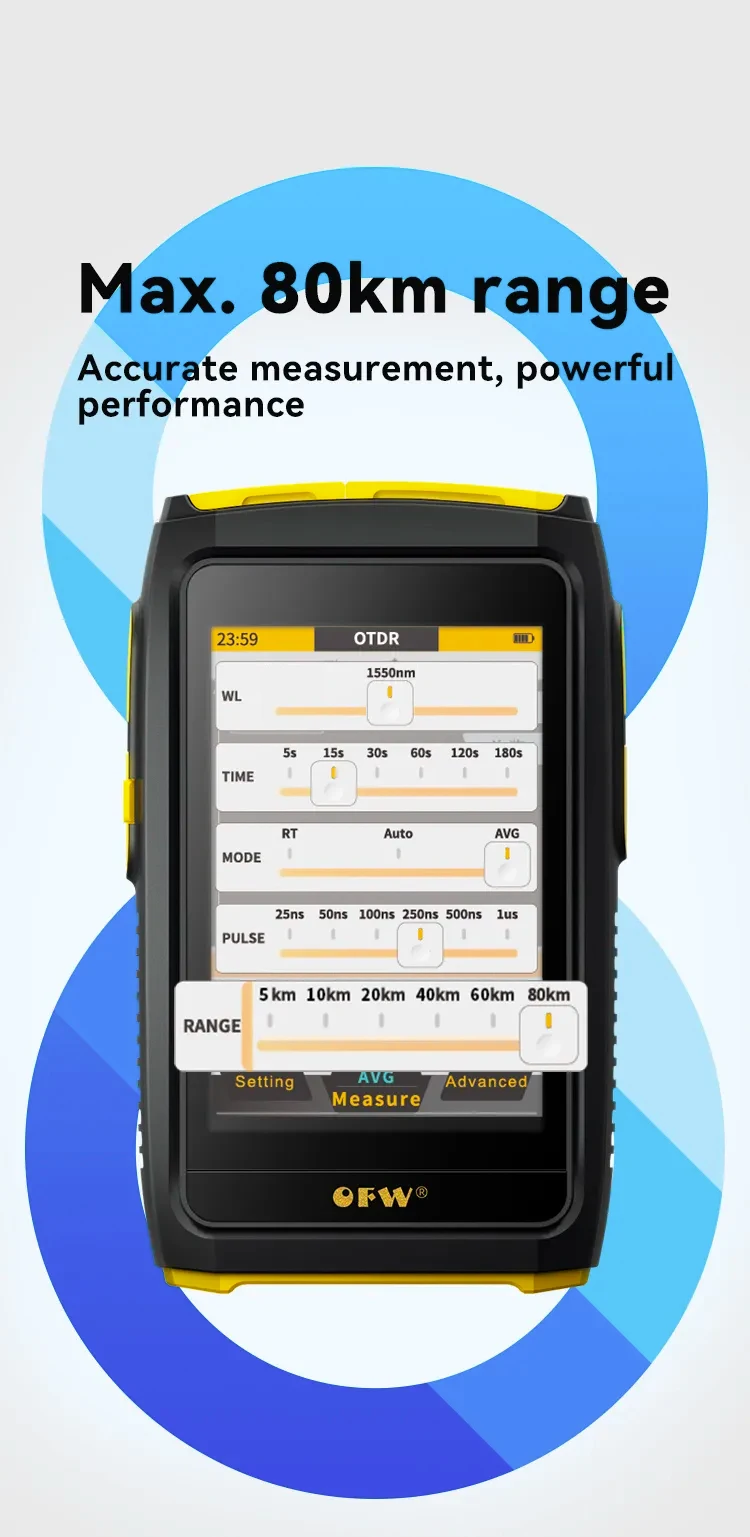

Test Range:100m~80km

Wavelength: 1550(±20nm)

OTDR/OLS Connector: SC UPC/APC

Pulse Width: 5ns~20μs

Measurement Time: 5s~180s

Measurement Mode: Real time, average, automatic

Attenuation Dead Zone: 12m

Event Dead Zone: ＜3m

Sampling Point: 8000

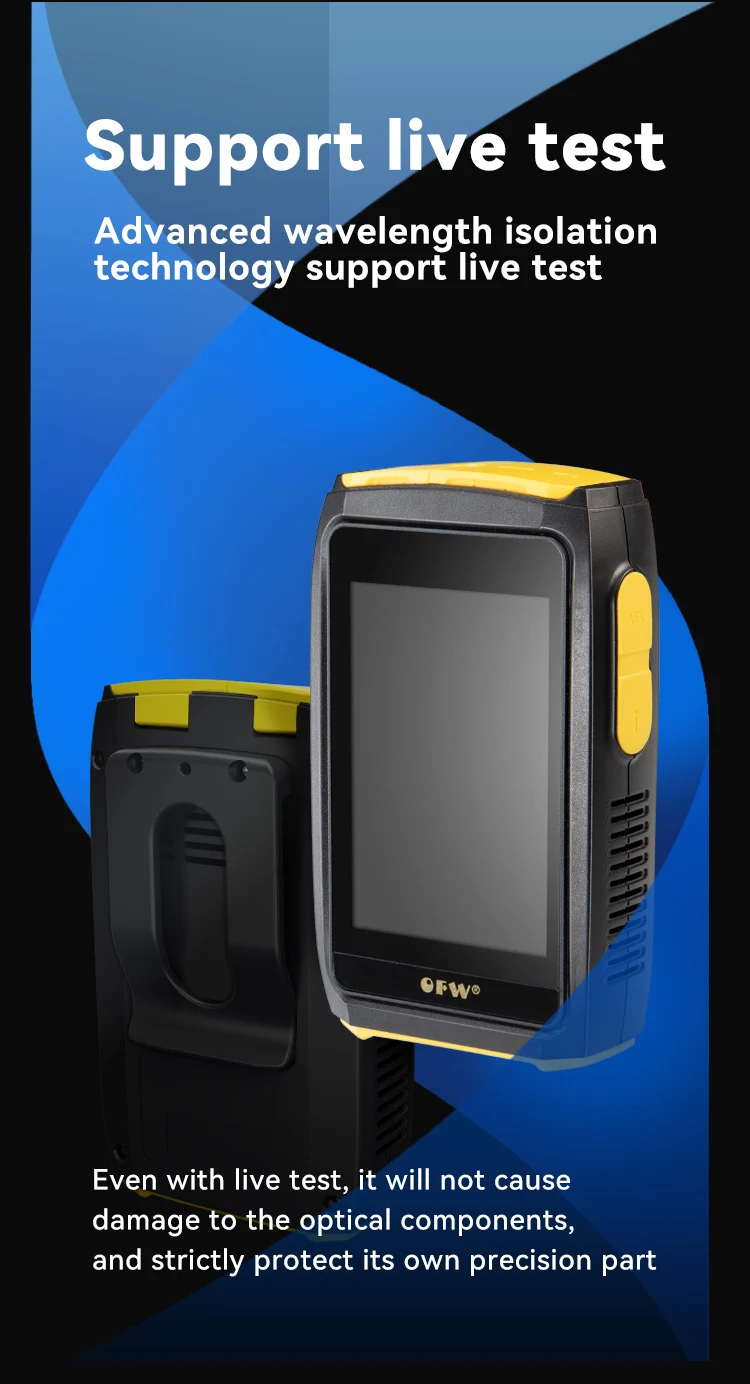

Input Light Detection: Support

Maximum allowable power for light test:

1270nm<10dBm

1310nm<10dBm

1490nm<10dBm

1577nm<10dBm

OPM: +26~-50dBm, 850/1300/1310/1490/1550/1625nm, 2.5mm universal connector

VFL: 10mW, 2.5mm universal connector

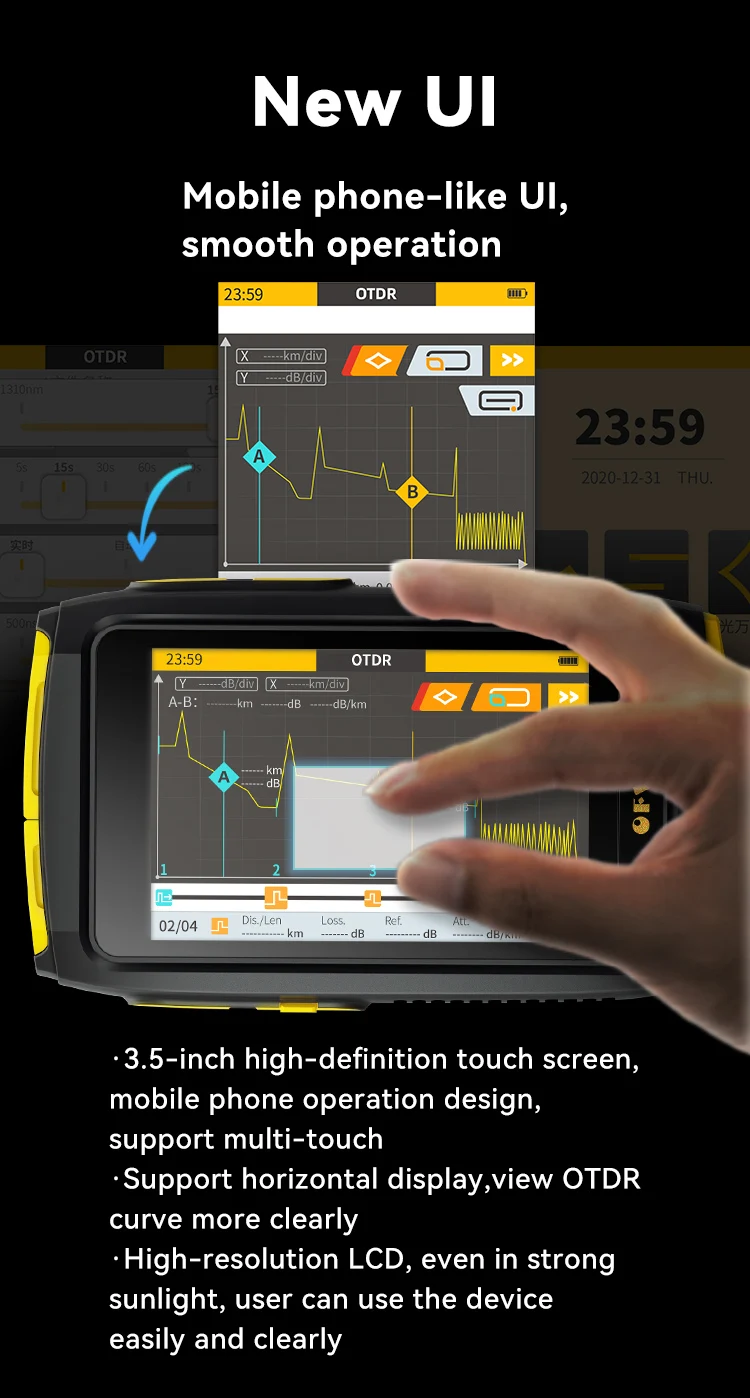

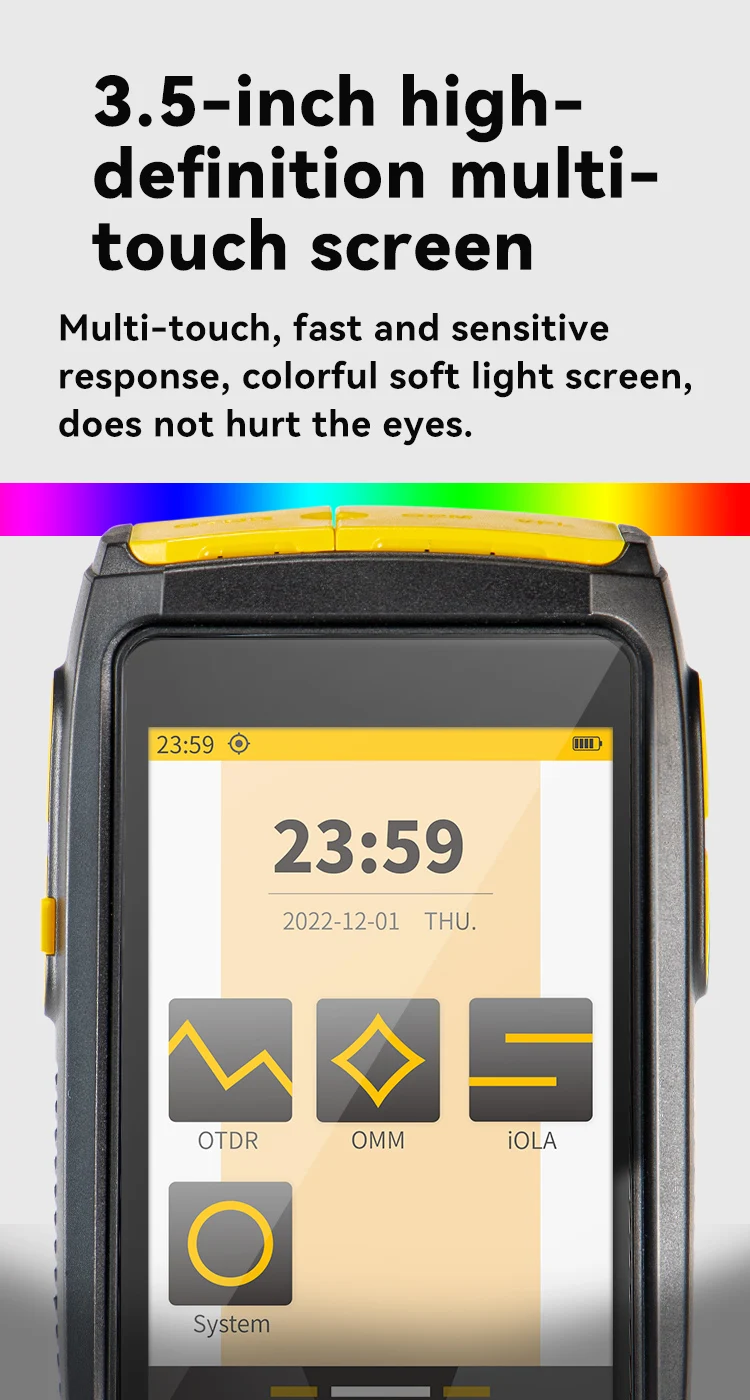

LCD: 3.5-inch high-definition touch screen

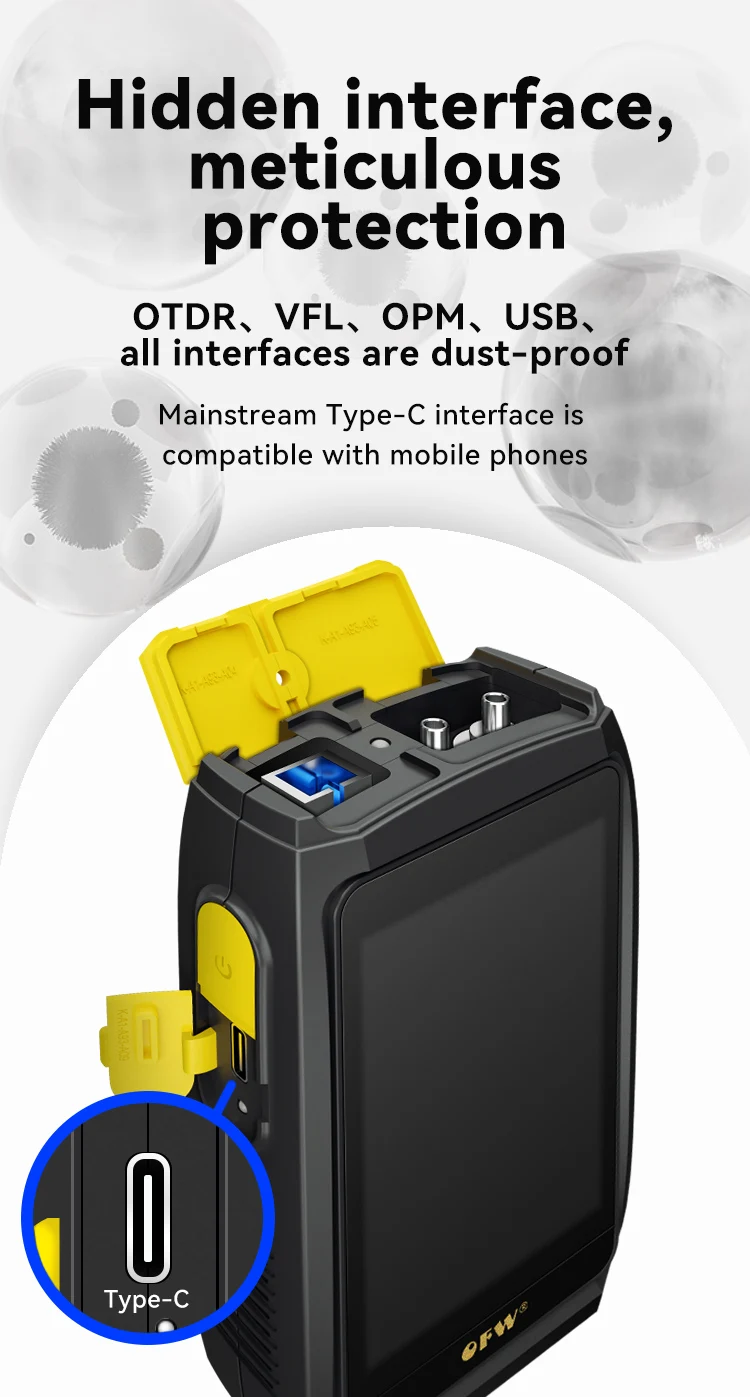

Type-C Cable: Type-C x1

Self-calibration Function: Support

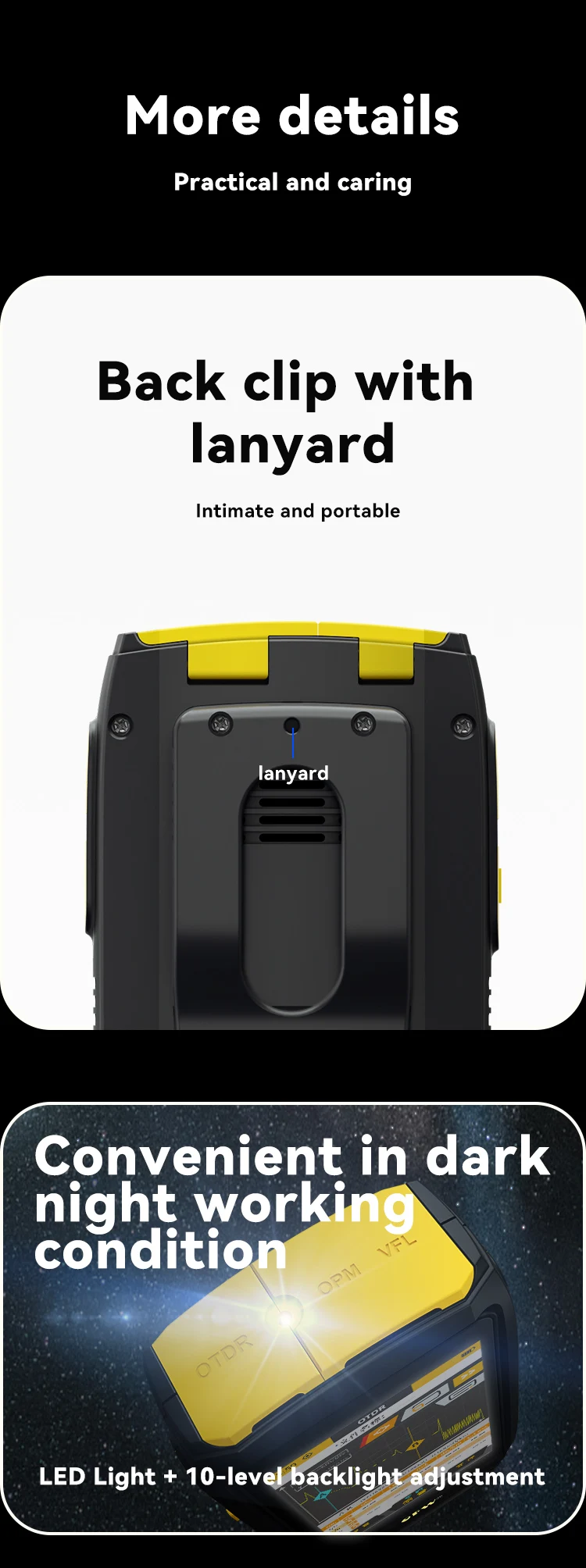

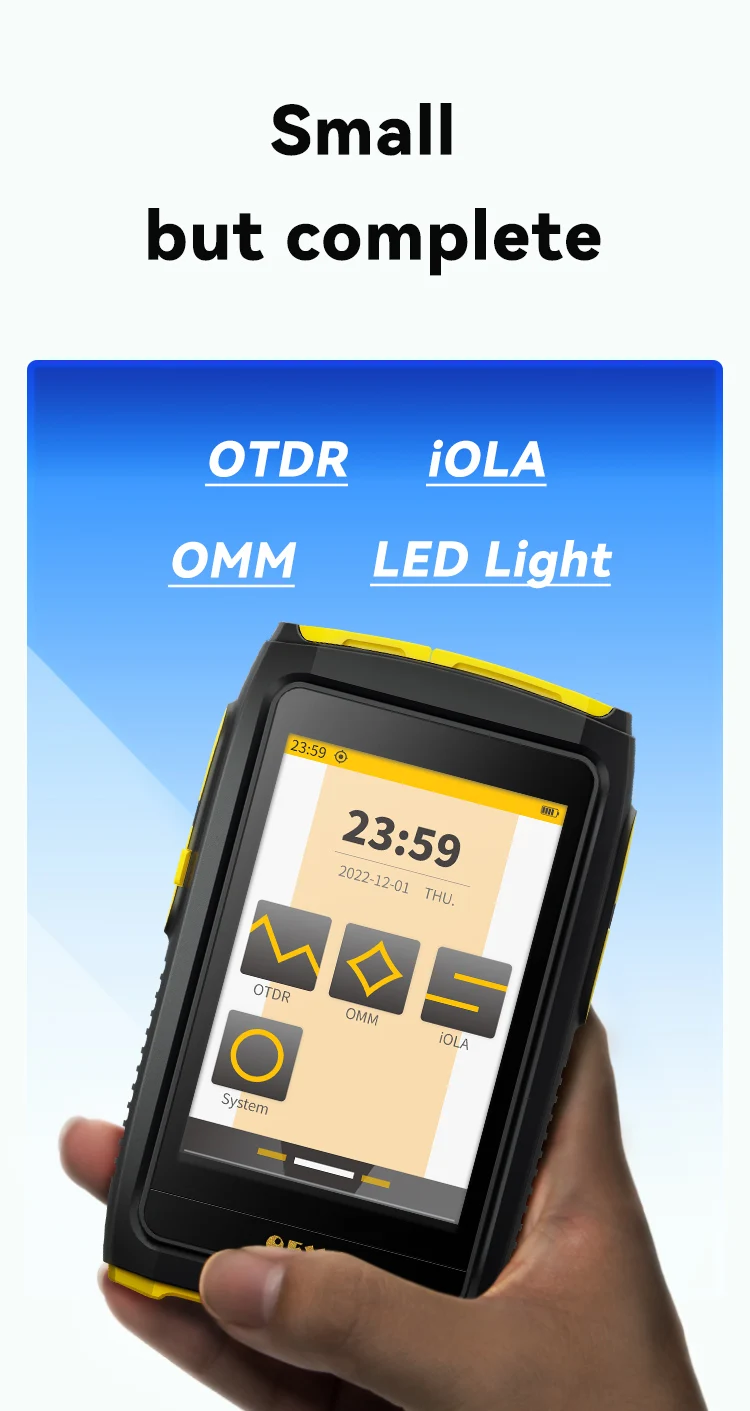

LED Light: Support

Working Temperature: 0℃~50℃

Storage Temperature: -20℃~70℃

Relative Humidity: ＜90%

Size(H*W*D): 117mm*70mm*33mm

Weight: 217g
