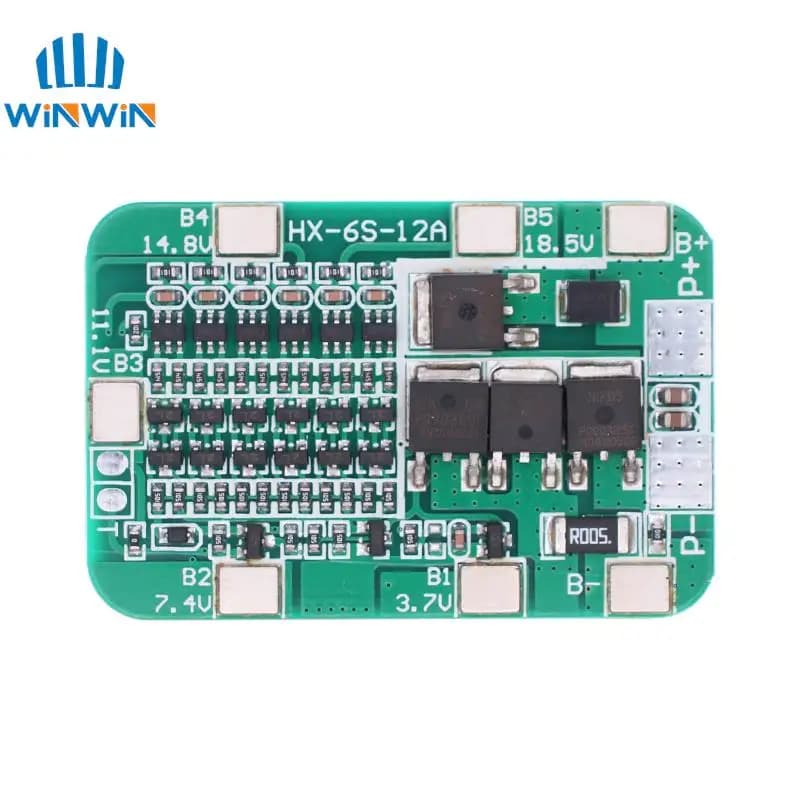

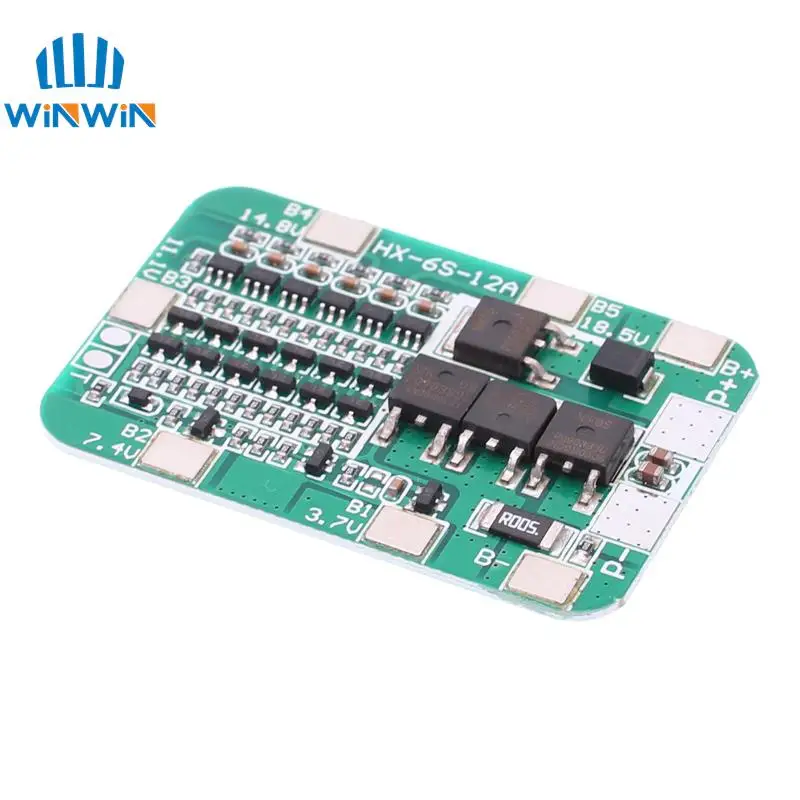

6S 15A 24V PCB BMS Protection Board for 6 Pack 18650 Li-ion Lithium Battery Cell Module DIY Kit

Brand new
Size: approx.50*30*2mm
Lampshift maximum discharge current: 15A
Instantaneous discharge current: 25A
Charging voltage: 25.5V
Charging current: 15A (MAX)
Overcharge detection voltage: 4.28 0.05V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08 0.05V
Over discharge detection voltage: 2.55 0.08V
Overdischarge detection delay: 0.1S
The overdischarge release voltage: 2.9 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9MS
Overcurrent protection current: 30 3A
Overcurrent protection release condition: Disconnect the load
Short circuit detection delay: 250uS
Short circuit protection Release condition: disconnect negative open
Main circuit conduction resistance: ≤20mΩ
Working current: ≤30uA
Sleep current (battery over discharge) ≤10uA
Temperature range: -30 / + 80
