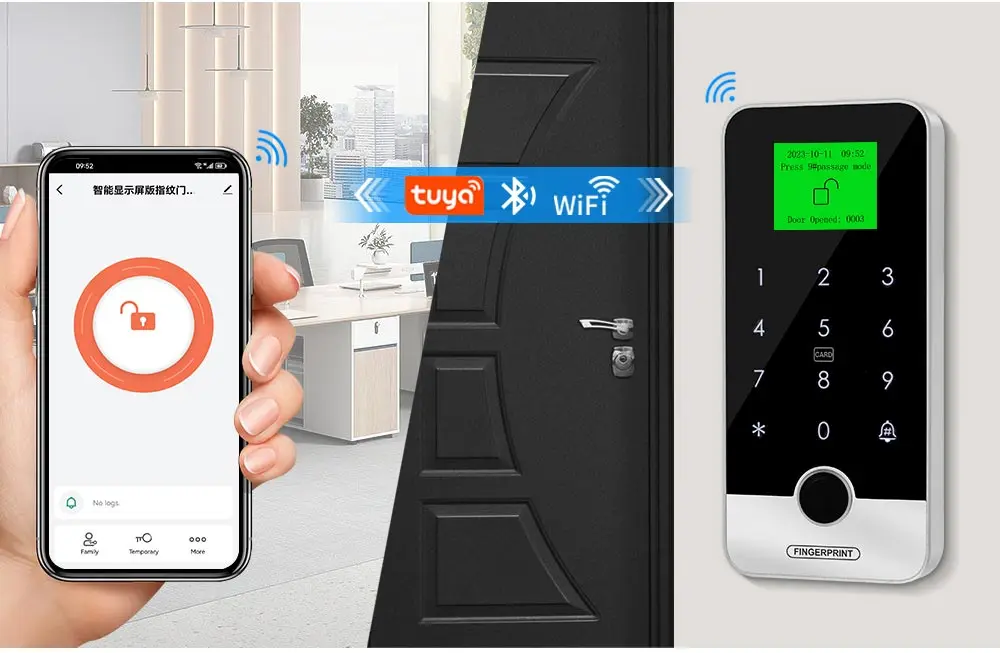

Bluetooth Tuya APP Smart Fingerprint RFID Access Control Keypad Touch IP65 Waterproof 13.56MHz Door Opener Keyless Lock System

Bluetooth Tuya APP Smart Fingerprint RFID Access Control Keypad Touch IP65 Waterproof 13.56MHz Door Opener Keyless Lock System WG26

Product Specification:

* Material: high quality ABS plastic
* Working voltage: DC 12V
* Working current: 500mA
* Fingerprint capacity: 300
* Card capacity: 1000
* Password capacity: 1000
* Panel: touch screen panel
* Working frequency: 13.56MHz
* Card reading type: support MF 1K compatible card.
* Card reading distance: 0-5CM
* ldentification method: Fingerprint, RFID Card, Password, Tuya APP.
* Record capacity: Mobile phone APP remotely view the latest door opening information.
* Backlight: has white backlight
* Waterproof function: yes
* Doorbell button: support wired doorbell
* Display Language (S300X): Supports Chinese, English, French, German, Spanish, Latin, Romanian, Italian.
* Working temperature: -20。C ~ 50。C
* Working Humidity: 20% ~ 90%

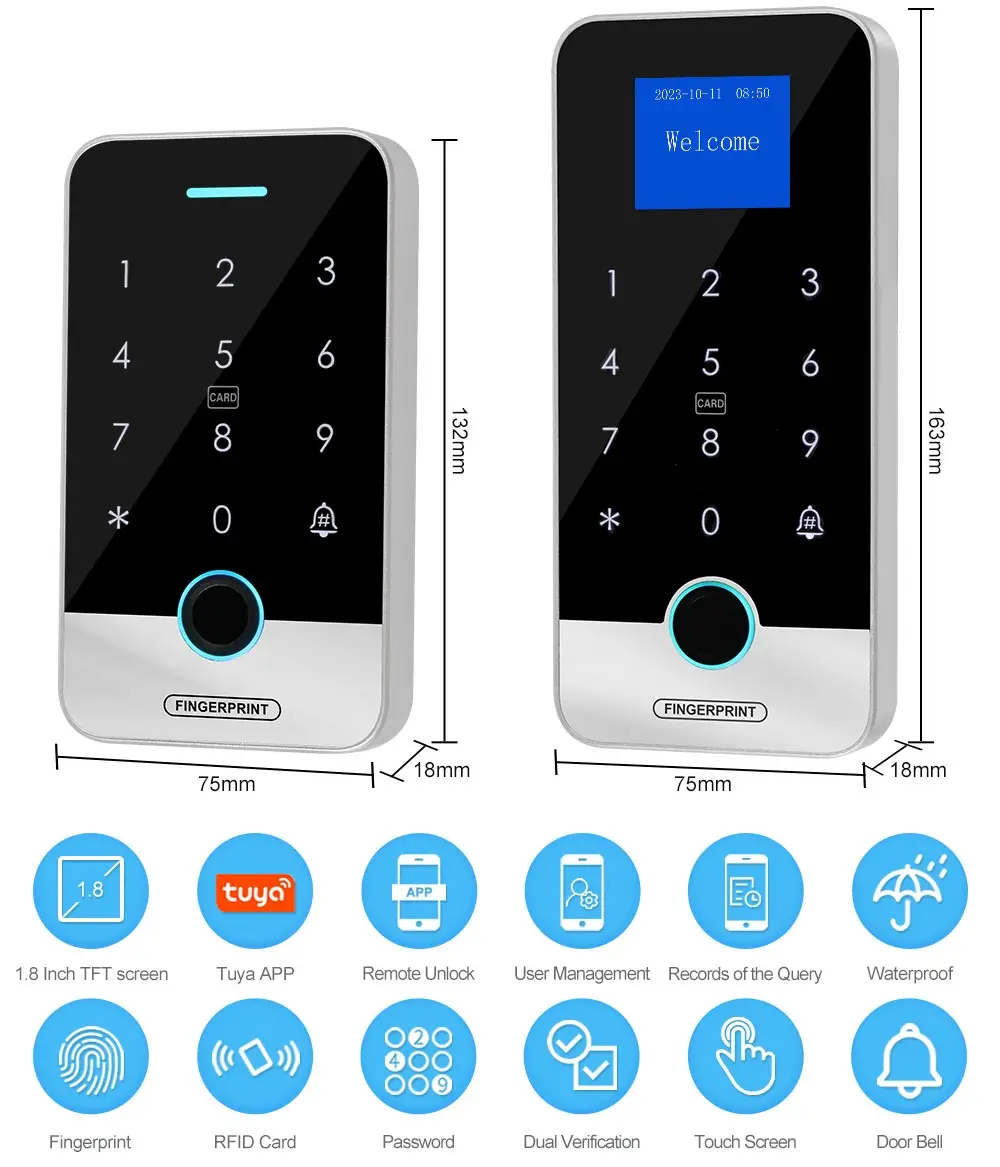

* Product size of S300A: 132*75*18mm
* Product size of S300X: 163*75*18mm

Product Details:

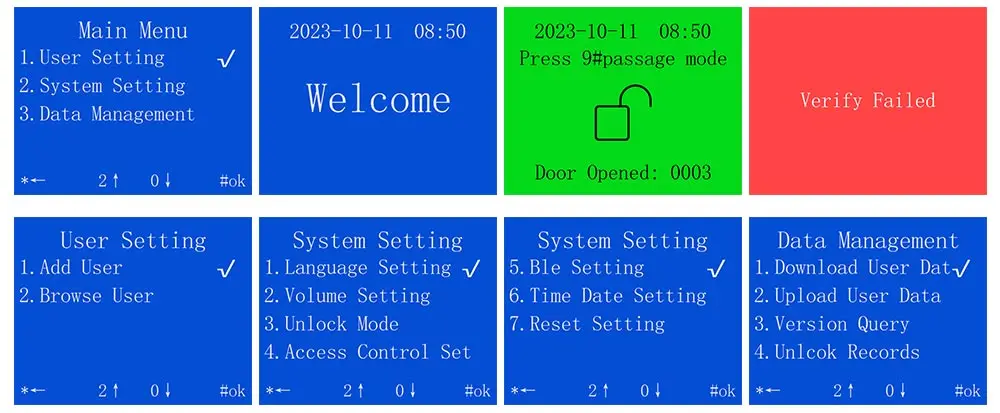

1.8inch Color TFT Screen, Easy to program with the display.

Display supports Chinese, English, French, German, Spanish, Latin, Romanian, Italian language.
Time and date show on display when standby (S300X model)

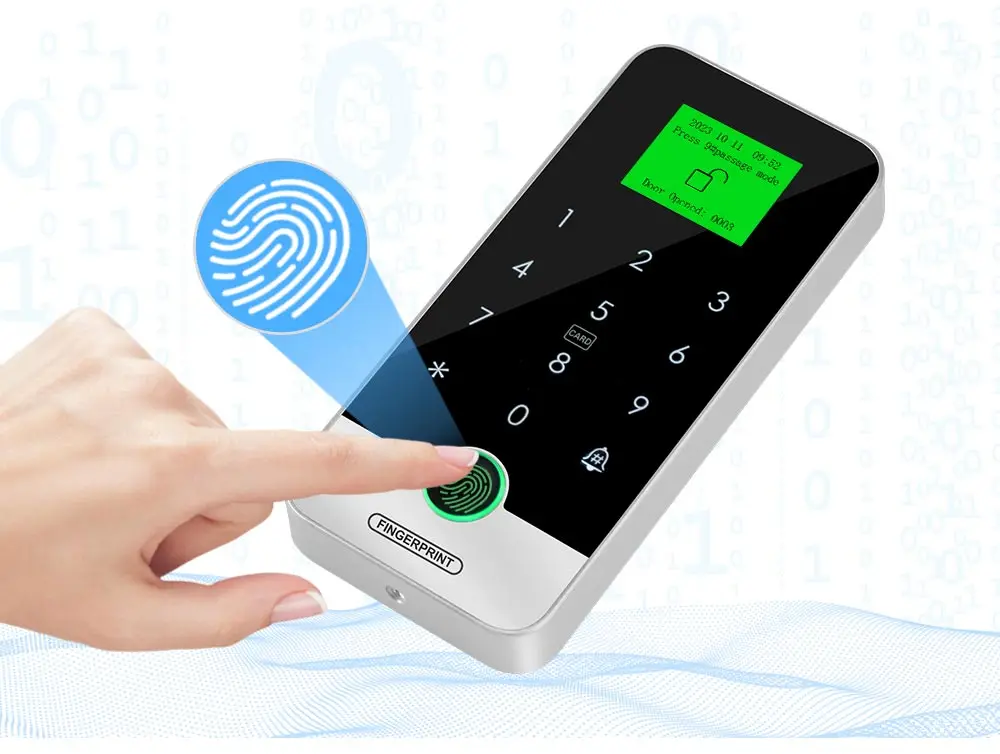

360 degree comprehensive fingerprint recognition, fast identify speed

For different angles of fingerprints, it can be quickly and accurately identified.

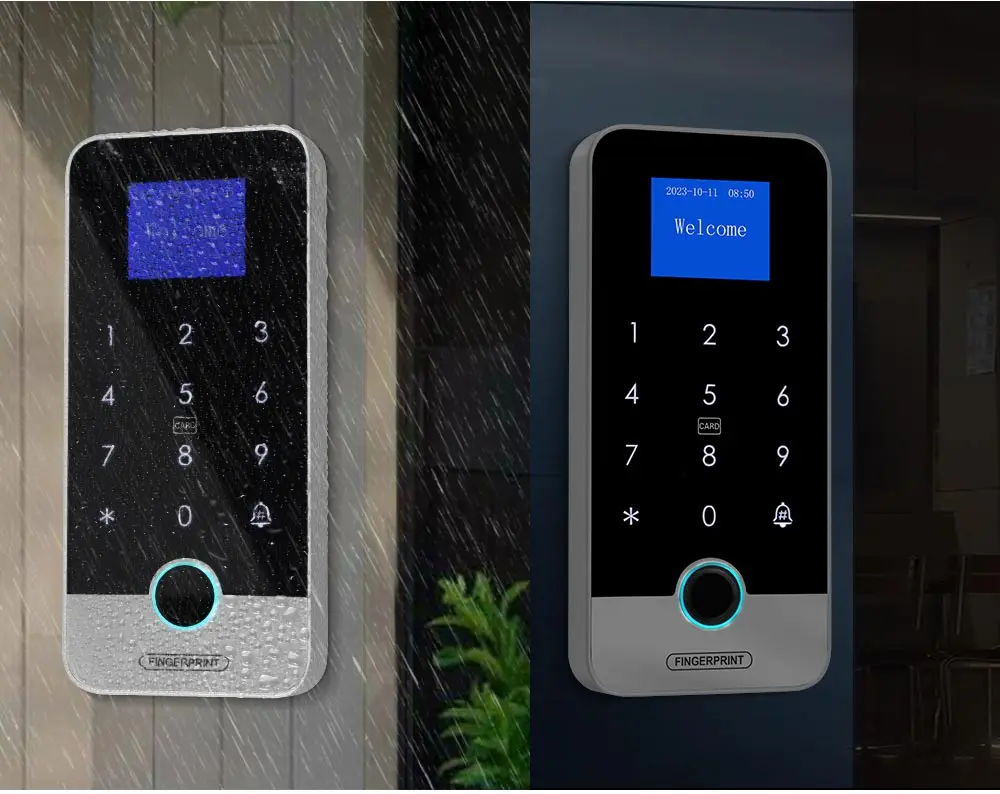

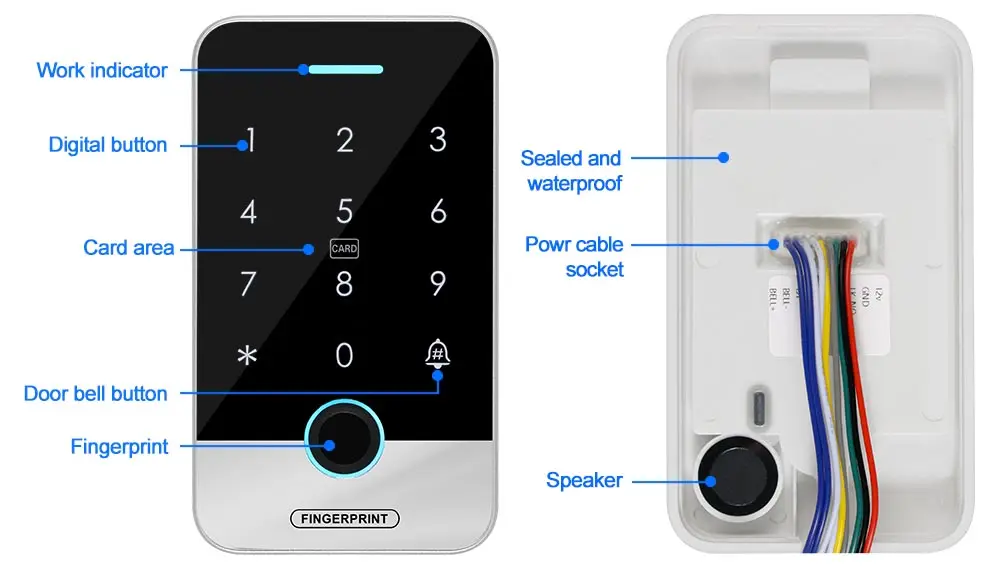

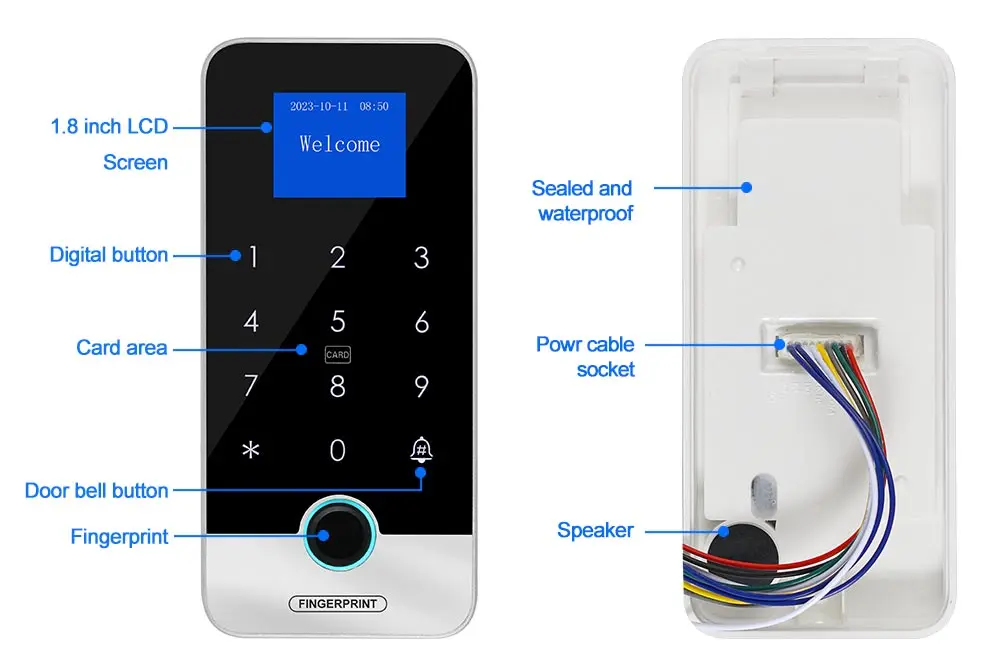

1) IP65 Waterproof. Can be installed outdoor.
2) Has a door bell button, can install a wired door bell.
3) White backlight keypad. The digits number can be seen clearly even at dark.

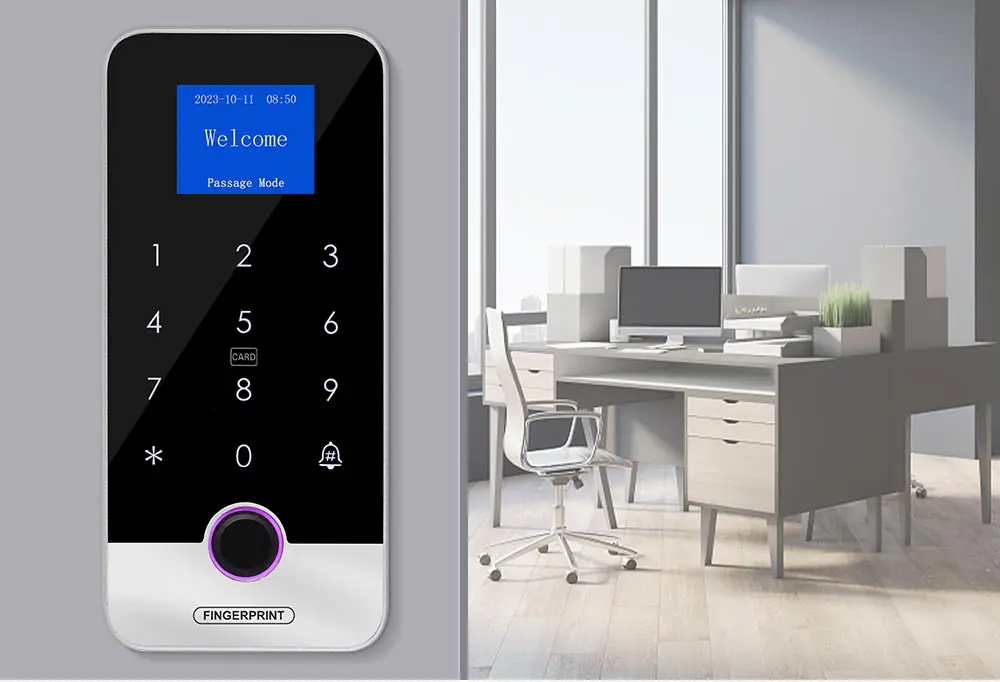

Can set Normally Open model

Frequent entry and exit can be set to normally open model.

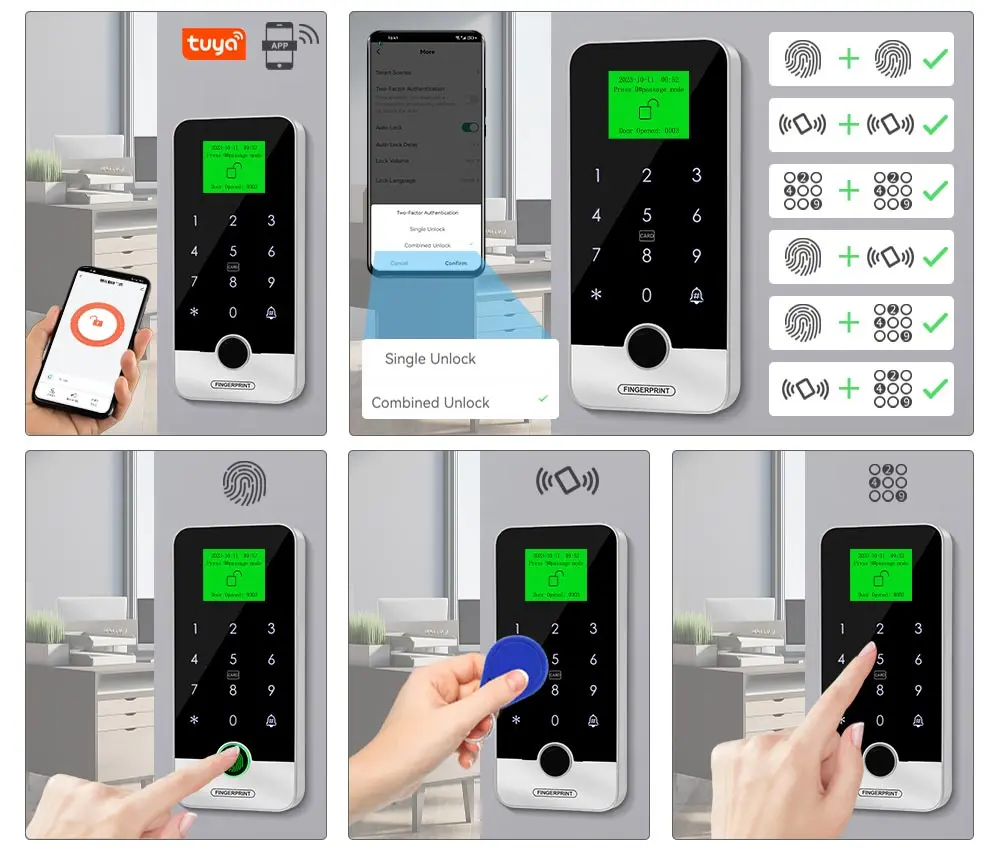

Support Fingerprint, RFID Card, Password, Tuya APP, dual verification to unlock the door

Support 300 Fingerprints, 1000 RFID cards, 1000 password user capacity.
Mobile phone APP remotely view the latest opening information, more secure!

Support Tuya APP remote unlocking

Support only one mobile phone to use Tuya APP. Need to delete device if other people want to use Tuya APP

About Tuya APP

1) Supports language: Chinese, English.
2) Can add fingerprints, password, RFID cards on the APP, it's very convenient.
3) Can unlock the door with Tuya APP unlocking button, or Tuya password.
4) Can view unlock records. Click reminder information to view logs.
5) Support only one mobile phone to use Tuya APP. Need to delete device if other people want to use Tuya APP.

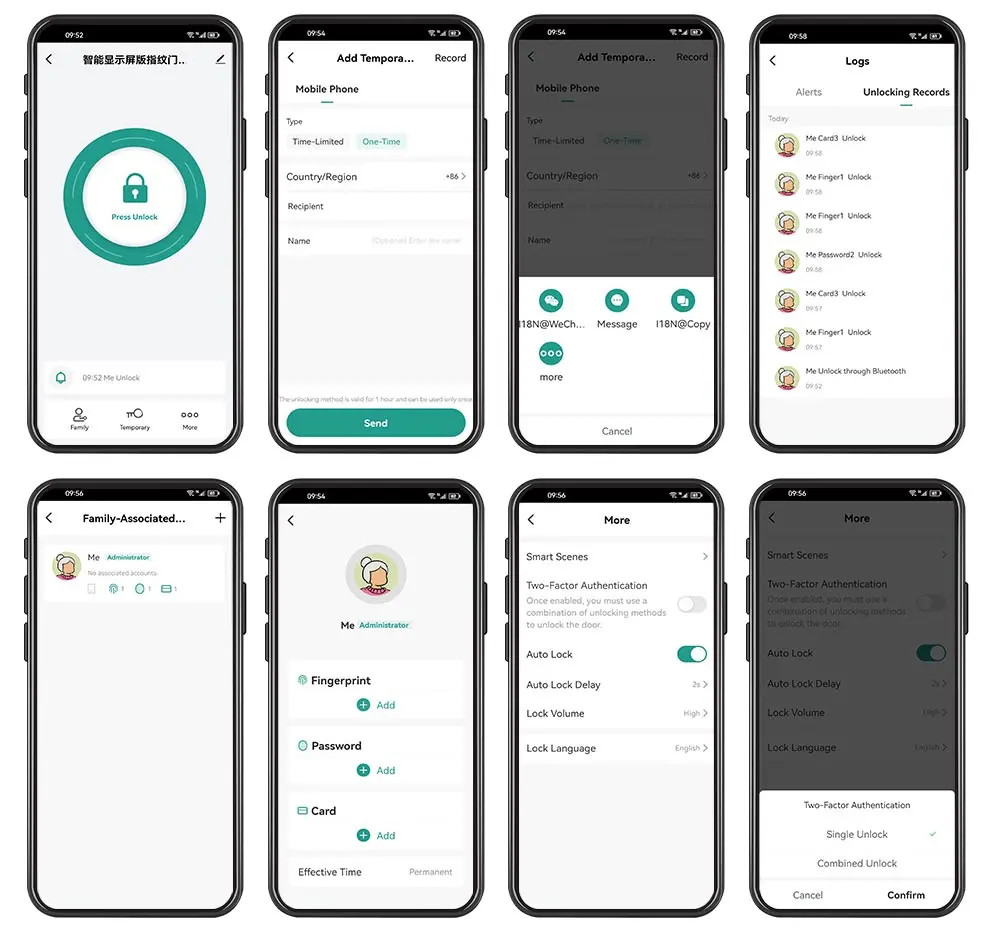

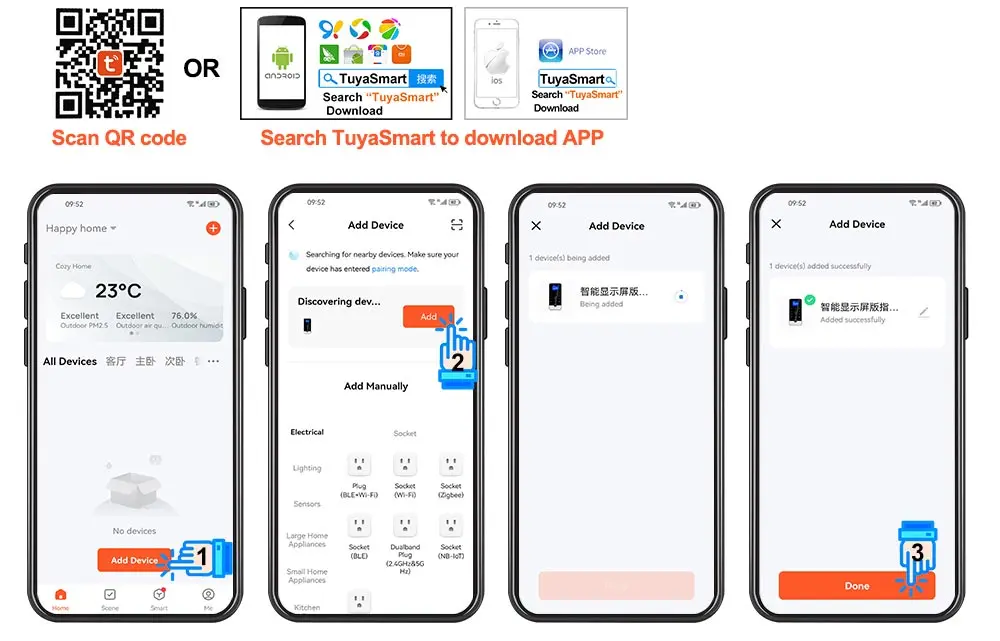

Tuya APP Setting Instruction

1) Scan QR code, or Search "Tuya" on App store to download it.
2) Turn on Tuya APP to add new equipment.
3) Turn on bluetooth, Select "Auto scan", click "Searching".
4) Connect with available devices, click "Next".
5) Connecting, Added successfully, click "Done".
6) Click setting, turn on "remote unlock setting".
7) Select user, click "+" to add user, fill in name, click next step.
8) Add user fingerprints, Code, Cards.
9) Add ordinary user by clicking ordinary member “+”.
10) Add code user by Time-Limited: input phone number, set effective time and ineffective time, click "Send".
11) Add temporary code: click "One-Time'", input phone number, click "Send". (Notice: The code valid time for 1 hours and only can be used once.)

Easy installation and operation

Based on advanced technology, fast recognition speed, high sensitivity.

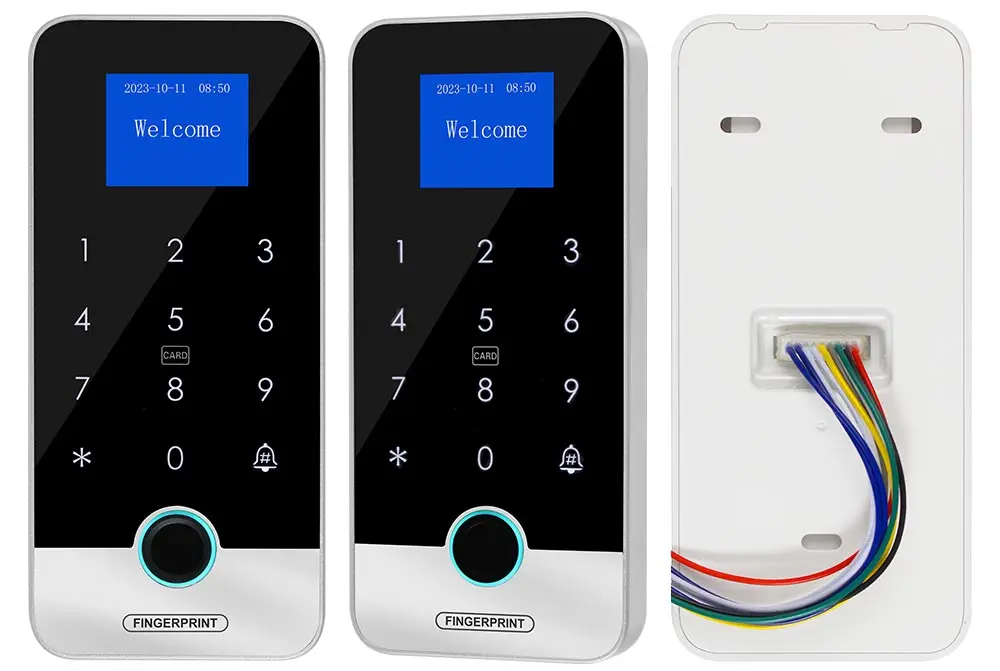

S300X Model, with 1.8inch display screen.

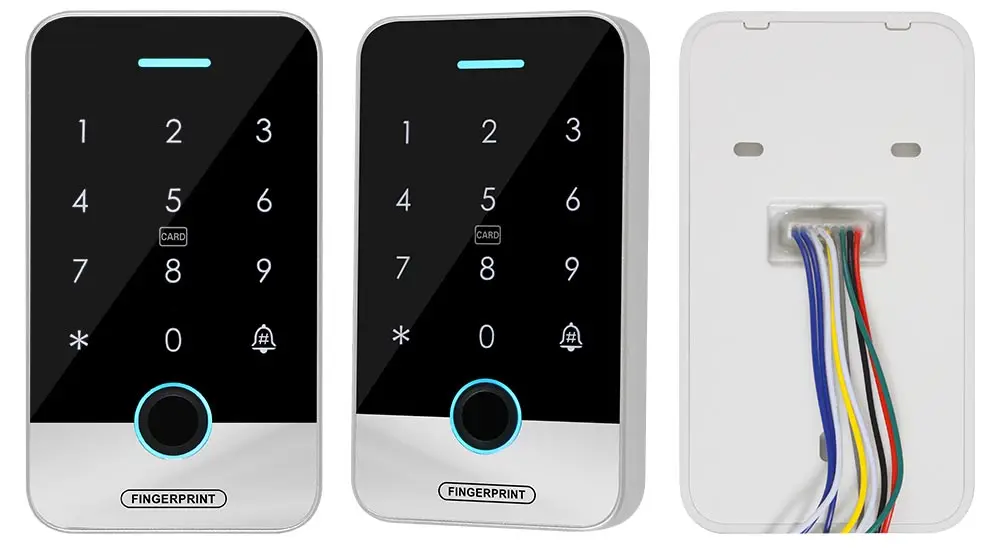

S300A model, without display screen (other function is same with S300X model)

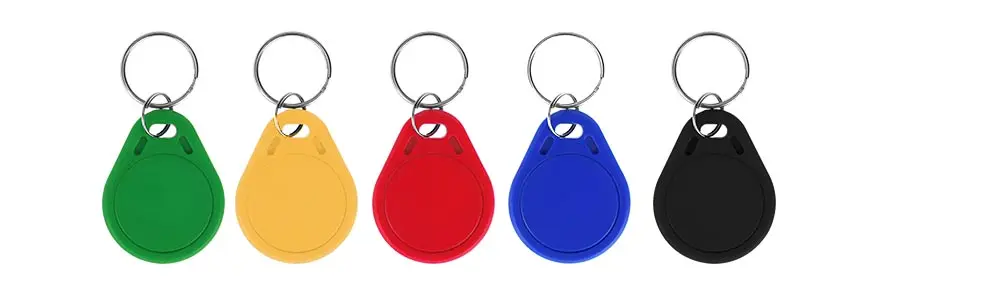

RFID Keyfobs:

Material: ABS
Operating frequency: 13.56MHz
Detection range: 0-5cm
Each card pre programmed and has a metal keyring.

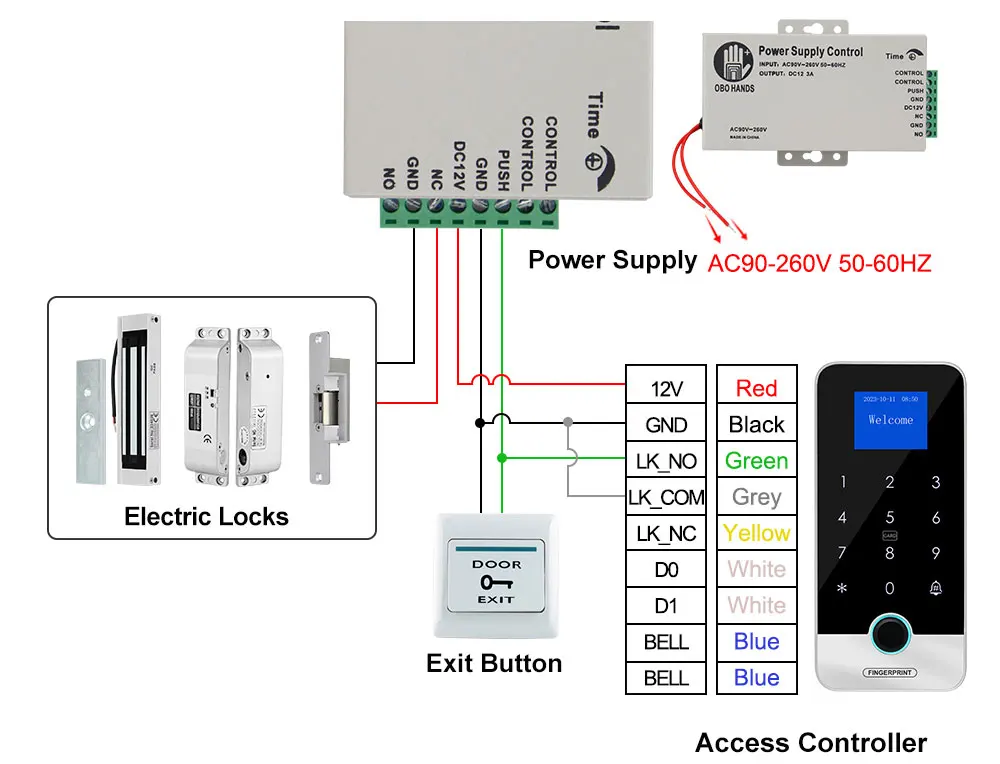

Wiring Diagram

(The power supply, electric locks, door exit button are not included in the package, need to purchase extra.)
