1.29 Inch OLED Module 1.29" 12864 Screen White 128X64 OLED LCD LED Display Module IIC SPI Interface CH1115 for Arduino

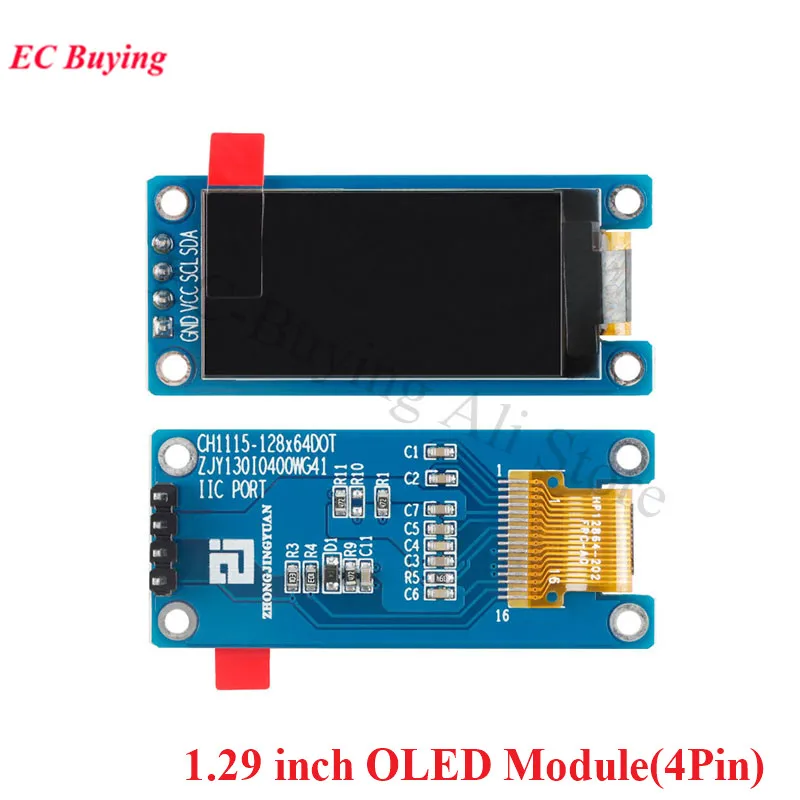

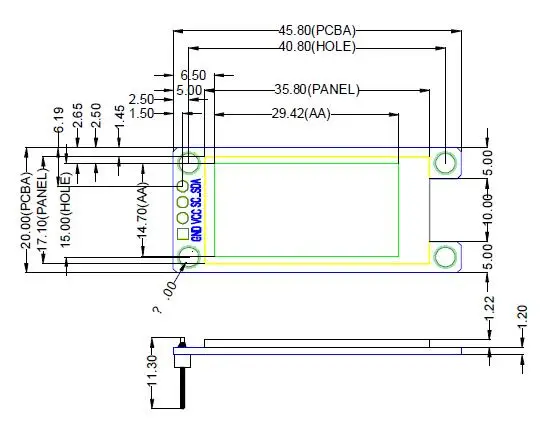

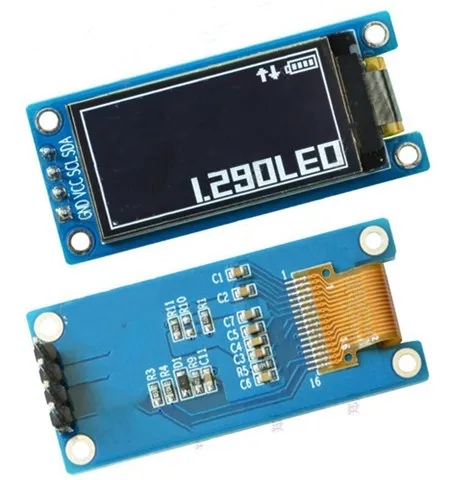

1.29 inch 4PIN Screen with Adapter Board

Size: 1.29 inch

Active Area: 29.42*14.7mm

Module Size: 45.8*20mm

Resolution: 128*64

Drive IC: CH1115 Compatible SSD1306

Dot Pitch: 0.25*0.25mm

Dot Size: 0.23*0.23mm

Color: White

Interface: IIC interface

PIN NO.: 4P

Voltage: 3.3V

Working Temp.: -40 ~ 70 degree

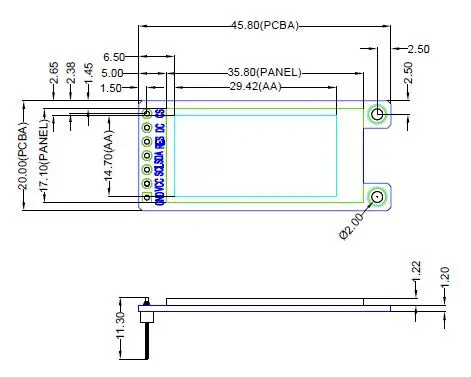

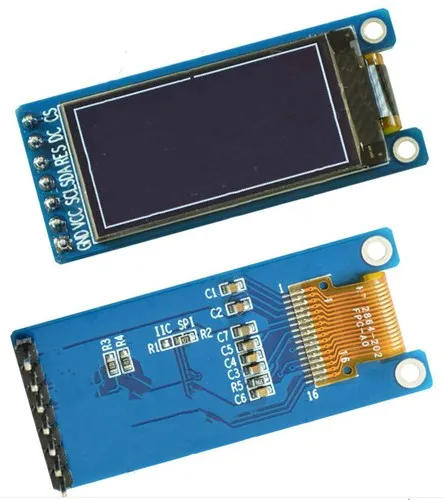

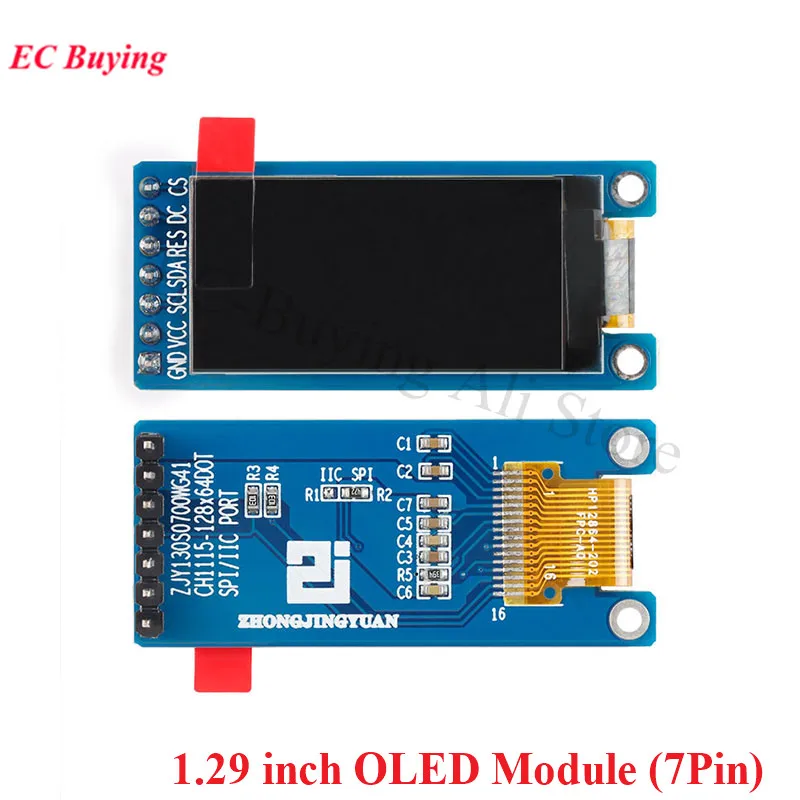

1.29 inch 7PIN White OLED Screen

Size: 1.29 inch

Active Area: 29.42*14.7mm

Module Size: 45.8*20mm

Resolution: 128*64

Drive IC: CH1115 Compatible SSD1306

Dot Pitch: 0.25*0.25mm

Dot Size: 0.23*0.23mm

Color: White

Interface: SPI interface (Switch IIC interfaces)

PIN NO.: 7P

Voltage: 3.3V

Working Temp.: -40 ~ 70 degree

Contact Us

1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)

2. Working Hours: Monday to Saturday

3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.

4. Bulk order is acceptable, lower prices will be offered to you for bulk order.

5. We just need more 100% positive feedback, Please do not leave any negative feedback and neutral feedback before contact us. Thank you

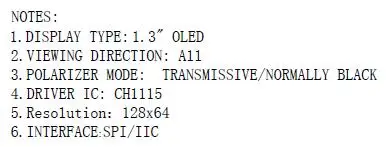

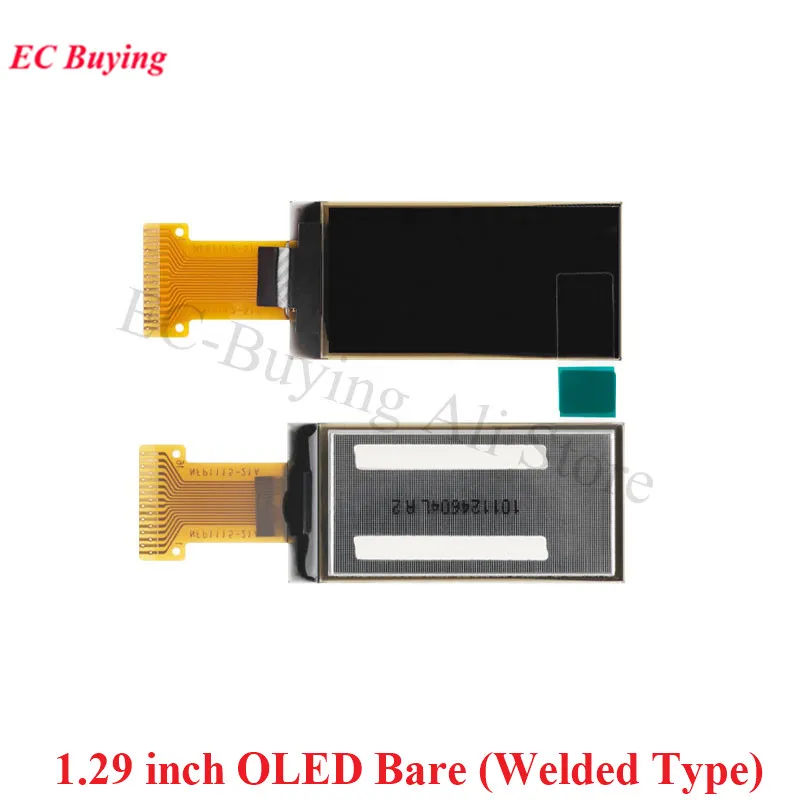

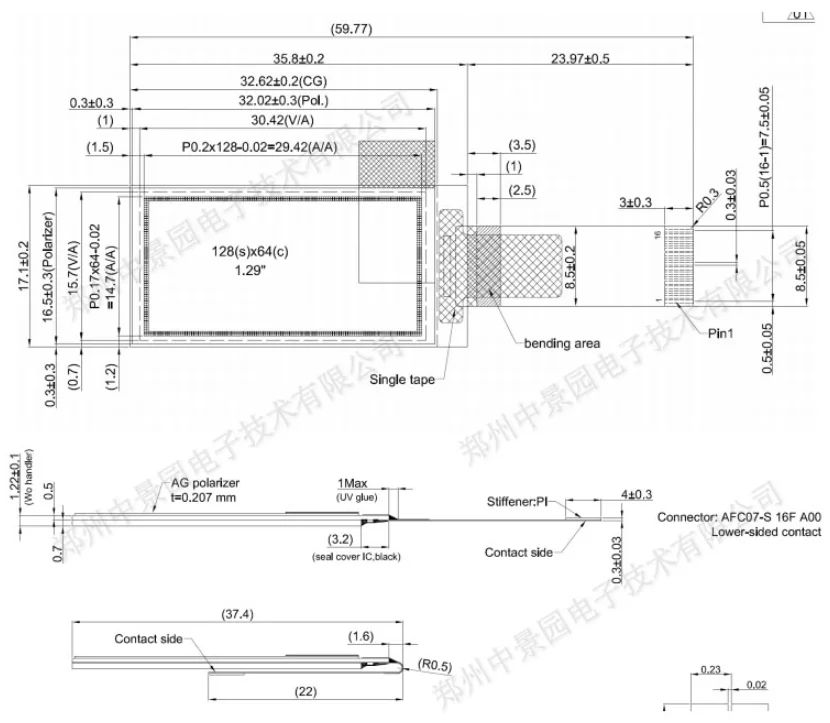

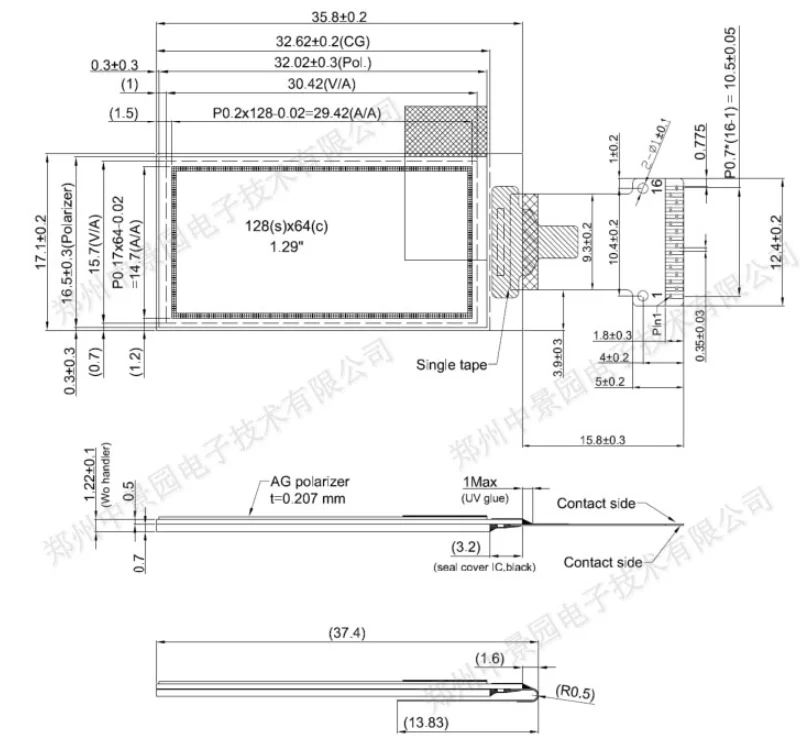

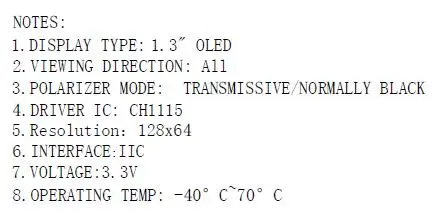

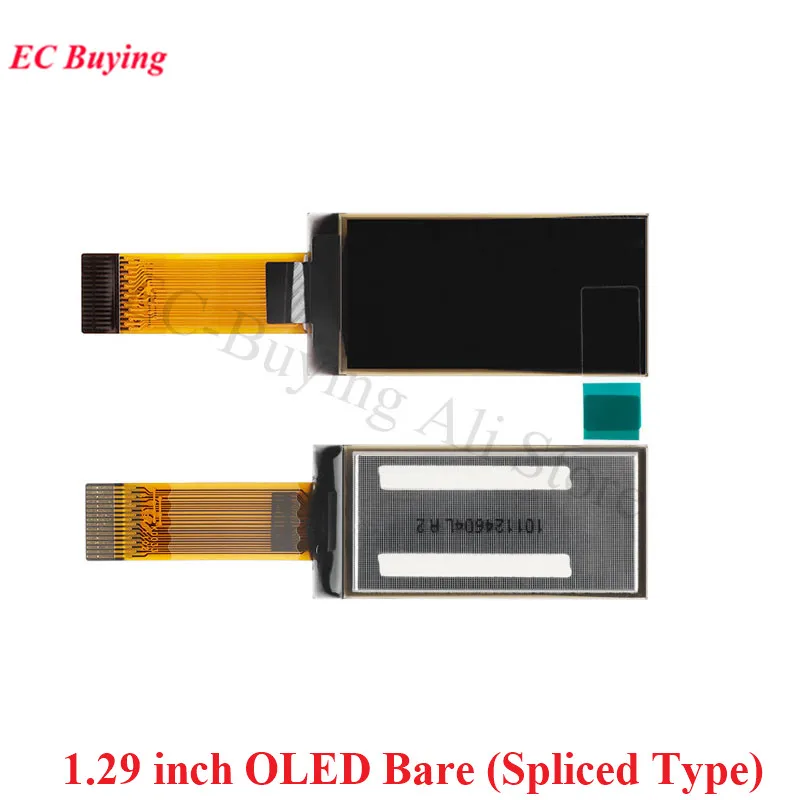

Resolution: 128 * 64

Control chip: CH1115

Highlights: lateral outgoing line, smaller occupation room, more compact, compatible with SSD1306 drive, built-in boost, no boost circuit

Display area: 29.42 X 14.7 (mm)

Panel size: 35.8x17.1x1.22 (mm)

Interface type: SPI/IC interface

Display color: white

Working voltage: 3.3V

Pixel size: 0.23 x 0.23 (mm)

Pixel pitch: 0.25X25 (mm)

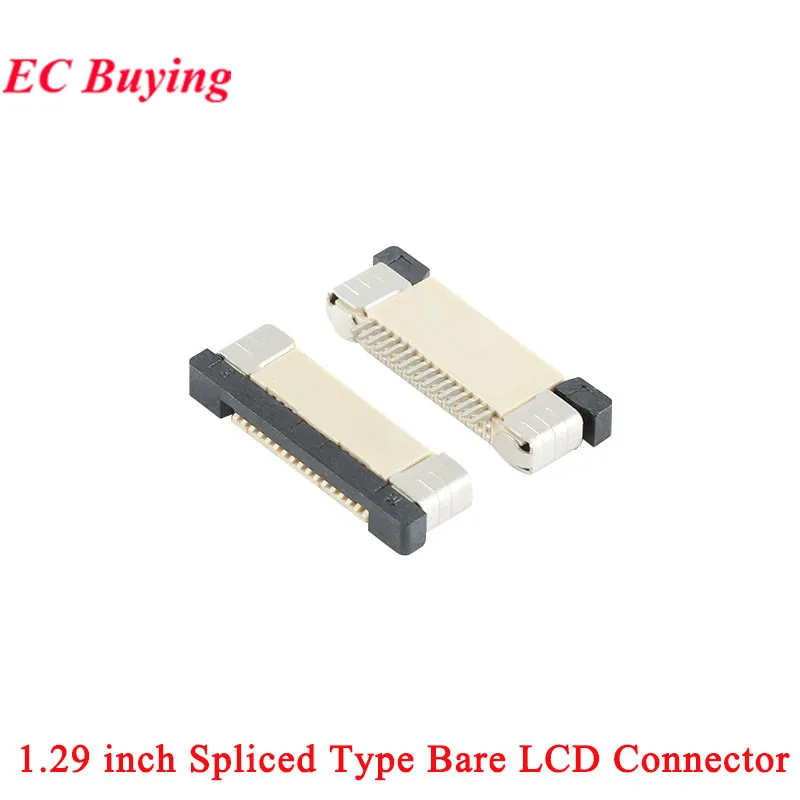

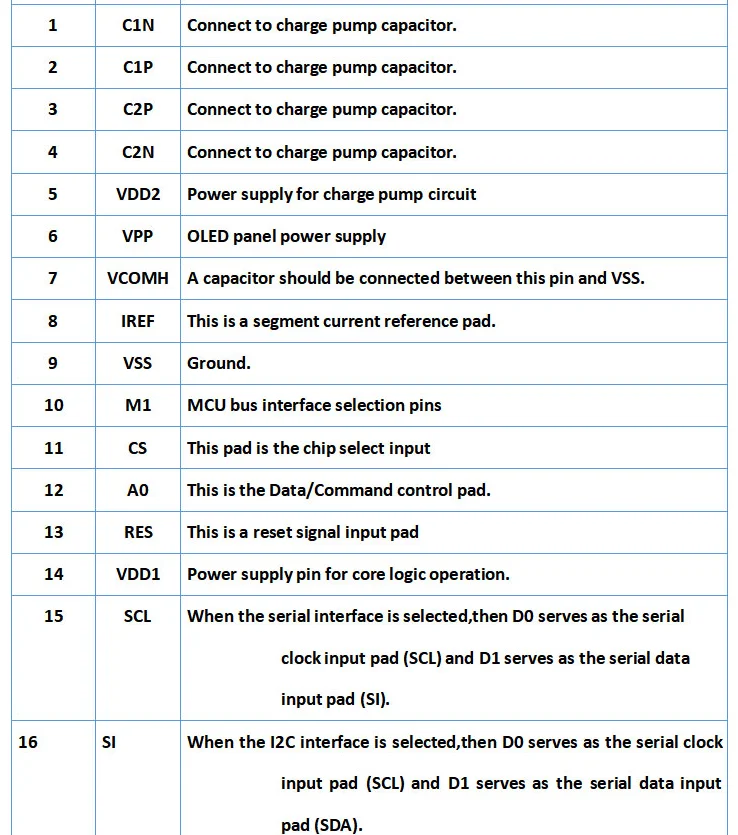

Connection mode: 16Pin plug-in and 16Pin welding

Number of pins: 16Pin (0.7mm pitch welding type, 0.5mm pitch plug-in type)

View direction: full view

Operating temperature: - 40~70 ℃
