ESP32-C6-DevKitC-1 Development Board ESP32 N4 Core Board 4MB Flash WIFI6 BLE Zigbee Compatible ESP32 Module

ESP32-C6 is a SoC that supports Wi-Fi6. It integrates 2.4GHz Wi-Fi6, Bluetooth5 (LE) and 802.15.4 protocols, and can provide IoT products withIt provides industry-leading radio frequency performance, complete security mechanisms and abundant memory resources. It is equipped with a high-performance RISC-V 32-bit processor with a clock frequency of up to 160MHz, and a low-power RISC-V 32-bit processor with a clock frequency of up to 20MHz, with built-in 512KBSRAM, 320KBROM, and supports external flash. ESP32-C6 has 30 (QFN40) or 22 (QFN32) programmable GPIO pins, supporting SPI, UART, I2C, I2S, RMT, TWAIPWM, motor control PWM and SDIO. It also integrates a 12-bit ADC and a temperaturedegree sensor.

The core board ESP32-C6 uses the ESP32-C6 module, which is a module that supports 2.4GHz Wi-Fi 6 Bluetooth5, Zigbee3.0 and Thread. It has ultra-low power consumption and is compatible with ESP32. A series of modules suitable for various IoT scenarios.

The core board ESP32-C6 uses ESP32-C6, which is equipped with a high-performance RISC-V32-bit processor with a clock frequency of up to 160MHz, and a low-power RISC-V32-bit processor with a clock frequency of up to 20MHz.

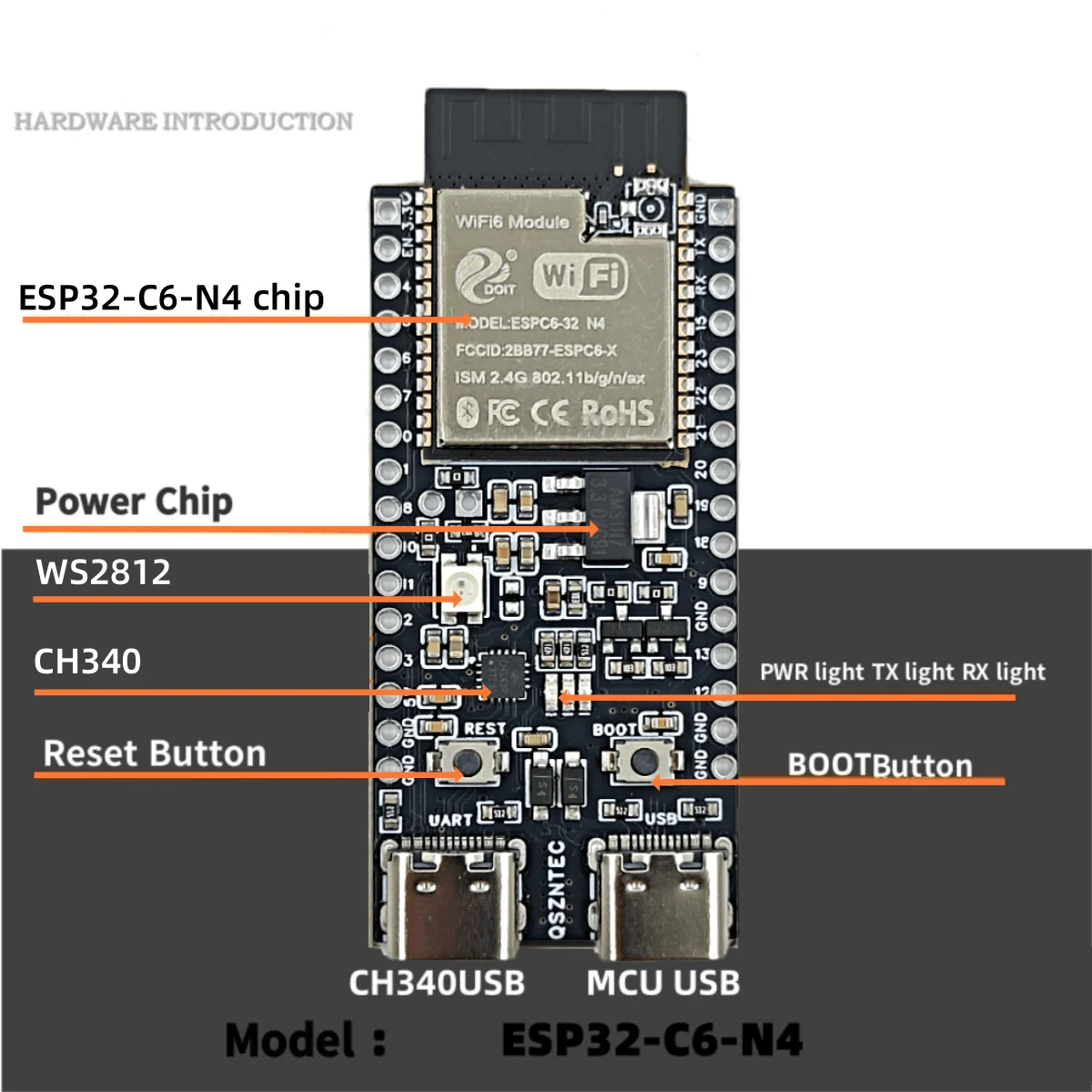

Hardware Introduction

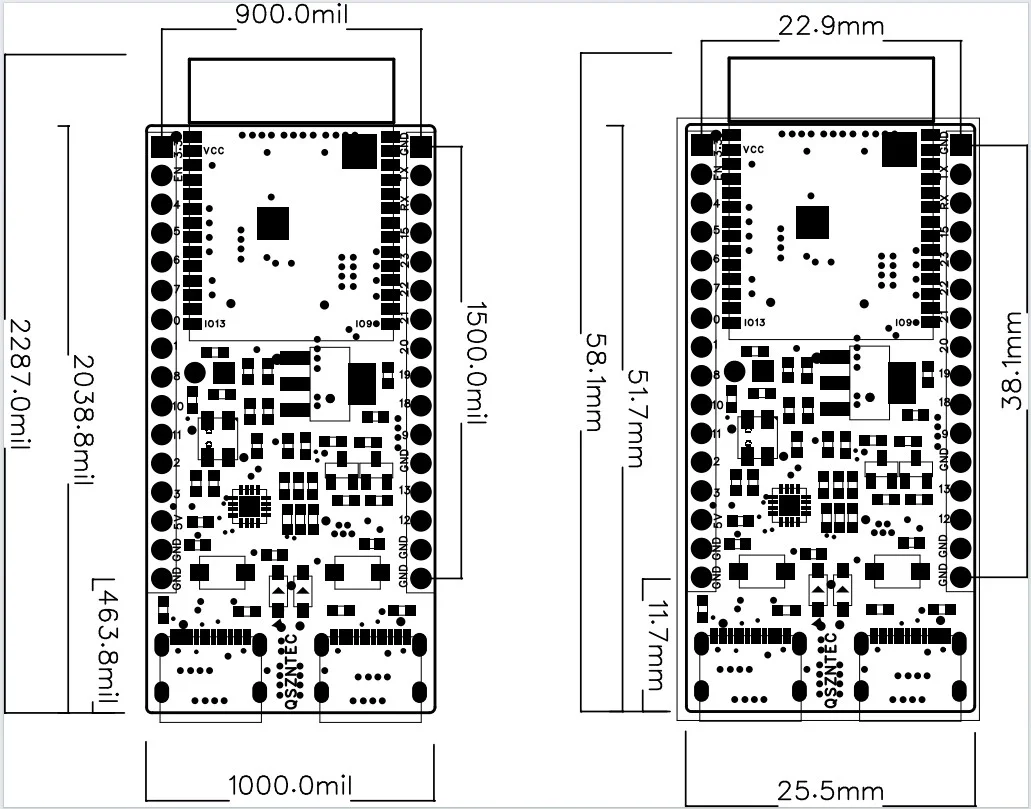

Size

ESP32 programming using IDF

ESP-IDF, also known as the Lexin IoT development framework, can be used in Windows, Linux, and Developing ESP32 applications on the macOS system platform to provide tool chains, APIs, and components support for workflow.

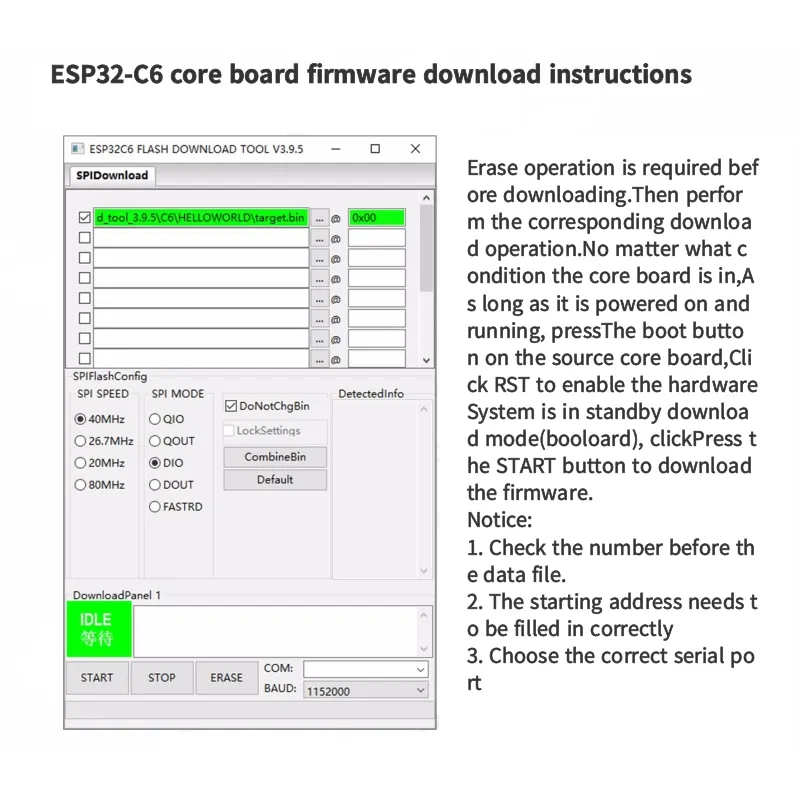

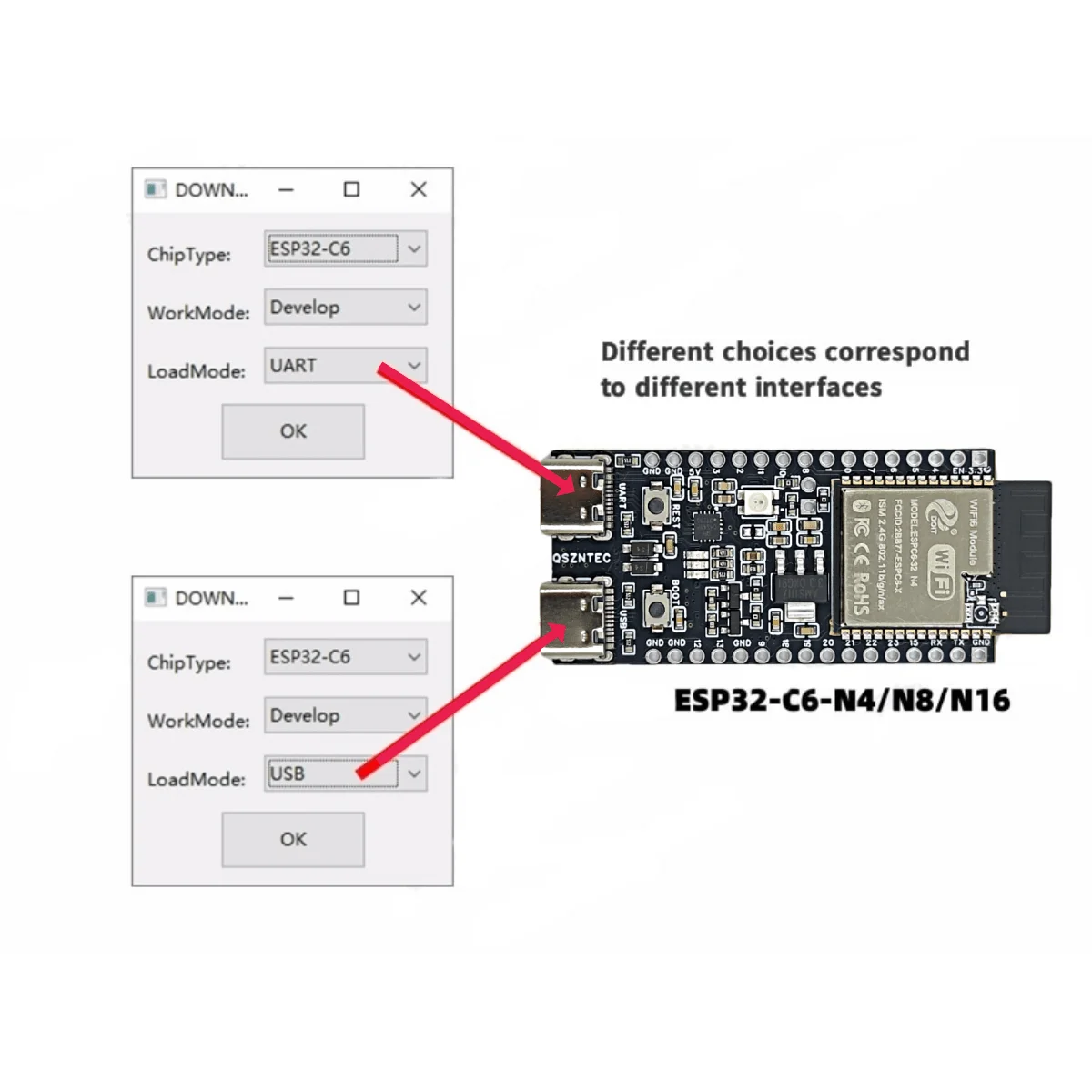

Instructions for downloading firmware for ESP32-C6

Download and write the program file (firmware) for the source YD-ESP32-C6 core board, which can be downloaded through the ESP32 USB to serial port.

In the Windows environment, you can download it through the official CC-GI flash download tool xxx software.

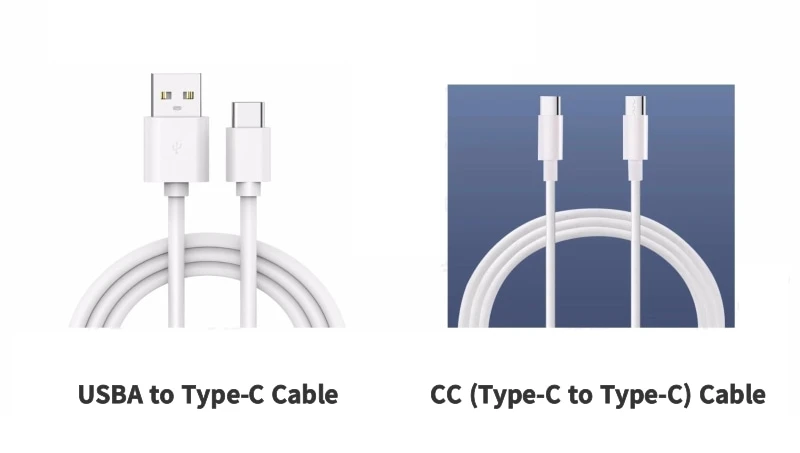

Instructions for using USB cable

The ESP32-C6 core board is equipped with a Type-C interface for USBO to communicate with the computer, and the power supply cable can be used: USBA type to Type-C cable or CC cable

Pay attention to distinguishing between commonly used USBAO to Type-C cables that can only be charged. This type of cable cannot be used for communication between ESP32 and the host

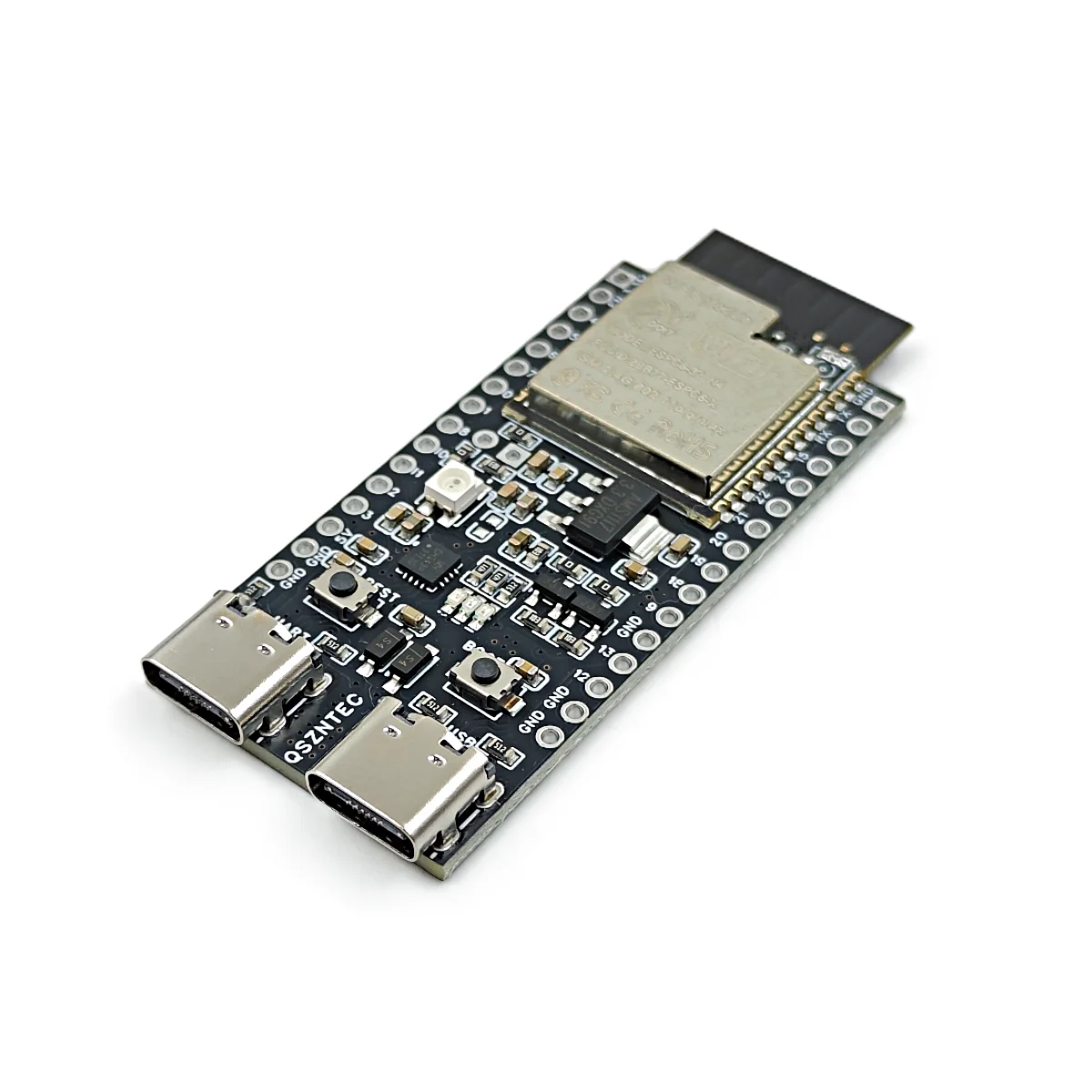

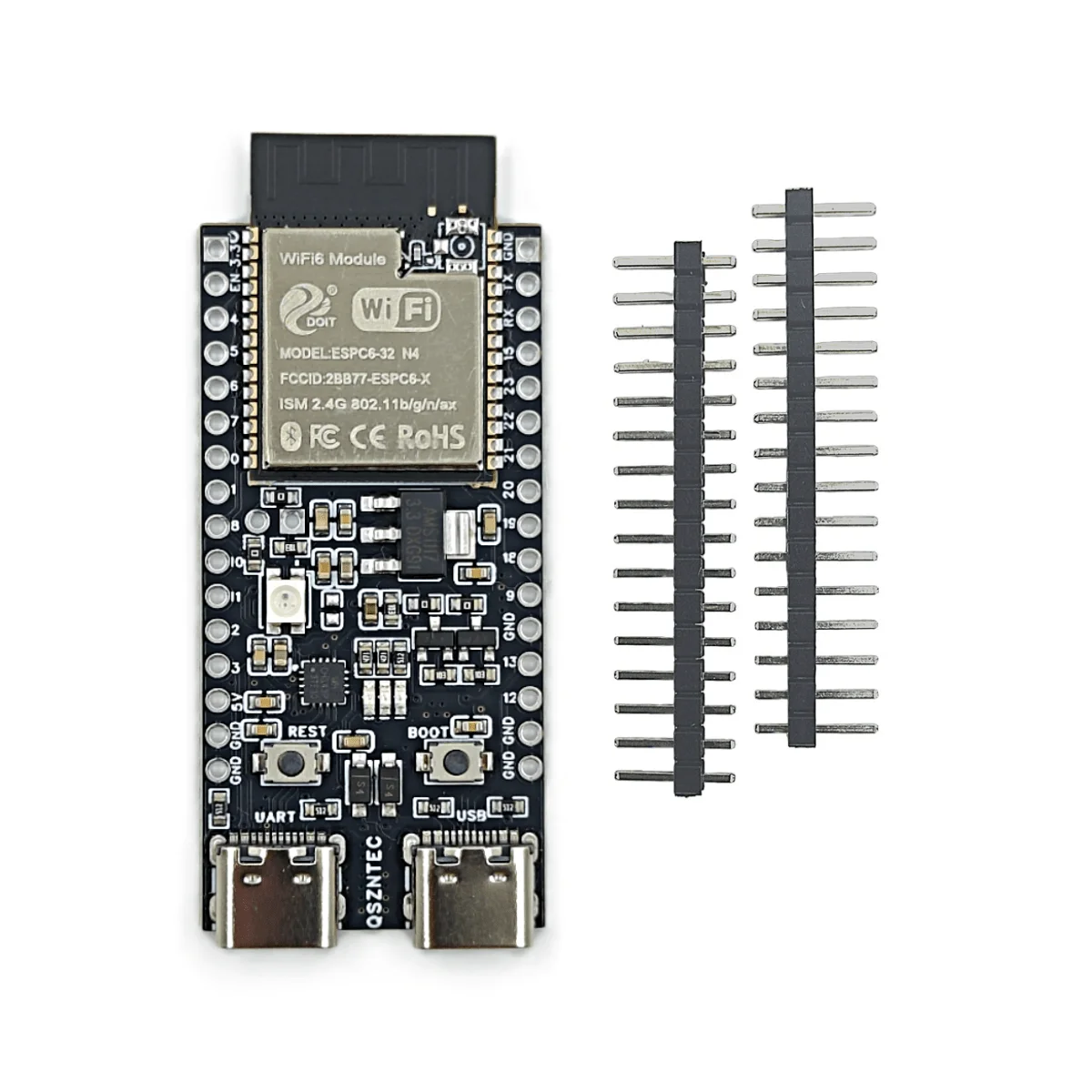

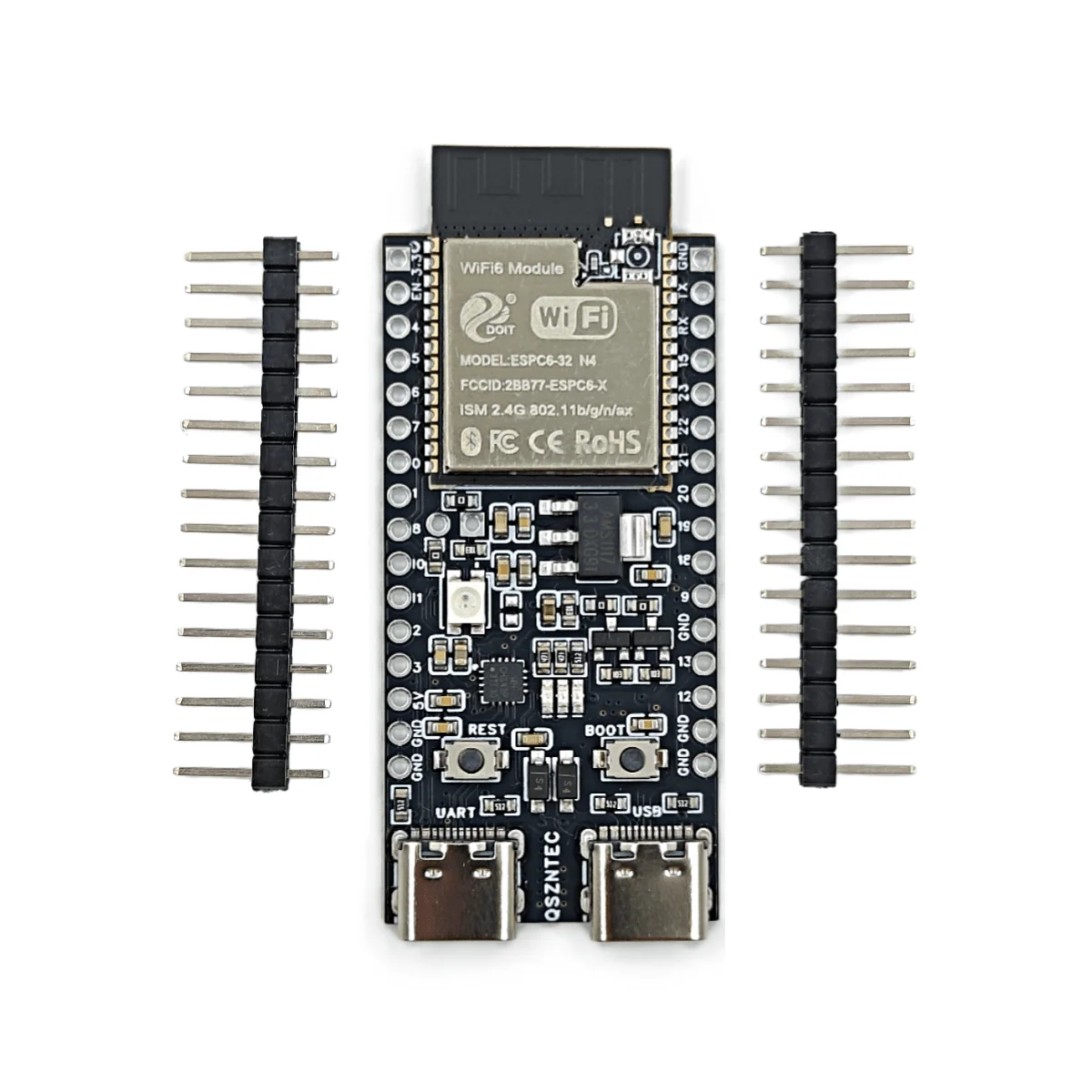

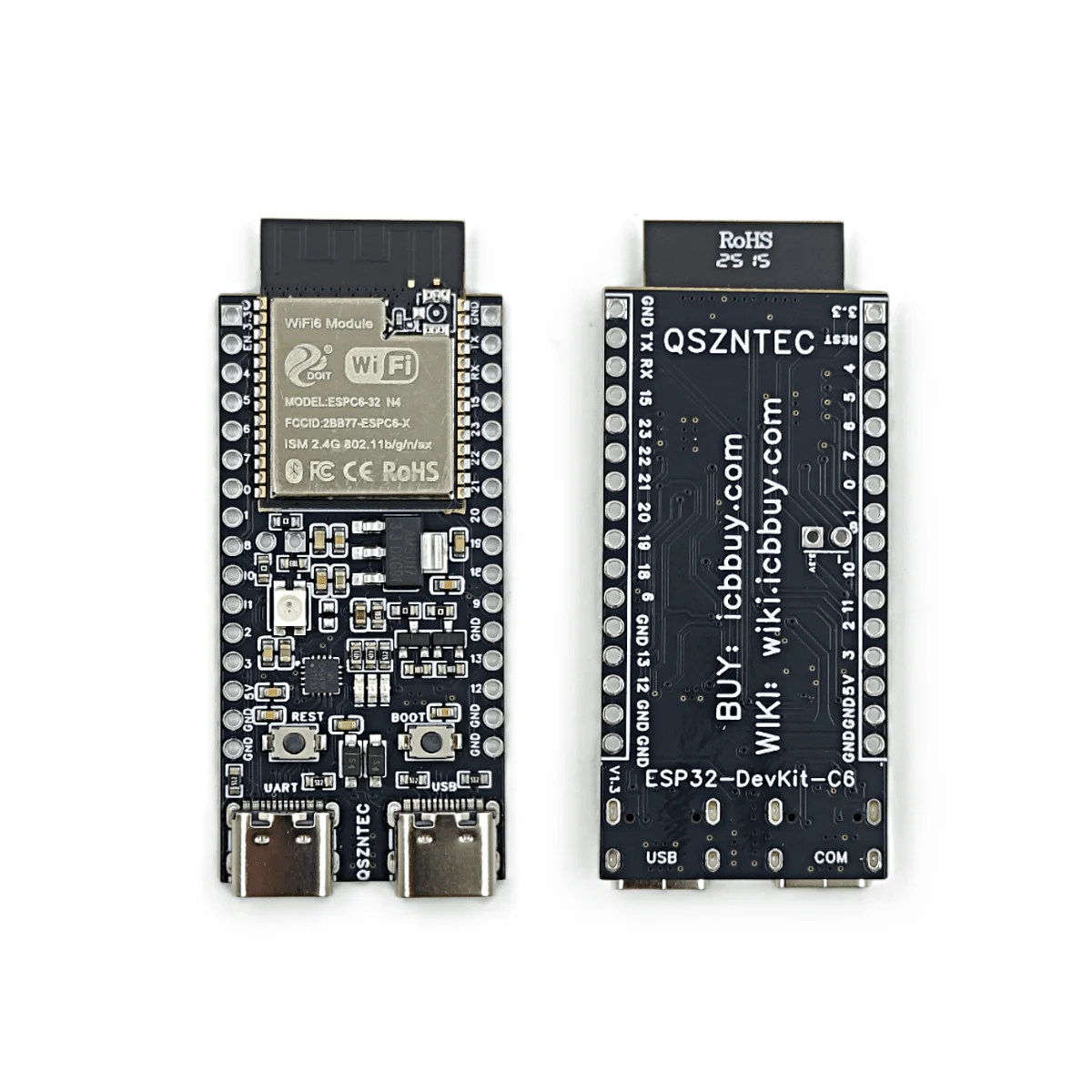

Product Display

Shipping List

ESP32-C6-N4 Board *1
