5015/4010/4020 12V&24V Cooling Turbo Fan Brushless 3D Printer Parts 2Pin For Extruder DC Cooler Blower Part Black Plastic Fans

Only 5015 and 4020 are Turbo fans,Others are ordinary cooling fan.

we will send the product to you as soon as possible

If you have any questions , please feel free to contact us

Packaging list:

To help buyers save on package costs when making bulk purchases.

Buying more at once can save more shipping costs.

There are various quantities available below, please make the purchase according to your needs.

If you need more, please feel free to inquire!

Cooler - (1 piece)

Cooler - (2 piece)

Cooler - (3 piece)

Cooler - (4 piece)

Cooler - (5 piece)

Cooler - (10 piece)

Cooler - (20 piece)

Cooler - (50 piece)

Description:

The cooling fan provides fresh air to the cooling elements, prolonging their service life and making them more stable.

The cooler emits excess heat, thereby extending the service life of the equipment. Extend the service life of the device and make its operation more stable. Suitable for PC and 3D printers, humidifiers, and other devices.

High quality plastic shell with low noise. The fan blades are installed on sleeve bearings to ensure a longer service life. Quiet and smooth rotation throughout the entire service life.

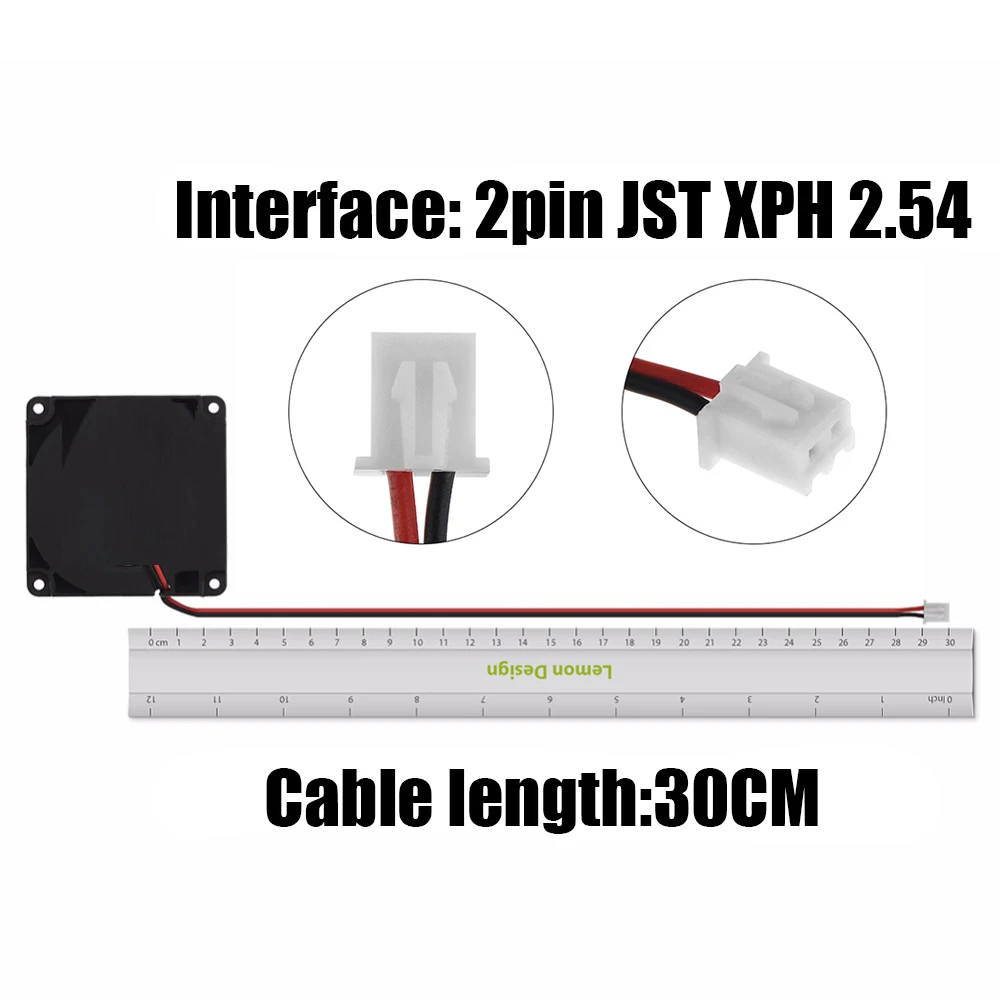

Interface: 2pin JST XPH 2.54

Bearing type: sliding (oil bearing)

Connection: positive red line, negative black line

Cable length: 30CM

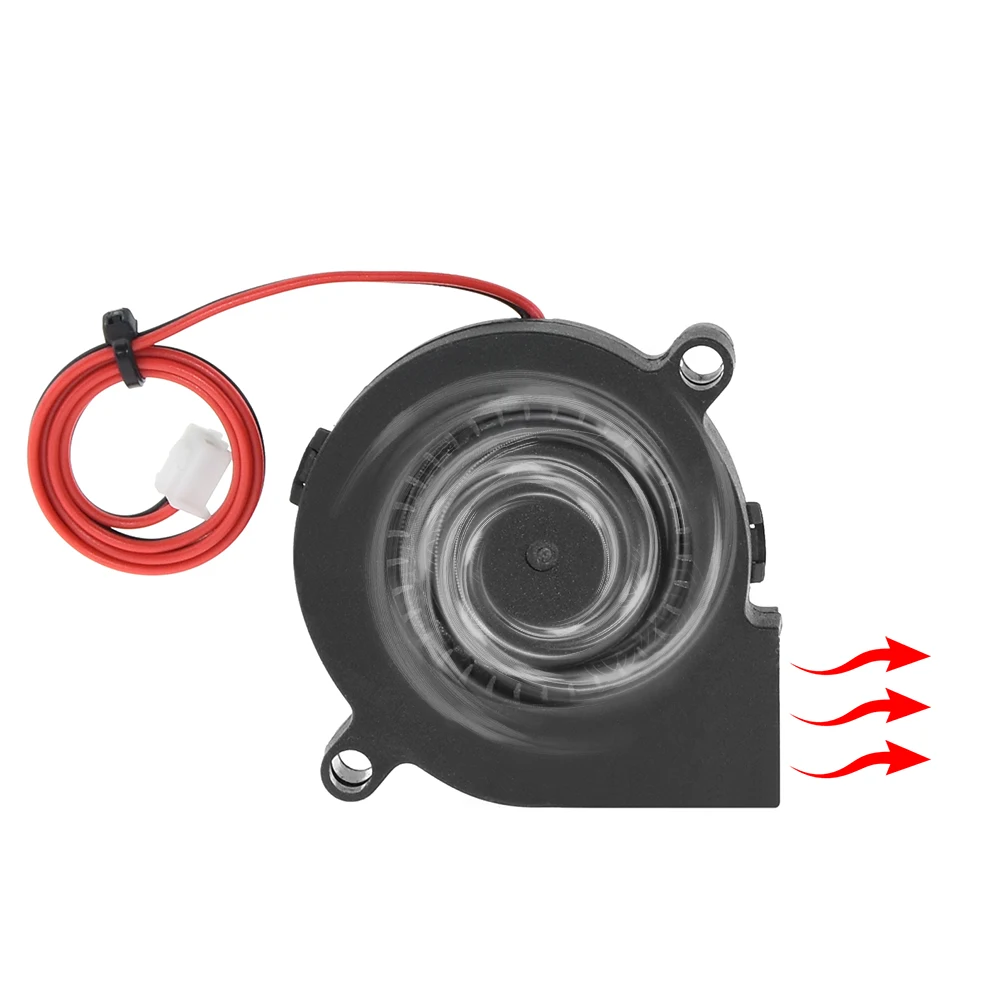

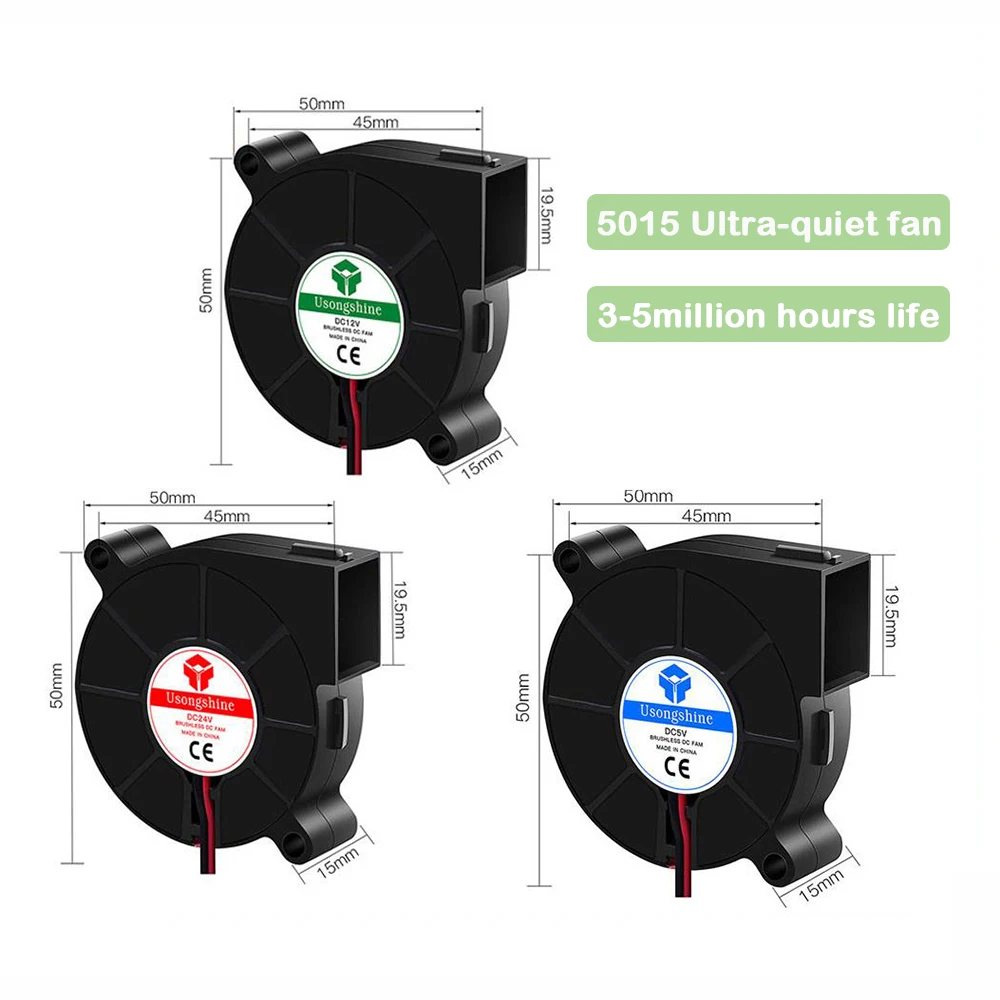

Turbine fan size: 50mm x 50mm x 15mm

Working voltage: 5V;

Rated current: 0.09A ± 10%;

Maximum scattering power: 0.5W ± 10%;

Rotating speed: Revolutions per minute 3500 ± 10%

Noise level: 30dB ± 10%;

Wind speed: 5.6 meters/second;

Air: 3CFM;

Working voltage: 12V;

Rated current: 0.07A ± 10%;

Maximum scattering power: 0.9W ± 10%;

Rotating speed: 4000 ± 10% Revolutions per minute

Noise level: 35dB ± 10%;

Wind speed: 9 meters/second;

Air: 3.5cfm;

Working voltage: 24V;

Rated current: 0.05A ± 10%;

Maximum scattering power: 1.2W ± 10%;

Rotating speed: 5000 ± 10% Revolutions per minute

Noise level: 40dB ± 10%;

Wind speed: 12m/s;

Air: 4CFM;

----------------------------------------------------------------------------------------------------------------------------------------------------

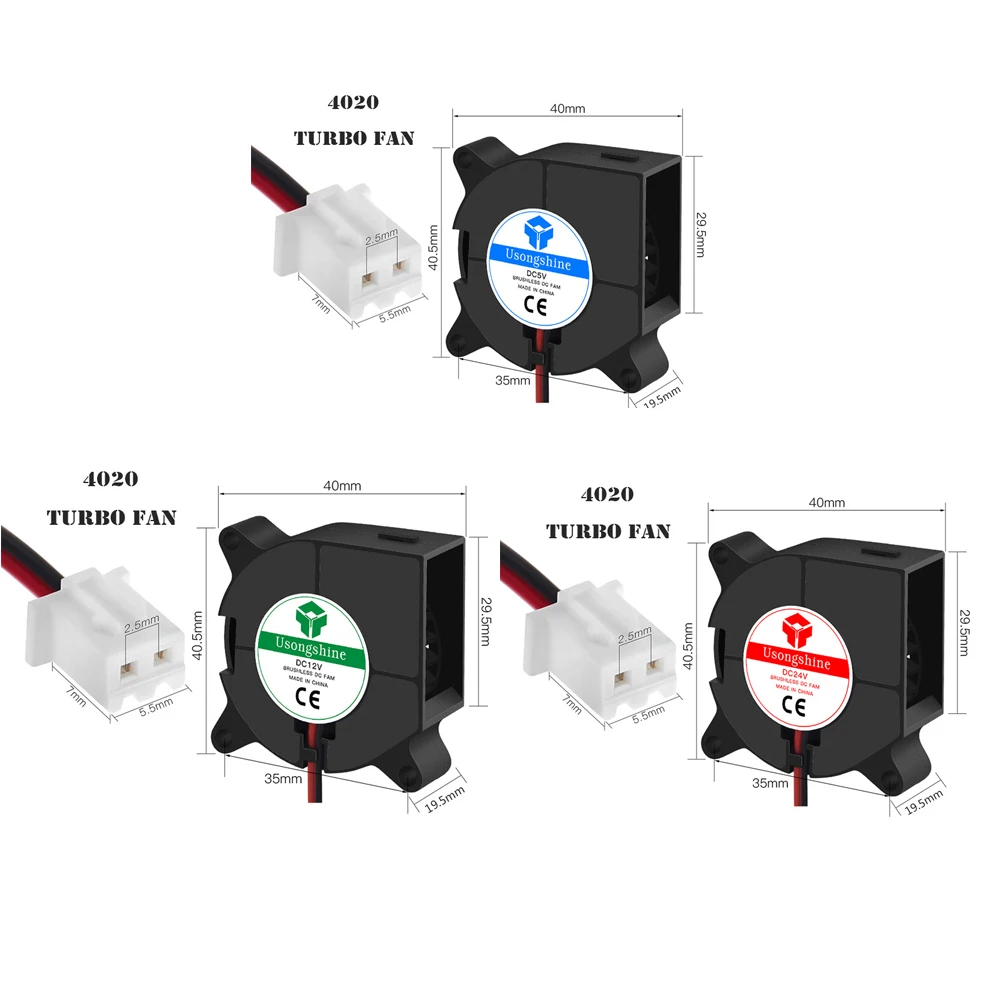

Turbine fan size: 40mm x 40mm x 20mm

Working voltage: 5V;

Rated current: 0.02A ± 10%;

Maximum scattering power: 1W ± 10%;

Rotating speed: 6000 ± 10% Revolutions per minute

Noise level: 35dB ± 10%;

Wind speed: 7.9 meters/second;

Air: 3.6cfm;

Working voltage: 12V;

Rated current: 0.1A ± 10%;

Maximum scattering power: 1.2W ± 10%;

Speed: Revolutions per minute 7500 ± 10%

Noise level: 37dB ± 10%;

Wind speed: 9 meters/second;

Air: 4CFM;

Working voltage: 24V;

Rated current: 0.05A ± 10%;

Maximum scattering power: 1W ± 10%;

Speed: Revolutions per minute 7500 ± 10%

Noise level: 37dB ± 10%;

Wind speed: 9 meters/second;

Air: 4CFM;

-----------------------------------------------------------------------------------------------------------------------------------------------------------

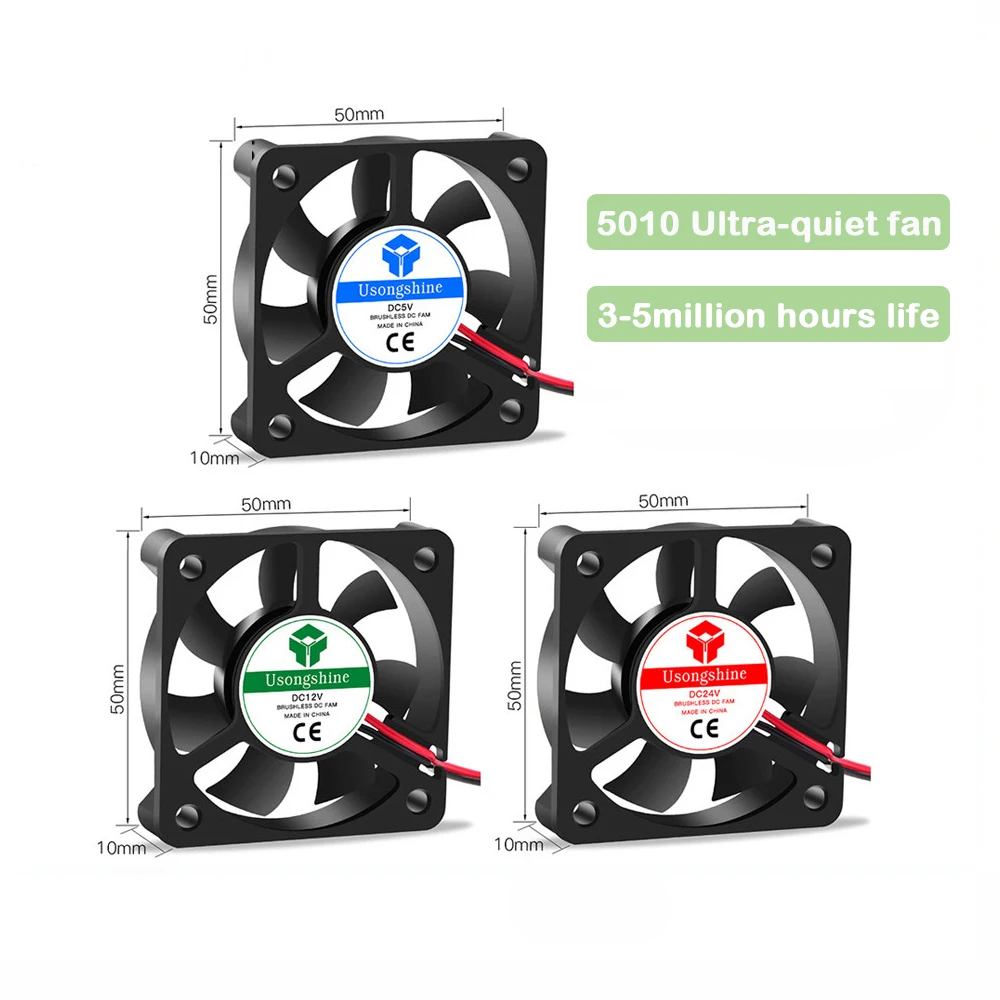

Fan size: 50mm x 50mm x 10mm

Working voltage: 5V;

Rated current: 0.11A ± 10%;

Maximum scattering power: 0.6W ± 10%;

Rotating speed: 5000 ± 10% Revolutions per minute

Noise level: 30dB ± 10%;

Wind speed: 3.2 meters/second;

Air: 12CFM;

Working voltage: 12V;

Rated current: 0.07A ± 10%;

Maximum scattering power: 0.9W ± 10%;

Speed: Revolutions per minute 5500 ± 10%

Noise level: 33dB ± 10%;

Wind speed: 3.5 meters/second;

Air: 13.5cfm;

Working voltage: 24V;

Rated current: 0.04A ± 10%;

Maximum scattering power: 1W ± 10%;

Rotating speed: 6000 ± 10% Revolutions per minute

Noise level: 34dB ± 10%;

Wind speed: 3.5 meters/second;

Air: 14CFM;

-----------------------------------------------------------------------------------------------------------------------------------------------------------

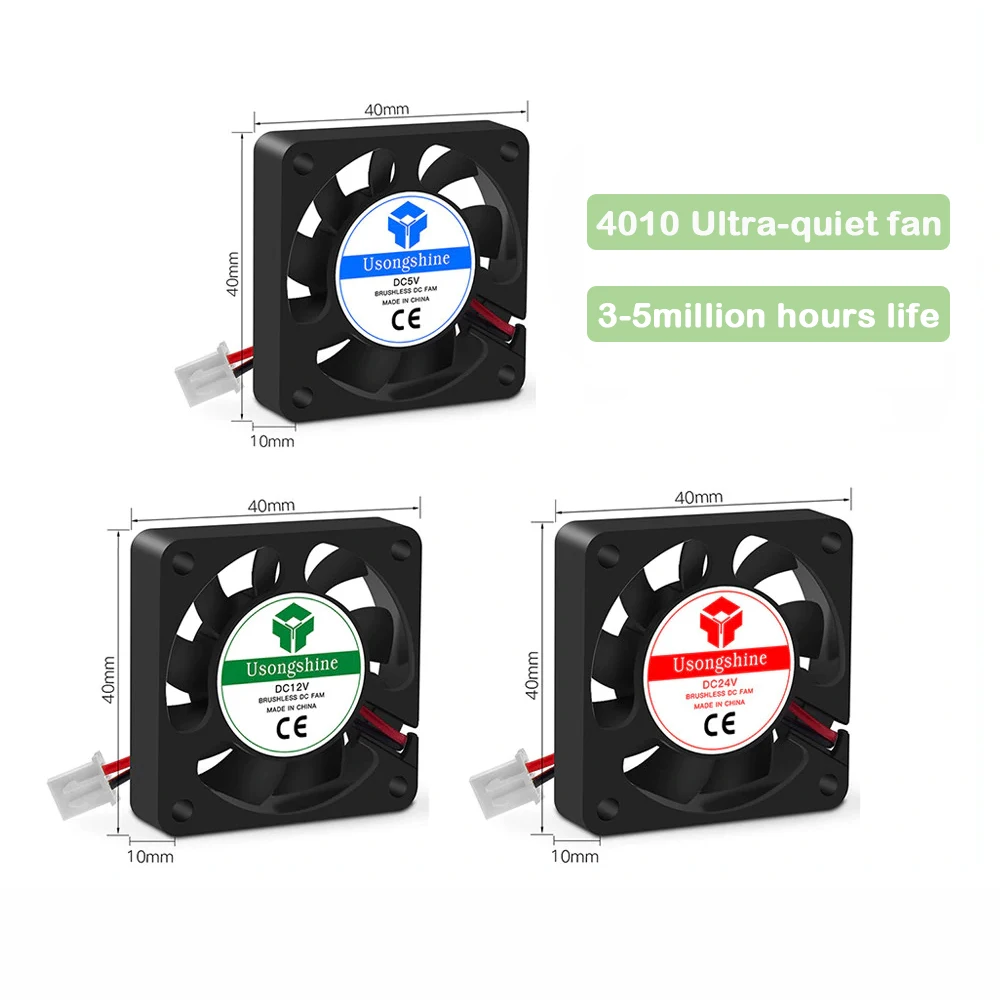

Fan size: 40mm x 40mm x 10mm

Working voltage: 5V;

Rated current: 0.11A ± 10%;

Wind speed: 3.3 meters/second

Maximum scattering power: 0.6W ± 10%;

Bearing type: sliding (oil bearing);

Rotating speed: 6000 ± 10% Revolutions per minute

Noise level: 27dB ± 10%;

Working voltage: 12V;

Rated current: 0.07A ± 10%;

Wind speed: 4.5 meters/second

Maximum scattering power: 0.9W ± 10%;

Bearing type: sliding (oil bearing);

Speed: Revolutions per minute 7000 ± 10%

Noise level: 31dB ± 10%;

Working voltage: 24V;

Rated current: 0.04A ± 10%;

Wind speed: 4.5 meters/second

Maximum scattering power: 1W ± 10%;

Bearing type: sliding (oil bearing);

Speed: Revolutions per minute 7000 ± 10%

Noise level: 31dB ± 10%;

-----------------------------------------------------------------------------------------------------------------------------------------------------------

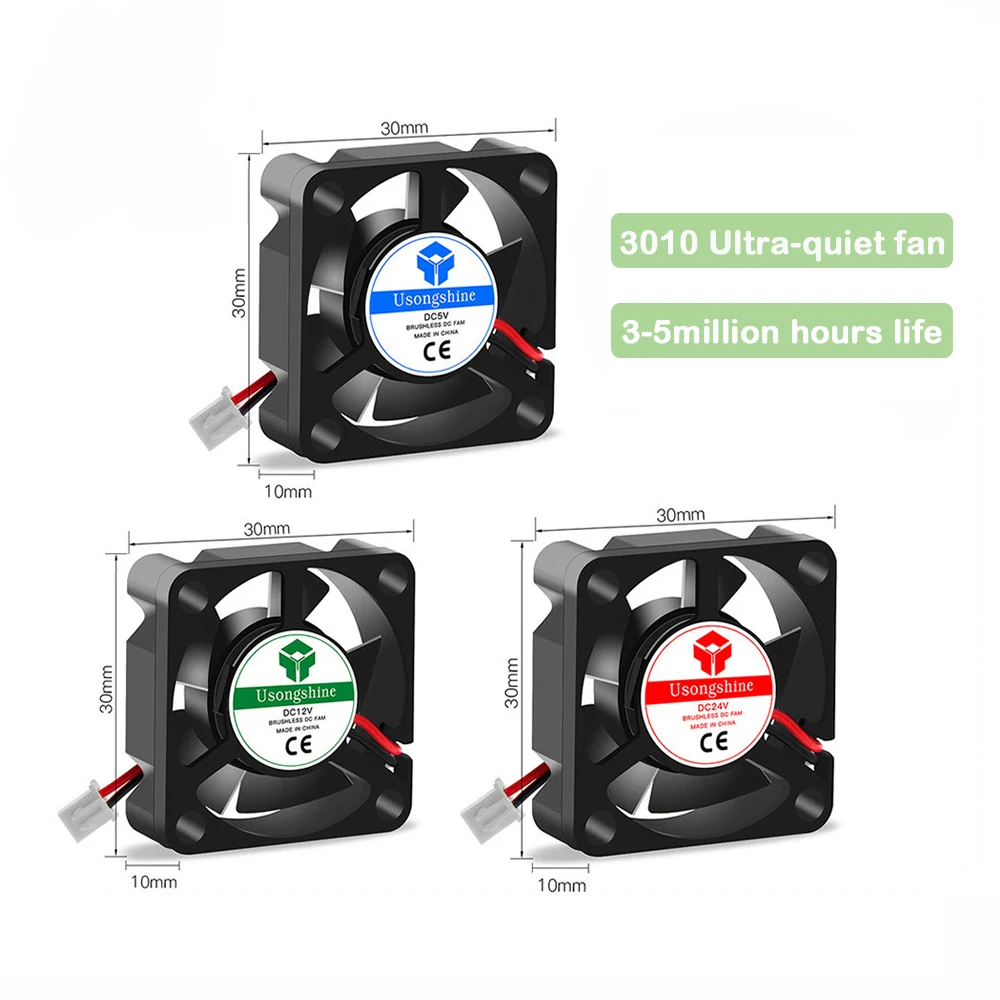

Fan size: 30mm x 30mm x 10mm

Working voltage: 5V;

Rated current: 0.11A ± 10%;

Power consumption: 0.6W

Wind speed: 4.3M/s

Speed: 9000 ± 10% rpm

Noise level: 27dB ± 10%;

Working voltage: 12V;

Rated current: 0.06A ± 10%;

Power consumption: 0.7 W

Wind speed: 4.3m/s

Rotating speed: 9000 ± 10% Revolutions per minute

Noise level: 27dB ± 10%;

Working voltage: 24V;

Rated current: 0.04A ± 10%;

Power consumption: 0.3 W

Wind speed: 3.2m/s

Rotating speed: Revolutions per minute 8000 ± 10%

Noise level: 27dB ± 10%;

-----------------------------------------------------------------------------------------------------------------------------------------------------------

Fan size: 40mm x 40mm x 20mm

Working voltage: 5V;

Rated current: 0.2A ± 10%;

Maximum scattering power: 1W ± 10%;

Rotating speed: 6000 ± 10% Revolutions per minute

Noise level: 24dB ± 10%;

Wind speed: 3.7 meters/second;

Air: 5.7cfm;

Working voltage: 12V;

Rated current: 0.1A ± 10%;

Maximum scattering power: 1.2W ± 10%;

Rotating speed: Revolutions per minute 8000 ± 10%

Noise level: 33dB ± 10%;

Wind speed: 7.5m/s;

Air: 8.8cfm;

Working voltage: 24V;

Rated current: 0.05A ± 10%;

Maximum scattering power: 1.2W ± 10%;

Rotating speed: Revolutions per minute 8000 ± 10%

Noise level: 33dB ± 10%;

Wind speed: 7.5m/s;

Air: 8.8cfm;

-----------------------------------------------------------------------------------------------------------------------------------------------------------
