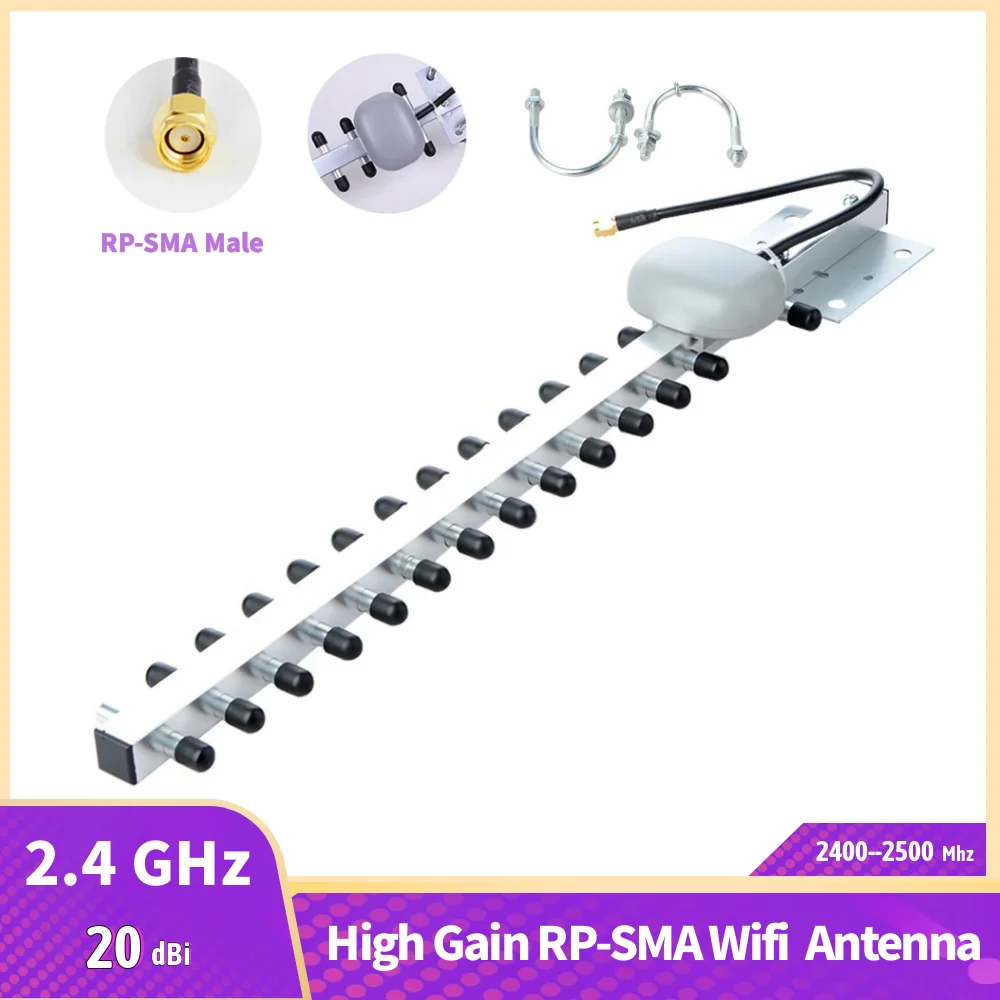

Direction 2.4G RP-SMA Plug High Gain 20dBi Antenna 2400-2500MHz Outdoor Yagi Antenna For Wireless Router Modem Booster Amplifier

Direction 2.4G RP-SMA Plug High Gain 20dBi Antenna 2400-2500MHz Outdoor Yagi Antenna For Wireless Router Modem Booster Amplifier

Technical Specfication:

Standard：IEEE802.11b,IEEE802.11g,IEEE802.11n

1.Frequency：2400--2500MHz

2.VSWR: 1.8：1max

3.Gain：20dBi

4.Polarization Type：Linear Vertical

5.Rated Power：30W

6.Input Impedance: 50 Ohms nominal

7.Dimensions：45.5 x 6.8 x 1.6cm

8.Cable Type：RG58

9.Length：15cm

10.Connector Type：RP-SMA Male

11.Install the Way：Adsorption

12.Weight of Antenna:272g

Outdoor Network Signal Booster

This Yagi antenna is a cutting-edge solution for enhancing outdoor wireless networks. Engineered to significantly boost the performance of your wireless router, it features an impressive gain of 20dbi, guaranteeing a robust and stable signal. With a frequency range of 2400 - 2500MHz, it is fully compatible with a diverse array of wireless standards such as IEEE802.11b, IEEE802.11g, and IEEE802.11n, ensuring seamless integration with various devices and networks.

Superior Performance and Durability

Constructed using high-quality materials, this antenna is designed to endure the toughest outdoor conditions. Its rugged design ensures a maximum voltage standing wave ratio (VSWR) of 1.8:1, minimizing signal loss and maximizing efficiency. The linear vertical polarization provides a reliable and stable connection, making it ideal for outdoor installations. With a rated power of 30W, it is meticulously engineered to deliver optimal performance even in the most challenging environments.

Convenient Installation and Compact Design

The antenna's compact dimensions of 49.5 x 6.8 x 1.6cm and lightweight build of 272g make it extremely easy to install and transport. The 15cm RP-SMA cable ensures a secure connection, while the innovative absorption installation method simplifies the setup process. Whether you're aiming to extend your network range or enhance the signal strength of your outdoor wireless setup, this antenna is the professional and effective solution you need.

Why Choose Our Yagi Antenna?

Exceptional signal enhancement for outdoor networks.

Wide compatibility with multiple wireless standards.

Durable construction for long-term reliability.

User-friendly installation and portability.

Optimal performance in demanding conditions.

Don't miss out on this top-of-the-line Yagi antenna! Upgrade your outdoor wireless network today and enjoy uninterrupted connectivity. Place your order now!

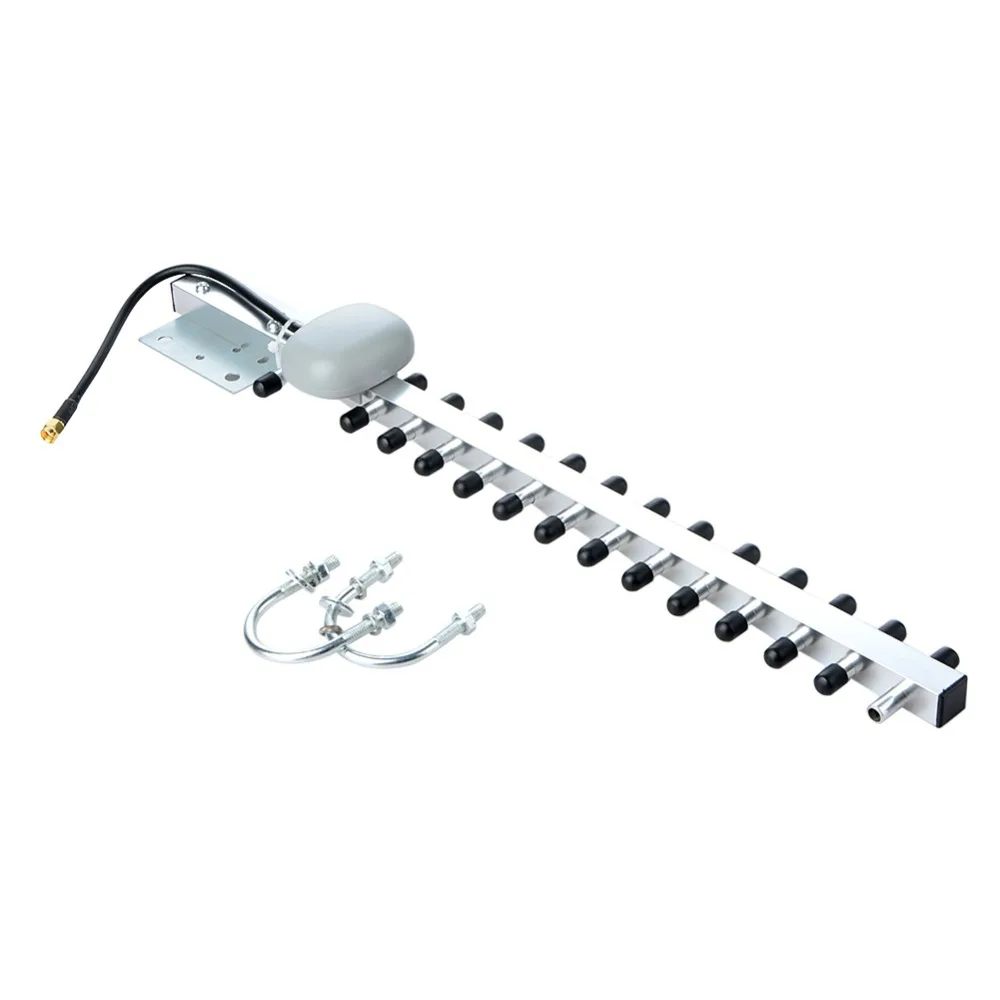

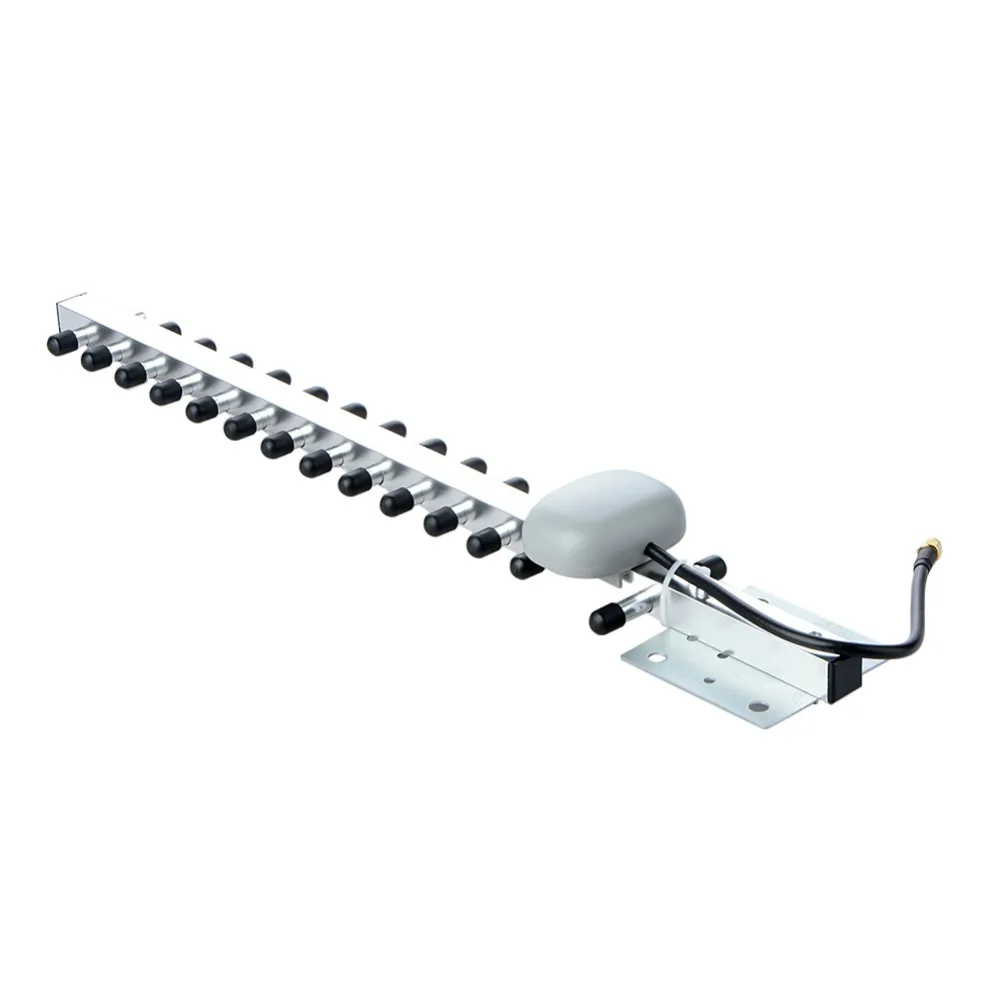

1 X   2400--2500MHz  RP-SMA Male Plug Antenna

Dear user,When using a directional Yagi-Uda antenna, please keep the following in mind for the best signal reception:

Proper Installation and Placement

Height and Position Selection: Install the Yagi - Uda antenna at as high a position as possible, such as on the roof or a high pole. This can reduce the signal blockage caused by surrounding objects and enable the antenna to "see" a wider area of the signal source. For example, when receiving a long - distance television signal, installing the antenna on the roof allows you to receive more channels than placing it in the yard.

Direction Adjustment: The Yagi - Uda antenna is a directional antenna, and precise direction alignment is the key to obtaining a good signal. Use a compass to determine the approximate direction of the signal source, and then slowly rotate the antenna while observing the signal strength indication on the receiving device (such as a television, radio, or signal strength indicator). When the signal strength reaches its maximum, fix the direction of the antenna. For example, when receiving a signal from a distant radio station, you can find the strongest signal direction by patiently making slight left - right adjustments to the antenna direction.

Matching and Optimizing the Feed Line System

Selecting the Appropriate Feed Line: The characteristic impedance of the feed line should match the input and output impedances of the Yagi - Uda antenna and the receiving device. Usually, a 50Ω or 75Ω coaxial cable is selected as the feed line. If the feed line impedance does not match, it will lead to signal reflection and reduce the receiving efficiency. For example, for most common Yagi - Uda antennas and television - receiving devices, a 75Ω coaxial cable is a more appropriate choice.

Minimizing the Feed Line Length: An overly long feed line will cause signal attenuation. Therefore, the feed line length should be shortened as much as possible under installation - permitted conditions. For example, if the antenna installation position is close to the receiving device, you can directly connect them with a shorter feed line to reduce signal loss.

Eliminating Interference Factors

Keeping Away from Interference Sources: The Yagi - Uda antenna should be kept as far away as possible from interference sources such as large motors and high - voltage lines that generate electromagnetic interference. The electromagnetic waves emitted by these interference sources will mix with the received signal and reduce the signal quality. For example, near a factory with large industrial motors in operation, the signal received by the antenna may have a lot of noise. Moving the antenna farther away from the factory can improve this situation.

Preventing Signal Reflection Interference: Avoid having large - area metal objects around the antenna, because the metal surface will reflect the signal and cause multipath interference. If the antenna is installed on a roof with a metal guardrail, it is best to install the antenna a certain distance above the guardrail or properly insulate the guardrail to prevent signal reflection.
