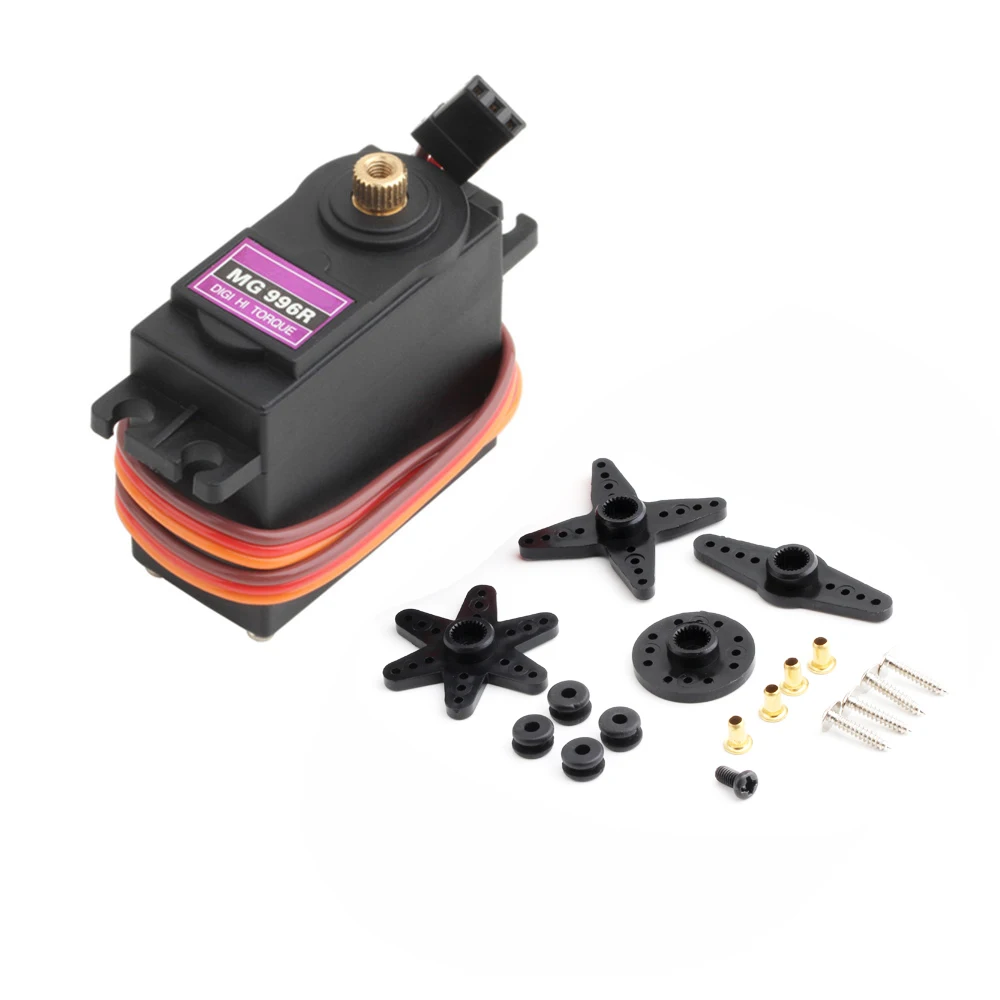

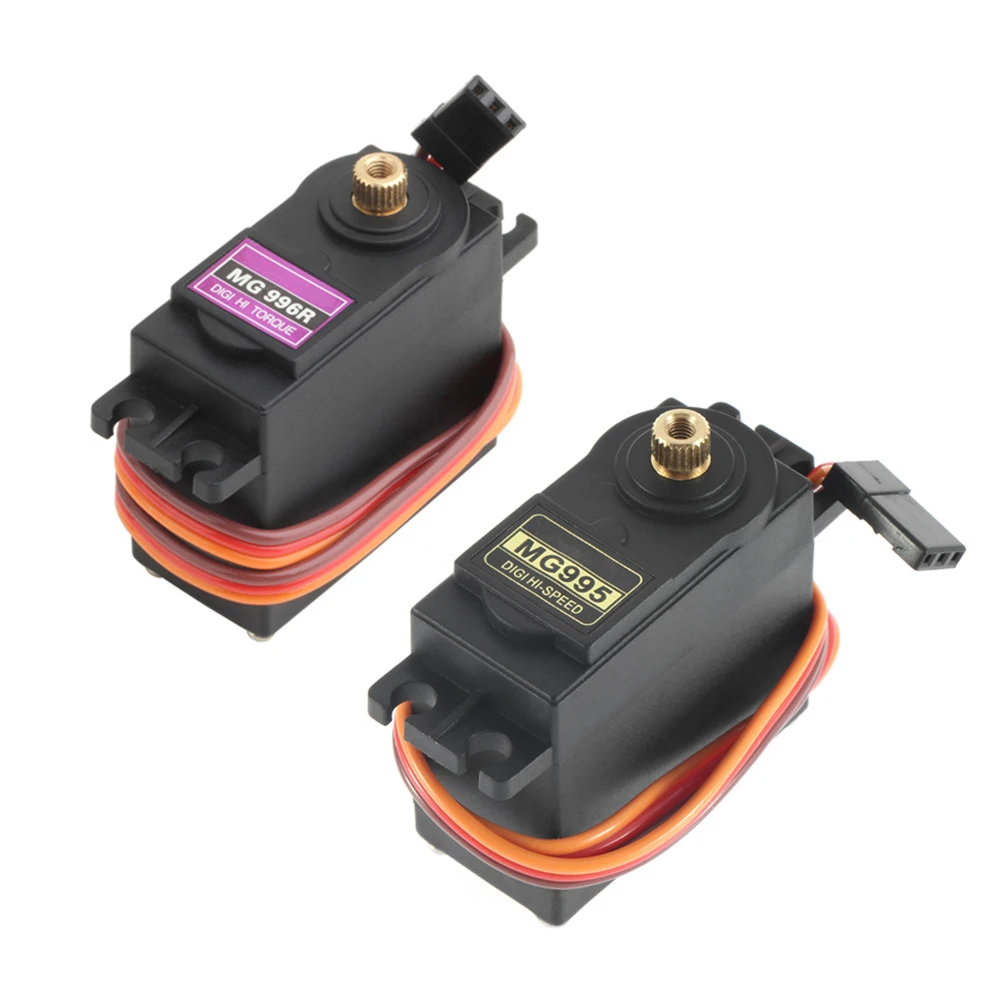

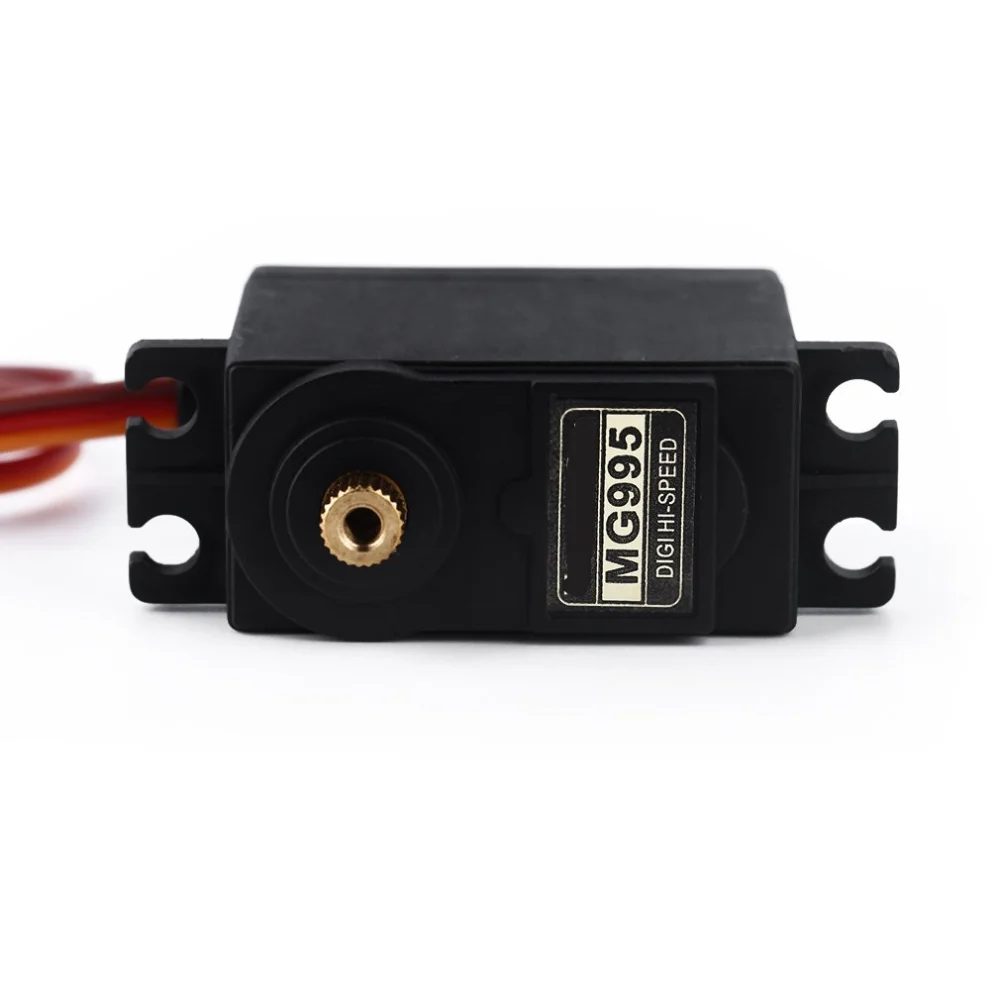

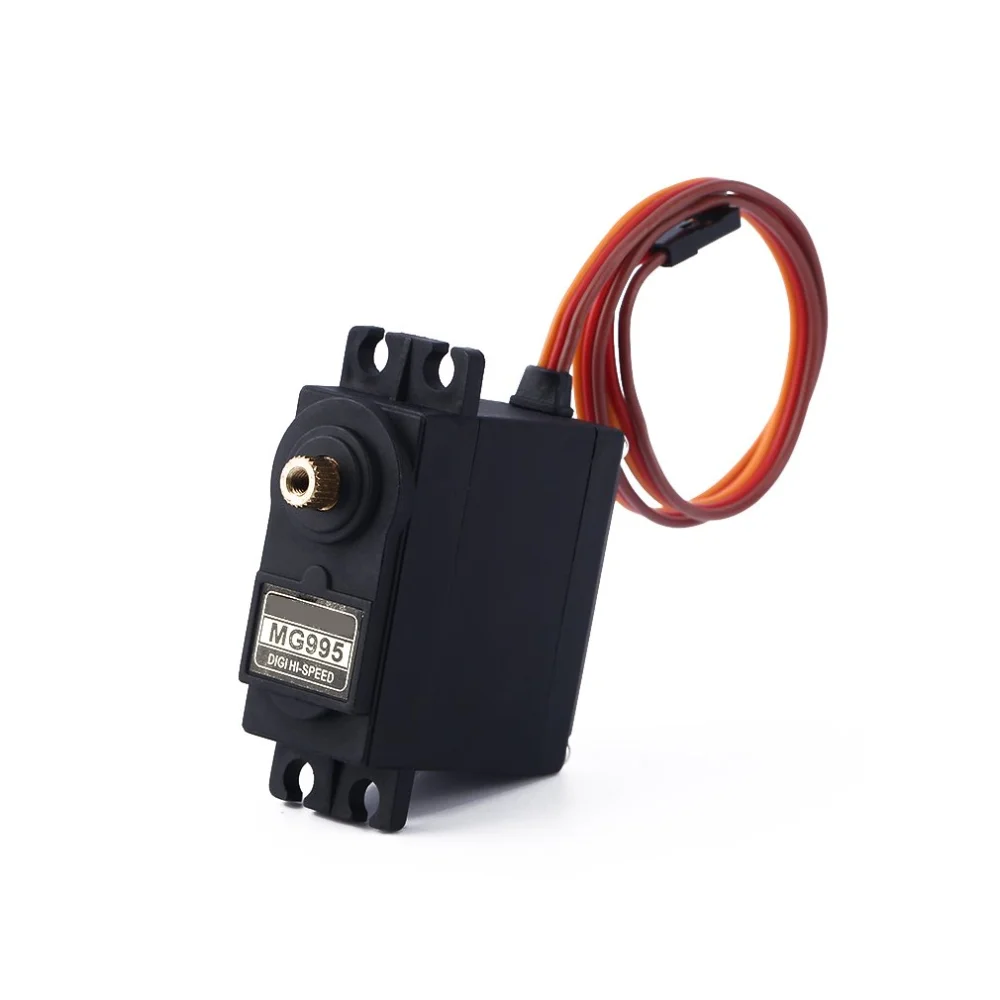

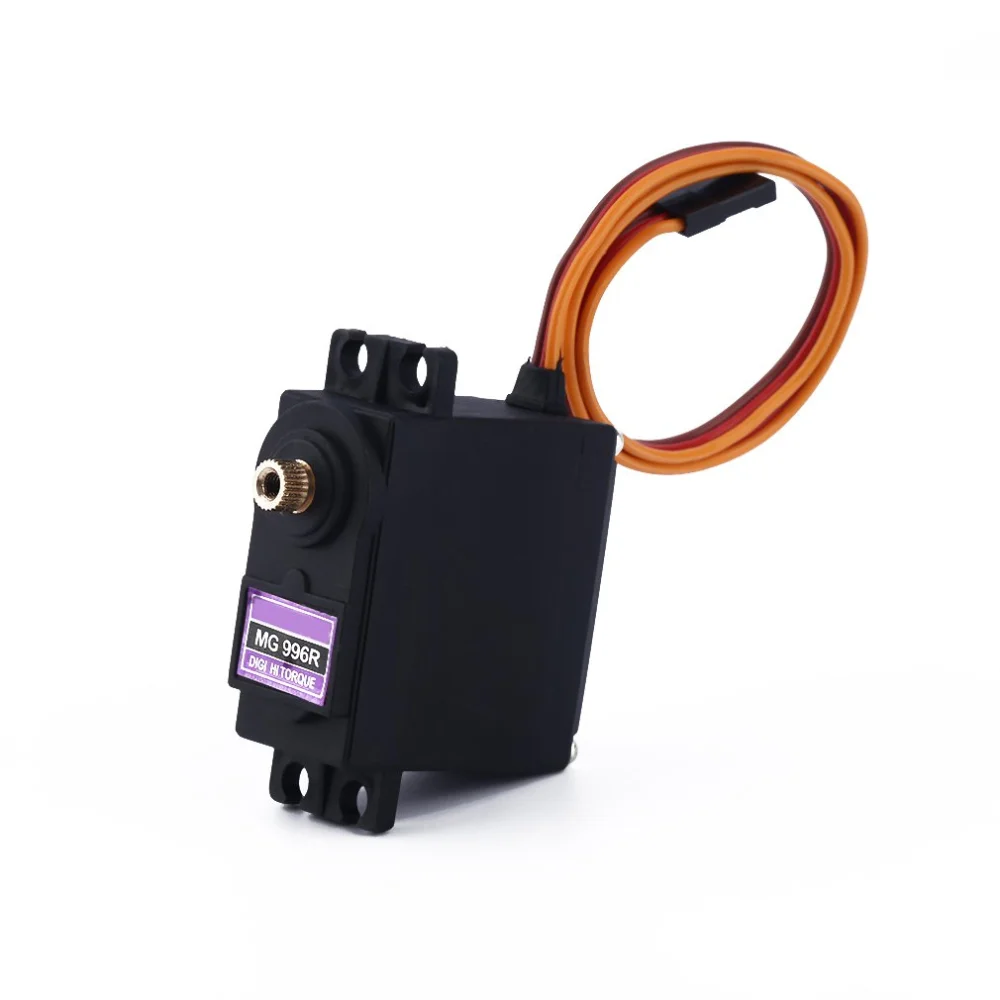

Special Offer 13KG 15KG Servos Digital MG995 MG996 Servo Gear for Futaba JR Car RC Model Helicopter Boat For Arduino UNO DIY

Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.

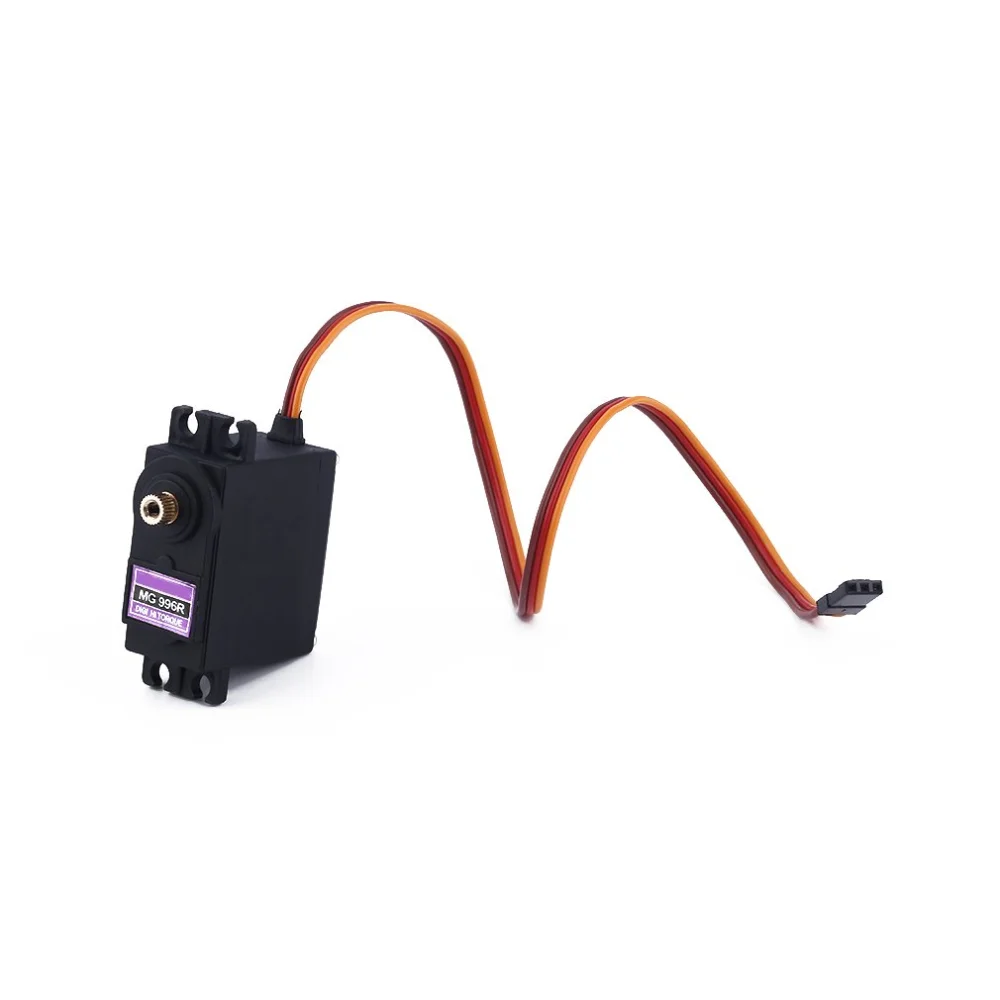

Connector Wire Length 300mm

Specification:

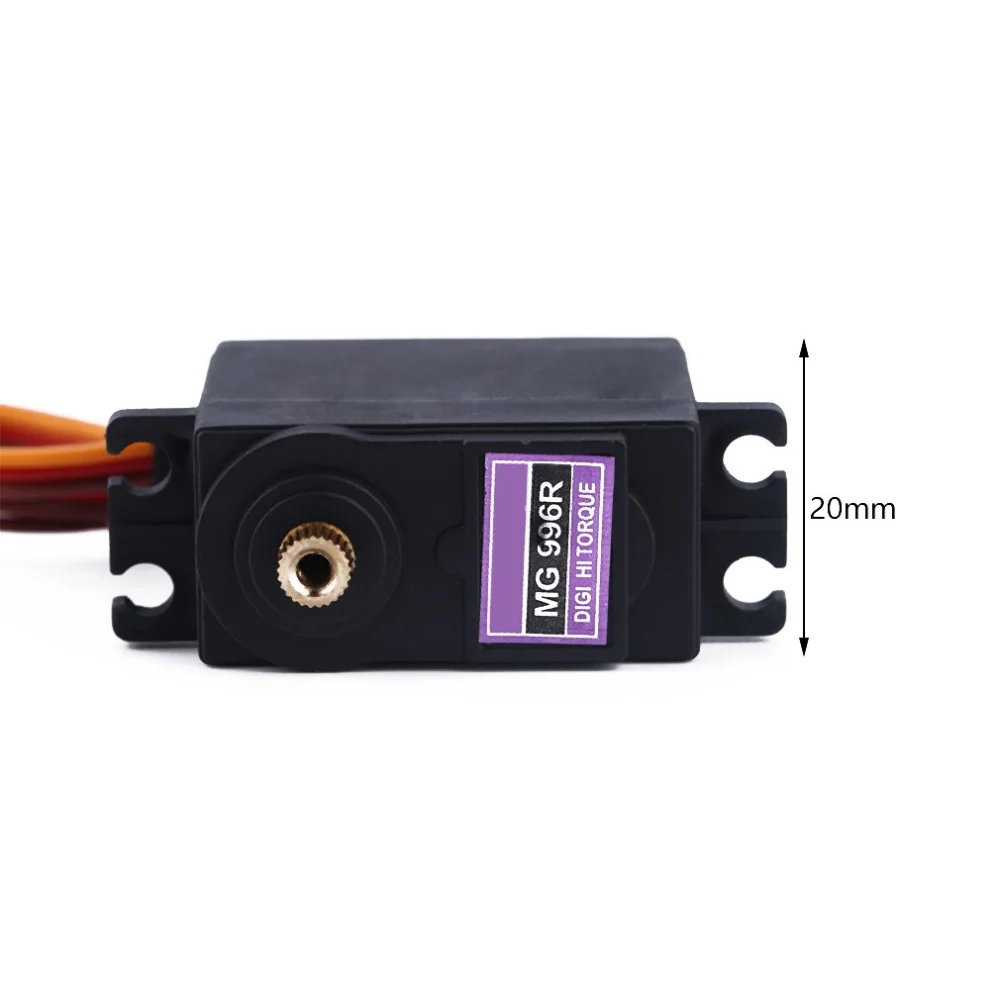

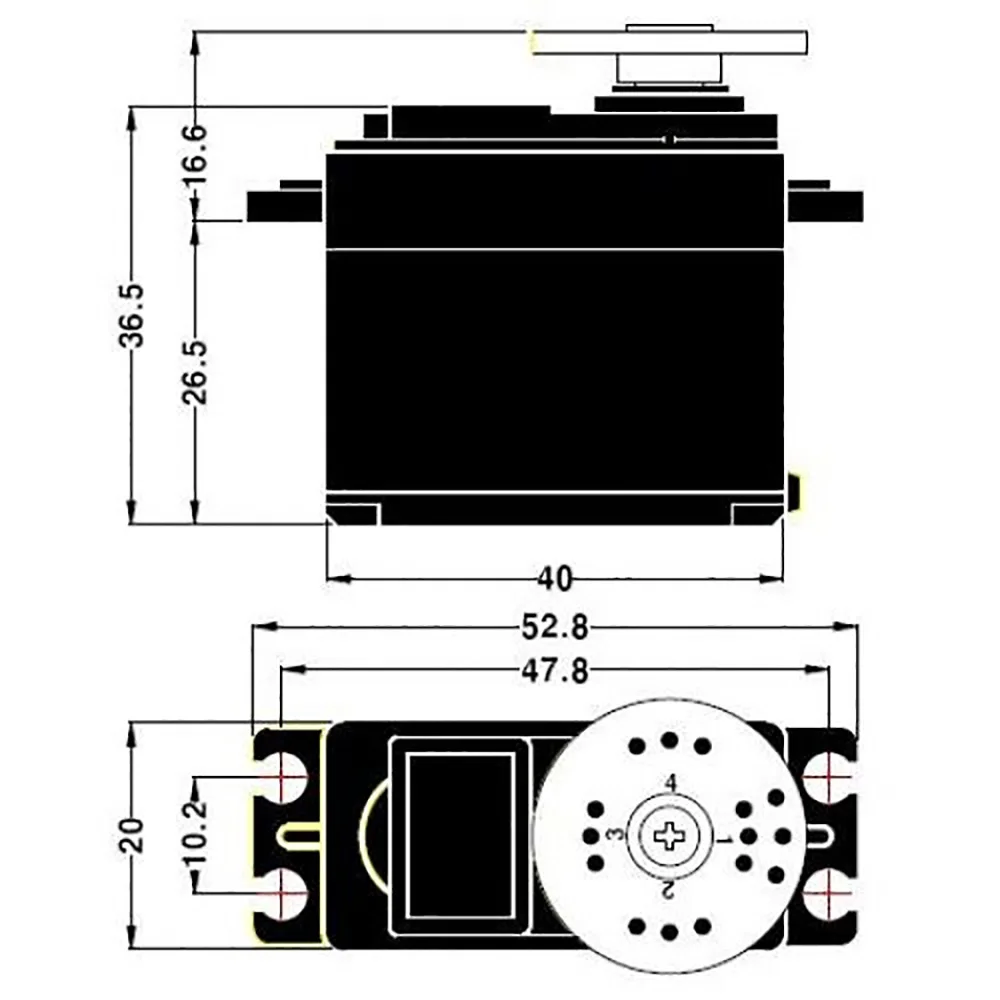

Dimension : 40mm x 19mm x 43mm
Original box: NO

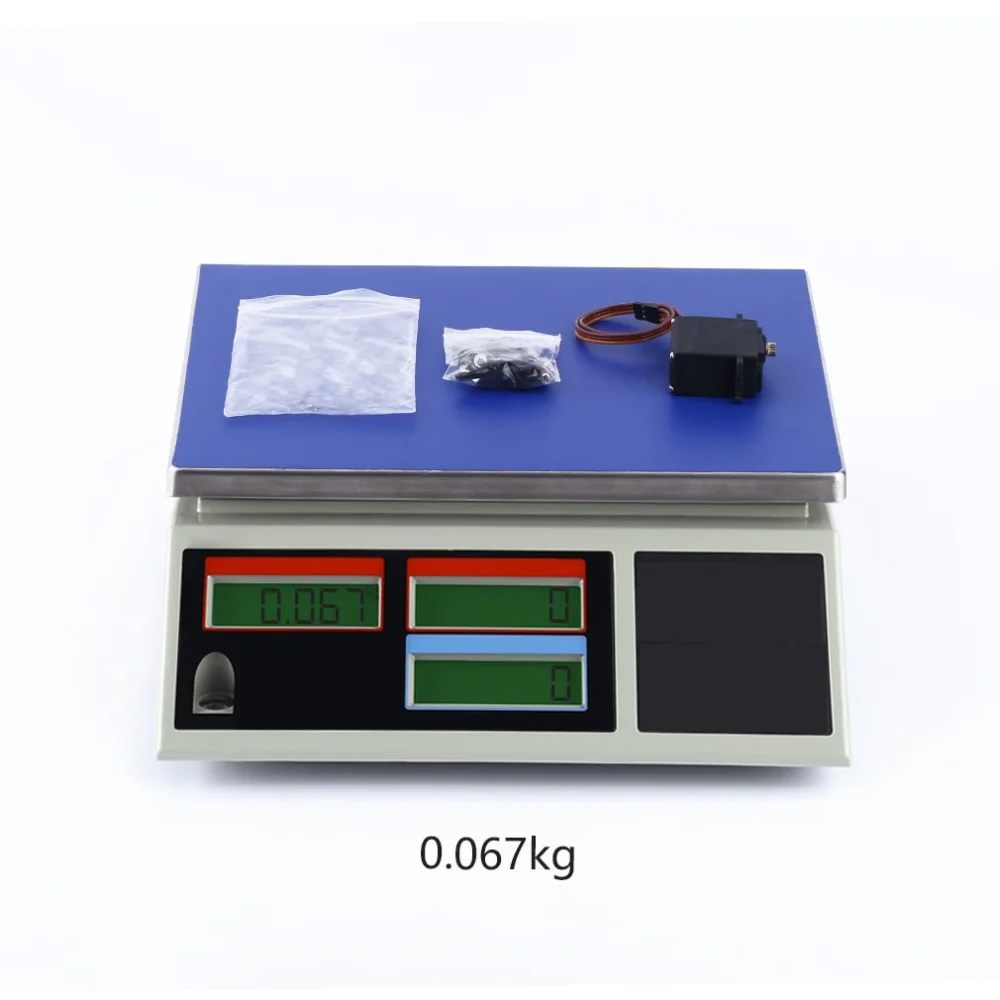

Net weight: 65g
Package weight: 75g
Color: Black
Operating Speed : 0.17sec / 60 degrees (4.8V no load)
Operating Speed : 0.13sec / 60 degrees (6.0V no load)
Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
Operation Voltage : 4.8 - 7.2Volts
All gear:Metal

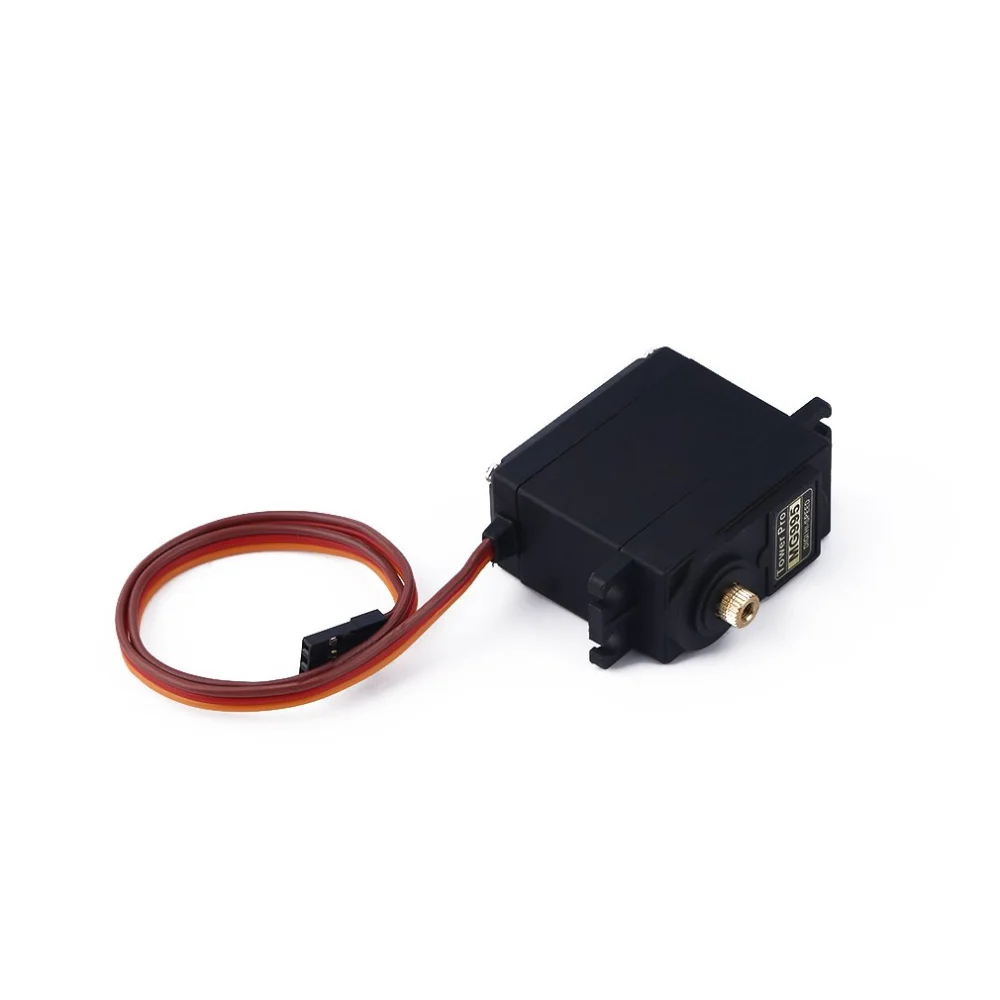

Connector Wire: Heavy Duty, 11.81" (300mm)
Rotation angle 90~180 degrees

Features:
Gear Type: Metal Gears
Stall torque:12kg/cm(6V)
Power Supply: Through External Adapter
Operation Voltage : 4.8 - 7.2 V
Temperature range: 0\'C to 55lsquoC
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Stable and Shock Proof.
Connector Wire:Length 300mm
Great for truck, Boat, Racing Car, Helicopter and Airplane
All gear:all Metal
Rotation angle 90~180 degrees
Specifications:
Connector wire length:300 mm

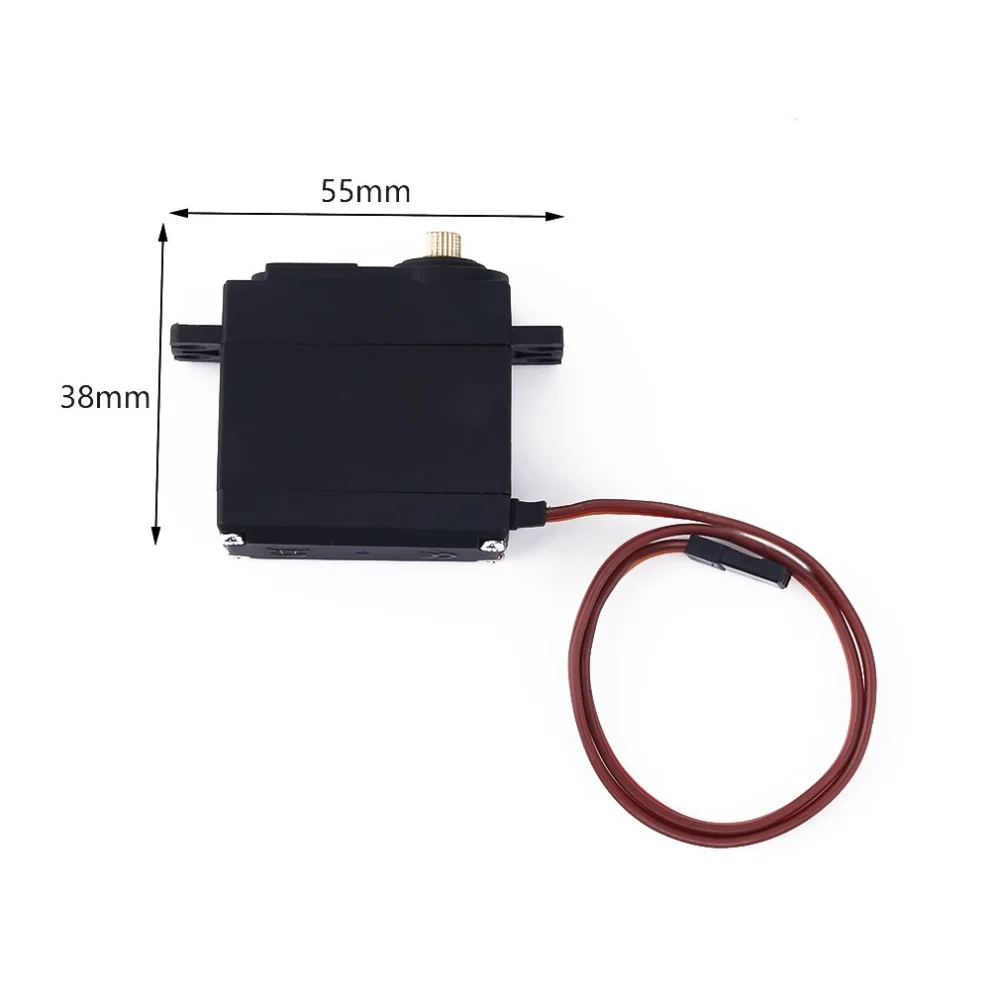

Package Dimension: 54 x 38 x 20 mm
Net weight:65 g
Package weight:75 g
Color: Black

The control of the steering gear generally requires a time base pulse of about 20ms. The high-level part of the pulse is generally the angle control pulse part in the range of 0.5ms-2.5ms, with a total interval of 2ms. Taking the 180 degree angle servo as an example, the corresponding control relationship is as follows:
0.5ms--------------0 degrees;
1.0ms------------45 degrees;
1.5ms------------90 degrees;
2.0ms-----------135 degrees;
2.5ms-----------180 degrees;

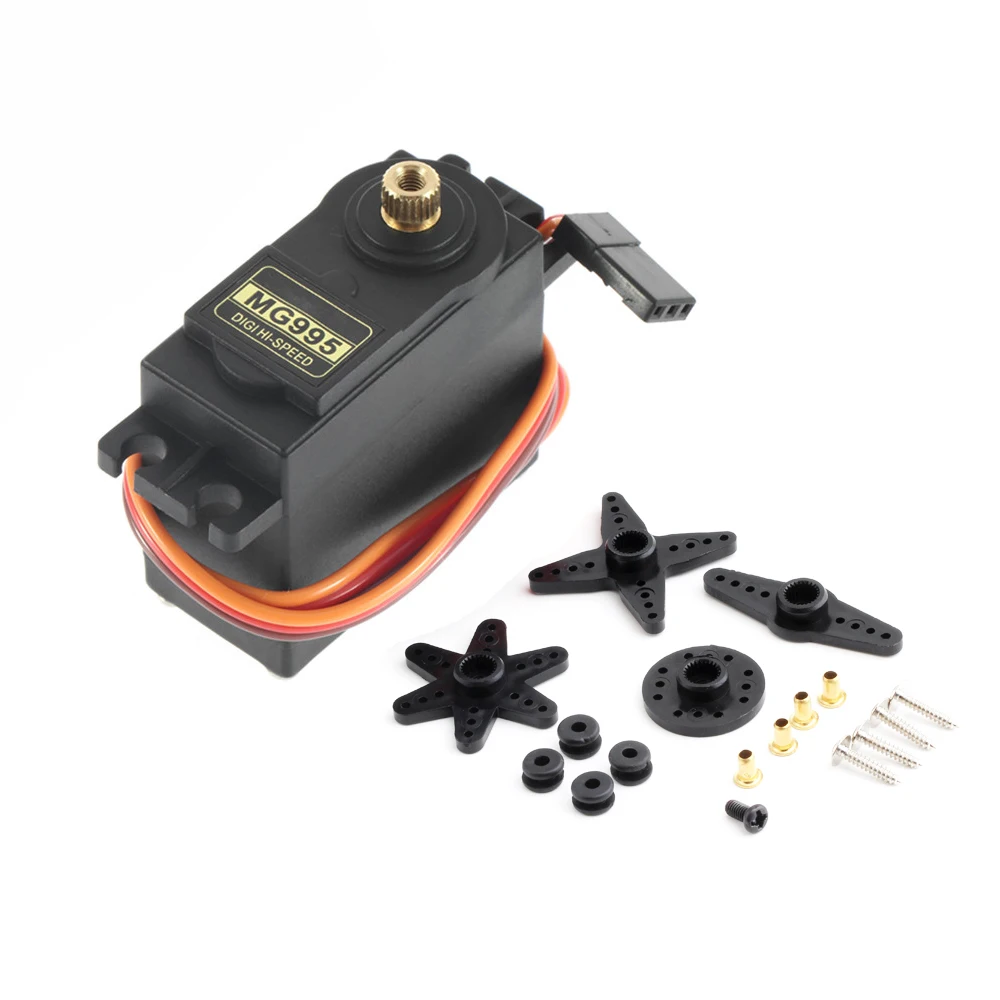

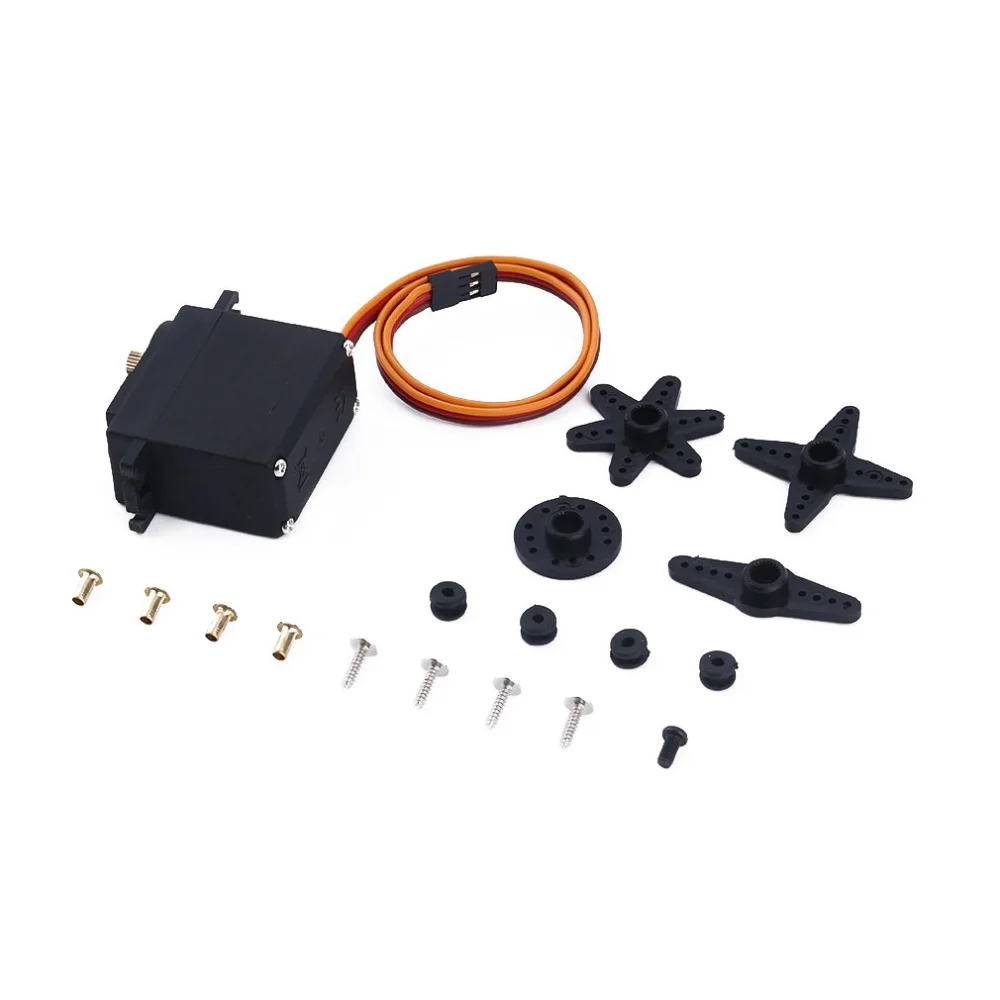

Package Included:
1X55g metal gear steering gear
