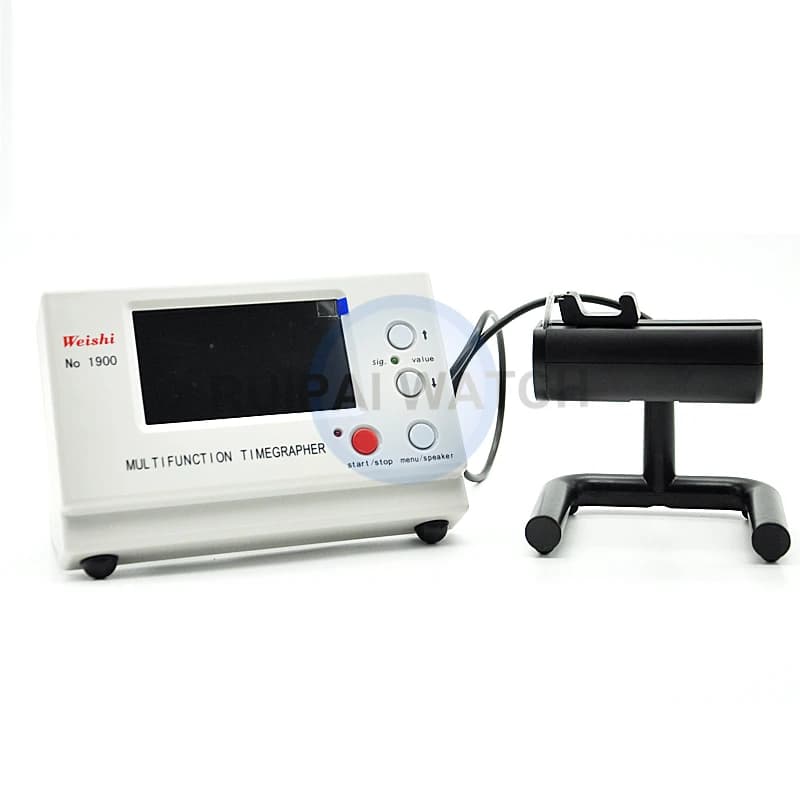

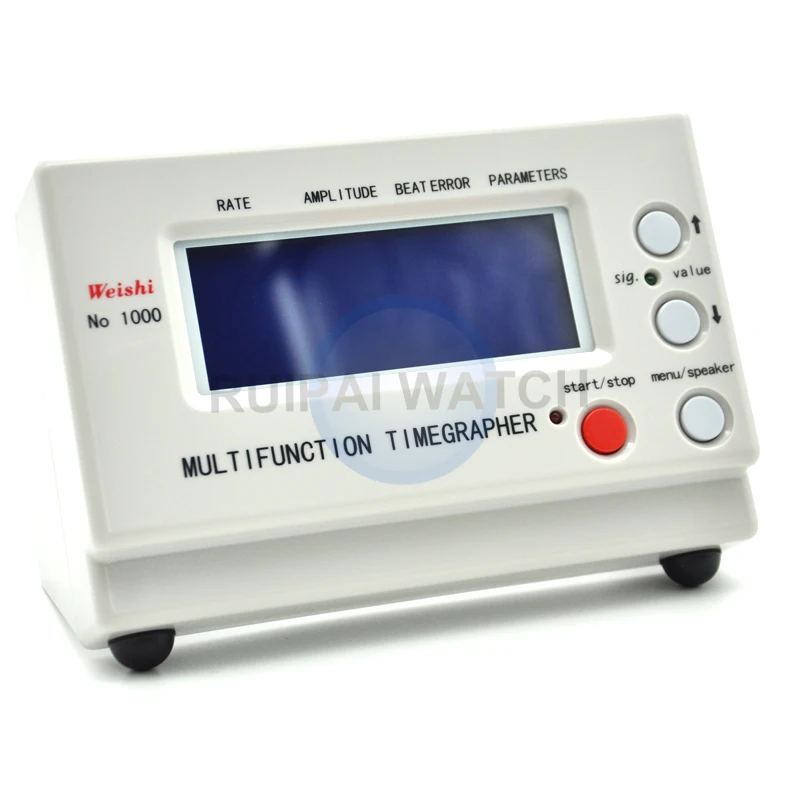

Watchmakers and Hobbyists Watch Testing Tool, Mechanical Watch Testing Time Grapher Weishi Timegrapher 1000 1900

Watchmakers and Hobbyists Watch Testing Tool,Mechanical watch Testing Time grapher Weishi Timegrapher 1000 1900

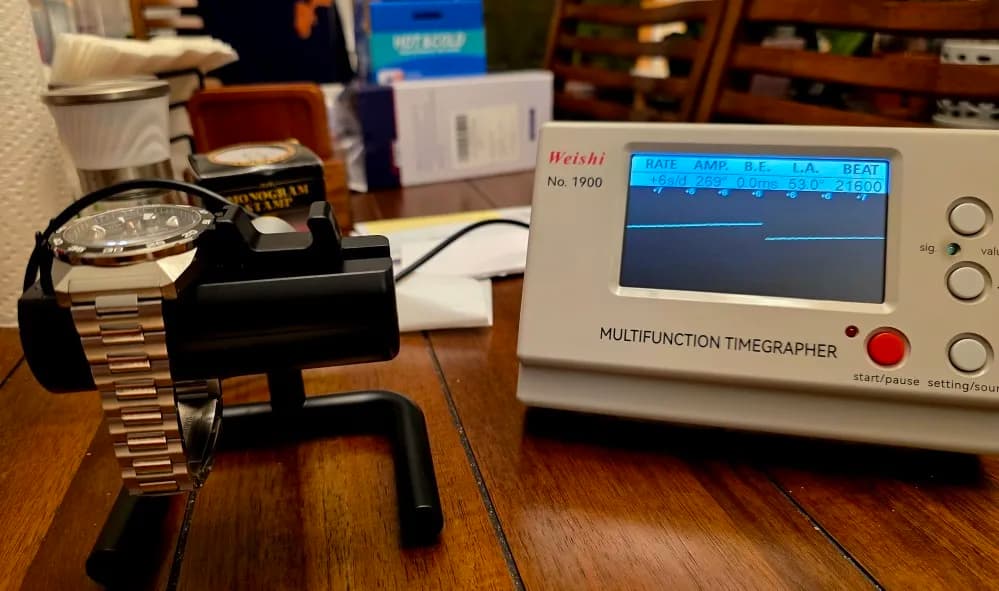

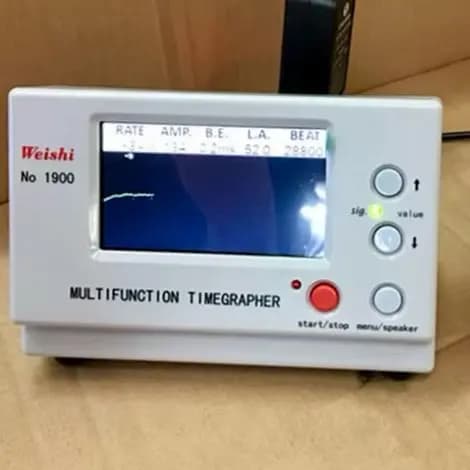

The Multifunction Watch Timing Machine is built smart, able to automatically detect the Beats per Hour of industry-standard watches. Have a watch built with a custom BPH? You can manually program it in! Once the watch has been detected, your Multifunction Timegrapher will begin to display the beat rate, amplitude, beat error, and the lift angle. From here you have a snapshot of your watch's health, and if it's in need of a simple tune-up or repairs.

Whether it's the brand new watch you've always wanted, or a fine vintage watch that you've found at an antique store, you'll want to know how well it's running. Your Multifunction Watch Timing Machine will always come in handy!

6 Measurement Positions

Beats Per Hour AUTOMATIC Setting: 12000, 14400, 18000, 19800, 21600, 25200, 28800, 36000, 43200

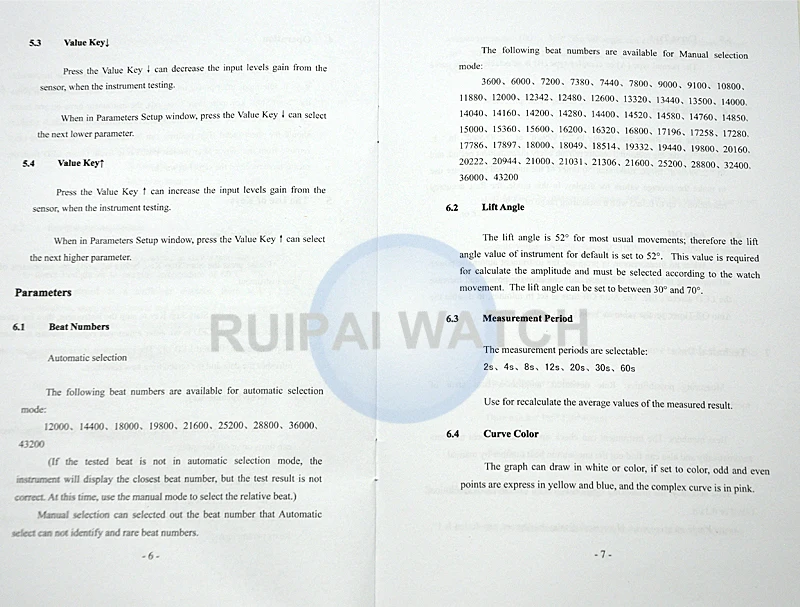

Beats Per Hour Range Manual Setting (If you need to use the Manual Setting): 3600, 6000, 7200, 7380, 7440, 7800, 9000, 9100, 10800, 11880, 12000, 12342, 12480, 12600, 13320, 13440, 13500, 14000, 14040, 14160, 14200, 14280, 14400, 14520, 14580, 14760, 14850, 15000, 15360, 15600, 16200, 16320, 16800, 17196, 17258, 17280, 17786, 17897, 18000, 18049, 18514, 19332, 19440, 19800, 20160, 20222, 20944, 21000, 21031, 21306, 21600, 25200, 28800, 32400, 36000, 43200

Specifications

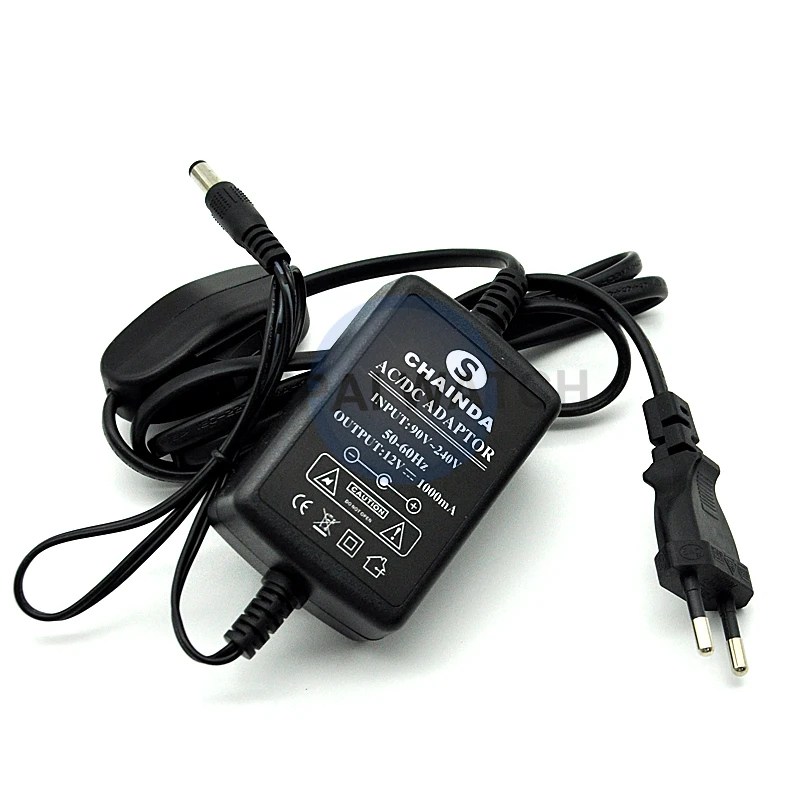

Power Supply: AC 80 - 240 V (two-wire)

Display: Color LCD monitor, 480 x 272 pixels

Range of Rate Deviation: Can be set at “± 99.9 s/d” or “± 999 s/d” for range

Amplitude: Resolution of 1 degree. Range: 100 - 360 degrees

Beat Error: 0 - 9.9 ms. 0.1 ms resolution

Sampling Periods: 2/4/6/8/12/20/30/60 seconds

Lift Angle: 30 to 70 degrees. Default: 52 degrees
