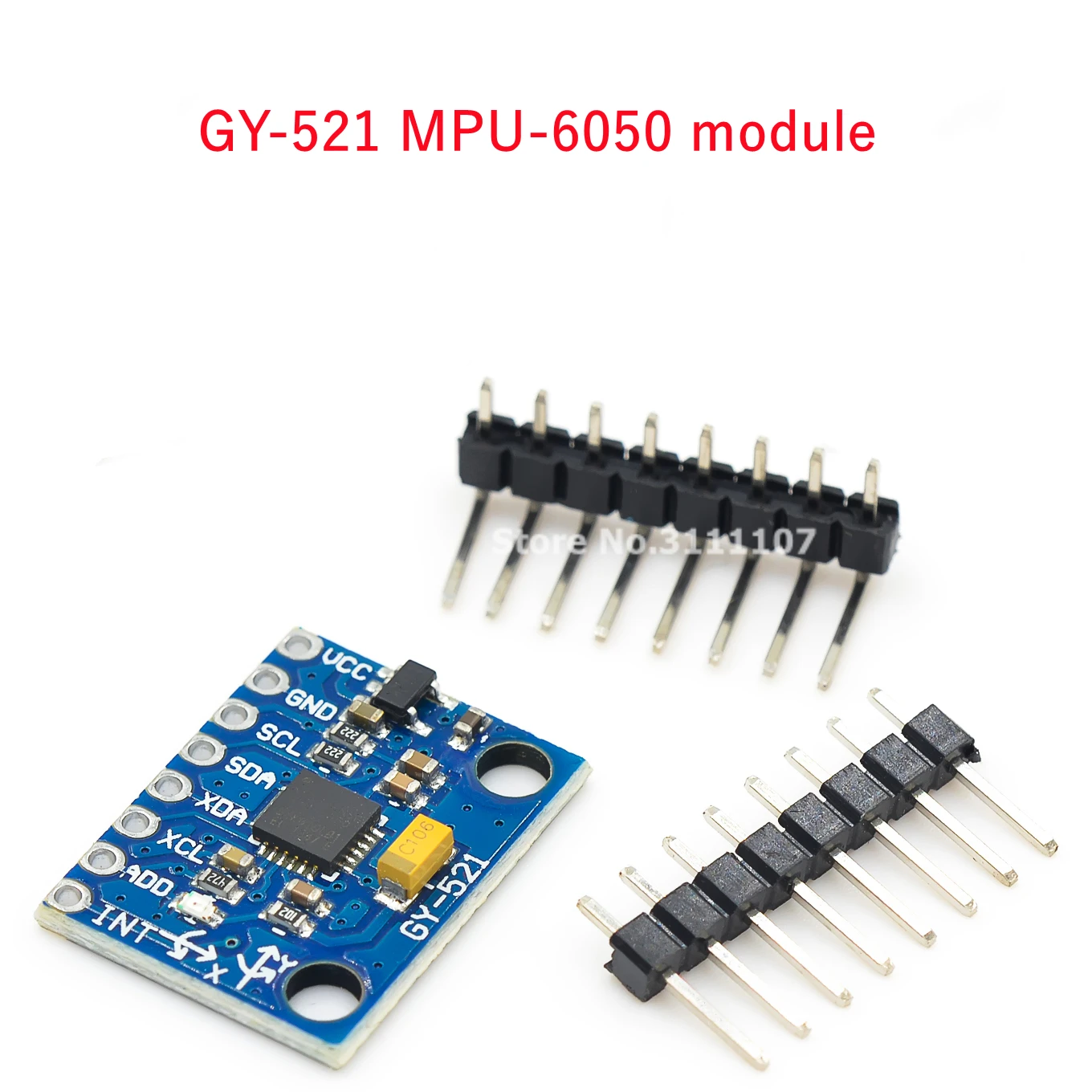

GY-521 MPU-6050 module Three-axis acceleration gyroscope 6DOF module

Name: MPU-6050 module (three-axis gyroscope + three-axis acceleration)

Use chip: MPU-6050

Power supply: 3-5v (internal low dropout voltage regulator)

Communication method: standard IIC communication protocol

Chip built-in 16bit AD converter, 16-bit data output

Gyroscope range: ±250 500 1000 2000 °/s

Acceleration range: ±2±4±8±16g

Using Immersion Gold PCB, machine welding process to ensure quality

Pin pitch 2.54mm

feature:

Digital output 6-axis or 9-axis rotation matrix, quaternion (quaternion), Euler angle format (Euler Angle forma) fusion calculation data.

A 3-axis angular velocity sensor (gyro) with a sensitivity of 131 LSBs/°/sec and a full-scale sensing range of ±250, ±500, ±1000, and ±2000°/sec.

Programmable control, and the program control range is ±2g, ±4g, ±8g and ±16g 3-axis accelerator.

Remove the sensitivity between the accelerator and the gyroscope axis to reduce the influence of the setting and the drift of the sensor.

The digital motion processing (DMP: Digital Motion Processing) engine can reduce the load of complex fusion calculation data, sensor synchronization, and posture sensing.

Motion processing database supports Android, Linux and Windows

The built-in operating time deviation and magnetic sensor calibration algorithm eliminates the need for customers to perform additional calibration.

Temperature sensor with digital output

Digital input Sync pin supports video electronic image stabilization technology and GPS

Programmable interrupt (interrupt) supports gesture recognition, panning, screen zooming, scrolling, rapid descent interrupt, high-G interrupt, zero motion sensing, touch sensing, and shaking sensing functions.

VDD supply voltage is 2.5V±5%, 3.0V±5%, 3.3V±5%; VDDIO is 1.8V±5%

Gyro operating current: 5mA, gyroscope standby current: 5A; accelerator operating current: 350A, accelerator power saving mode current: 20A@10Hz

Up to 400kHz fast mode I2C, or up to 20MHz SPI serial host interface (serial host interface)

The built-in frequency generator has only ±1% frequency change in the full temperature range.

User personally test

10,000 g collision tolerance

Small and thin packaging (4x4x0.9mm QFN) tailored for portable products

Comply with RoHS and environmental standards
