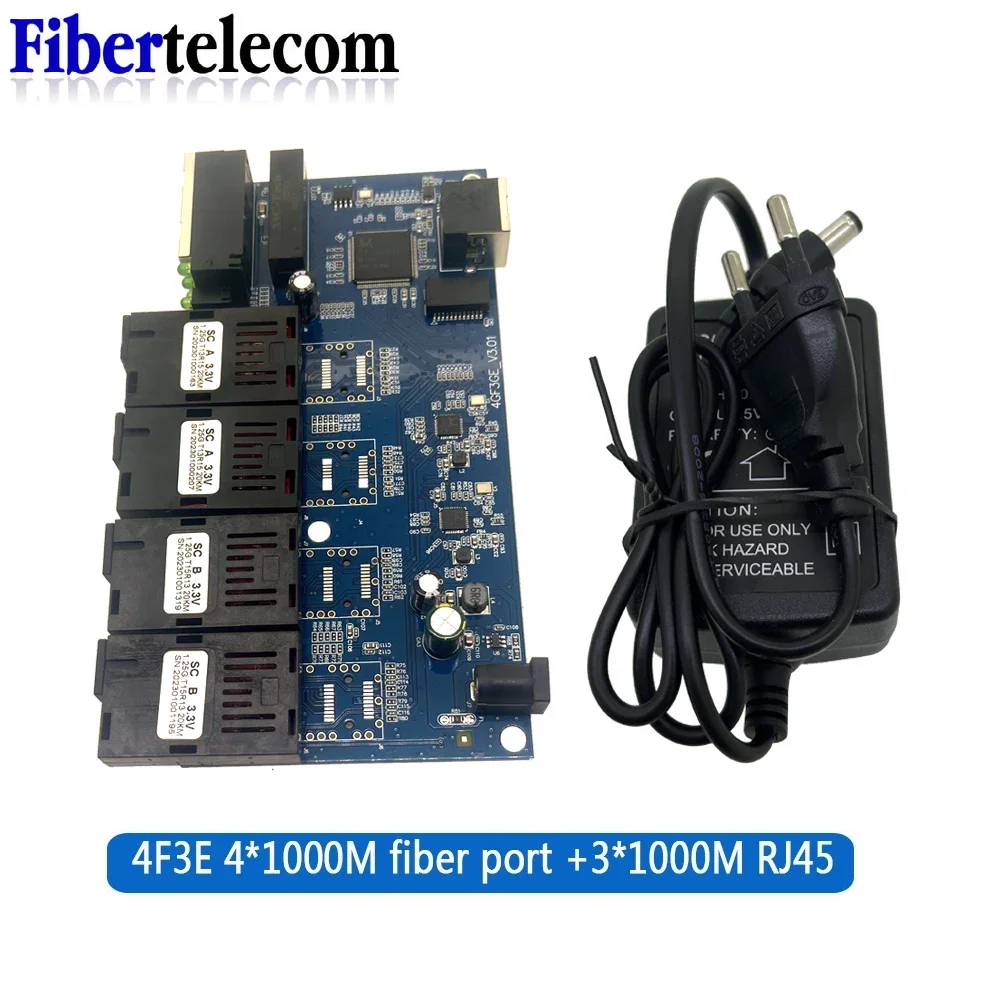

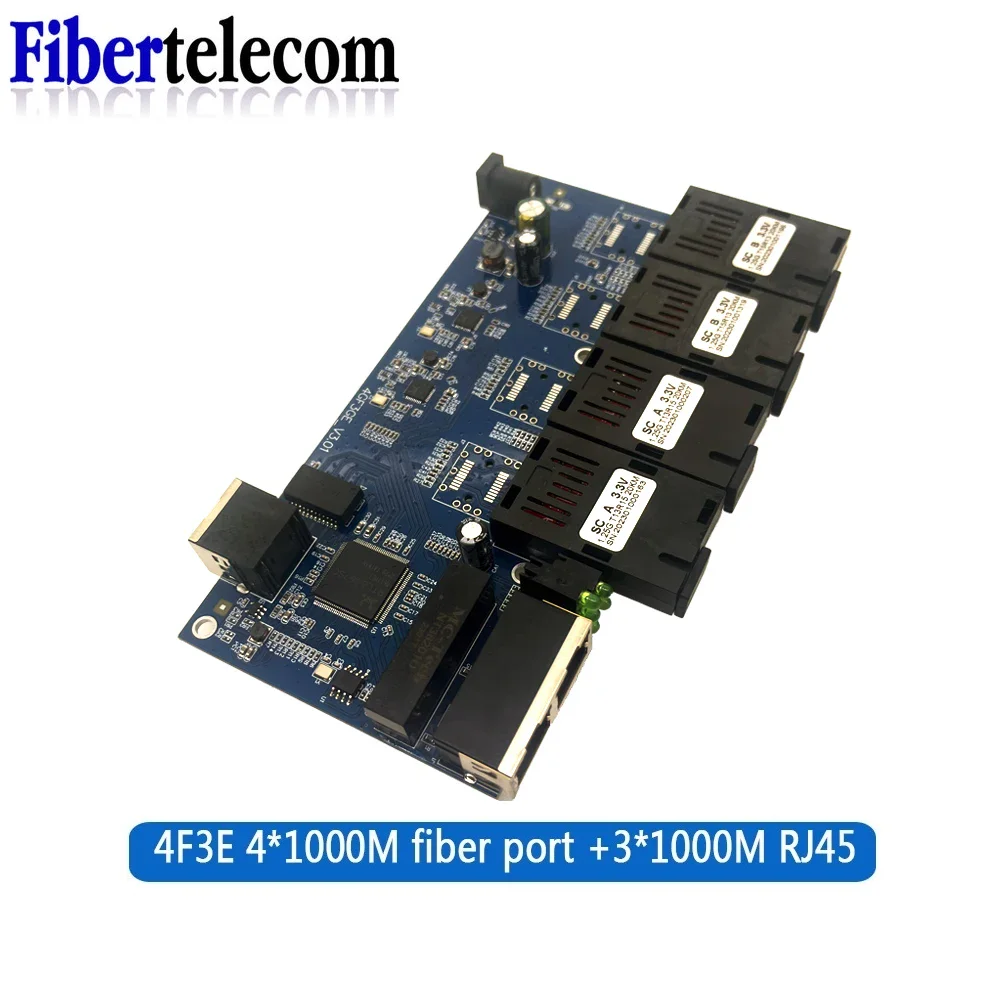

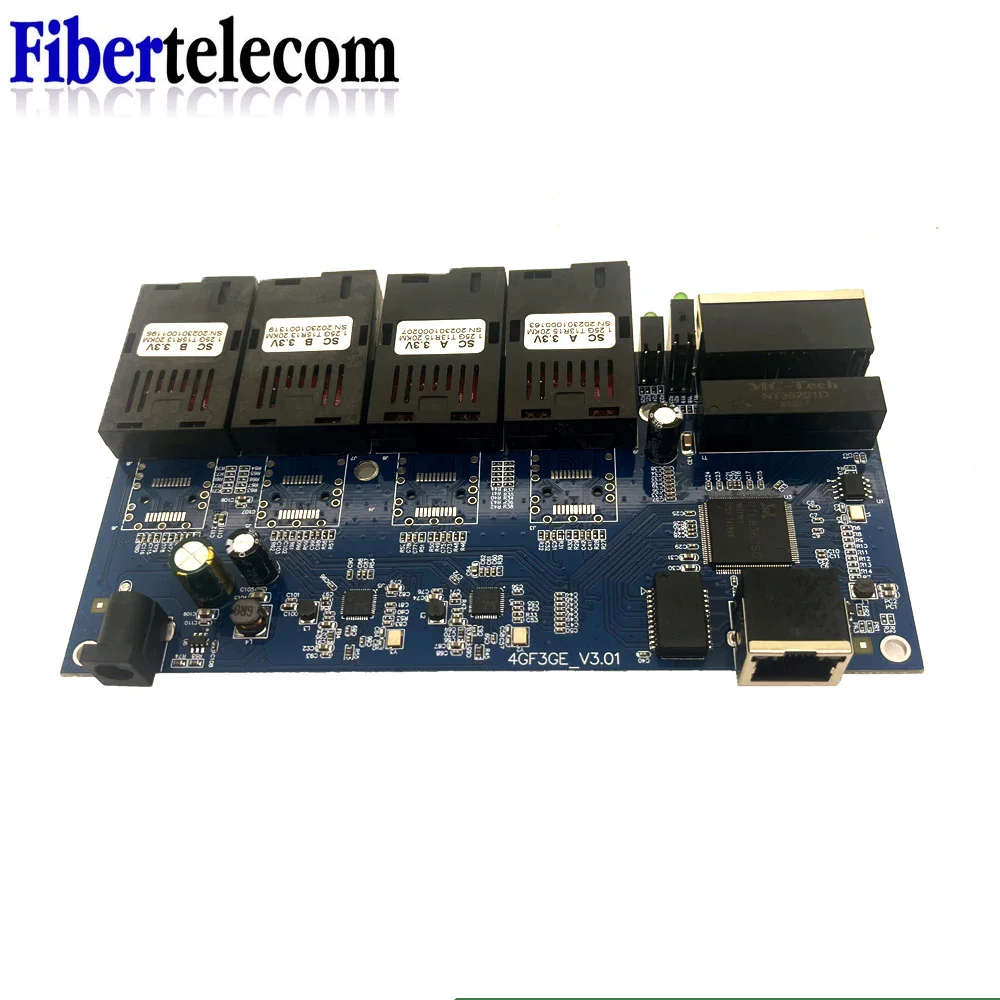

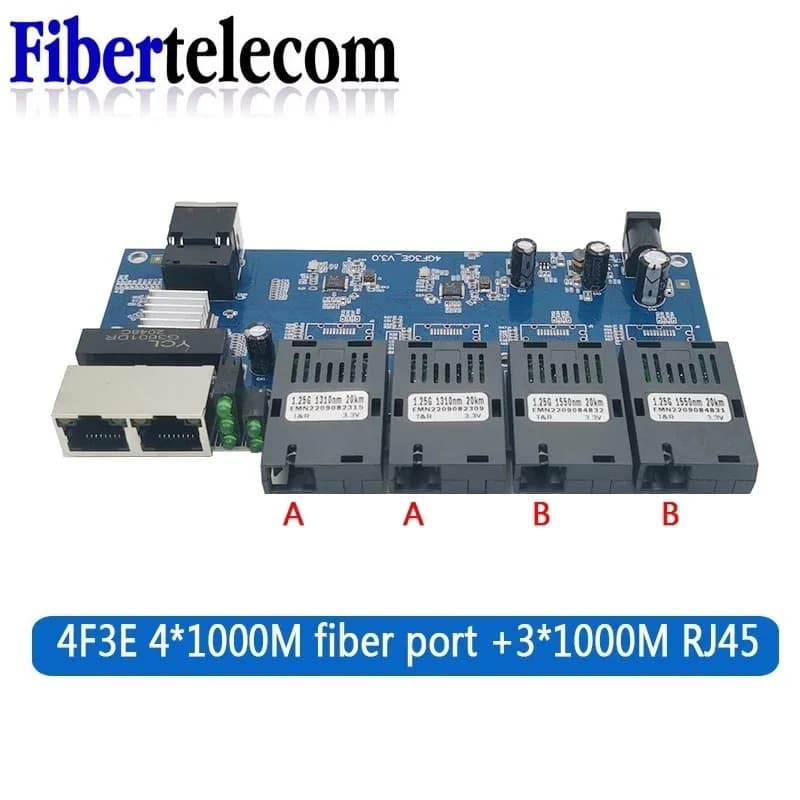

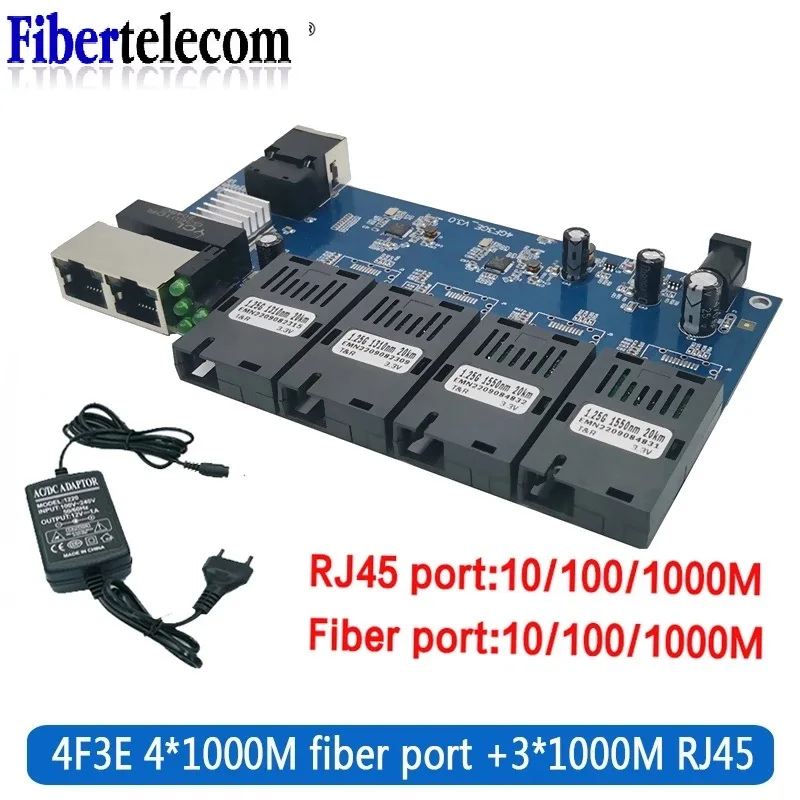

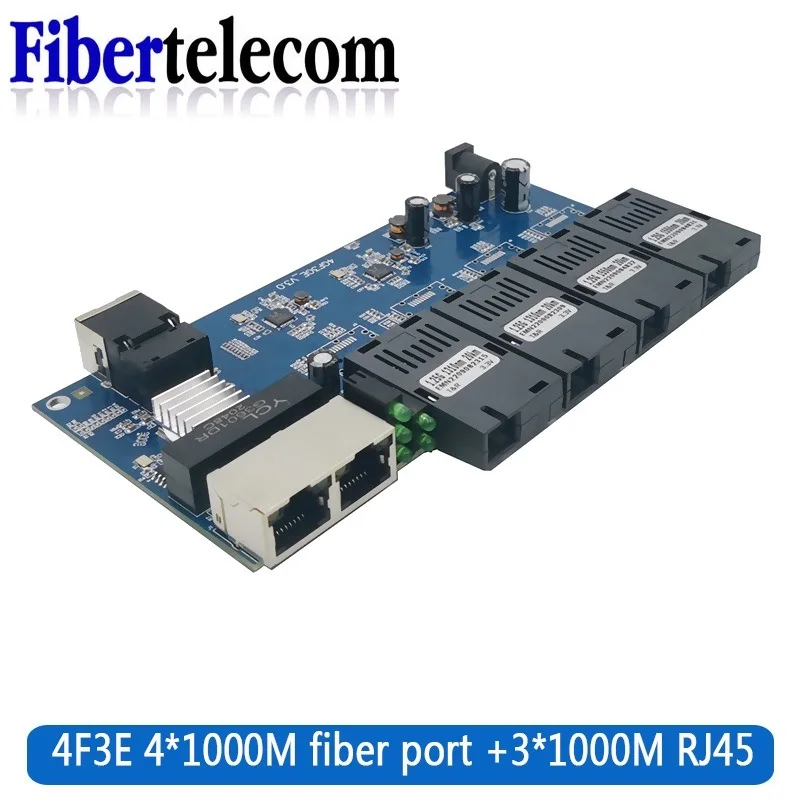

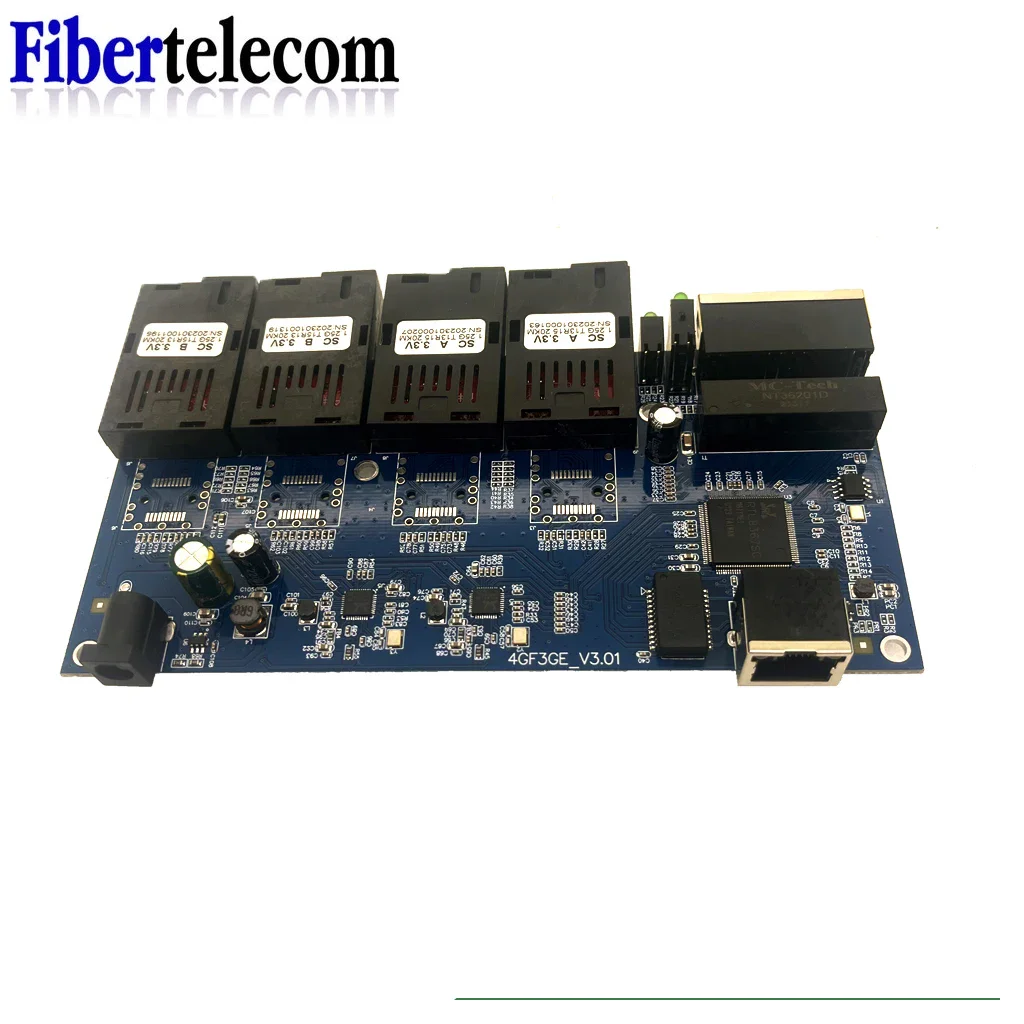

Gigabit Fiber Optic Media Converter SC 100/1000M PCBA Board Singlemode 4 Fiber 3 RJ45 Ethernet Switch Transceiver Simplex

For telecommunications , broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network

For the environment:

Please note:

1.Default with 2A+2B Fiber port

1.Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX

2.4*1.25Gbps full-duplex fiber ports and 3*10/100/1000M Ethernet ports with auto-negotiation function

3.Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function

4.Each port has the complete LED Indicator light

5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot

6.Support IEEE802.1d Spanning Tree

7.Support high performance QoS function on each port

8.Support 5V DC voltage input

9.Support IEEE 802.3x flow control and back pressure control

10.Require no configuration and will instantly operate as soon as you power it up

11.Low power consumption chip with heat sink built in to ensure longtime efficient operation
