1-480Min Timer Adjustable Disconnect Delay Controller AC 110V 220V Power-ON Delay OFF Relay Switch AC 220V 7A Voltage Output

1-480Min Timer Adjustable Disconnect Delay Controller AC 110V 220V Power-ON Delay OFF Relay Switch AC 220V 7A Voltage Output

Features:

1: Small size

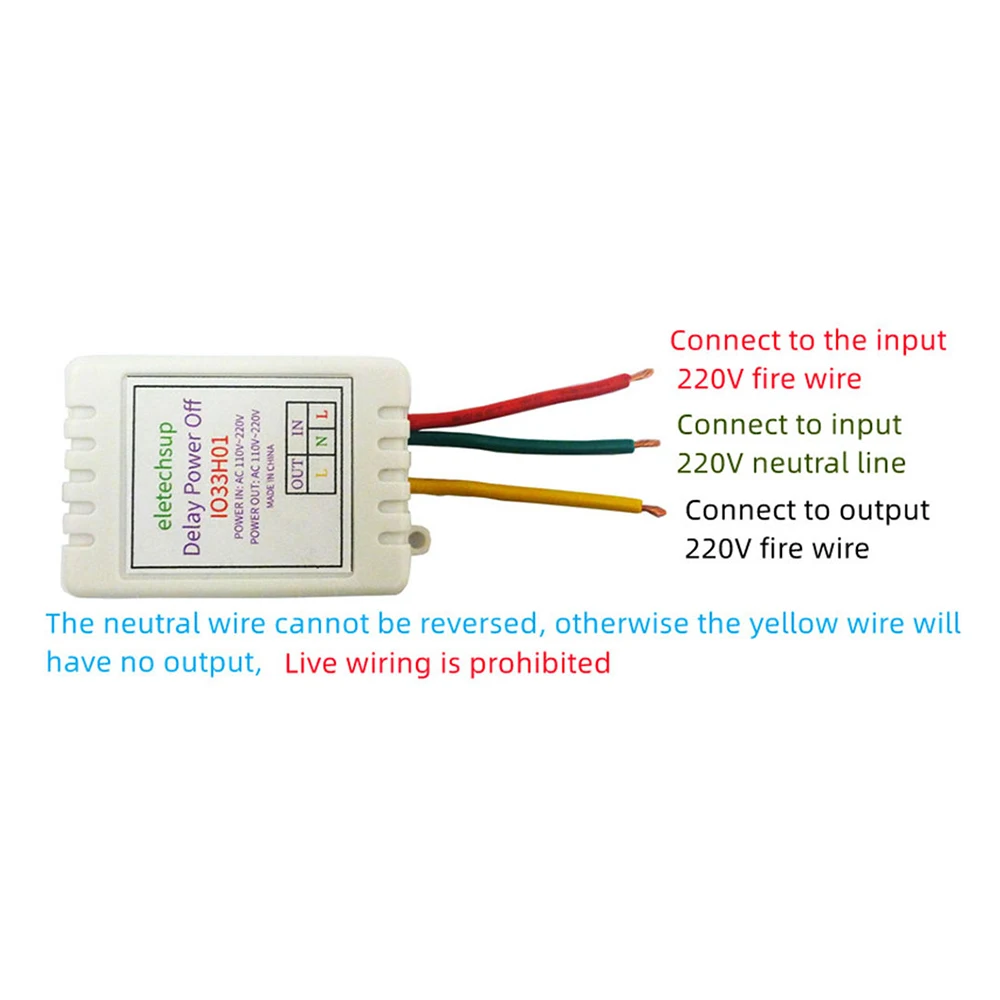

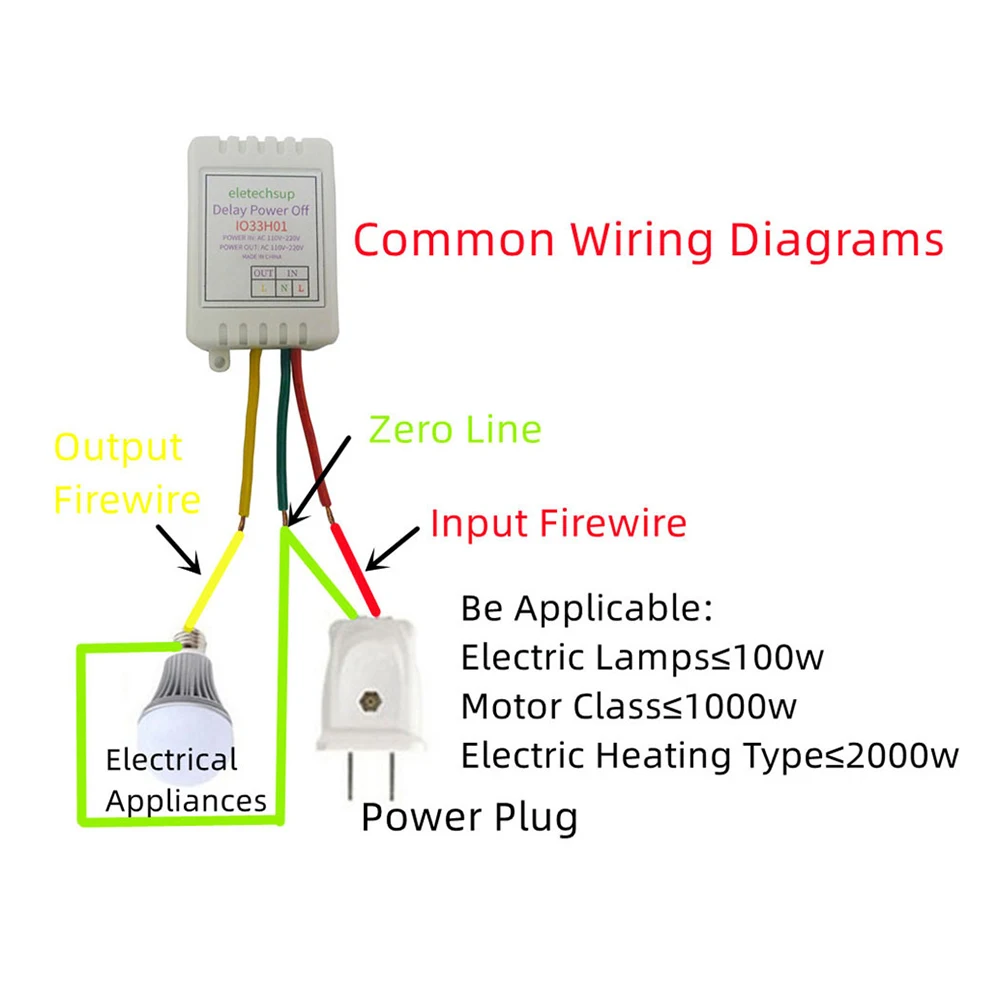

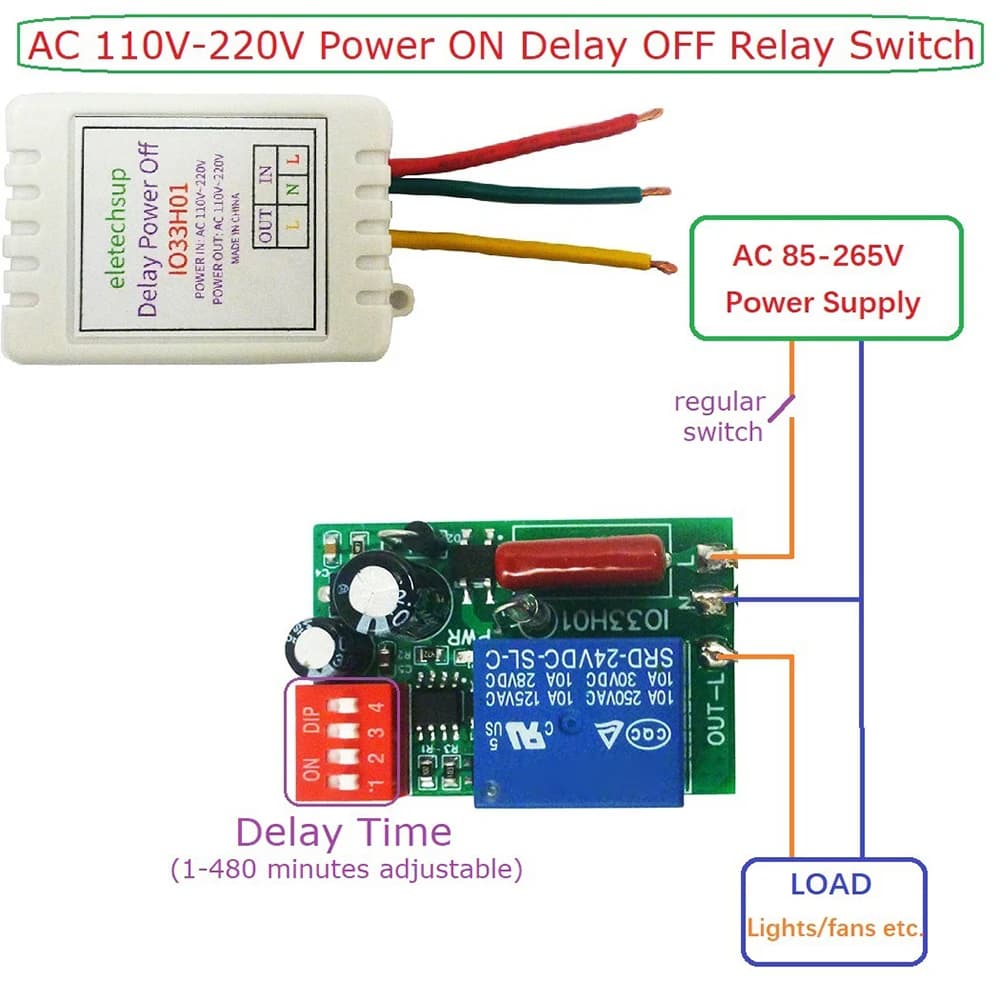

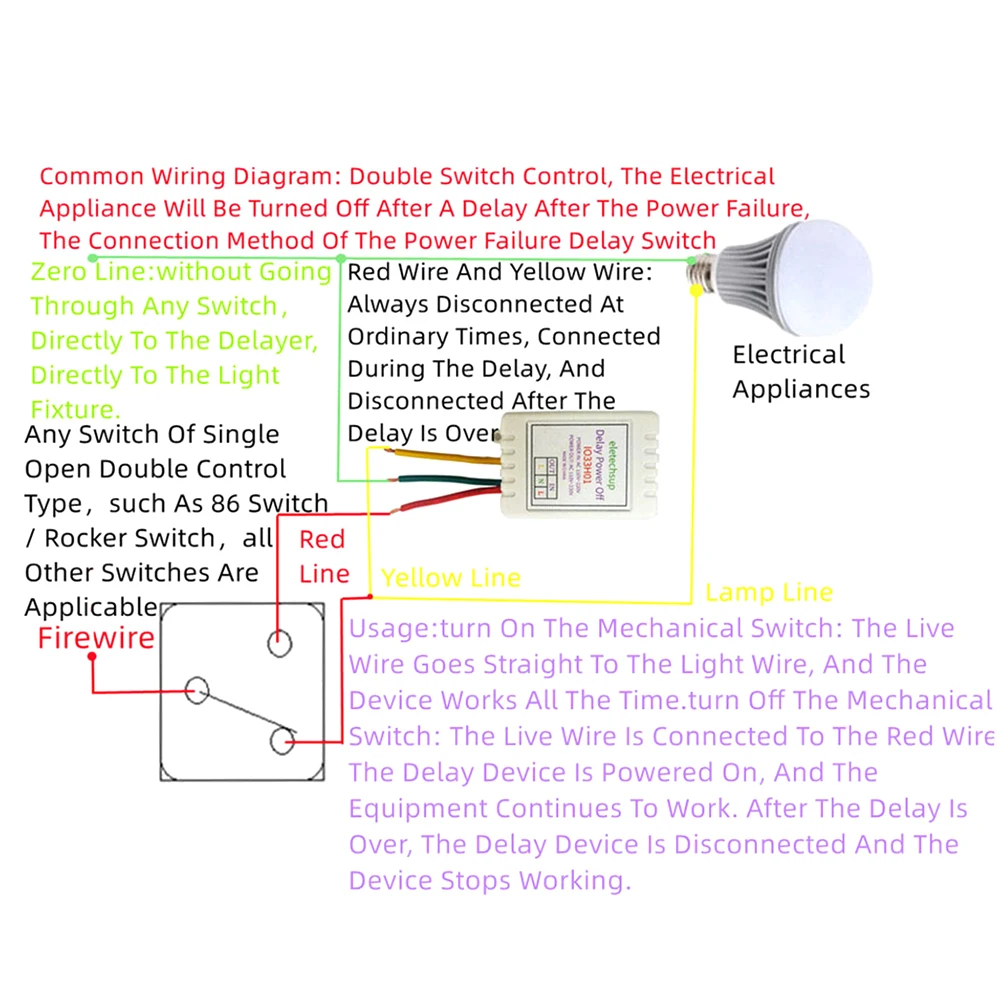

2: Simple to use, wiring according to the detailed diagram

3: stable performance

4: Optional with shell without shell

5: Output voltage: AC110-220V Power supply voltage: AC 110-220V

Specifications:

1. Output current: 7A (MAX 10A)

2. Working power consumption: 43mA

3. Output voltage: AC110-220V

4. Power supply voltage: AC 110-220V

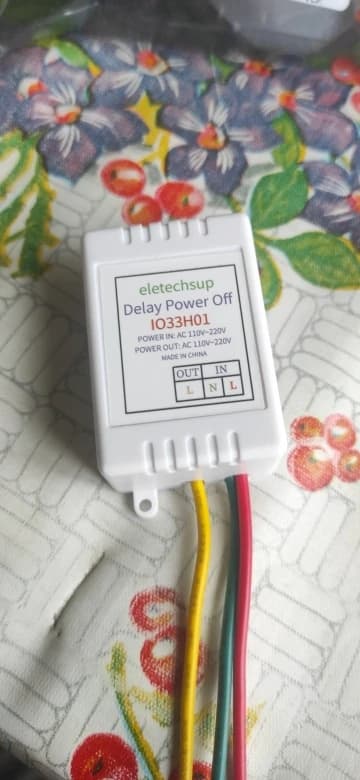

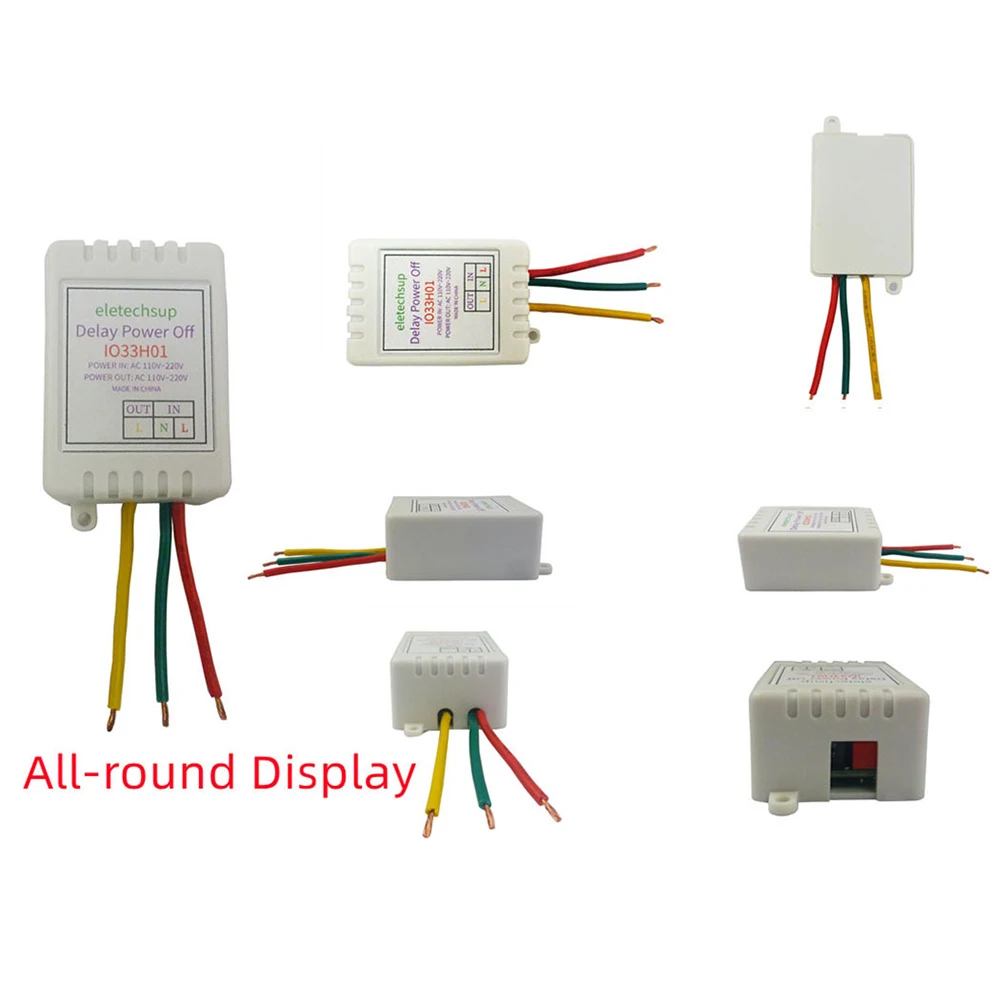

5. Weight with shell: 29 grams

6. Dimensions with shell: 57×35×20mm

7. Weight without shell: 19.1 grams

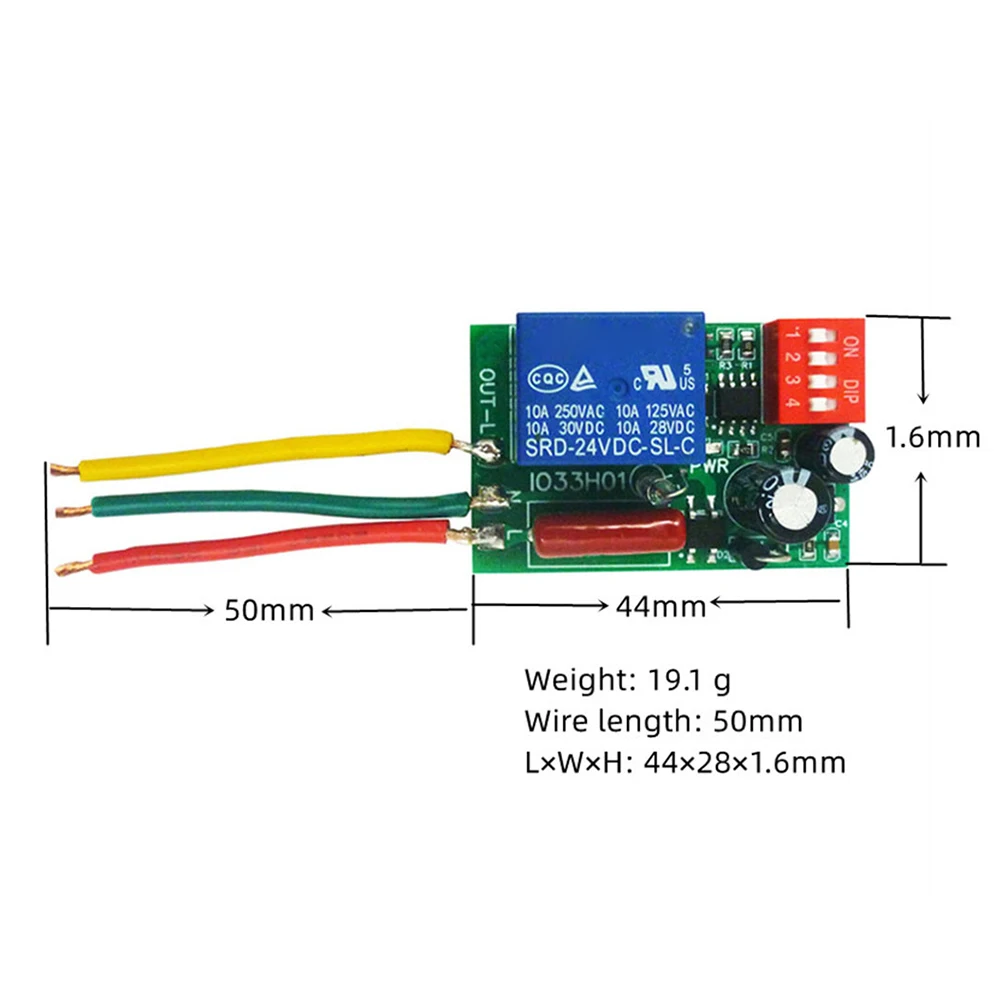

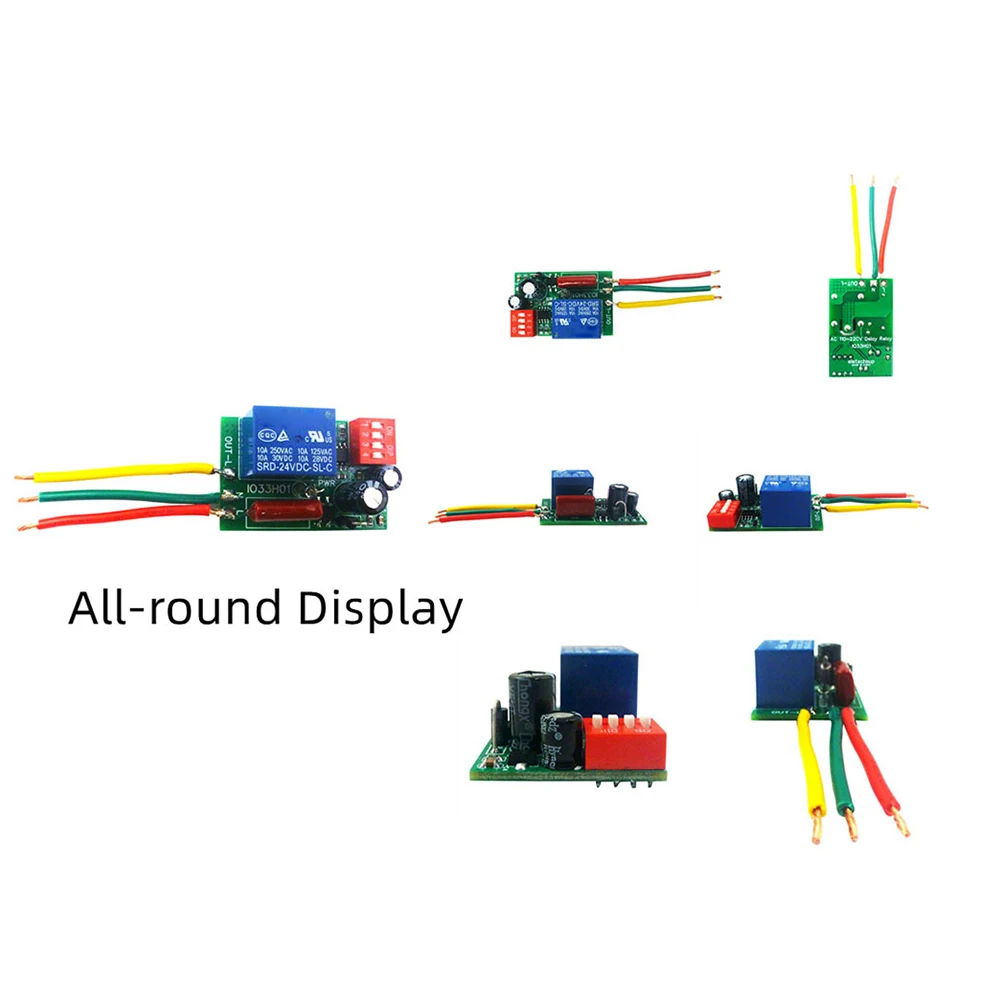

8. Dimensions without housing: 44×28×16mm

10. Unified line length: 50mm

11. Maximum standby power consumption: 12mA

12. Number of control channels: 1 output

13. Working temperature: -25℃~85℃

14. Working humidity: 5%~95%RH

15. Shell: high quality shell, dustproof and flame retardant

16. Function: Delay for a period of time to stop power supply

17. Control power: 1400W (max) incandescent lamp, energy saving lamp 300W (max)

18. With LED indicator to show the working status (constant light means working, flashing means the delay is over)

19. Applicable scene: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.

20. Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, germicidal lamps, humidifiers, heaters, etc.

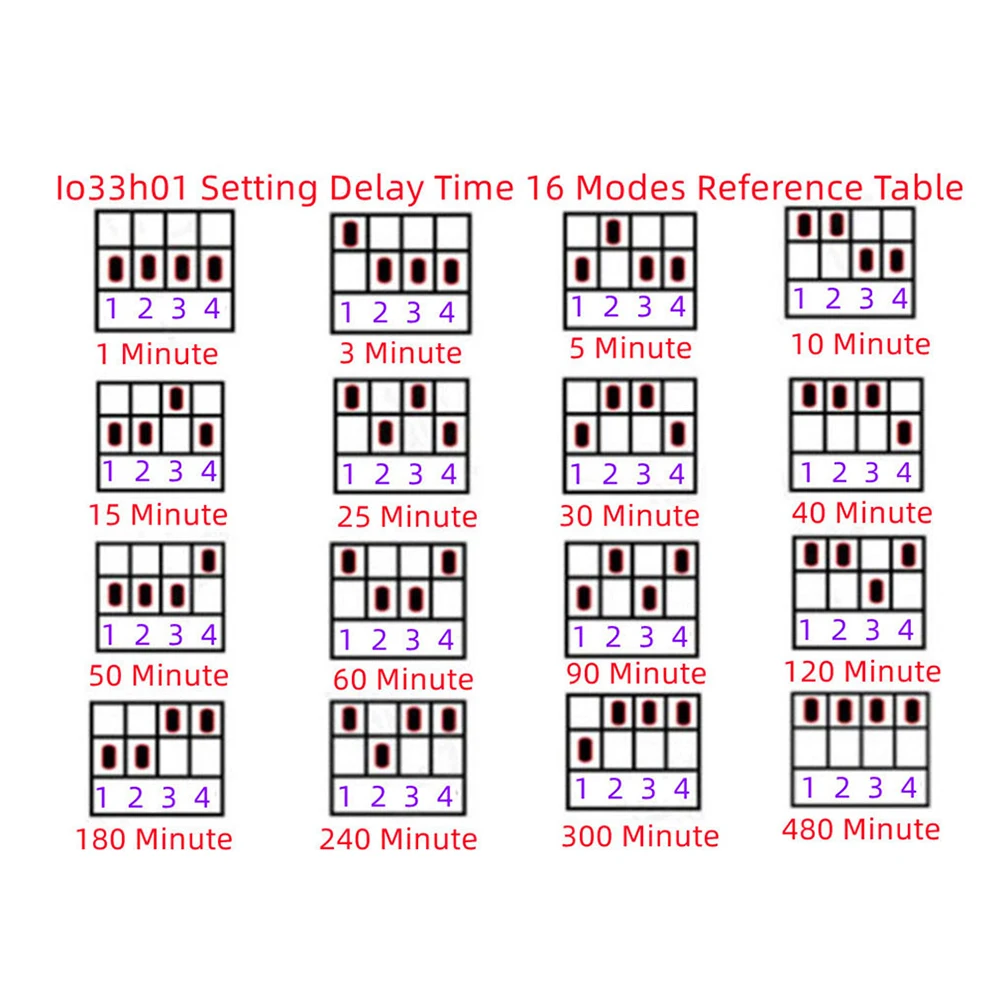

21. 16 delay modes to choose from (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes minutes, 300 minutes, 480 minutes)

22. Module function: This module is a delayed shutdown module. When the set delay time expires, the power supply is stopped.

23. Working status: After power on, the indicator light (PWR) is always on; after the delay is over, the indicator light (PWR) will continue to flash.

Instructions:

①: Set the time that needs to be delayed (live setting is not allowed);

②: After checking that the wiring is correct, power on. After power-on, the module starts to work (the indicator light is always on), and when the time is up, the module stops power supply (the indicator light flashes).

1. If you need to shut down in advance during use, you can directly disconnect the main power supply of the module.

2. Start the second time delay: power on again.

Delay Time Selection Method:

①: Refer to the delay mode table to select the time to be delayed;

②: Toggle the DIP switch (red) according to the delay mode table;

③: After setting, check the wiring, and then power on.

Note: When a new delay mode needs to be set, in order to ensure personal safety, it must be set to power-off mode, and live operation is prohibited.

Package Included:

1*AC110-220V timer adjustable off-delay controller only board/with shell optional
