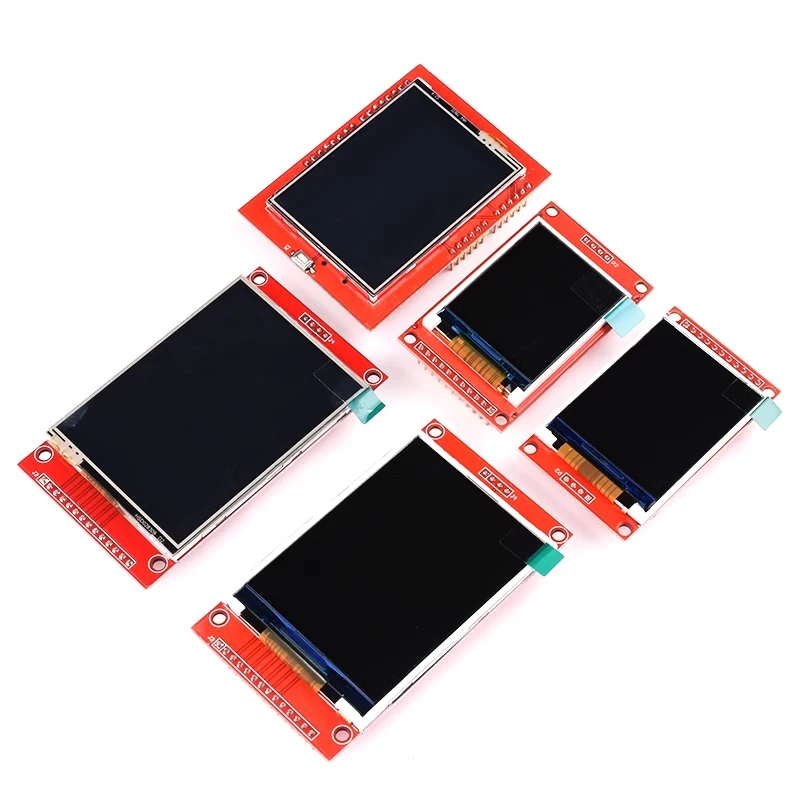

TFT LCD Display Module 1.44/1.8/2.0/2.4/2.8 inch IPS 7Pin SPI Screen ST7735/ILI9341 Driver Touch Panel 320x240 For Arduino ESP32

1.8 inch TFT LCD module:

1.8-inch SPI serial port 128*160 Instructions

/*

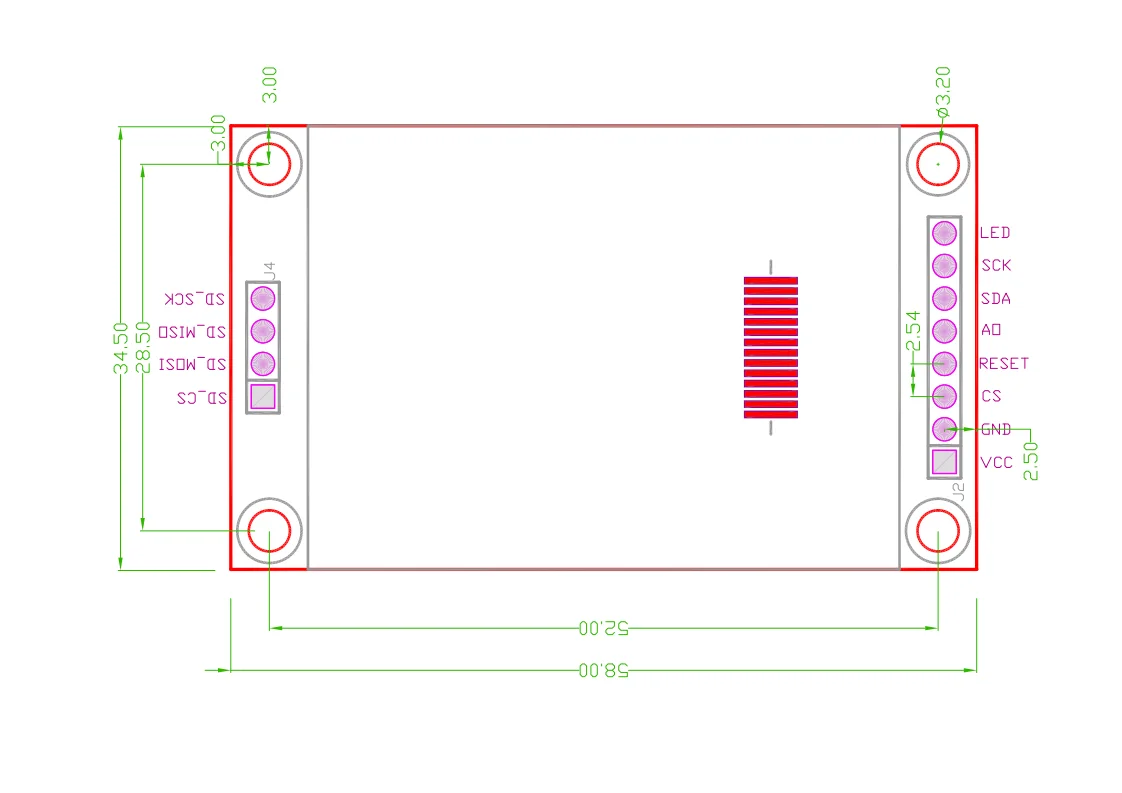

Program default IO connection method:

sbit LCD_CS =P0^0; //chip select

sbit LCD_AO =P0^2; //data/command switch

sbit LCD_SDA =P1^5; // Data

sbit LCD_SCK =P1^7; //clock

sbit LCD_REST =P0^1; //reset

*/

●TFT power supply: screen power supply is 2.8-3.3V; remember not to use 5V

(modules with PCB have inherited 3V regulator IC , 5V can be input)

●Backlight power supply (LED pin): The maximum backlight power supply is 3.2V.

(5 ohm current limiting resistor can be connected in series under 3.3V power supply or 25 ohm resistor in series under 5V).

Product Description

2.4-inch color screen,support 65K color display,display rich colors

320X240 resolution, optional touch function

Using the SPI serial bus, it only takes a few IOs to illuminate the display

Easy to expand the experiment with SD card slot

Provide a rich sample program

Military-grade process standards, long-term stable work

Provide underlying driver technical support

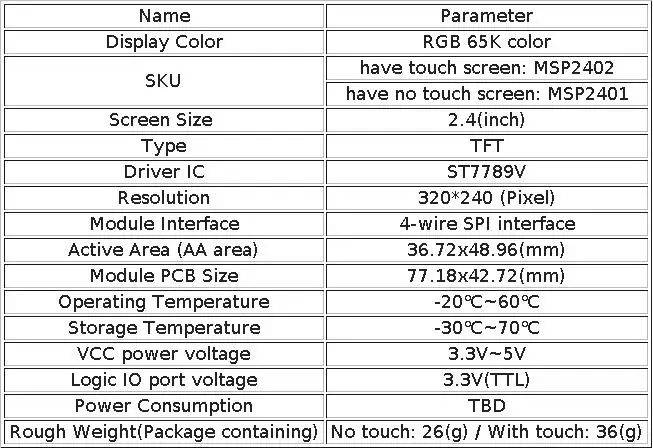

Product Parameters
