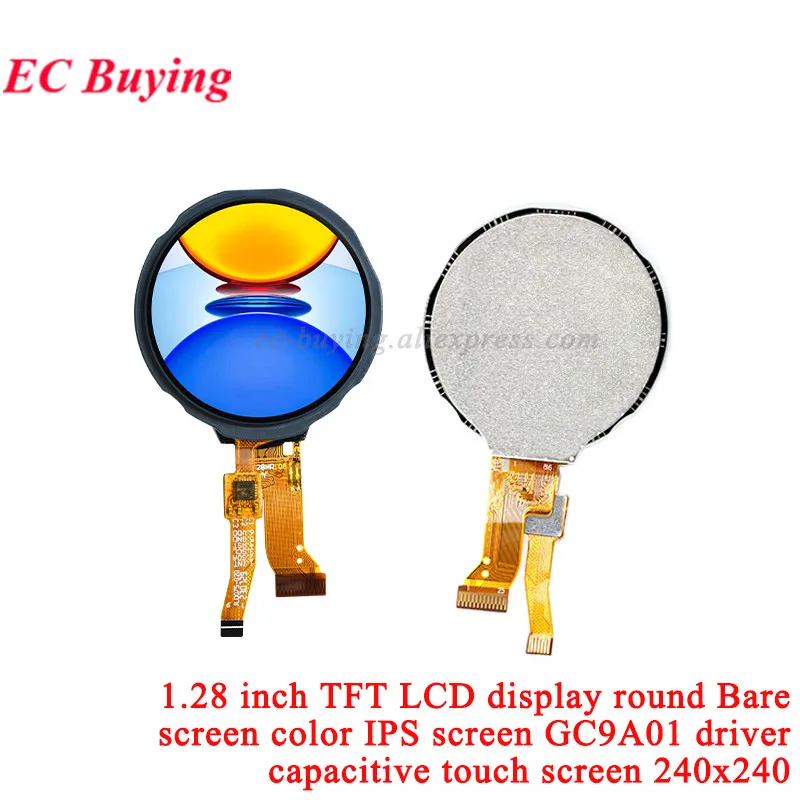

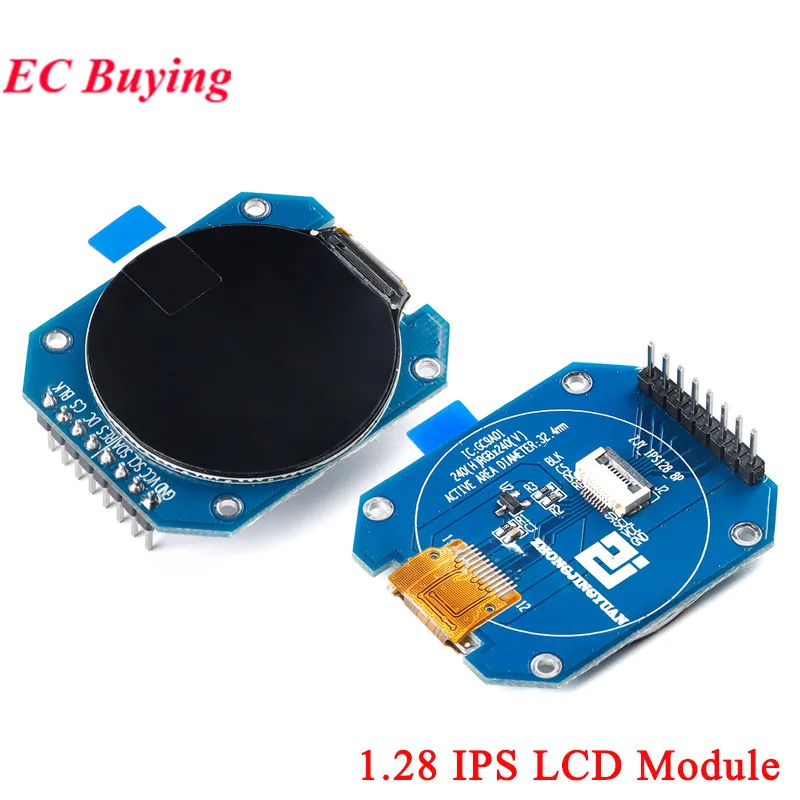

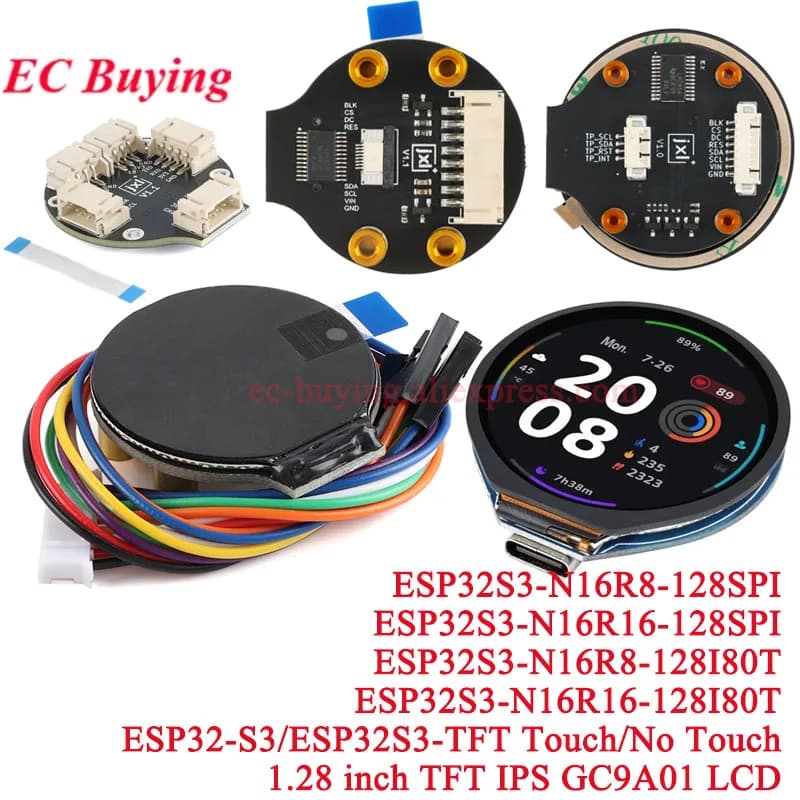

1.28 inch TFT Screen Display Module 1.28" IPS Round Colorful LCD Board GC9A01 Touch 240x240 SPI ESP32-S3 ESP32S3-N16R8 N16R16
7.47$
5.6$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping

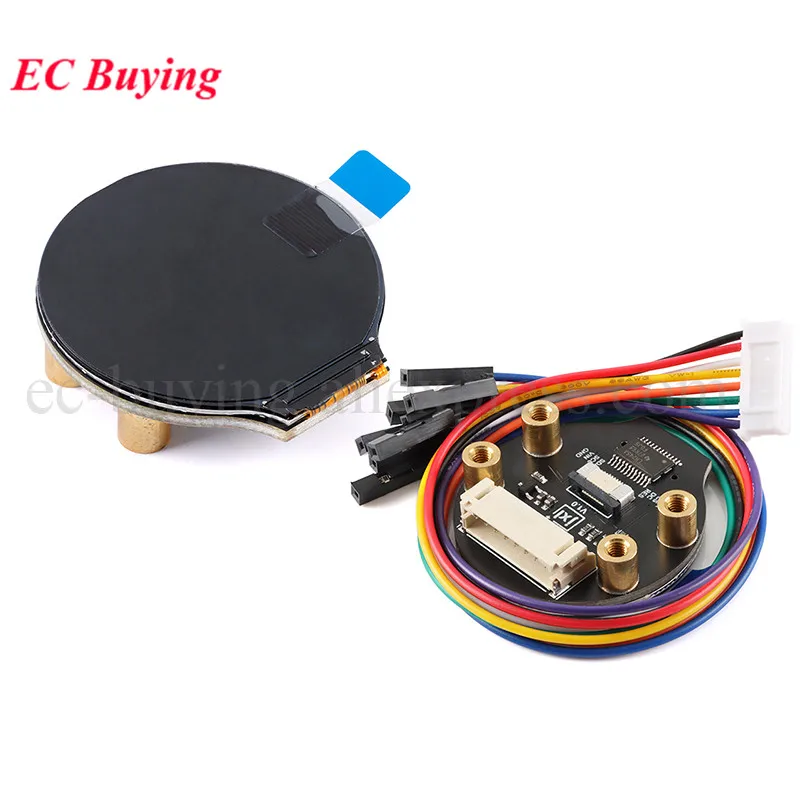

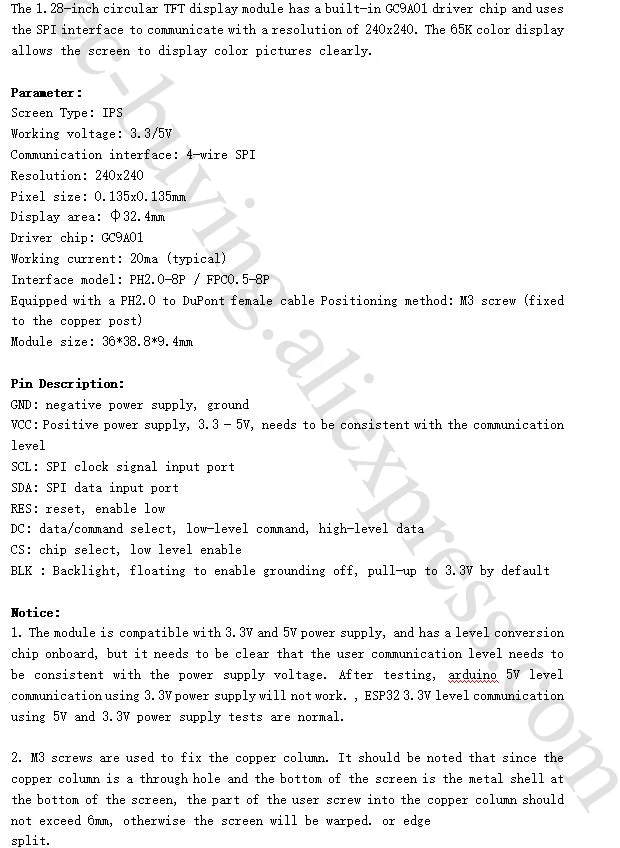

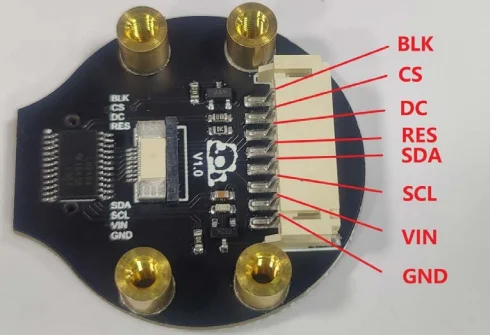

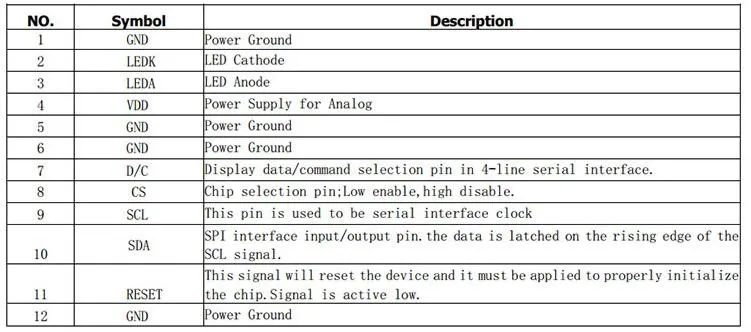

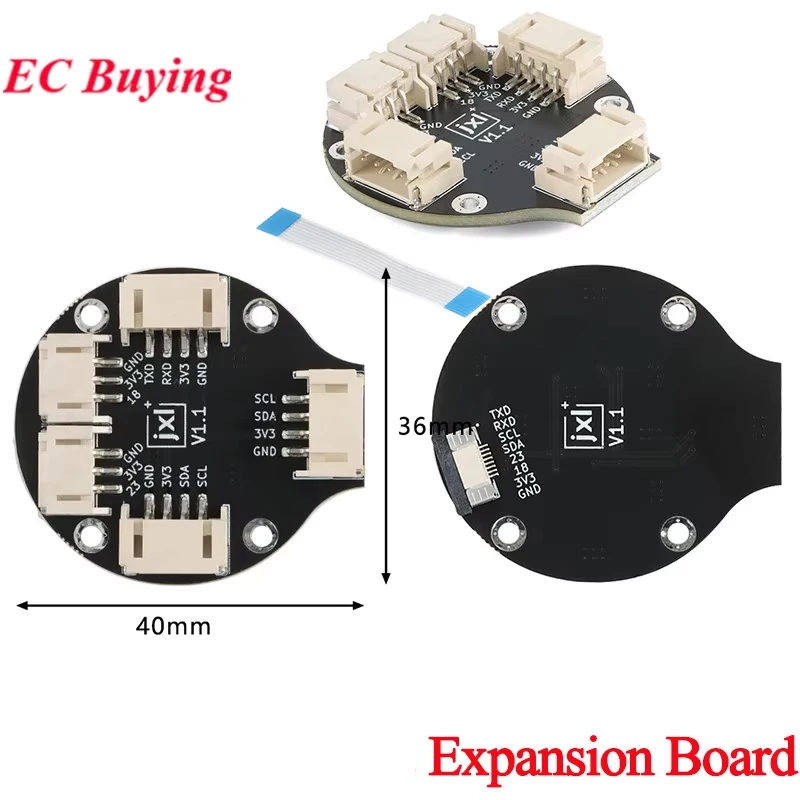

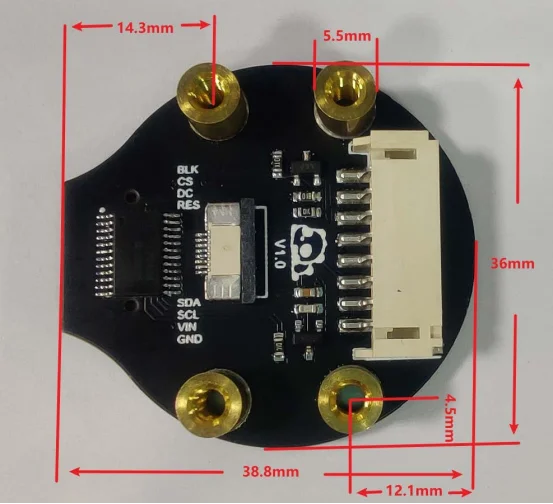

Pin function:
GND: negative power supply, ground
VIN: positive power supply, 3.3 - 5V, needs to be consistent with the communication level
SCL: SPI clock signal input port
SDA: SPI data input port
RES: reset, low level enable
DC: data/command selection, low level command, high level data
CS: chip select, low level enable
BLK: backlight, floating enable grounding off, default pull-up to 3.3V
TP_ SCL: touch function 1 IC communication clock port
TP_ SDA: touch function 1 IC communication data port
TP_ _RST: touch reset pin, low level valid
TP_ INT: touch interrupt pin, output high level

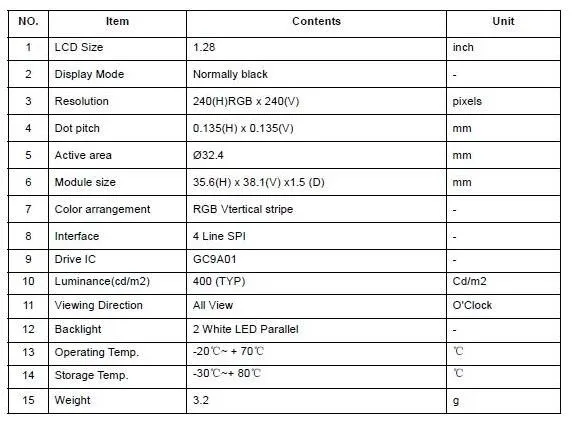

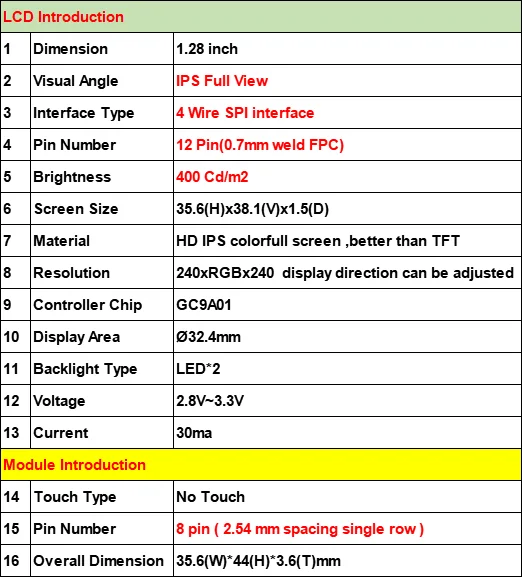

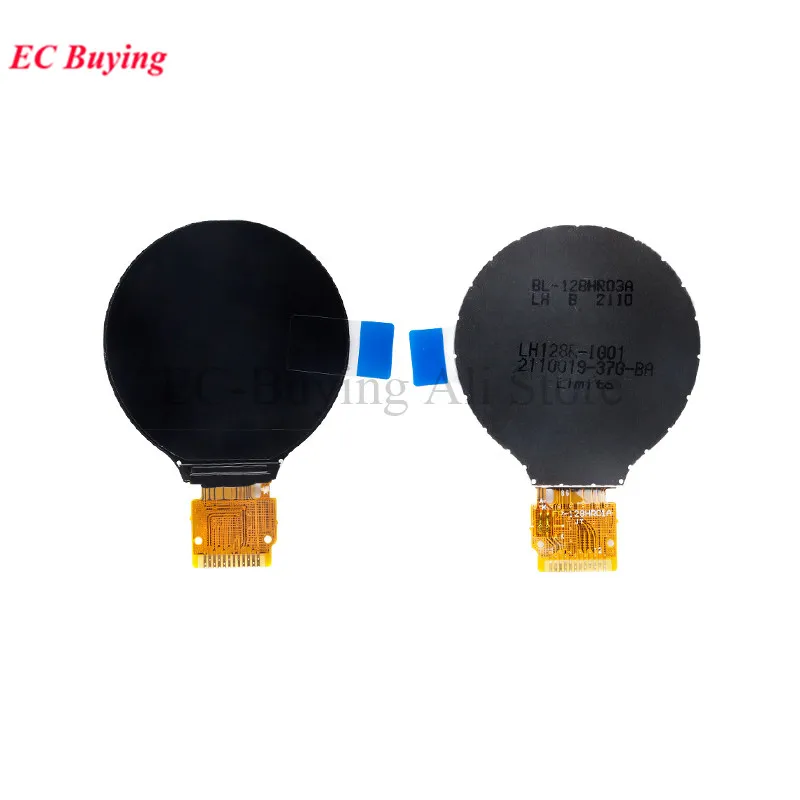

LCD Description

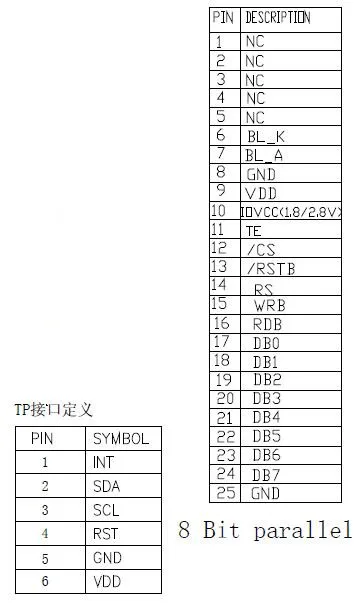

LCD Interface 12 Pin

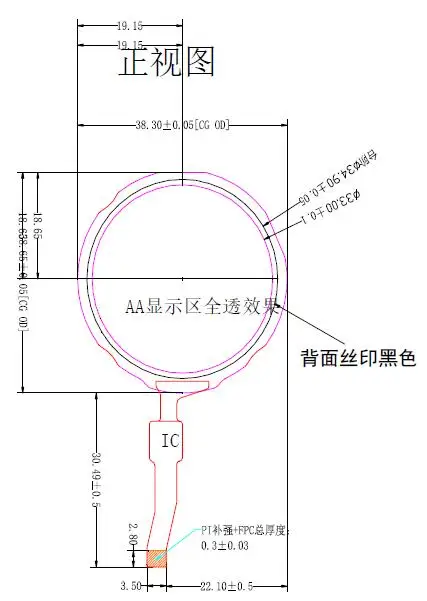

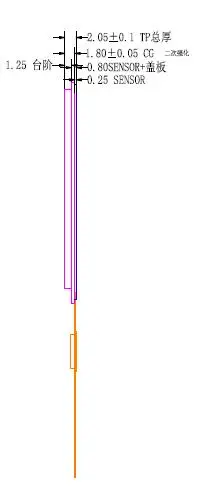

LCD Dimension
Size: 1.28 inch
LCD Type: TFT
Display Mode: Normally Black
Color Arrangement: RGB Vtertical Stripe

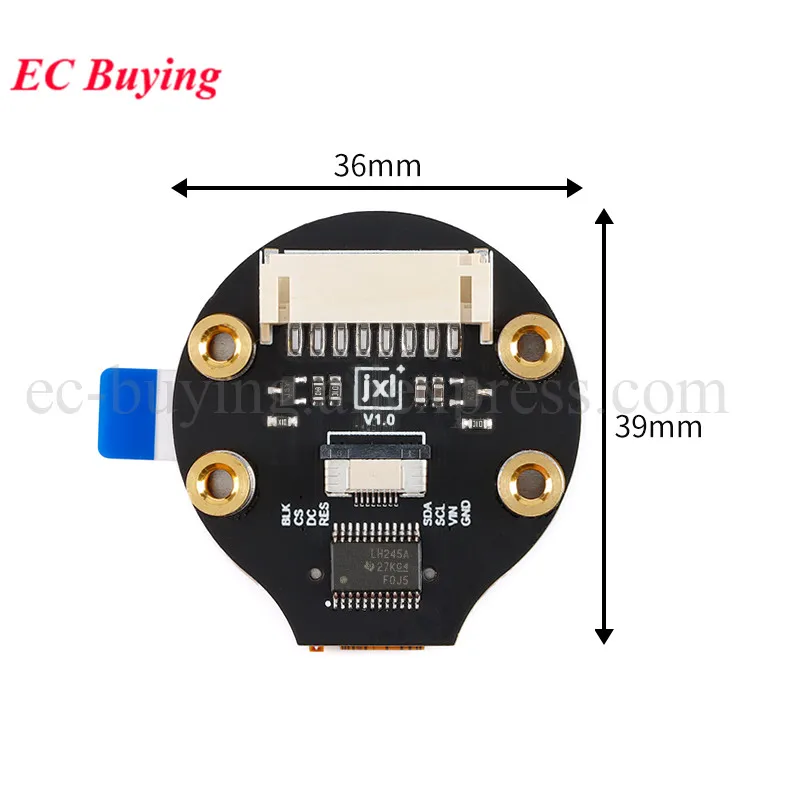

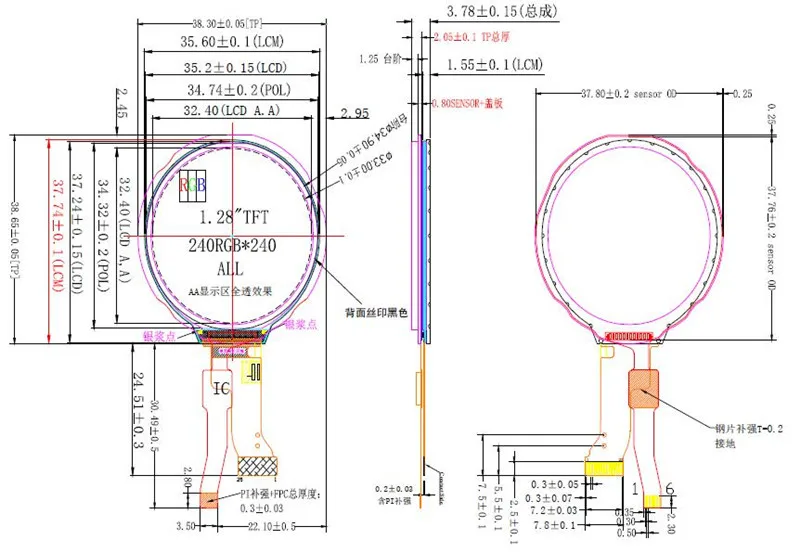

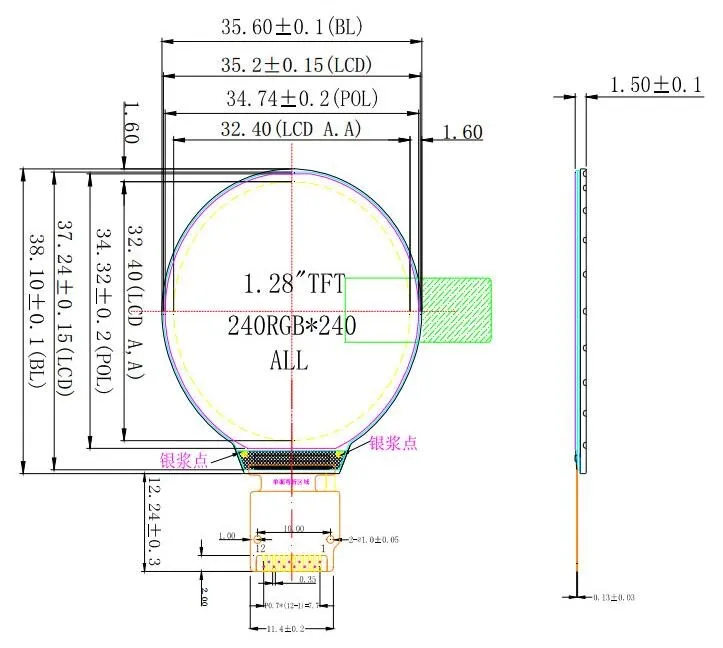

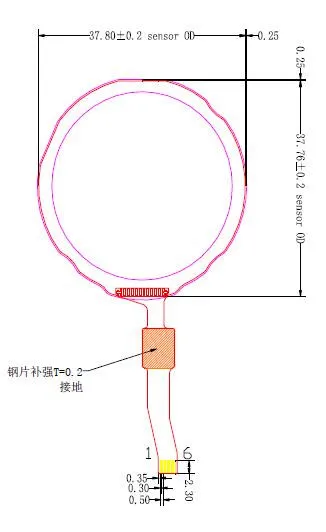

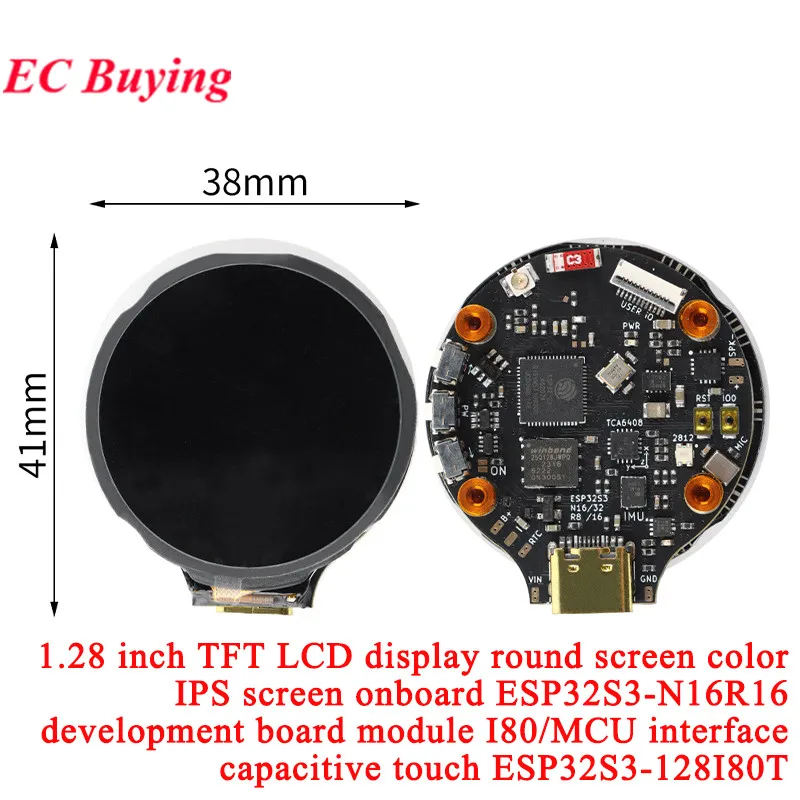

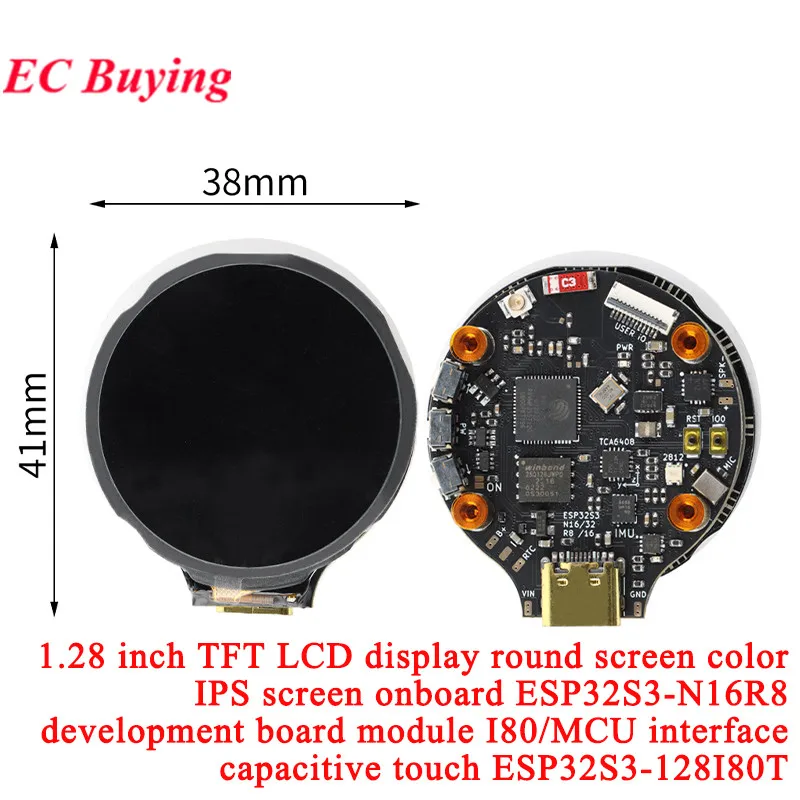

Outline Dimensions: 35.6*38.1*1.5mm
Number of Dots: 240(RGB)*240
Pixel Pitch: 0.135*0.135mm
LCD Controller: GC9A01
CTP Controller: CST816S
LCD PIN NO.: 25P
CTP PIN NO.： 6P
Display Color: 262K
Backlight: White LED
Polarizer Mode: Transmissive
LCD Data Interface: 8Bit 8080 MCU
CTP Interface: I2C
Operating Temp.: -10 ~ 60 degree
Storage Temp.: -20 ~ 70 degree
Viewing Direction: All
Luminance: 300 cd/m2
Backlight: 2 White LED Parallel
Working Voltage: 3.3V
