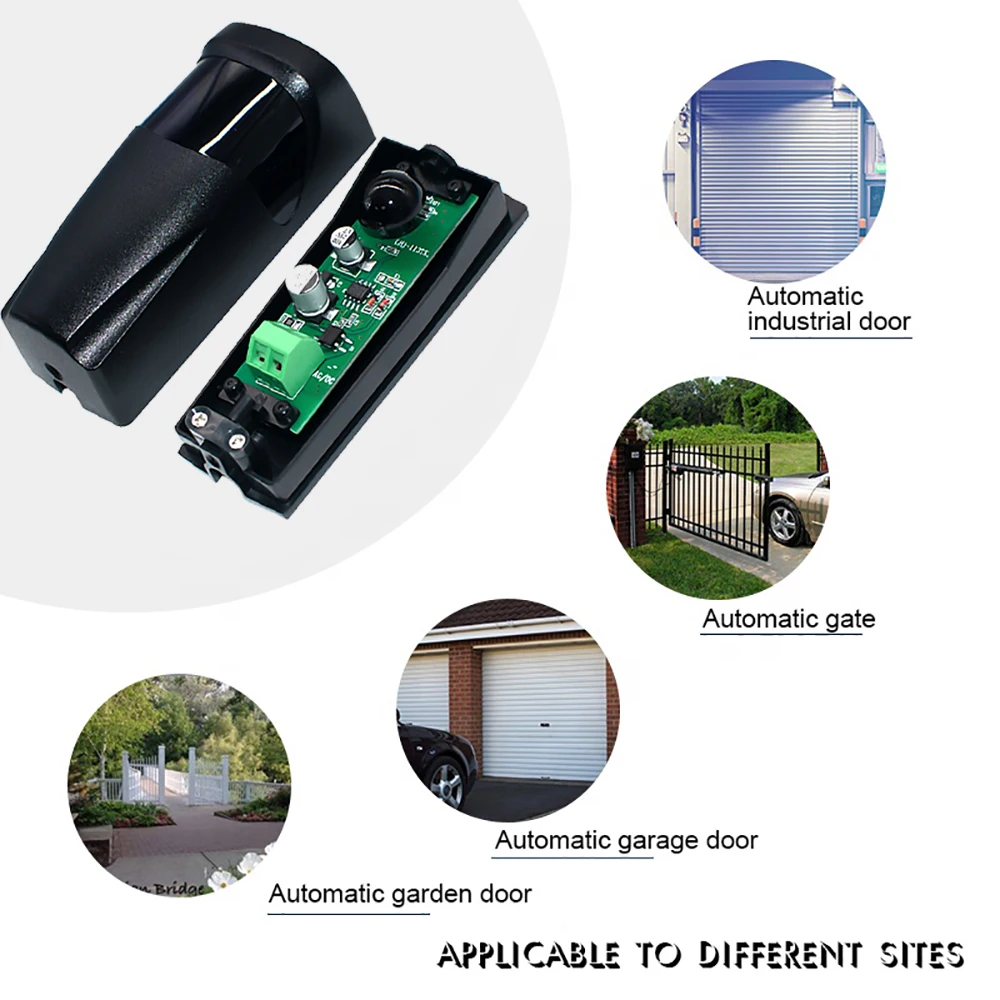

Sensor Infrared Safety Beam Photocell Detector for Garage Gate Door

Feature

【Receiver and Transmitter】

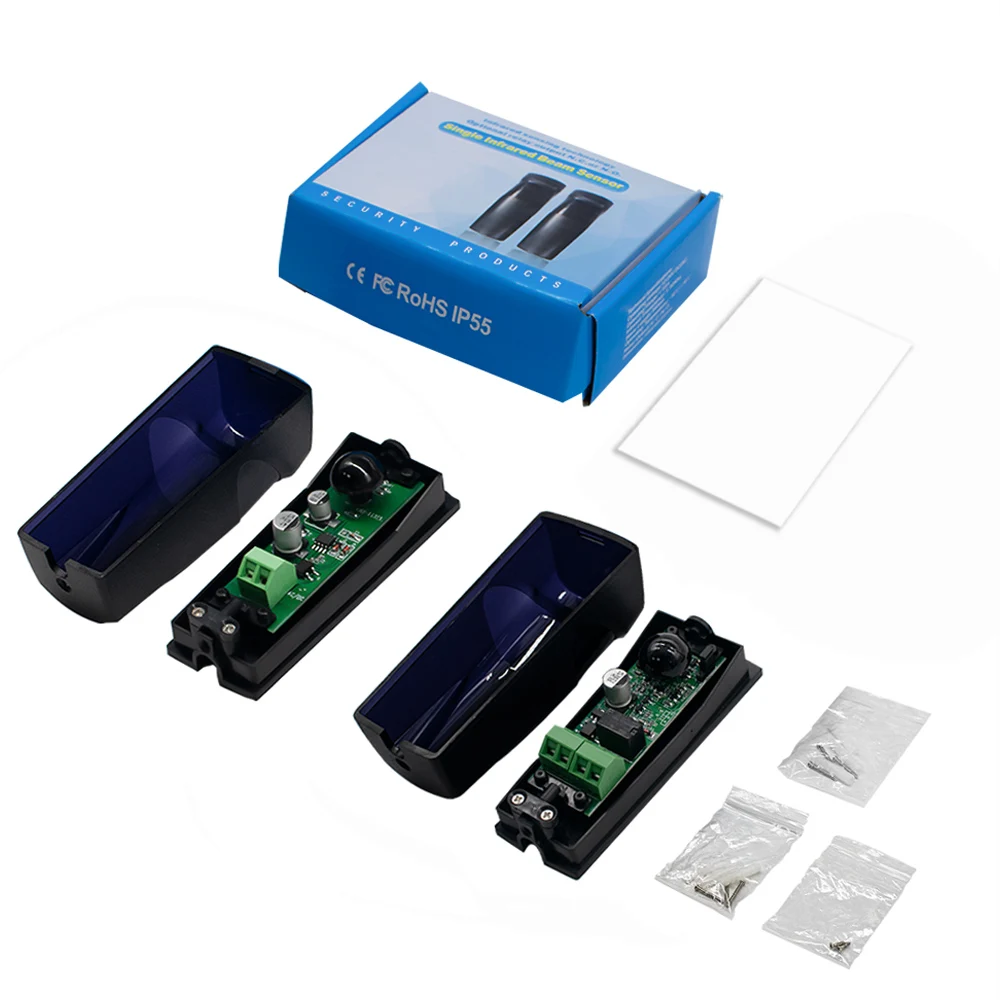

Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.

【Anti-interference】
Narrow infrared beam (I or II) can avoid interruption by external light

【Detection distance】
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).

【self-detecting function】
The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.

Detailed Description

Technology: Infrared

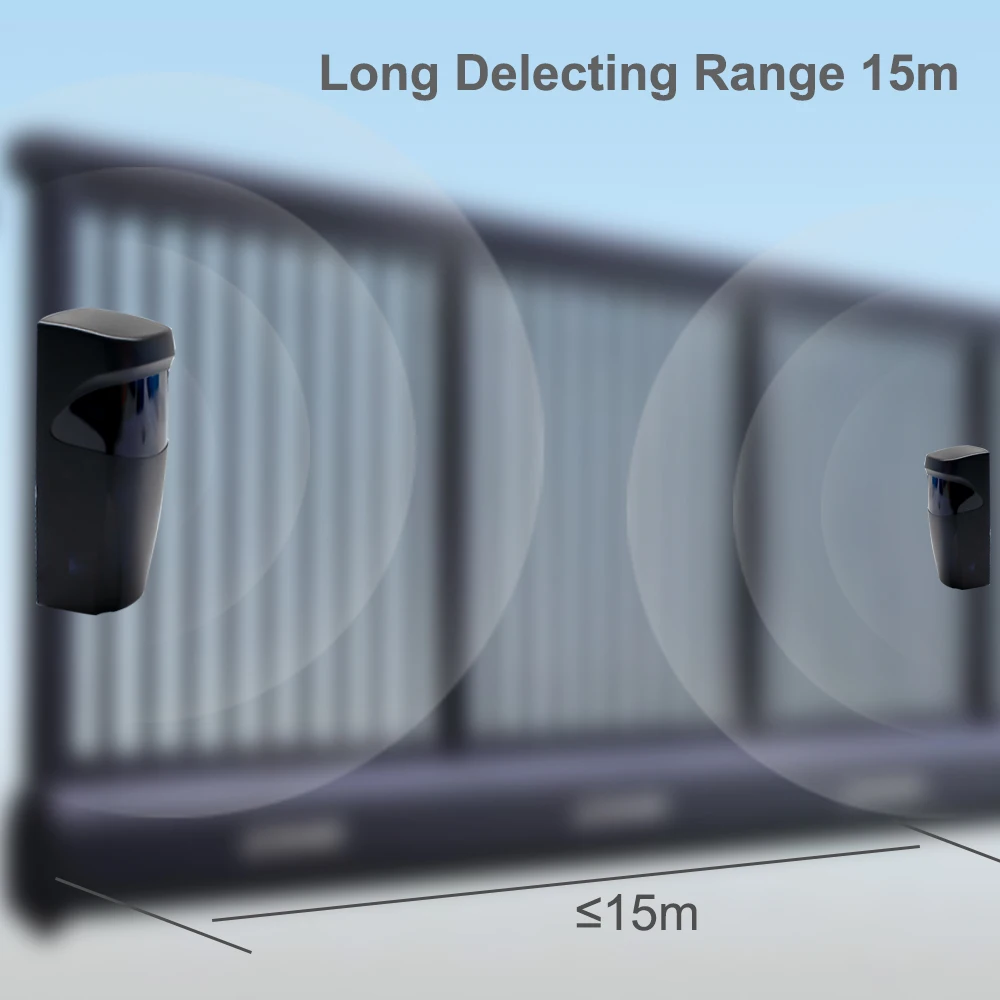

Receiver Range: <15m
(Range can be reduced to 30% in bad weatherconditions: for, rain, dust, etc)
Infra-red Frequency: 1.92Khz
POWER SUPPLY: 12 to 24V DC/AC
WAVE LENGTH: 940nm
INPUT: RX 15MA-TX 30MA
OPERATING TEMPERATURE : -10C to 70C
RELAY OUTPUT: 1A max 36V

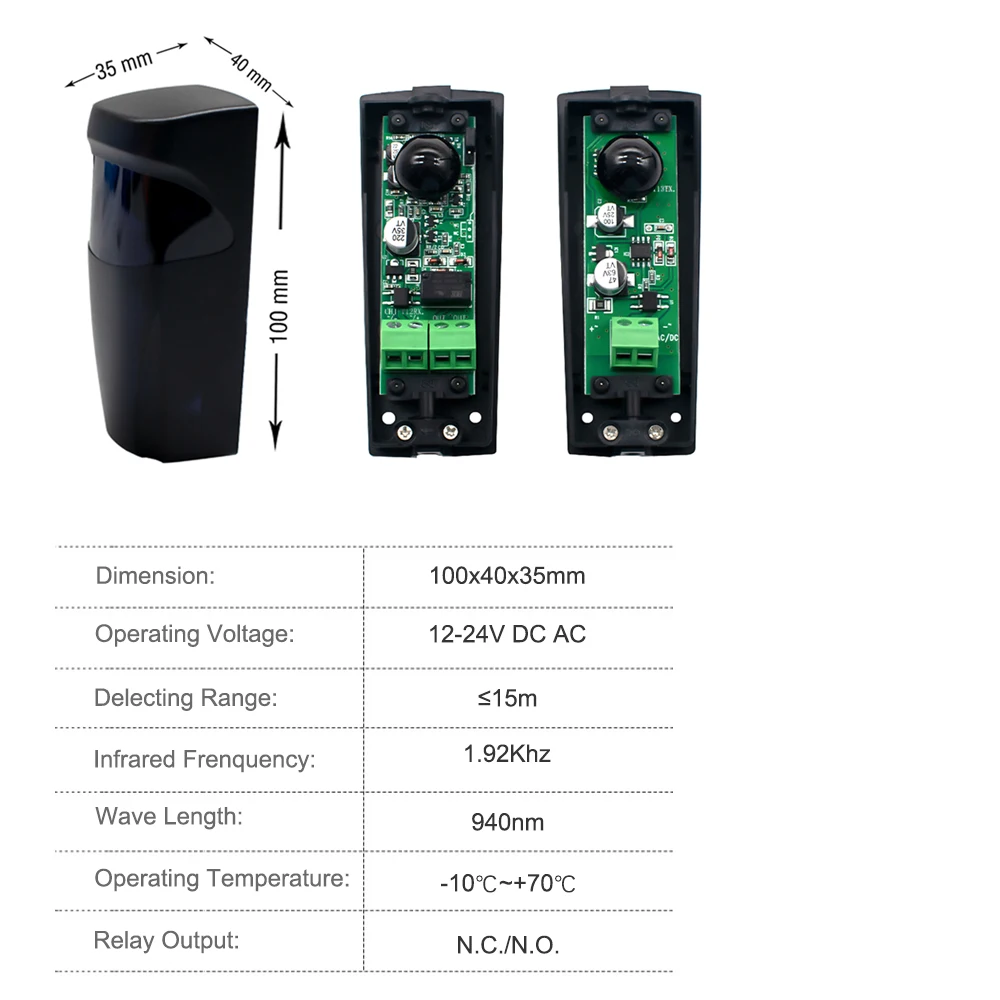

DIMENSION: 100X35X40MM

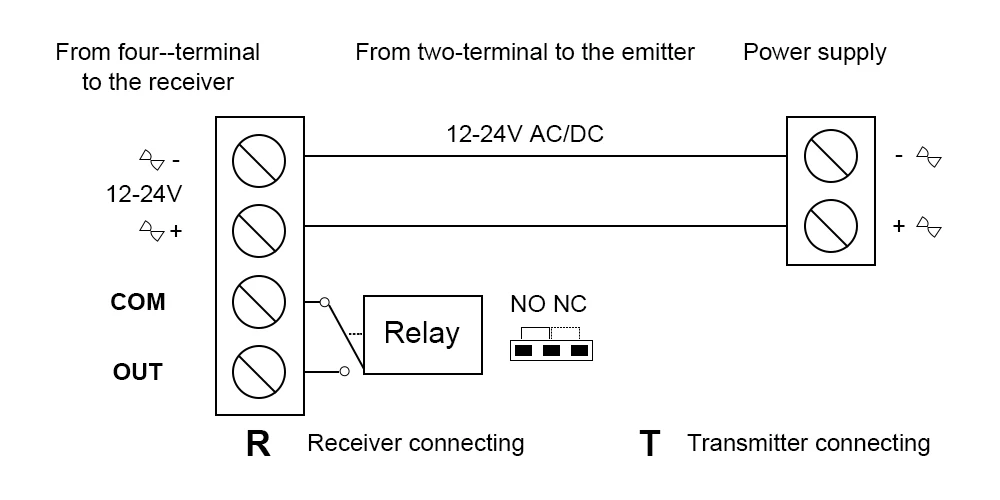

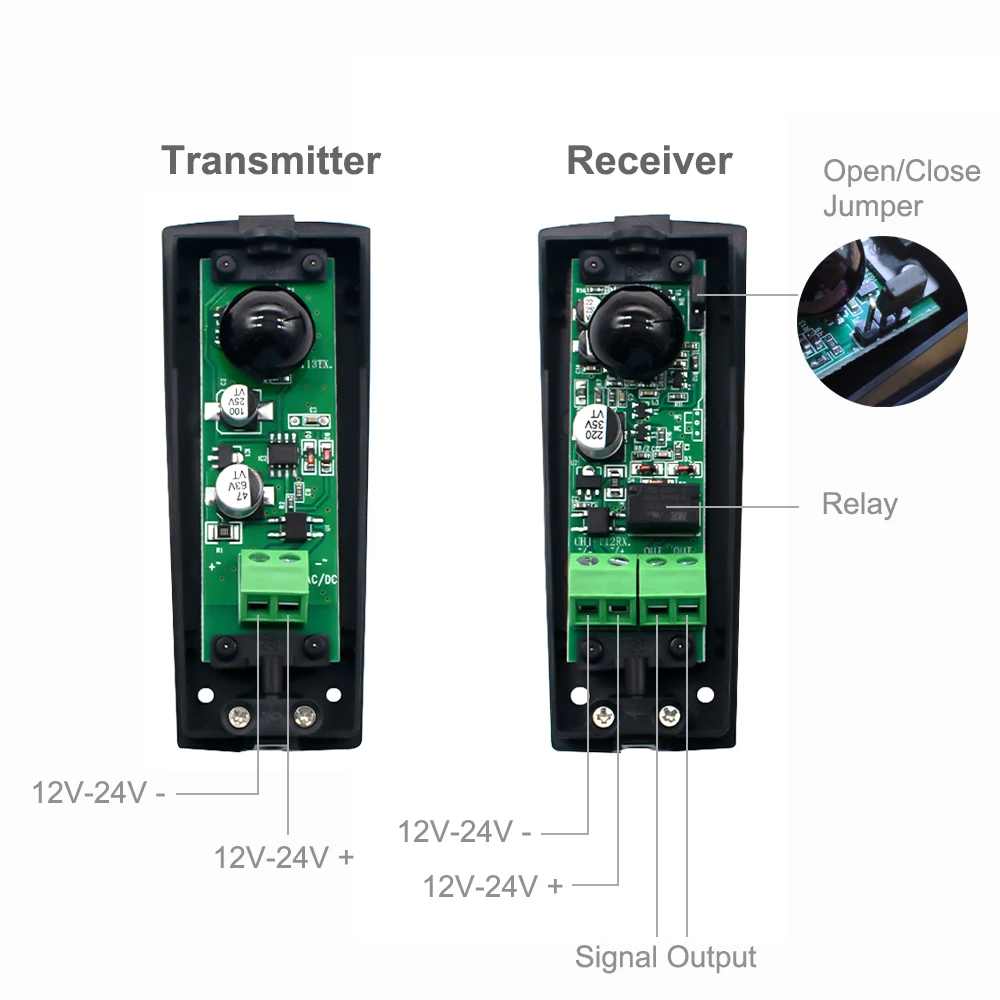

CONNECTINGTHE SENSOR

Installation: The best install height should big in 20 cm, install distance to be no smaller than 2 meters. Install shouldmake red outside the protection equip perpendicularity to place, and is on-line at same level. Instalshould install first to receive part, install blast-off part again. When together at always line, receive the OFFlight in the machine in order to put out, then fix, connect the line to install completion namely.

Attention: Because this product shoot power compare big, so when shoot machine with receive the machinedistance too near hour will appear have no the phenomenon of the reaction, at this time should drawback them one meter at least behind again try. When Install distance very near, discover not intelligentphenomenon, can shoot and receive medium of the condensing lens remove, can immediately raisean intelligent degree.

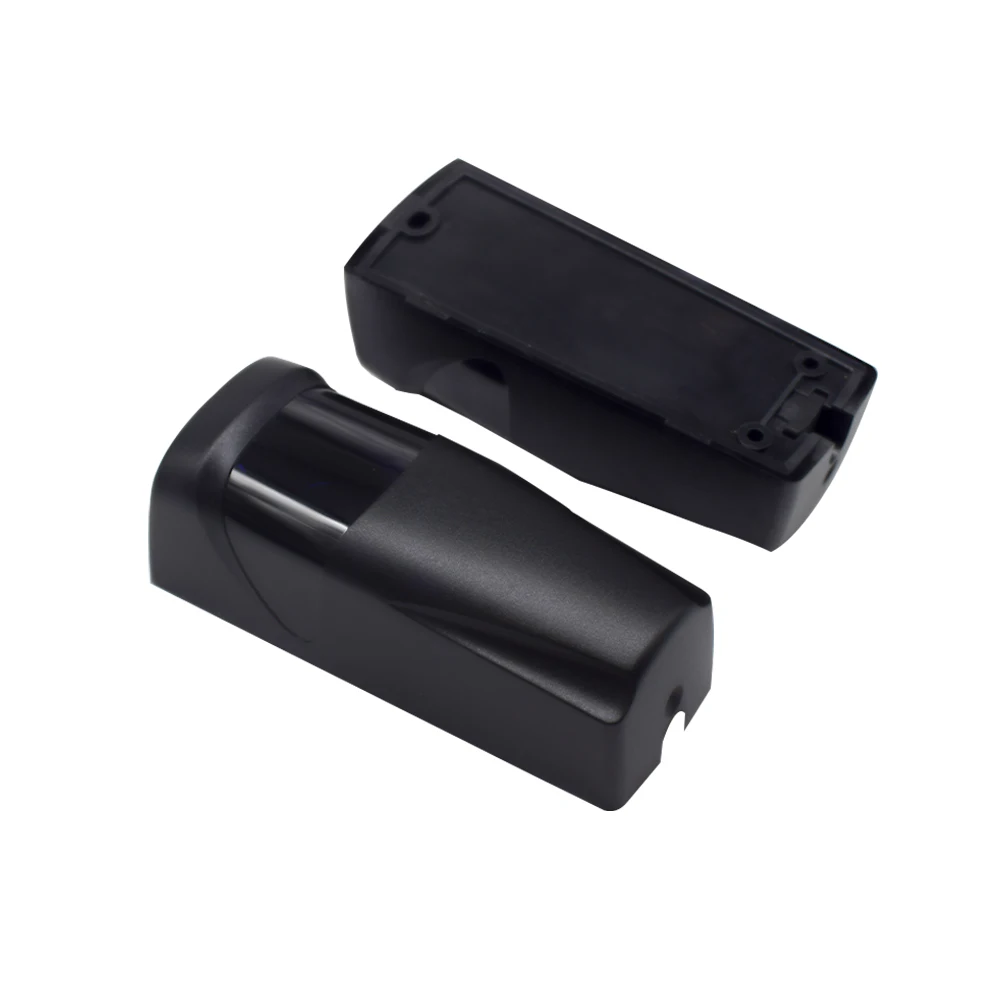

Rotation through 180° llows the alignment of the photocells irespectiveof the way they are fixed to the base
