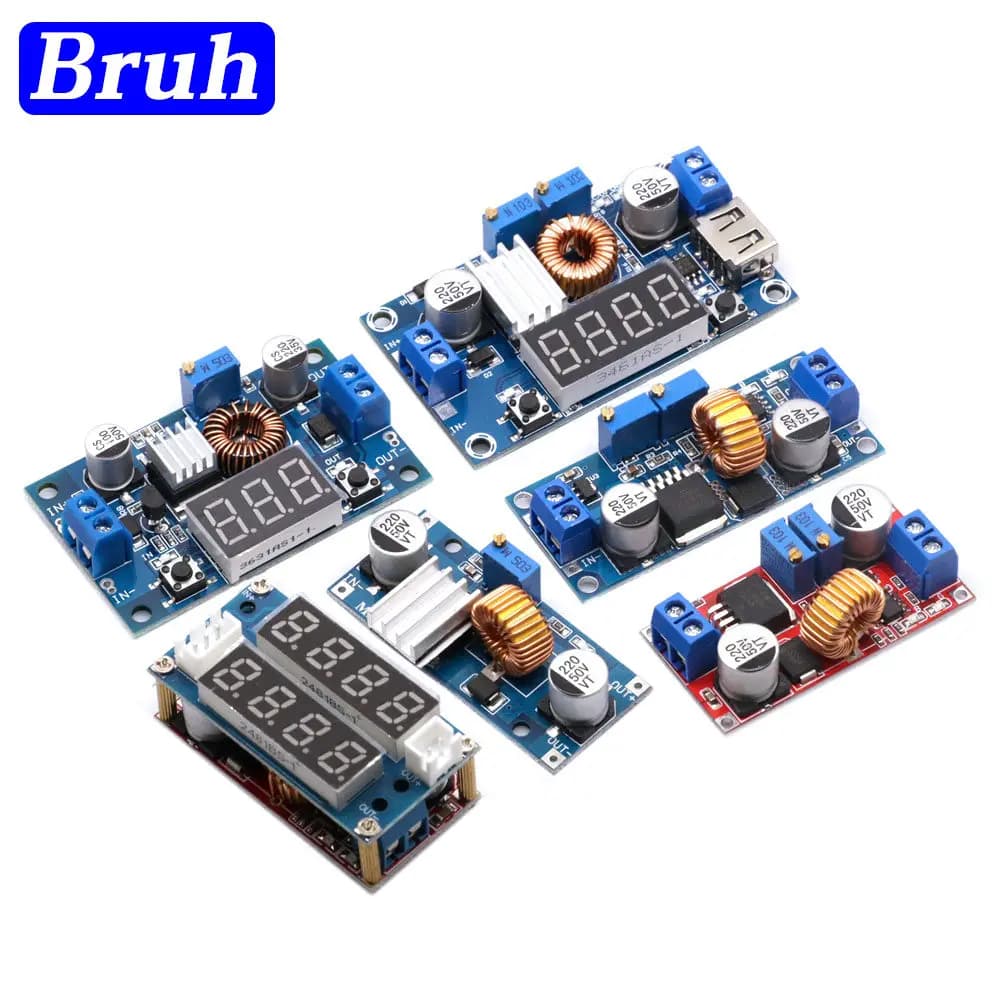

XL4015 5A DC to DC Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module CC/CV DC/DC

1. Input voltage range:4~38VDC(Note:input voltage not exceeding 38V) 2. Output voltage range:1.25-36VDC adjustable 3. Output current: 0-5A, recommended for use in 4.5A. 4. Output power: 75W 5.Working temperature: -40~+85 degrees 6.Operating frequency: 180KHz 7.Efficiency:96%(max) 8.Short circuit protection: yes(limit current 8A). 9.Over temperature protection 10.Input reverse polarity protection: None (if required, high current diode in series with the input). 11.L x W x H = 54 * 23 * 18mm Application: The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, 24V Vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, 36V buck to 24V etc. 1.When you use the product, the module inputs and outputs to be isolated from ground. 2.USB output voltage is consistent with the module, not a fixed 5V output. When charging for digital equipment, make sure USB output voltage is 5V. 3.Some customers report:The module can not adjust the output voltage is always equal to the input voltage.When you encounter this problem, please counterclockwise rotation of thevoltage potentiometer10 laps or more, then use the module you can adjust the output voltage. Because the factory default output voltage of about 20V. Specifications 1.Input voltage range:5-36VDC 2.Output voltage range:1.25-32VDC adjustable 3.Output current: 0-5A 4.Output power: 75W 5.High efficiency up to 96% 6.Built in thermal shutdown function 7.Built in current limit function 8.Built in output short protection function 9.Input reverse polarity protection: None (if required, high current diode in series with the input). 10.L x W x H =68.2×38.8×15mm 11.Weight: 39g Application 1.Use as a step-down modules with overcurrent protection Usage: (1) Adjust the right button so thatOUTLED lighted, Digital meter shows the value of output voltage ,adjust thevoltage potentiometerso that the output voltage reaches the value you want. (2) Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust thecurrent potentiometerso that the output current reaches a predetermined overcurrent protection value. (For example, the Digital meter displays the current value of 4A, then you can use the module to a maximum current of 4A) (3) Connected to the load. 2.Use as a battery charger Usage: (1) Make sure you need to charge the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA) (2)Under no-load conditions, adjust theVoltage potentiometerso that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to Specification: Size: 51 * 26.3 * 14 (L * W * H) (mm) Operating Temperature: -40 ° to +85 ° Voltage Regulation: ± 2.5% Load Regulation: ± 0.5% Output ripple: 50mV (max) 20M bandwidth Switching frequency: 300KHz Conversion efficiency: 95% (the highest) Output current: adjustable maximum 5A Output voltage: 0.8V-30V Input voltage: 5V-32V Rectification: non-synchronous rectification Module Properties: non-isolated constant current and voltage module. Advantage: CC CV Low ripple When the module charges a battery, it first use constant current to protect the battery. check the curse above. Module highlights: 5A high power ,high efficiency and low ripple with power indicator !!! 1. Input voltage range:4~38VDC(Note:input voltage not exceeding 38V) 2. Output voltage range:1.25-36VDC adjustable 3. Output current: 0-5A, recommended for use in 4.5A. 4. Output power: 75W 5.Working temperature: -40~+85 degrees 6.Operating frequency: 180KHz 7.Efficiency:96%(max) 8.Short circuit protection: yes(limit current 8A). 9.Over temperature protection 10.Input reverse polarity protection: None (if required, high current diode in series with the input). 11.L x W x H = 54 * 23 * 18mm Application: The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, 24V Vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, 36V buck to 24V etc. ▪Measurement accuracy:0.1%; ▪Refresh rate:about 200ms/ times; ▪Dispaly: 0.28" digital tube; ▪Current range 5V-30V; ▪Display Color Red; ▪Storage Temperature:-10centigrade to + 65 centigradelnput; ▪lmpedance: 50 milliohms. Module properties:Non-isolated cinstant current and voltage module Rectificetion:Non-synchronus rectificetion Input voltage:5V-30V Output voltage:0.8V-29V Output cueeent:Adjustable maximun 5A Concerision efficency:95% (the highest) Switching frequcency:180KHZ Output ripple:50mV (maximum)20m bandwidth Load regulation:±0.5% Voltage temperature:±2.5% Working temperature:-40℃ to + 85%℃ Size:51*26*14 (L*W*H) mm One: Product Description This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module,capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.The module with a voltage meter to display the input voltage and output voltage, and the voltage can be corrected through the button to improve the accuracy of the voltmeter. Features: 1. LED power indicator. 2. Button to switch measurement of the input or output voltage, and LED indicates the current measurement of the input or output voltage; The nixie tube can be turned off by another button. Mentioned states are able to be memorized, is not lost even if the power is disconnected. (On-board marked "IN" LED is turned on, the nixie tube display input voltage value, "OUT" LED bright display is the output voltage value). 3. Special launch, the voltmeter calibration function, will never exist voltmeter inaccurate! Voltmeter calibration method: (1) Output voltage calibration steps Step 1, adjust the right button so that "OUT" LED lighted, the voltmeter shows the value of output voltage; Press the right button for more than 2 seconds, release, voltmeter and "OUT" LED flashes in synchronization so that you enter the output voltage calibration mode. Step 2, press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press. Step 3, press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save. (2) Input voltage calibration steps Step 1, adjust the right button so that "IN" LED lighted, the voltmeter shows the value of input voltage; press the right button for more than 2 seconds, rele
