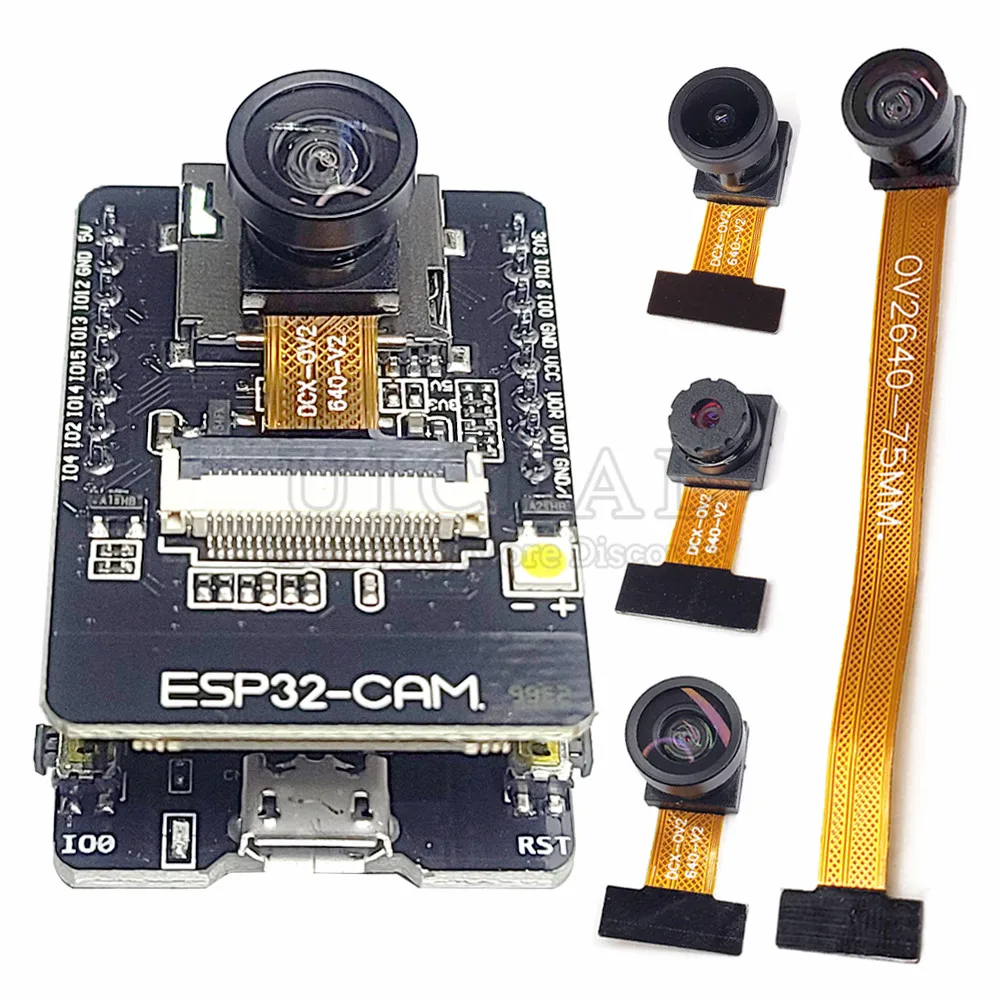

Original ESP32-CAM Camera Module Kit 2.4 GHz WiFi Bluetooth 8MB PSRAM OV2640 Camera Module 66 120 160 Degree 850nm Night Vision

Original ESP32 CAM Camera Module Kit 2.4 GHz WiFi Bluetooth 8MB PSRAM OV2640 Camera Module 66 120 160 Degree 850nm Night Vision

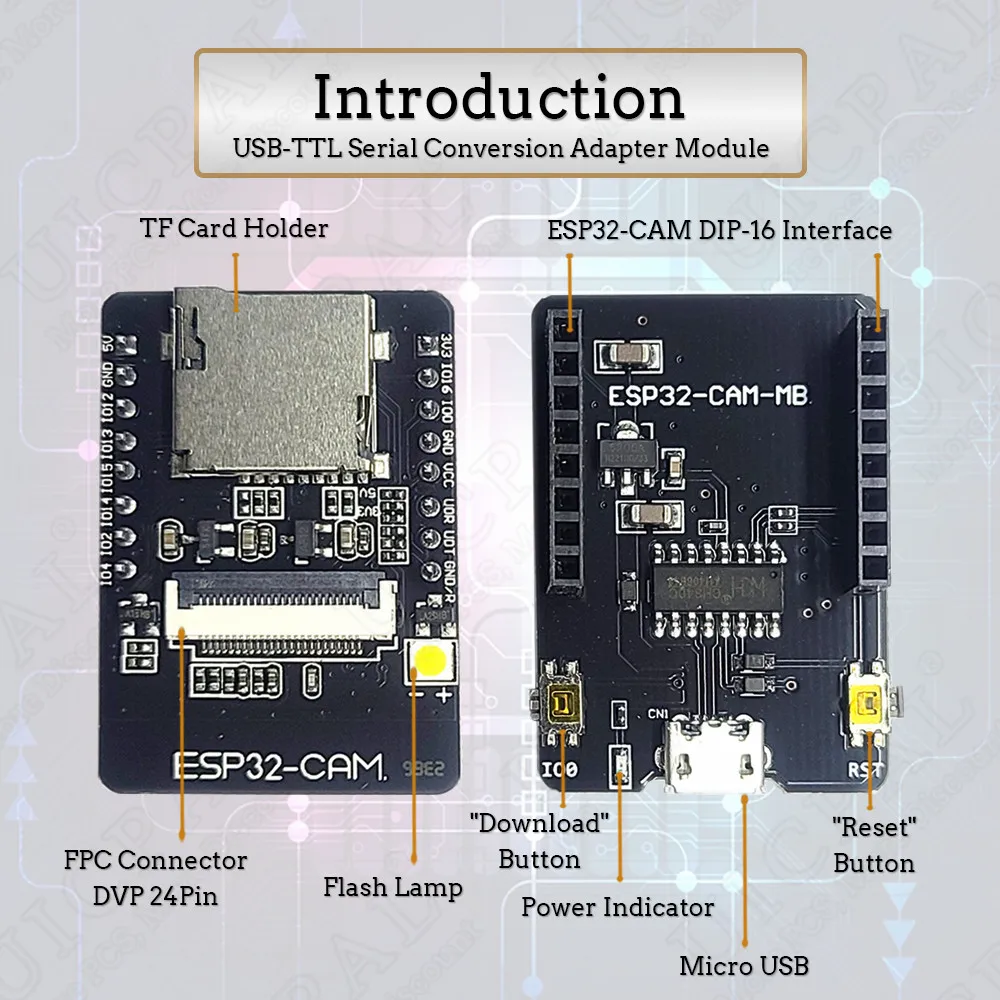

ESP32-CAM Introduction:

The ESP32-CAM-MB module is a small camera module with a size of 39.8*27*. This module can work independently as the smallest system. A brand-new WiFi+Bluetooth dual-mode development board is based on the ESP32 design, uses PCB onboard antennas, is equipped with two high-performance 32-bit LX6CPUs, uses a 7-stage pipeline structure, and the main frequency adjustment range is 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi+BT/BLE SoC module HK-ESP32-CAM-MB with micro USB interface, convenient and reliable connection method, and convenient for various IoT hardware terminal occasions.

HK-ESP32-CAM-MB adopts a micro USB interface, which is convenient and reliable in connection mode, which is convenient and suitable for various IoT hardware terminal occasions.

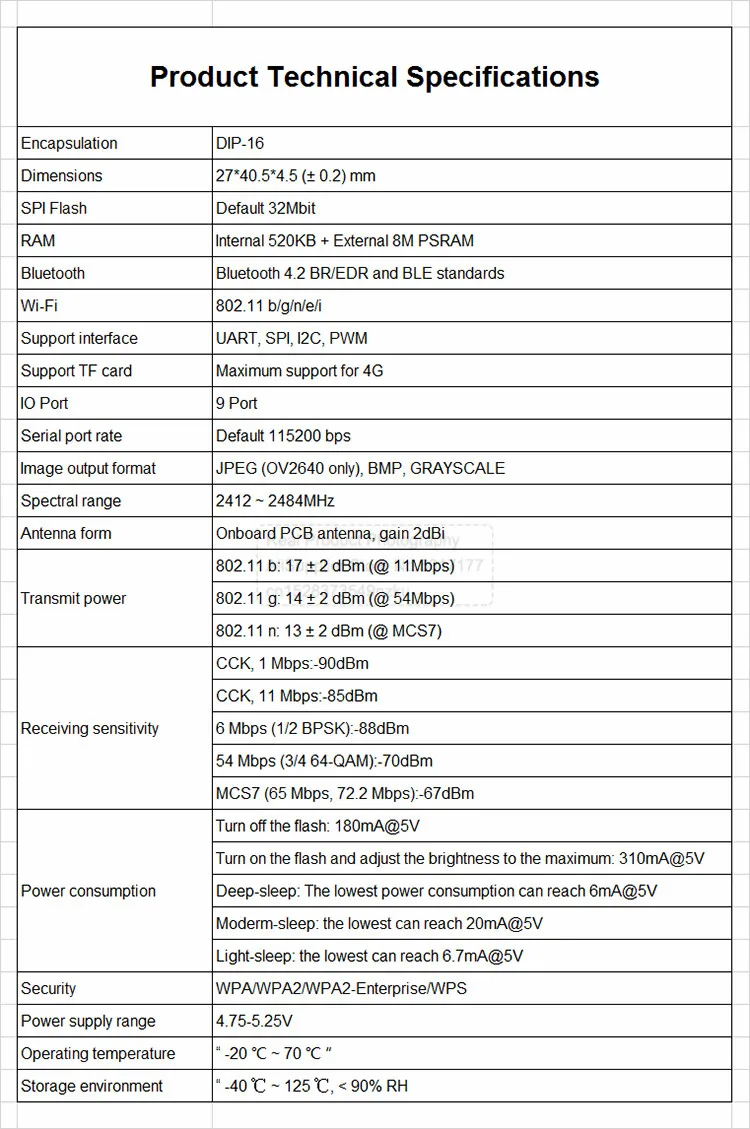

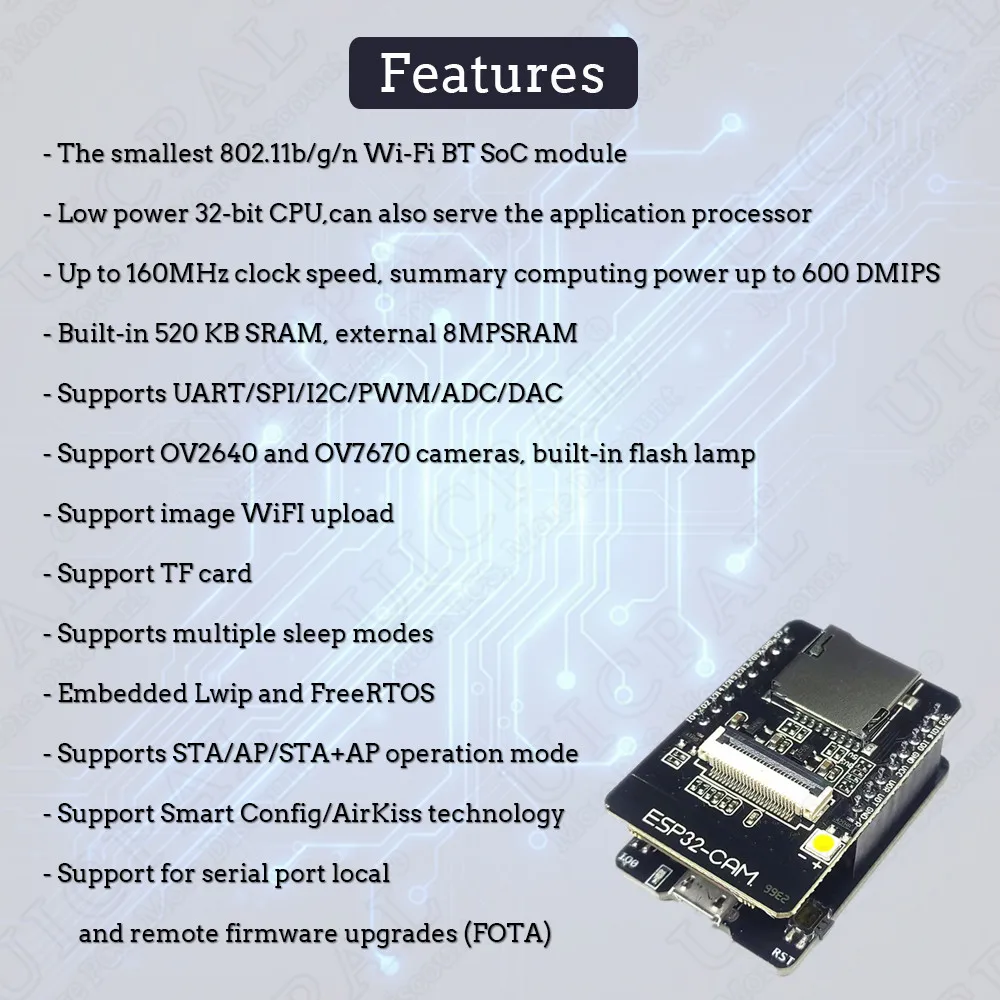

Basic performance parameters

1 The dual-core processor can be used as a low-power dual-core processor.

2 The main frequency is up to 240MHz, and the computing capacity is up to 600dmips

three. Built-in 520 KB SRAM, external 8MB PSRAM

4 Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces

5 Support OV70 flash and OV2640

6 Support picture WiFI upload

7 Support TF card

8 Support multiple sleep modes.

9 Embedded Lwip and FreeRTOS

10 Support STA/AP/STA+AP working mode

11 Support smart configuration/AirKiss one-key network configuration

12 Support secondary development

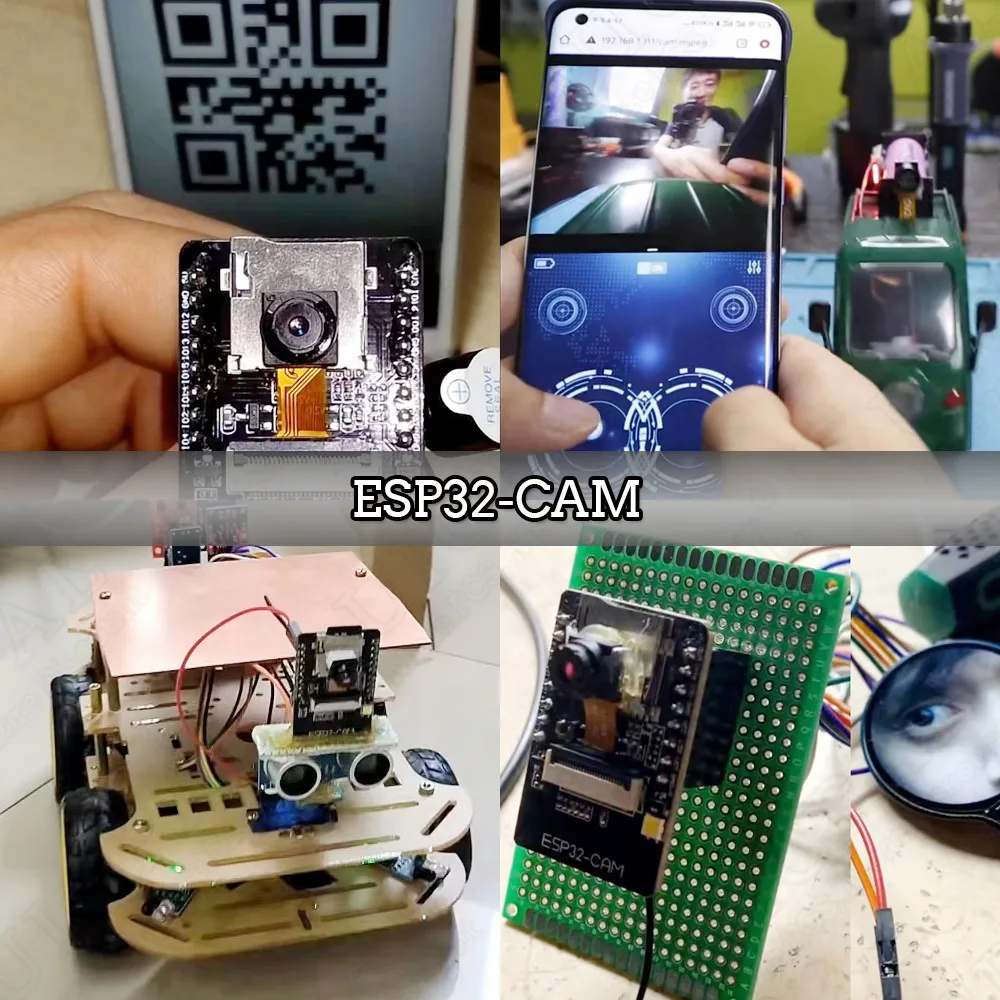

Application scenario

1 Home smart device image transmission

2 wireless monitoring

three. Smart agriculture

4QR wireless identification

5 wireless positioning system signal

6 and other IoT applications

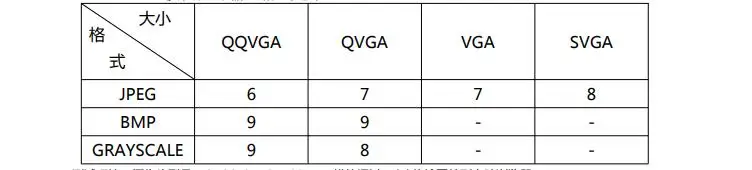

ESP32-CAM module picture output format rate:

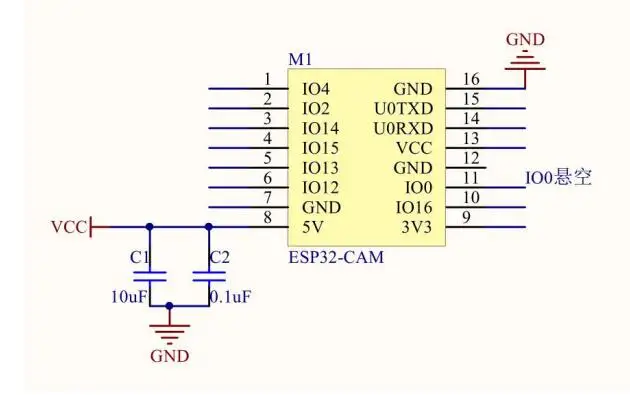

Minimal system diagram:
