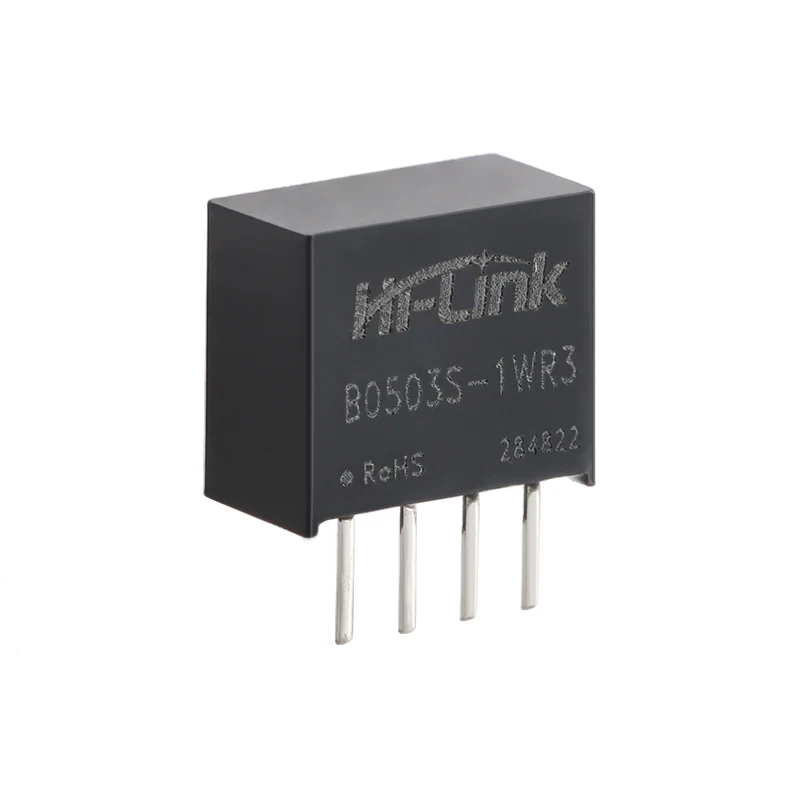

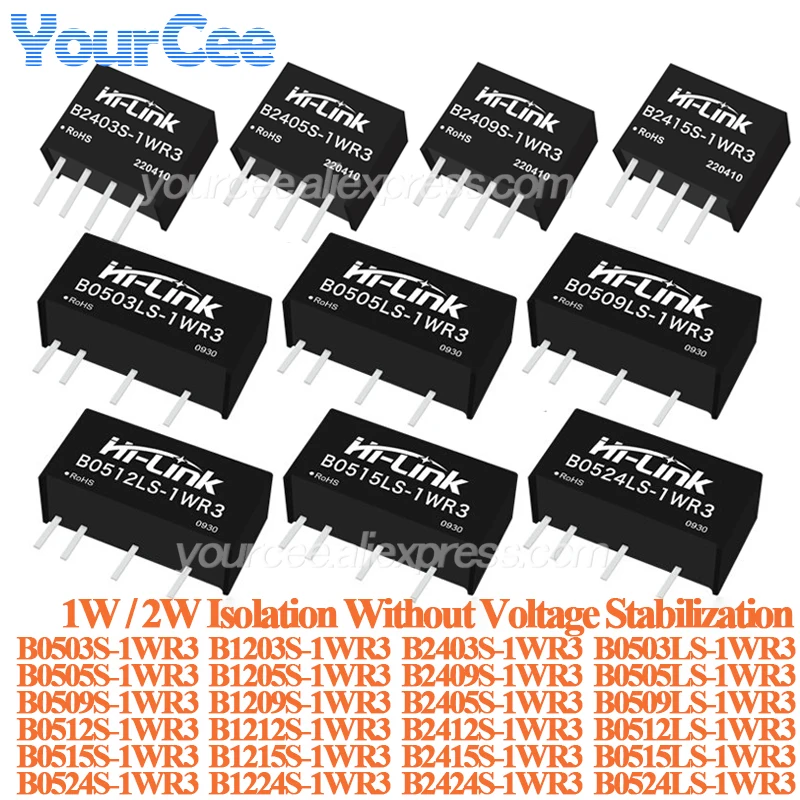

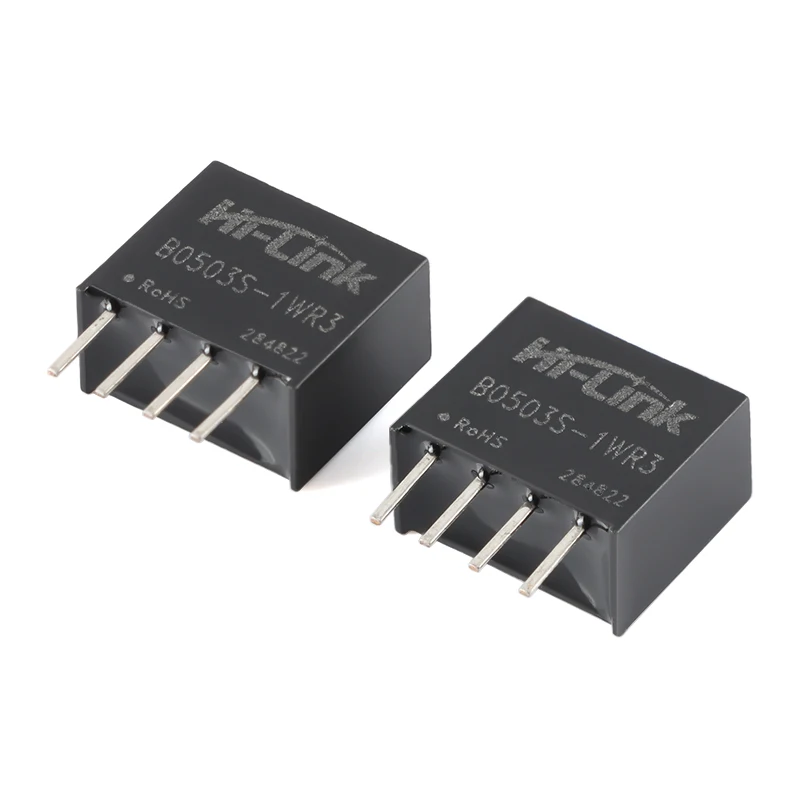

5PCS/1PC 1W 2W DC-DC Isolated Power Module 24V/12V/5V to 24V/12V/9V/5V/3.3V B2403S B2424S B1205S B0509S B0524S Non Regulated

●Ultra-miniature standard package SIP package and standard pins

●Constant voltage input (10% Vin), isolated unregulated single output, 2W/1W

●Low standby power consumption, input and output isolation withstand voltage 1 500VDC

●Low ripple noise (20MH bandwidth)<100mVp-p

●High efficiency, conversion efficiency can reach 90% (Typ.)

●Operating temperature range: -40°C~+85°C

●Good output short-circuit and over-current protection and self-recovery,

●High reliability, long life design, MTBF≥3500000H

●It is potted with high-quality waterproof and thermally conductive adhesive, which is dust-proof, moisture-proof, shock-proof and flame-retardant

●Comply with UL/CE/EMC and safety test requirements

●Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields

Operating temperature: -40~+85°C

Storage temperature: -40~+125°C

Relative humidity: 5~95%RH

Cooling method: natural cooling

Atmospheric pressure: 80~160Kpa

Altitude:≤2000m

Vibration: Vibration coefficient 10-55Hz, 10G, 30 Min.along X, Y and Z
