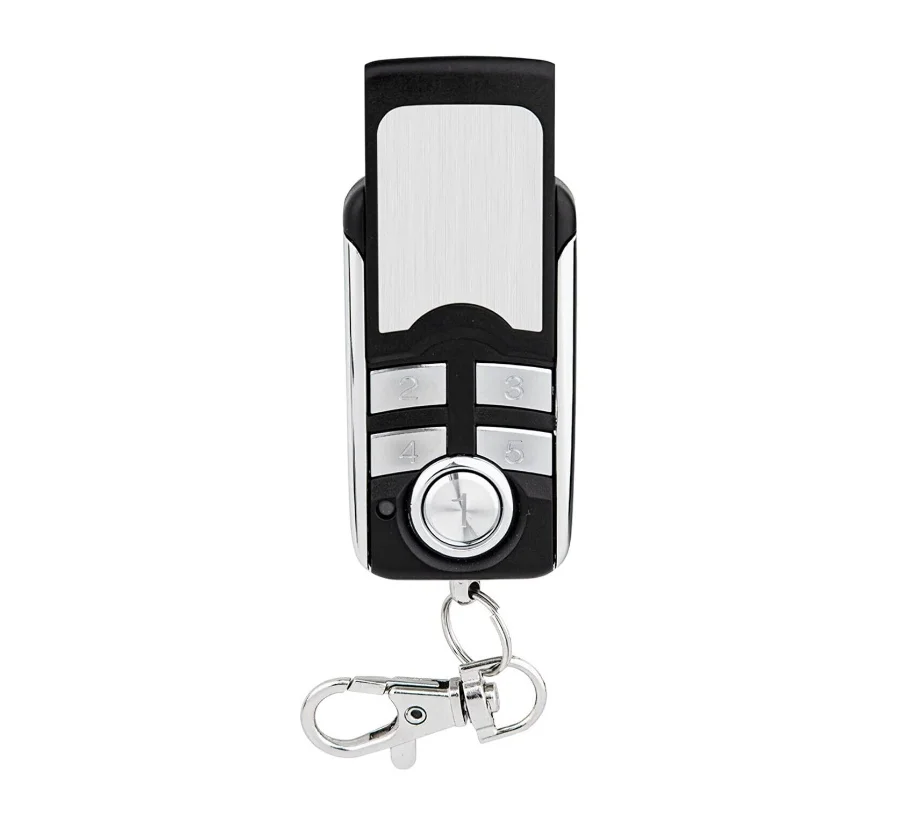

HSE4-868-BS 868MHz Hand Transmitter Garage Door Remote Control Hormann Bisecur Command HSE2 HS1 HS4 868 BS Garage Remote

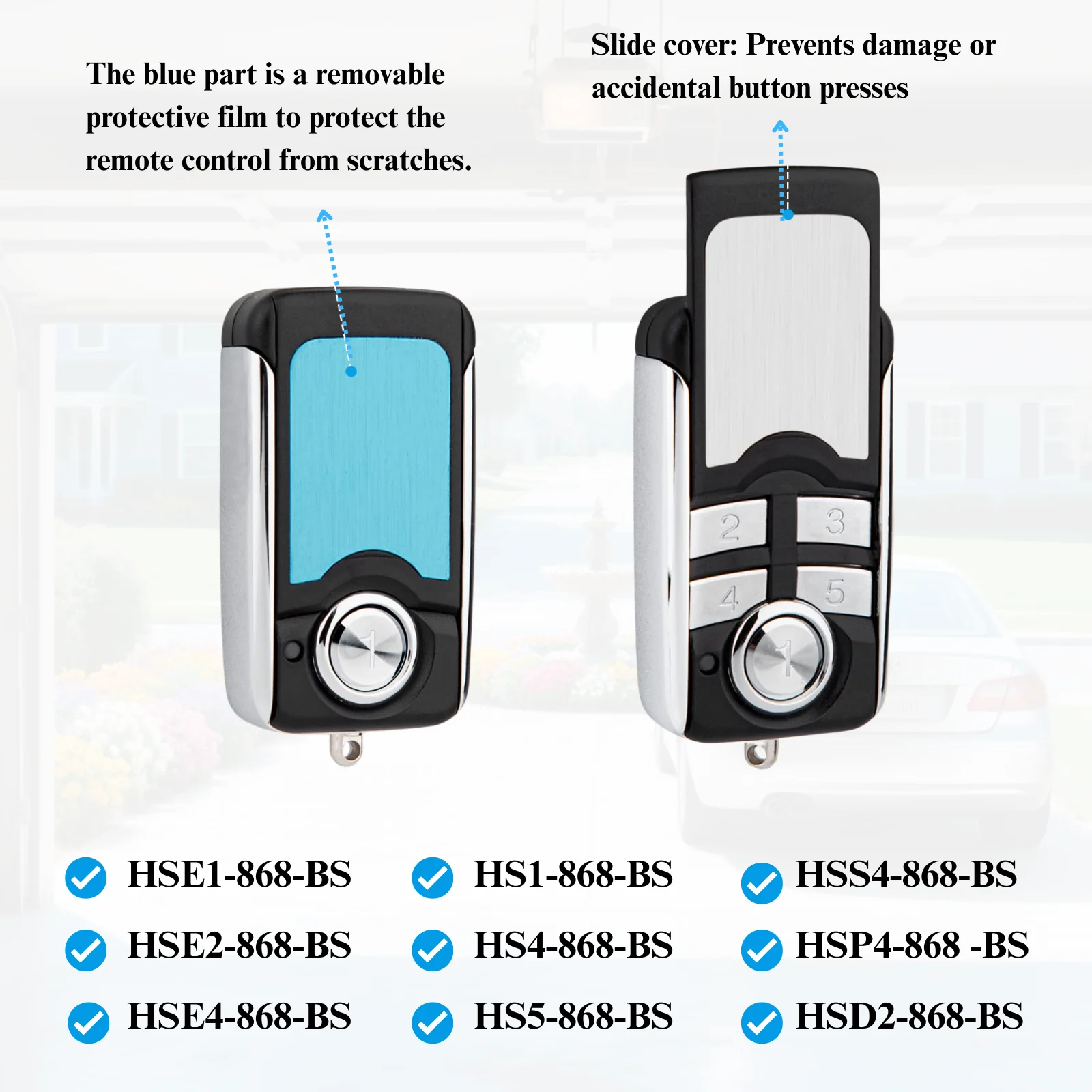

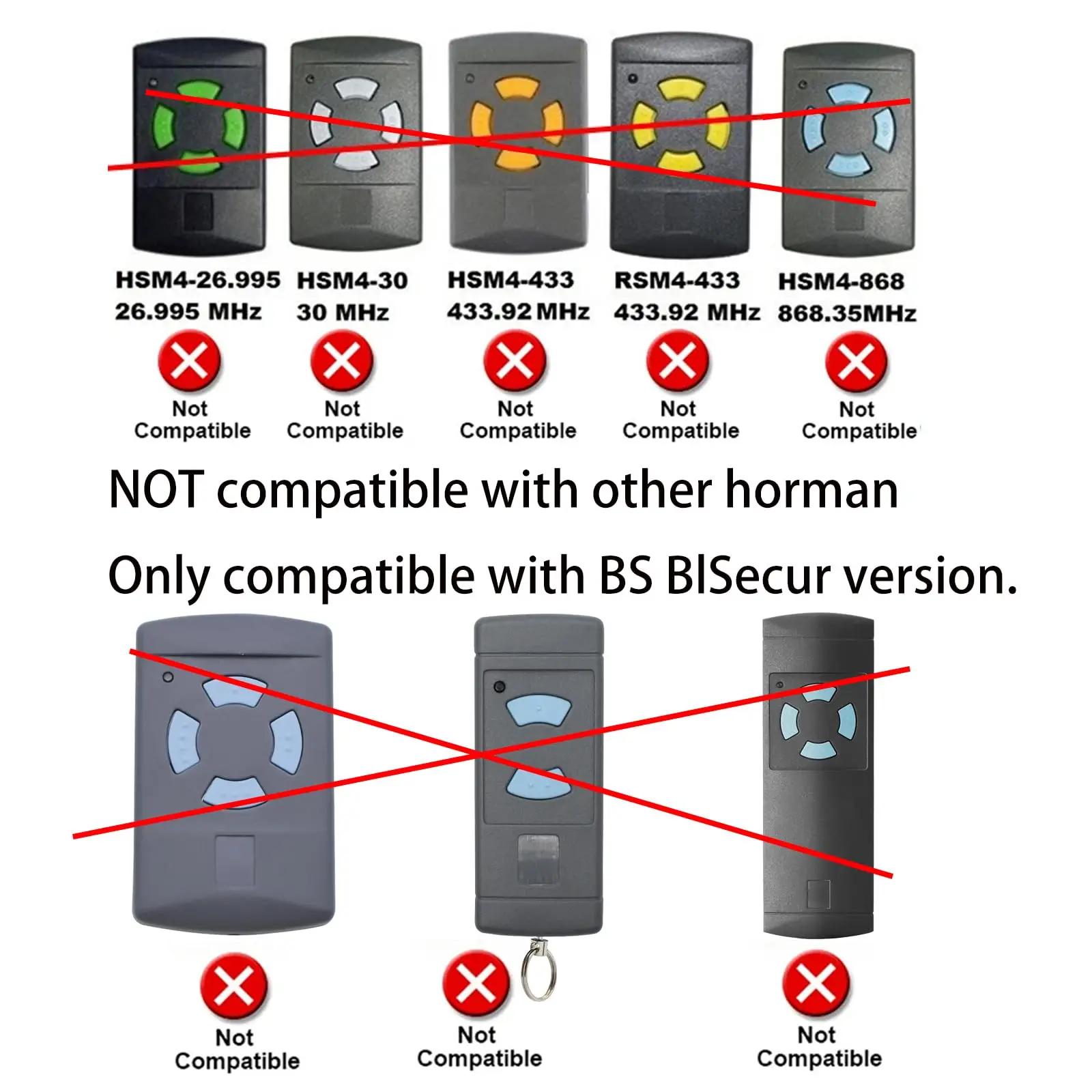

Compatible with：

HS 1 BS

HS 4 BS

HS 5 BS

HSS 4 BS

HSE 1 BS

HSE 2 BS

HSE 4 BS

HSP 4 BS

HSD 2 BS

HS1-868-BS

HS4-868-BS

HS5-868-BS

HSS4-868-BS

HSE1-868-BS

HSE2-868-BS

HSE4-868-BS

HSP4-868-BS

HSD2-868-BS

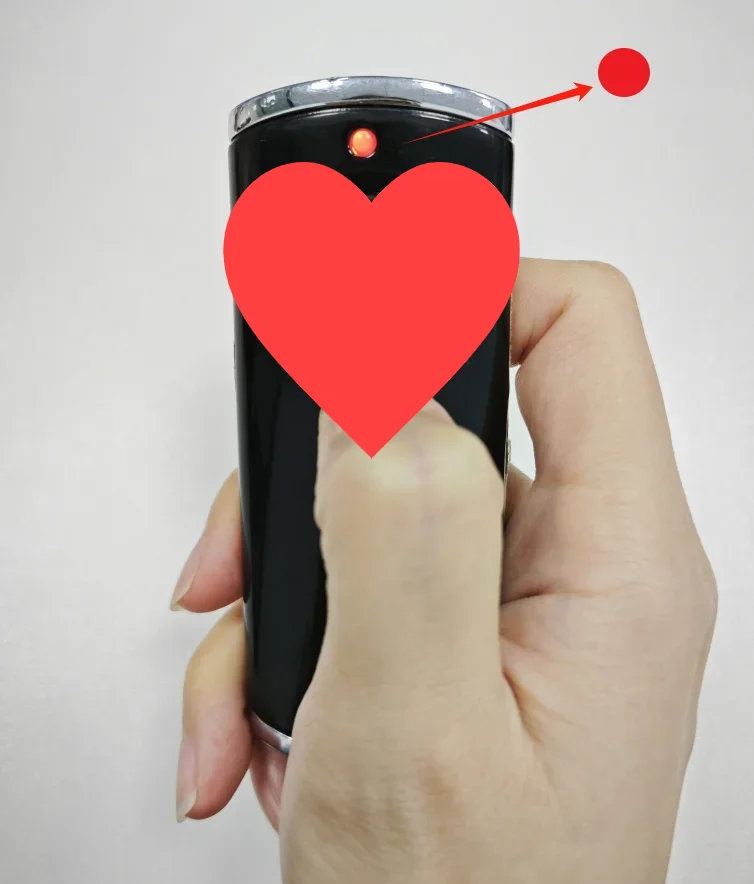

NOTE: If your original remote control works in Red LED,please contact us before placing an order.

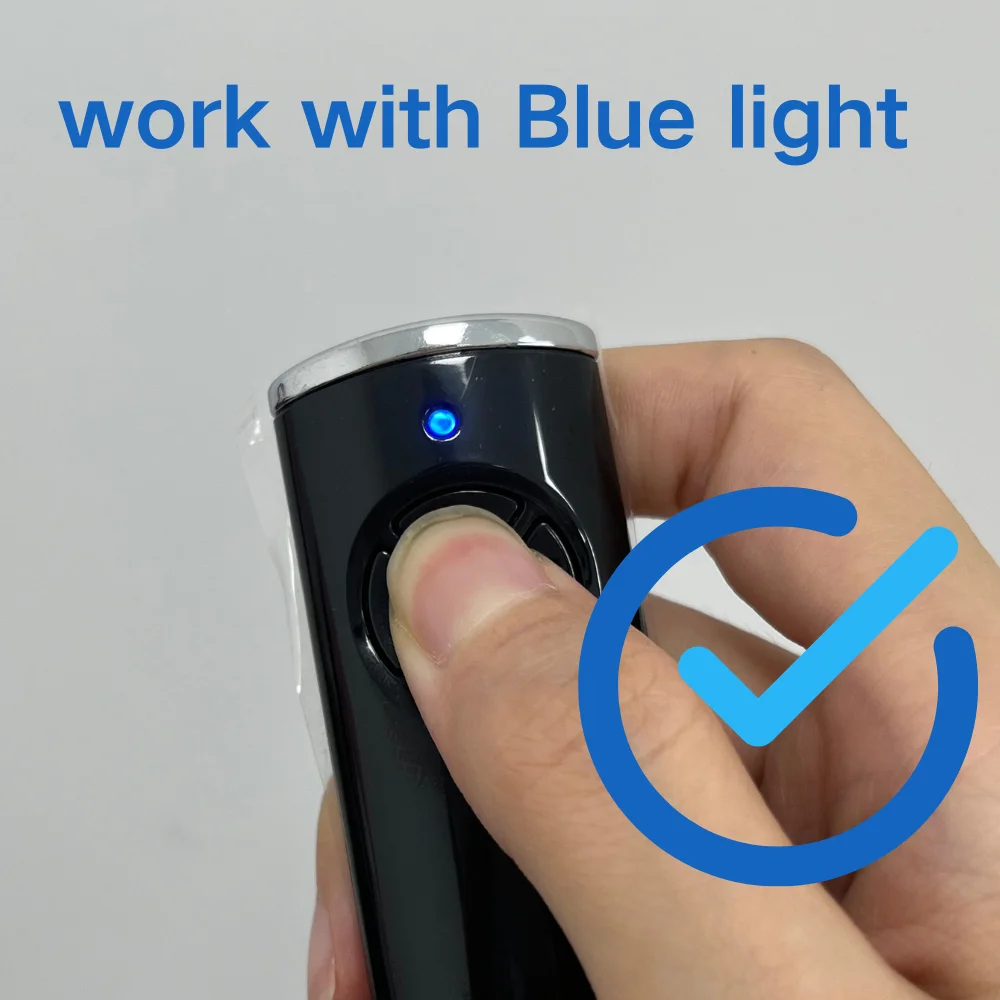

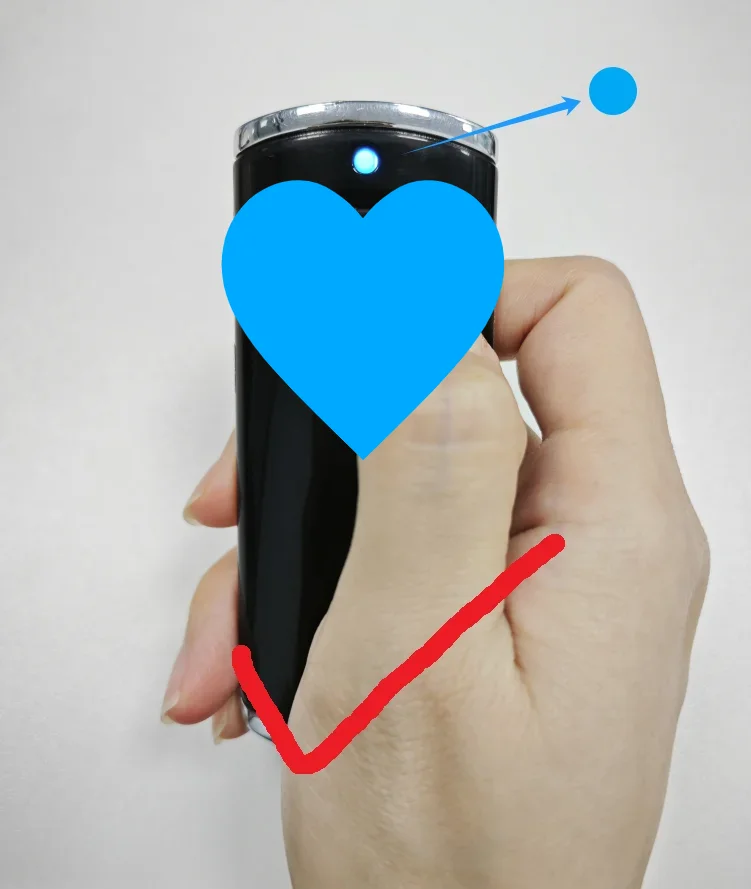

NOTE: If your original remote control works in Blue LED,can place orders directly.

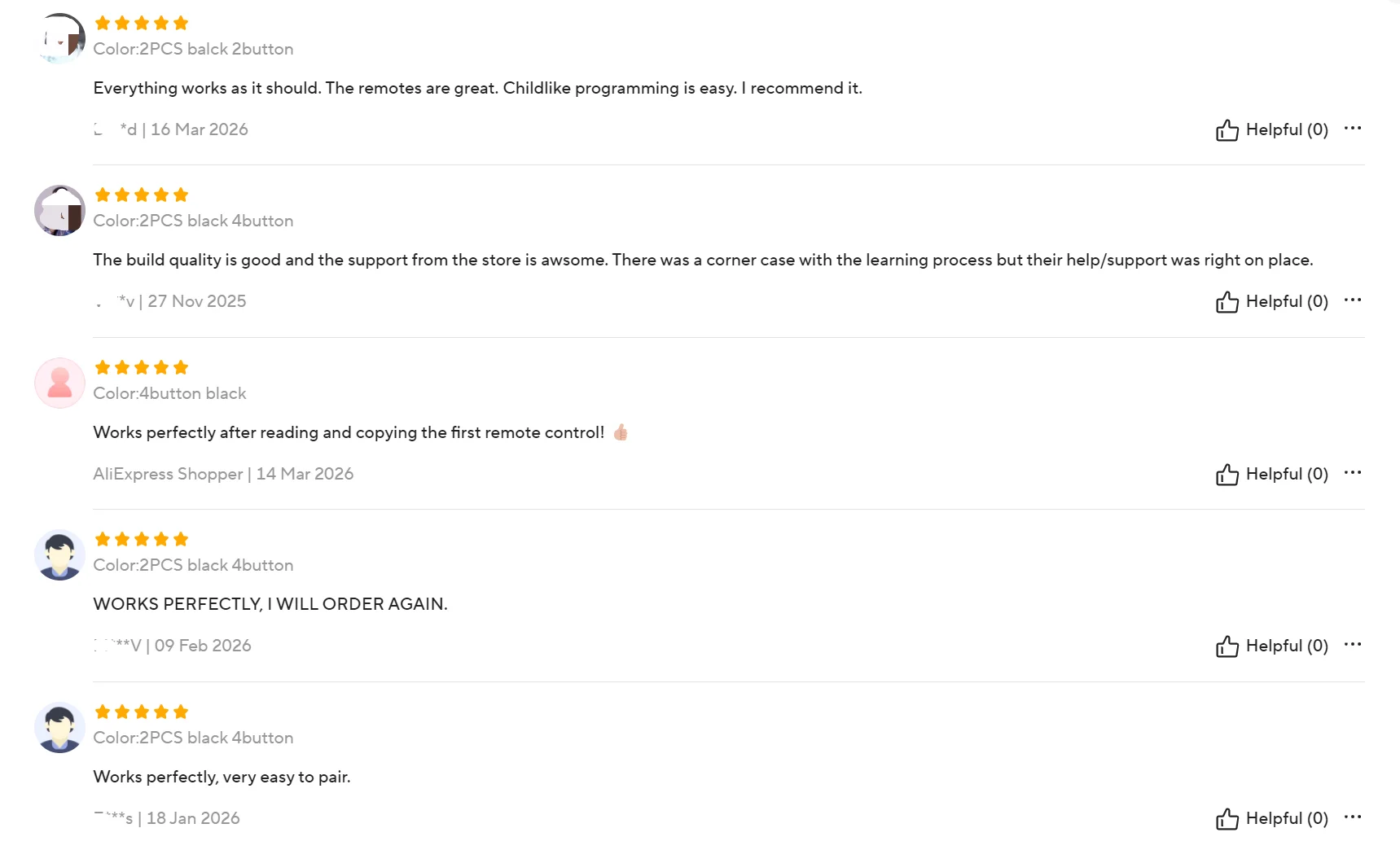

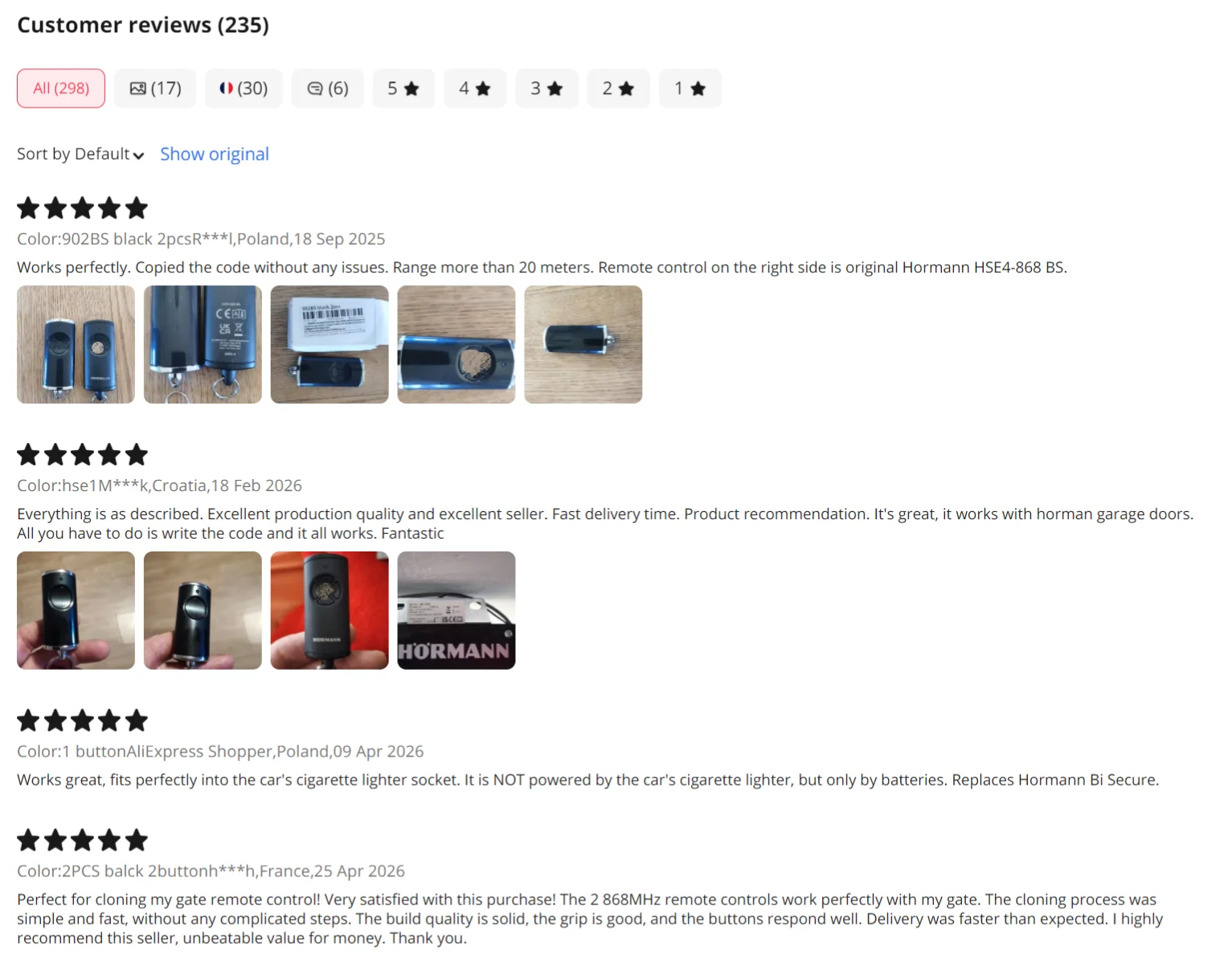

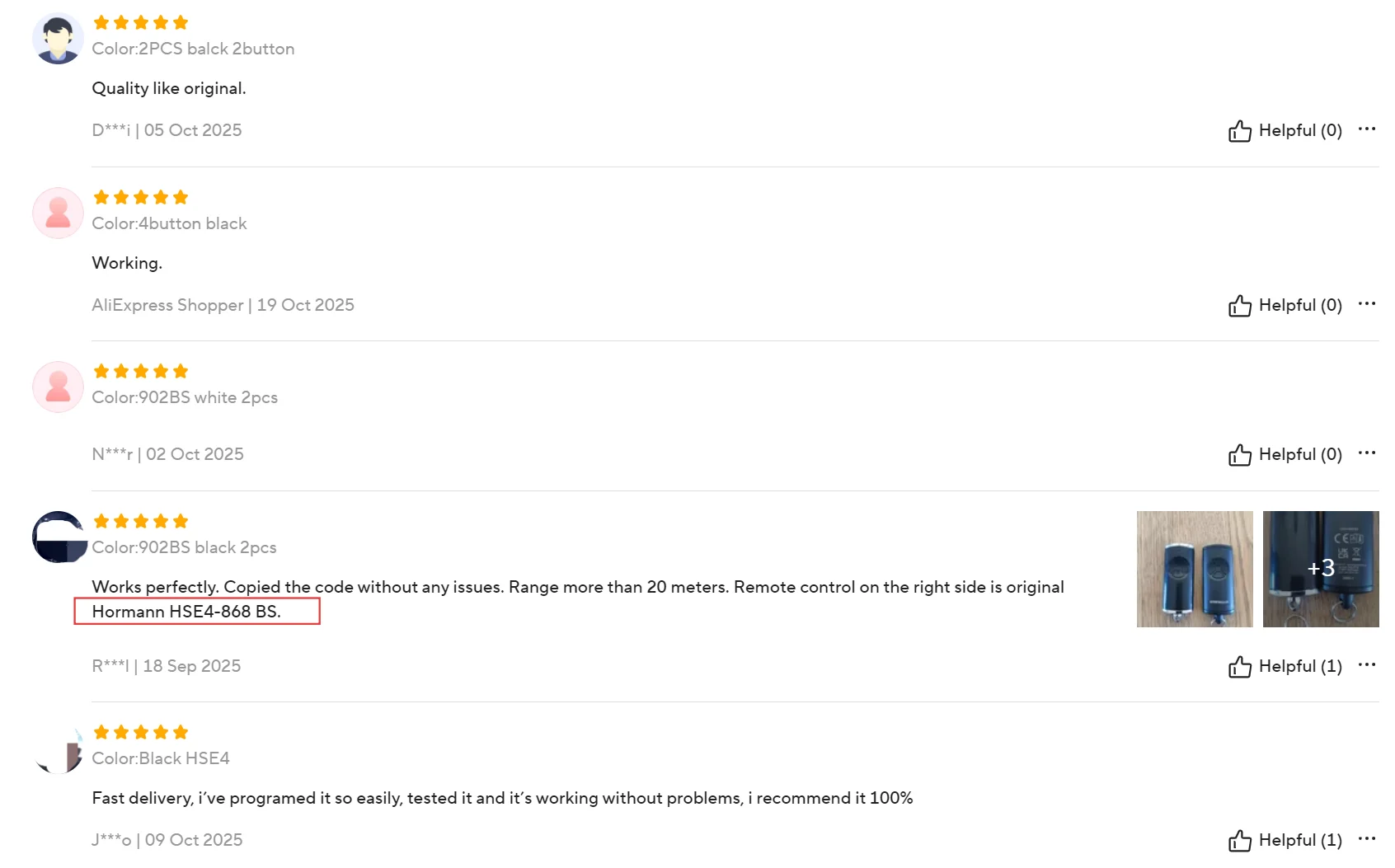

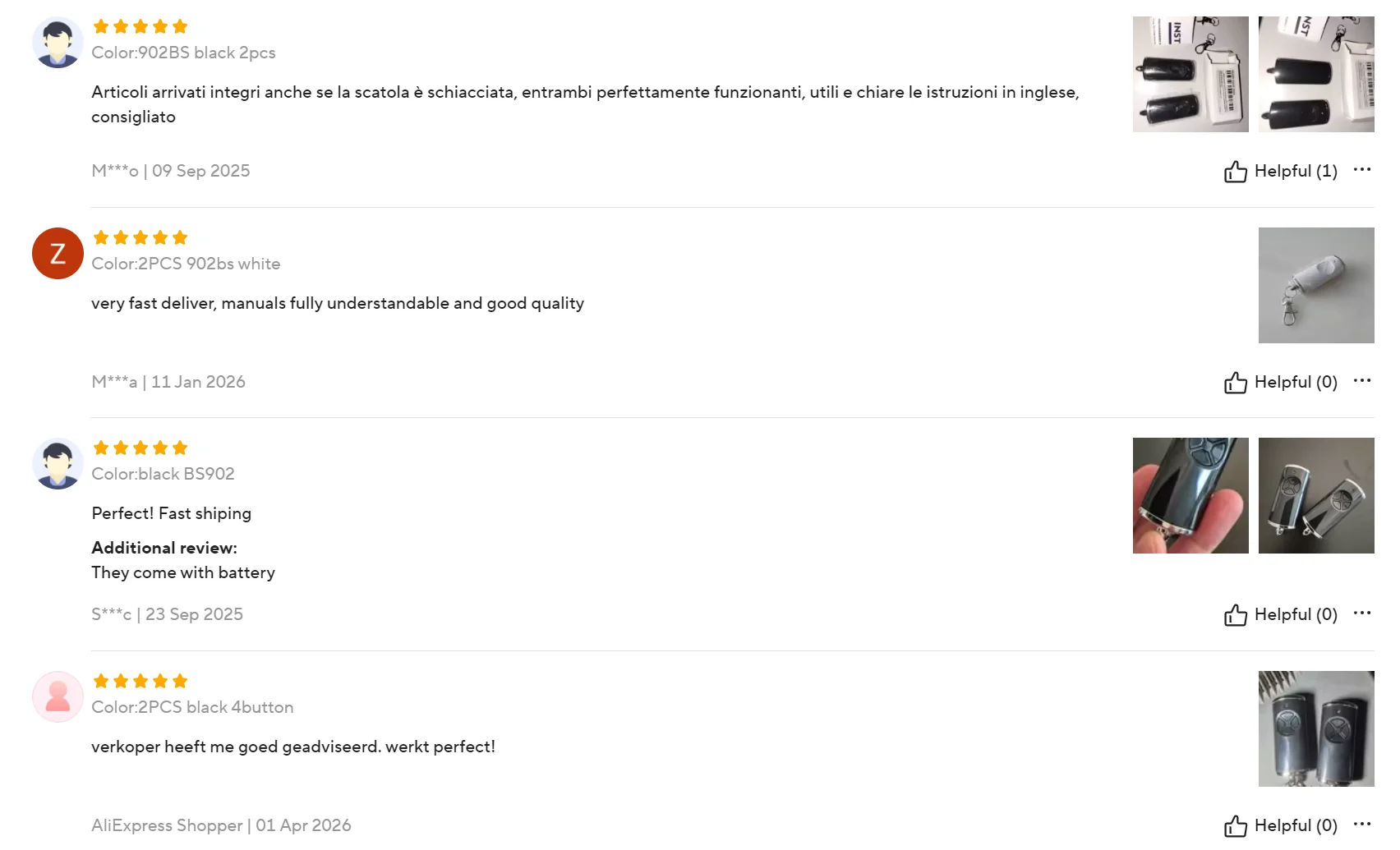

-------Customer reviews------

Include

1x Remote Control

1 x Battery

1 x Keychain

1 x English Manual

How to clone？

Programming Methods of Rolling Code (Blue LED):


NOTE: Factory default Rolling Code(Blue LED) ! If your original remote control works in fixed code(Red LED),it will not work.


Copy the Code from Original Remote

1. Pressing and hold the button of the NEW remote control that you want to store the code from the original remote,keep it pressed,pressing one of any other button 3 times,until the LED lights up red,then release all buttons.

2. Placing the Original remote on the left or right of the NEW remote,as close as possible.

3. Pressing and hold the button of the Original remote control for about 13s,until the indicator light flashes red and blue alternately. The learning procedure will be finished when the NEW remote LED flashes quickly in blue,release all buttons.

4. You new remote control is programmed.

5. Please do the same procedure for the rest of buttons.

NOTE: You have 15 seconds to transmit the code. The process must be repeated if the radio code is not successfully transmitted within this time.


Programming with the Receiver

If the original remote control is lost,the new remote can be programmed directly with the receiver .

1. Find the "Learning" or "Program" button on the receiver,press it and you'll see the indicator light start flashing.

2. While the indicator light is flashing,press the button on the NEW remote control until the receiver indicator light flashes quickly,which indicates that the NEW remote control has been programmed successfully.(Keep the remote control as close to the receiver as possible when programming)


Delete All Code:

Each button of remote control is assigned to a new radio code by means of the following steps.

1. Open the battery lid and remove the battery for 10 seconds.

2. Press one button of remote control and keep it pressed.

3. Insert the battery,

– The LED slowly flashes in blue for 4 seconds,

– The LED flashes rapidly in blue for 2 seconds,

– The LED is illuminated blue for a long time.

4. Releasethe buttonof remote control,all radio codes are newly assigned.

NOTE:If the button of remote control is released prematurely,no new radio codes are assigned.
