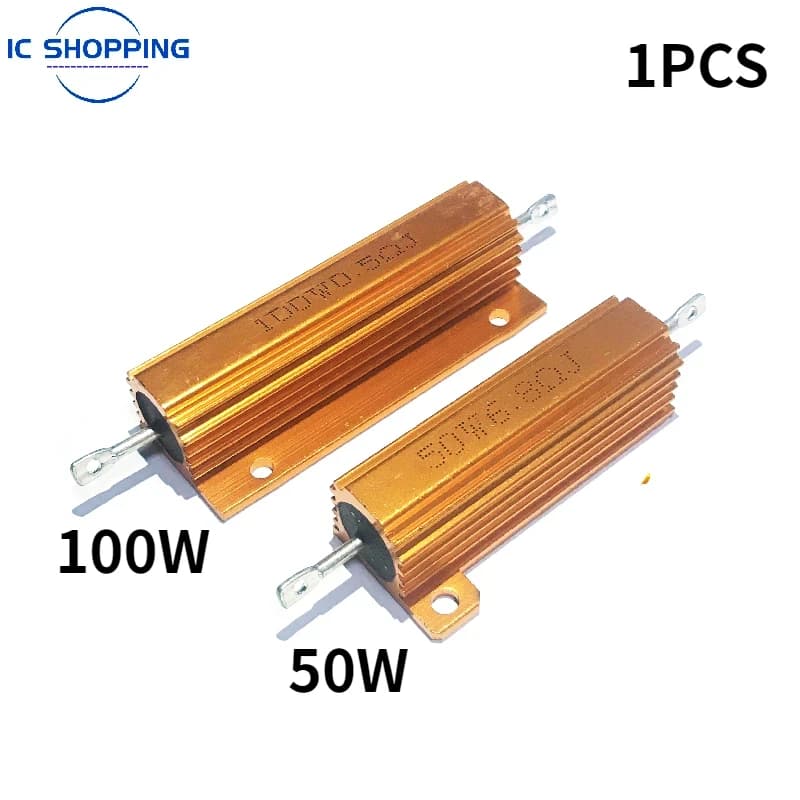

NEW Aluminum Power Metal Shell Case Wirewound Resistor 50W 100W 0.01R~100K 1 3 4 6 8 10 20 200 500 1K 10K Ohm RX24 Resistance

PACK:1PCS Basic Parameters Product Name : Aluminium Shell Resistors; Power Rating : 100W; Resistance accuracy : ± 5% (J); Dimension : 60*21*15mm/2.36*0.83*0.6(L*W*H) (The size does not contain Pins and fixed parts); Fixed part Siz: 60 * 6mm / 2.36*0.24in (L * W).The bottom of the resistor protrudes with a mounting hole. Pins length : 12mm / 0.47 inch; External Material : Aluminum; Color : Gold ; Net Weight : 55g / 0.12lb; Suitable for inverter, LED lights, speakers, frequency divider, servo industry and other industrial control This product using a professional process potting, with a solid, temperature, moisture resistance, high anti-vibration, explosion-proof and so on. Specification: Casing Material: Aluminum Power Rating: 50W Tolerance: 5% Working voltage: 220V Max. overload voltage: 220V Body Size: 49.2x16x15/1.93"x0.63"x0.59"(L*W*H) Lead Size: 10mm/0.39" Mounted Hole Size : 1.8mm/ 0.07", 3.5mm/ 0.14" ATips: This product in the use of time, there will be heat phenomenon. Do not touch the outside of the resistor directly by hand when the resistor is in operation for a long time to avoid injury. If the resistor work for a long time, please do Heat dissipation. #aediy1con{position:fixed;z-index:99999999;top:200px;right:5px;padding:12px 10px;text-align:center;border-radius:5px;background:#ffeb3b;width: 200px;}#aediy1con .btnxx{font-size: 14px;line-height: 16px;position: absolute;z-index: 99;top: -1px;right: -1px;width: 18px;height: 18px;text-align: center;color: rgb(255, 255, 255);border-radius: 0 5px 0 0;background: #f44336;}#aediy1con.hidediycon{right: -200px;overflow: visible;}#aediy1con.hidediycon .btnxx{font-size: 13px;line-height: 26px;right: initial;left: -107px;width: 100px;height: 26px;border-radius: 20px 0 0 20px;}#aediy1con .psfExpand{animation:psfexup 4s infinite;-moz-animation:psfexup 4s infinite;}@keyframes psfexup{ 75%{transform:translateY(0);} 90%{transform:translateY(5px);} 100%{transform:translateY(0px);}}@-webkit-keyframes psfexup{ 75%{-webkit-transform:translateY(0);} 90%{-webkit-transform:translateY(5px);} 100%{-webkit-transform:translateY(0px);}}.aeplgcon { position: fixed; top: 35%; right: 5px; background: #000000ad; color: #fff; z-index: 9999999; width: 190px; } .aeplgcon p { padding: 10px 0; margin: 0; line-height: normal; text-align: center; font-size: 16px; background: #FF5959; } .aeplgcon ul { padding-left: 0; text-align: left; margin-left: 0; margin-bottom: 0; } .aeplgcon ul li.nav { padding: 0 15px; border-top: 1px solid #595959; } .aeplgcon ul li.nav:last-child { border-bottom: 1px solid #595959; } .aeplgcon ul li.nav:hover { background: #00000059; } .aeplgcon ul li a { color: #fff; padding: 10px 0; display: block; font-size: 13px; } .aeplgcon i { font-style: inherit; color: #ffc100; line-height: 34px; display: block; } .aeplgcon em:hover { background: #d25353; } .aeplgcon em { font-style: normal; width: 22px; height: 20px; display: inline-block; text-align: center; position: absolute; top: 0; left: 0px; color: #fff; cursor: pointer; font-size: 15px; } .aeplgcon em.showPOP { left: -68px; background: #FF5959; width: 62px; padding: 1px; font-size: 14px; text-align: center; border-radius: 3px; }
