4K USB 3.0 Video Capture Card HDTV 1080P 60Hz HD Video Recorder Grabber For PS4 OBS Game Recording Live Streaming

4K USB 3.0 Video Capture Card HDTV 1080P 60Hz HD Video Recorder Grabber For PS4 OBS Game Recording Live Streaming

Features:

1. It can capture single HDTV signal;

2. The recorded video signal can reach 1080p / 60Hz, HDTV input supports 4K/60Hz;

3. Support MJPEG and YUY2;

4. Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;

5. Some win7 need to install the driver;

6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;

7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);

8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;

9. Can automatically detect the input audio format and convert it to 48KHz PCM audio;

10. 2 collection rods can be used on a PC;

11. Support online firmware upgrade to better improve product compatibility;

12. The picture quality is clearer, the RGB color range is 0 ~ 255, the delay is better;

13. Support all third-party player software compatible with UVC and UAC protocols;

Computer system requirements:

Windows® 10 / Windows 8.1 / Windows 7 (SP1);

Desktop computer: Intel® Core ™ i5-3400 + NVIDIA® GeForce® GT630 or above;

Notebook: Intel Core i7-U 2.0Ghz + NVIDIA GeForce GT735 or above;

Mac: i5 quad-core or above, video card compatible with DirectX 10, sound card, 4GB DDR3 or more

4 GB RAM (8 GB recommended);

Mobile phone system requirements:

Android phone (supported by newer phones);

Only supports USB2, not USB3. (The reason is that android UVC driver does not support USB3);

If it is a USB Android phone, you need to force the pure USB2 cable into the USB2 mode to use

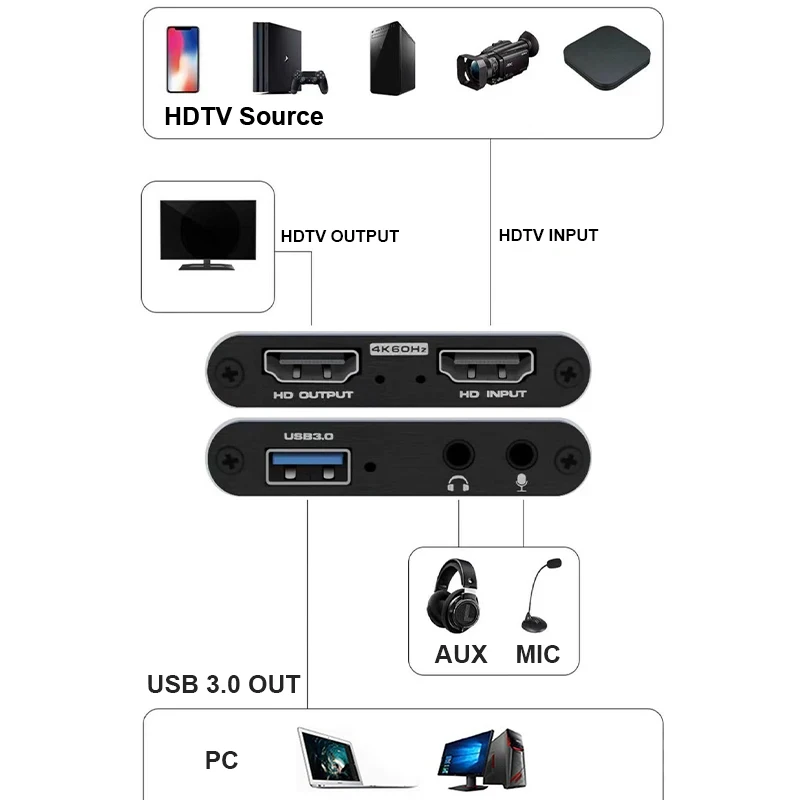

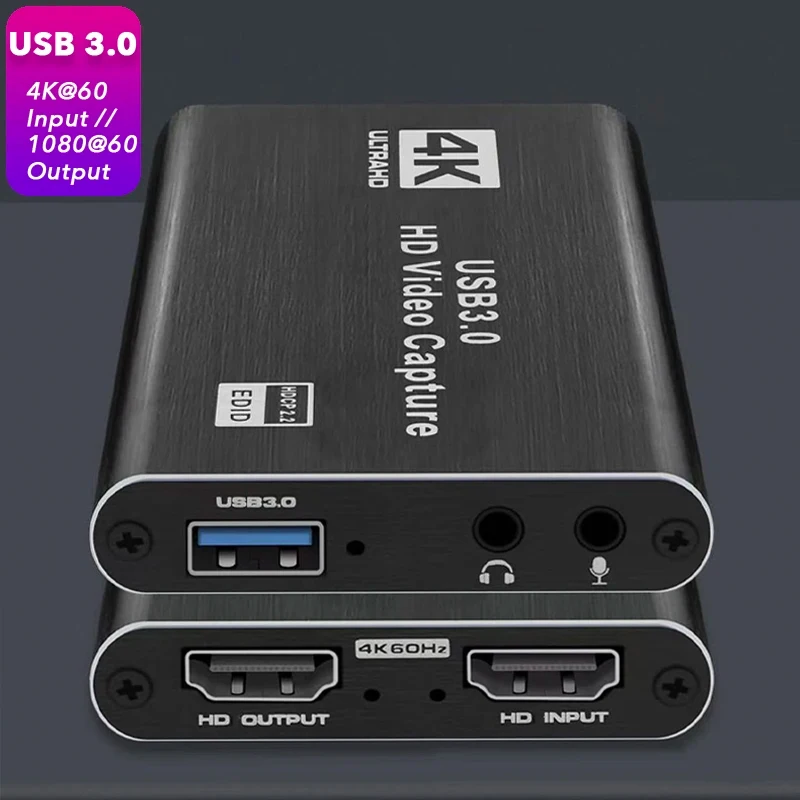

Interface Introduction:

1. Signal indicator: When the device captures video normally, the indicator lights up.

2. Power indicator: When the device is connected to the USB port of the computer, this indicator lights.

3. HDTV input: This slot is where the HDTV output source such as camera, camcorder, game box, IPTV box, etc. is connected.

4. USB3.0 output: This slot is where you connect the USB3.0 input of a computer or laptop.
