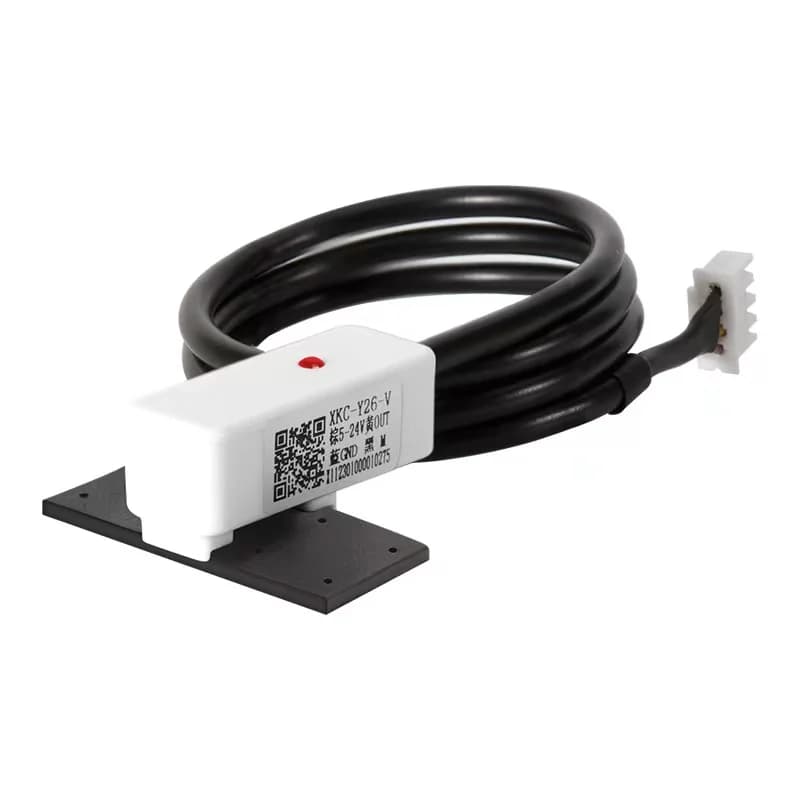

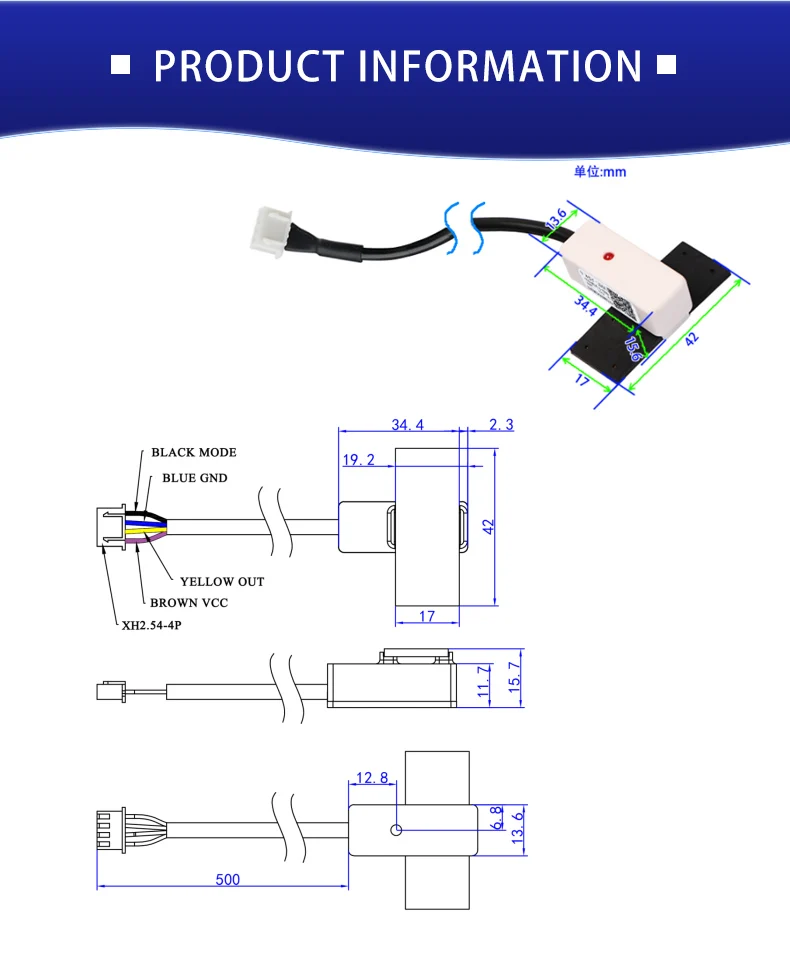

XKC-Y26 Non-Contact Liquid Level Switch Externally Attached Pipeline Water Level Sensor Liquid Sensor Water Level Detector

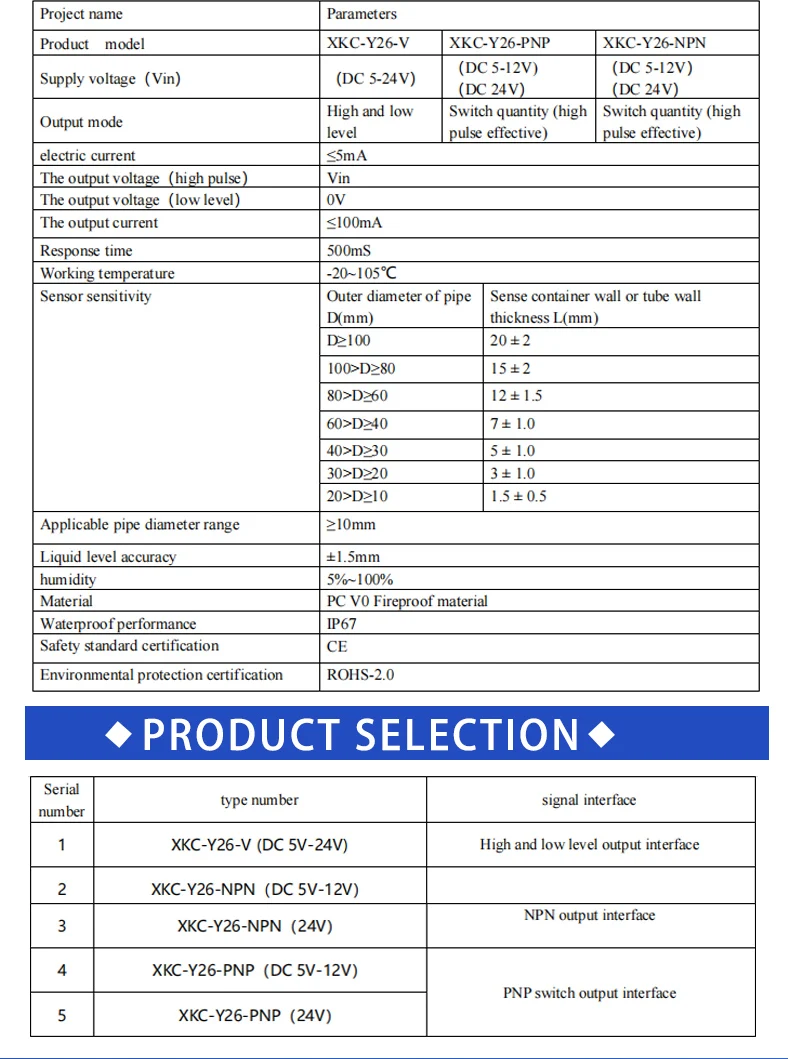

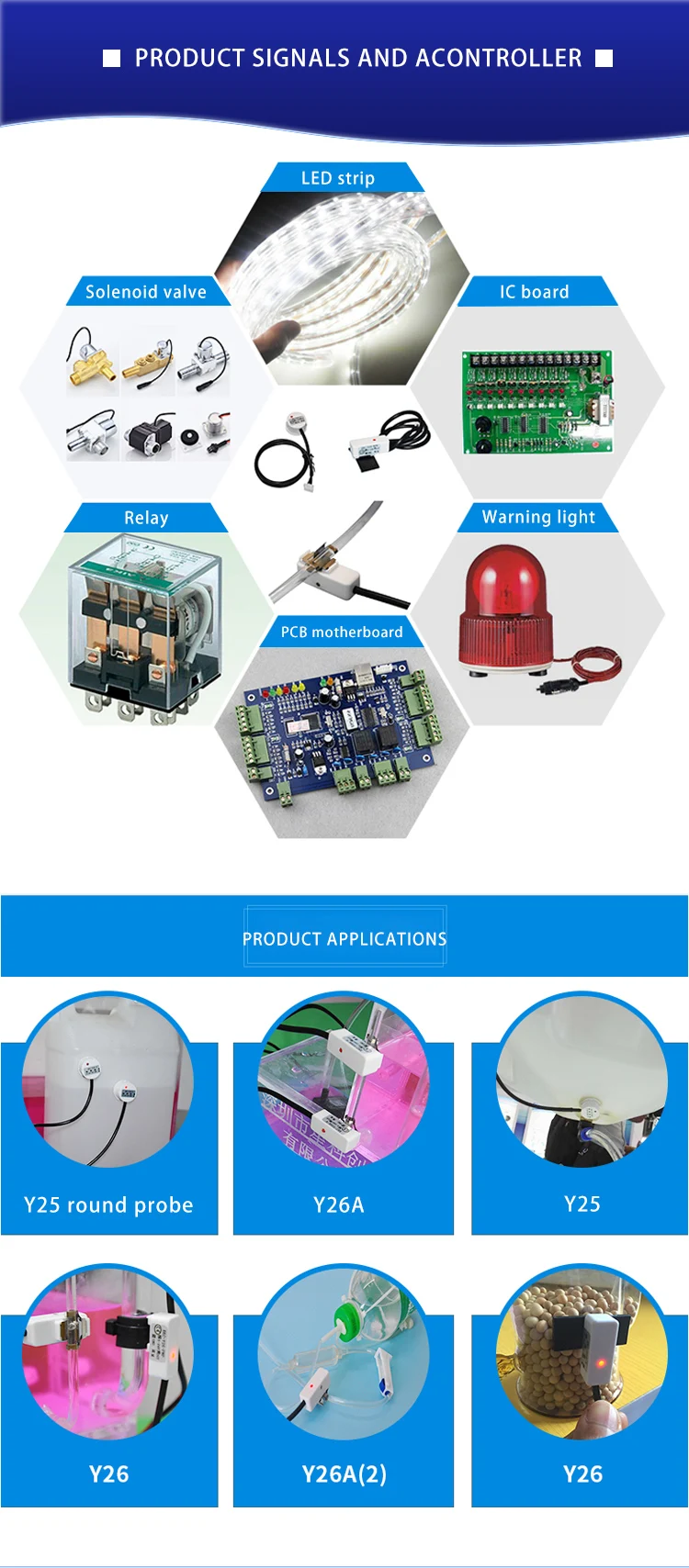

1、product selection

XKC-Y26-XXX series products are specially developed for non-metallic pipeline liquid level detection. This series of liquid level sensors is divided into three signal output interfaces, namely high and low level output interface, NPN output interface, PNP output interface; three models The output mode corresponds to the following three models:

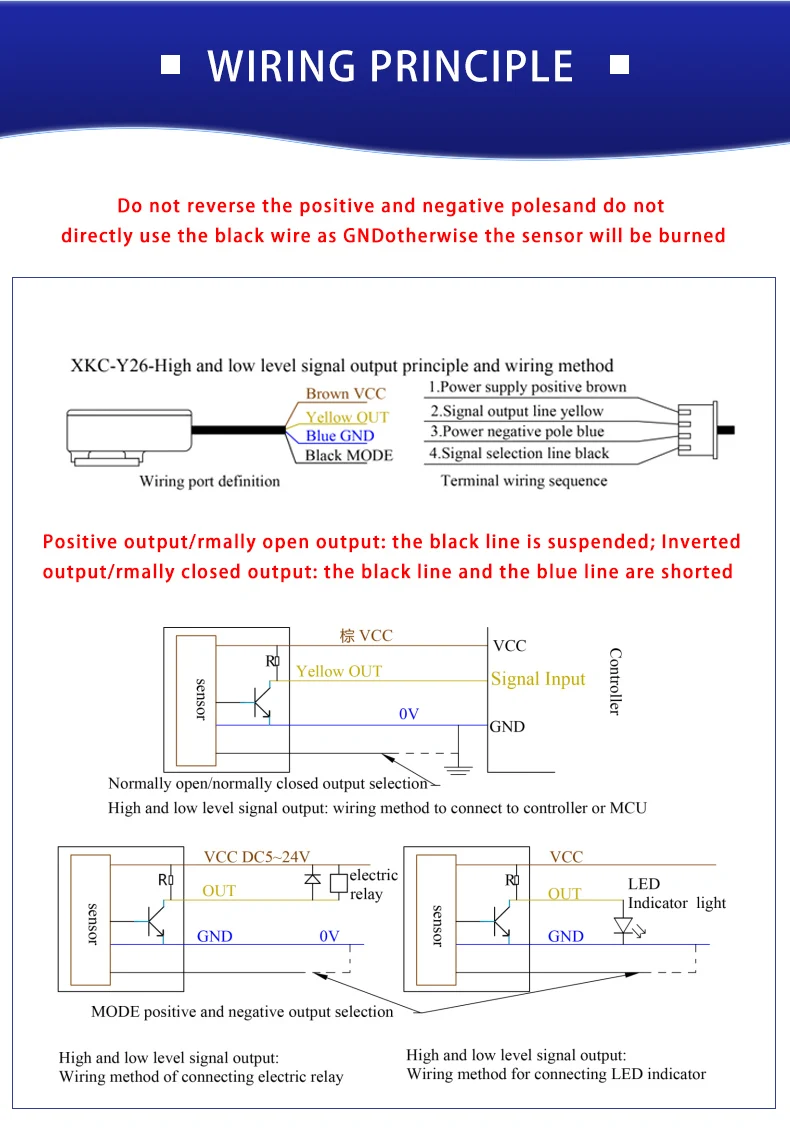

High and low level output interface — Model: XKC-Y26-V

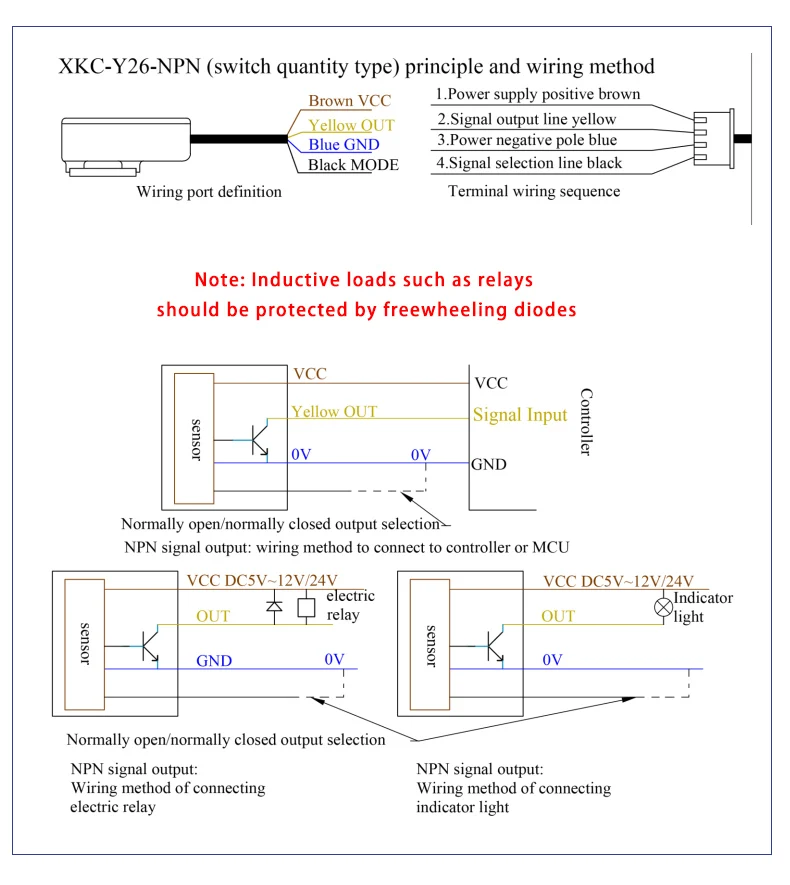

NPN output interface ———— Model: XKC-Y26-NPN

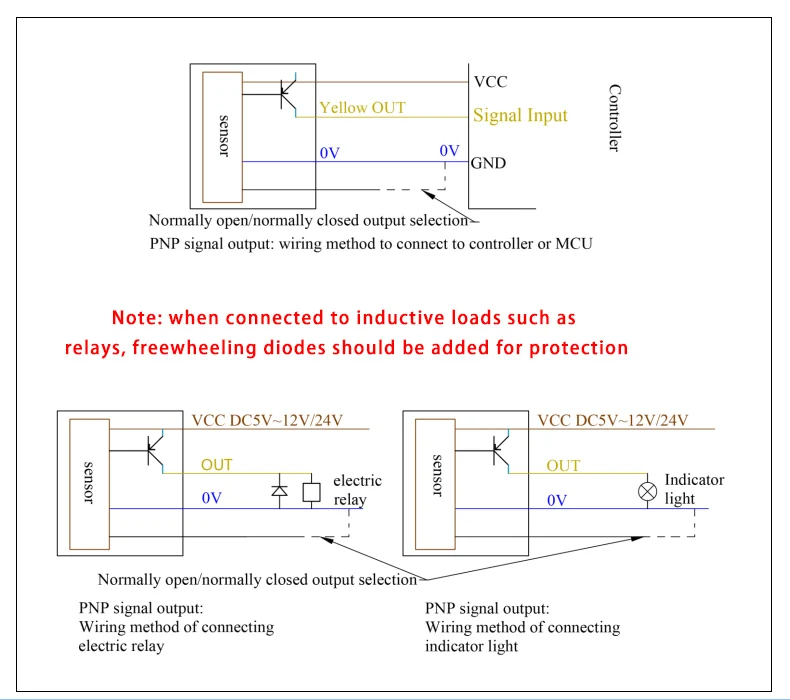

PNP output interface—————Model: XKC-Y26-PNP

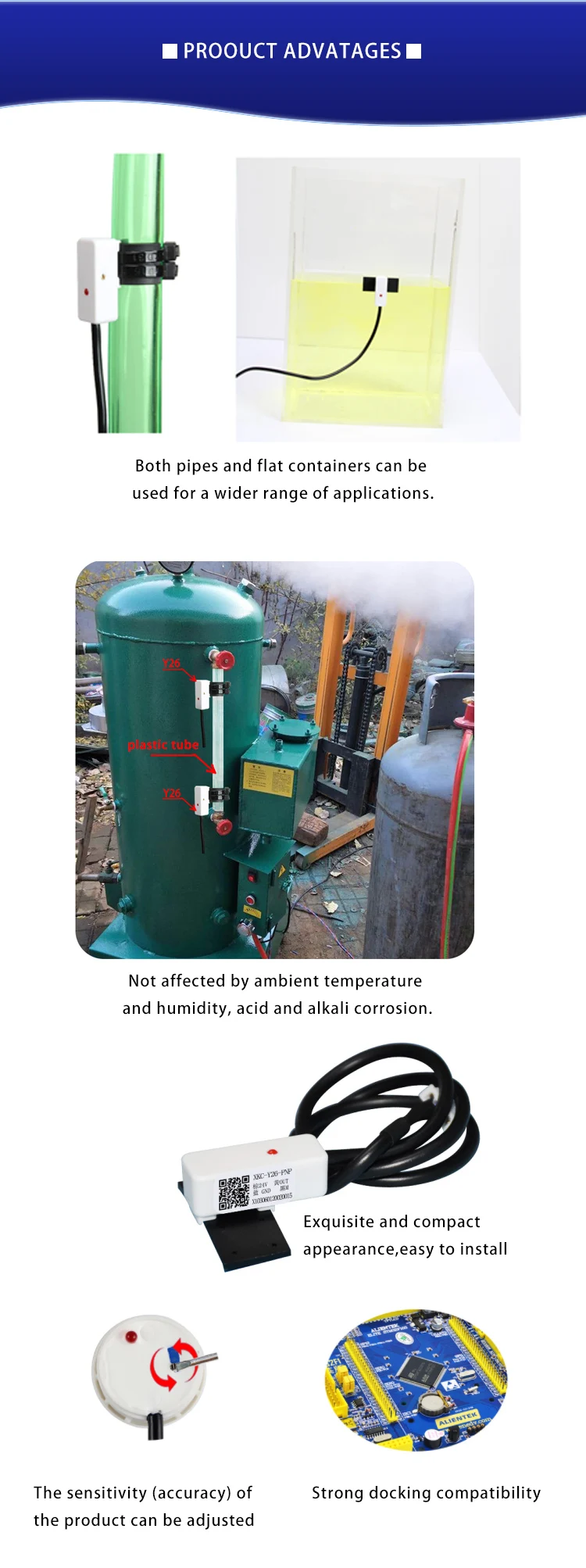

2、Product Features

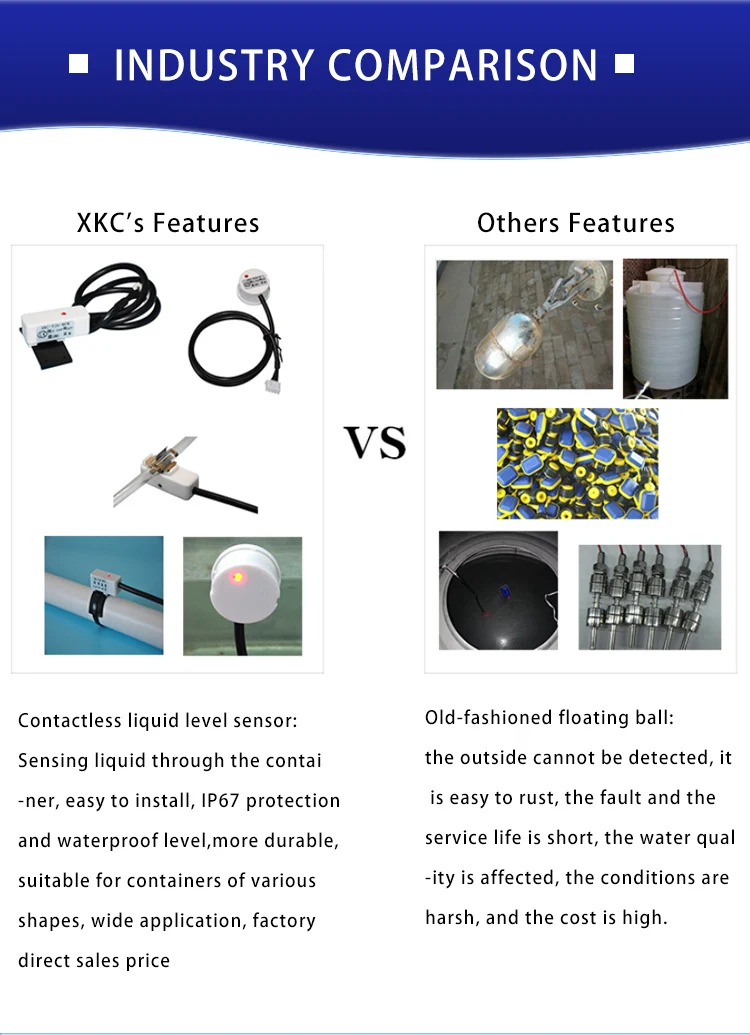

1. XKC-Y26-XXX non-contact liquid level sensor is suitable for all kinds of non-metallic containers, the outer wall of non-metallic pipes without direct contact with the liquid, will not be corroded by strong acids and alkalis and other corrosive liquids, and will not be affected by scale or scale. If other debris is affected, it can be completed to detect whether there is liquid inside the container or pipeline.

2. Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize multi-point series connection. It can support high and low level output, NPN, PNP signal output (please explain with the manufacturer when selecting).

3. The detection is accurate and stable, and the boiling water level can be detected.

4. Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.

5. High stability, high sensitivity, strong interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with all 5~24V power adapters on the market.

6. Strong compatibility, penetrating various non-metallic container pipes, such as plastic, glass, ceramics and other containers, the thickness of the sensing pipe wall can reach 20mm; suitable for various curved, arc, cylindrical containers or pipes Liquid level detection.

7. Wide voltage range (5~24V), suitable for connecting various circuits and product applications.

3、Installation method

The height of the sensed liquid level is related to the sensitivity of the sensor. The higher the sensitivity, the lower the sensed liquid level

Note: The liquid level is sensed in the upper and lower edges of the sensor, which is normal.

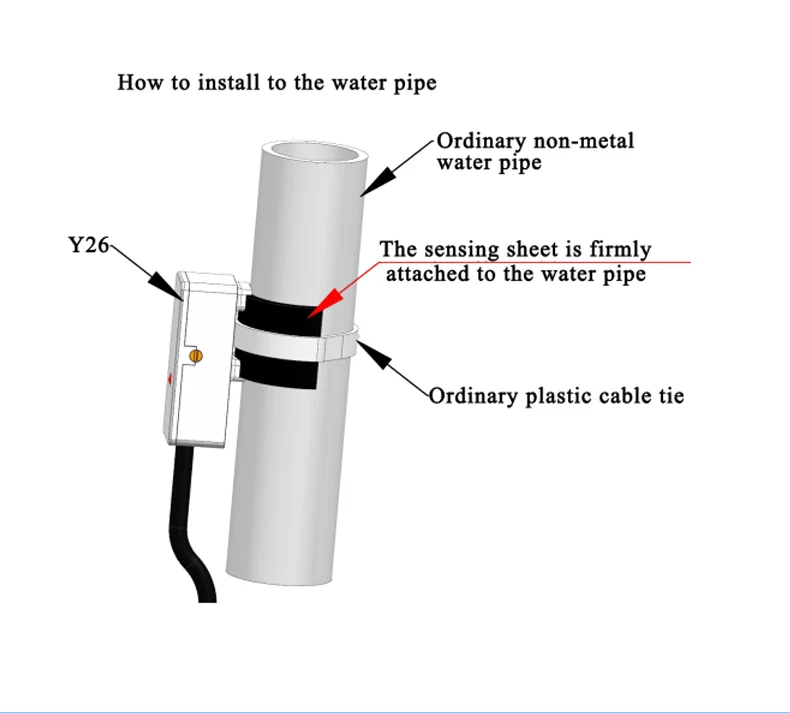

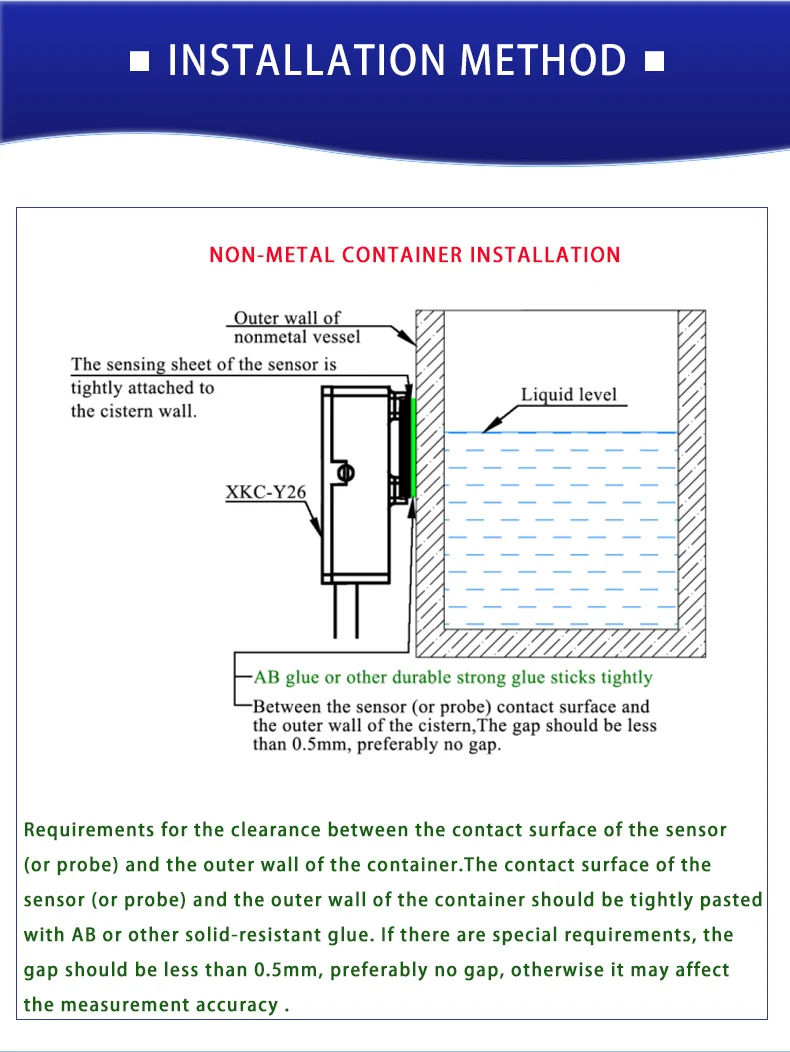

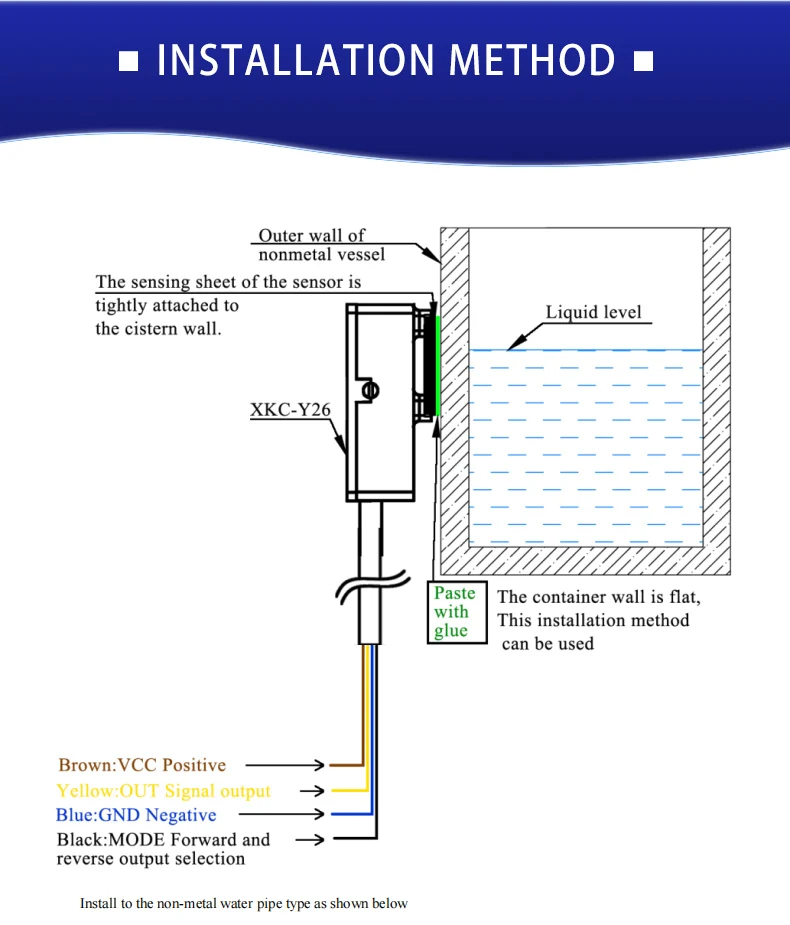

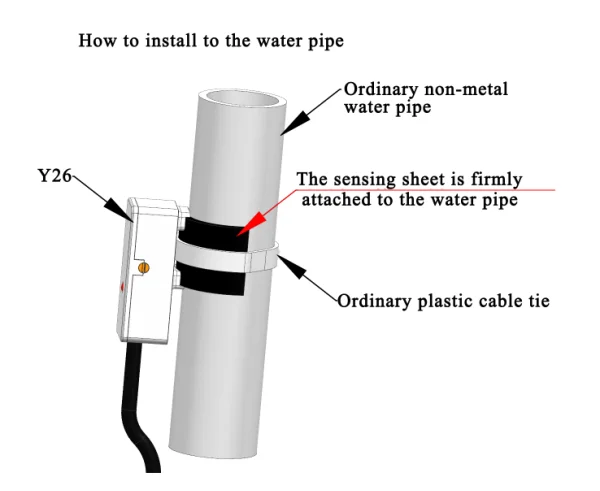

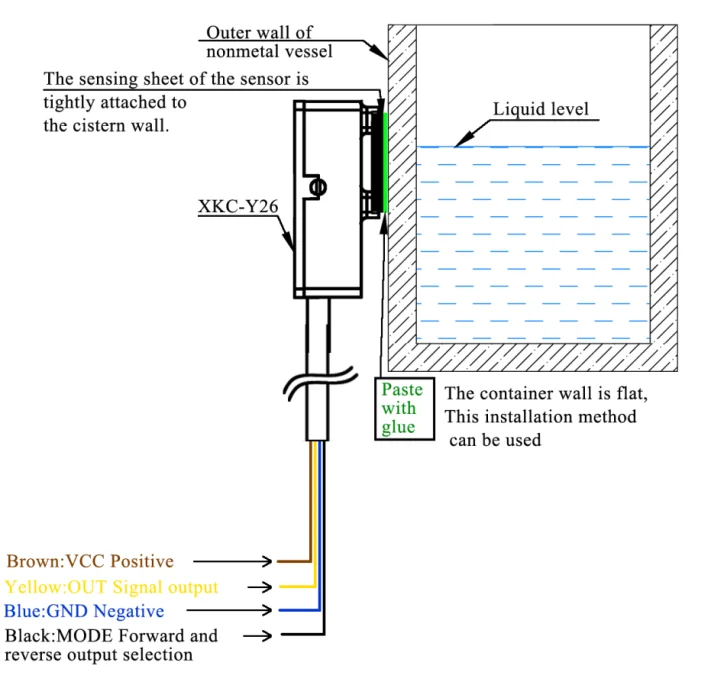

The induction sheet can be tightly attached to the pipe with strong glue, or it can be tightened with the pipe with a nylon cable tie. Try to avoid metal and other parts where the probe is installed, so as not to affect the detection. Pipes made of non-metallic materials with a smooth surface, uniform thickness, tight material, and good insulation performance; such as glass pipes, plastic pipes, PC/PVC/PPR pipes, non-absorbent ceramic pipes, acrylic pipes, rubber pipes, etc. or their composites Pipes made of materials.

4、Sensitivity adjustment

If the non-contact liquid level sensor cannot detect or the detected liquid level is too high from the Y26 sensor.

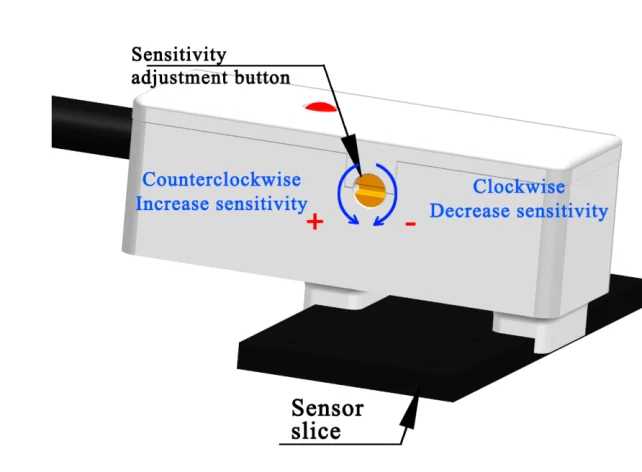

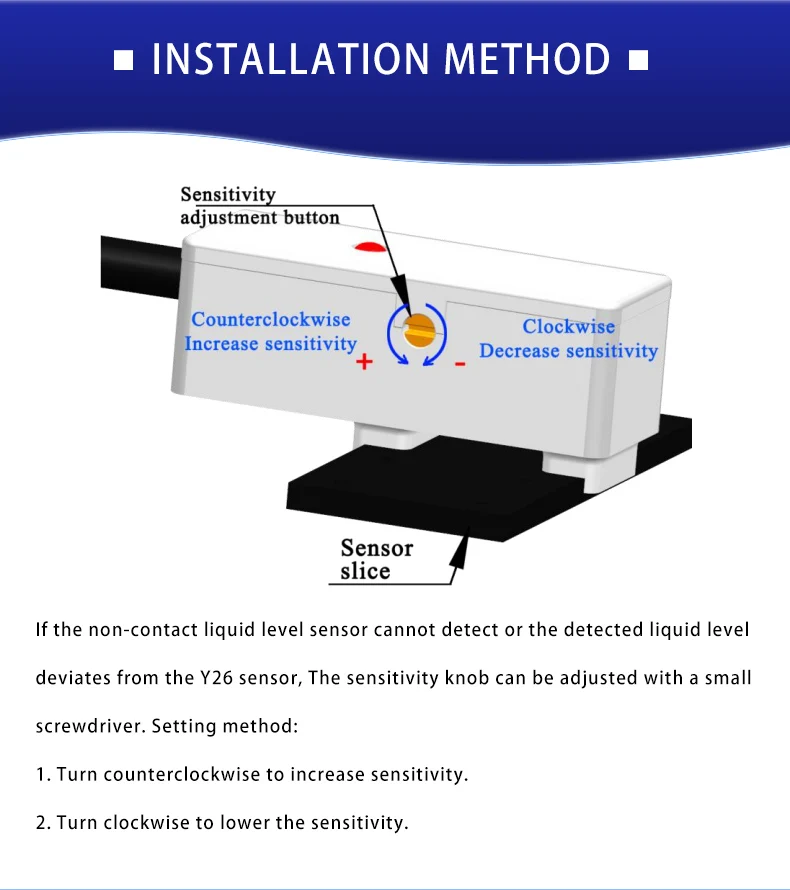

The sensitivity knob can be adjusted with a small screwdriver, and there are two setting methods:

1. Low sensitivity adjustment: turn counterclockwise to increase sensitivity.

2. High sensitivity adjustment: turn clockwise to lower the sensitivity.
