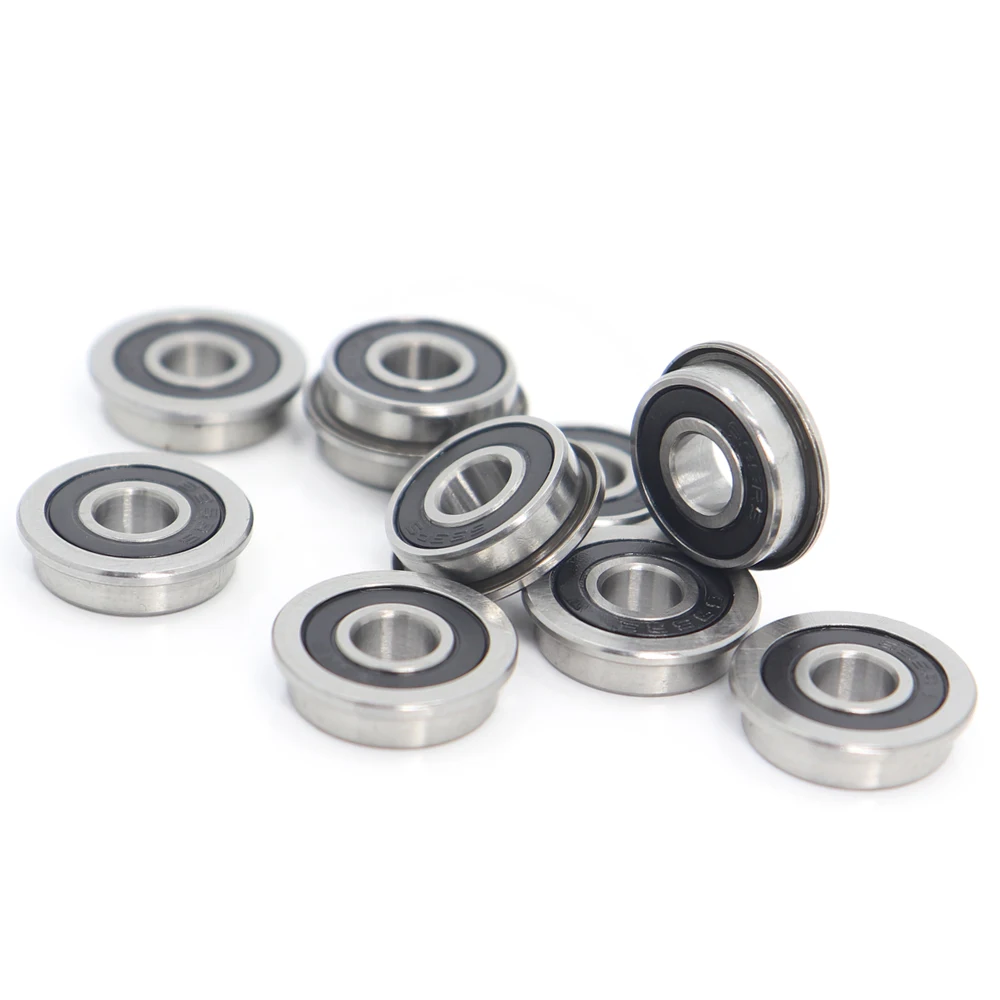

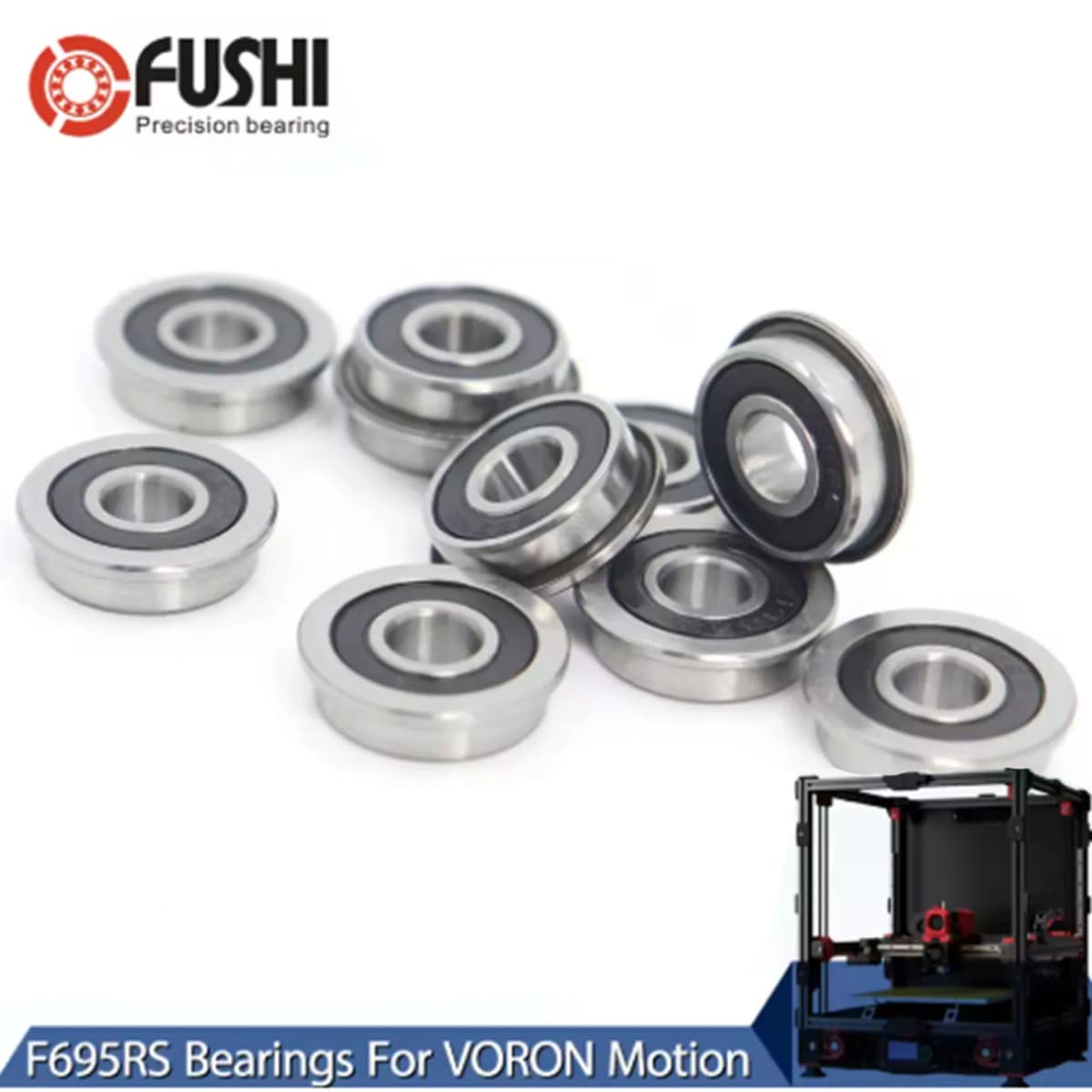

FUSHI F695 2RS Bearing 5*13*4 mm 10Pcs ABEC-7 Flanged Miniature F695 RS Ball Bearings F695RS For VORON Mobius 2/3 2/4 3D Printer

About Products:

01，We have overseas warehouses, some of which will be delivered the next day.
02，If you are a Drop-shipping buyer, we provide unmarked service.
03，If you have wholesale quantity, we provide customized brand service.

About Shipping:

04，We support 30 days no reason return standard, worry free return service.
05，All packages in our FUSHI store provide tracking service.
06，We provide free transportation insurance to protect the safety of your goods.

About Services:

07，We provide bearing drawings, data and proforma invoice free of charge.
08，If you are preparing for a new project, we support custom bearing requirements.
09，If you have any questions, please contact our customer service,
We will reply within 24 hours on weekdays.

Thank you, VORON Design

The original goal of the VORON project, back in 2015, was to create a no-compromise 3D printer that was fun to assemble and a joy to use. It had to be quiet, clean, pretty, and continue to operate 24 hours a day without requiring constant fiddling. In short a true home micro-manufacturing machine without a hefty price tag.
Our FUSHI official store has been open for 8 years, and it is the first batch of top brands business certification in AliExpress. Our mission is to provide high quality and cost-effective bearings.
This is in line with the spirit of VORON Design, so we have developed a series of bearing for Voron printers. Convenient for to buy and assemble.
If you are an Educational Institution or Public Welfare Organization, please contact us for more price discount and sample support.

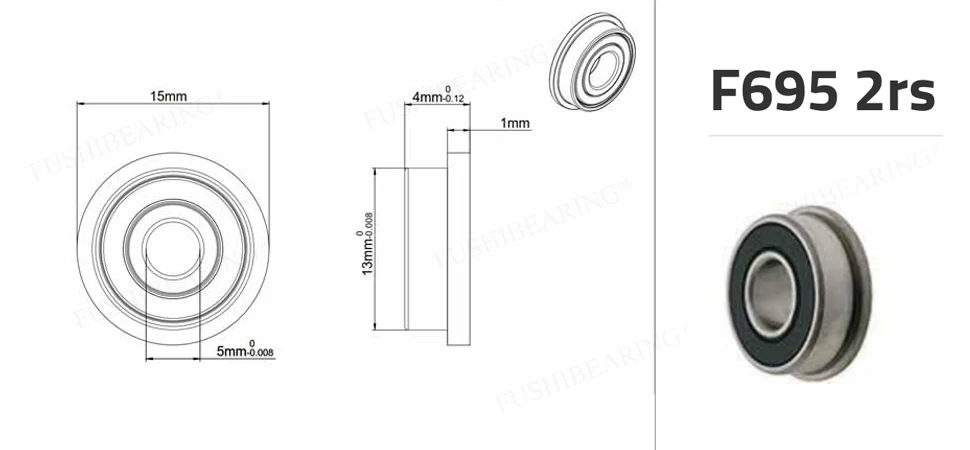

TECHNICAL SPECS

Model: F695 2RS
Accuracy Class: ABEC-7
Bearing Type: Flange Ball Bearing
Bearing Material GCr15 Bearing Steel
Ball Material: GCr15 Bearing Steel
Seal Type: Rubber Seal Cover
Shaft diameter:5 mm

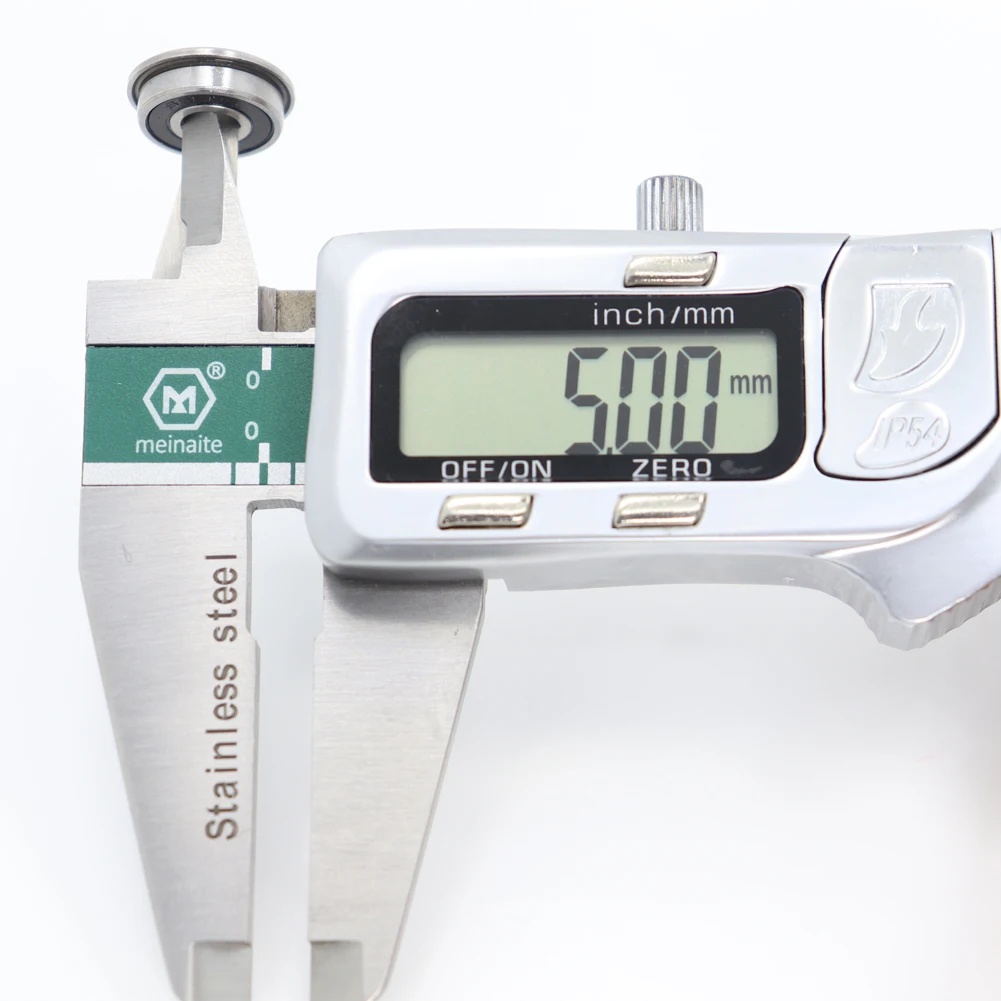

Inner diameter (d):5 mm

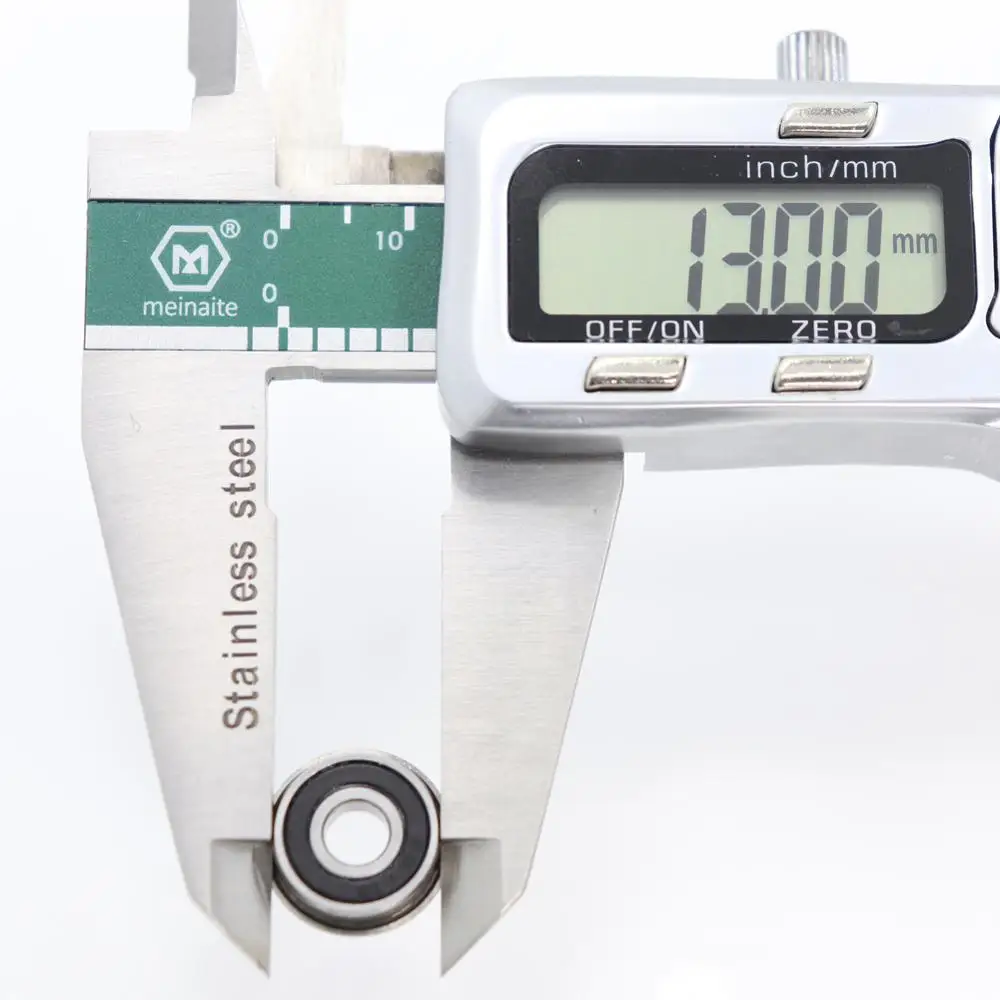

Seat hole: 13mm
Outer diameter (D): 13mm

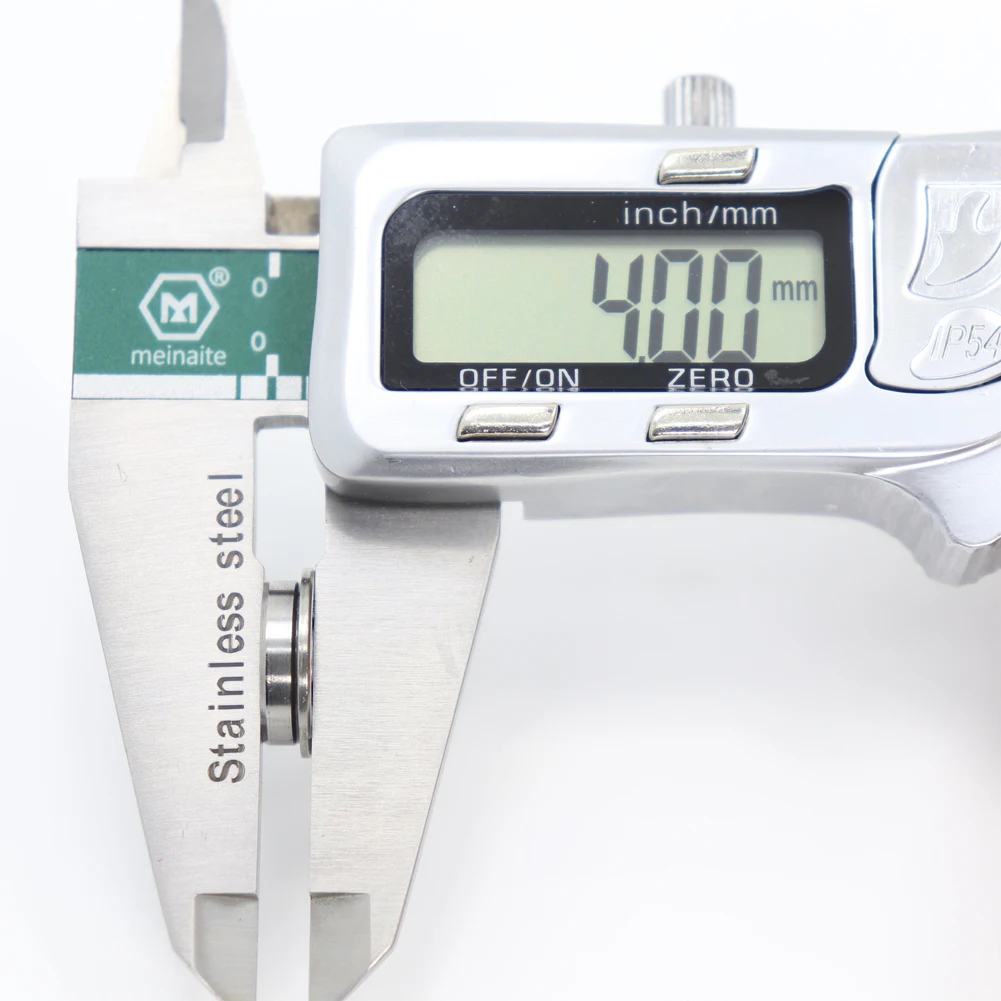

Width (B):4mm
Flange OD:15mm
Flange thickness:1mm
Dynamic load (Cr) (N): 916
Static load (Cor) (N): 346
Limiting speed (oil) (X1000 RPM):46
Speed limit (oil) (X1000 RPM): 52
Clearance level: C0
Number of balls: 8

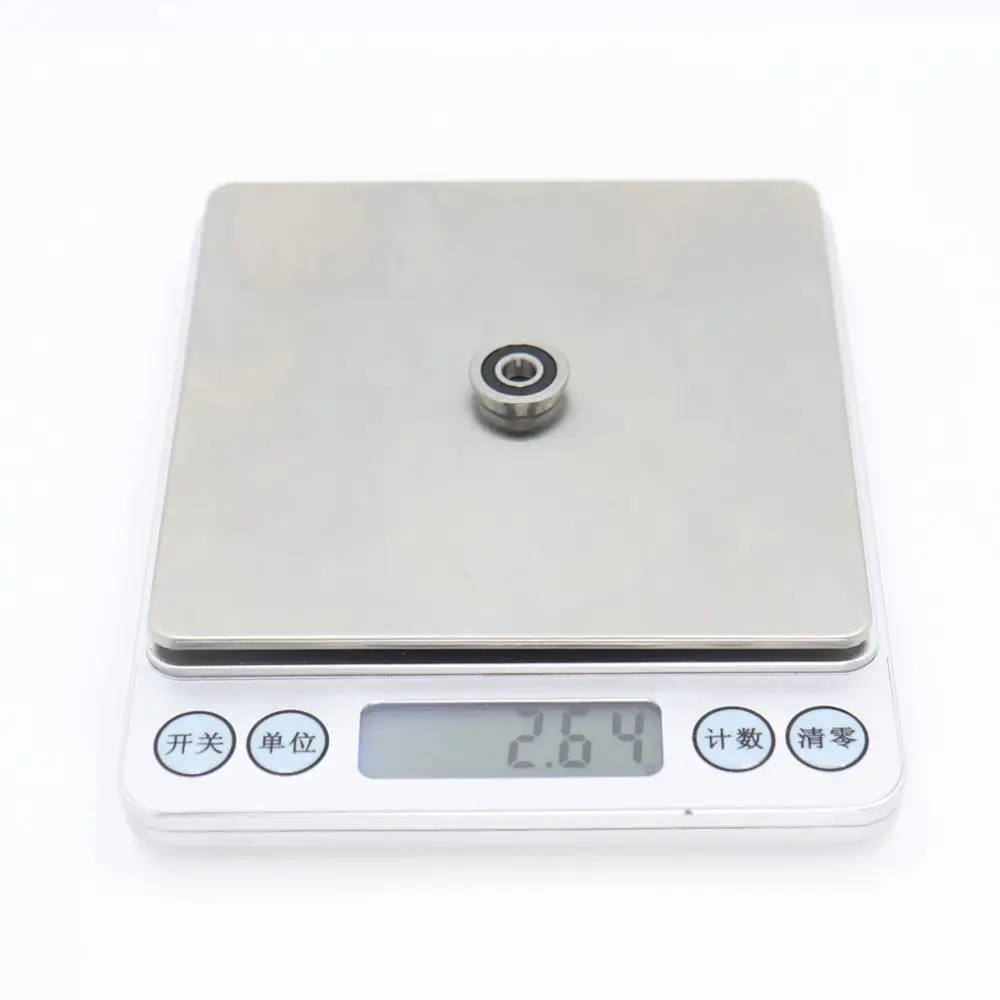

Weight: 2.65g

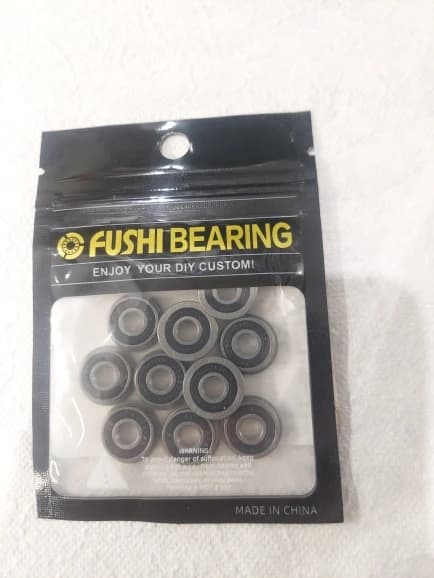

Quantity: 1 Lot = 10 Pcs

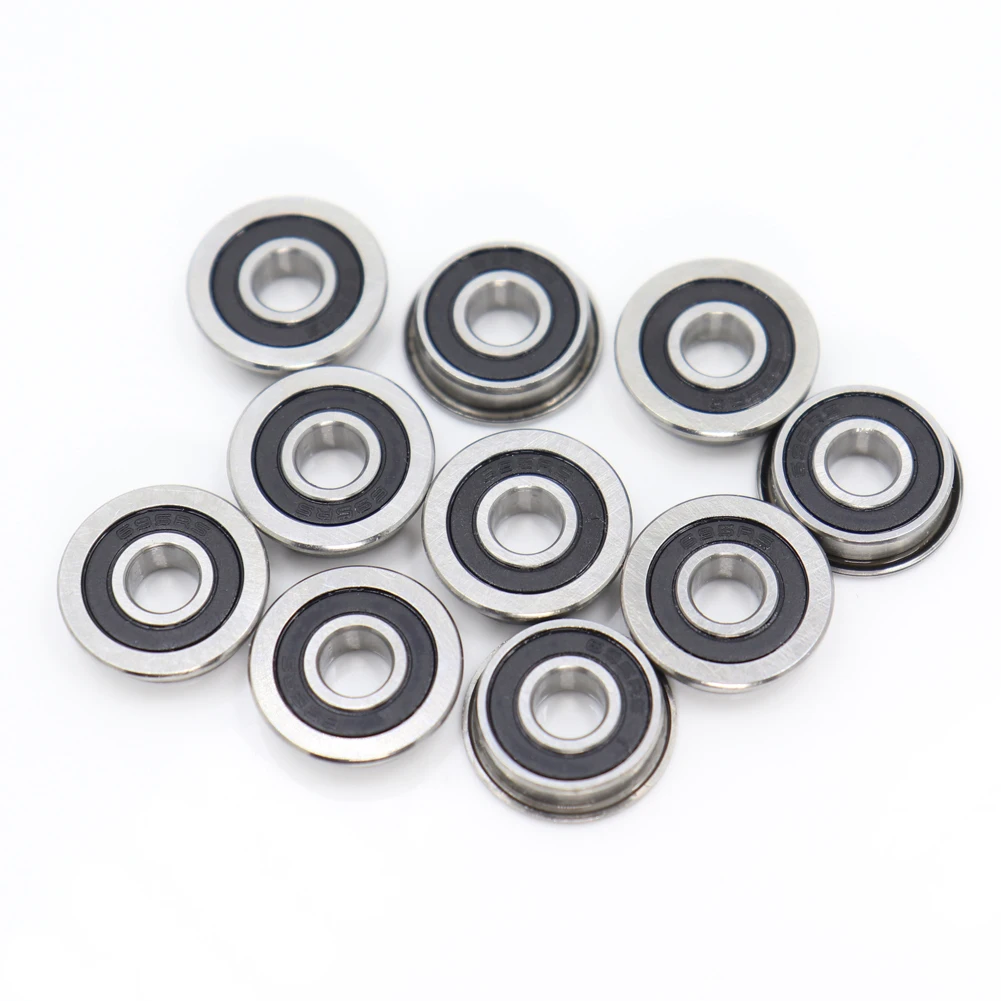

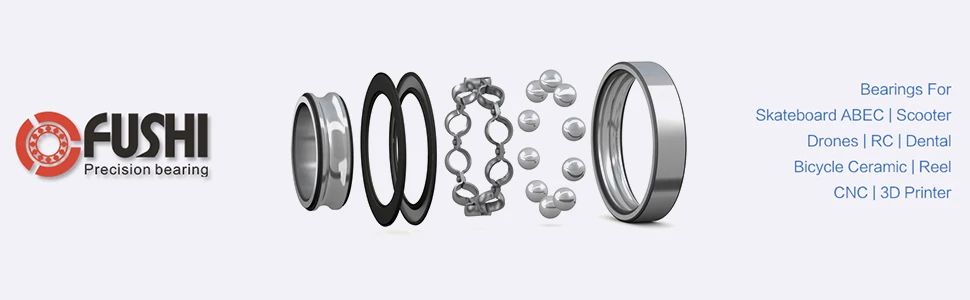

BEARINGS DETAIL ↓

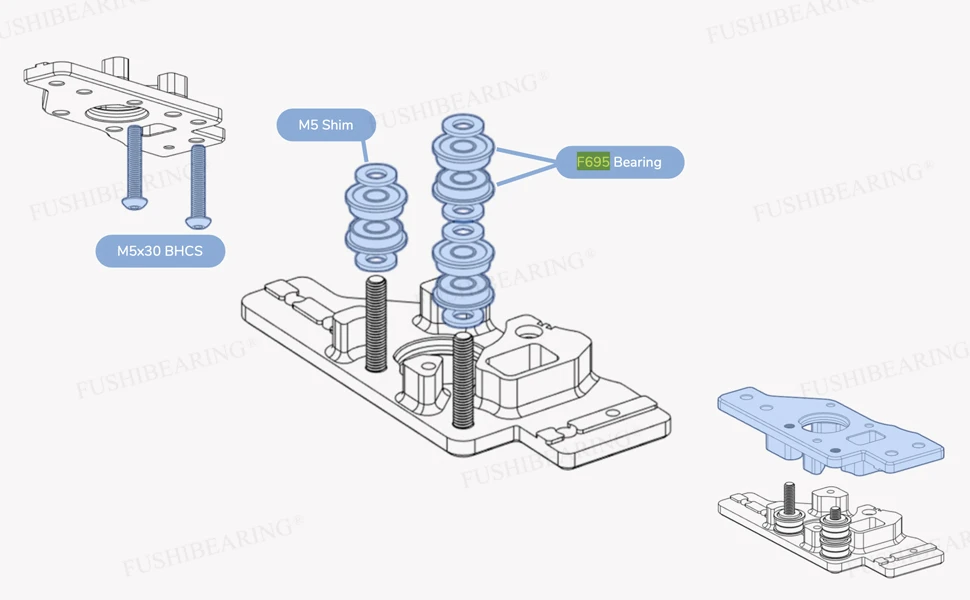

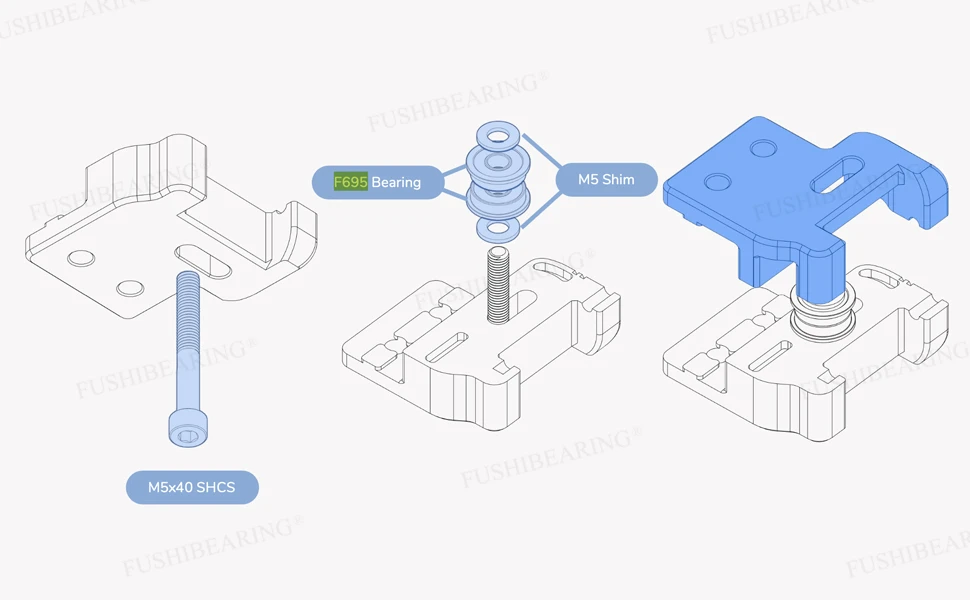

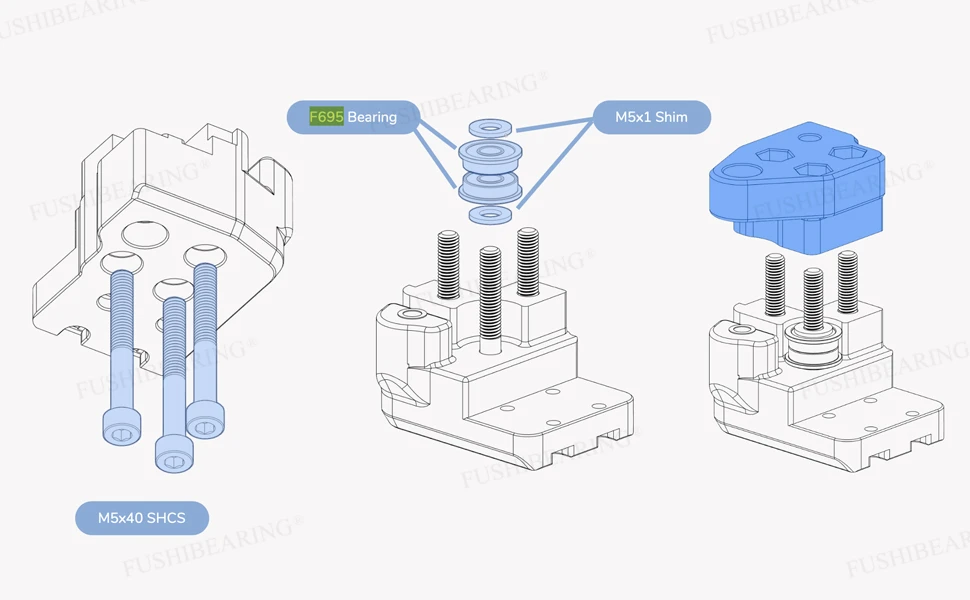

USE RECOMMEND ↓

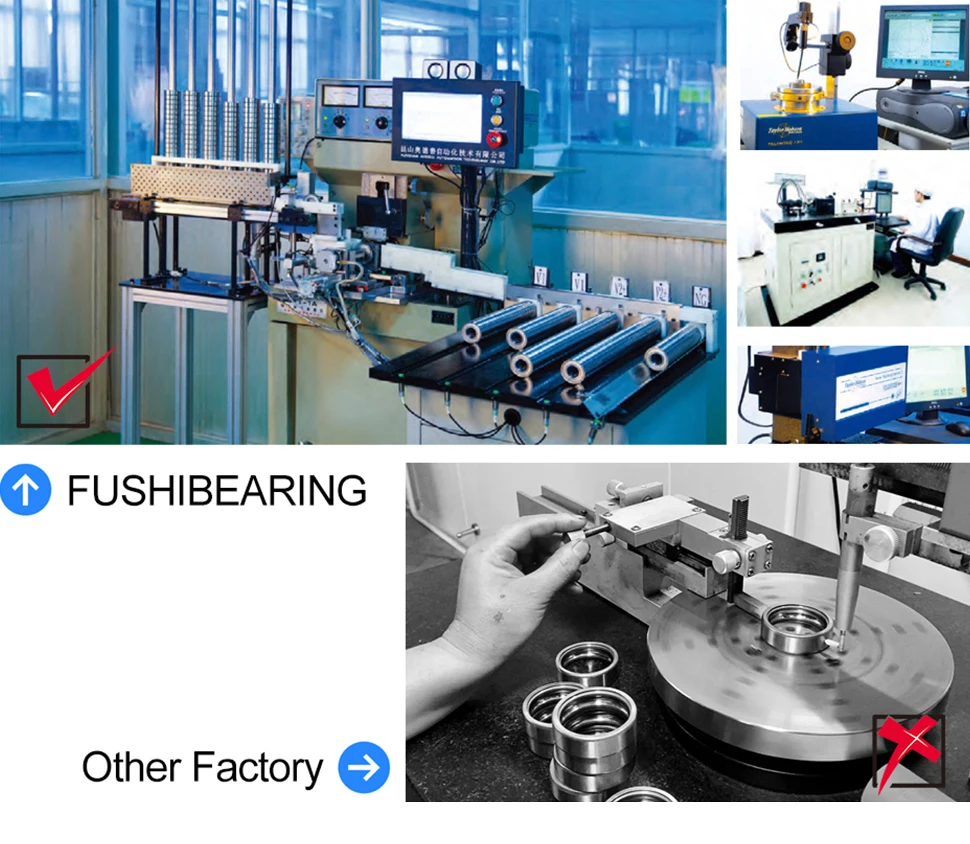

Automatic Testing Equipment ↓

According to GB & ISO standard, grade each product.
Ensure that the quality and grade of products are consistent, and do not make false publicity.

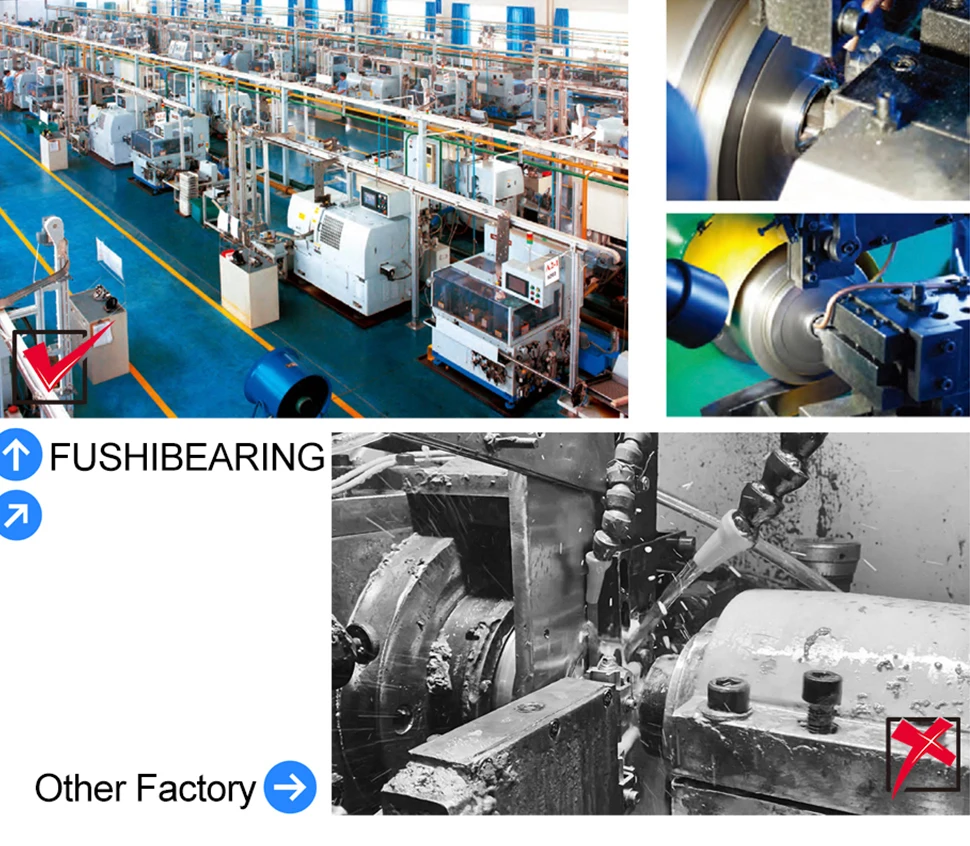

Advanced Social Security Production Line ↓

Clean working environment, a new generation of mirror grinding technology.
Complete automatic production line, superior to stable quality supply.

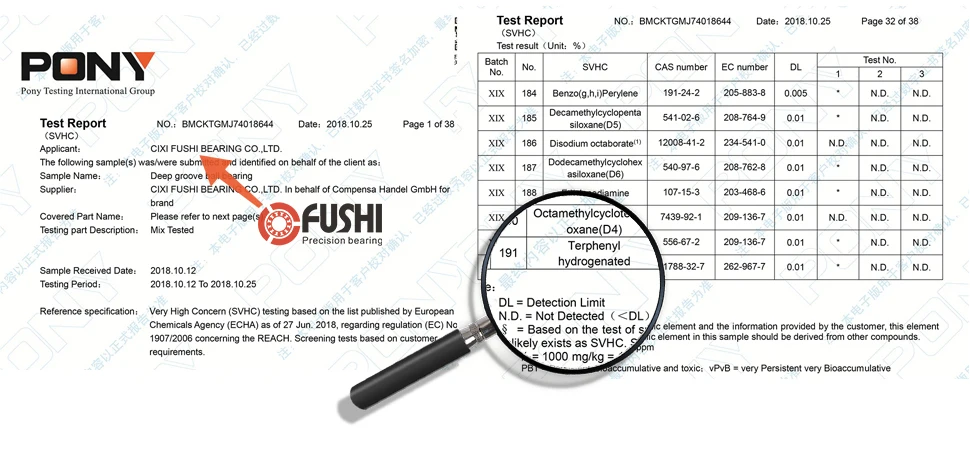

Authoritative Quality Inspection Certification ↓

We entrust PONY testing group to test,
Through RoHS and REACH a total of 191 component testing,
All qualified standards. ( N.D.)

If you can't find the bearings, come to FUSHI

There are more than 50,000+ models of bearings in the world,
We can offer 10,000+ of them,
And 4,050+ models remain in stock.
